yeahmag |
![]()
Post
#1
|
Advanced Member ![]() ![]() ![]() ![]() Group: Members Posts: 2,448 Joined: 18-April 05 From: Pasadena, CA Member No.: 3,946 Region Association: Southern California ![]() ![]() |
|
yeahmag |
![]()
Post
#2
|
Advanced Member ![]() ![]() ![]() ![]() Group: Members Posts: 2,448 Joined: 18-April 05 From: Pasadena, CA Member No.: 3,946 Region Association: Southern California ![]() ![]() |
|
yeahmag |
![]()
Post
#3
|
Advanced Member ![]() ![]() ![]() ![]() Group: Members Posts: 2,448 Joined: 18-April 05 From: Pasadena, CA Member No.: 3,946 Region Association: Southern California ![]() ![]() |
|
yeahmag |
![]()
Post
#4
|
Advanced Member ![]() ![]() ![]() ![]() Group: Members Posts: 2,448 Joined: 18-April 05 From: Pasadena, CA Member No.: 3,946 Region Association: Southern California ![]() ![]() |
|
PeeGreen 914 |
![]()
Post
#5
|
Just when you think you're done...wait, there is more..lol ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 10,219 Joined: 21-September 06 From: Seattle, WA... actually Everett Member No.: 6,884 Region Association: Pacific Northwest ![]() ![]() |
(IMG:style_emoticons/default/beerchug.gif) Nice, This is very similar to what you would pay a few hundred for.
Now all you need are scales (IMG:style_emoticons/default/wink.gif) |
yeahmag |
![]()
Post
#6
|
Advanced Member ![]() ![]() ![]() ![]() Group: Members Posts: 2,448 Joined: 18-April 05 From: Pasadena, CA Member No.: 3,946 Region Association: Southern California ![]() ![]() |
I know! That part is still killing me...
|
URY914 |
![]()
Post
#7
|
I built the lightest 914 in the history of mankind. ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 126,233 Joined: 3-February 03 From: Jacksonville, FL Member No.: 222 Region Association: None ![]() |
Leave them on and use them for curb feelers. (IMG:style_emoticons/default/biggrin.gif)
|
Andyrew |
![]()
Post
#8
|
Spooling.... Please wait ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 13,377 Joined: 20-January 03 From: Riverbank, Ca Member No.: 172 Region Association: Northern California ![]() ![]() |
String alignment works great for toe in/out, but IMHO I dont see it helping with camber or caster...
I use 2 4x4's and a tape measure and a buddy... Then drive to the alignment shop and pay the man $50 to tell me I did it right and give me a printout of camber/caster/toe/"walk". (IMG:style_emoticons/default/biggrin.gif) I also use a bubble camber guage... Cross between the two below. http://cgi.ebay.com/ebaymotors/New-Aluminu...=item2eb4cc14e1 http://cgi.ebay.com/ebaymotors/Tenhulzen-A...=item4aab1e936e |
whatabout1 |
![]()
Post
#9
|
Toys in Red ![]() ![]() Group: Members Posts: 403 Joined: 6-March 06 From: Charlotte, NC Member No.: 5,676 Region Association: None ![]() |
For camber just get on flat floor (doesn't need to be level).
Put a framing square on the floor and against the tire so you have a 90 to floor. Measure from square to bottom of wheel rim then measure from sq to top of wheel rim. (Rim not tire) Figure the diffence and wheel diameter between measuring points and do the trig or http://www.furybusa.org.uk/camber.php Not perfect but close enough. |
Eric_Shea |
![]()
Post
#10
|
PMB Performance ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() Group: Admin Posts: 19,301 Joined: 3-September 03 From: Salt Lake City, UT Member No.: 1,110 Region Association: Rocky Mountains ![]() ![]() |

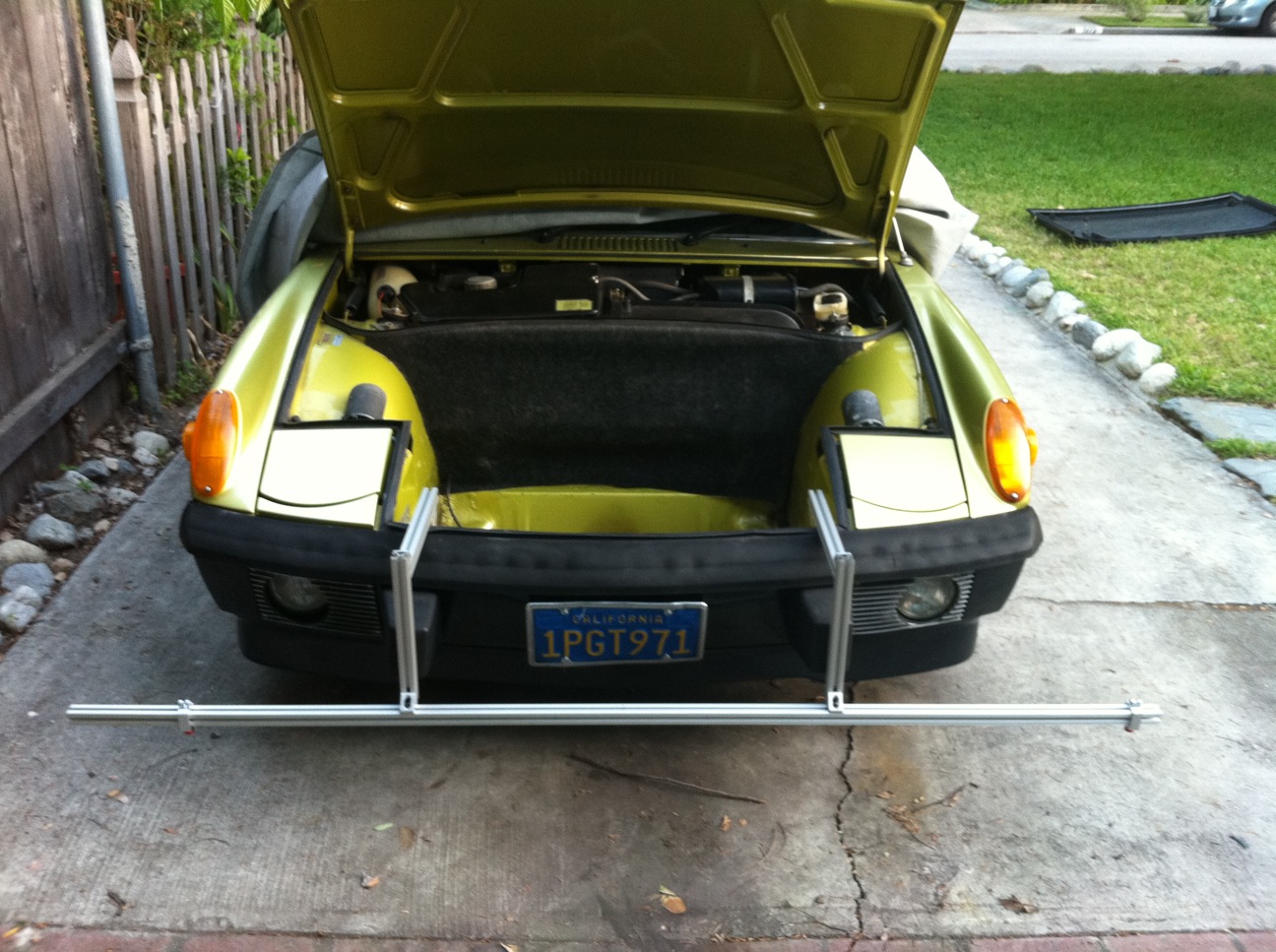

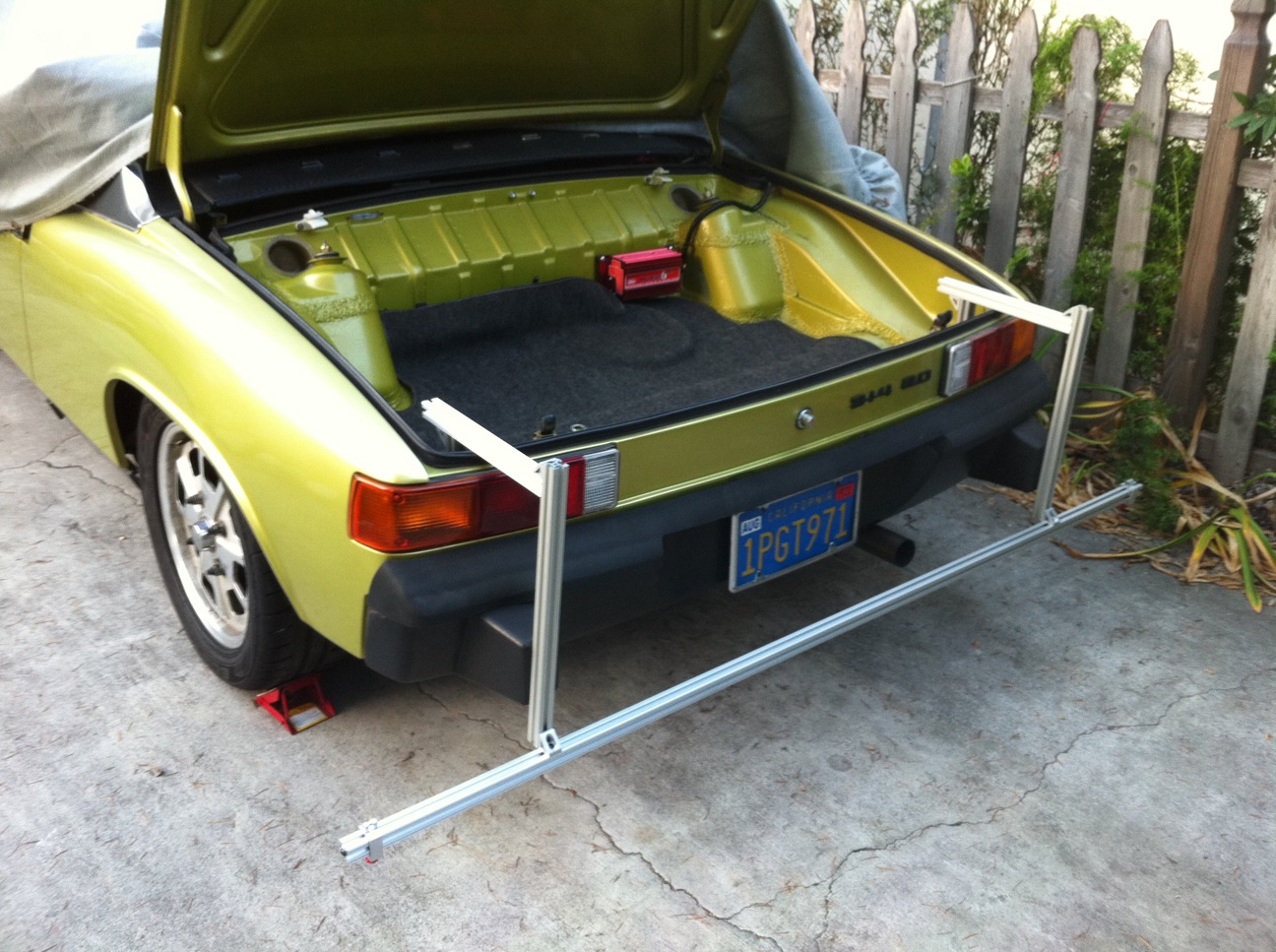

QUOTE This was built using 80/20 hardware and a friend of mine on the mill: How much to do a second one? |
SirAndy |
![]()
Post
#11
|
Resident German ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() Group: Admin Posts: 42,200 Joined: 21-January 03 From: Oakland, Kalifornia Member No.: 179 Region Association: Northern California ![]() |
I use 2 4x4's and a tape measure and a buddy... Then drive to the alignment shop and pay the man $50 to tell me I did it right and give me a printout of camber/caster/toe/"walk". (IMG:style_emoticons/default/biggrin.gif) The problem with that is that a two wheel alignment does not ensure the whole car is square. We use camber plates at the track for quick setups, but you're only setting the front or the rear at any given time. If the car is not squared, you'll be crabbing down the road ... (IMG:style_emoticons/default/shades.gif) |
Krank |
![]()
Post
#12
|
Member ![]() ![]() Group: Members Posts: 140 Joined: 11-October 09 From: Winnipeg, MB Member No.: 10,922 Region Association: Canada ![]() |

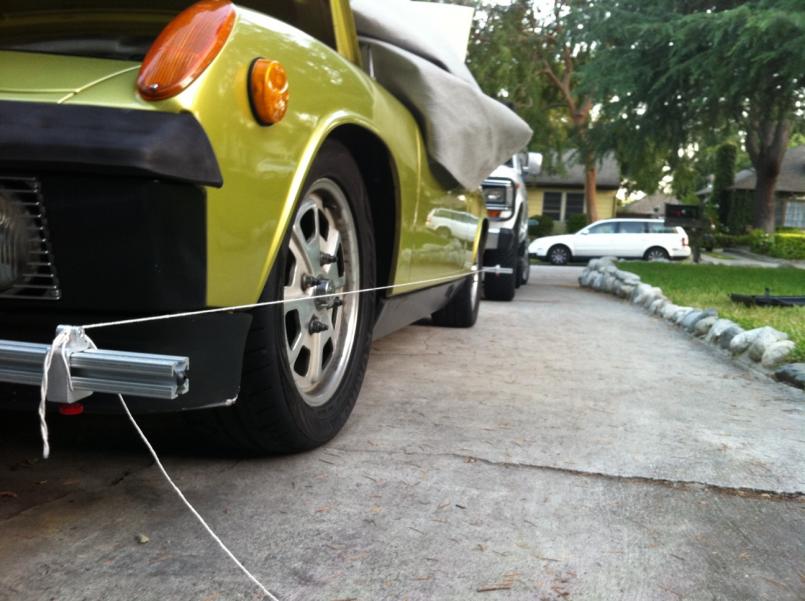

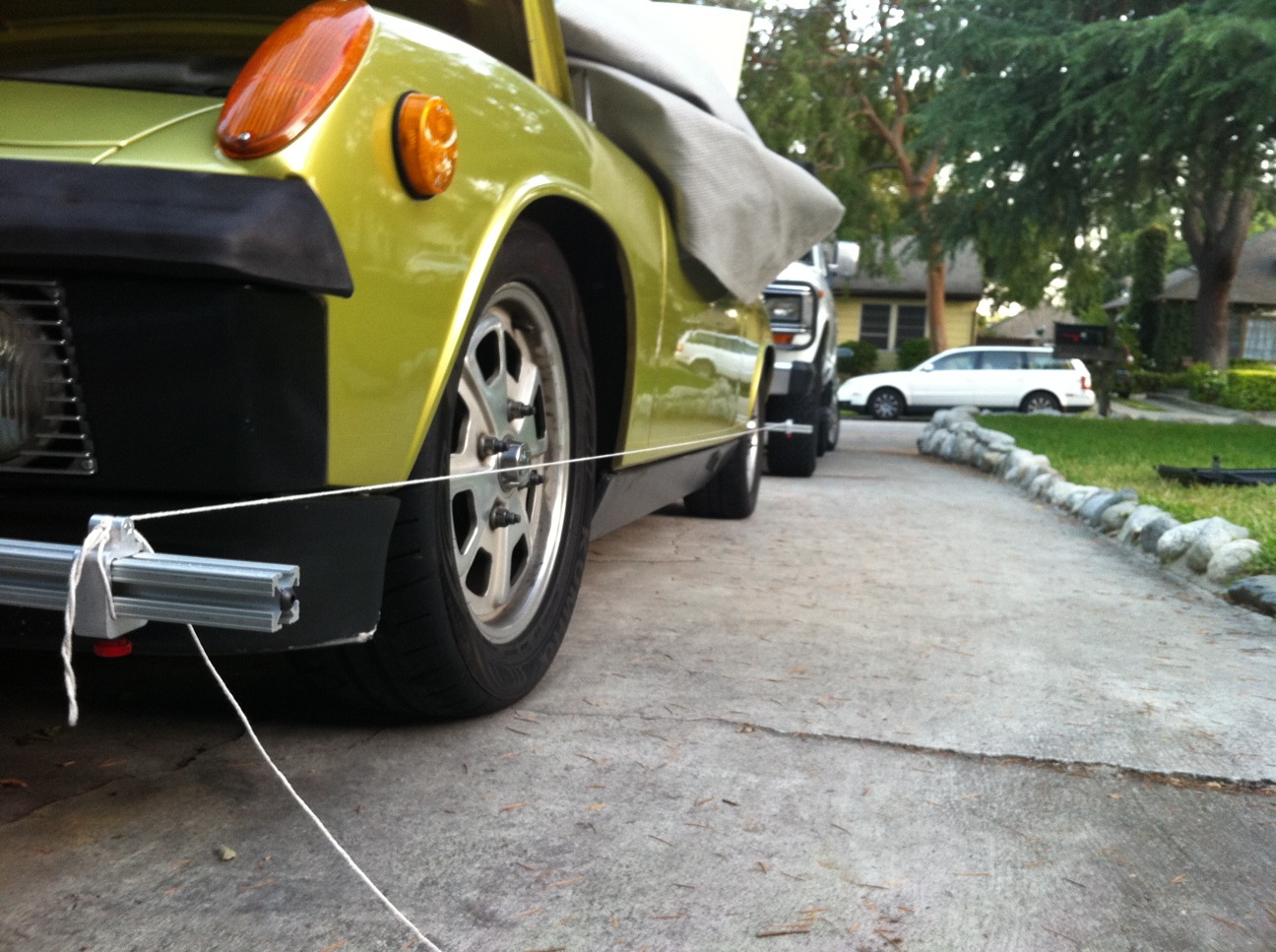

The bars are *exactly* the same length and indexed *exactly* the same. So all I should need to do is measure off the front and rear (L & R) and I will have a parallelogram very quickly. ![]() I was never a huge fan or "string" alignments that I used to do in the 70s and I am still not a fan of them. Too many discrepancies. Wheel track must be 100% the same between front and rear axles to get an accurate toe in measurement/setting. If you were to start with a true toe in setting of 1/8" and then widen the front axle wheel track by 1.00" your string method of measurement now reads a different toe reading. This is just to show the change in toe that is possible. Don't get me wrong, this method may get you close but using jack stands as string anchors would probably work just as well. Seeing as you are measuring the distance from the string to the tire 9 0'clock, axle center, and 3 o'clock positions to obtain a parallel line on each side of the car and give you an idea of toe in/out. If all you wish to accomplish is proper toe setting, a "toe bar" scribe method would be more accurate. To be honest, I have never looked up the wheel track or steer axle set back specs of a 914 and it may be exactly the same and work fine but just so you are aware that there are many vehicle that are not the same. |
yeahmag |
![]()
Post
#13
|
Advanced Member ![]() ![]() ![]() ![]() Group: Members Posts: 2,448 Joined: 18-April 05 From: Pasadena, CA Member No.: 3,946 Region Association: Southern California ![]() ![]() |

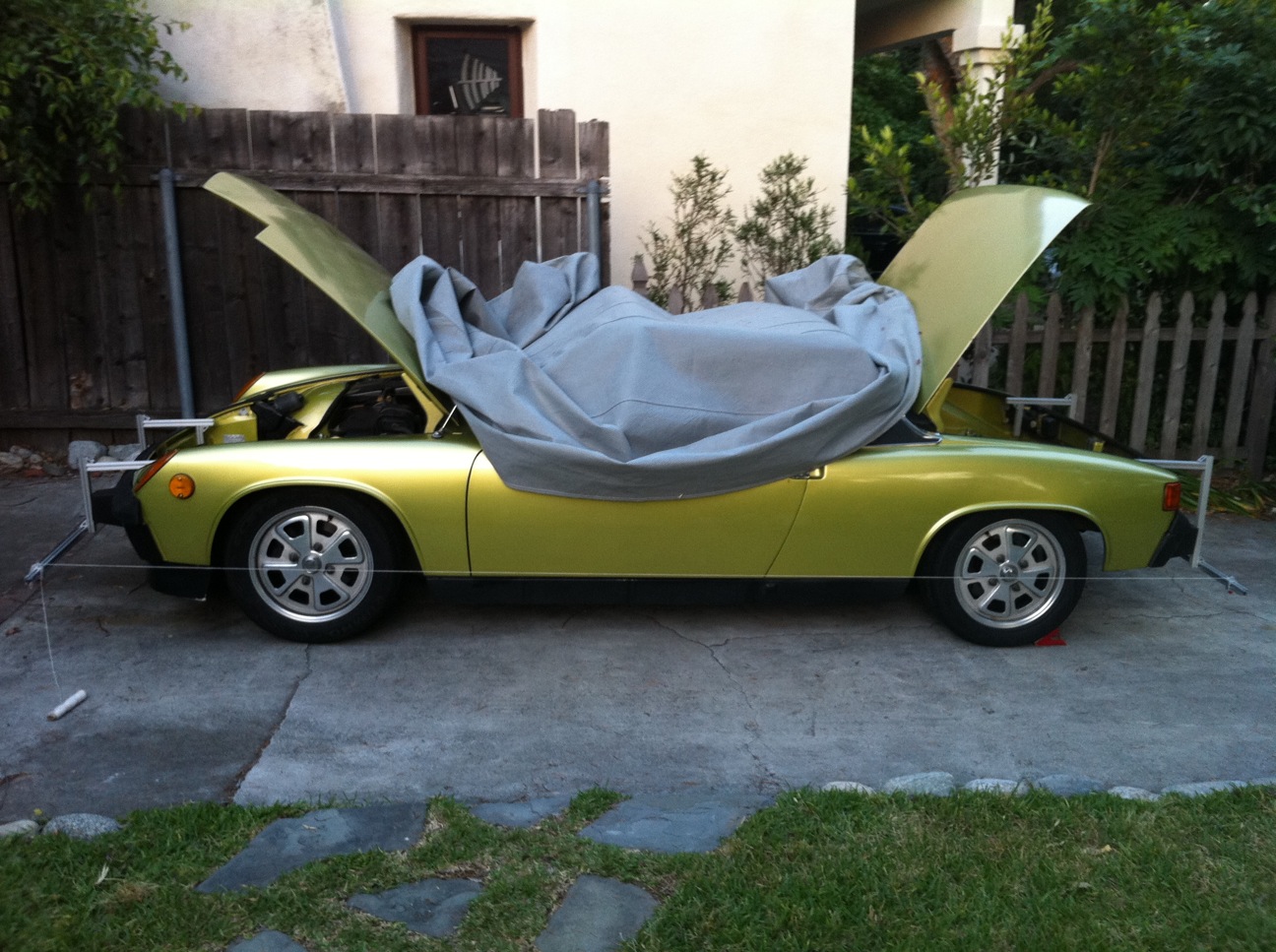

This system does replace jack stands - and yes that works. That's how I did my last alignment... The relationship between the front and rear is arbitrary and only aided by the fact that the front and rear bars are identical in length and index. *ALL* that matters is that you have a parallel box around the vehicle to reference from. So what if the track width changes? Make a parallel box... A toe bar will give you the relationship between two wheels, but not the relationship of the center line of the car.
Assuming you have a perfect square, the strings method will give you the same reading as a "toe bar". If your center line is off on the toe, you will still get the same reading with the toe bar. I see a toe bar (or toe plates) as a secondary system. Which I intend to use at the track... Like the Longacre toe plate system. |
SirAndy |
![]()
Post
#14
|
Resident German ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() Group: Admin Posts: 42,200 Joined: 21-January 03 From: Oakland, Kalifornia Member No.: 179 Region Association: Northern California ![]() |
Wheel track must be 100% the same between front and rear axles to get an accurate toe in measurement/setting (IMG:style_emoticons/default/confused24.gif) I've probably done 100 of them by now and not once on a car that had the same track width front/rear. I don't see how that would have any impact at all? Confused ... (IMG:style_emoticons/default/popcorn[1].gif) |
yeahmag |
![]()
Post
#15
|
Advanced Member ![]() ![]() ![]() ![]() Group: Members Posts: 2,448 Joined: 18-April 05 From: Pasadena, CA Member No.: 3,946 Region Association: Southern California ![]() ![]() |
|
Andyrew |
![]()
Post
#16
|
Spooling.... Please wait ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 13,377 Joined: 20-January 03 From: Riverbank, Ca Member No.: 172 Region Association: Northern California ![]() ![]() |
I use 2 4x4's and a tape measure and a buddy... Then drive to the alignment shop and pay the man $50 to tell me I did it right and give me a printout of camber/caster/toe/"walk". (IMG:style_emoticons/default/biggrin.gif) The problem with that is that a two wheel alignment does not ensure the whole car is square. We use camber plates at the track for quick setups, but you're only setting the front or the rear at any given time. If the car is not squared, you'll be crabbing down the road ... (IMG:style_emoticons/default/shades.gif) Which is why you go to the alignment shop that has lazers and pay the men 50 bucks to do the car the rest of the way... (IMG:style_emoticons/default/biggrin.gif) The 4x4 method works great for those quick jobs if you just did something and need to drive somewhere. I just dont see how a string method will do the car to the level that a daily driver should be at to prevent premature tire wear. |
Richard Casto |
![]()
Post
#17
|
Blue Sky Motorsports, LLC ![]() ![]() ![]() Group: Members Posts: 1,465 Joined: 2-August 05 From: Durham, NC Member No.: 4,523 Region Association: South East States ![]() |
Wheel track must be 100% the same between front and rear axles to get an accurate toe in measurement/setting (IMG:style_emoticons/default/confused24.gif) I've probably done 100 of them by now and not once on a car that had the same track width front/rear. I don't see how that would have any impact at all? Confused ... (IMG:style_emoticons/default/popcorn[1].gif) (IMG:style_emoticons/default/agree.gif) You don't have to have same front/rear track width to set toe using string method. Richard |
Dave_Darling |
![]()
Post
#18
|
914 Idiot ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 15,153 Joined: 9-January 03 From: Silicon Valley / Kailua-Kona Member No.: 121 Region Association: Northern California ![]() ![]() |
I just dont see how a string method will do the car to the level that a daily driver should be at to prevent premature tire wear. As long as you get the strings referenced to the actual centerline if the car, you can get it as good with strings as you can with lasers. In fact, you get the exact same problem with the lasers; they have to be referenced to the centerline of the car to make sure the car doesn't crab. The track widths are completely irrelevant, you measure the tire (or the wheel) against the centerline, not the front wheel against the back wheel. --DD |
mrbubblehead |
![]()
Post
#19
|
Twodollardoug ![]() ![]() ![]() Group: Members Posts: 1,155 Joined: 17-December 10 From: calimesa ca. Member No.: 12,492 Region Association: Southern California ![]() |
I just dont see how a string method will do the car to the level that a daily driver should be at to prevent premature tire wear. As long as you get the strings referenced to the actual centerline if the car, you can get it as good with strings as you can with lasers. In fact, you get the exact same problem with the lasers; they have to be referenced to the centerline of the car to make sure the car doesn't crab. The track widths are completely irrelevant, you measure the tire (or the wheel) against the centerline, not the front wheel against the back wheel. --DD so how is the best way to find the center line of the care. |
BK911 |
![]()
Post
#20
|
Senior Member ![]() ![]() ![]() Group: Members Posts: 672 Joined: 19-February 04 From: Rocky Top, TN Member No.: 1,674 Region Association: None ![]() |

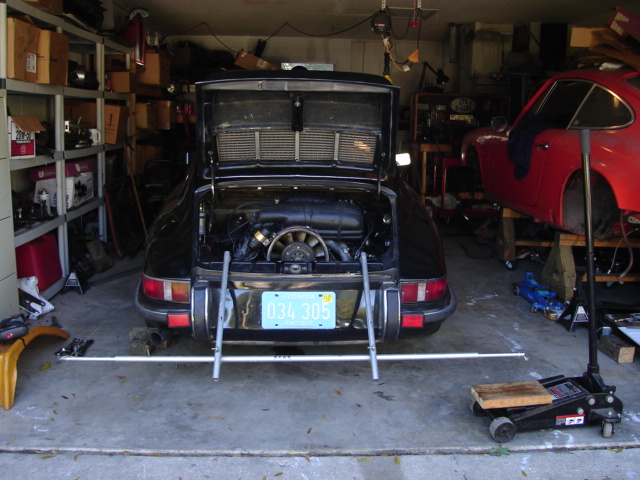

I use a setup very similar, but with electrical conduit. About $15 in parts and I get repeatable results everytime. Same jig works on my 911 and 914.
![]() |
![]() ![]() |
![]() |
