> HOW TO: add a electric washer pump, with pix and video, safe for work ...
SirAndy
post Jun 15 2004, 06:24 PM
Post #1


Resident German
*************************

Group: Admin
Posts: 41,926
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California



Here we go:

1) You can either buy a way overpriced 914/6 washer pump OR
you go to your local porsche salvage yard and get a washer pump from a '70s 911 (which looks strikingly similar to the 914/6 pump (IMG:style_emoticons/default/wink.gif) )

2) Then, you mount it in the stock (914/6) location which is under the washer bottle.

3) Rip out all the washer hose that goes from the bottle to the steering column (careful, could still have water in it),
but keep it, we'll need it later.

4) Remove the 2nd hose from the steering colum and fiddle it back into the cowl area through the front firewall.
Take the hose and connect it to the outlet of the pump. (you may wish to trim it, it's too long).

5) Remove the hose from the spare tires and fiddle it through the firewall, throw it into the trash.

6) Take the hose from 3) and put one side back on the bottom of the bottle (special connector, don't brake it!), then cut the hose to length and connect to the input of the pump.

7) Take off the black bottle cap and drill a small hole into it, next to the valve stem (hole size about the dia. of the washer hose).
This is needed because the cap has a pressure valve in it that won't allow air to get into the bottle. You need to bypass this, otherwise the pump will not be able to get much water out of the bottle.

8) 2 options for the wiring:

8a) Run 2 wires inside and mount a separate switch (push button style) either in the dash or the center console, and hook it up to 12V (through a fuse of your choice)

8b) If you have the intermittend wiper relay harness, you can also run the pump off that, just extend the brown/black wire (trigger from steering column) and use it as the 12V feed for the pump.
This way, every time you pull the wiper lever towards you, you get the 4 run intermittend + fresh water!
NOTE: The brown/black wire was NOT an option on early car, '72 and later, if i'm not mistaken ...

And now on to the pictures ....
(IMG:style_emoticons/default/smash.gif) Andy

PS: Just in case you wonder, YES, this stuff in the pics is sand.
I had the car cleaned inside out for the WCC, all you see is NEW since then.
More than 1 year since the sandblasting and the crap is still seeping out! (IMG:style_emoticons/default/headbang.gif)

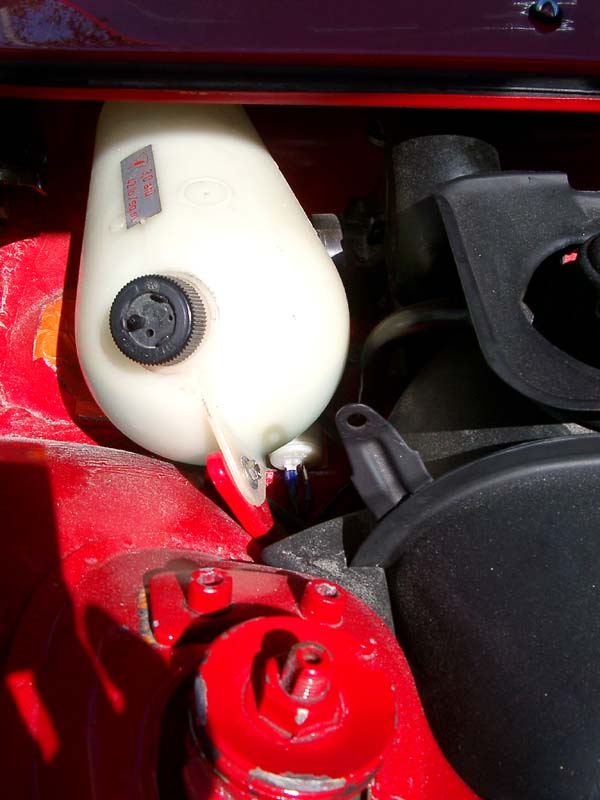

First, the completed assembly:
(IMG:http://www.914world.com/members/SirAndy/pix/washer/complete.jpg)

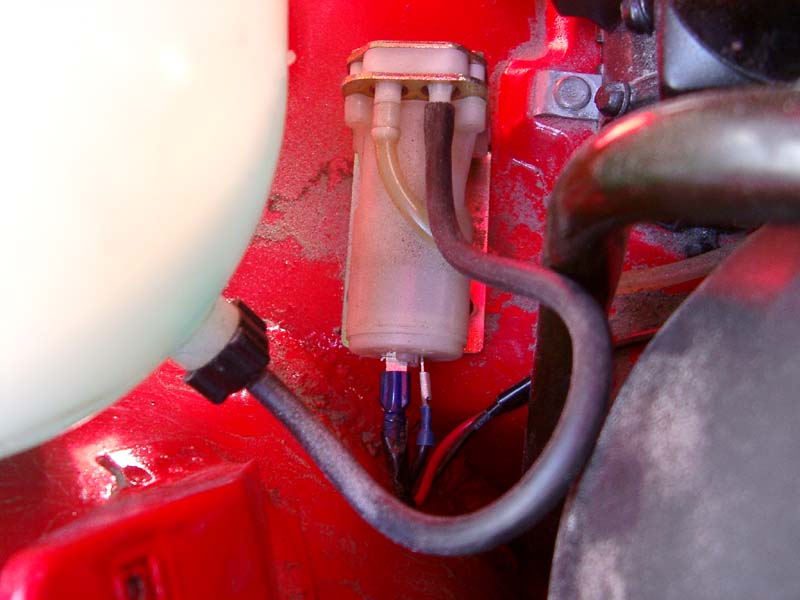

Next, the pump. this is the stock 914/6 location (more or less), black hose is intake from bottle, transparent hose is outlet to the nozzles:
(IMG:http://www.914world.com/members/SirAndy/pix/washer/pump.jpg)

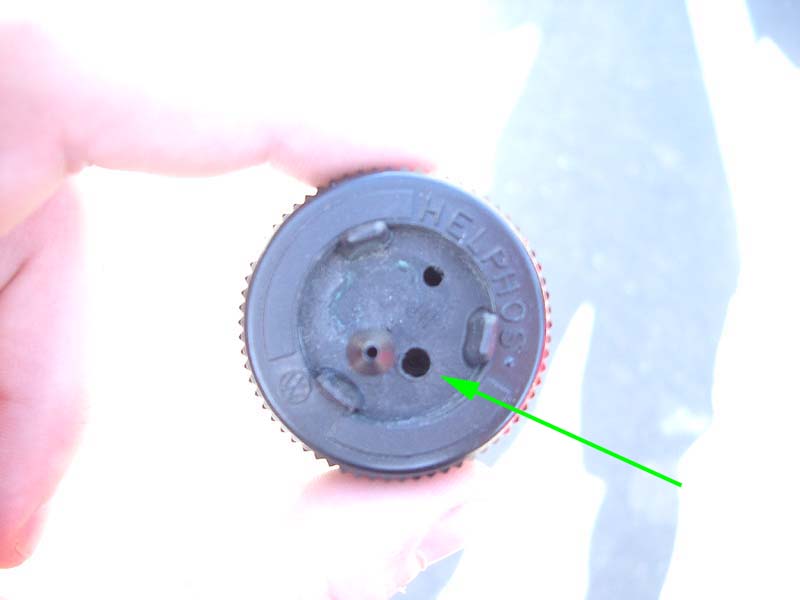

Next, the cap with the additional hole for breathing:
(IMG:http://www.914world.com/members/SirAndy/pix/washer/cap.jpg)

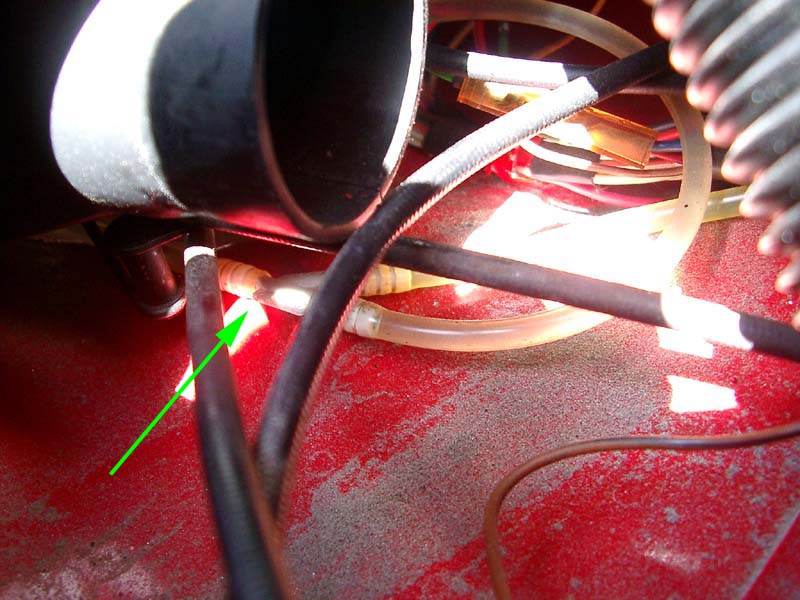

Next, a splitter for the two nozzles:
(IMG:http://www.914world.com/members/SirAndy/pix/washer/splitter.jpg)

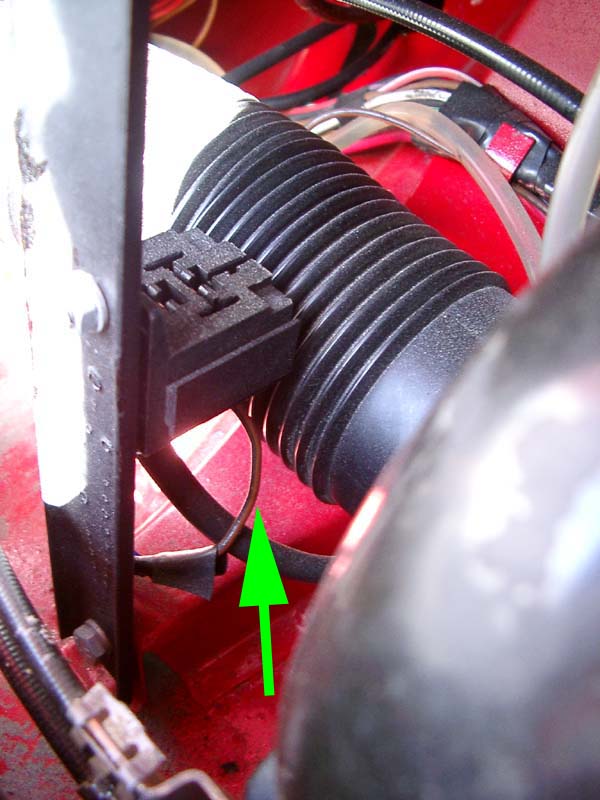

Next, the intermittend relay (well, i took mine out for AX), you can see the brown/black wire that comes from the steering colum. Split and extend this to the pump if you want to run the pump off the wiper lever:
(IMG:http://www.914world.com/members/SirAndy/pix/washer/relay.jpg)

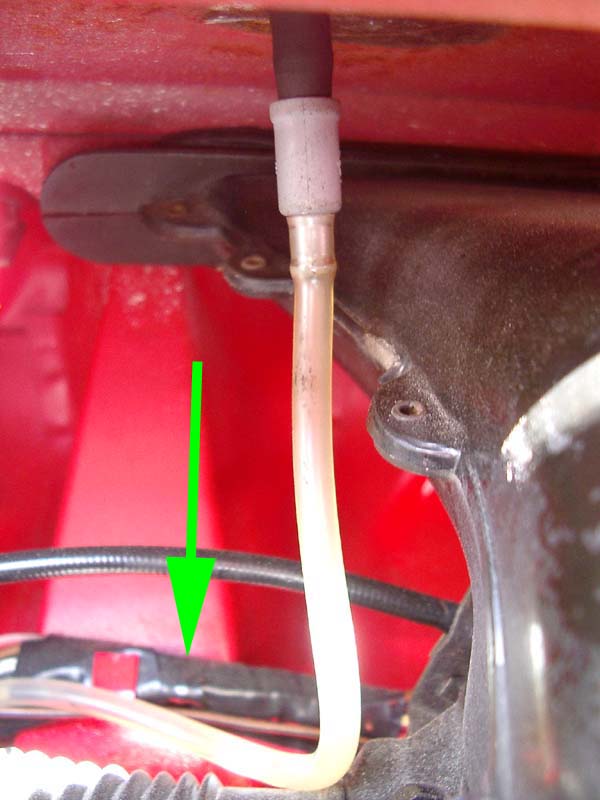

Next, backside of the nozzle, the arrow marks the approx. Location where the brown/black wires comes out of the main harness:
(IMG:http://www.914world.com/members/SirAndy/pix/washer/nozzle_backside.jpg)

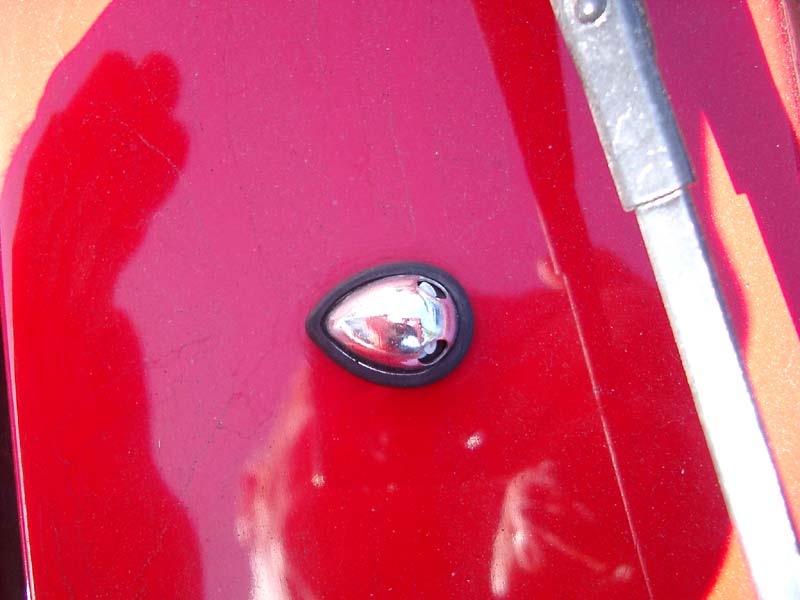

Next, the mighty fine nozzle itself:
(IMG:http://www.914world.com/members/SirAndy/pix/washer/nozzle.jpg)

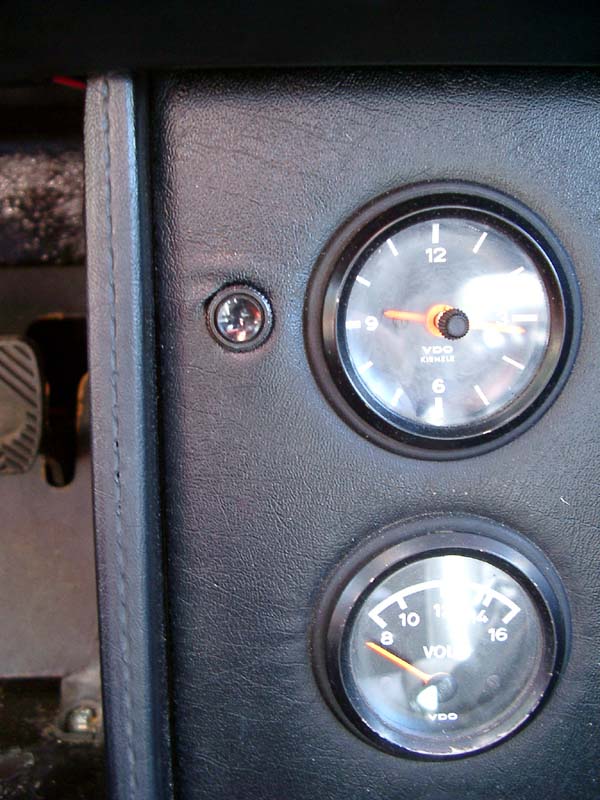

Next, the push style button in the center console:
(IMG:http://www.914world.com/members/SirAndy/pix/washer/button.jpg)

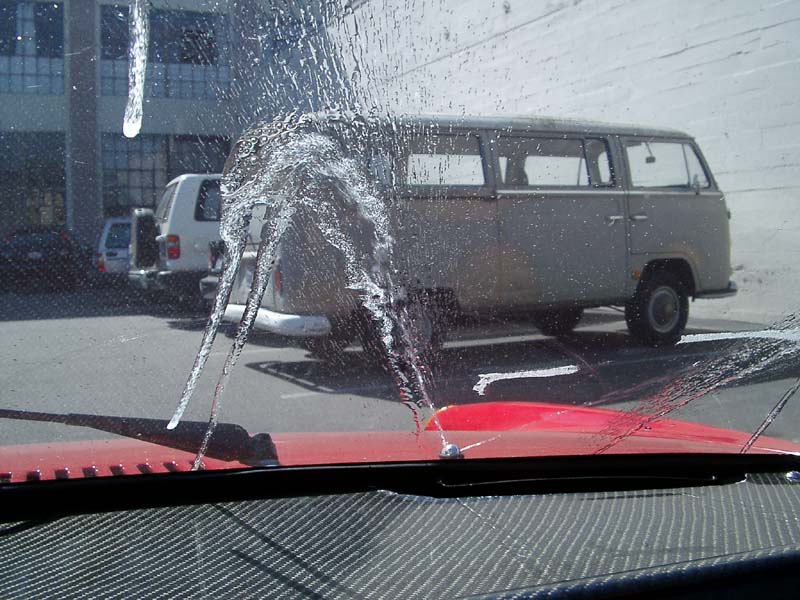

Voila, we have a washer!
(IMG:http://www.914world.com/members/SirAndy/pix/washer/water.jpg)

And because i know the proof is in the pudding, err, the bottle in this case, i made a little video (safe to watch at work!):

Washer - TheMovie, a 914world.com exclusive


https://www.youtube.com/watch?v=TZFhenOTMfE



That's it!
Happy (IMG:style_emoticons/default/smash.gif) (IMG:style_emoticons/default/smash.gif) (IMG:style_emoticons/default/smash.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
gothspeed
post Mar 27 2018, 01:49 PM
Post #2


Senior Member
***

Group: Members
Posts: 1,539
Joined: 3-February 09
From: SoCal
Member No.: 10,019
Region Association: None



Nice! Now post more pics of that CF dash! (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jonathan Livesay
post Mar 27 2018, 02:34 PM
Post #3


Senior Member
***

Group: Members
Posts: 744
Joined: 13-March 10
From: La Canada CA
Member No.: 11,461
Region Association: None



10 or 11 years ago I saw an article somewhere about replacing the wiper/washer switch with one from I think a 924, so I did it on my '74 it is still working fine. It does the same that you did with the electric pump but looks very close to stock.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
EdwardBlume
post Mar 27 2018, 02:53 PM
Post #4


914 Wizard
**********

Group: Members
Posts: 12,338
Joined: 2-January 03
From: SLO
Member No.: 81
Region Association: Central California



Classic thread! Thanks Andy.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Mar 27 2018, 03:55 PM
Post #5


Resident German
*************************

Group: Admin
Posts: 41,926
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California



QUOTE(Edward Blume @ Mar 27 2018, 01:53 PM) *

Classic thread! Thanks Andy.

Well, it's from 2004 (!) and it is already in the classics ...
(IMG:style_emoticons/default/biggrin.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
76-914
post Mar 27 2018, 06:17 PM
Post #6


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,638
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California



That was the first modification that I made after I got the 76 running in 2009. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
orthobiz
post Mar 27 2018, 06:42 PM
Post #7


Senior Member
***

Group: Members
Posts: 1,757
Joined: 8-January 07
From: Cadillac, Michigan
Member No.: 7,438
Region Association: Upper MidWest



Brad Mayeur modified a cigarette lighter, somehow put the washer knob end on it and when you push it in the washer works. Guess there' a microswitch at the bottom of it. Put it where the defroster switch goes.

Paul
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
RickS
post Mar 29 2018, 11:26 PM
Post #8


Senior Member
***

Group: Members
Posts: 1,408
Joined: 17-April 06
From: 'False City', WA
Member No.: 5,880
Region Association: None



Great write up. Thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914-300Hemi
post Mar 30 2018, 08:56 AM
Post #9


Senior Member
***

Group: Members
Posts: 1,372
Joined: 7-September 06
From: San Dimas, CA
Member No.: 6,794
Region Association: Southern California



Never did this but looks like an easy project.
Now I have item added to the project list.
