> Sheared trunk hinge Bolt
Philw
post Jul 13 2011, 03:16 AM
Post #1


Newbie
*

Group: Members
Posts: 13
Joined: 15-March 09
From: England
Member No.: 10,170
Region Association: England

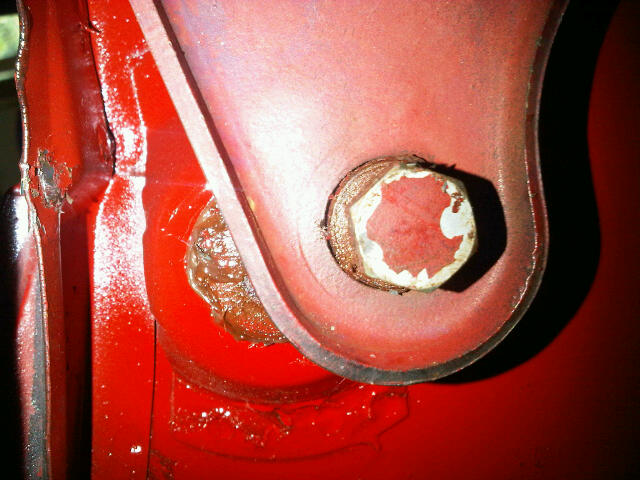

Hello all, I have been grappling with what must be one of the "worst" jobs on the 914 (till the next one) (IMG:style_emoticons/default/smile.gif) namely refitting the springs for the rear trunk or boot as we UK owners call it.... The mecahnism had to be removed as part of my hell hole welding repairs recently. After several hours of fighting the incredible pressure these springs are under (and many thanks to the excellent step by step guide on this forum for refitting the springs) I finally manged to get the 2nd spring under its hinge "perch" last night slipped the roller on and was congratulating myself when I discovered in my enthusiasm tightening up everything when the spring was in place I have sheared the bolt holding the hinge "pivot". So I shall have to drill out the old bolt and maybe have to tap a new thread depending on how lucky I am. My request here is does anyone know the part number for the bolt I have sheared? I need to order a new one and am hoping the official Porsche spares network will come to my rescue as in the past they have been excellent with these sort of pieces. If not it'll be Mittelmotor or Pelican I guess. I have tried to attach some pictures hope they work ok. This job was meant to be an easy one after realising I needed a break from the front struts which are still work in progress....


Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SLITS
post Jul 13 2011, 06:56 AM
Post #2


"This Utah shit is HARSH!"
**********

Group: Benefactors
Posts: 13,602
Joined: 22-February 04
From: SoCal Mountains ...
Member No.: 1,696
Region Association: None
If the threads are not rusted in place, it can be removed by drilling and using a screw extractor or cutting a slot in what is left and using a screwdriver to remove it.

It is a shouldered bolt. Don't know part number, but I could probably find one and mail it to you.

If it's rusted, you might wind up replacing the hinge pivot.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Rex-n-effect
post Jul 13 2011, 07:59 AM
Post #3


Newbie
*

Group: Members
Posts: 44
Joined: 4-February 11
From: Missoula, MT
Member No.: 12,659
Region Association: None
The part # is 914 512 191 10. Still available from Porsche. I had the same problem only the DAPO drilled the center of the bolt and tapped in a domestic bolt. How stupid is that? I carefully drilled it out and then used an easy out to remove the original left over bolt and then re-tapped it to the correct threads.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
windforfun
post Jul 13 2011, 10:35 AM
Post #4


Advanced Member
****

Group: Members
Posts: 2,052
Joined: 17-December 07
From: Blackhawk, CA
Member No.: 8,476
Region Association: None
Use PB Blaster to loosen it up.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeffs9146
post Jul 13 2011, 11:11 AM
Post #5


Ski Bum
****

Group: Members
Posts: 4,062
Joined: 10-January 03
From: Discovery Bay, Ca
Member No.: 128
PB, PB, PB, Heat, PB, Heat

Drill and extract!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
stugray
post Jul 13 2011, 03:39 PM
Post #6


Advanced Member
****

Group: Members
Posts: 3,825
Joined: 17-September 09
From: Longmont, CO
Member No.: 10,819
Region Association: None
One trick I learned at the racetrack for extracting broken bolts if you dont have the real tool is:

Drill a hole and pound a star screwdriver bit into it and use a ratchet to back it out.

Those screw bits are a dime a dozen and are usually hardened.
The star gets a better grip then some of the purpose built screw exctractors I have had the displeasure of trying.

Stu
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SLITS
post Jul 13 2011, 06:10 PM
Post #7


"This Utah shit is HARSH!"
**********

Group: Benefactors
Posts: 13,602
Joined: 22-February 04
From: SoCal Mountains ...
Member No.: 1,696
Region Association: None
One other thing .... ditch the torsion bars and buy the gas shock setup. This relieves the stress on the bolt ... wella ... no more pulled hinge mounts or broken bolts.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914itis
post Jul 13 2011, 09:02 PM
Post #8


Advanced Member
****

Group: Members
Posts: 2,892
Joined: 9-October 10
From: New York City
Member No.: 12,256
Region Association: North East States
QUOTE(SLITS @ Jul 13 2011, 08:10 PM) *

One other thing .... ditch the torsion bars and buy the gas shock setup. This relieves the stress on the bolt ... wella ... no more pulled hinge mounts or broken bolts.

I am about to put my hinges back and I am afraid that the same thing will happen. does anyone have a trick on how to deal with that spring?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Jul 13 2011, 09:06 PM
Post #9


Custom Member
***************

Group: Members
Posts: 24,705
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
QUOTE(ppetion @ Jul 13 2011, 11:02 PM) *

QUOTE(SLITS @ Jul 13 2011, 08:10 PM) *

One other thing .... ditch the torsion bars and buy the gas shock setup. This relieves the stress on the bolt ... wella ... no more pulled hinge mounts or broken bolts.

I am about to put my hinges back and I am afraid that the same thing will happen. does anyone have a trick on how to deal with that spring?

its simple.
Get a 6 inch socket extension and a deep 10mm socket.
Use this as a tool...
Put the 10mm socket over the end of the spring, bend it down and onto the pulley, then pull the socket off.

Rich
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914itis
post Jul 13 2011, 09:49 PM
Post #10


Advanced Member
****

Group: Members
Posts: 2,892
Joined: 9-October 10
From: New York City
Member No.: 12,256
Region Association: North East States
QUOTE(r_towle @ Jul 13 2011, 11:06 PM) *

QUOTE(ppetion @ Jul 13 2011, 11:02 PM) *

QUOTE(SLITS @ Jul 13 2011, 08:10 PM) *

One other thing .... ditch the torsion bars and buy the gas shock setup. This relieves the stress on the bolt ... wella ... no more pulled hinge mounts or broken bolts.

I am about to put my hinges back and I am afraid that the same thing will happen. does anyone have a trick on how to deal with that spring?

its simple.
Get a 6 inch socket extension and a deep 10mm socket.
Use this as a tool...
Put the 10mm socket over the end of the spring, bend it down and onto the pulley, then pull the socket off.

Rich

Thanks, thats a great technique
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Philw
post Jul 14 2011, 02:25 PM
Post #11


Newbie
*

Group: Members
Posts: 13
Joined: 15-March 09
From: England
Member No.: 10,170
Region Association: England
Thanks for all the tips, I have bought some new drill bits and will start the process of drilling out and try some of the tips mentioned here. I wish I'd gone for the shocks straight away but having got this far I'll probably stick with the springs. The socket technique for refitting the springs may work but I found the best way was to use the technique which I think is linked to from this forum but is actually on another site. This shows how you can cut the hanging hole on your adjustable wrench to make it into a tool to lever the sprng forward to allow you then to get the long socket over it for the final push under the "perch".

Hopefully my bolt will come out easily, it isn't rusted in place as it was removed when the hell hole work was done and I greased it before re inserting it. Fingers crossed!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mr Pharmacist
post Jul 14 2011, 02:33 PM
Post #12


Member
**

Group: Members
Posts: 69
Joined: 15-September 09
From: United Kingdom
Member No.: 10,807
Region Association: England
I'm doing a similar thing too and want to get rid of the springs. Who sells the gas strut kits?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Philw
post Jul 14 2011, 02:57 PM
Post #13


Newbie
*

Group: Members
Posts: 13
Joined: 15-March 09
From: England
Member No.: 10,170
Region Association: England
I saw these when I was looking into options when the springs were fighting back :-) In hindsight I would have used them as I have spent hours trying to get the springs in place. Now they are in place I am happy to stick with them but if I ever needed to remove them again I would install shocks.
http://camp914.com/products.html
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Philw
post Oct 12 2011, 04:25 PM
Post #14


Newbie
*

Group: Members
Posts: 13
Joined: 15-March 09
From: England
Member No.: 10,170
Region Association: England
Finally got back to this job, drilled the sheared bolt with a small drill bit, then a bigger one just smaller than the diameter of the bolt, all with plenty of wd40 to keep things moving. It worked a treat, the small bit went right through and the bigger bit took out enough metal until eventually it started to "catch" the bolt which then span free and actually exited through the rear of the fixture. The threads are undamaged so just need to get the replacement bolt and refit. Only a small job but it's a victory I needed to kick start a renewed period of work on the 914......
Thanks again for the help.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jsayre914
post Oct 12 2011, 04:55 PM
Post #15


Speed Up !!!
****

Group: Members
Posts: 3,210
Joined: 10-February 08
From: Timonium MD 21093
Member No.: 8,696
Region Association: MidAtlantic Region
(IMG:style_emoticons/default/first.gif)

Thats great news. I love when things just go your way (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Oct 12 2011, 05:17 PM
Post #16


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,698
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
(IMG:style_emoticons/default/welcome.png)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Oct 13 2011, 09:02 AM
Post #17


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,237
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch
fwiw, WD40 is prob one of the worst products you can use as a penetrant. products such as PBblaster, AeroKroil and time are much more effective in loosening rusted fasteners. google AeroKroil or Kanolabs for distributors in the UK.

k
