> Zach's Carbs to Microsquirt conversion thread, 7/20/18 update
McMark
post May 10 2015, 09:17 AM
Post #341


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
QUOTE(aircooledtechguy @ May 9 2015, 11:54 PM) *

Great news Zach!! If you are using a VR sensor, remember that it will only work with the wires in the right order. So if you get nothing when you crank it, flip the wires around and try again.

In MicroSquirt, maybe others, you can switch this in software by switching the triggering from Going High to Going Low, or visa-versa.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
VaccaRabite
post May 10 2015, 09:36 PM
Post #342


En Garde!
**********

Group: Admin
Posts: 13,426
Joined: 15-December 03
From: Dallastown, PA
Member No.: 1,435
Region Association: MidAtlantic Region
Well, found the issue!
Something is wrong with either the throttle position sensor or the wires for the throttle position sensor.

I thought I'd have an easy night hooking back up all the leads. Some of them are not easy to get to.

Turn the key, and no fuel pump. Dammit! I am now using the fuel pump as my dowsing rod. If it turns on foe a few seconds, I'm confident that the brain is working.

Take off a lead and try the pump. One by one. I got the point where I thought I had all the leads off and was starting to get really angry when I noticed the TPS tucked deep in there. Took that lead off and the fuel pump came back.

So, I'm going to replace the sensor, as I really doubt its the wires. I also happen to have another TPS on hand. But not tonight. Its 11:30 on a work night. I gotta get my ass in bed.

Frustrating, but at least I found the issue. I wish I had found it a month ago while the car was at Tony's shop.

Zach
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
toon1
post May 10 2015, 11:50 PM
Post #343


Senior Member
***

Group: Members
Posts: 1,849
Joined: 29-October 05
From: tracy,ca
Member No.: 5,022
Are you saying the fuel pump turns on because of the TPS?

They should have noting to do with eachother
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
crash914
post May 11 2015, 02:44 AM
Post #344


its a mystery to me
***

Group: Members
Posts: 1,826
Joined: 17-March 03
From: Marriottsville, MD
Member No.: 434
Region Association: MidAtlantic Region
shorted wires in the TPS, drawing down the operating voltage, fuel pump relay won't kick in for the short prime cycle.

fuel pump is a good test to see if the cpu is functioning correctly as it has full voltage...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914_teener
post May 11 2015, 07:30 AM
Post #345


914 Guru
*****

Group: Members
Posts: 5,194
Joined: 31-August 08
From: So. Cal
Member No.: 9,489
Region Association: Southern California
QUOTE(crash914 @ May 11 2015, 01:44 AM) *

shorted wires in the TPS, drawing down the operating voltage, fuel pump relay won't kick in for the short prime cycle.

fuel pump is a good test to see if the cpu is functioning correctly as it has full voltage...



Just like D.jet. No fuel pump no tickee.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
VaccaRabite
post May 11 2015, 06:00 PM
Post #346


En Garde!
**********

Group: Admin
Posts: 13,426
Joined: 15-December 03
From: Dallastown, PA
Member No.: 1,435
Region Association: MidAtlantic Region
Replaced the TPS after work today. Tested it and and the fuel pump kicked over! We are in business.

Before I had to start being Dad, I was able to get the rest of the harness plugged back in, and turned the key for a quick test. The fuel pump kicked on just like it should.

I'm close to first start. Stuff left to do:
1) Calibrate sensors (TPS, AIT, CHT... I have a feeling I should have done this earlier, but I think I can do this with the sensors in the car.)
2) add fuel
3) put the air filter in
4) pressurize the fuel system and look for leaks
5) try to start it.

Would be totally awesome to be able to drive the car back to Tony's for final tuning.
Zach
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post May 11 2015, 06:45 PM
Post #347


Custom Member
***************

Group: Members
Posts: 24,567
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
Sweet
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
VaccaRabite
post May 18 2015, 07:53 PM
Post #348


En Garde!
**********

Group: Admin
Posts: 13,426
Joined: 15-December 03
From: Dallastown, PA
Member No.: 1,435
Region Association: MidAtlantic Region

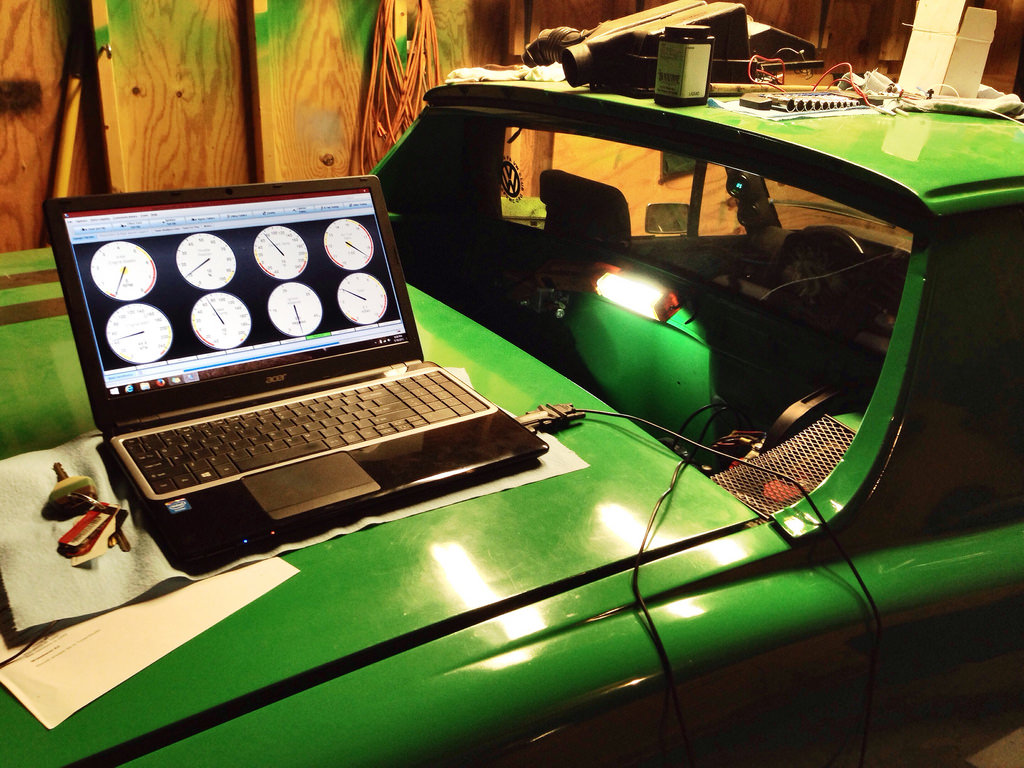

(IMG:http://www.914world.com/bbs2/uploads_offsite/farm6.staticflickr.com-1435-1432000400.1.jpg)
Sensors are calibrated and seem to be working correctly.

Attached Image


I did run into a hiccup trying to update the ECU to the latest firmware. The installer would not install the firmware. More investigation is required, but I followed the printed firmware updater instructions to the letter.

Push comes to shove, I just run with the current installed firmware, which is 1 rev behind (for now).

Next step is fuel, and make sure my fuel system does not leak when pressurized.

You will note there is a "coolant temp" gauge. That is actually the head temp at the stock location (as opposed to under a spark plug). I have an under the spark plug CHT for the gauge in the car, giving reading for Cyl 3. Eventually I will install the 4 way. But first things first....

I also learned today that my throttle sticks open a little. There is something it grabs on before it gets fully closed. Thats why in the screen shot its reading at 10% open instead of fully closed.

I still have a few mysteries to work out with the spark tables. I set the offset to 295 degrees per Mark's instructions, but did not see where to set the initial cranking advance to 12 degrees. Still in the steep part of the learning curve for this software.
Zach
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post May 18 2015, 09:07 PM
Post #349


Send me your transmission!
***************

Group: Members
Posts: 22,995
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
C'mon Hershey 2020! You can make it! Probably!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914itis
post May 18 2015, 09:10 PM
Post #350


Advanced Member
****

Group: Members
Posts: 2,892
Joined: 9-October 10
From: New York City
Member No.: 12,256
Region Association: North East States
(IMG:style_emoticons/default/lol-2.gif) (IMG:style_emoticons/default/av-943.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
aircooledtechguy
post May 19 2015, 07:17 AM
Post #351


The Aircooledtech Guy
***

Group: Members
Posts: 1,966
Joined: 8-November 08
From: Anacortes, WA
Member No.: 9,730
Region Association: Pacific Northwest
A slow methodical approach is good. You're making it happen and you'll have it up and running before you know it!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post May 19 2015, 03:02 PM
Post #352


Send me your transmission!
***************

Group: Members
Posts: 22,995
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
Because he will have developed Alzheimer's......
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post May 19 2015, 03:03 PM
Post #353


Send me your transmission!
***************

Group: Members
Posts: 22,995
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
Because he will have developed Alzheimer's.....hey, wait a minute?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post May 19 2015, 04:32 PM
Post #354


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
QUOTE(Vacca Rabite @ May 18 2015, 06:53 PM) *
I still have a few mysteries to work out with the spark tables. I set the offset to 295 degrees per Mark's instructions, but did not see where to set the initial cranking advance to 12 degrees. Still in the steep part of the learning curve for this software.
Zach

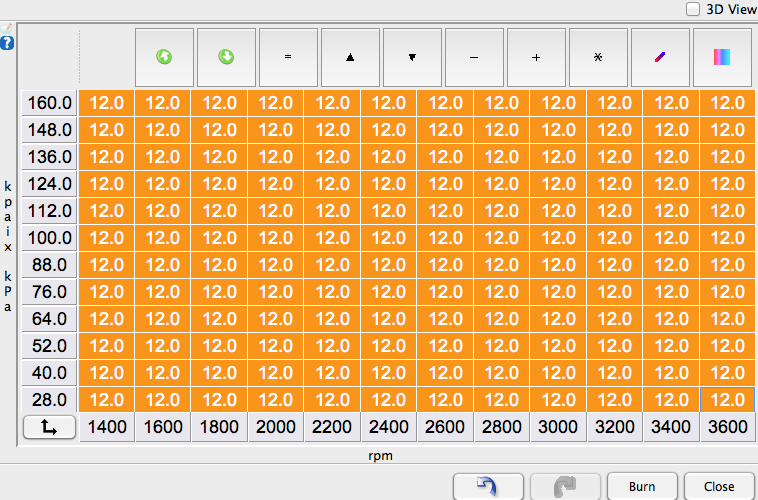

There is no cranking advance that I remember. When confirming the timing for the first time, just set the entire spark map to 12 degrees. This way you don't have to worry about the MicroSquirt changing the timing due to RPM or MAP fluctuations. Then start the engine with your timing light attached. Set your timing light to 12 degrees, and use the Trigger Wizard to adjust the Offset Angle until you see the ZERO mark on the fan.


Attached image(s)

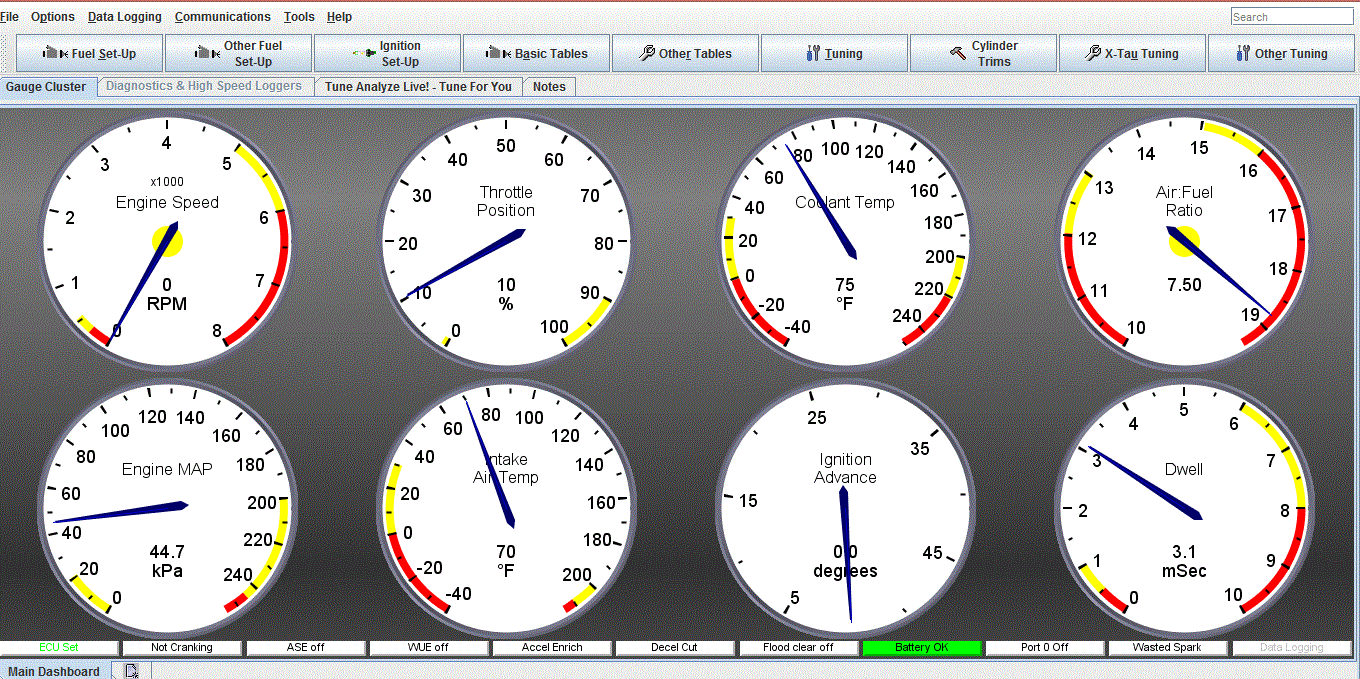

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
VaccaRabite
post May 19 2015, 08:11 PM
Post #355


En Garde!
**********

Group: Admin
Posts: 13,426
Joined: 15-December 03
From: Dallastown, PA
Member No.: 1,435
Region Association: MidAtlantic Region
gas is in the tank.

Need to rig an inline fuel pressure gauge to make sure I have pressure set correctly. And then I can pressurize the system and look for leaks.

Zach
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
VaccaRabite
post May 19 2015, 08:33 PM
Post #356


En Garde!
**********

Group: Admin
Posts: 13,426
Joined: 15-December 03
From: Dallastown, PA
Member No.: 1,435
Region Association: MidAtlantic Region
Is it important to measure fuel pressure at the rail, or is any point aft of the fuel pressure regulator acceptable?

Zach
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post May 19 2015, 08:40 PM
Post #357


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
No, before the fuel pressure reg. Basically the rail is the best point.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
falcor75
post May 19 2015, 11:17 PM
Post #358


Senior Member
***

Group: Members
Posts: 1,579
Joined: 22-November 12
From: Sweden
Member No.: 15,176
Region Association: Scandinavia
QUOTE(Vacca Rabite @ May 20 2015, 04:33 AM) *

Is it important to measure fuel pressure at the rail, or is any point aft of the fuel pressure regulator acceptable?

Zach


Aft is in after the FPR you wont have the right pressure....? The FPR should be the last component the fuel passes before going back to the fuel tank. At least this is how I'm setting up my system... (IMG:style_emoticons/default/blink.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
VaccaRabite
post May 20 2015, 06:33 AM
Post #359


En Garde!
**********

Group: Admin
Posts: 13,426
Joined: 15-December 03
From: Dallastown, PA
Member No.: 1,435
Region Association: MidAtlantic Region
Yes I mispoke.
Plan was to put the gauge into the short peice of hose between the drivers side rail and the FPR. Trying to use the nipple in the rail would make the gauge very hard to read.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post May 20 2015, 07:50 AM
Post #360


Send me your transmission!
***************

Group: Members
Posts: 22,995
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
Looking good....


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
