 Fuel Cutoff Switch, Ever seen one? |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
  |
| McMark |
 Aug 1 2004, 04:44 AM
Post
#1
|
|
914 Freak!  Group: Retired Admin Posts: 20,179 Joined: 13-March 03 From: Grand Rapids, MI Member No.: 419 Region Association: None  |

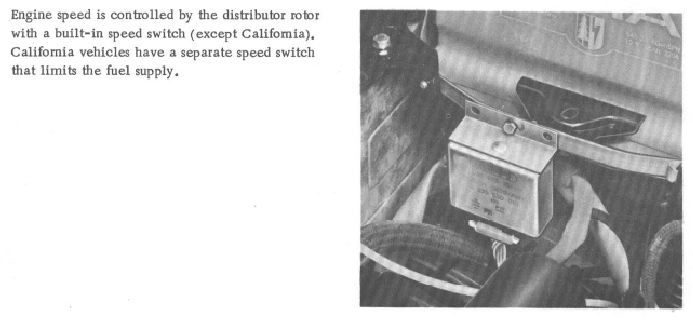

I was perusing the factory manuals (isn't insomnia great?) and came across this section. Anyone ever seen one? I can't read the part number on it. (IMG:style_emoticons/default/confused24.gif)
Attached image(s)
|
   |

|
| Rusty |
Aug 1 2004, 08:08 AM
Post
#2
|
|
Wanted: Engine case GA003709 Group: Admin Posts: 7,947 Joined: 24-December 02 From: North Alabama Member No.: 6 Region Association: Galt's Gulch
|
Interesting. How would it splice into the wiring harness?
I wonder if this is one of those factory concepts that was never really implemented. -Rusty (IMG:style_emoticons/default/smoke.gif) P.S. I quit drinking caffiene after 6pm. It was really messing with my ability to sleep. Hope your sleep schedule gets back to normal soon. |
|
|
|
| SLITS |
Aug 1 2004, 08:11 AM
Post
#3
|
|
"This Utah shit is HARSH!" Group: Benefactors Posts: 13,602 Joined: 22-February 04 From: SoCal Mountains ... Member No.: 1,696 Region Association: None |
Were you reading the section on the 1.8L - L-Jet System? Based on the location it is mounted, that is what it looks like.
The one that I have is marked with the following numbers: 039 905 351 0 335 530 010 From the number it is a 2.0 part and will do some more research. |
|
|
|
| McMark |
Aug 1 2004, 01:42 PM
Post
#4
|
|
914 Freak! Group: Retired Admin Posts: 20,179 Joined: 13-March 03 From: Grand Rapids, MI Member No.: 419 Region Association: None |
Ah yes, the L-Jet. Could be. I always forget about those. I really need to pick up a late model 1.8 someday and take it apart. Learn all the late model nuances.
|
|
|
|
| Brad Roberts |
Aug 1 2004, 03:41 PM
Post
#5
|
|
914 Freak! Group: Members Posts: 19,148 Joined: 23-December 02 Member No.: 8 Region Association: None |
I just pulled one off of a 76 2.0 this past Monday. The connector is part of the main injection harness.
|
|
|
|
|
