> what did you do to your 914 today
ClayPerrine
post Feb 16 2023, 07:00 AM
Post #15941


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,367
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille

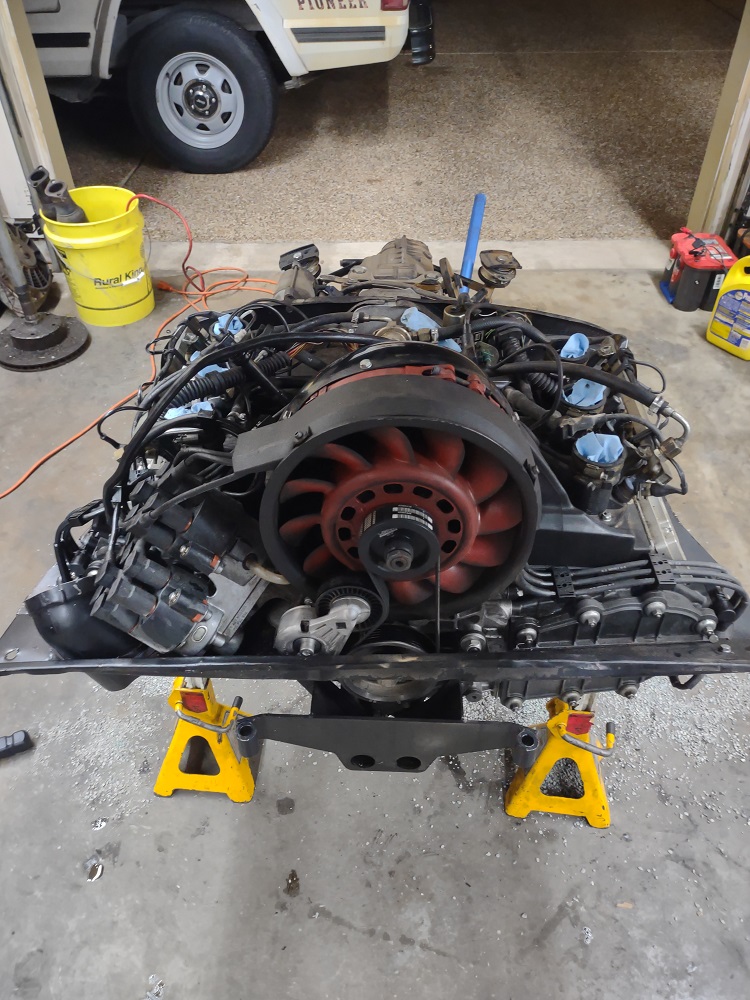

Pulled the motor out of the big six last night....

Attached Image

Going to replace the leaking timing box on the right side. It will be nice to have a leak free motor.




User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mgarrison
post Feb 16 2023, 09:30 AM
Post #15942


Member
**

Group: Members
Posts: 350
Joined: 14-February 20
From: Chandler, AZ
Member No.: 23,922
Region Association: Southwest Region

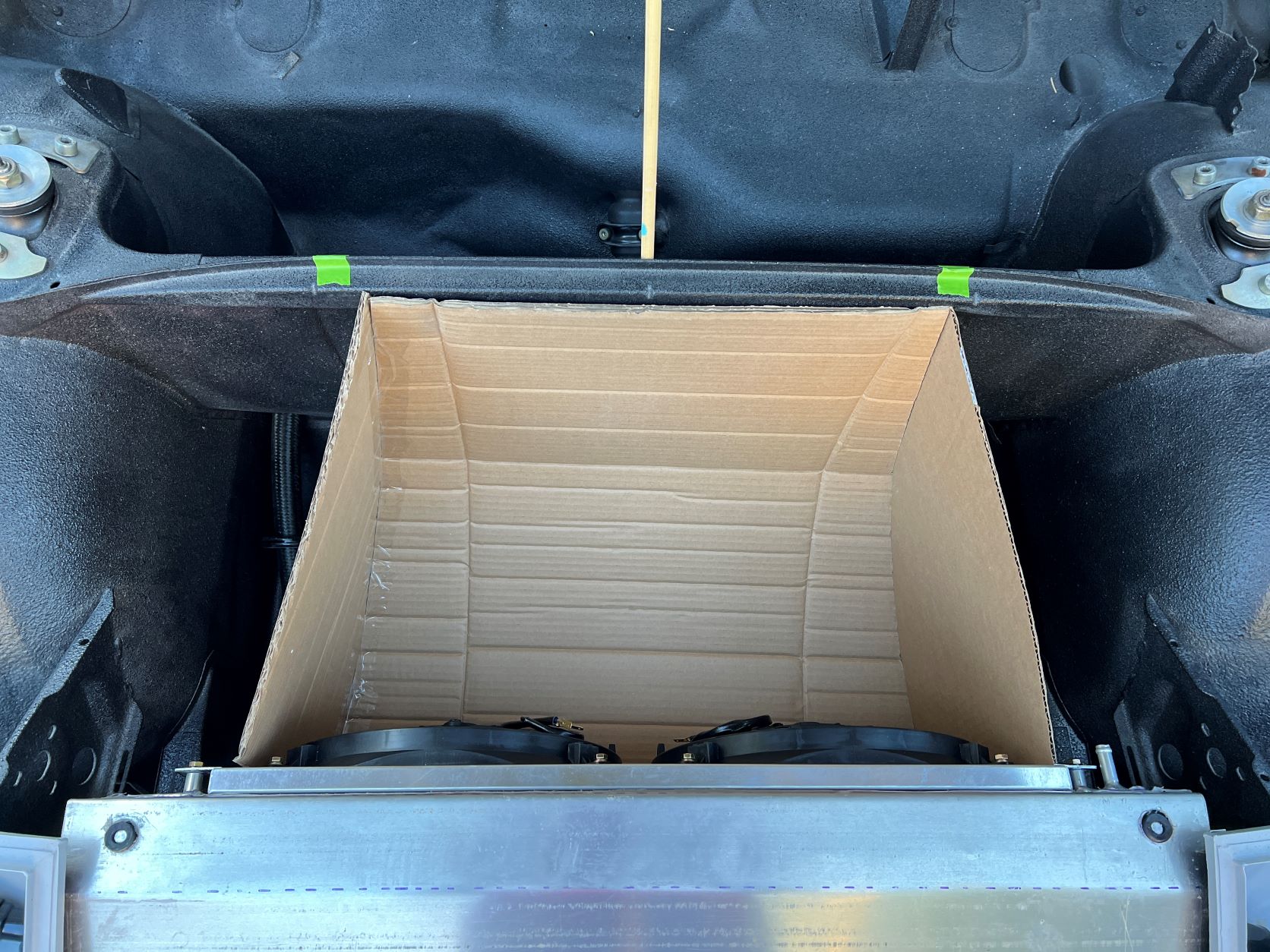

Did some more CAD...
Attached Image

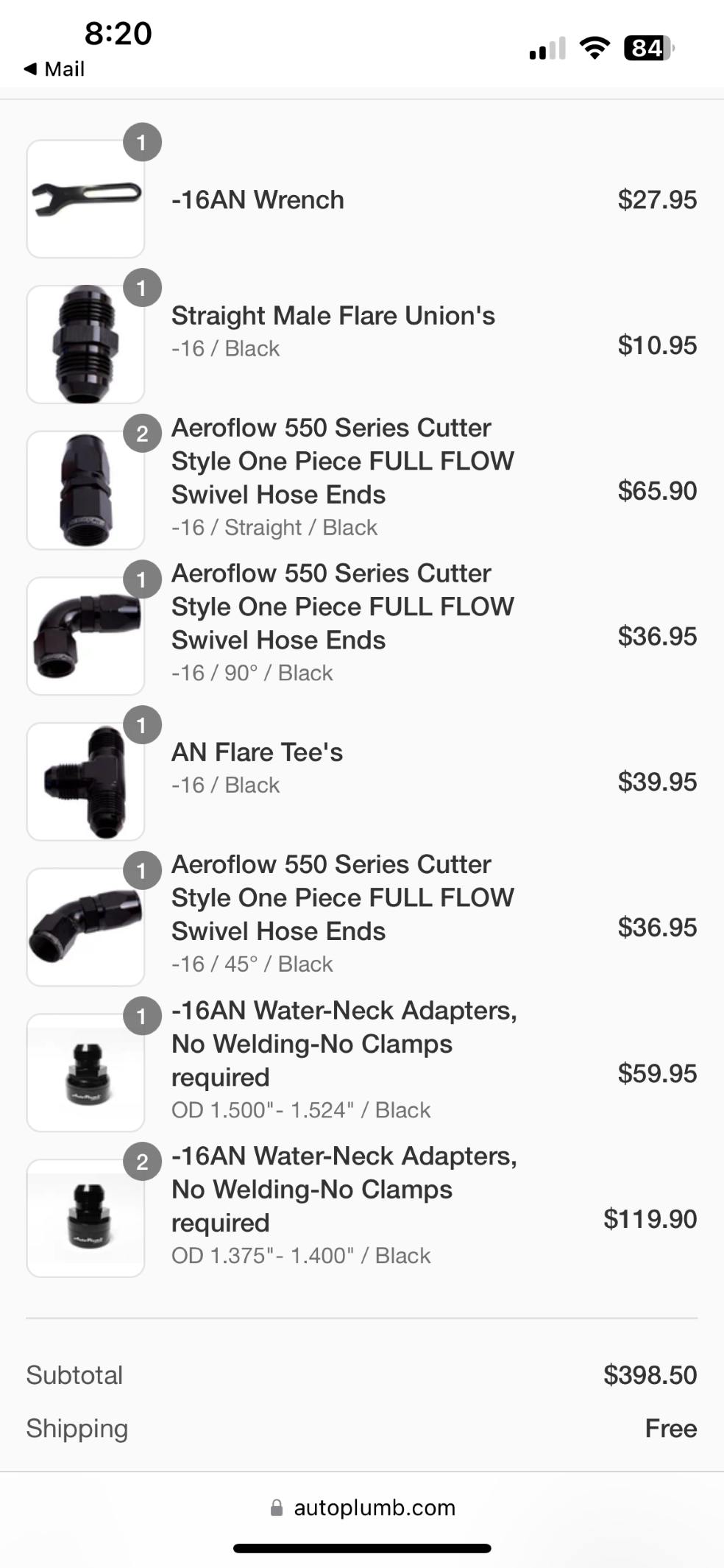

Then ordered all my -16AN fittings to plumb the Celica radiator to the Subaru 3.6 six using the braided hose I ran through the chassis.
Attached Image

OUCH! (IMG:style_emoticons/default/icon8.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Shivers
post Feb 16 2023, 09:41 AM
Post #15943


Senior Member
****

Group: Members
Posts: 2,292
Joined: 19-October 20
From: La Quinta, CA
Member No.: 24,781
Region Association: Southern California



QUOTE(ClayPerrine @ Feb 16 2023, 05:00 AM) *

Pulled the motor out of the big six last night....

Attached Image

Going to replace the leaking timing box on the right side. It will be nice to have a leak free motor.


Hi Clay. The duel dizzys are so cool...Any progress on your horizontal cooling system?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Feb 16 2023, 09:51 AM
Post #15944


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,367
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille



QUOTE(Shivers @ Feb 16 2023, 09:41 AM) *

QUOTE(ClayPerrine @ Feb 16 2023, 05:00 AM) *

Pulled the motor out of the big six last night....

Attached Image

Going to replace the leaking timing box on the right side. It will be nice to have a leak free motor.


Hi Clay. The duel dizzys are so cool...Any progress on your horizontal cooling system?



I have to fix the oil leak first. Then I can start on the new MS3Pro wiring.

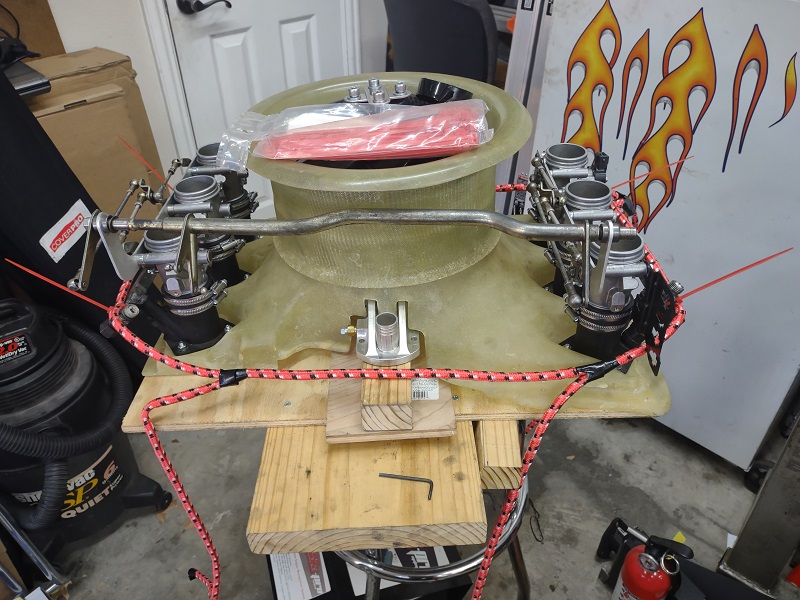

Here is the rope used to layout the EFI harness on the fan setup.

Attached Image

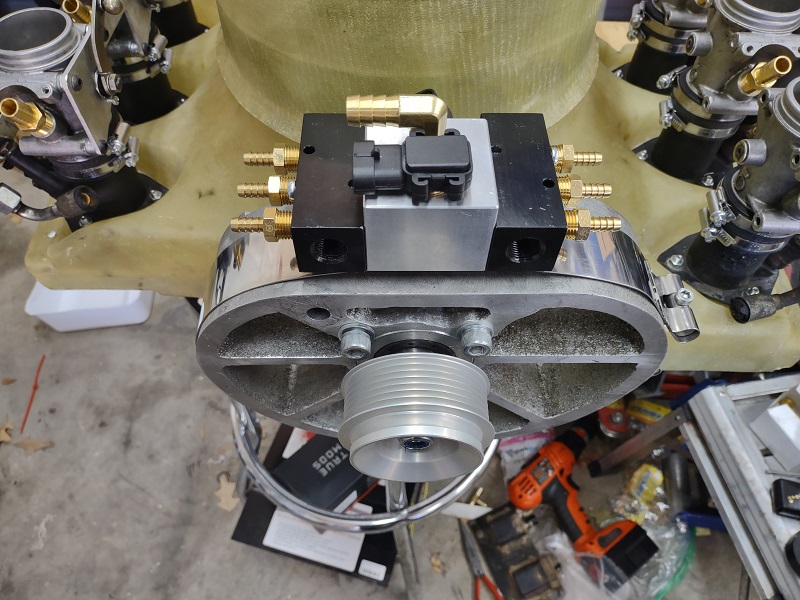

And the Vacuum block with the IAC and the MAP sensor.

Attached Image

I have been working on all of our other vehicles, so I have not had much time to work on this. The rope harness is still in prototype phase, so it is not final. I am debating on putting the ECU under the relay board.

I was going to put a blower fan where the /4 ecu mounted to push air through the heat exchangers so I would have heat. But I don't know if it will fit.

I also have to put vacuum ports in the bases of the intakes, across from the injector ports. Having the vacuum ports up near the butterflies would make the vacuum transition rather harsh and cause drivability issues.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Feb 17 2023, 09:47 AM
Post #15945


Michael
*****

Group: Members
Posts: 9,650
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California

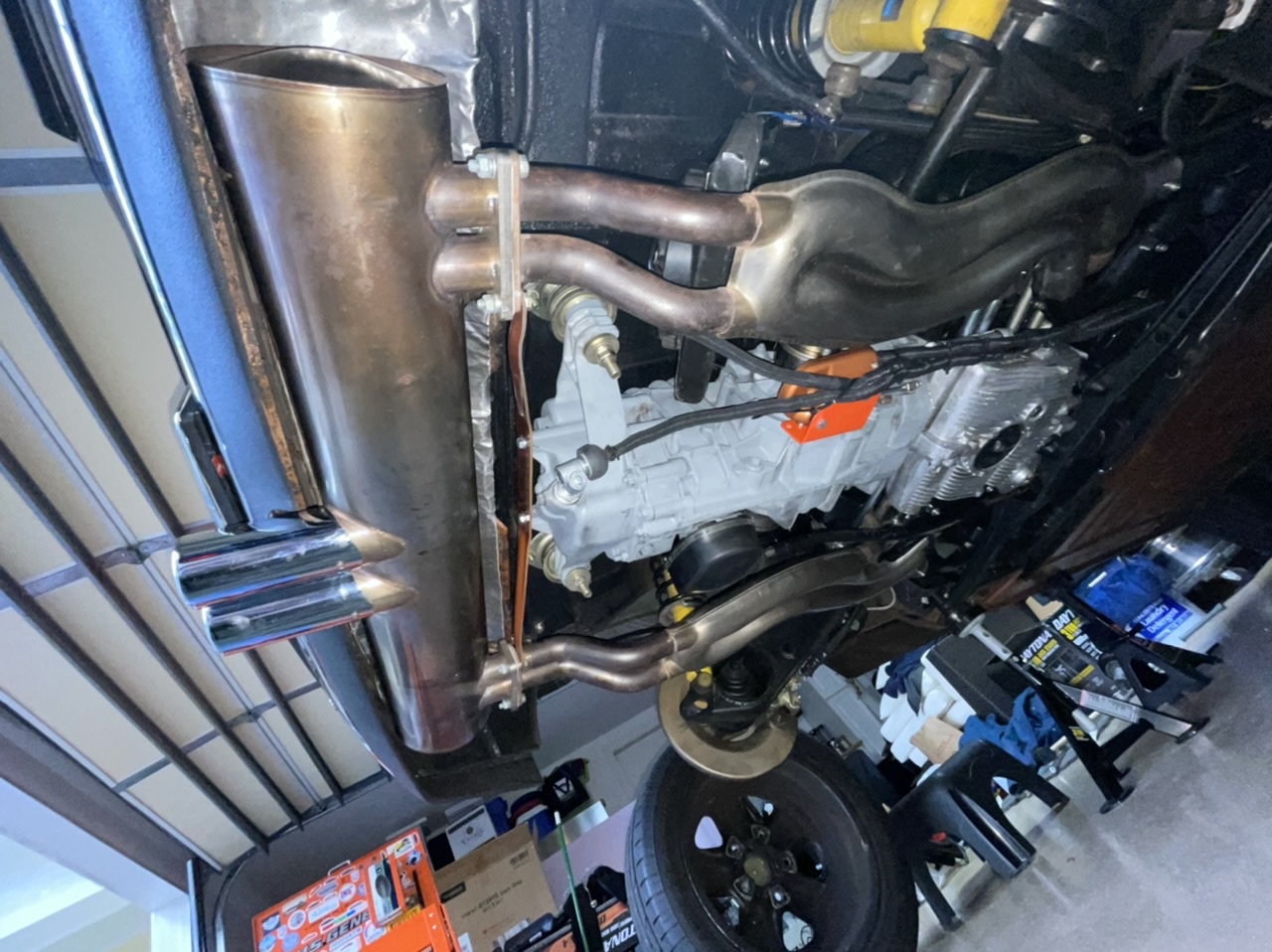

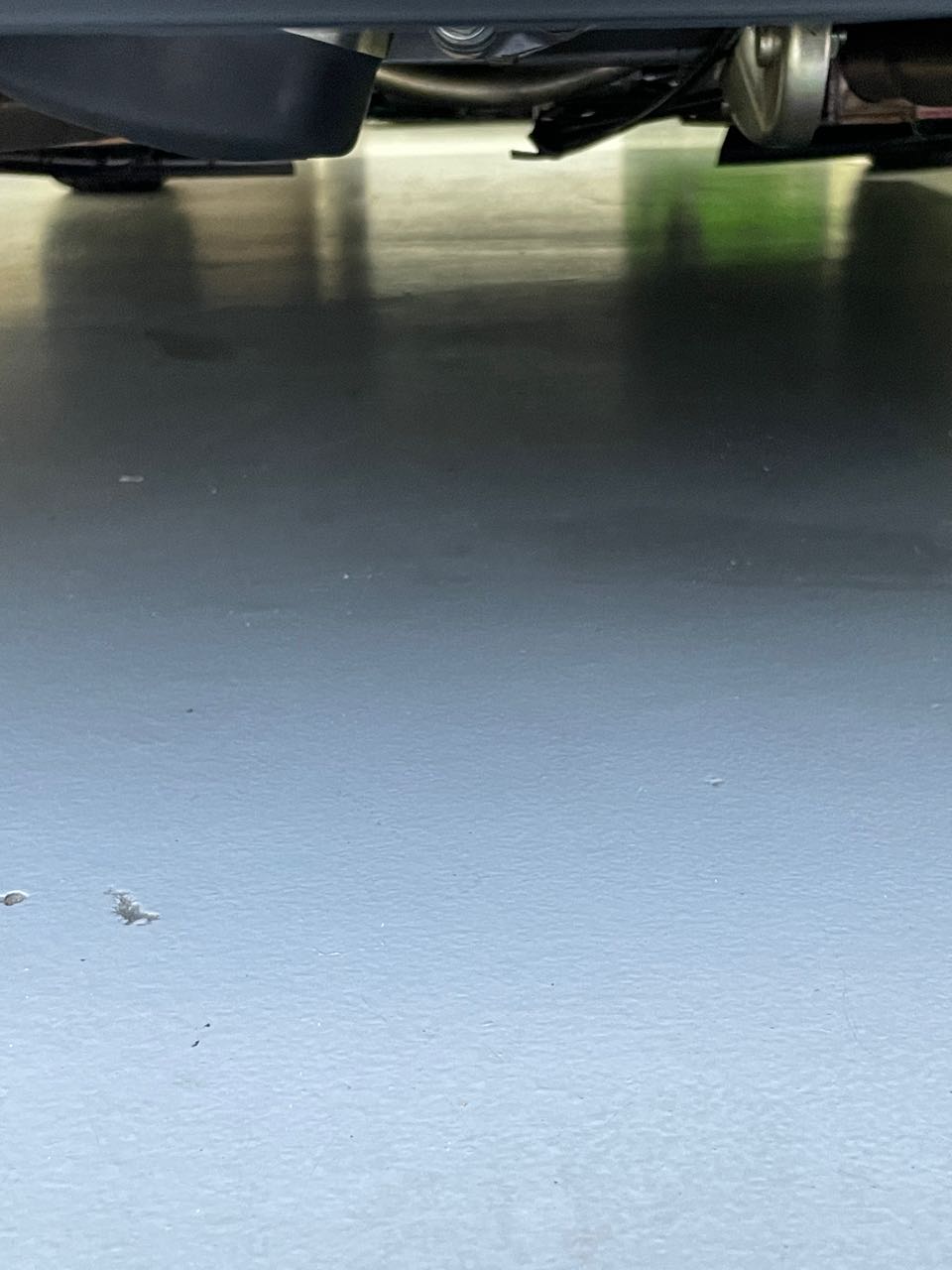

We spent yesterday working on my car. We finally, it appears, have resolved the passenger axle seal leak that would leave a quarter-sized drip under my car when parked. Replaced the seal (again) only with a slightly different seal, and this morning not a drop under my car. Yay!!!!

We ended up dropping the rear of the car 1 Bilstein shock spring cup clip in height as it was just about 1/2" too high. Now it sits pretty with a slight rake, the front being maybe 5/8" lower than the rear. That's the way I think they look the best. I want to drive it some more today and really look at it to be sure we are at our final height adjustment. Then I will call the alignment shop to make an appointment to be sure everything is right.

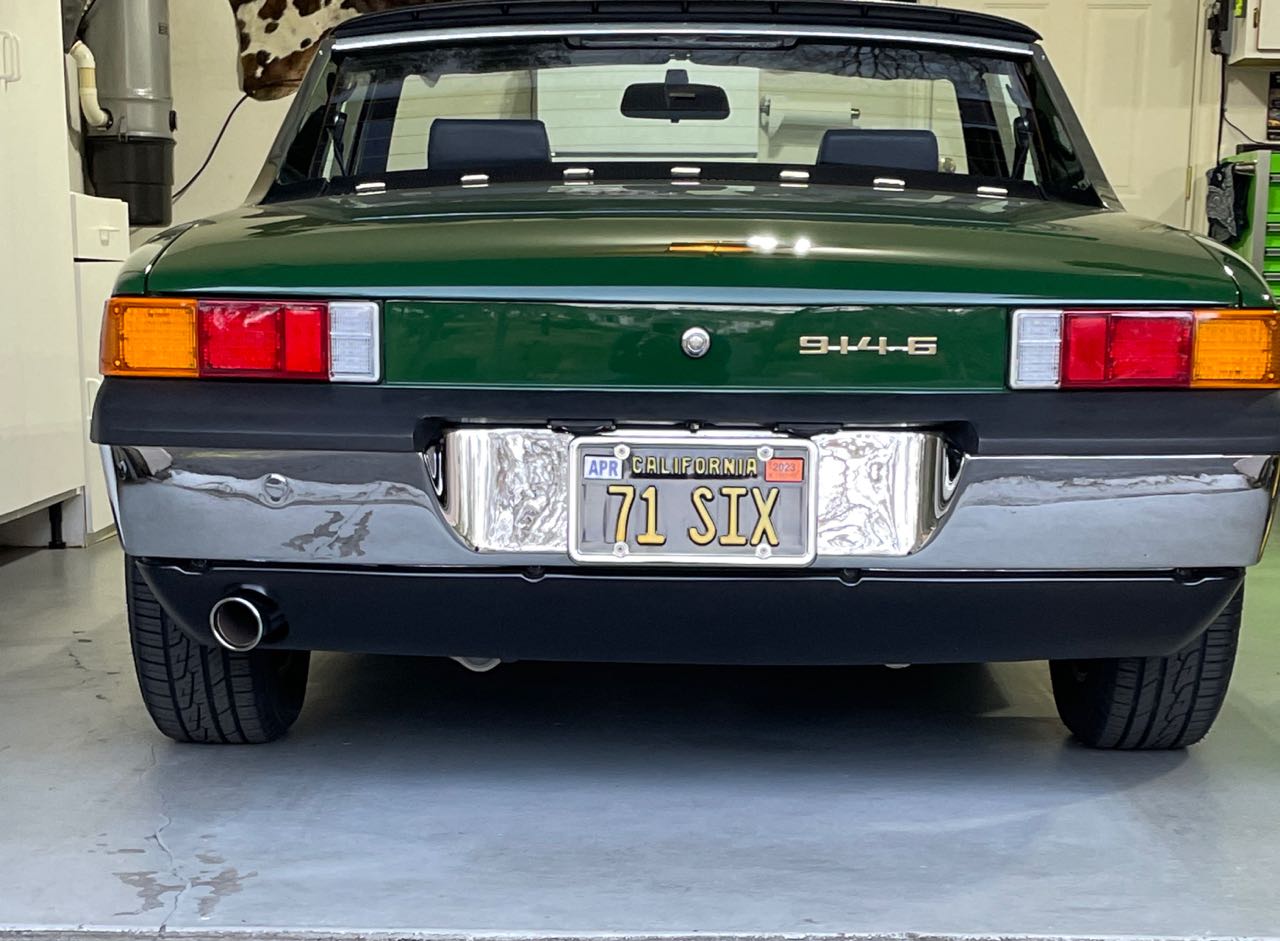

We removed the rear valance and bumper as one of my valance attachment points on the body would not hold a screw to secure the valance and my valance was also about 1/4" off being straight. We installed riv-nuts in the 4 holes and used some black allen head screws that look nice and virtually disappear. The other screws were gold cad-plated Phillips screws. Now the valance is true across the width and looks much better.

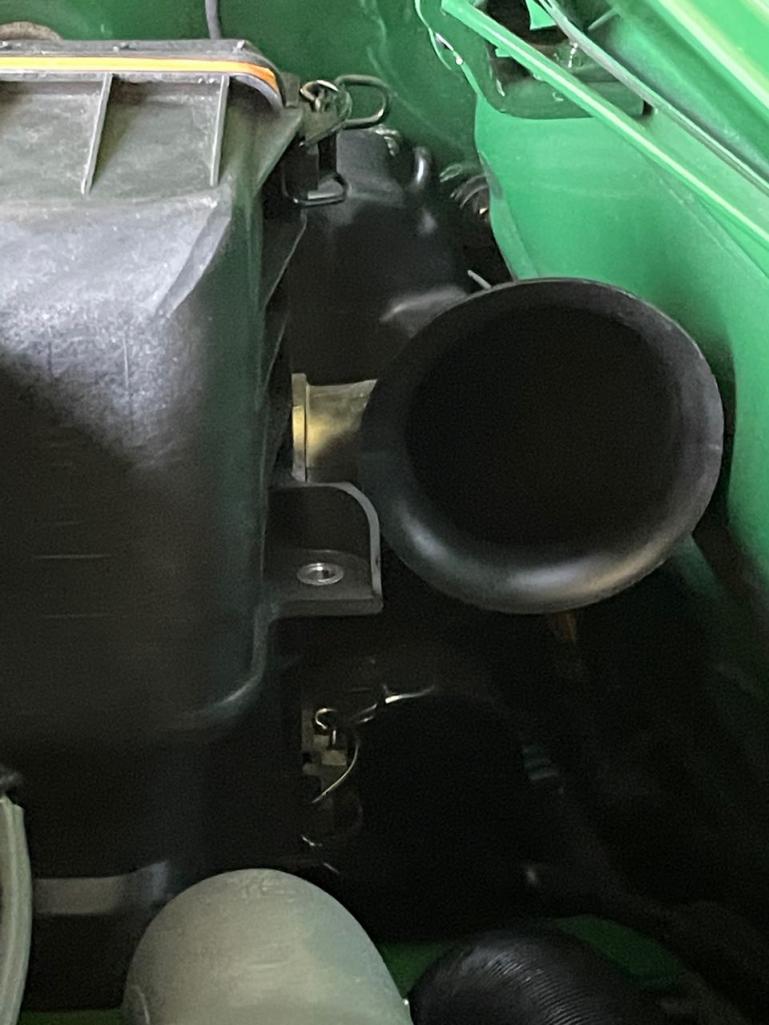

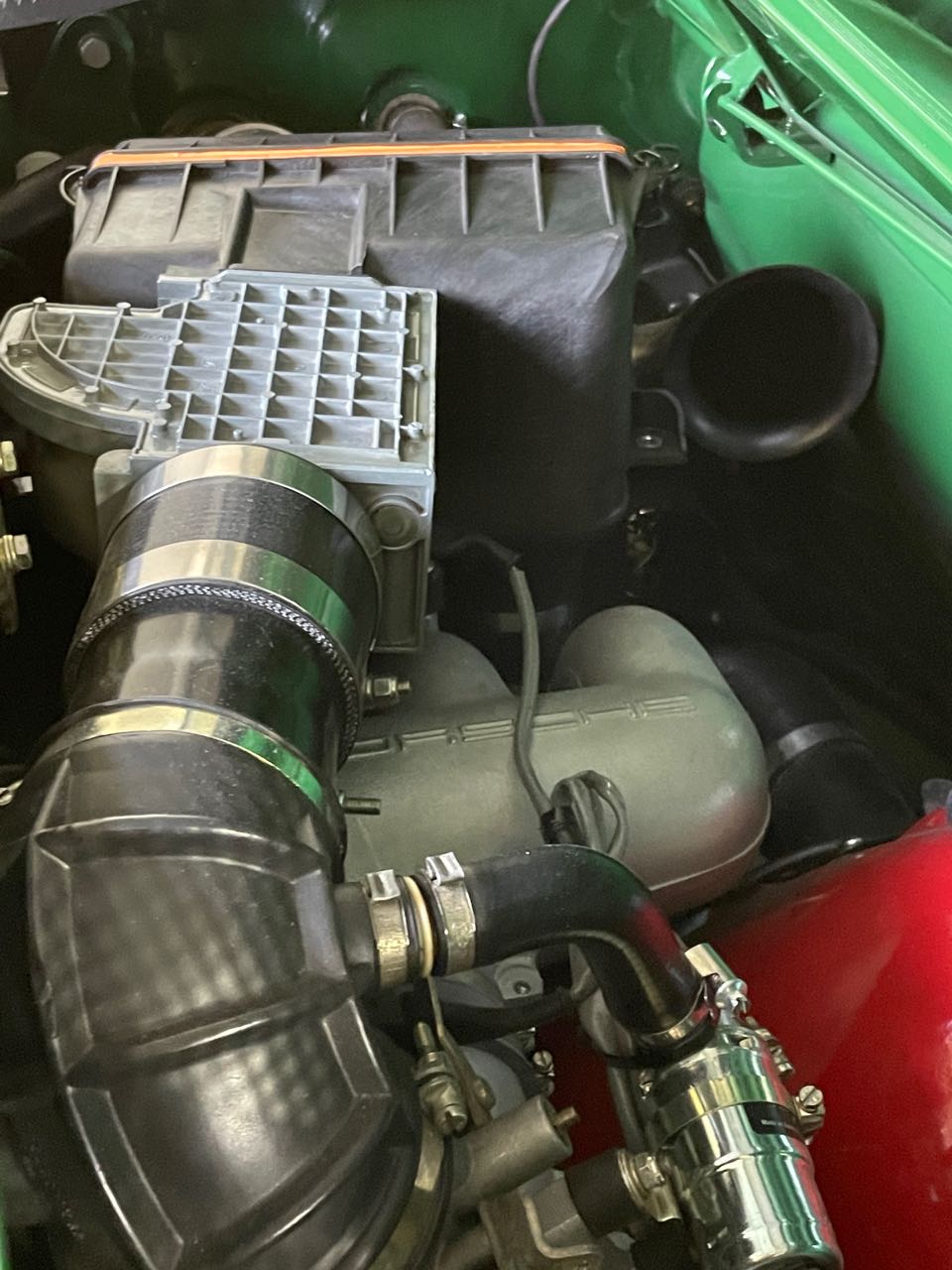

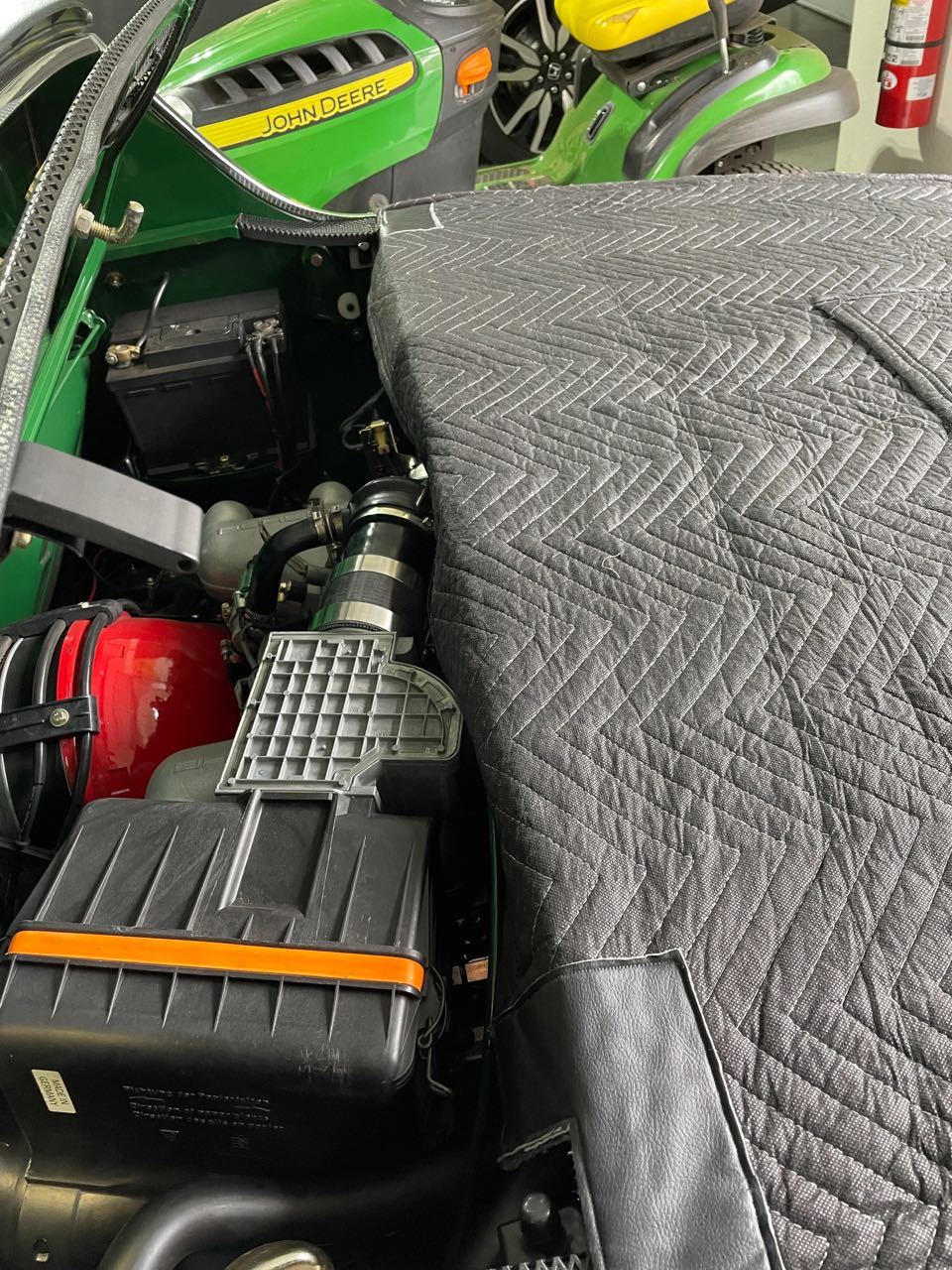

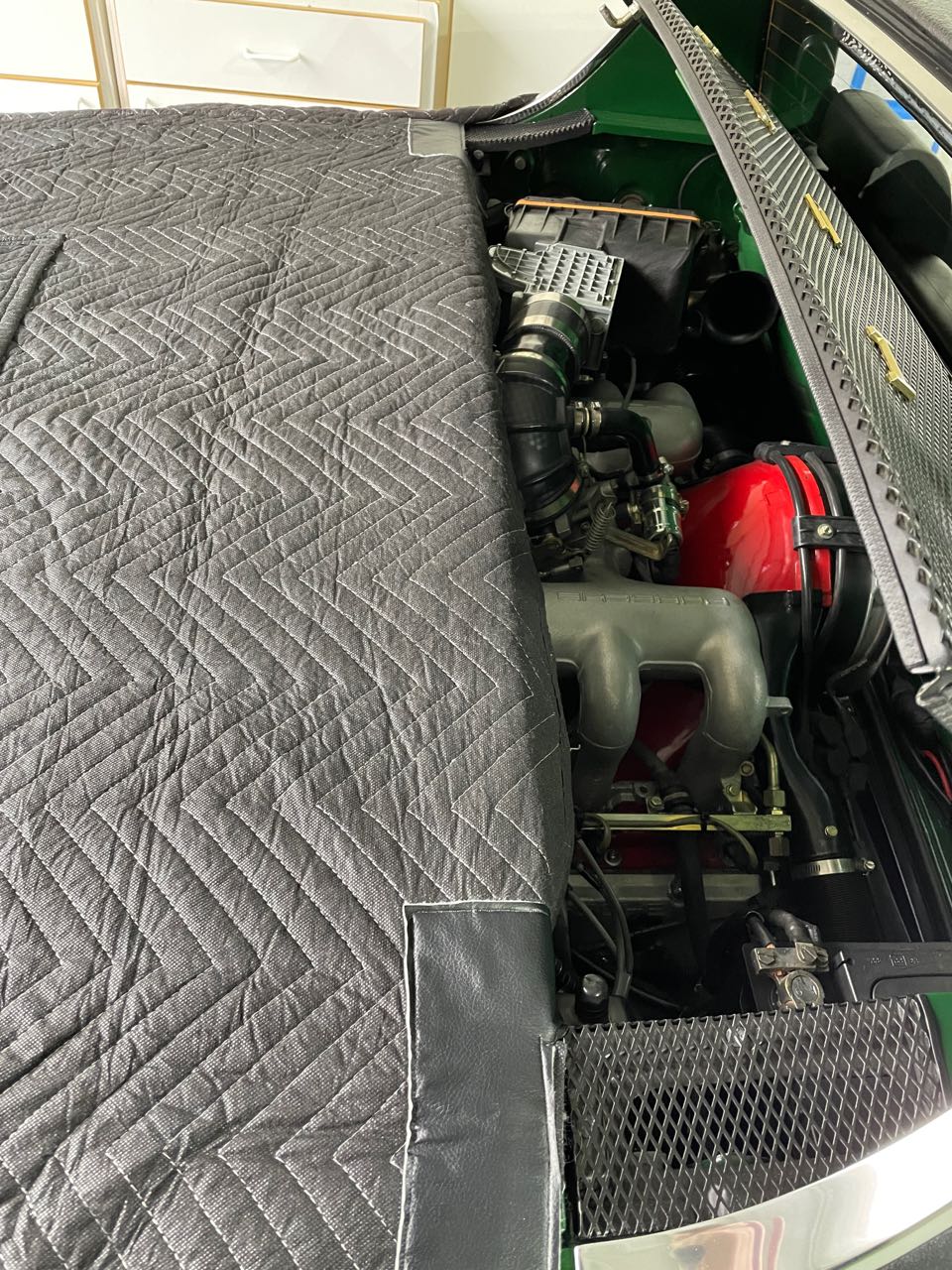

We also, (finally) installed the snorkel on my stock 3.2 air cleaner. I have been wanting to do that for a bit. The air cleaner is now 100% stock 3.2 and appears to quiet the engine down a tiny bit too- of course, that could just be my imagination.

Also adjusted both doors as they were proud of the quarter panel when shut by maybe an 1/16". Now they are flush and still close nicely.

All in, a great day of fun and friendship.

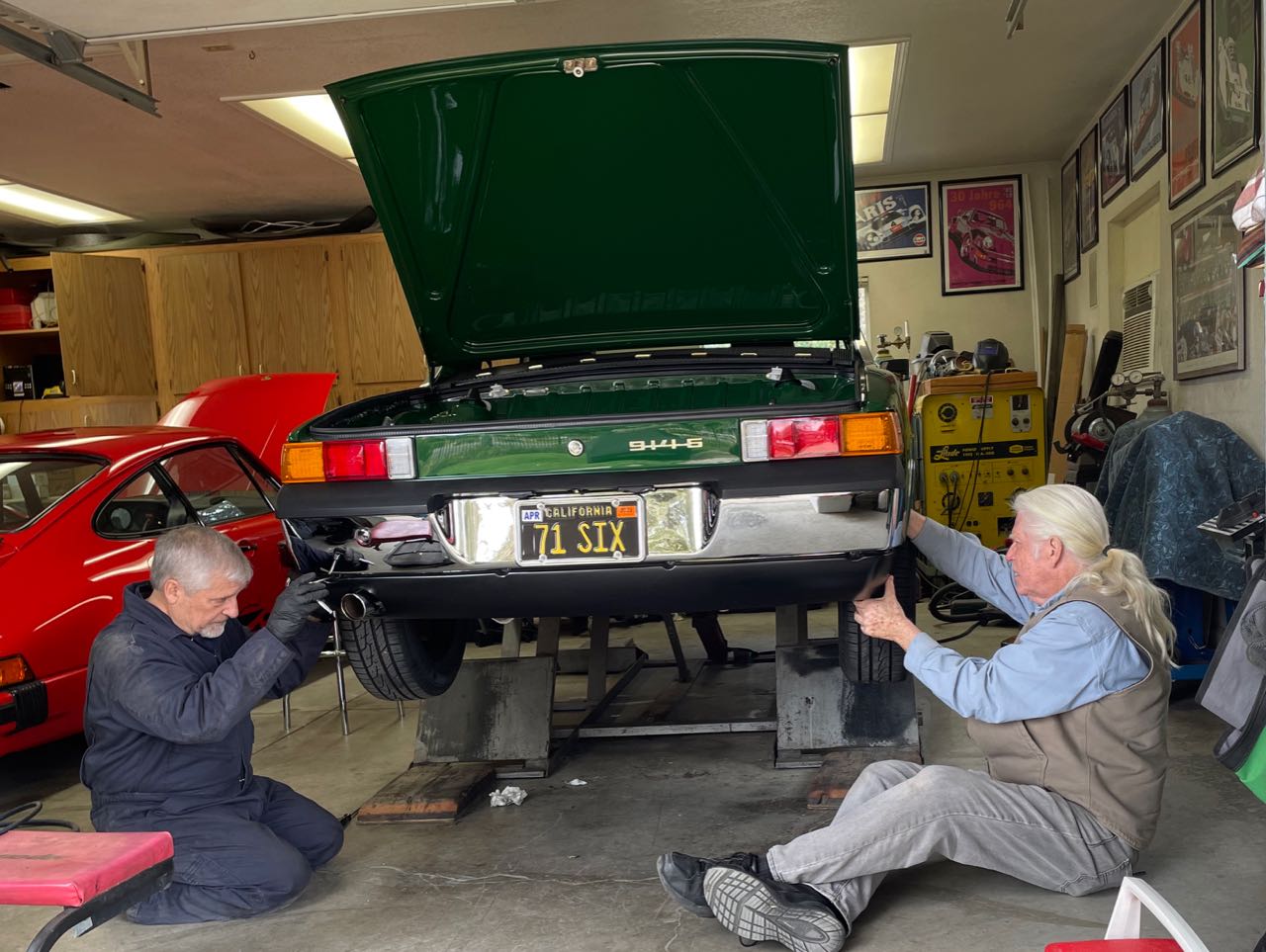

Oh, the guy with the ponytail is HB. HB owns 2 914's- and is currently gathering parts to convert one of them to a 3.2 with Webers.....We hope to be picking the engine up from the machine shop within the next 30 days. Then the fun begins.

We did the work at Greg T.'s home in Tracy. Actually, he did the work and I was his assistant. Greg has the Willow Green flared 914 with a 3.2SS motored beautiful car that took 2nd at Werks Reunion this past year.

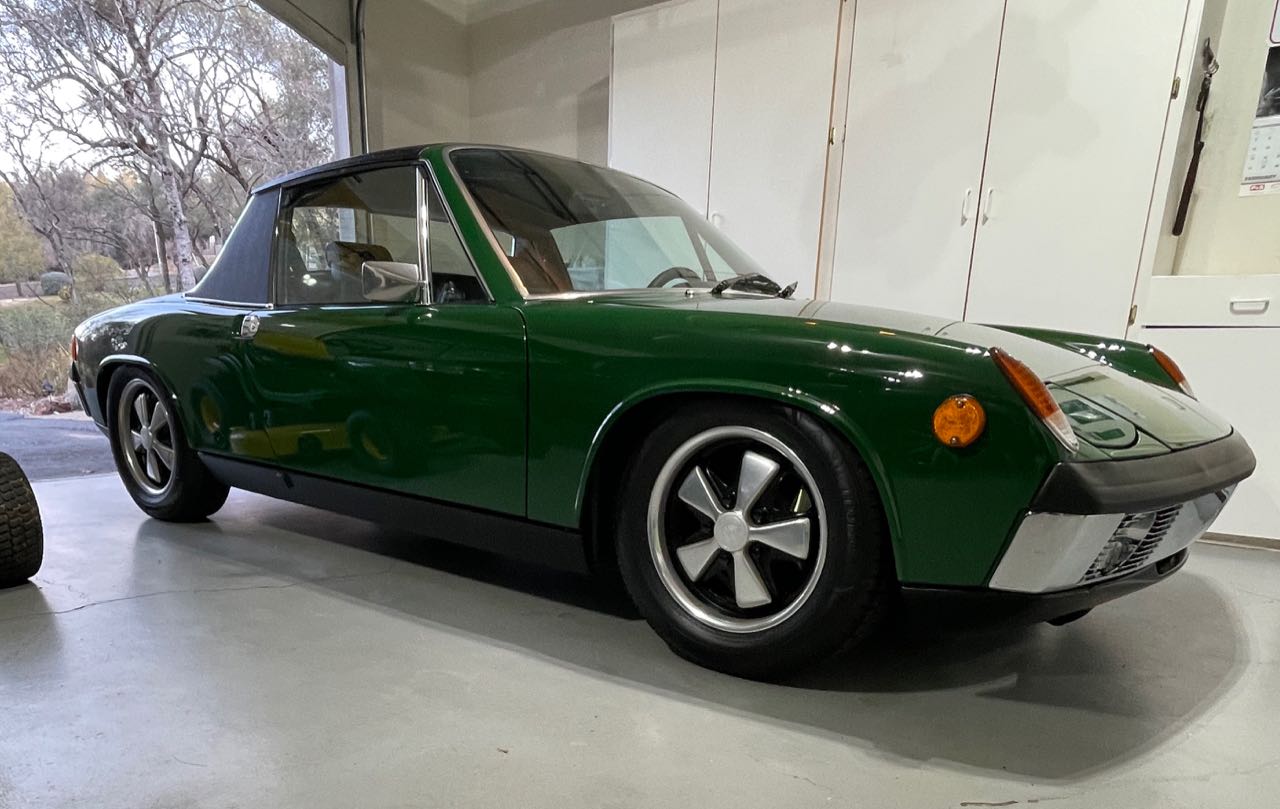

Oh- though the picture of the side profile makes it look like the rear wheel is showing positive camber, it actually is not. Weird.

Thanks for looking everyone,
Michael (IMG:style_emoticons/default/beerchug.gif)

Attached Image

Attached Image

Attached Image

Attached Image

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Type 47
post Feb 17 2023, 03:35 PM
Post #15946


Senior Member
***

Group: Members
Posts: 779
Joined: 1-June 10
From: St. Louis, MO
Member No.: 11,790
Region Association: None

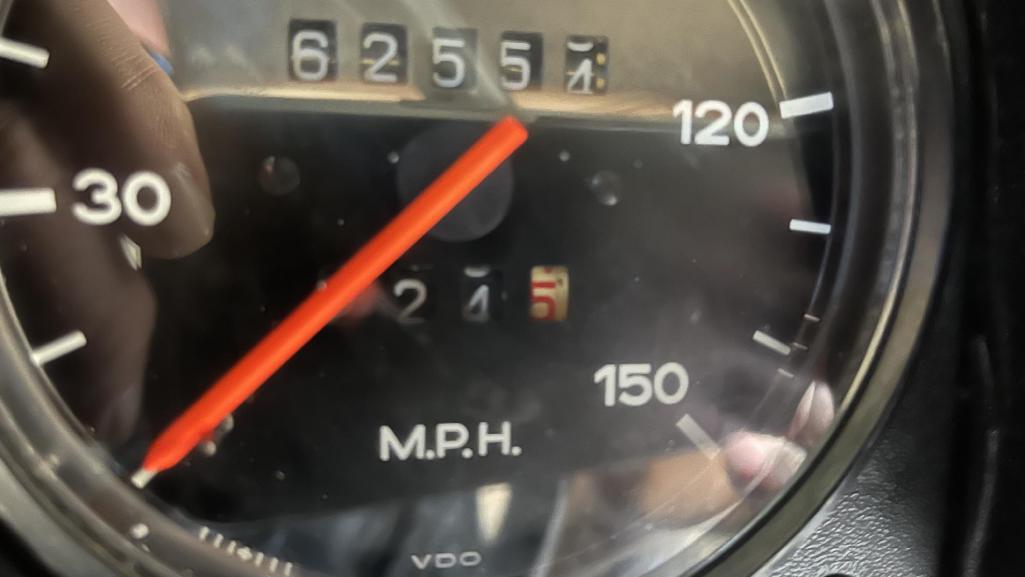

Put 2.5 miles on the car for the 1st time since 4.22.2012.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Shivers
post Feb 18 2023, 12:37 AM
Post #15947


Senior Member
****

Group: Members
Posts: 2,292
Joined: 19-October 20
From: La Quinta, CA
Member No.: 24,781
Region Association: Southern California



QUOTE(ClayPerrine @ Feb 16 2023, 07:51 AM) *

QUOTE(Shivers @ Feb 16 2023, 09:41 AM) *

QUOTE(ClayPerrine @ Feb 16 2023, 05:00 AM) *

Pulled the motor out of the big six last night....

Attached Image

Going to replace the leaking timing box on the right side. It will be nice to have a leak free motor.


Hi Clay. The duel dizzys are so cool...Any progress on your horizontal cooling system?



I have to fix the oil leak first. Then I can start on the new MS3Pro wiring.

Here is the rope used to layout the EFI harness on the fan setup.

Attached Image

And the Vacuum block with the IAC and the MAP sensor.

Attached Image

I have been working on all of our other vehicles, so I have not had much time to work on this. The rope harness is still in prototype phase, so it is not final. I am debating on putting the ECU under the relay board.

I was going to put a blower fan where the /4 ecu mounted to push air through the heat exchangers so I would have heat. But I don't know if it will fit.

I also have to put vacuum ports in the bases of the intakes, across from the injector ports. Having the vacuum ports up near the butterflies would make the vacuum transition rather harsh and cause drivability issues.


(IMG:style_emoticons/default/lol-2.gif) Haha, and I'm putting flares on...That is next level cool Clay. (IMG:style_emoticons/default/pray.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Feb 18 2023, 06:39 AM
Post #15948


914 Guru
*****

Group: Members
Posts: 6,748
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest



QUOTE(mgarrison @ Feb 16 2023, 07:30 AM) *

Did some more CAD...
Attached Image

Then ordered all my -16AN fittings to plumb the Celica radiator to the Subaru 3.6 six using the braided hose I ran through the chassis.
Attached Image

OUCH! (IMG:style_emoticons/default/icon8.gif)


Wrong source man. You can buy them much cheaper elsewhere
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
CCE
post Feb 18 2023, 10:42 AM
Post #15949


CCE
**

Group: Members
Posts: 307
Joined: 28-December 21
From: Mexico
Member No.: 26,203
Region Association: NineFourteenerVille



QUOTE(mb911 @ Feb 18 2023, 06:39 AM) *

QUOTE(mgarrison @ Feb 16 2023, 07:30 AM) *

Did some more CAD...
Attached Image

Then ordered all my -16AN fittings to plumb the Celica radiator to the Subaru 3.6 six using the braided hose I ran through the chassis.
Attached Image

OUCH! (IMG:style_emoticons/default/icon8.gif)


Wrong source man. You can buy them much cheaper elsewhere

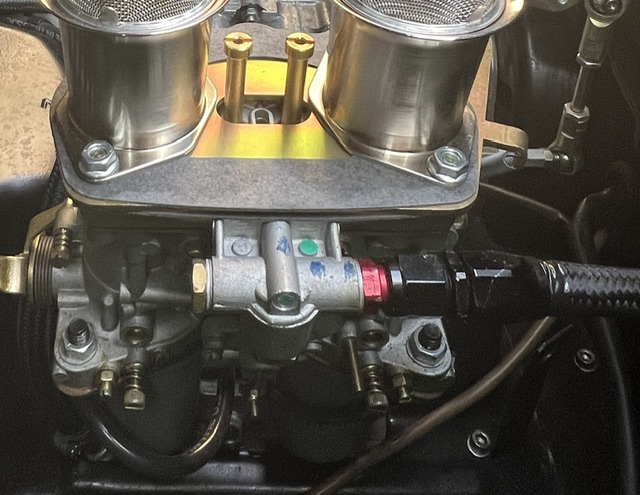

AN fittings are always expensive, but they look very niece in the end…
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
KSCarrera
post Feb 21 2023, 06:29 AM
Post #15950


Member
**

Group: Members
Posts: 305
Joined: 31-January 19
From: UK
Member No.: 22,846
Region Association: England



(IMG:https://i.postimg.cc/ZK4WB8zp/IMG-2603.jpg)

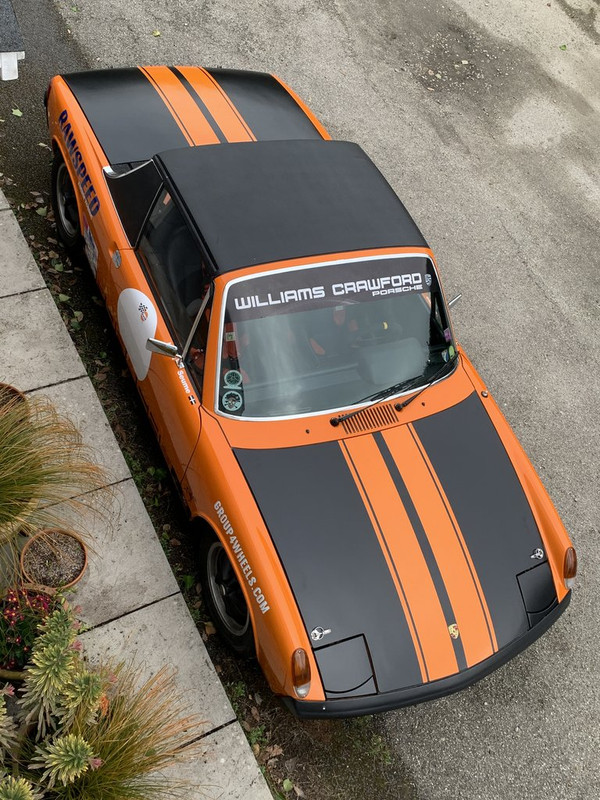

Got stripes - good for an extra 10mph at least!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DRPHIL914
post Feb 21 2023, 06:41 AM
Post #15951


Dr. Phil
*****

Group: Members
Posts: 5,753
Joined: 9-December 09
From: Bluffton, SC
Member No.: 11,106
Region Association: South East States



QUOTE(Cairo94507 @ Feb 17 2023, 10:47 AM) *

We spent yesterday working on my car. We finally, it appears, have resolved the passenger axle seal leak that would leave a quarter-sized drip under my car when parked. Replaced the seal (again) only with a slightly different seal, and this morning not a drop under my car. Yay!!!!

We ended up dropping the rear of the car 1 Bilstein shock spring cup clip in height as it was just about 1/2" too high. Now it sits pretty with a slight rake, the front being maybe 5/8" lower than the rear. That's the way I think they look the best. I want to drive it some more today and really look at it to be sure we are at our final height adjustment. Then I will call the alignment shop to make an appointment to be sure everything is right.

We removed the rear valance and bumper as one of my valance attachment points on the body would not hold a screw to secure the valance and my valance was also about 1/4" off being straight. We installed riv-nuts in the 4 holes and used some black allen head screws that look nice and virtually disappear. The other screws were gold cad-plated Phillips screws. Now the valance is true across the width and looks much better.

We also, (finally) installed the snorkel on my stock 3.2 air cleaner. I have been wanting to do that for a bit. The air cleaner is now 100% stock 3.2 and appears to quiet the engine down a tiny bit too- of course, that could just be my imagination.

Also adjusted both doors as they were proud of the quarter panel when shut by maybe an 1/16". Now they are flush and still close nicely.

All in, a great day of fun and friendship.

Oh, the guy with the ponytail is HB. HB owns 2 914's- and is currently gathering parts to convert one of them to a 3.2 with Webers.....We hope to be picking the engine up from the machine shop within the next 30 days. Then the fun begins.

We did the work at Greg T.'s home in Tracy. Actually, he did the work and I was his assistant. Greg has the Willow Green flared 914 with a 3.2SS motored beautiful car that took 2nd at Werks Reunion this past year.

Oh- though the picture of the side profile makes it look like the rear wheel is showing positive camber, it actually is not. Weird.

Thanks for looking everyone,
Michael (IMG:style_emoticons/default/beerchug.gif)

Attached Image

Attached Image

Attached Image

Attached Image

Attached Image

Attached Image

@Cairo94507
Michael that is awesome! soo hard to get these cars leak free!! i just got my motor back in after pulling it to fix yet another RMS leak, ans one push rod tone thst didn’t seal perfectly last time again! so hoping it’s now set- new problem- all hooked up ans tried to start it last night, crank but no fire ugh, and no back up light either (IMG:style_emoticons/default/hissyfit.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DRPHIL914
post Feb 21 2023, 07:03 AM
Post #15952


Dr. Phil
*****

Group: Members
Posts: 5,753
Joined: 9-December 09
From: Bluffton, SC
Member No.: 11,106
Region Association: South East States

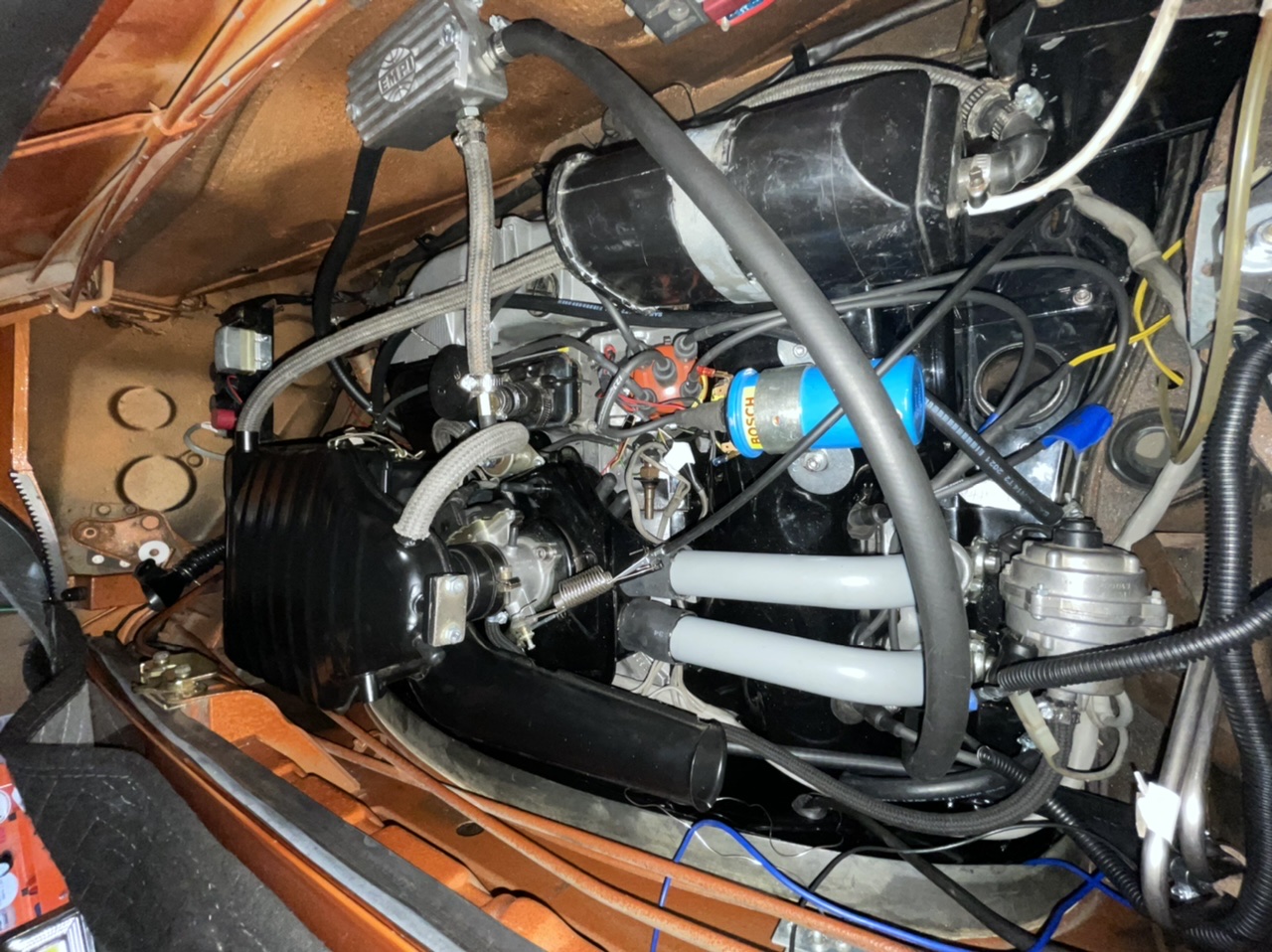

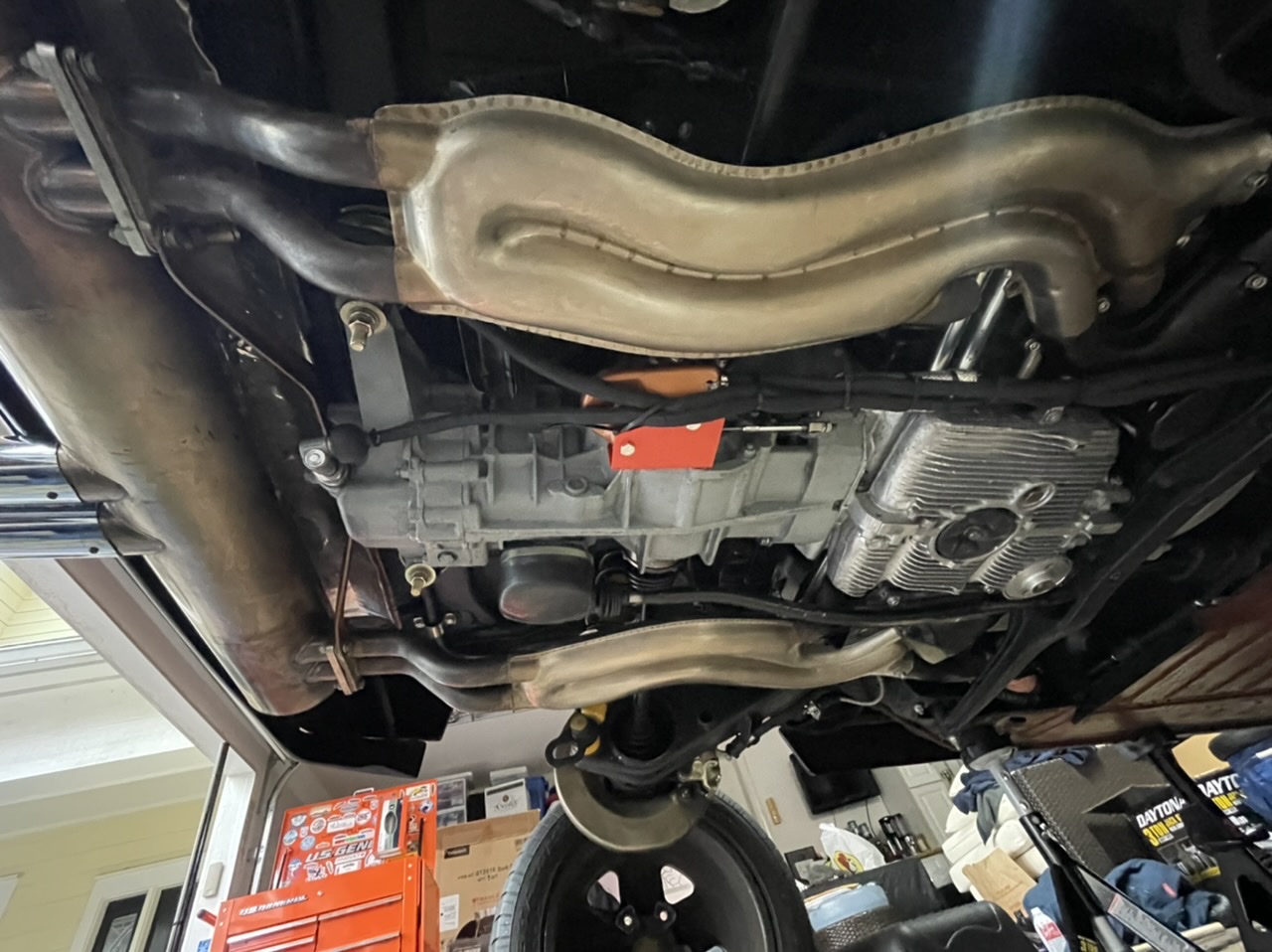

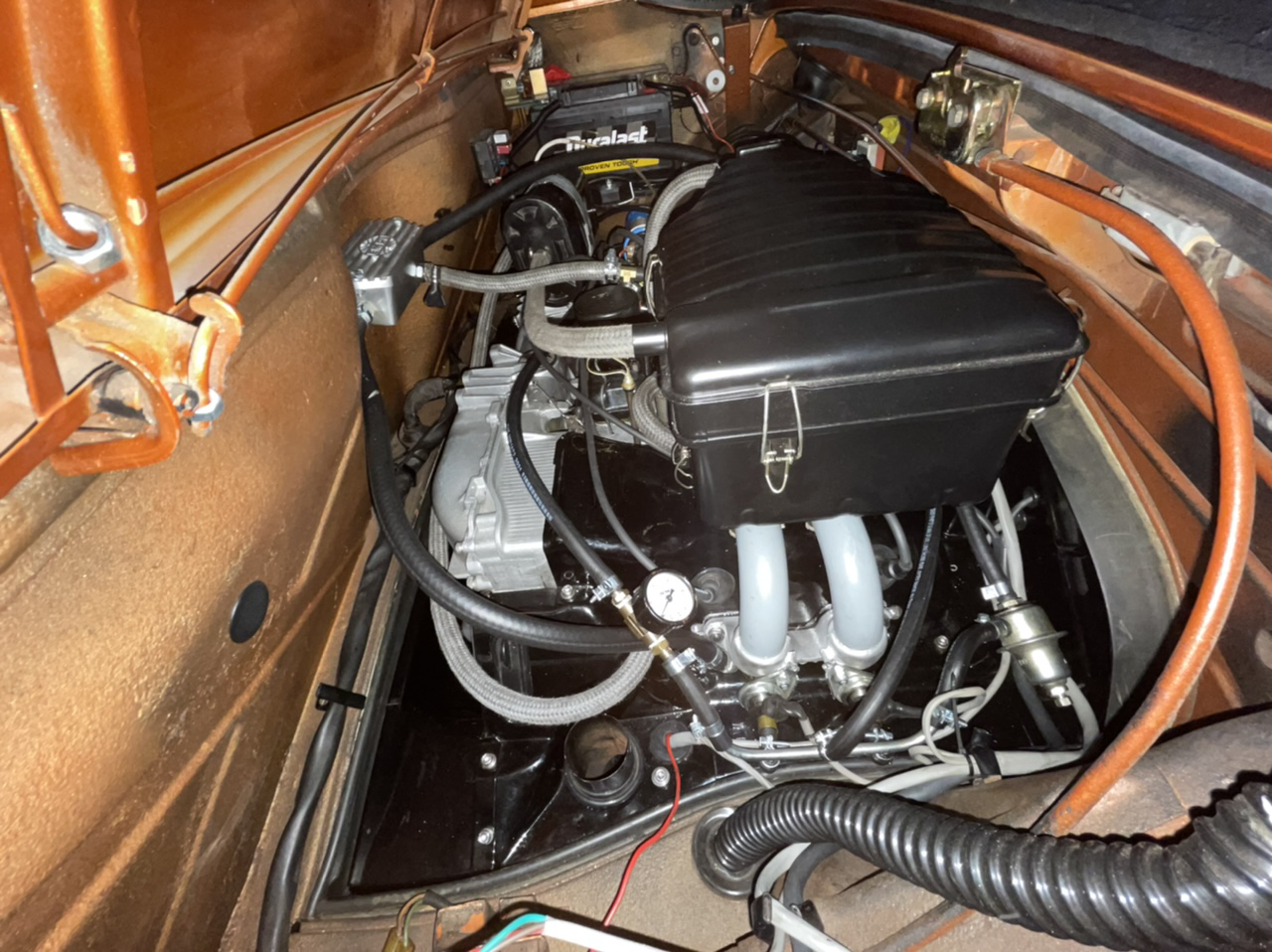

my motor back in, new RMs and push rod tube seals, tin cleaned up new intake runners,
new SMP injectors, new fuel lines. attempted a start last night , no go- oops didn’t have the harness plugged al the way in- then cranked but no fire. not holding pressure at the fuel gauge so i have to recheck to make sure i don’t have the lines incoming vs return line swapped but it’s clean


Attached thumbnail(s)
Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Feb 21 2023, 08:22 AM
Post #15953


Michael
*****

Group: Members
Posts: 9,650
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California



Hi DrPhil- Yeah, it is always something. For every item I cross off the project list, I add 2 more- or so it seems. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
maf914
post Feb 21 2023, 05:42 PM
Post #15954


Not a Guru!
****

Group: Members
Posts: 3,049
Joined: 30-April 03
From: Central Florida
Member No.: 632
Region Association: None



DRPHIL914,
That is one clean transmission. Nice. What paint or coating did you use? Thanks.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
anderssj
post Feb 22 2023, 08:09 PM
Post #15955


Dog is my copilot...
***

Group: Members
Posts: 1,641
Joined: 28-January 03
From: VA
Member No.: 207
Region Association: MidAtlantic Region



Drove it (IMG:style_emoticons/default/driving.gif)

100 mile round-trip out for lunch with wife.gov today (IMG:style_emoticons/default/piratenanner.gif)

Planning on the 245,000 mile oil change tomorrow...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
CCE
post Feb 23 2023, 12:29 AM
Post #15956


CCE
**

Group: Members
Posts: 307
Joined: 28-December 21
From: Mexico
Member No.: 26,203
Region Association: NineFourteenerVille



QUOTE(anderssj @ Feb 22 2023, 08:09 PM) *

Drove it (IMG:style_emoticons/default/driving.gif)

100 mile round-trip out for lunch with wife.gov today (IMG:style_emoticons/default/piratenanner.gif)

Planning on the 245,000 mile oil change tomorrow...

(IMG:style_emoticons/default/brain.gif)

Lots of miles. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Feb 25 2023, 12:02 PM
Post #15957


Michael
*****

Group: Members
Posts: 9,650
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California



I am experiencing a stumble upon cold start. Sounds like it is running on 4 cylinders and then clears up, like a fuel issue. Once warmed up she runs perfect. So I started trying to chase that issue down. So far, everything is looking fine..... ('87 3.2 with Motronic injection) BTW, love my Mom's Service Cover- we always use it.

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sb914
post Feb 25 2023, 04:45 PM
Post #15958


Surf Guru
****

Group: Members
Posts: 4,292
Joined: 25-November 12
From: Brookings,Oregon
Member No.: 15,191
Region Association: Southern California



I drove it ! Attached Image Attached ImageAttached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Feb 26 2023, 09:47 AM
Post #15959


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,367
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille



Put the motor back in the big six yesterday. Got everything but the oil coolers and the mufflers back on underneath.

Today I will clean the nasty oil coolers, and reinstall them and the mufflers. Then I am going to reinstall the fuel injection and get it back up and running.

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jett
post Feb 26 2023, 10:05 AM
Post #15960


Senior Member
***

Group: Members
Posts: 1,619
Joined: 27-July 14
From: Seattle
Member No.: 17,686
Region Association: Pacific Northwest



Went for a cruise after having the NOS TPS installed. Car runs perfectly!

This restoration is officially complete.


Attached thumbnail(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

838 Pages V « < 796 797 798 799 800 > »
Reply to this topicStart new topic
1 User(s) are reading this topic (1 Guests and 0 Anonymous Users)
0 Members:





- Lo-Fi Version Time is now: 29th March 2024 - 03:25 AM
