> Building a Rotisserie
McMark
post Jan 25 2012, 05:36 PM
Post #41


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None

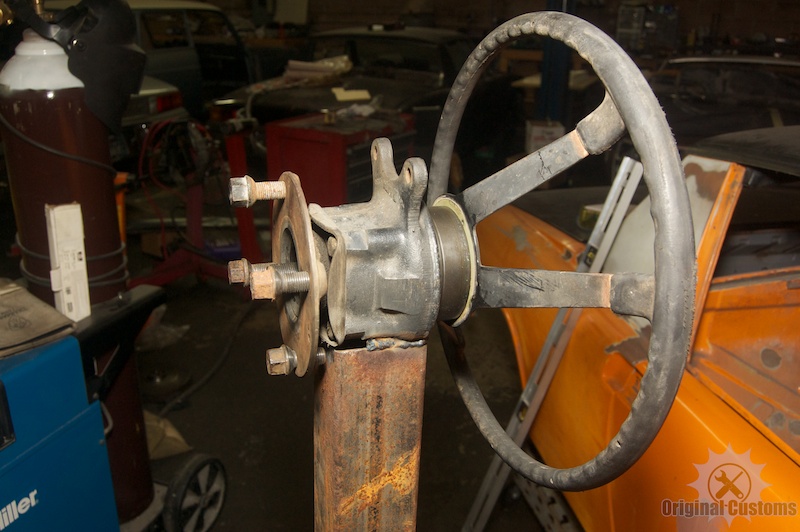

Finally found the bearing setup I wanted to make the rotation super smooth. (IMG:style_emoticons/default/happy11.gif)

This also sticks with my plan to just try and use up crap I've got laying around the shop. So far I have $0 invested. (IMG:style_emoticons/default/smilie_pokal.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
scotty b
post Jan 25 2012, 05:41 PM
Post #42


rust free you say ?
***************

Group: Members
Posts: 16,375
Joined: 7-January 05
From: richmond, Va.
Member No.: 3,419
Region Association: None
(IMG:style_emoticons/default/thumb3d.gif) I thought aboot using rear bearing's too..... 3 months after I had built mine (IMG:style_emoticons/default/dry.gif) (IMG:style_emoticons/default/headbang.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
burton73
post Jan 25 2012, 06:04 PM
Post #43


Senior member, and old dude
****

Group: Members
Posts: 3,821
Joined: 2-January 07
From: Los Angeles
Member No.: 7,414
Region Association: Southern California

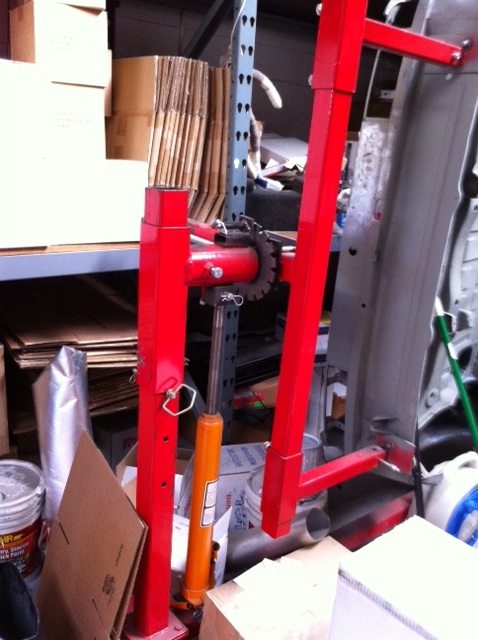

Mark,

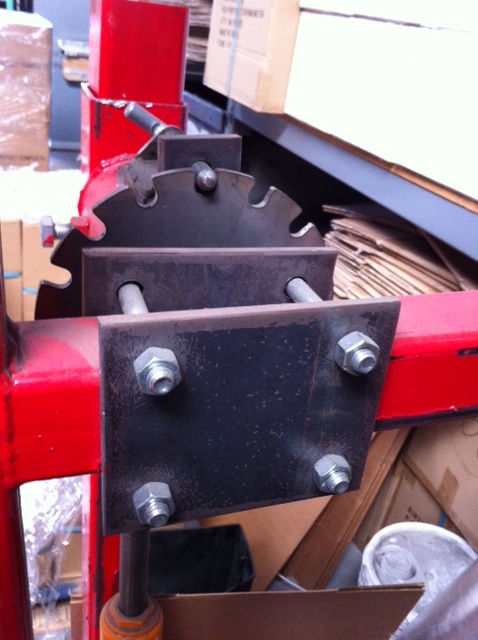

This is on my unit I bought it for $1100. But it has a great indexing holder when you turn the car. It makes it very easy to work on the car at all different angles. With the Jacks it makes it very easy to make the car go to the perfect working height as well. Just some ideas for you.

Bob
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jan 25 2012, 06:19 PM
Post #44


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
I'm building a similar locking pin setup.

The hydraulics are nice, but beyond the scope of this project. I have a lift, so getting cars up and down is no problem. (IMG:style_emoticons/default/sunglasses.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mr914
post Mar 10 2012, 06:49 PM
Post #45


914 Hillbilly
***

Group: Members
Posts: 576
Joined: 11-January 03
From: Lincoln NE
Member No.: 131
Region Association: None

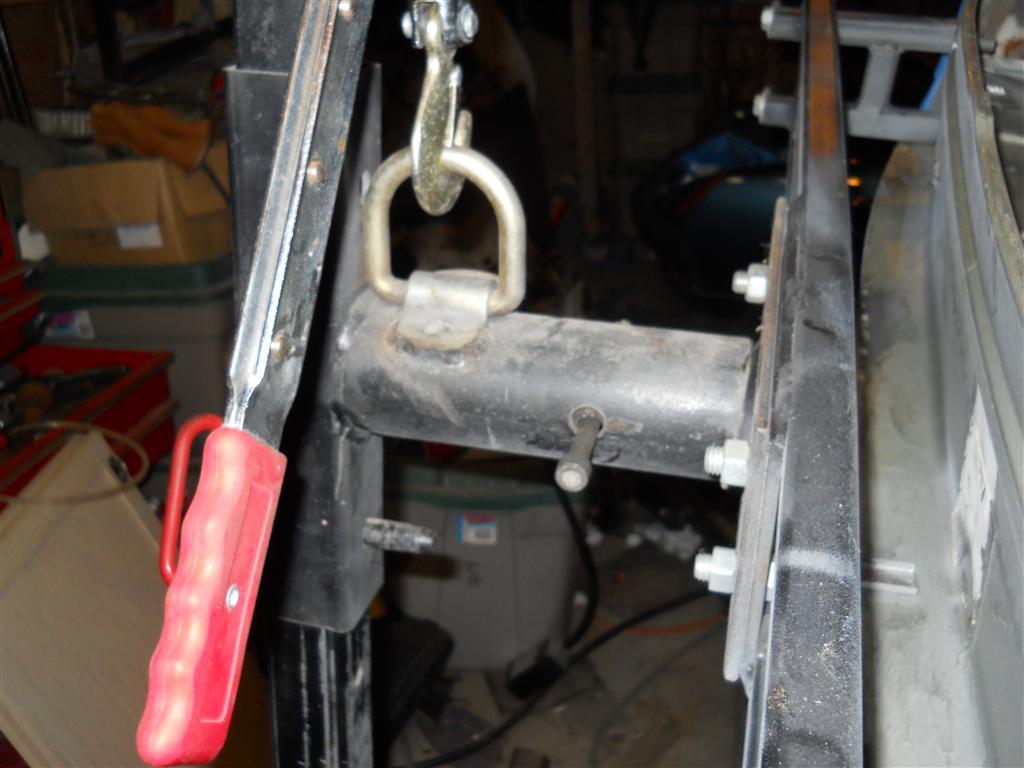

I built my rotiserie a number of years ago.

I used a combination of 2 1/2" thick wall and thin wall tubing to allow for sliding of the tubes.

Had a local machinist bore 5/8" holes on a brigeport with 2" indexes.

Did the same thing for the slip tube except for 8" centers.

I then used two heavy wall tubes that were almost an interface fit and welded them on a plate.

Never needed a bearing. it already spins easy enough.

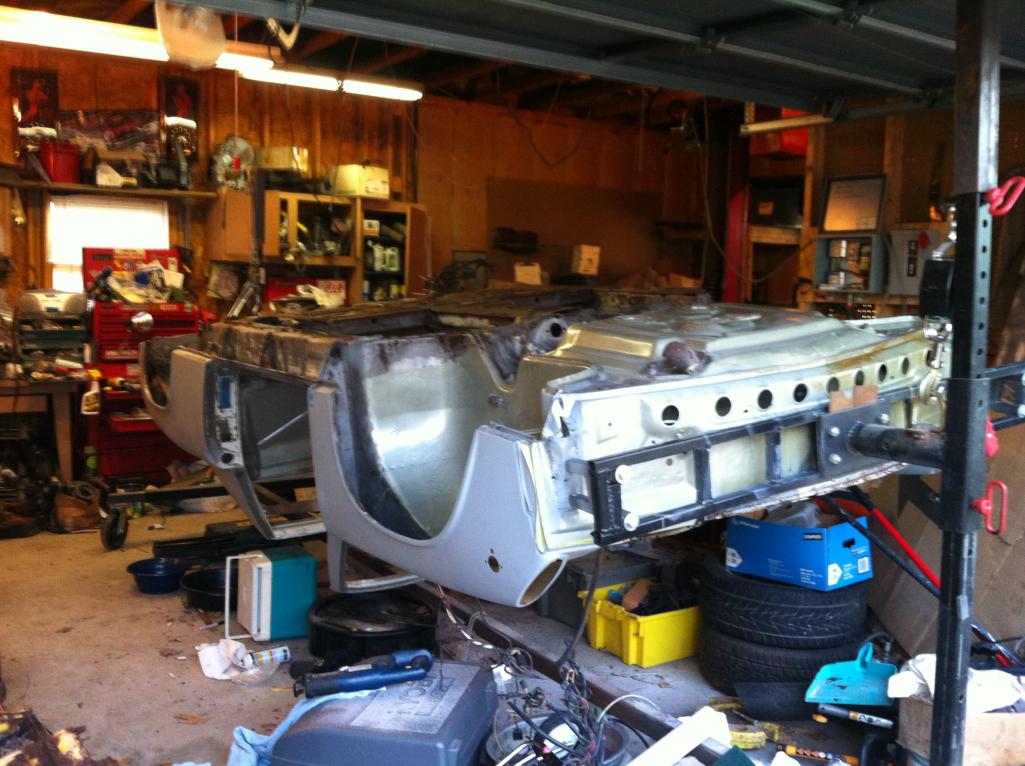

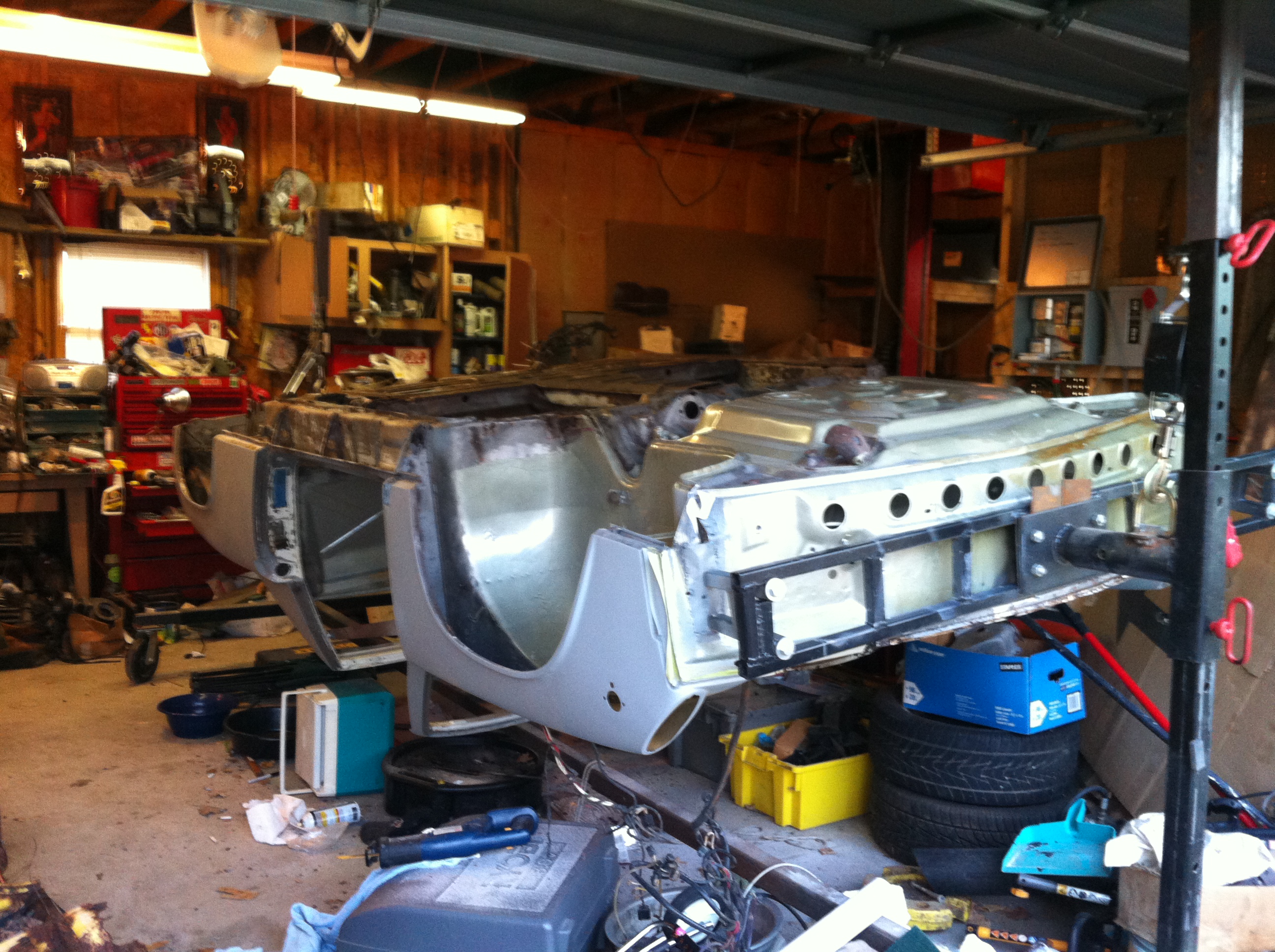

Turtled mine today


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mr914
post Mar 10 2012, 07:05 PM
Post #46


914 Hillbilly
***

Group: Members
Posts: 576
Joined: 11-January 03
From: Lincoln NE
Member No.: 131
Region Association: None

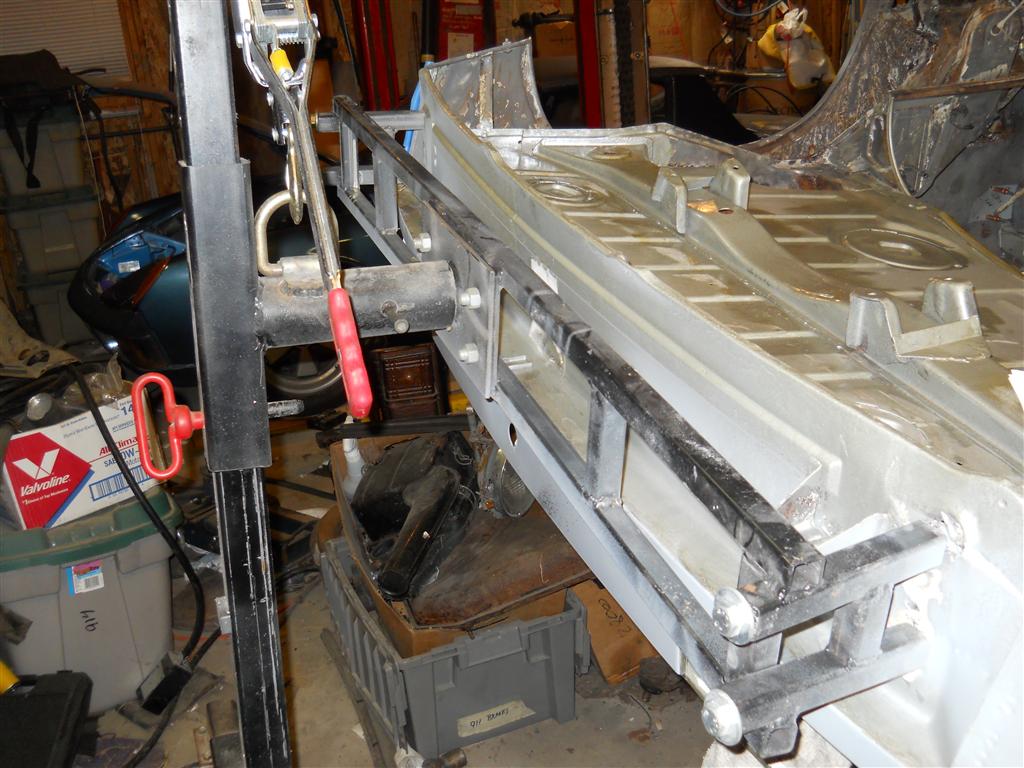

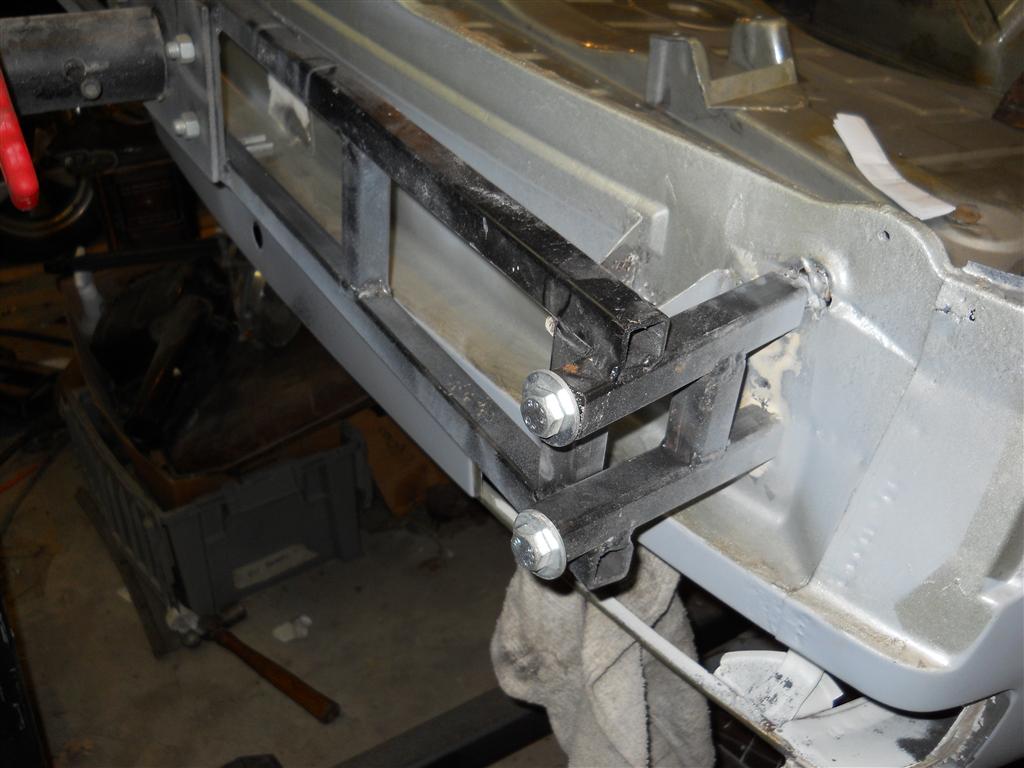

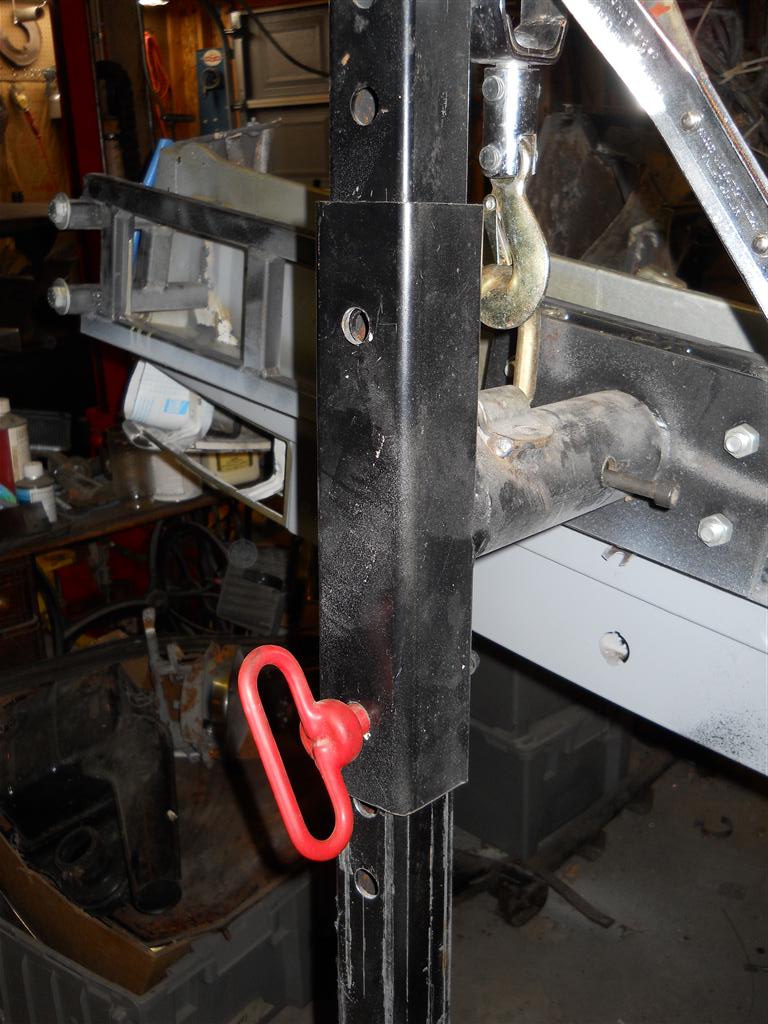

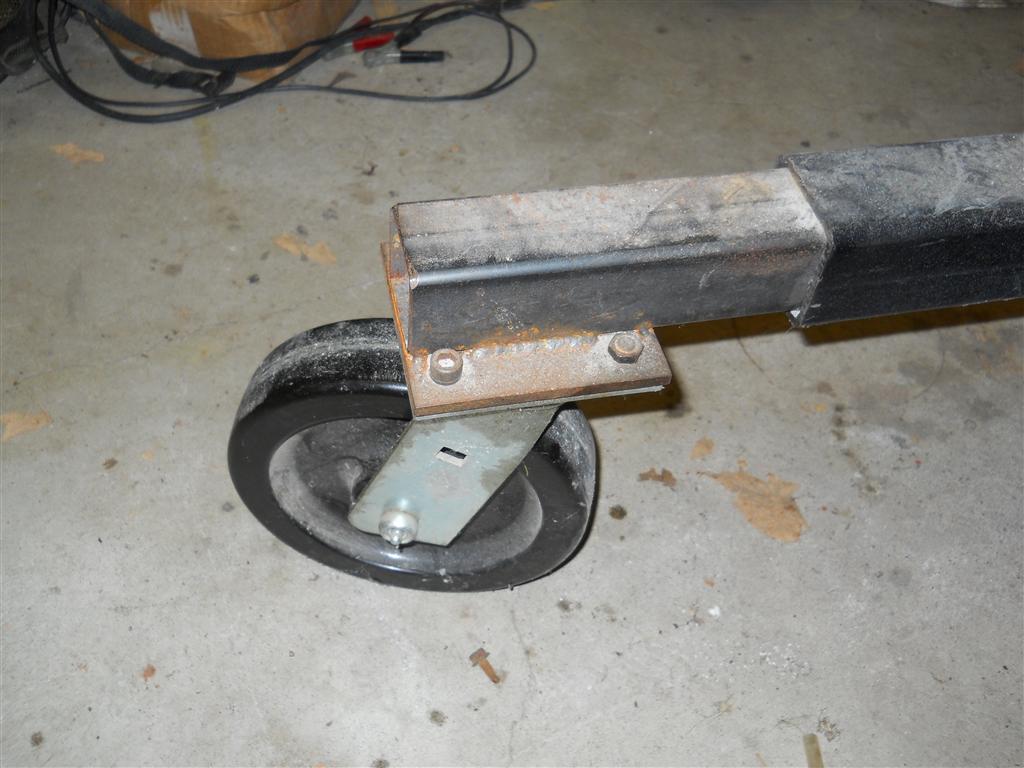

Built it so I could break it down and store it.

Seems to be a permanent fixture in the garage


Attached image(s)
Attached Image Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ConeDodger
post Mar 10 2012, 09:20 PM
Post #47


Apex killer!
***************

Group: Members
Posts: 24,025
Joined: 31-December 04
From: Tahoe Area
Member No.: 3,380
Region Association: Northern California
QUOTE(McMark @ Jan 25 2012, 03:36 PM) *

Finally found the bearing setup I wanted to make the rotation super smooth. (IMG:style_emoticons/default/happy11.gif)

This also sticks with my plan to just try and use up crap I've got laying around the shop. So far I have $0 invested. (IMG:style_emoticons/default/smilie_pokal.gif)


Say... That rear hub isn't from my car is it? (IMG:style_emoticons/default/av-943.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Mar 10 2012, 09:50 PM
Post #48


914 Wizard
**********

Group: Members
Posts: 10,821
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
QUOTE

Say... That rear hub isn't from my car is it? av-943.gif

No... But the steering wheel Is.. (IMG:style_emoticons/default/laugh.gif) (IMG:style_emoticons/default/av-943.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jun 25 2012, 08:29 PM
Post #49


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None

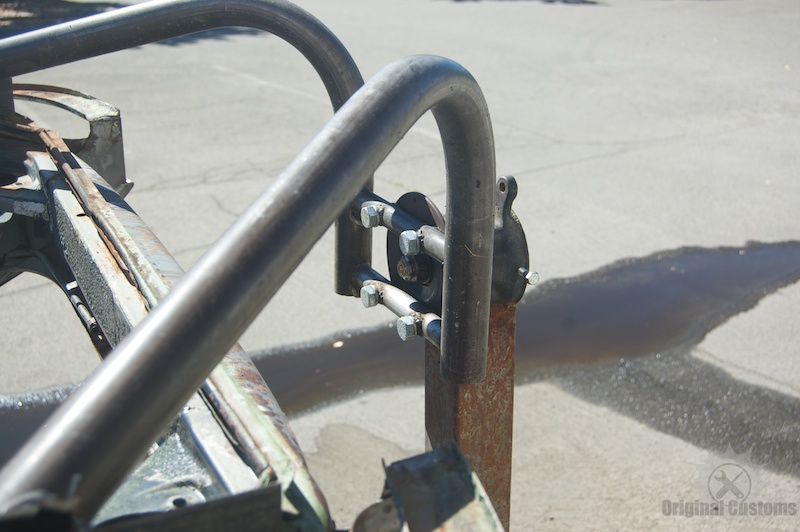

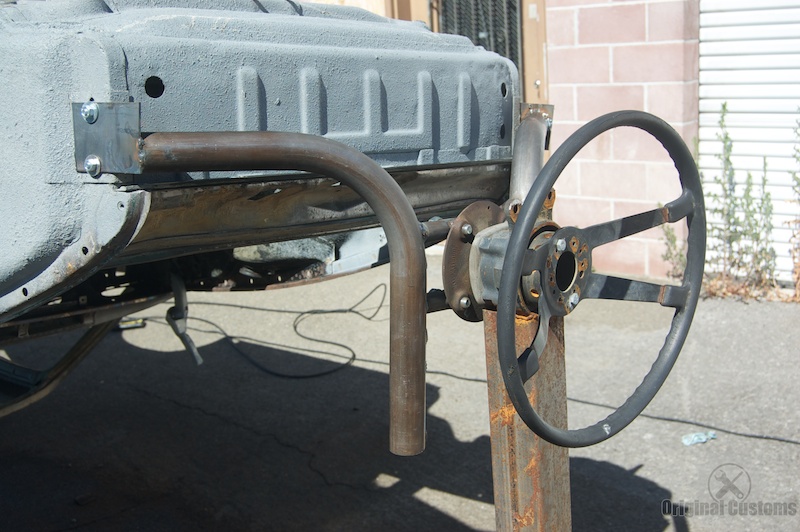

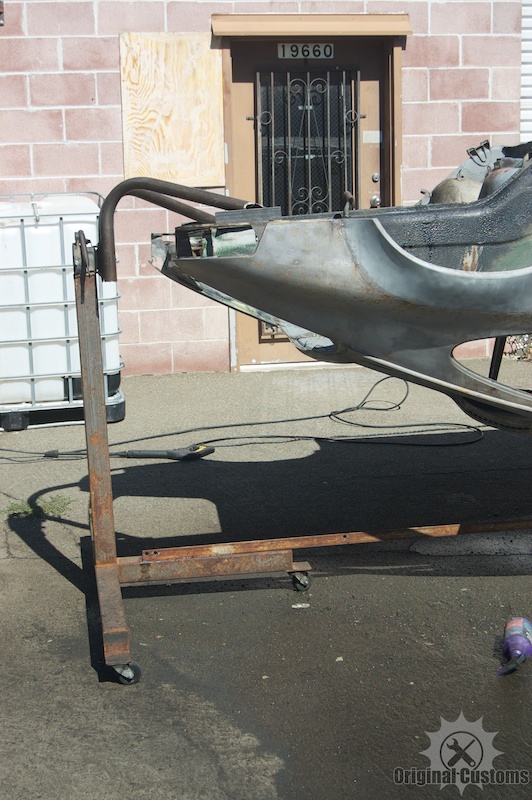

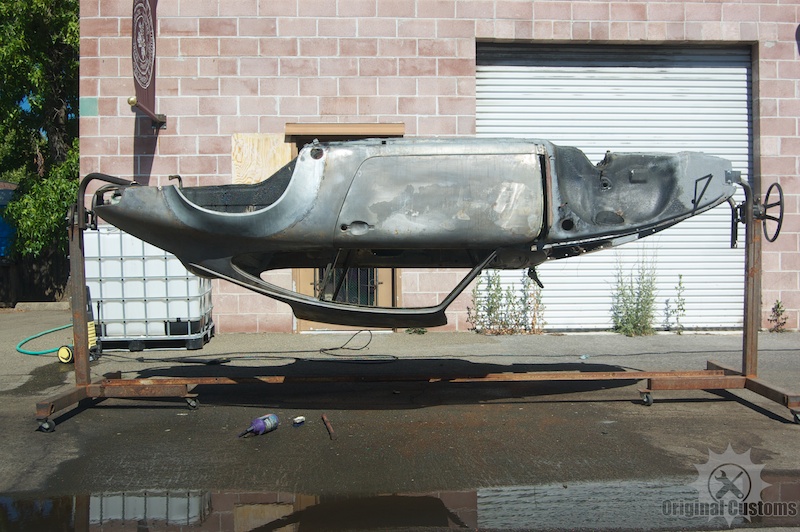

Finally finished up the brackets for the rotisserie. Used some 1.75" DOM tubing, and 1" DOM tubing I had lying around. Works really well and all the nay-sayers from above were wrong. (IMG:style_emoticons/default/tongue.gif) It rolls just fine and its super solid. I'm happy. (IMG:style_emoticons/default/biggrin.gif)

Yeah, it's a 911. 914 fixtures are next - gotta do the floor pans on the 914/6 project.


Attached image(s)
Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
FourBlades
post Jun 25 2012, 08:45 PM
Post #50


From Wreck to Rockin
****

Group: Members
Posts: 2,056
Joined: 3-December 07
From: Brevard, FL
Member No.: 8,414
Region Association: South East States
Looks great! That is very innovative.

Now just add a motor and brakes. You already have the steering wheel. (IMG:style_emoticons/default/biggrin.gif)

John
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JStroud
post Jun 25 2012, 08:54 PM
Post #51


Senior Member
***

Group: Members
Posts: 1,463
Joined: 15-January 11
From: Galt, California
Member No.: 12,594
Region Association: Northern California
I happen to be there when they were rolling it out of the shop, very stable rolled well, rotation was smooooth. Actually in person it's probably overkill, but it will last forever.

Nice job Mark (IMG:style_emoticons/default/beer.gif)

Jeff
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
scotty b
post Jun 26 2012, 06:13 PM
Post #52


rust free you say ?
***************

Group: Members
Posts: 16,375
Joined: 7-January 05
From: richmond, Va.
Member No.: 3,419
Region Association: None
Hey Mark I've got to build another for a 911 I have coming in next month and was concerned about mounting it under the car. Does it make it top heavy that way, or does it rotate fully without trying to take off ?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jun 26 2012, 10:53 PM
Post #53


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
It's balanced enough to handle by myself. I had to adjust it quite a bit from where I initially built it. The center of gravity is still slightly lower than where I have it. I can detail this some more if you're interested.

It's not so much where you attach to the chassis, but how the brackets align the center of gravity of the chassis with the center of rotation of the rotisserie.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Dec 10 2012, 08:01 PM
Post #54


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None

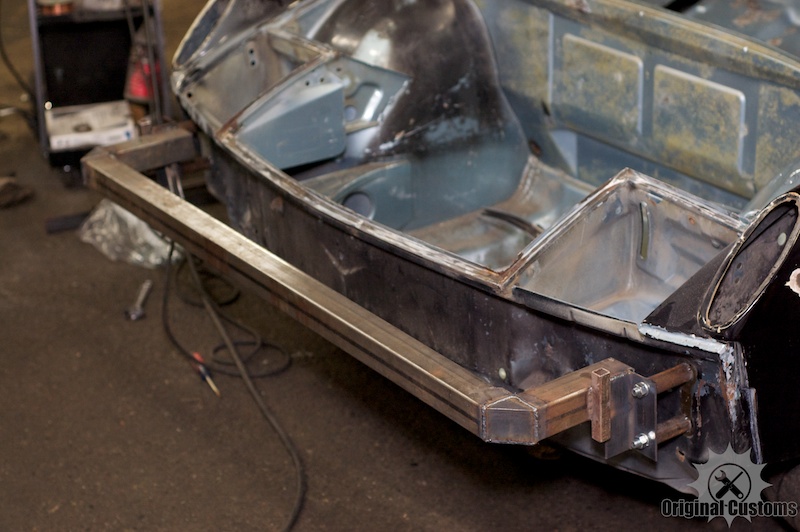

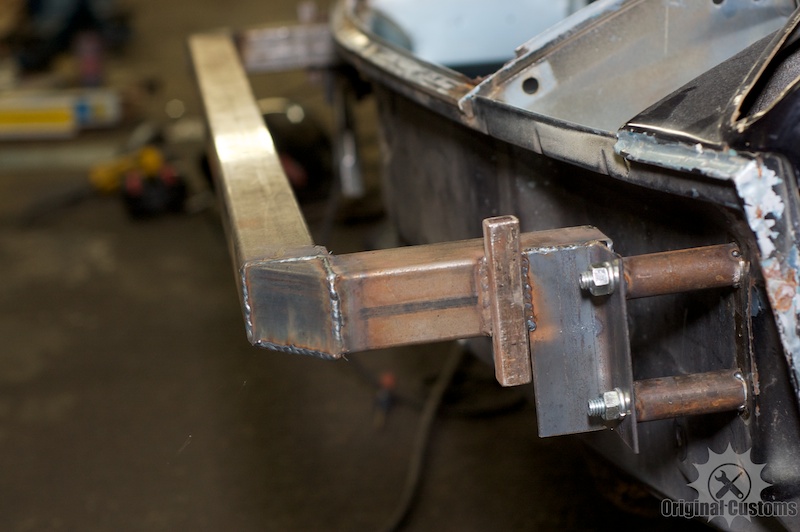

Time to build 914 fixtures since my restoration project has blossomed (see link in signature). Had this big square tube already.

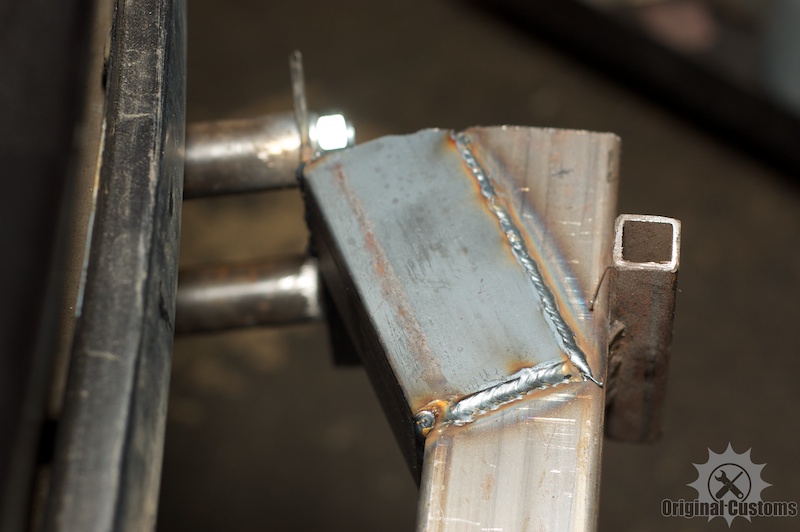

Started at the body and got some 7/16" bolts that were long enough to put the attachments far away from the body to allow maximum paint access. Used some spare 1" DOM tubing for the standoffs. Welded the 7/16" washers to the end of the tubing so the bolts aren't flopping around. Cut some sections of angle iron and drilled a couple holes (held the piece up against the body at traced through the holes with a Sharpie). Bolted that all together against the body and welded the standoffs to the angle iron. The square tube was too long and I also needed the bar to go a little farther out. So I cut off the excess on either end and welded it to the angle iron, then welded the remaining tube on. The small pieces of tubing were already there, so I just left them in place. But it's already strong enough for me to stand on.


Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Socalandy
post Dec 10 2012, 08:09 PM
Post #55


Its got to be Yellow!!!
****

Group: Members
Posts: 2,432
Joined: 29-August 09
From: Orange
Member No.: 10,742
Region Association: Southern California
Did I miss it or did everyone pass on saying...

It's an Original Custom (IMG:style_emoticons/default/biggrin.gif) Nice work (IMG:style_emoticons/default/first.gif)

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Dec 10 2012, 09:42 PM
Post #56


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None

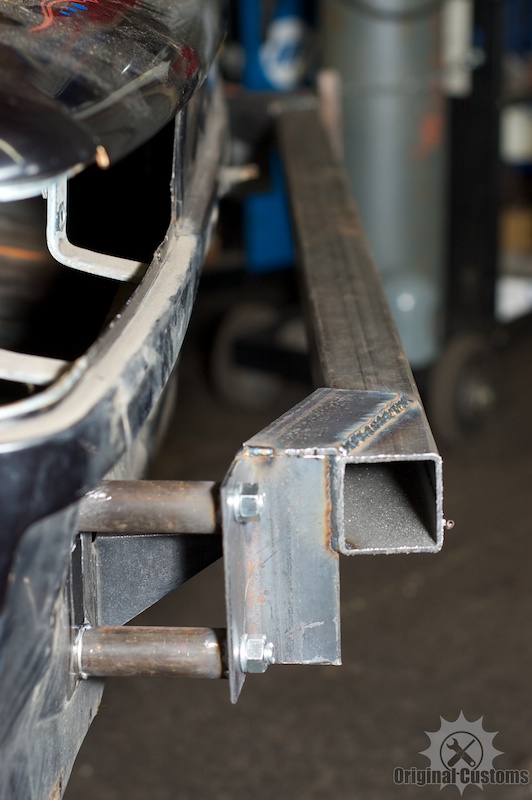

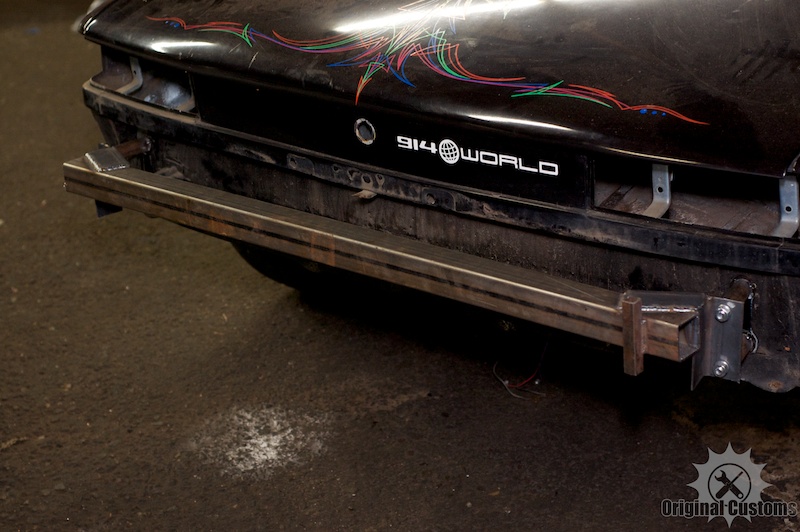

Just finished up the rear bar. Tomorrow it goes up... (IMG:style_emoticons/default/boldblue.gif)


Attached image(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Dec 10 2012, 10:14 PM
Post #57


Resident German
*************************

Group: Admin
Posts: 42,205
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
Can't wait to put this to "good" use next year ...

(IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Eric
post Dec 10 2012, 10:21 PM
Post #58


Member
**

Group: Members
Posts: 316
Joined: 7-November 12
From: Northern Idaho
Member No.: 15,125
Region Association: Pacific Northwest
Nice!

(IMG:style_emoticons/default/popcorn[1].gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cary
post Dec 10 2012, 10:40 PM
Post #59


Advanced Member
****

Group: Members
Posts: 3,900
Joined: 26-January 04
From: Sherwood Oregon
Member No.: 1,608
Region Association: Pacific Northwest
QUOTE(URY914 @ Dec 22 2011, 02:07 PM) *

My advice is to use at least 5" steel caster wheels with locks.


Ditto ............... Ditto .................. Ditto

My big ass poly wheels SUCK. You can't get them started.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Dec 11 2012, 10:26 AM
Post #60


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
I'm going to try out the methods described in this article to find the true center of rotation. Hopefully this will avoid the guess-n-check-n-fix cycle for getting a good rotation. Plus this info would be easily repeatable for the next guy who builds a rotisserie.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
