 Jan 6 2012, 02:02 PM
Post
#1
|
|
1975 914 3.0SC  Group: Members Posts: 1,062 Joined: 28-January 05 From: Weatherford, TX Member No.: 3,523 Region Association: None  |
So I picked up a couple boxes worth of parts from Bugformance when they closed down out here in San Jose and now I'm trying to identify what I have.

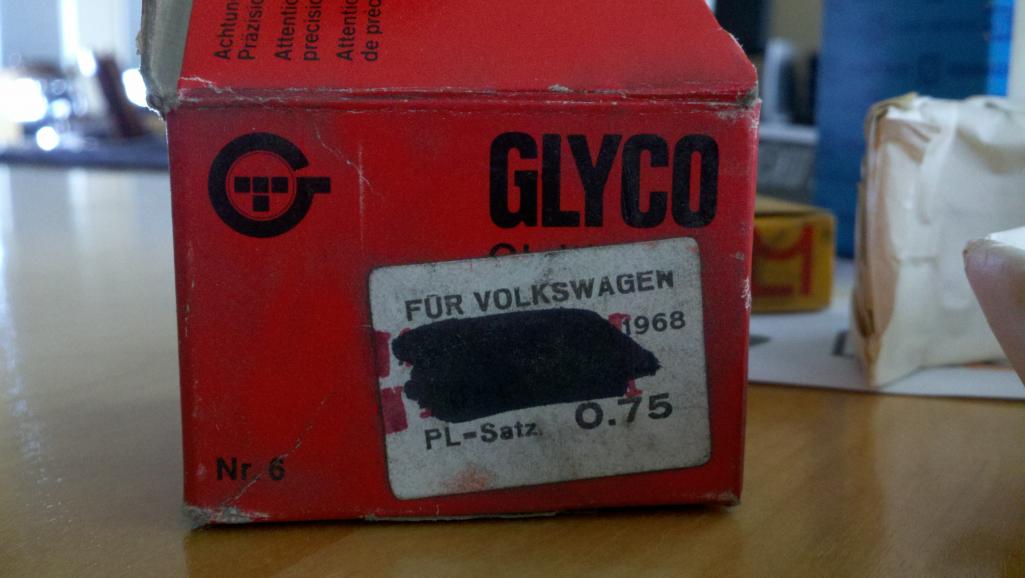

First, I have a set of connecting rods that I was told had been re-sized, but I do not know what size engine they are for. The only marking they have on them is an Orange Dot. Second, I have two sets of connecting rod bearings that I cannot identify. I have pictures posted below of each. The set in the red box has "0.75 U. St. and 71 2793" stamped on them. And I also have two sets of main bearings that I have included pictures of. How can I identify which engine size these will work on as well as if they are standard size or if they are for crank that has been ground to accept thicker bearings, etc.? Any help would be great! Thanks! -Chris Attached thumbnail(s)
|
   |

|
| Nor.Cal.914 |
Jan 6 2012, 02:05 PM
Post
#2
|
|
1975 914 3.0SC Group: Members Posts: 1,062 Joined: 28-January 05 From: Weatherford, TX Member No.: 3,523 Region Association: None |

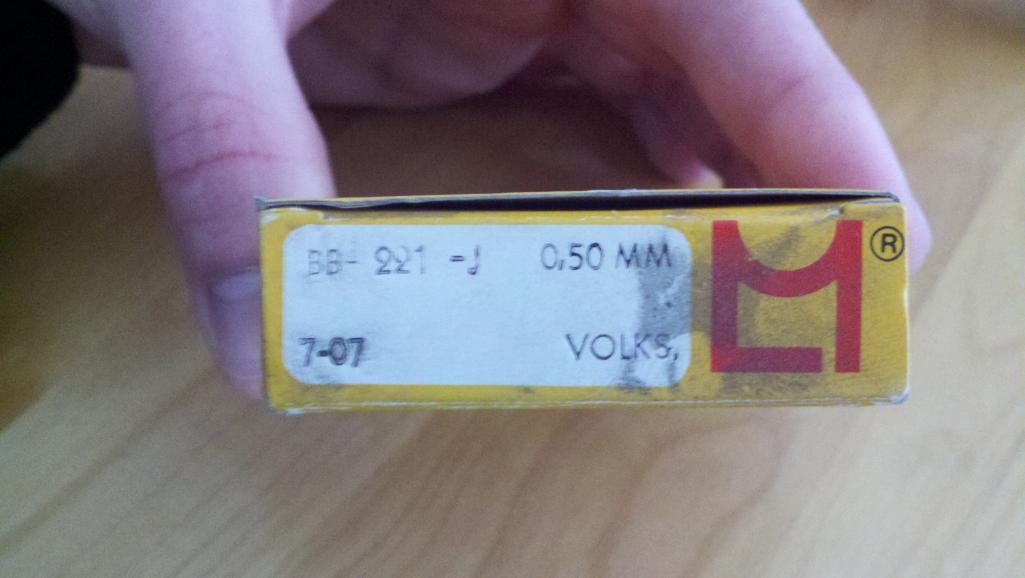

Here are the other connecting rod bearings:
Attached thumbnail(s)
|
|
|
|
| Nor.Cal.914 |
Jan 6 2012, 02:08 PM
Post
#3
|
|
1975 914 3.0SC Group: Members Posts: 1,062 Joined: 28-January 05 From: Weatherford, TX Member No.: 3,523 Region Association: None |

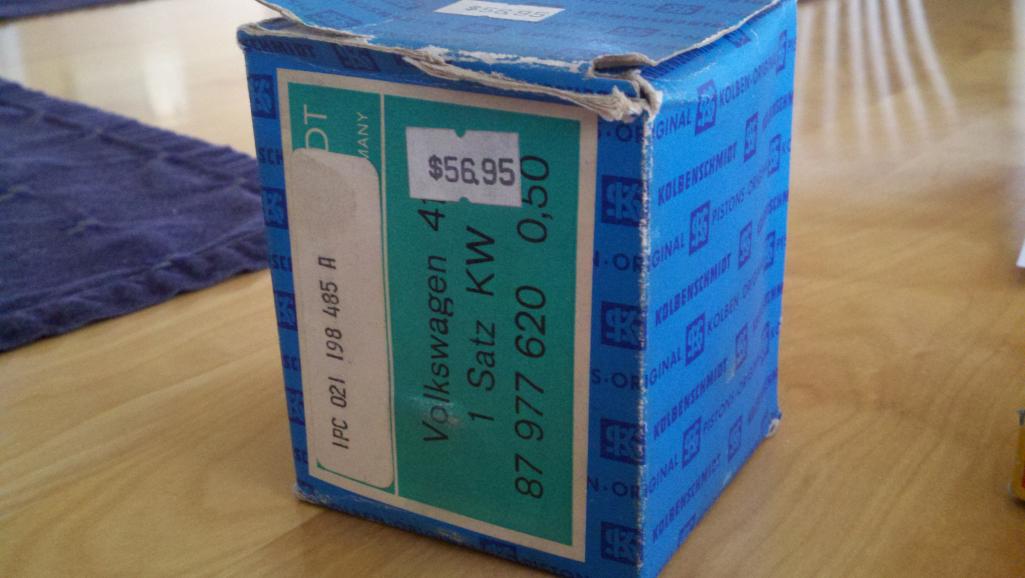

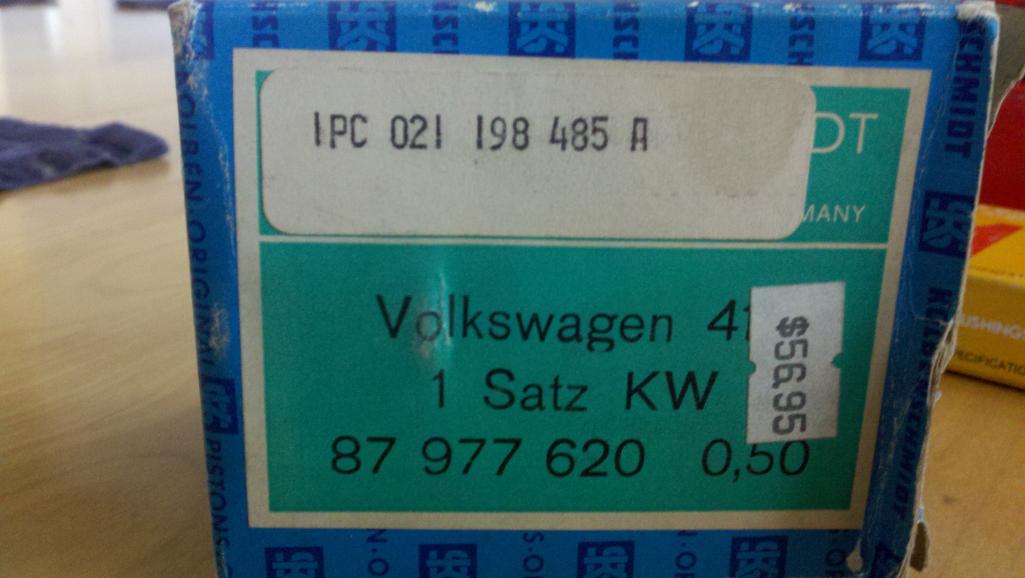

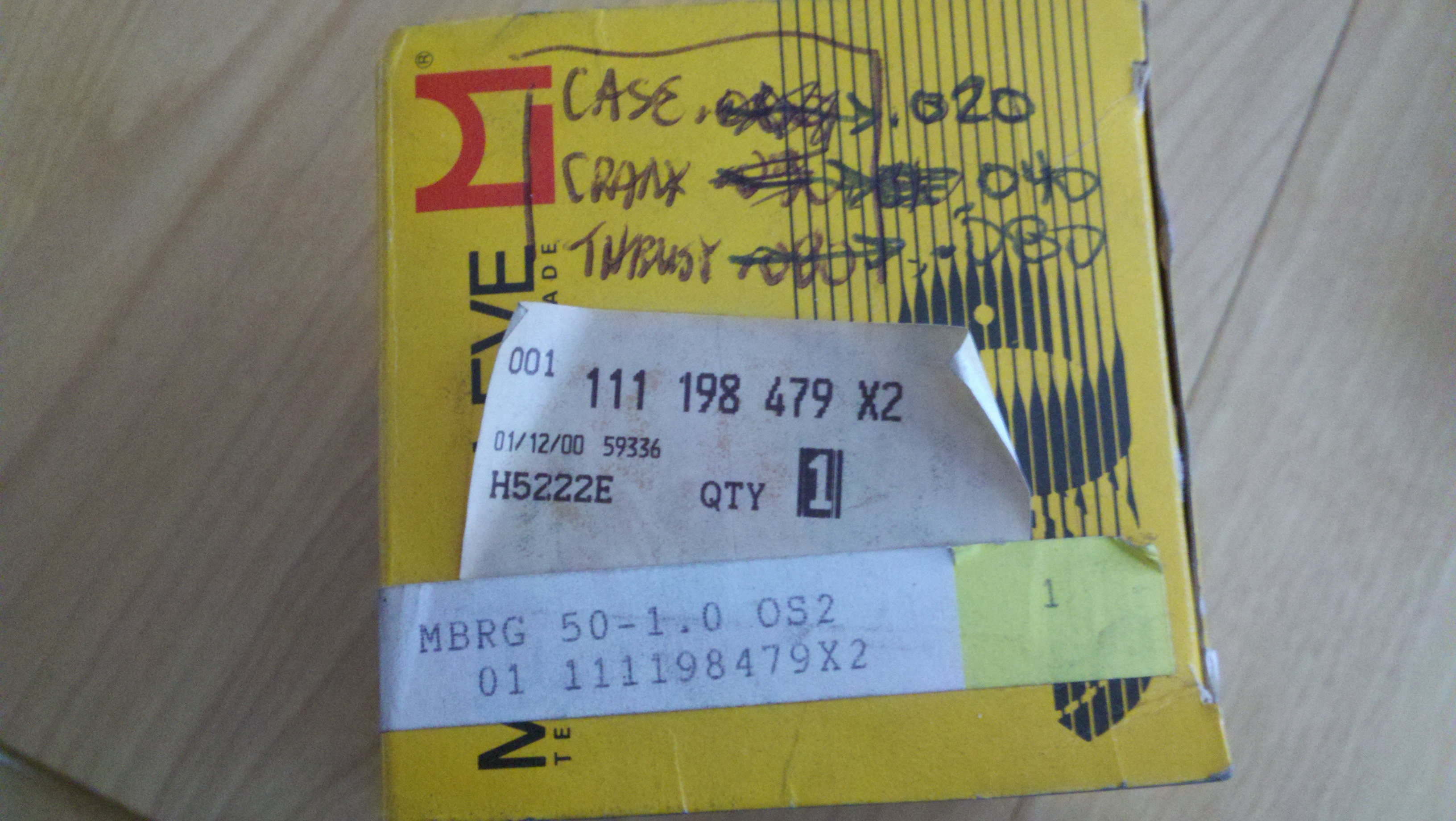

One set of main bearings:
Attached thumbnail(s)
|
|
|
|
| Nor.Cal.914 |
Jan 6 2012, 02:12 PM
Post
#4
|
|
1975 914 3.0SC Group: Members Posts: 1,062 Joined: 28-January 05 From: Weatherford, TX Member No.: 3,523 Region Association: None |

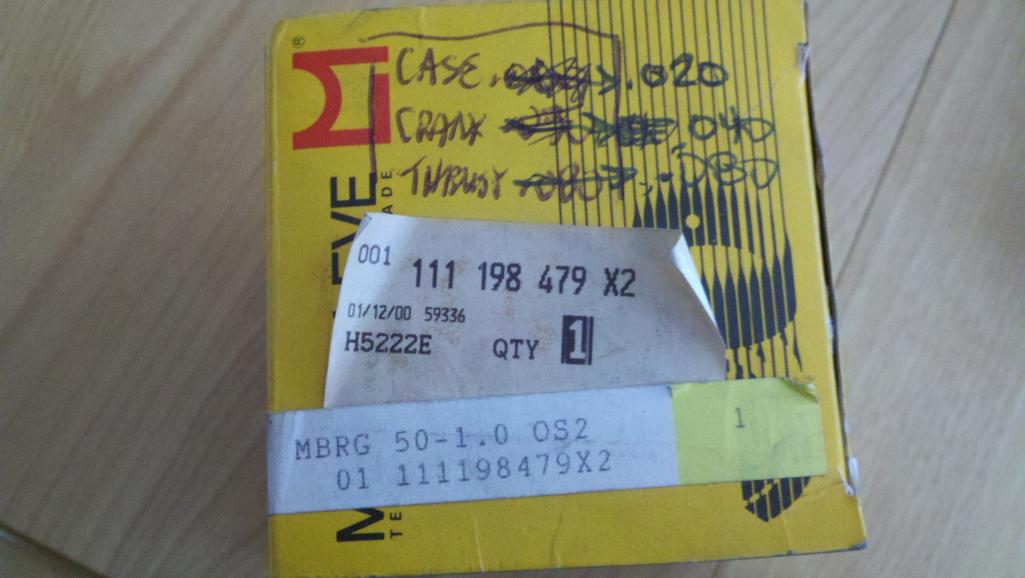

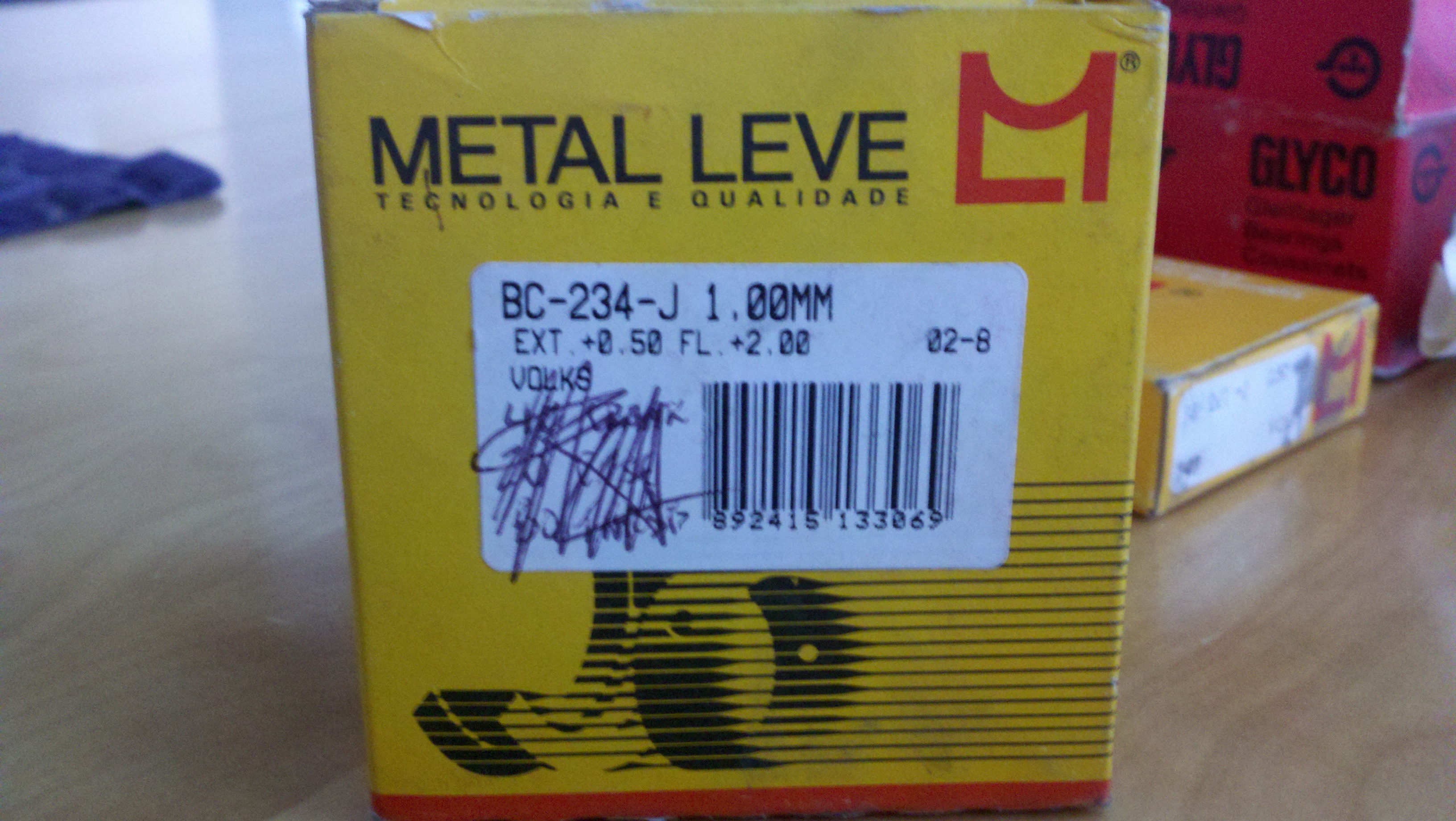

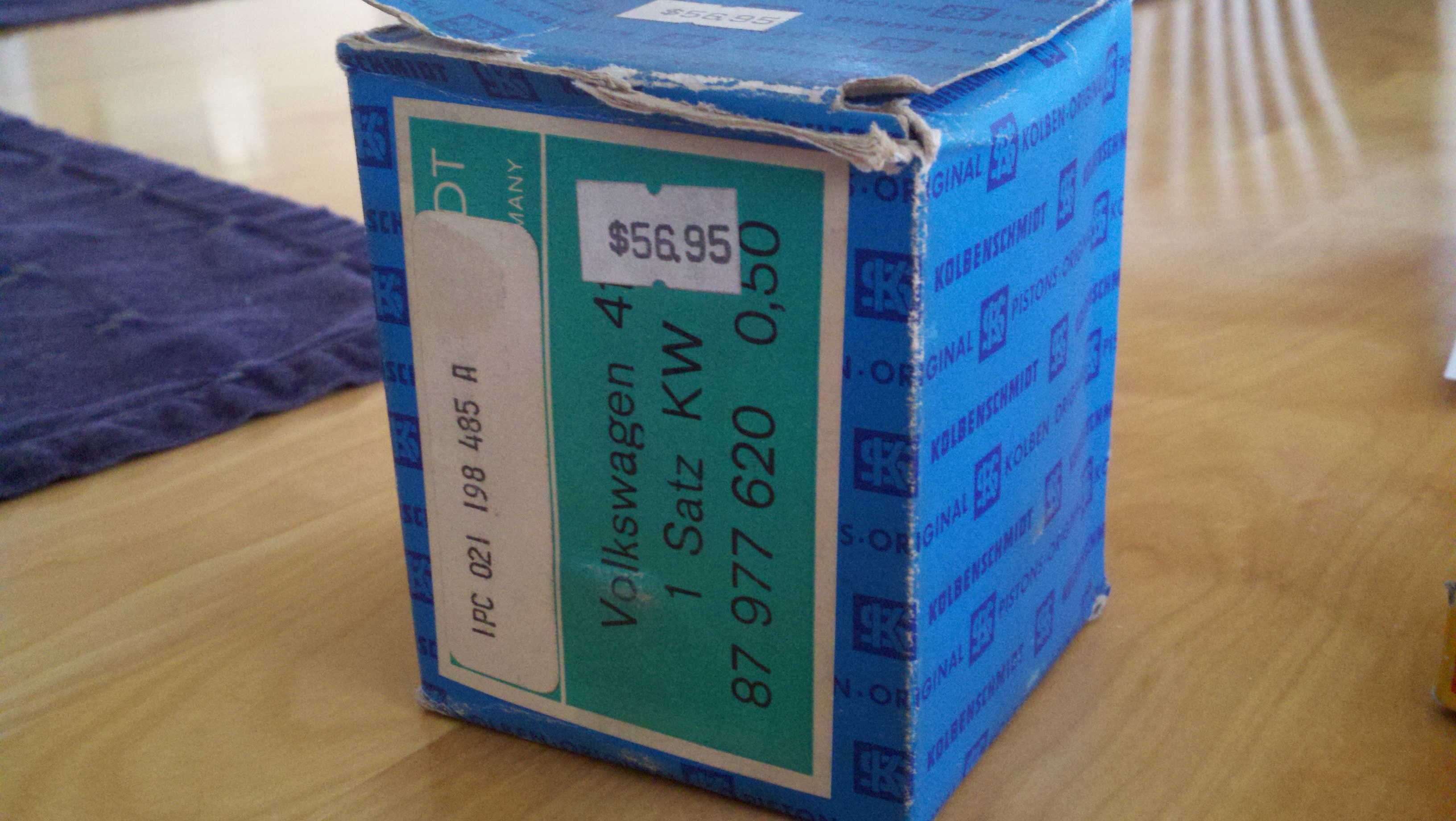

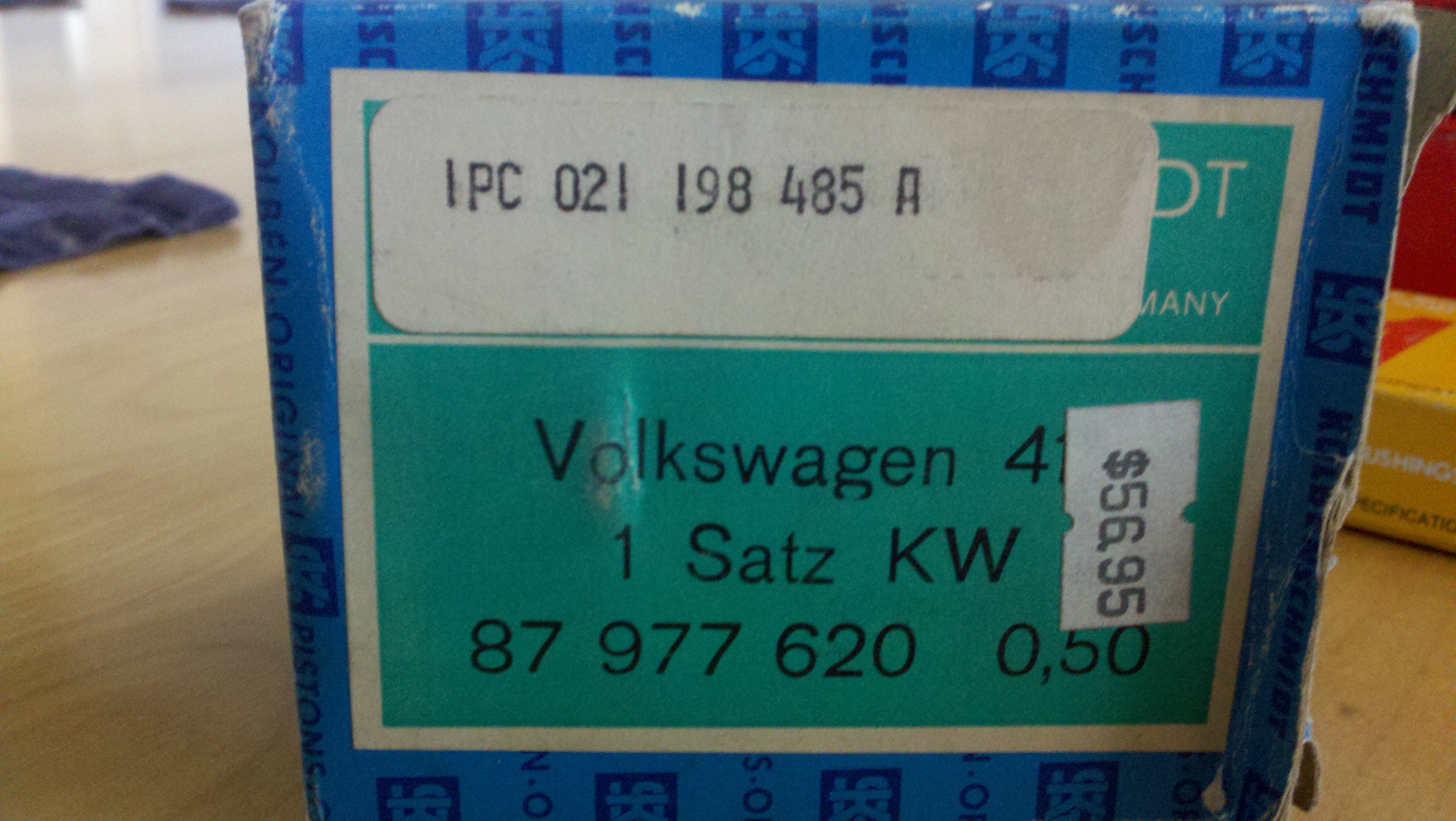

And the other set of main bearings:
Attached thumbnail(s)
|
|
|
|
| SLITS |
Jan 6 2012, 06:50 PM
Post
#5
|
|
"This Utah shit is HARSH!" Group: Benefactors Posts: 13,602 Joined: 22-February 04 From: SoCal Mountains ... Member No.: 1,696 Region Association: None  |

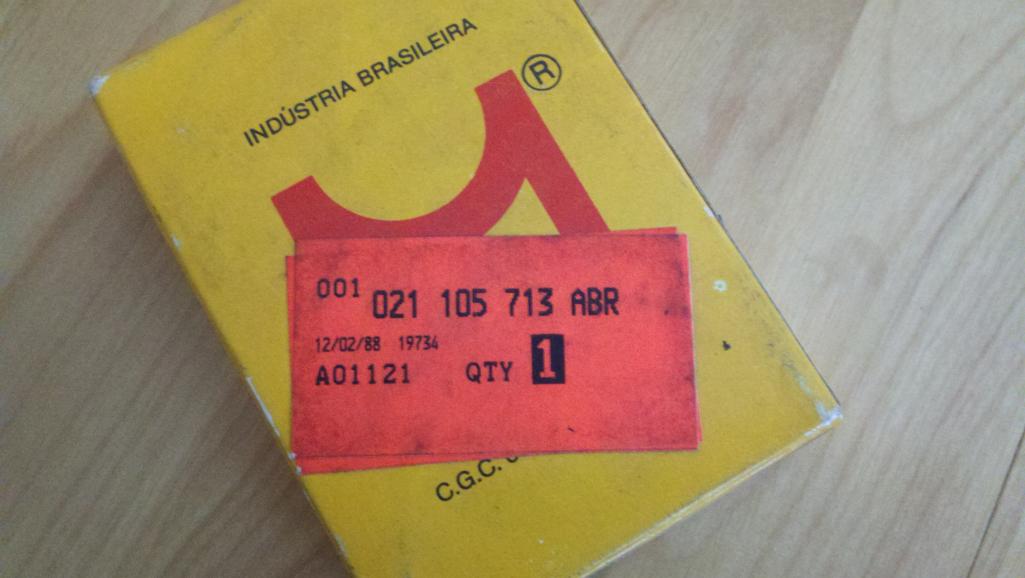

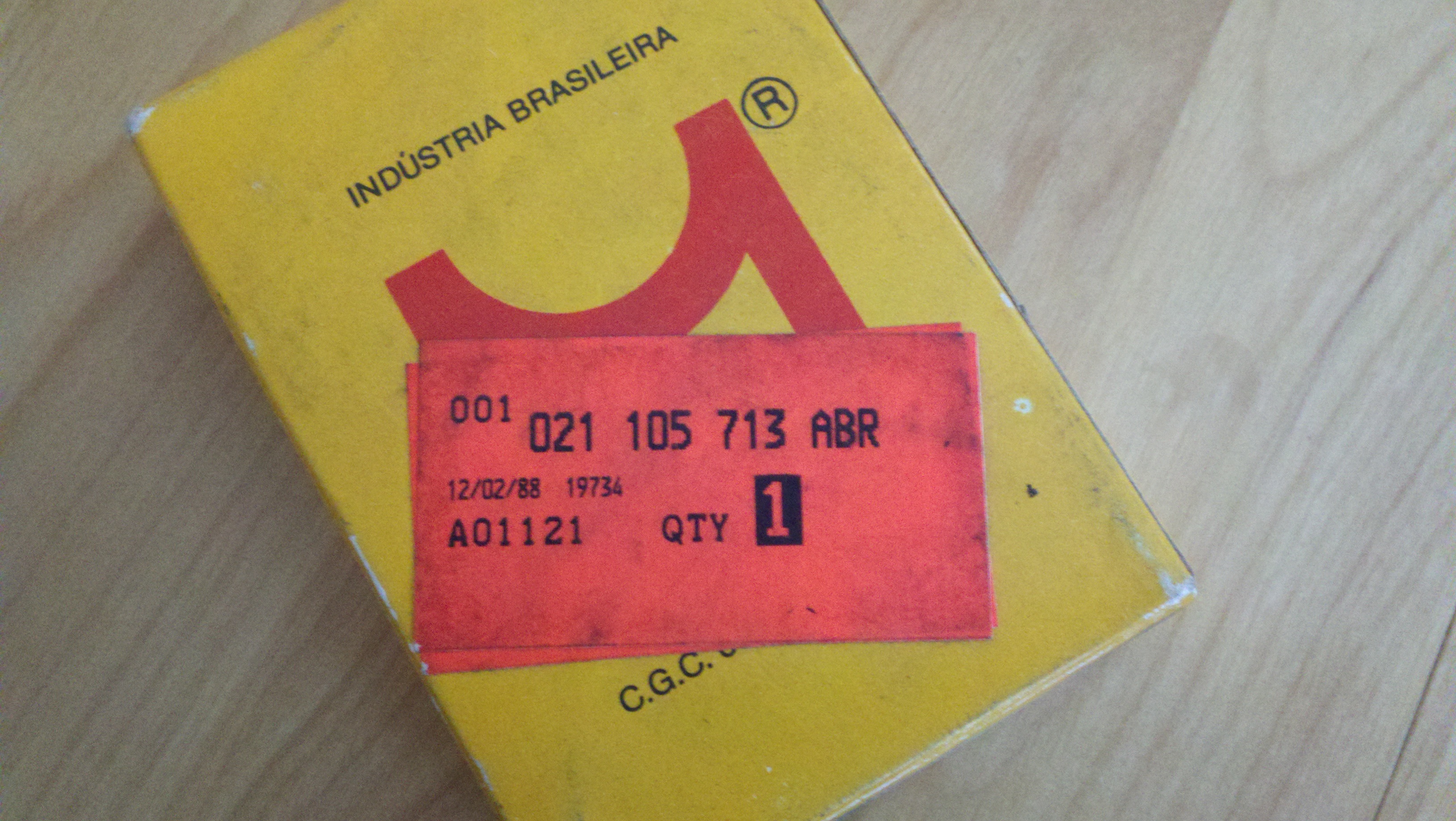

021 105 713 ABR .... VW 411, 914, Vanagon 1.7/1.8
111 198 479 .... 1200 - 1600 cc ... Type 1 '61 - '79 / Ghia '61 - '74, Type 2 '61 - '71, Type 3 up to '73 021 198 485 A .... Bus '72 - '79 1.7/2.0, Vanagon '80 - '83 0.25 mm = 0.010 undersize 0.50 mm = 0.020 undersize 0.75 mm = 0.030 undersize |
|
|
|
|
