Vellios-JWest shift linkage progress thread, Started fabbing Vellios/JWest shift linkage |
914dave |
Jan 7 2012, 05:35 PM
Post
#1
|
914 Addict Group: Members Posts: 700 Joined: 19-October 03 From: Willow Grove Pa. Member No.: 1,262 Region Association: North East States |

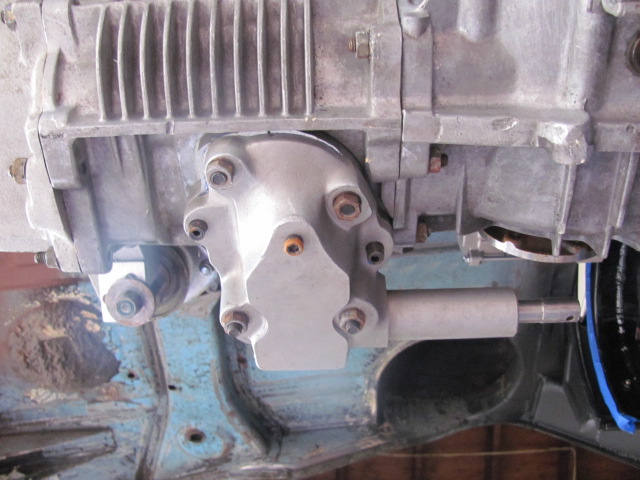

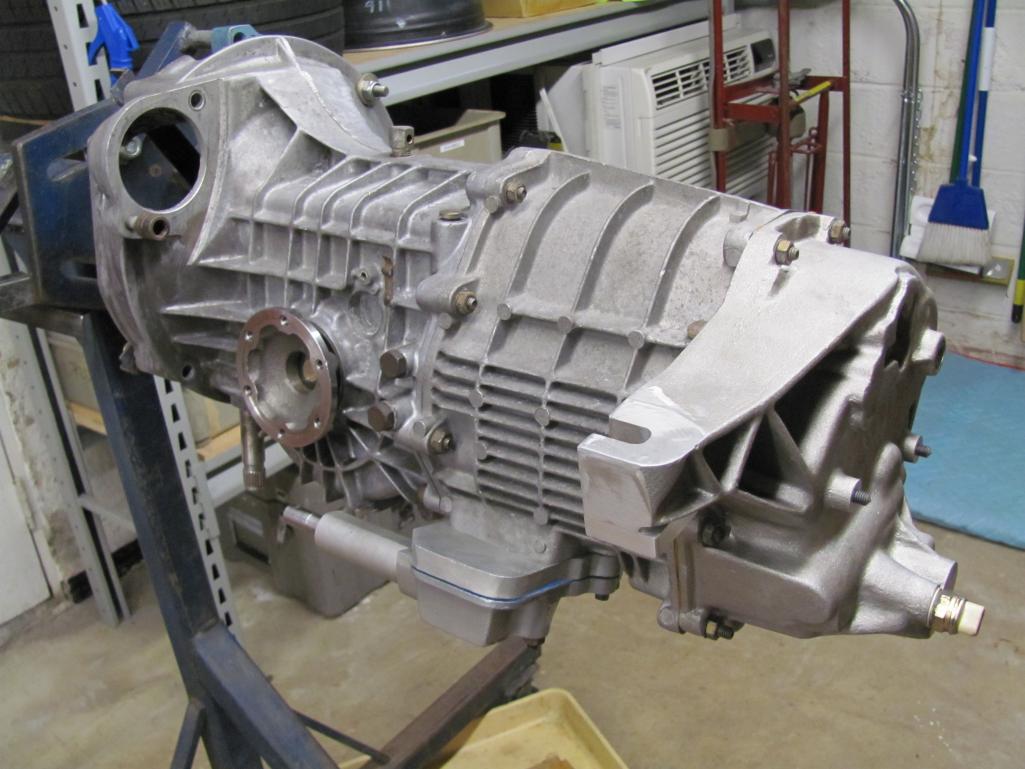

Now that my six conversions has progressed the point where the rust is out of the chassis and the 3.2 mated to the 915 are mounted in the car. I'm taking this winter to fabricate shift linkage from the Vellios 915 to the JWest shifter. After finishing the rebuild of the 915, I realized that the shift pattern would be reversed in the car. 5th/reverse would be towards the drivers side of the car. I didn't like this idea. So I'm building a riser for the shifter to reverse the direction fo the pattern. I wanted the linkage to be very crisp. I'm using industrial U joints and spherical bearings where I can. This is the first part of the project, the firewall bushing. I'll be using the stock rubber accordian boot in this setup for weather protection. the following pix are fo the bearing and the nylon housing used to mount it to the firewall. the first pic is the original 914 tunnel shift rod machined down to fit in the spherical bearing. The final pic show shows it mounted with 2 screws, I'll drill for the other 2 when I get the motor out of the way.
Attached image(s) |
Steve |
Jan 7 2012, 06:12 PM
Post
#2
|
914 Guru Group: Members Posts: 5,585 Joined: 14-June 03 From: Orange County, CA Member No.: 822 Region Association: Southern California |
What kind of shifter are you going to use? I have a 914 Rennshift. I was curious if you could just flip the Rennshift and reuse it versus converting it to a ball and socket 911 type. Is there a reason you have to use a ball and socket type with a 915?
|
wingnut86 |
Jan 7 2012, 06:38 PM
Post
#3
|
...boola la boo boola boo... Group: Members Posts: 1,053 Joined: 22-April 10 From: South Carolina Member No.: 11,645 Region Association: South East States |
|
Dr Evil |
Jan 7 2012, 06:44 PM
Post
#4
|
Send me your transmission! Group: Members Posts: 22,995 Joined: 21-November 03 From: Loveland, OH 45140 Member No.: 1,372 Region Association: MidAtlantic Region |
|
Steve |
Jan 7 2012, 06:55 PM
Post
#5
|
914 Guru Group: Members Posts: 5,585 Joined: 14-June 03 From: Orange County, CA Member No.: 822 Region Association: Southern California |
(IMG:style_emoticons/default/popcorn[1].gif) FYI popcorn is good for you!!
|
bigkensteele |
Jan 7 2012, 07:27 PM
Post
#6
|
Major Member Group: Members Posts: 2,197 Joined: 30-August 04 From: Cincinnati, OH Member No.: 2,660 Region Association: South East States |
Just curious - is it not possible to fabricate a cable shift system that would work with a 915 straight out of a 911? I realize that a mounting system would also have to be fabricated, but it seems that this would be much cheaper that the 916 route.
Not meaning to hi-jack, as I think this is a pertinent question. |
914dave |
Jan 7 2012, 07:52 PM
Post
#7
|
914 Addict Group: Members Posts: 700 Joined: 19-October 03 From: Willow Grove Pa. Member No.: 1,262 Region Association: North East States |
I'm using the 914 rennshift, I've used it for years with my 901. You can rotate the top 180 degrees for use with the 915. The problem I have is the early type Vellios is a copy of the 916. Which reverses the shift pattern. You can divise a cable system or buy some that are out there. I have a shop available to me and the Rennshift already, so I"m just solving the problem this way. Here's a pic of the shifter console coming out of the 915.
|
Bob L. |
Jan 7 2012, 07:53 PM
Post
#8
|
Senior Member Group: Members Posts: 847 Joined: 7-August 11 From: Austin TX Member No.: 13,411 Region Association: Southwest Region |
Just curious - is it not possible to fabricate a cable shift system that would work with a 915 straight out of a 911? I realize that a mounting system would also have to be fabricated, but it seems that this would be much cheaper that the 916 route. Not meaning to hi-jack, as I think this is a pertinent question. Pertinent?? Fancy word, Are you getting impertinent?? (IMG:style_emoticons/default/biggrin.gif) |
John |
Jan 7 2012, 08:55 PM
Post
#9
|
member? what's a member? Group: Members Posts: 3,393 Joined: 30-January 04 From: Evansville, IN (SIRPCA) Member No.: 1,615 Region Association: None |
I'm using the 914 rennshift, I've used it for years with my 901. You can rotate the top 180 degrees for use with the 915. The problem I have is the early type Vellios is a copy of the 916. Which reverses the shift pattern. You can divise a cable system or buy some that are out there. I have a shop available to me and the Rennshift already, so I"m just solving the problem this way. Here's a pic of the shifter console coming out of the 915. I am wondering what kind of muffler you will use with the reverse light switch where it is. I would assume you could use megaphones or something similar. Can you please post more pictures of that transmission? (especially where the shifter exits the intermediate section) Thanks |
dudley4 |
Jan 7 2012, 09:46 PM
Post
#10
|
Newbie Group: Members Posts: 1 Joined: 3-December 11 From: Oregon Member No.: 13,850 Region Association: None |
I'm using the 914 rennshift, I've used it for years with my 901. You can rotate the top 180 degrees for use with the 915. The problem I have is the early type Vellios is a copy of the 916. Which reverses the shift pattern. You can divise a cable system or buy some that are out there. I have a shop available to me and the Rennshift already, so I"m just solving the problem this way. Here's a pic of the shifter console coming out of the 915. I run the vellios 915 sideshift with the 915 shifter and guts in the tunnel for years, like 15 years. George had a great setup and used a straight rod out of the firewall, not a bend in it. I changed to the rennshift 915 and love it. |
bigkensteele |
Jan 7 2012, 09:49 PM
Post
#11
|
Major Member Group: Members Posts: 2,197 Joined: 30-August 04 From: Cincinnati, OH Member No.: 2,660 Region Association: South East States |
I lament the future of our society if "pertinent" has become a fancy word. Bob, "lament" means that it saddens me and I worry about it. |
GeorgeRud |
Jan 7 2012, 09:54 PM
Post
#12
|
Advanced Member Group: Members Posts: 3,725 Joined: 27-July 05 From: Chicagoland Member No.: 4,482 Region Association: Upper MidWest |
I also have a Vellios 916 conversion, and use a stock 915 shift tower. I like the shift pattern with 1-2 in the same plane and 5th and reverse out to the right.
Like the previous post mentioned, the shift rod is a straight rod from the firewall to the shifting console, and mine has been shifting just fine since it was installed. I imagine the Rennshift 915 tower would be a bit nicer, but the factory shift tower seems to work fine. Why reinvent the wheel??????????? |
914dave |
Jan 8 2012, 07:32 AM
Post
#13
|
914 Addict Group: Members Posts: 700 Joined: 19-October 03 From: Willow Grove Pa. Member No.: 1,262 Region Association: North East States |
"I am wondering what kind of muffler you will use with the reverse light switch where it is. I would assume you could use megaphones or something similar " John
John, I have a triad muffler with GHL heat exchangers. Haven't trial fitted them yet. If it's too close I should be able to put a spacer between the exchangers and the muffler to move it rearwards. We'll see. I'll get some pics in the car with less in the background. Thanks again for your help with the reverse engineering of that Vellios lever. "Why reinvent the wheel???????????" George George, My Vellios is setup with an internal spring that puts the selector in the 3rd/4th gear plane. You have to push against the spring to move into the 1st/2nd gear plane. I was concerned that the spring pressures from both the trans and the Rennshift would be difficult to push against outward. Your arm has more strength pulling towards you. I don't have to change the pattern. I've just decided to take the time and do everything the way I like it. I'm just more comfortable with a standard shift pattern. Plus I like the challenge of doing something a little different. Dave |
Steve |
Jan 8 2012, 09:19 AM
Post
#14
|
914 Guru Group: Members Posts: 5,585 Joined: 14-June 03 From: Orange County, CA Member No.: 822 Region Association: Southern California |
I also have a 914 Rennshift today on my 914 trans. I am also upgrading to a 916 trans and also plan on rotating the Rennshift base to support the 916 trans. It will probably be a couple of months before I get to install it because i need to do some body work first. I bought Martin Bott's 916 kit from Germany. I thought the Vellios used a 914 side shift pivot arm on the trans. Yours looks more like a real 916 side shift console.
|
914dave |
Jan 8 2012, 10:50 AM
Post
#15
|
914 Addict Group: Members Posts: 700 Joined: 19-October 03 From: Willow Grove Pa. Member No.: 1,262 Region Association: North East States |

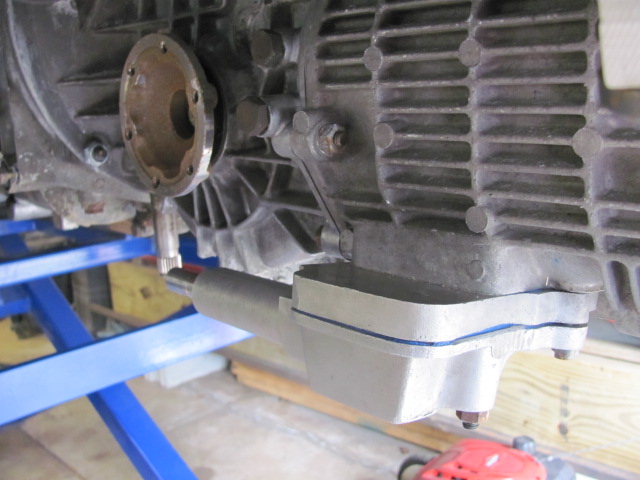

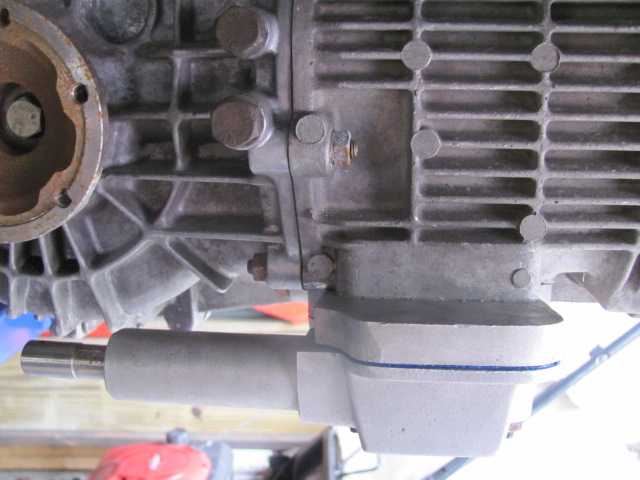

"I bought Martin Bott's 916 kit from Germany. I thought the Vellios used a 914 side shift pivot arm on the trans. Yours looks more like a real 916 side shift console."

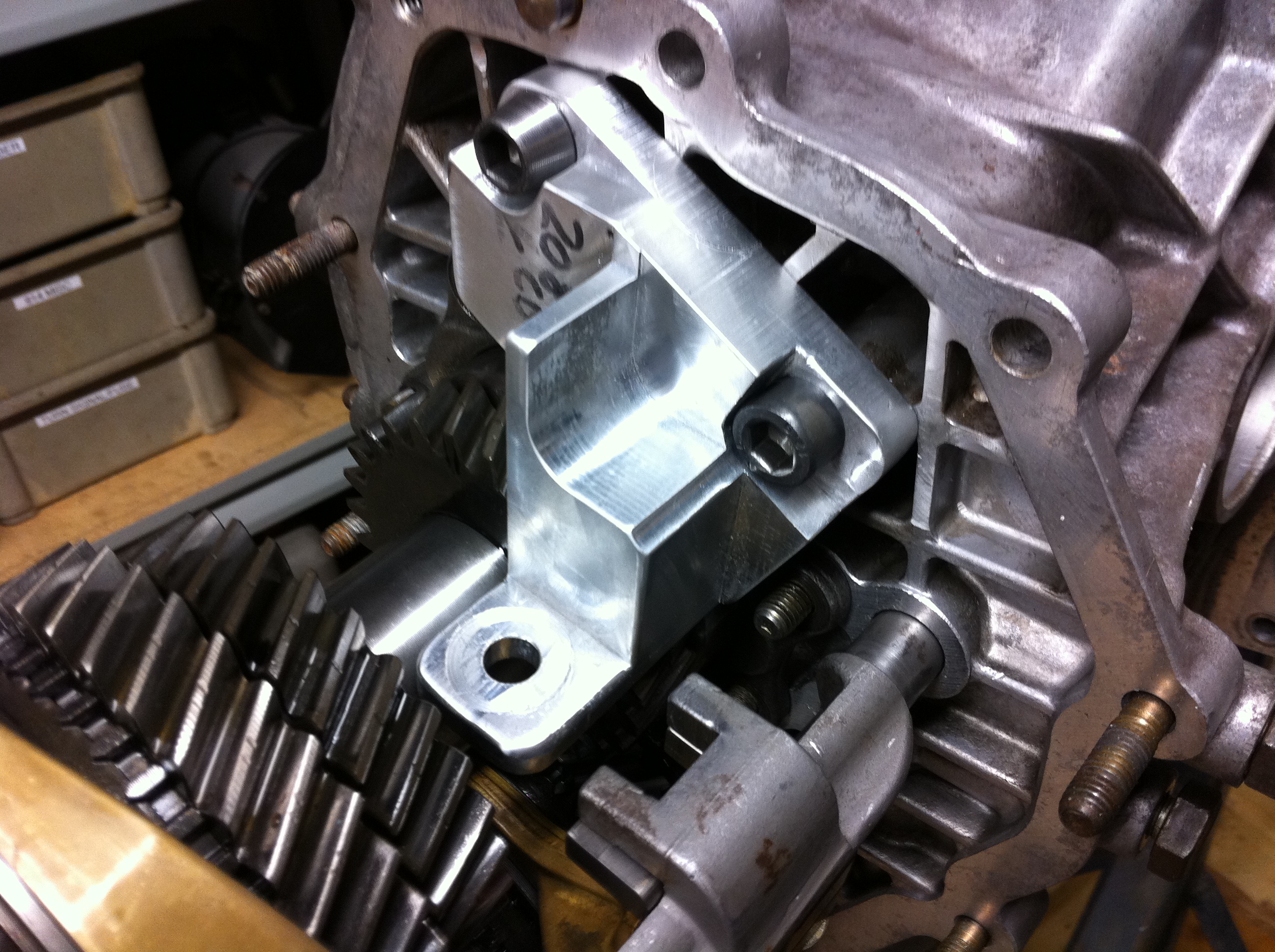

Steve, You're right about the later Vellios kits, they had the sideshift style console. The early ones had the 916 style console. I used pic's of Bott's kit to fabricate the internal bracket for my kit that was missing. My kit was also missing a shift lever and was the end case was machined incorrectly. John ( here on World) lent me a lever out of his Vellios to reverse engineer. Thanks again John! Chris Foley helped me out with pic's of his Bott installation for mounting the internal supports bracket. I made a fixture with my 901 to check the mounting alignment of the Vellios and machined it accordingly. My kit was very cheap and I didn't know it was missing parts. I found it at a Porsche race shop swap meet, I didn't have time to check everything out before I bought it. I'm just lucky that people here helped me out and I have a machine shop at my disposal. Here are pic's of the internal shift rod support that I made and some of the shift console that John wanted. here are pic's of the shift lever that John lent me to fab ]" |
John |
Jan 8 2012, 03:03 PM
Post
#16
|
member? what's a member? Group: Members Posts: 3,393 Joined: 30-January 04 From: Evansville, IN (SIRPCA) Member No.: 1,615 Region Association: None |

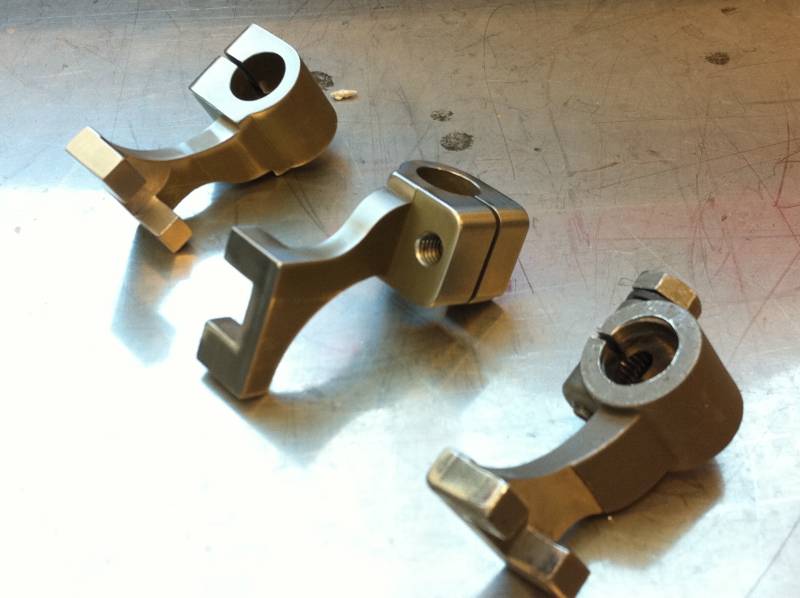

QUOTE here are pic's of the shift lever that John lent me to fab ]" Glad to help! The parts you made were by far nicer than the original Vellios part. I'm glad that you are getting closer to putting it all together. One thought on your shifter question would be to find out how is the German guy (who is making parts to clone a 916 box) is shifting his. I had assumed that a 915 shifter tower would be used. I know that is what is used with the "later" Vellios side shift 915 kits. |
914dave |
Feb 12 2012, 07:29 PM
Post
#17
|
914 Addict Group: Members Posts: 700 Joined: 19-October 03 From: Willow Grove Pa. Member No.: 1,262 Region Association: North East States |

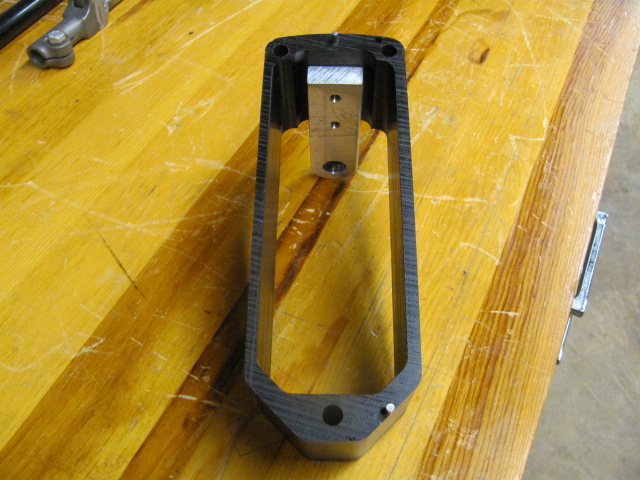

OK guys. I know it's been a while. Went to some serious overtime at work, been trying to squeeze some shifter work in. The first thing I made was a riser for the shifter. It's black delrin.

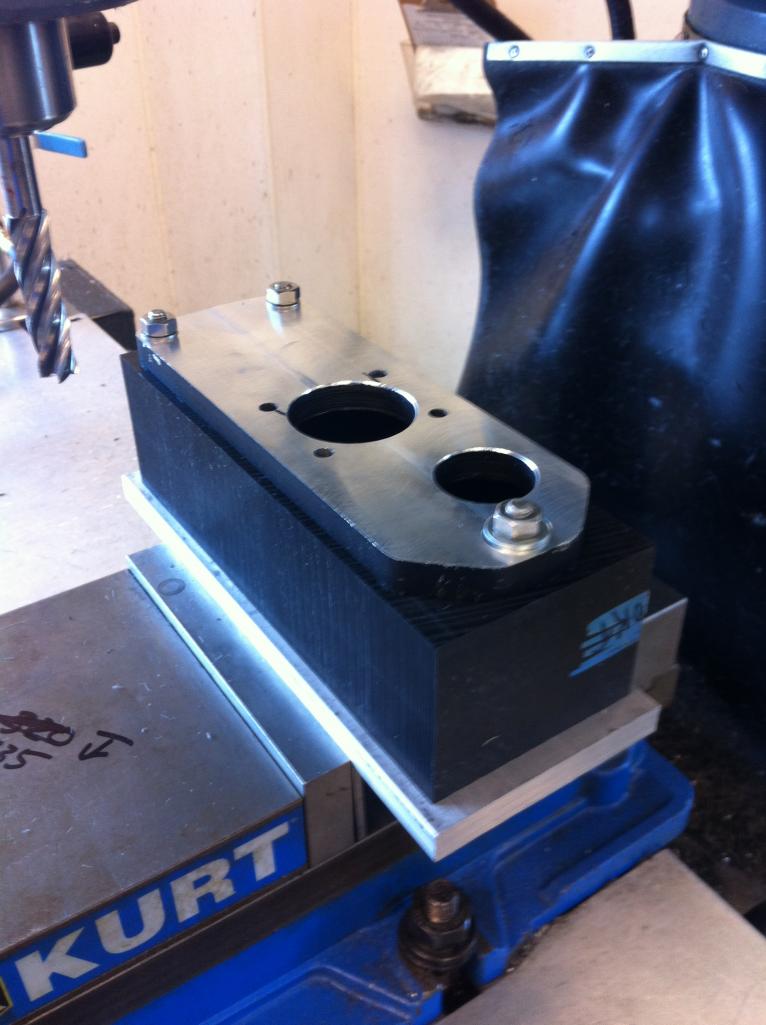

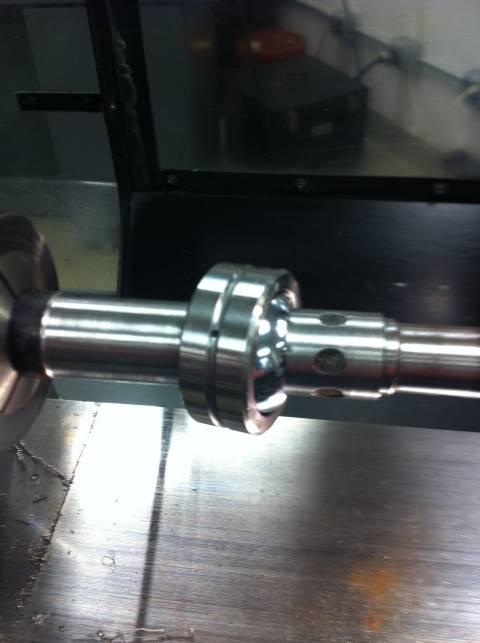

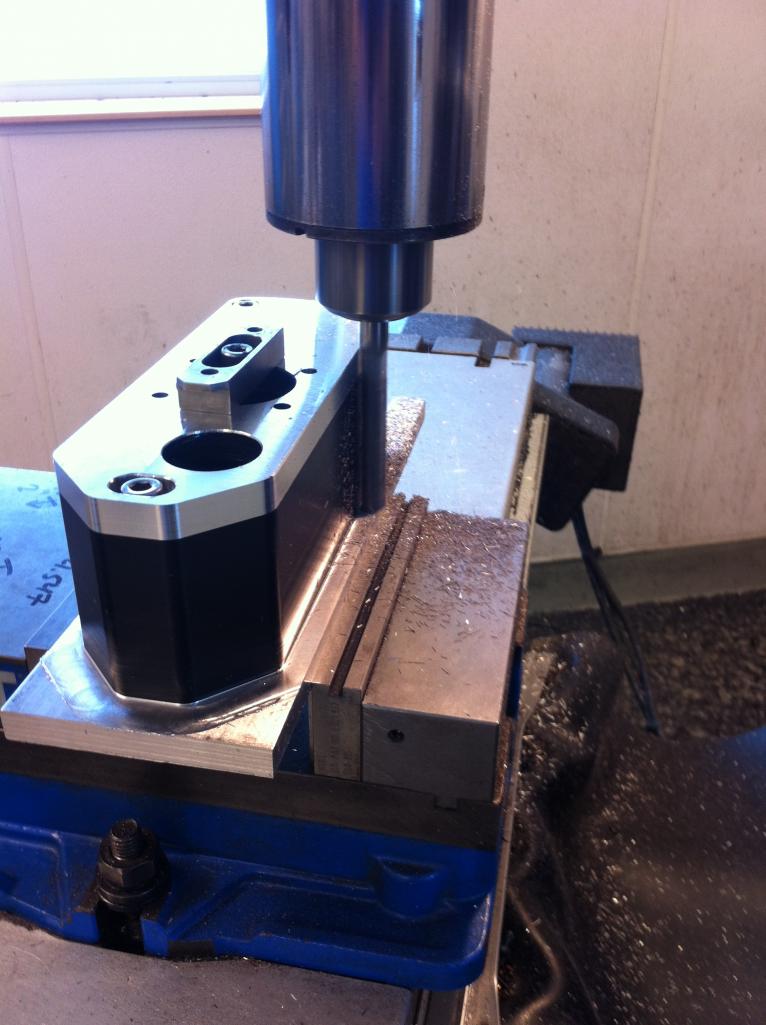

The machining process with the shifter base mounted to it. The inside view. I've run out of space for the pix, more in the next installment. |
914dave |
Feb 12 2012, 07:52 PM
Post
#18
|
914 Addict Group: Members Posts: 700 Joined: 19-October 03 From: Willow Grove Pa. Member No.: 1,262 Region Association: North East States |

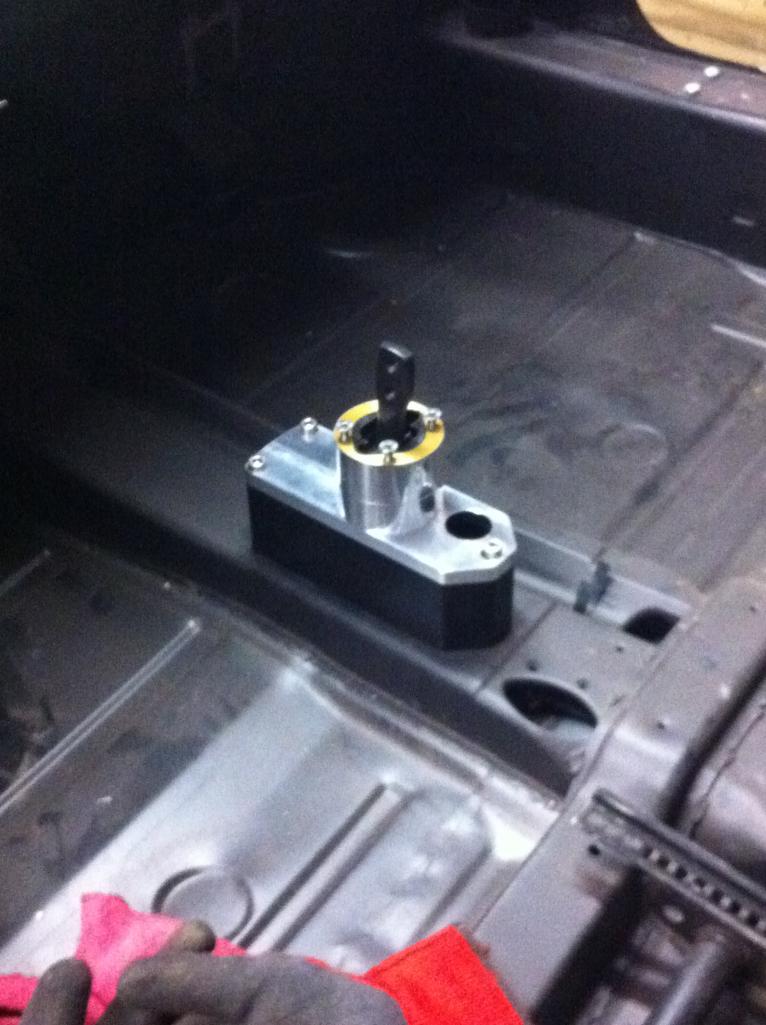

Here's a pic with the shifter mounted in the car.

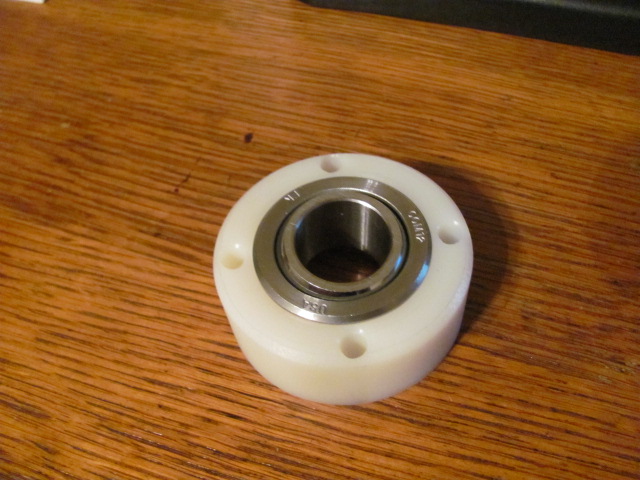

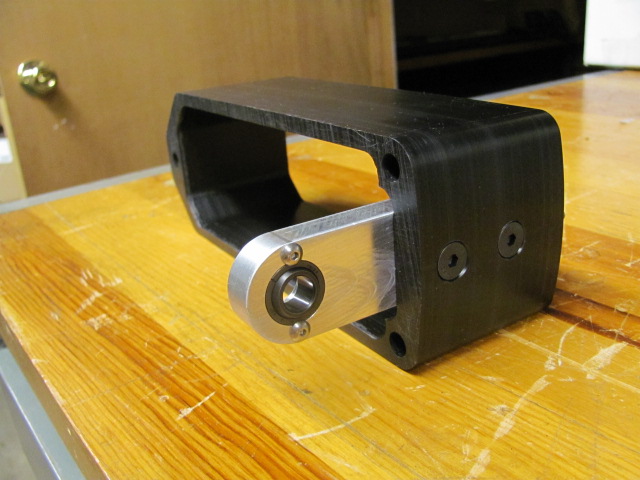

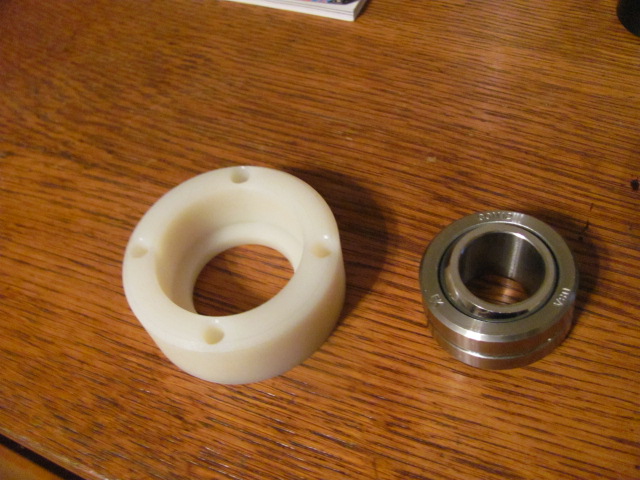

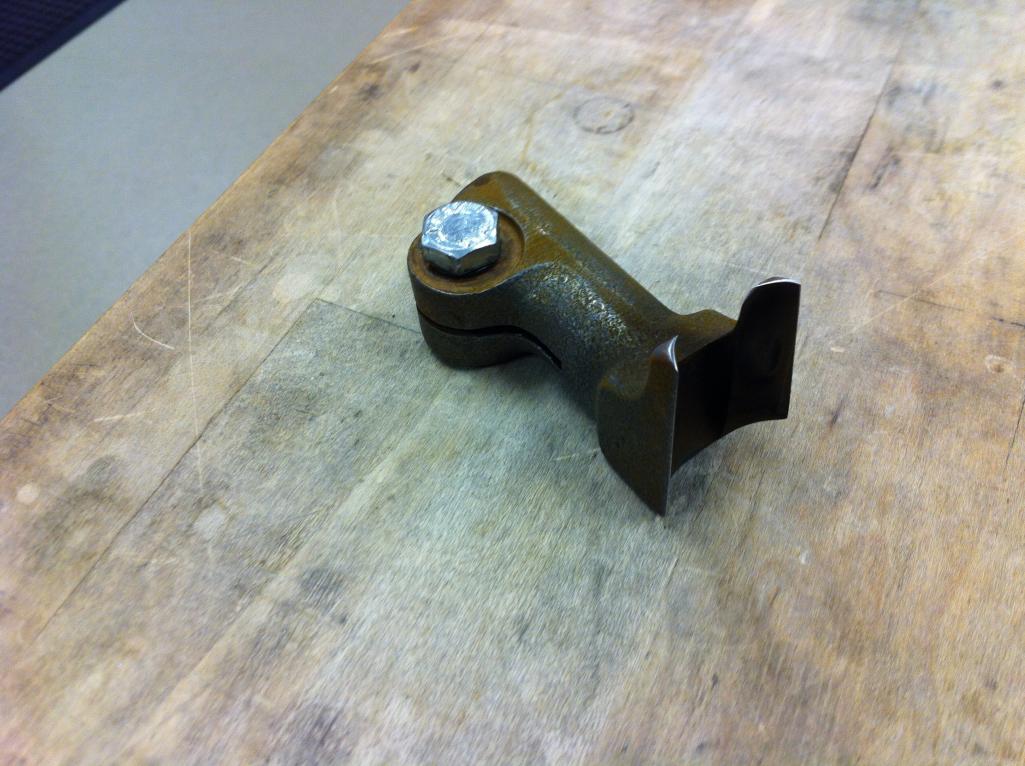

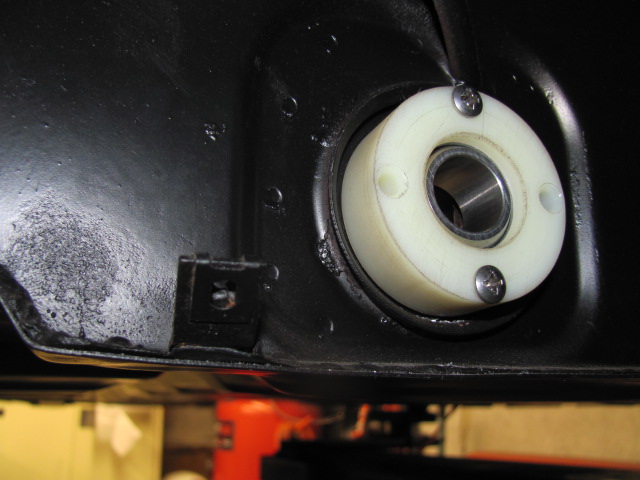

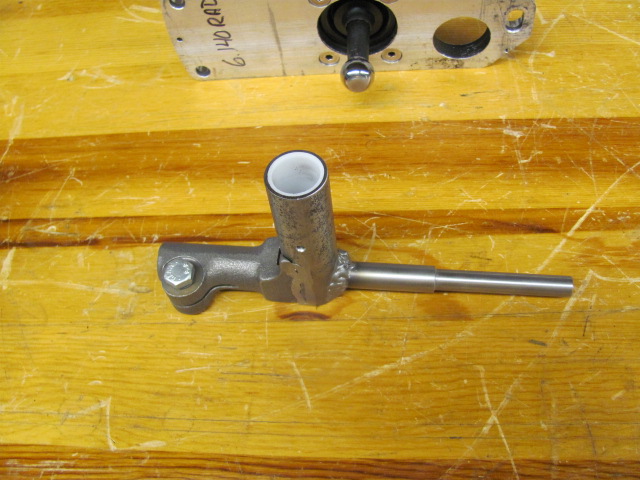

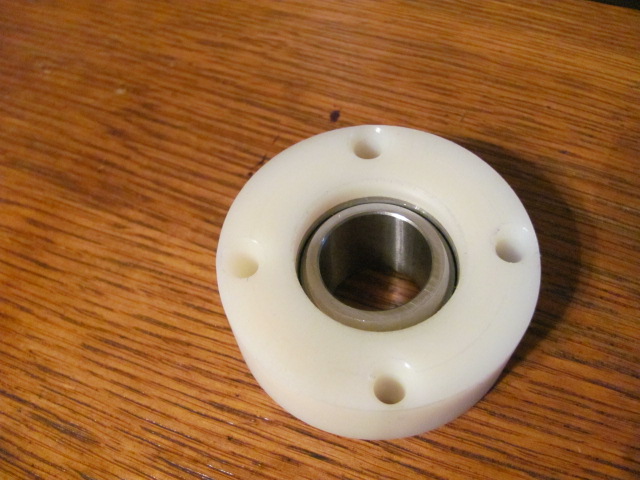

This is the support bracket with the sperical bearing mounted in it . The next step was to mount a 3/4" ball bearing to the shift rod. This will fit in a cup style socket mounted to the shift rod. I used the ball because of the hardened finish. The next step was to modify the 914 rod to shifter coupling. Used the original coupling because it kept the stock adjustment in place. Cut a 1' diameter hole thru the coupling at the centerline of the original thru bolt. Made a tube for the ball to engage and mounted a support shaft out of the front. Welded them all together. Then pressed a teflon sleeve in the tube. The ball and the bore in the tube are the same size. This will keep the shifter from vibrating and the ball will slide easily on the teflon. The next post will have assemby pix. |
914dave |
Feb 12 2012, 08:03 PM
Post
#19
|
914 Addict Group: Members Posts: 700 Joined: 19-October 03 From: Willow Grove Pa. Member No.: 1,262 Region Association: North East States |

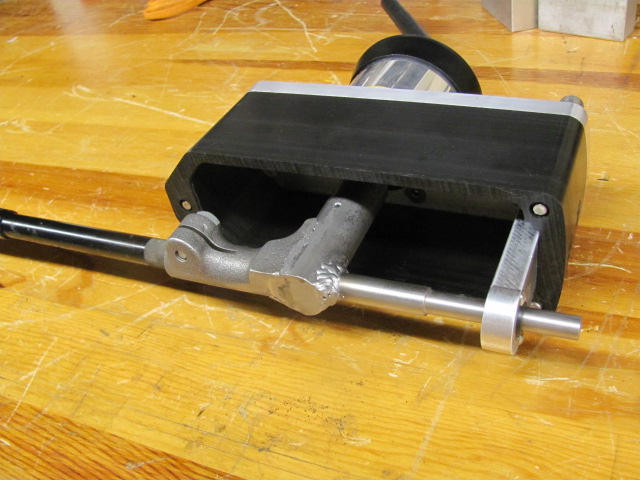

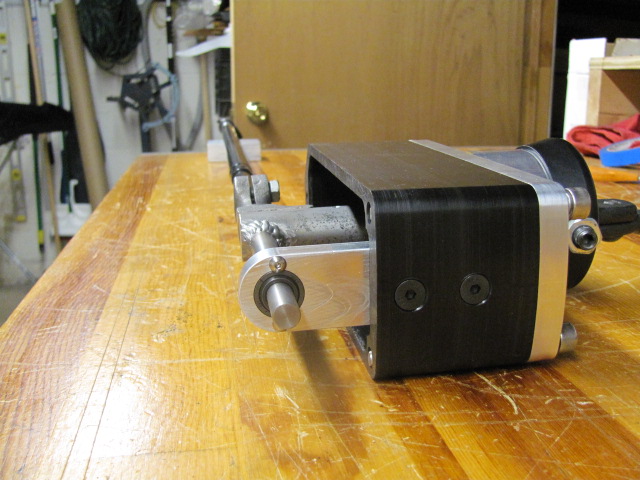

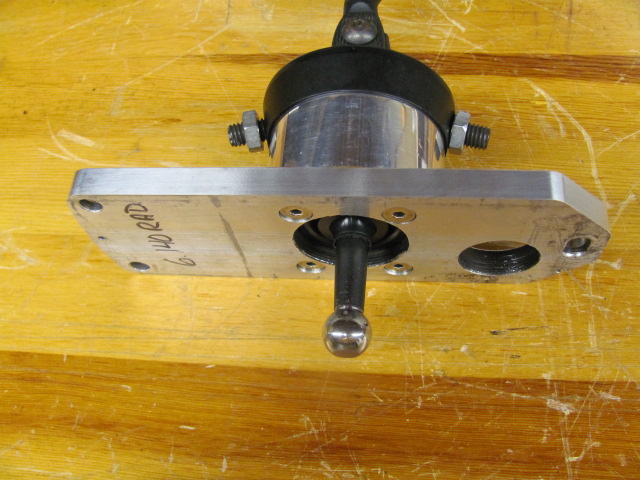

Here's some pix of the shifter assembly from the bottom. I'll mount it in the car this week when it's not so freakin cold! Should be able to fab the shift rod and finish this linkage.
I did get to machine the new u joints to fit the tranny and stock shift rod. I'll get those pix later. Going to try and mount the oval flange from the original shift rod . Want to use the stock sideshift rubber boot at the firewall. |
Eric_Shea |
Feb 12 2012, 08:08 PM
Post
#20
|
PMB Performance Group: Admin Posts: 19,275 Joined: 3-September 03 From: Salt Lake City, UT Member No.: 1,110 Region Association: Rocky Mountains |
Holy cool-shit Batman. Amazing work Dave.
|
