Home made ultra-sonic FI cleaner |
Mark Henry |
May 1 2003, 05:37 PM
Post
#1
|
that's what I do! Group: Members Posts: 20,065 Joined: 27-December 02 From: Port Hope, Ontario Member No.: 26 Region Association: Canada |
I had an old electric tool engraver lying around. I hose clamped the tip to nut and another hose clamp, and then I clamped it to a small Tupperware condiment container. I then put an injector in it and added FI cleaner till it just covered the injector.
Put on the top and plugged it in, it works great. I have cleaned a couple of injectors now including one with a seized pintle (sp?) that has now freed up. |
Bruce Allert |
May 1 2003, 06:13 PM
Post
#2
|
Hellions asleep Group: Members Posts: 3,289 Joined: 19-March 03 From: Eagle Creek, Orygun Member No.: 441 Region Association: Pacific Northwest |
Mark, I don't understand the part where you clamped the tip to nut and another hose clamp.
Could you elaborate please? This sounds like it's a "Good thing"! bruce |
Mark Henry |
May 1 2003, 07:13 PM
Post
#3
|
that's what I do! Group: Members Posts: 20,065 Joined: 27-December 02 From: Port Hope, Ontario Member No.: 26 Region Association: Canada |
Yep, wish I had a digi cam for this one!
You can't put a hose clamp on the tip of the engraver alone, too small, so I put the clamp around a nut and stuck the tip in a bit and tightened it up. At the same time, I also put another clamp through the nut clamp set up and that one went around the container nice and tight. It's working like a charm, you should see all the crap coming off of my injectors. BUT it is noisier then the morning after beer Schlitz!!! I turn it on, go in the house and turn on the stove timer for 30 minutes each, so I don't have listen to it. (IMG:style_emoticons/default/beer.gif) |
Mark Henry |
May 1 2003, 07:40 PM
Post
#4
|
that's what I do! Group: Members Posts: 20,065 Joined: 27-December 02 From: Port Hope, Ontario Member No.: 26 Region Association: Canada |
I was looking at my design.
What might work better is to put a barrel nut on the engraver tip, then put a clamp around the barrel nut and your container. Hey, at least that sound isn't coming from my suitcase at the airport! (IMG:style_emoticons/default/tongue.gif) |
Curvie Roadlover |
May 1 2003, 08:44 PM
Post
#5
|
Two trunks are better than one! Group: Members Posts: 2,025 Joined: 29-December 02 From: Southeast Michigan Member No.: 42 |
It's hard for me to visualise what you did. I'd sure like to see pics, please. Sounds very interesting.
|
Bruce Allert |
May 1 2003, 10:15 PM
Post
#6
|
Hellions asleep Group: Members Posts: 3,289 Joined: 19-March 03 From: Eagle Creek, Orygun Member No.: 441 Region Association: Pacific Northwest |
QUOTE(Curvie Roadlover @ May 1 2003, 06:44 PM) It's hard for me to visualise what you did. I'd sure like to see pics, please. Sounds very interesting. Ya, what I visualize and what it really is... well, you know (IMG:style_emoticons/default/rolleyes.gif) It's like when the architect draws it and the engineer puts it on blueprints then the contractor builds it... it ain't what it started out to be! bruce |
Jeff Bonanno |
May 1 2003, 11:00 PM
Post
#7
|
il dottore Group: Members Posts: 421 Joined: 30-April 03 From: San Diego, CA Member No.: 636 |
dying to know what this gizmo looks like...
Jeff |
Brad Roberts |
May 1 2003, 11:06 PM
Post
#8
|
914 Freak! Group: Members Posts: 19,148 Joined: 23-December 02 Member No.: 8 Region Association: None |
Cool Jeff.. first post.
Welcome !! I read it 2-3 times and still cant figure out what he did. B |
Dave Cawdrey |
May 1 2003, 11:17 PM
Post
#9
|
Dumbo going poop, Daddy :) Group: Members Posts: 818 Joined: 22-January 03 From: Seattle, WA USA Member No.: 182 |
I get it.
He put the clamp around the nut, and slid the engraver tip in between the nut and clamp. Tighten clamp, thus pinching tip against nut. Next, attach a 4" clamp to a round tupperware container, and run clamp thru nut (like a links on a chain), Tighten 4" clamp. Easy as pie (IMG:style_emoticons/default/tongue.gif) |
Jeff Bonanno |
May 1 2003, 11:18 PM
Post
#10
|
il dottore Group: Members Posts: 421 Joined: 30-April 03 From: San Diego, CA Member No.: 636 |
thanks, Brad. i popped my...er..ah
we have these serious ultrasonic baths at the lab (work) used for ungooping microsyringes, etc. another application was jumpstarting surface reactions on metals, ie etching. maybe too harsh for straightforward cleaning. like the idea of the home version, now looking for a way to clamp tupperware... |
Brad Roberts |
May 1 2003, 11:24 PM
Post
#11
|
914 Freak! Group: Members Posts: 19,148 Joined: 23-December 02 Member No.: 8 Region Association: None |
I'm betting the people at work would get a little upset if you brought in greasy nasty set of injectors for the cleaner... (IMG:style_emoticons/default/clap56.gif)
B |
Jeff Bonanno |
May 1 2003, 11:36 PM
Post
#12
|
il dottore Group: Members Posts: 421 Joined: 30-April 03 From: San Diego, CA Member No.: 636 |
(IMG:style_emoticons/default/hanged.gif) or :gilloutine: would be a good bet.
any other standard high frequency tools we can dip in solvents? |
Mark Henry |
May 2 2003, 06:24 AM
Post
#13
|
that's what I do! Group: Members Posts: 20,065 Joined: 27-December 02 From: Port Hope, Ontario Member No.: 26 Region Association: Canada |
QUOTE(korijo @ May 1 2003, 09:17 PM) I get it. He put the clamp around the nut, and slid the engraver tip in between the nut and clamp. Tighten clamp, thus pinching tip against nut. Next, attach a 4" clamp to a round tupperware container, and run clamp thru nut (like a links on a chain), Tighten 4" clamp. Easy as pie (IMG:style_emoticons/default/tongue.gif) Dave's got it! See smoking weed doesn't kill brain cells! (IMG:style_emoticons/default/wink.gif) You have to solid mount the tip of the engraver to the container. The 2nd hose clamp must also be 'pinched' between the nut and the 1st clamp, the link, as Dave put it, must be solid. I will try to get a pic but I have no digi cam and I live way out in the country. I'll see if I have enough pic's to go to Walmart and get a pic CD burned. Might be a couple of days. |
Bruce Allert |
May 2 2003, 07:28 AM
Post
#14
|
Hellions asleep Group: Members Posts: 3,289 Joined: 19-March 03 From: Eagle Creek, Orygun Member No.: 441 Region Association: Pacific Northwest |
Mark,
So, just the tip of the engraver is in the fluid, right? How did you come of this idea that the engraver vibrated enough to create the ultra sonic effect? Amazing (IMG:style_emoticons/default/beerchug.gif) I have stainless nipples the dogs drink from in our kennels that need cleaning quite often and we have to do each by hand (105!) This would REALLY speed up the process. thanks bruce |
Mark Henry |
May 2 2003, 07:51 AM
Post
#15
|
that's what I do! Group: Members Posts: 20,065 Joined: 27-December 02 From: Port Hope, Ontario Member No.: 26 Region Association: Canada |
I'll try to get a pic.
The tip is never near the fluid. Here is the simplest method, but it would wreck the engraver so I used clamps: Take a soup can, on the outside bottom edge of the can mig weld (tack) the engraver tip to the can. The whole purpose is to shake (vibrate) the can itself. When the can and engraver (vibrator) are placed on a smooth surface the can now vibrates. So you are solid mounting the engraver tip to the outside of the can. It is the vibrating can that creates the 'waves' in the fluid. If working right the surface of the fluid will be dancing. |
Lawrence |
May 2 2003, 08:48 AM
Post
#16
|
Senior Member Group: Benefactors Posts: 1,661 Joined: 5-February 03 Member No.: 244 Region Association: None |
Mark,
Thank you for the visual with the last post... I get it. Very cool idea. Could one not attach the engraver tip to the injector? Too hard on the injector itself? Also, do you change the injector cleaner part way through the cleaning process? I would be concerned about cycling crap through the injectors. I bet there's gonna be a run on engravers on evilBay... -Rusty |
Mark Henry |
May 2 2003, 09:31 AM
Post
#17
|
that's what I do! Group: Members Posts: 20,065 Joined: 27-December 02 From: Port Hope, Ontario Member No.: 26 Region Association: Canada |
Check out the jewelry cleaner at Wal-mart, it's basically the same thing. They don't cost that much $30-40 US I think. Engravers are about $12.
I just did it this way because I had the tool engraver, a lot of guys do and I now have two tools for the price of one. Not to mention the fact that I'm sometimes just a tad cheap. I don't think putting it on the injector would be a good idea, plus you have to keep the engraver dry, being an electrical device and all. Go through all your injectors with dirty fluid then dump it, put in some clean fluid and do them again for a bit. I’ve had one old skanky injector that won’t free up. Also the FI cleaning fluid will not remove certain types of grease (etc.) so I cleaned and scrubbed the injector before I put it in, still you should see all the crap coming off of them. I'm running each injector for over an hour. Also the noise, I’m going to put mine in a box and put it outside. |
Mark Henry |
May 2 2003, 07:37 PM
Post
#18
|
that's what I do! Group: Members Posts: 20,065 Joined: 27-December 02 From: Port Hope, Ontario Member No.: 26 Region Association: Canada |

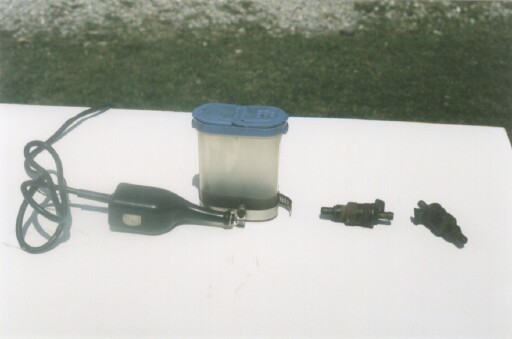

Pic's
Attached image(s) |
Mark Henry |
May 2 2003, 07:38 PM
Post
#19
|
that's what I do! Group: Members Posts: 20,065 Joined: 27-December 02 From: Port Hope, Ontario Member No.: 26 Region Association: Canada |

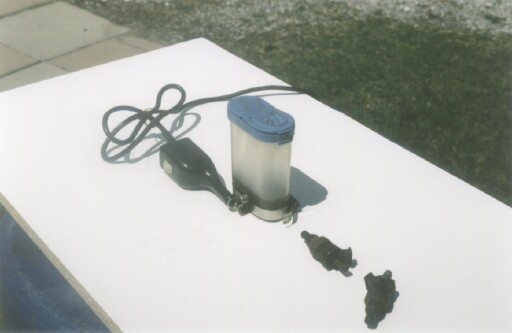

2nd
Attached image(s) |
Mark Henry |
May 2 2003, 07:40 PM
Post
#20
|
that's what I do! Group: Members Posts: 20,065 Joined: 27-December 02 From: Port Hope, Ontario Member No.: 26 Region Association: Canada |

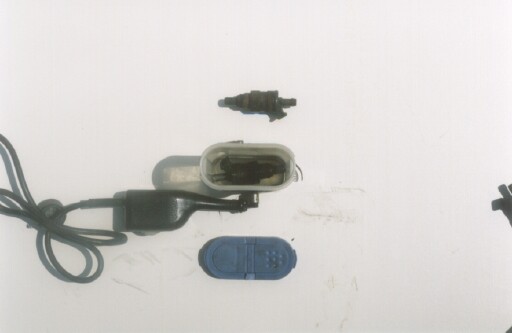

last one
Attached image(s) |
