> So, what goes into a full transmission rebuild?, Pics of the process :)
Dr Evil
post Jan 23 2012, 02:28 PM
Post #1


Send me your transmission!
***************

Group: Members
Posts: 23,044
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
Cairo94507 has entrusted me with the customization/rebuild of his 901 for use in his 3.2 conversion. Based on desires for a street car and budget, we decided on an A/Ga/fX/X/fH set up which will lower RPM and raise shift points to better utilize the Tq of the 3.2. The only improvement would be to get a C first gear set, which would be $$$ so this should be very street-able. Another option would be to lock 1st out and use the stock F gear as 1st. Then a box that was F/O/X/fH would be a nice setup and one that I use often with the larger engines where a 4 speed is preferential.

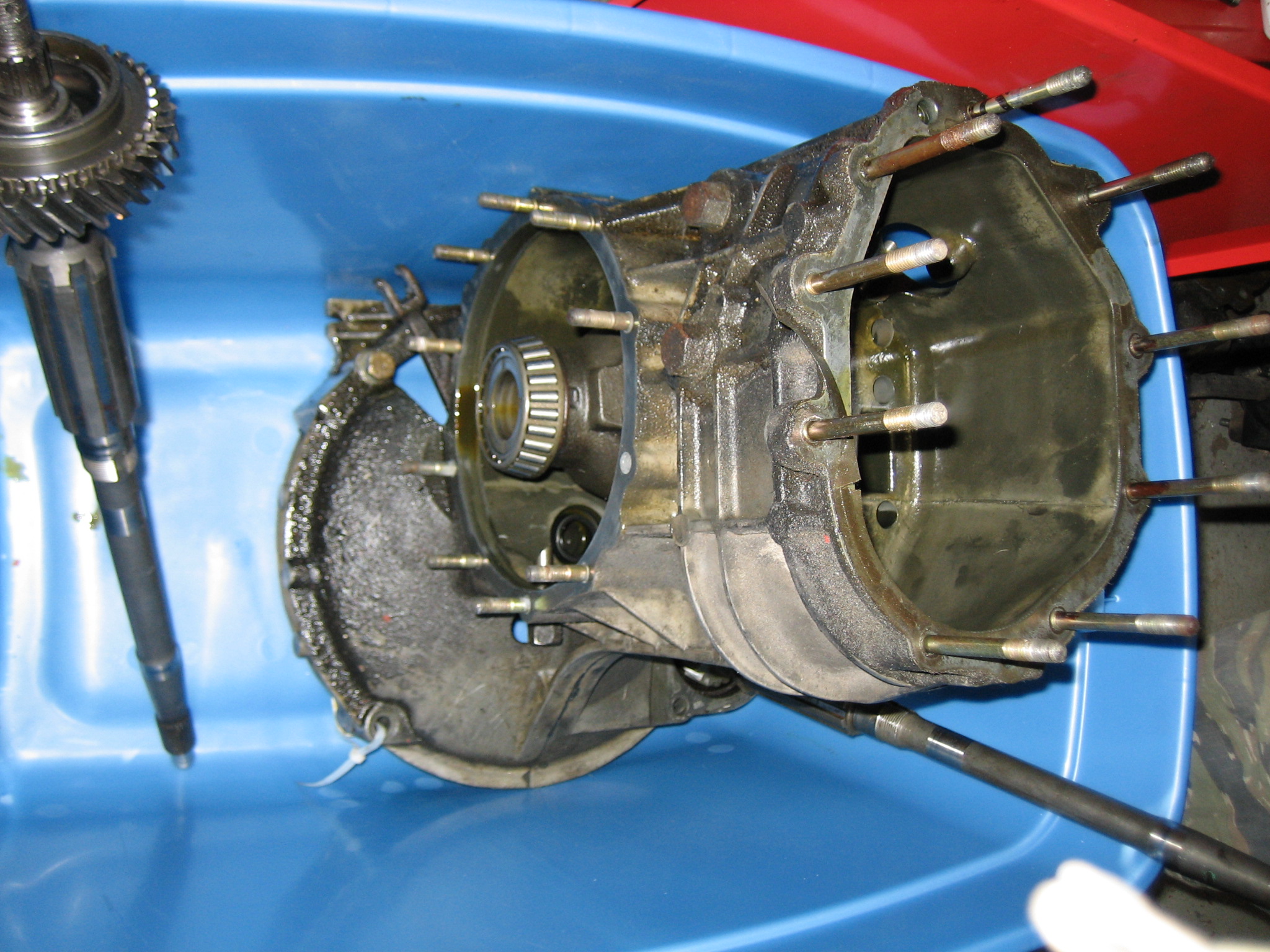

Here is where I started to remember to take pics. Gutted the case and looked at all the parts. Cairo wants this cleaned and painted as well which I hate to do, but understand and offer (IMG:style_emoticons/default/wink.gif) It takes me so long and it is hateful work. (IMG:style_emoticons/default/rolleyes.gif)

Attached Image Attached ImageAttached Image

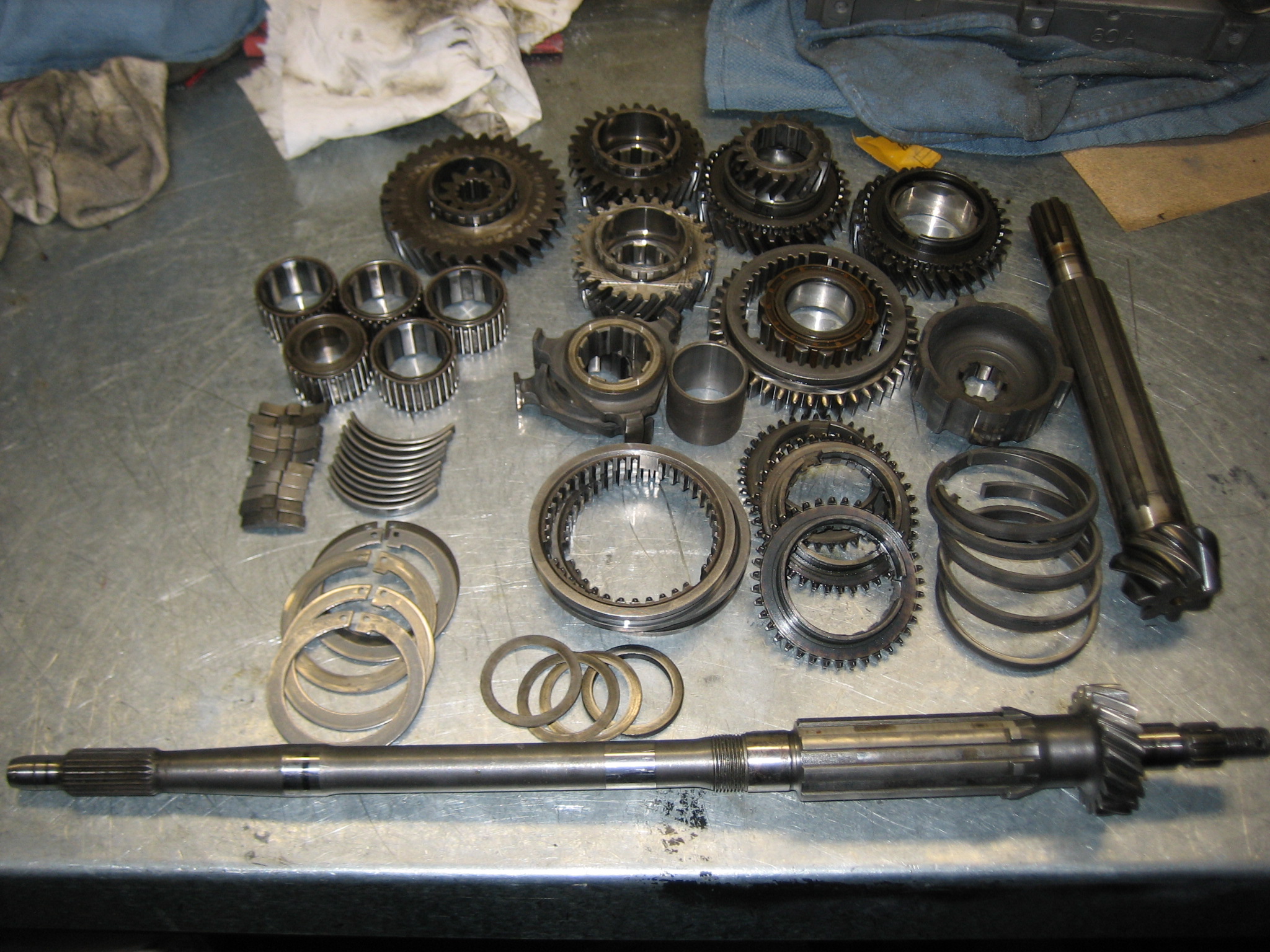

The side plate and intermediate plate are soaking right now. Lots of old, oily dirt and schmutz on them (IMG:style_emoticons/default/dry.gif)

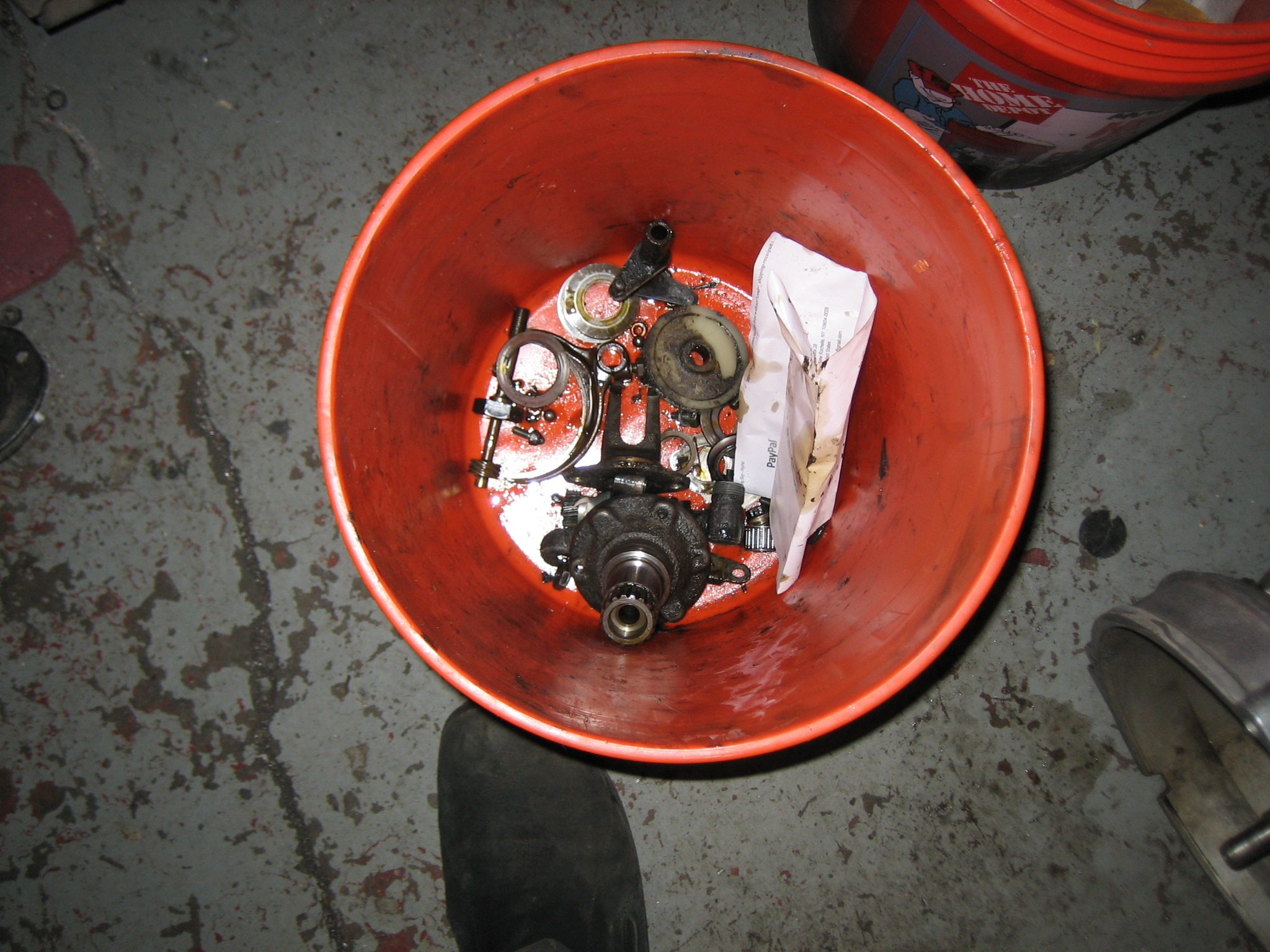

I did clean up the guts of the stack, though (IMG:style_emoticons/default/smile.gif)

Attached Image

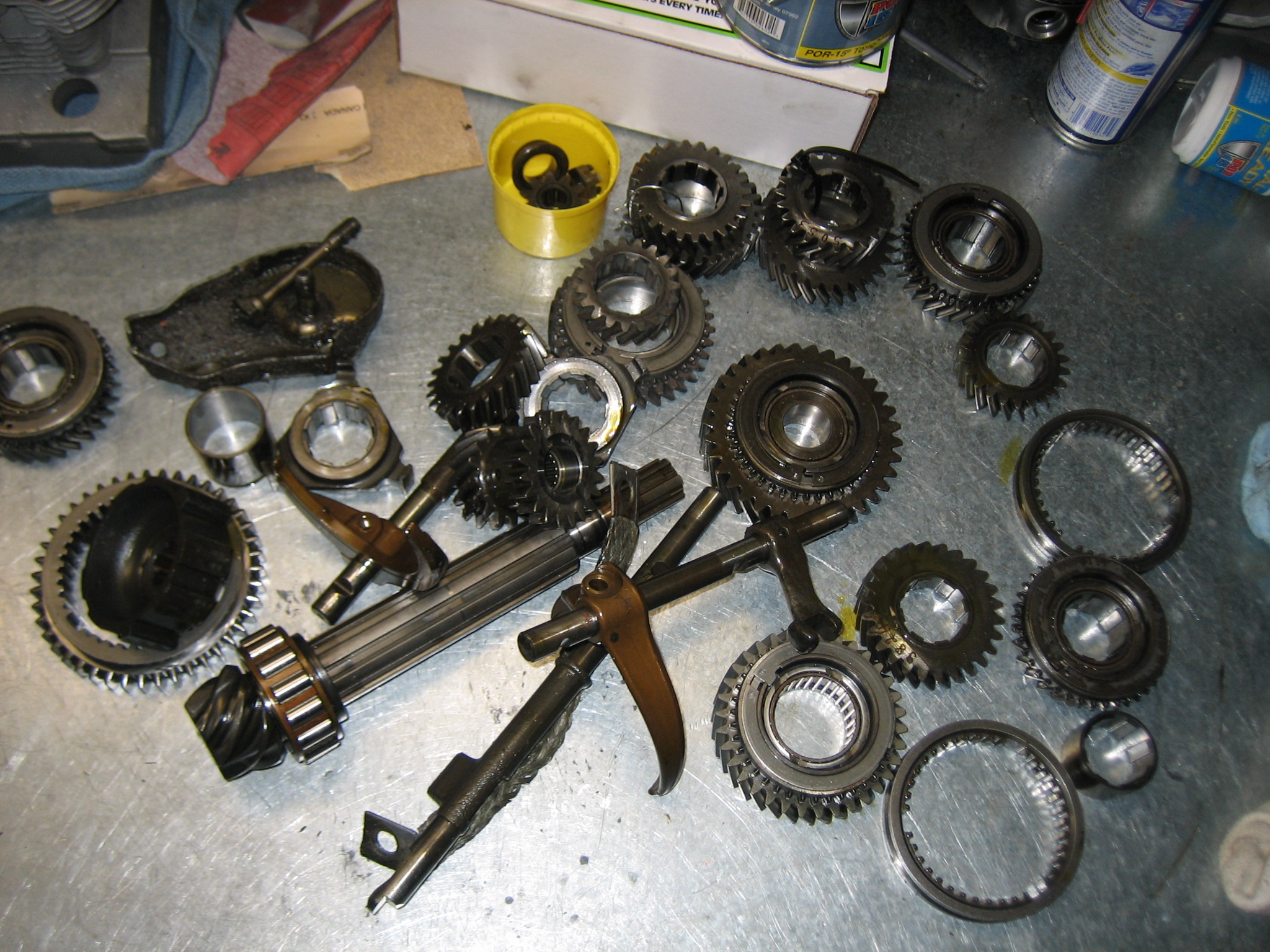

BTW, I never have to set stuff out this neatly, but it was a photo op (IMG:style_emoticons/default/smile.gif)
