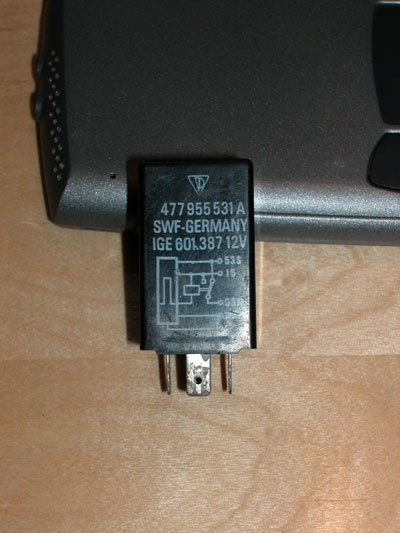

Here is a pic of the part I have that is supposed to be a intermitant relay.
Geoff (ok Brad, I know I should PM him but how do you post or attach a pic to a pm?) Attached image(s) ![]() |
Brad Roberts |
![]()
Post
#2
|
914 Freak! ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 19,148 Joined: 23-December 02 Member No.: 8 Region Association: None ![]() |
Post all you want... You cant attach a pic to a PM. You have to provide the URL from a webs server with the IMG tags on it....
B |
SirAndy |
![]()
Post
#3
|
Resident German ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() Group: Admin Posts: 42,200 Joined: 21-January 03 From: Oakland, Kalifornia Member No.: 179 Region Association: Northern California ![]() |
QUOTE(Bleyseng @ May 2 2003, 06:32 PM) Here is a pic of the part I have that is supposed to be a intermitant relay. geoff, does it have 5 pins? 4 in a circle, one in the middle? if so, it's the one (IMG:style_emoticons/default/wink.gif) the serial# is correct, quote from the AA catalog: "33, relay for wiper control 1973-76, 477 955 531 a, In Stock" Andy |
Bleyseng |
![]()
Post
#4
|
Aircooled Baby! ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 13,036 Joined: 27-December 02 From: Seattle, Washington (for now) Member No.: 24 Region Association: Pacific Northwest ![]() |
Yup, it has five pins.
Geoff |
SirAndy |
![]()
Post
#5
|
Resident German ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() Group: Admin Posts: 42,200 Joined: 21-January 03 From: Oakland, Kalifornia Member No.: 179 Region Association: Northern California ![]() |
QUOTE(Bleyseng @ May 3 2003, 01:21 PM) Yup, it has five pins. Geoff alright then, please send it down to SSI. and let me know how much $$$ and where to send it (IMG:style_emoticons/default/wink.gif) thank you sir, Andy |
SirAndy |
![]()
Post
#6
|
Resident German ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() Group: Admin Posts: 42,200 Joined: 21-January 03 From: Oakland, Kalifornia Member No.: 179 Region Association: Northern California ![]() |
here's a pic of the relay-connector mounted.
the relay is not yet added. wiring was straight forward, there's actually a whole page in the haynes manual about the wiring for this relay. one cable comes straight from your steering column (73 and newer) and goes to the relay, the other cables come from/go to the wiper motor. i can whip up some more details if interested. Andy (IMG:http://www.sirandy.com/pix/914/2003.05.19/IMGP2073.JPG) |
Jeff Krieger |
![]()
Post
#7
|
Unregistered ![]() |
QUOTE(SirAndy @ May 19 2003, 05:51 PM) here's a pic of the relay-connector mounted. the relay is not yet added. wiring was straight forward, there's actually a whole page in the haynes manual about the wiring for this relay. one cable comes straight from your steering column (73 and newer) and goes to the relay, the other cables come from/go to the wiper motor. i can whip up some more details if interested. Andy Yes please. I would like to add an intermittent relay to my '73 2.0 in the future and I could use the information. |
ThinAir |
![]()
Post
#8
|
Best friends ![]() ![]() ![]() ![]() Group: Members Posts: 2,561 Joined: 4-February 03 From: Flagstaff, AZ Member No.: 231 Region Association: Southwest Region ![]() ![]() |
Andy -
Is that mounted on the passenger side or the driver side? What page in the Haynes book are you referring to? I can't seem to find it. |
Bleyseng |
![]()
Post
#9
|
Aircooled Baby! ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 13,036 Joined: 27-December 02 From: Seattle, Washington (for now) Member No.: 24 Region Association: Pacific Northwest ![]() |
Drivers side, page 165 left side, Flick wipe system
|
ThinAir |
![]()
Post
#10
|
Best friends ![]() ![]() ![]() ![]() Group: Members Posts: 2,561 Joined: 4-February 03 From: Flagstaff, AZ Member No.: 231 Region Association: Southwest Region ![]() ![]() |
Now if I only knew how to read a current flow diagram. Seriously... I've never been able to translate between "current flow" and the actual wiring in a car. Can anyone explain this in plain english?
|
SirAndy |
![]()
Post
#11
|
Resident German ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() Group: Admin Posts: 42,200 Joined: 21-January 03 From: Oakland, Kalifornia Member No.: 179 Region Association: Northern California ![]() |
QUOTE(ErnieDV @ May 19 2003, 09:09 PM) Can anyone explain this in plain english? i'll write something up. it's easier if you have a color diagram (IMG:style_emoticons/default/rolleyes.gif) Andy |
markb |
![]()
Post
#12
|
914less :( ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 5,449 Joined: 22-January 03 From: Nipomo, CA Member No.: 180 Region Association: Central California ![]() ![]() |
Hi Andy, yes please do. I pulled the relay & wiring from one of my parts cars, but the wiper & wires had been removed. I'm gonna try & wire it into an early 70 (with the turn switch on the dash) so any help would be appreciated.
|
SirAndy |
![]()
Post
#13
|
Resident German ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() Group: Admin Posts: 42,200 Joined: 21-January 03 From: Oakland, Kalifornia Member No.: 179 Region Association: Northern California ![]() |
QUOTE(markb @ May 20 2003, 09:30 AM) Hi Andy, yes please do. i started a new thread, which you can find here: Wiper Relay Instructions Andy |
![]() ![]() |
![]() |
