Rudy,


Your essentially going to need to extend the fenders 5", The rear of the fender is where all that dimension is going to look the most odd.

I know you've worked with foam before, possibly a good idea to lay it out in foam and shape it a bit before you start cutting? Maybe do a wire frame of your potential wheel arch location and after putting some foil on your fenders to protect the steel spray some expanding foam on them in multiple layers and start forming it out?


Thats what I did for my V1 dash and it worked out really well. I had issues where I was trying to spray to much in one location and the foam never setting but in general a couple layers made the job easy and I was able to cheaply and easily template out what I want.

You could do this then make cardboard slices for what your fender line is and then be able to transfer those new measurements to the formation of steel?


Fun stuff ahead (IMG:style_emoticons/default/smile.gif) This will be really fun to watch! Wish I was closer (IMG:style_emoticons/default/sad.gif)

[Curbandgutter]

Rudy,


Your essentially going to need to extend the fenders 5", The rear of the fender is where all that dimension is going to look the most odd.

I know you've worked with foam before, possibly a good idea to lay it out in foam and shape it a bit before you start cutting? Maybe do a wire frame of your potential wheel arch location and after putting some foil on your fenders to protect the steel spray some expanding foam on them in multiple layers and start forming it out?


Thats what I did for my V1 dash and it worked out really well. I had issues where I was trying to spray to much in one location and the foam never setting but in general a couple layers made the job easy and I was able to cheaply and easily template out what I want.

You could do this then make cardboard slices for what your fender line is and then be able to transfer those new measurements to the formation of steel?


Fun stuff ahead (IMG:style_emoticons/default/smile.gif) This will be really fun to watch! Wish I was closer (IMG:style_emoticons/default/sad.gif)

Thanks for the suggestions, I've never had to extend steel fenders like this, but I have some ideas. The end product is to continue the vanishing edge instead of just extending it straight out like an extrusion.

[Andyrew]

Rudy,


Your essentially going to need to extend the fenders 5", The rear of the fender is where all that dimension is going to look the most odd.

I know you've worked with foam before, possibly a good idea to lay it out in foam and shape it a bit before you start cutting? Maybe do a wire frame of your potential wheel arch location and after putting some foil on your fenders to protect the steel spray some expanding foam on them in multiple layers and start forming it out?


Thats what I did for my V1 dash and it worked out really well. I had issues where I was trying to spray to much in one location and the foam never setting but in general a couple layers made the job easy and I was able to cheaply and easily template out what I want.

You could do this then make cardboard slices for what your fender line is and then be able to transfer those new measurements to the formation of steel?


Fun stuff ahead (IMG:style_emoticons/default/smile.gif) This will be really fun to watch! Wish I was closer (IMG:style_emoticons/default/sad.gif)

Thanks for the suggestions, I've never had to extend steel fenders like this, but I have some ideas. The end product is to continue the vanishing edge instead of just extending it straight out like an extrusion.

I think thats a good idea. thats like what mine do. No where near as wide, but the same vanishing edge could be used.

(IMG:http://www.914world.com/bbs2/uploads_offsite/i1210.photobucket.com-172-1304923113.1.jpg)

[rick 918-S]

Thanks guys.

Andrew I based my offsets on hitting target track widths and was not concerned with tucking the rears in. The front and rear track are now square at 63". The interesting thing with respect to the rear offset is that it's a 0" offset so there will be less eccentricity on the rear wheel bearings. The car will be wide that's for sure. I measures 76 1/2" to the rear rim edges. I figured if I was going through all of the trouble with tube chassis and all, that I was not interested in making a meek rendition of the 914. I'm hoping that with the extra width and the 3" wheel base extension that it will look like a panther crouching and ready to pounce.

Obviously I need to extend the fenders but I want to keep the curve in them rather than a straight extension. I have a couple of ideas to do that.

Kent don't know about the Curandero Come on by and check the wheels out in in person. They are 3-piece forged rims with custom offsets. I really like the look.

http://www.914world.com/bbs2/index.php?sho...=132215&hl=

I stretched these flares pretty far. Since yours are already on you will likely need to use another method.

[Curbandgutter]

Oh I see, you extended them from the quarter panel. They looked good after you finished "massaging" them into shape.

[Curbandgutter]

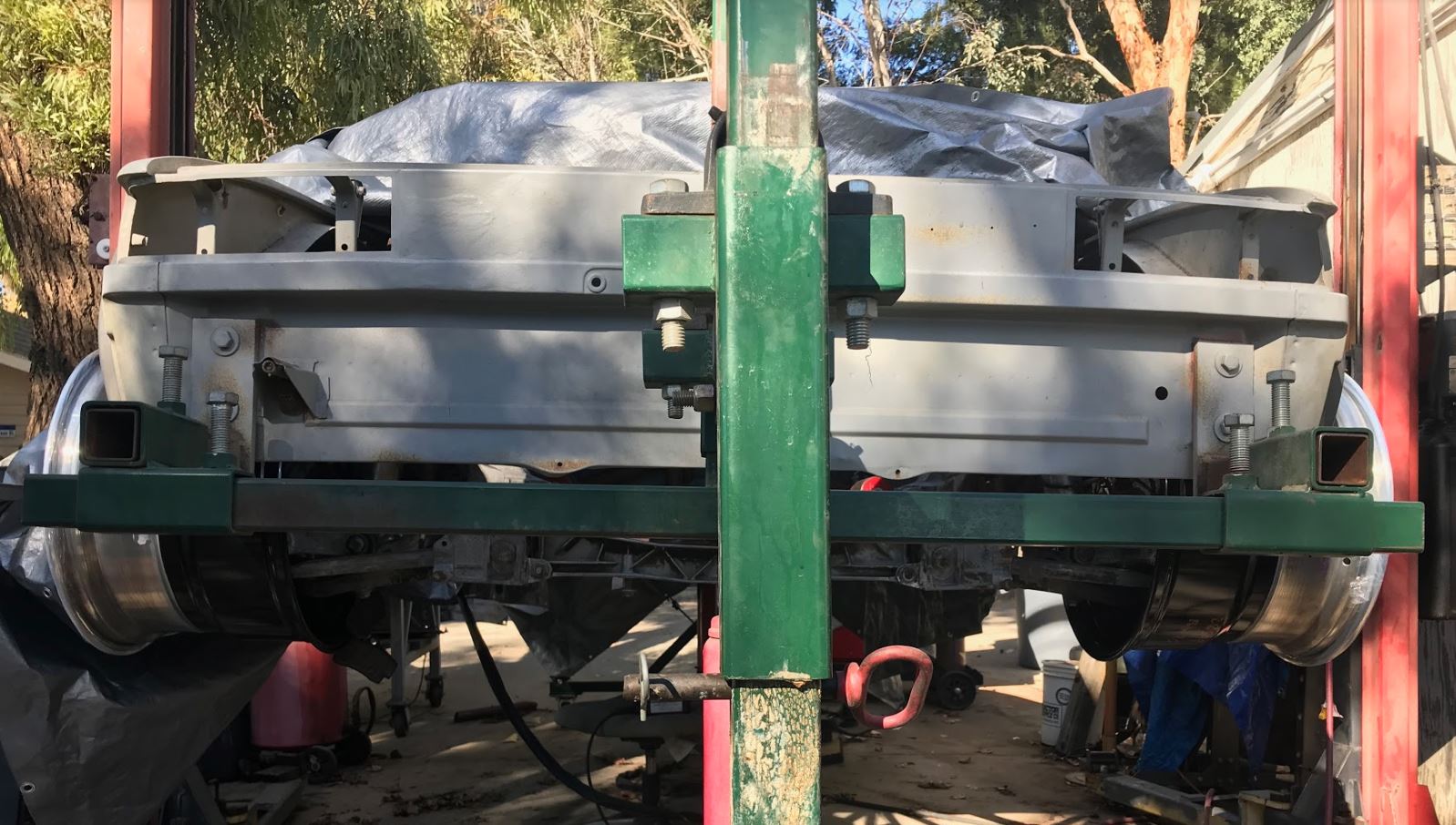

Here is a shot from the rear:

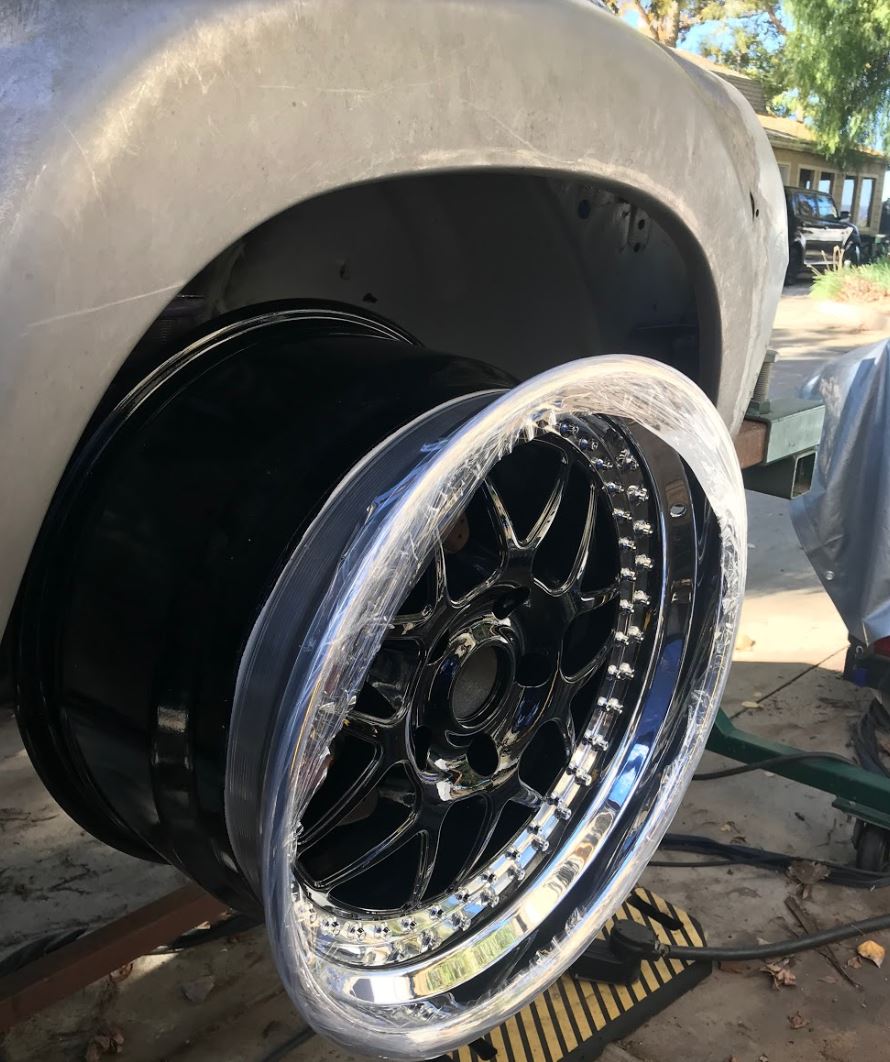

Front Rim:

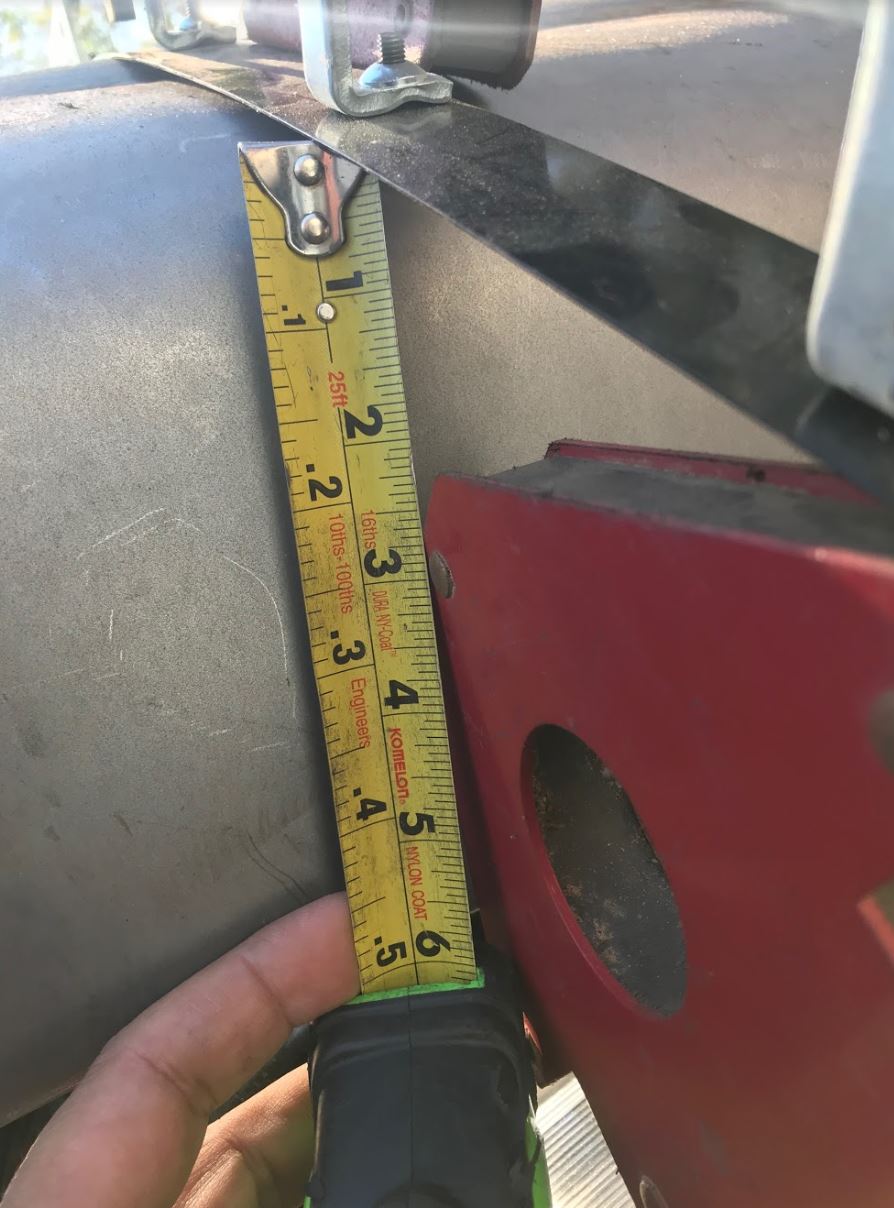

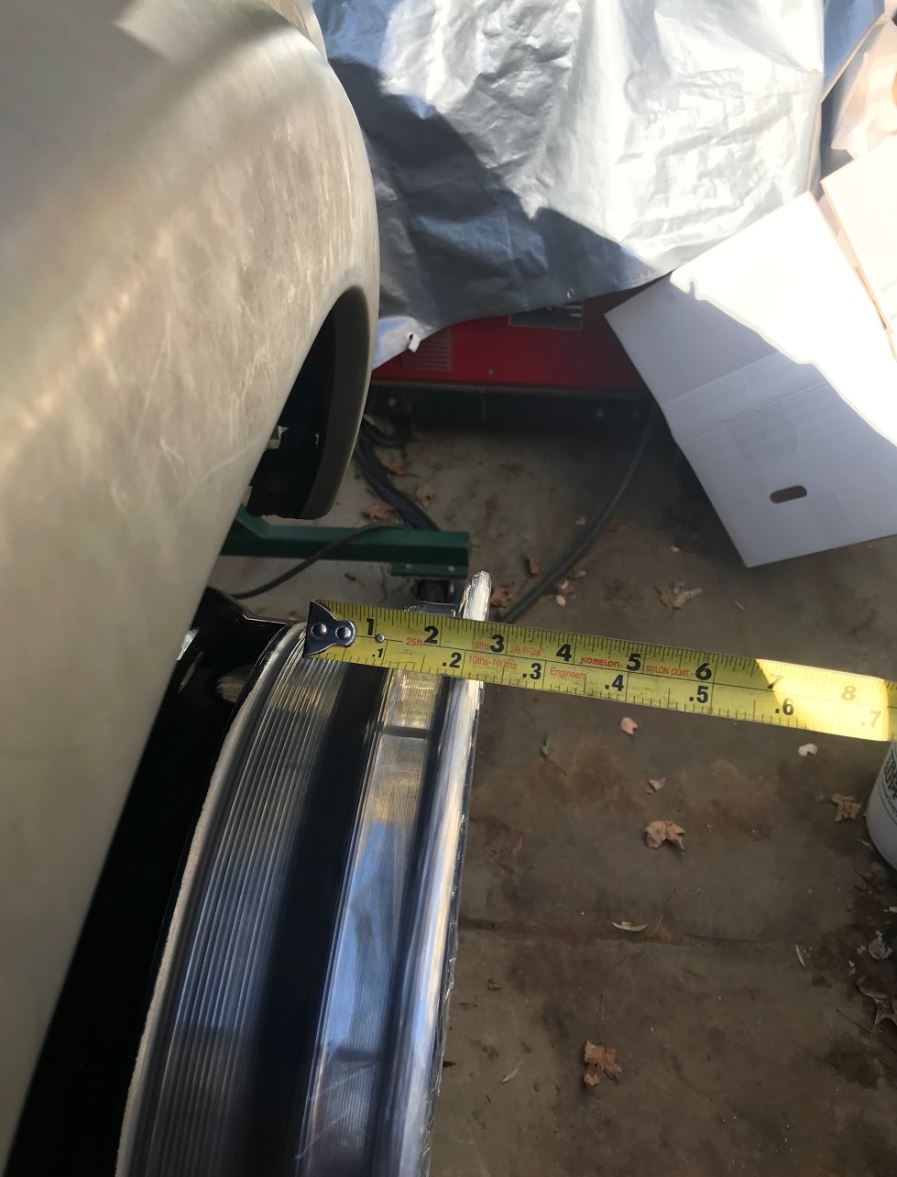

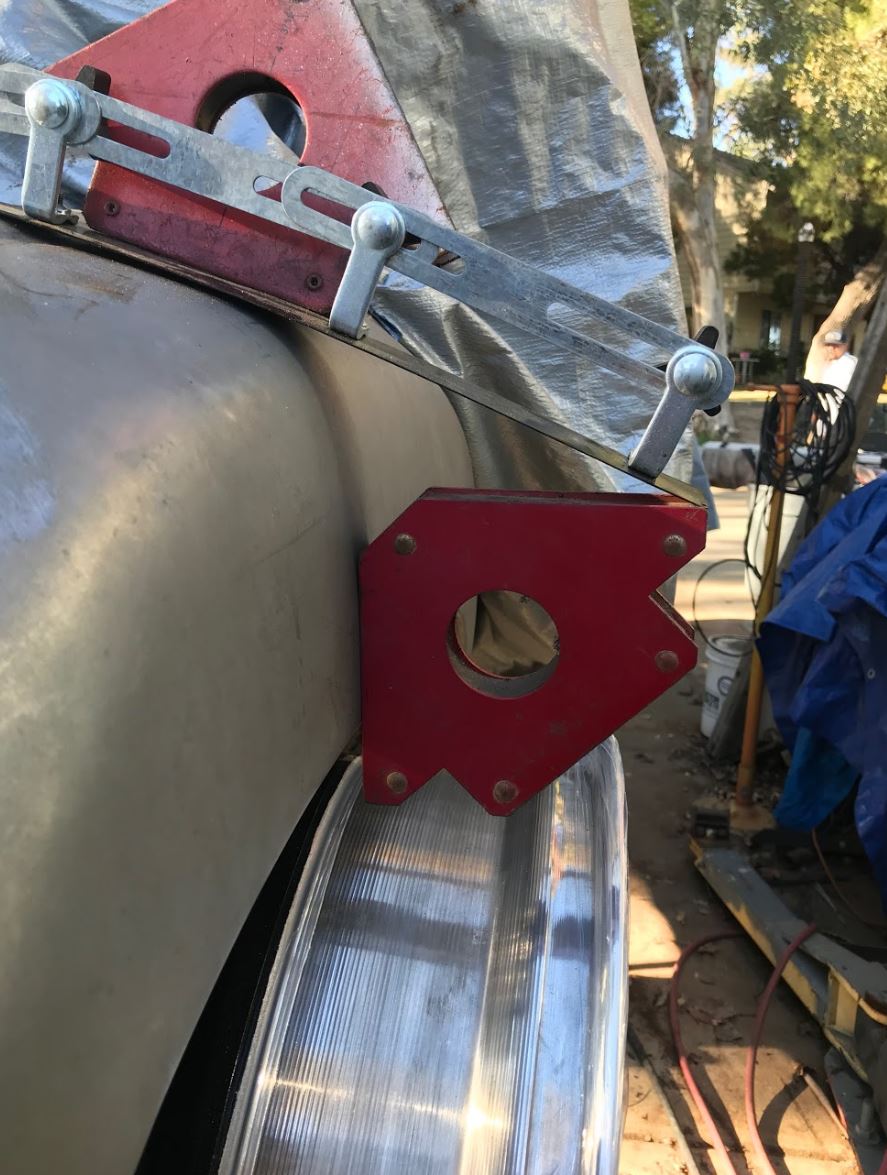

This is how much I'm needing to extend front fender + 1 1/2" since the lower control arm is being pushed out to give me the 63" square track.:



We're not messing around now!

[barefoot]

Watch the Blinky episodes where they spread the flares WAY out

[Curbandgutter]

Watch the Blinky episodes where they spread the flares WAY out

Don't understand what you mean by this. Who or what are the Blinky episodes? Can you put a link in?

[defianty]

Here's the Binky Epispode.

https://www.youtube.com/watch?v=mB4NXA_vNWs&t=499s

[Curbandgutter]

Thanks! The Binky flares are fiberglass and I don't think much of that will transfer to making steel flares. Thanks though!

[sixnotfour]

food for thought..
https://www.youtube.com/watch?v=PI0vpvaL7Vc

[Curbandgutter]

Close but not what I’m going to do. I want to keep the vanishing edge so when you see the fender from the side profile the current flat vertical area will shrink. The fenders will look more curved. Do you know if that car is from one of the world guys?

[sixnotfour]

ya its boxy ,,, It was , has been sold , I dont know where it got of to..

[Curbandgutter]

This is what I'm thinking of:



Seems like the "flat" portion will be reduced by about 2 1/2":

[Andyrew]

I think that will work, just afraid of the rear section getting so tight.

That's why I was thinking you might need to foam it out to be able to try out a few options before you start cutting and welding.

Unless you absolutely have the design in your head your going with.


Another pic for idea refference. A more rounded fender.you can see the front fender is slightly flatter.


(IMG:http://www.914world.com/bbs2/uploads_offsite/i719.photobucket.com-626-1307840091.1.jpg)

[Curbandgutter]

Thanks, Andrew for your comments and suggestions. I'm thinking that the final product will be like yours but edgier. I still want the flat design elements that are found throughout the 914. So it will look like yours but with a vertical flat element as found in the 916 flares.

[Cracker]

Keep in mind, where "wide flared teeners" usually have issues is between 10/2 in the top center; and on the inner chassis if you run a reasonable amount of camber. Keep up the good work...remember, it doesn't have to be nicer than Chris's! (IMG:style_emoticons/default/biggrin.gif)

PS: I know you are already aware of ALL of this but get the tires on there - with how large they will be it will indeed have to be "boxy' to carry the edge.

T

[Curbandgutter]

Keep in mind, where "wide flared teeners" usually have issues is between 10/2 in the top center; and on the inner chassis if you run a reasonable amount of camber. Keep up the good work...remember, it doesn't have to be nicer than Chris's! (IMG:style_emoticons/default/biggrin.gif)

PS: I know you are already aware of ALL of this but get the tires on there - with how large they will be it will indeed have to be "boxy' to carry the edge.

T

Good things to remember. However, I have the 996 track which pushes the wheels out. I have plenty of room on the inside wheel wells. With respect to the boxy look, I don’t want to completely remove that or it will look like a 914 with 911 fenders. I still want some of the 914 flat edges. And absolutely, I wouldn’t attempt cutting fenders without tires......... and with regard to Chris YES IT DOES YES IT DOES, YES IT DOES (IMG:style_emoticons/default/hissyfit.gif) (IMG:style_emoticons/default/hissyfit.gif) (IMG:style_emoticons/default/evilgrin.gif)

[djway]

I am sure you already know this but just in case, fully compress the suspension with tires on when hanging the fenders to make sure that the tires do not rub when bottomed out

[Marv's3.6six]

Wow Rudy I just read thru your entire thread, you are truly building a monster, very impressed. Keep up the good wok. (IMG:style_emoticons/default/thumb3d.gif) (IMG:style_emoticons/default/thumb3d.gif) (IMG:style_emoticons/default/thumb3d.gif) (IMG:style_emoticons/default/thumb3d.gif) (IMG:style_emoticons/default/thumb3d.gif)
