> Ring and Pinion Backlash, What's everyone doing?
0396
post Oct 8 2013, 12:31 PM
Post #21


Advanced Member
****

Group: Members
Posts: 2,046
Joined: 13-October 03
From: L.A. Calif
Member No.: 1,245
Region Association: Southern California
QUOTE(Dr Evil @ Oct 8 2013, 09:34 AM) *

QUOTE(Jon B @ Oct 8 2013, 12:49 AM) *

QUOTE(Dr Evil @ Apr 16 2013, 10:58 AM) *

I use the factory tool, or at least a clone of it.

Photo below of factory tool, P258, with all accessories.
This tool will only measure pinion depth; other tools are needed to determine ring gear backlash and differential bearing preloads.

I'm curious to see the clones being made.



Jon B.
Vista, CA

Mine was made by a machinist and has the same dimensions as the factory tool. I only have to use it when replacing R/P for failure of inspection or traumatic failure. Most of the time, and I have covered this extensively here and in my DVD, I instruct people to measure gaskets and maintain factory set specs. The vib issues is not much of a concern in the small increments we deal with. It is mainly a nuisance. Many other manufacturers do not do the finite test in leu of just matching patters with dykem or other indicator to a visual pattern.

In a race box, though, I would keep as much friction and vibe out of your setup as fatigue will be highly magnified. Bearings wear and tolerances are quickly lost.



Any pictures of these various copies of the P258??
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Oct 8 2013, 12:41 PM
Post #22


Send me your transmission!
***************

Group: Members
Posts: 23,002
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
Ya, in my free time (IMG:style_emoticons/default/wink.gif) Sorry, I am at my 9a-9p job and then I will be gutting a few more boxes for goodies.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Oct 8 2013, 12:41 PM
Post #23


Send me your transmission!
***************

Group: Members
Posts: 23,002
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
Search on Pelican as the guy who made them had a thread over there. Just search P258.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jimkelly
post Oct 8 2013, 12:47 PM
Post #24


Delaware USA
****

Group: Members
Posts: 4,969
Joined: 5-August 04
From: Delaware, USA
Member No.: 2,460
Region Association: MidAtlantic Region
see post #43

http://www.914world.com/bbs2/index.php?sho...=91491&st=0

(IMG:http://www.914world.com/bbs2/uploads/post-45-1231606118_thumb.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Oct 8 2013, 12:49 PM
Post #25


Send me your transmission!
***************

Group: Members
Posts: 23,002
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
Um, no. That is not it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Matt Romanowski
post Oct 8 2013, 01:25 PM
Post #26


Senior Member
***

Group: Members
Posts: 878
Joined: 4-January 04
From: Manchester, NH
Member No.: 1,507
Post 21 shows one though.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Oct 8 2013, 01:56 PM
Post #27


914 Wizard
**********

Group: Members
Posts: 10,433
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
http://forums.pelicanparts.com/porsche-911...tml#post2402521
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Oct 8 2013, 02:42 PM
Post #28


Send me your transmission!
***************

Group: Members
Posts: 23,002
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
QUOTE(sixnotfour @ Oct 8 2013, 03:56 PM) *

http://forums.pelicanparts.com/porsche-911...tml#post2402521

Ding ding ding
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Oct 8 2013, 07:44 PM
Post #29


Custom Member
***************

Group: Members
Posts: 24,585
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
Matt,

Have you considered replacing the diff housing plates on the outside with thicker ones?

I wonder if you may have experienced flexing, thus heat....dunno
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
John
post Oct 8 2013, 07:52 PM
Post #30


member? what's a member?
****

Group: Members
Posts: 3,393
Joined: 30-January 04
From: Evansville, IN (SIRPCA)
Member No.: 1,615
Region Association: None

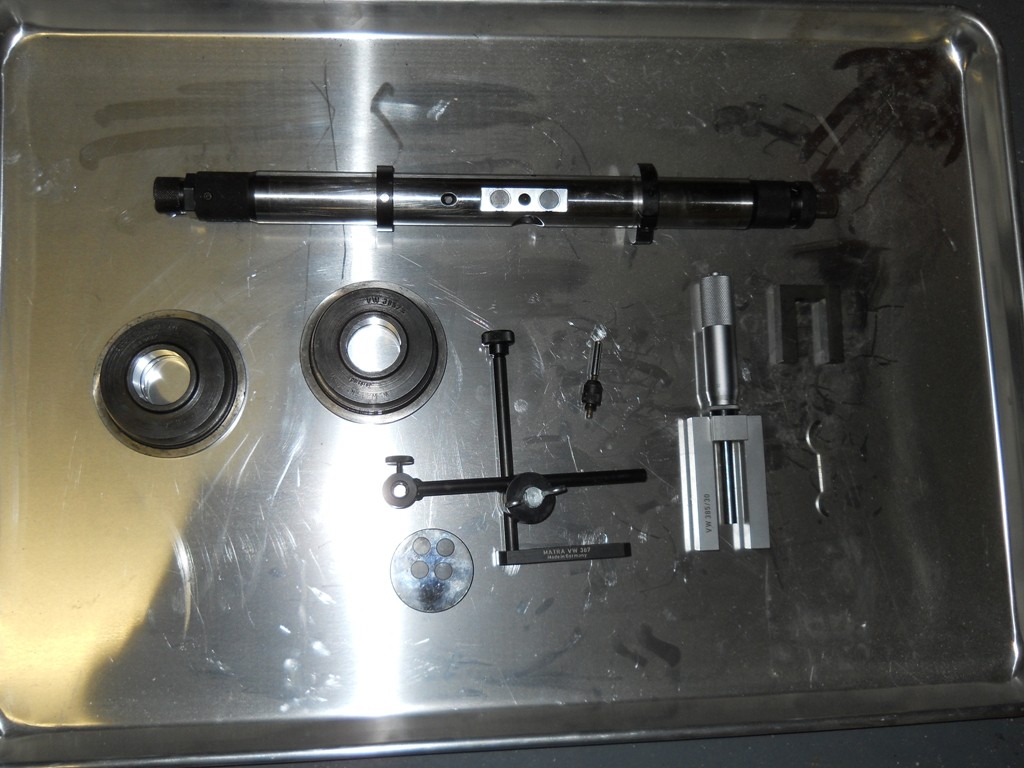

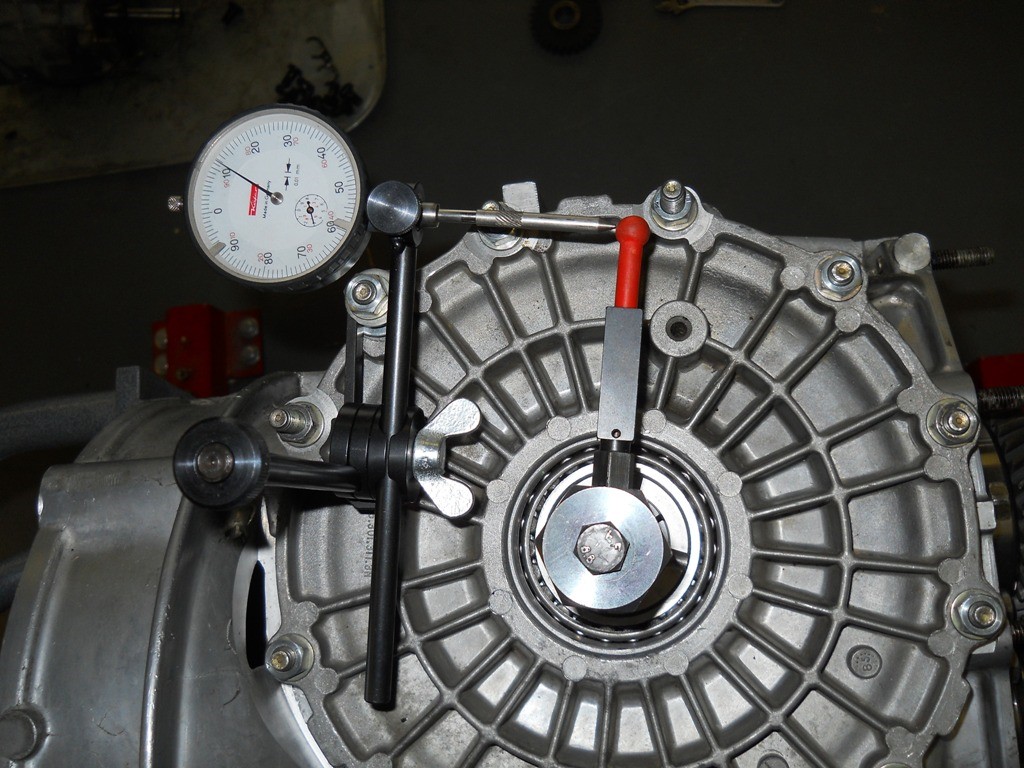

I use the VW tools. Got them to do 915's, but work equally well on 901's.Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Matt Romanowski
post Oct 8 2013, 08:25 PM
Post #31


Senior Member
***

Group: Members
Posts: 878
Joined: 4-January 04
From: Manchester, NH
Member No.: 1,507
QUOTE(r_towle @ Oct 8 2013, 05:44 PM) *

Matt,

Have you considered replacing the diff housing plates on the outside with thicker ones?

I wonder if you may have experienced flexing, thus heat....dunno


We have a billet intermediate plate and side plate.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jon B
post Oct 8 2013, 09:18 PM
Post #32


Member
**

Group: Members
Posts: 73
Joined: 28-September 13
From: Vista, CA
Member No.: 16,448
Region Association: None
John,

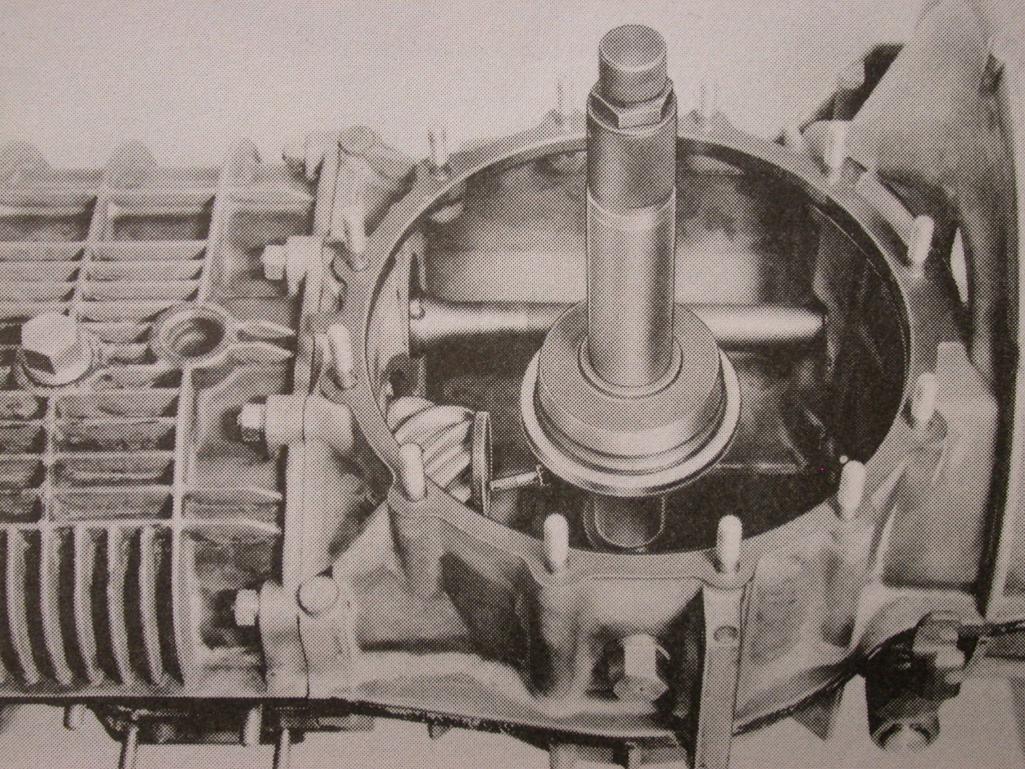

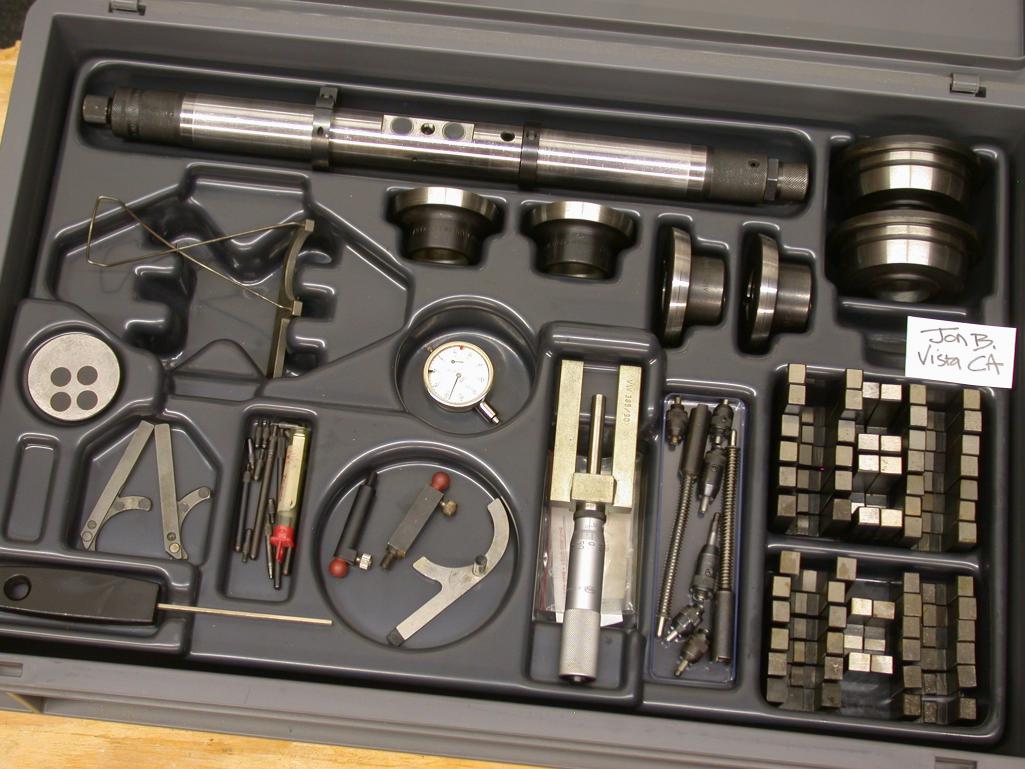

Those are excellent tools, and Porsche-recommended alternative to P258 for 901/911/914 transmissions. I use my set often. Lower photo from 915 manual, showing tool in use with diff cover removed...

Attached Image

Attached Image

Jon B.
Vista, CA
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jon B
post Oct 8 2013, 09:35 PM
Post #33


Member
**

Group: Members
Posts: 73
Joined: 28-September 13
From: Vista, CA
Member No.: 16,448
Region Association: None
QUOTE(Matt Romanowski @ Oct 8 2013, 07:25 PM) *
We have a billet intermediate plate and side plate.

Matt,

Were billet IP and diff cover already installed, or new for transmission?
Do you race this car?
What type of engine are you running?

Jon B.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Matt Romanowski
post Oct 8 2013, 10:46 PM
Post #34


Senior Member
***

Group: Members
Posts: 878
Joined: 4-January 04
From: Manchester, NH
Member No.: 1,507
QUOTE(Jon B @ Oct 8 2013, 07:35 PM) *

QUOTE(Matt Romanowski @ Oct 8 2013, 07:25 PM) *
We have a billet intermediate plate and side plate.

Matt,

Were billet IP and diff cover already installed, or new for transmission?
Do you race this car?
What type of engine are you running?

Jon B.


The billet IP and diff cover were from a previous transmission that killed itself. It is a race car with a stock 3 liter six in it. 2050 pounds. It gets a lot of time - we'll do almost 3,000 track miles and around 60 hours this year.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jon B
post Oct 8 2013, 11:32 PM
Post #35


Member
**

Group: Members
Posts: 73
Joined: 28-September 13
From: Vista, CA
Member No.: 16,448
Region Association: None
Matt,

You realize that's alot of engine and torque for a 901/914 transmission. I'm not surprised it's running hot. It will be worse with a TBD or LSD installed. I'm curious to see your cooling system.

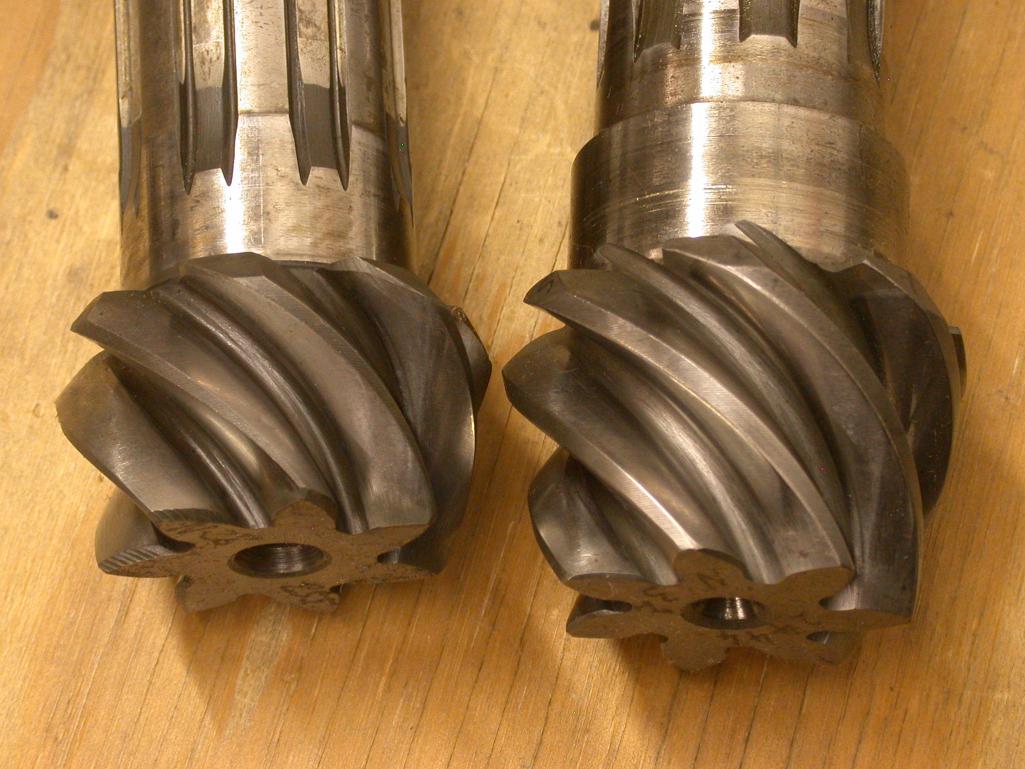

Compare 901 to early 915 pinion below. The 7-tooth 915 pinion is from a 2.4 liter road car; Porsche went to an 8-tooth pinion in 2.7 liter series. And you're racing with a 3.0 liter engine...

Attached Image

Jon B.
Vista, CA
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Matt Romanowski
post Oct 9 2013, 06:07 AM
Post #36


Senior Member
***

Group: Members
Posts: 878
Joined: 4-January 04
From: Manchester, NH
Member No.: 1,507
QUOTE(Jon B @ Oct 8 2013, 09:32 PM) *

Matt,

You realize that's alot of engine and torque for a 901/914 transmission. I'm not surprised it's running hot. It will be worse with a TBD or LSD installed. I'm curious to see your cooling system.

Compare 901 to early 915 pinion below. The 7-tooth 915 pinion is from a 2.4 liter road car; Porsche went to an 8-tooth pinion in 2.7 liter series. And you're racing with a 3.0 liter engine...
Jon B.
Vista, CA


It is a lot and around the limit of what you can put through a 901. We pull oil from the drain and put it back on the gears and R+P. The cooler is about 11x8 and has a blower forcing air through it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Oct 9 2013, 07:17 AM
Post #37


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None
Okay the magic mystery tool is really not needed. Okay thats is a miss statement, but if you want to make one, why not measure your own diff, get the exact center. Mark / Machine the position on the diff so you can measure from the same spot each time. Grab another side cover, drill a nice hole in it above the pinion and then use a bore gauge to measure your depth , a little math and you just replaced the VW and Porsche super secret tools.

You don't even need a fancy bore gauge a simple T gauge and a set of calipers will do the trick.

I used this method after talking to Groot about it. And I do believe it worked. I ran that trans for 6 years now, no signs of bad things happening. I pulled the side cover last month and pulled the LSD out. Ring and Pinion where in perfect shape. It might have been luck, I tend to think it was just taking time and doing the math to get it all right. YMMV


Now Pinion Backlash, I hate doing that, shims, pulling in and out. Subaru got that one right on the 5MT. Two bolts and a spanner wrench. Done.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Oct 9 2013, 08:23 AM
Post #38


Send me your transmission!
***************

Group: Members
Posts: 23,002
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
Agreed, I hate setting preload. (IMG:style_emoticons/default/dry.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
pcar916
post Oct 9 2013, 08:24 AM
Post #39


Is that a Lola?
***

Group: Members
Posts: 1,523
Joined: 2-June 05
From: Little Rock, AR
Member No.: 4,188
Region Association: None
QUOTE(914forme @ Oct 9 2013, 08:17 AM) *

Now Pinion Backlash, I hate doing that, shims, pulling in and out. Subaru got that one right on the 5MT. Two bolts and a spanner wrench. Done.


An inverted 915/930 is ok too. The R&P is on the "right" side so the gear-stack doesn't have to come out to change spacers/shims.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Oct 9 2013, 11:19 AM
Post #40


Custom Member
***************

Group: Members
Posts: 24,585
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
QUOTE(Jon B @ Oct 9 2013, 01:32 AM) *

Matt,

You realize that's alot of engine and torque for a 901/914 transmission. I'm not surprised it's running hot. It will be worse with a TBD or LSD installed. I'm curious to see your cooling system.

Compare 901 to early 915 pinion below. The 7-tooth 915 pinion is from a 2.4 liter road car; Porsche went to an 8-tooth pinion in 2.7 liter series. And you're racing with a 3.0 liter engine...

Attached Image

Jon B.
Vista, CA

curious question.
Can you replace the ring and pinion with the 8 tooth setup yet still fit inside the 914/901 box and have everything work properly?
User is offlineProfile CardPM
