> Custom Gauge lighting, now in color!
timothy_nd28
post Jul 17 2013, 11:46 AM
Post #41


Advanced Member
****

Group: Members
Posts: 2,299
Joined: 25-September 07
From: IN
Member No.: 8,154
Region Association: Upper MidWest

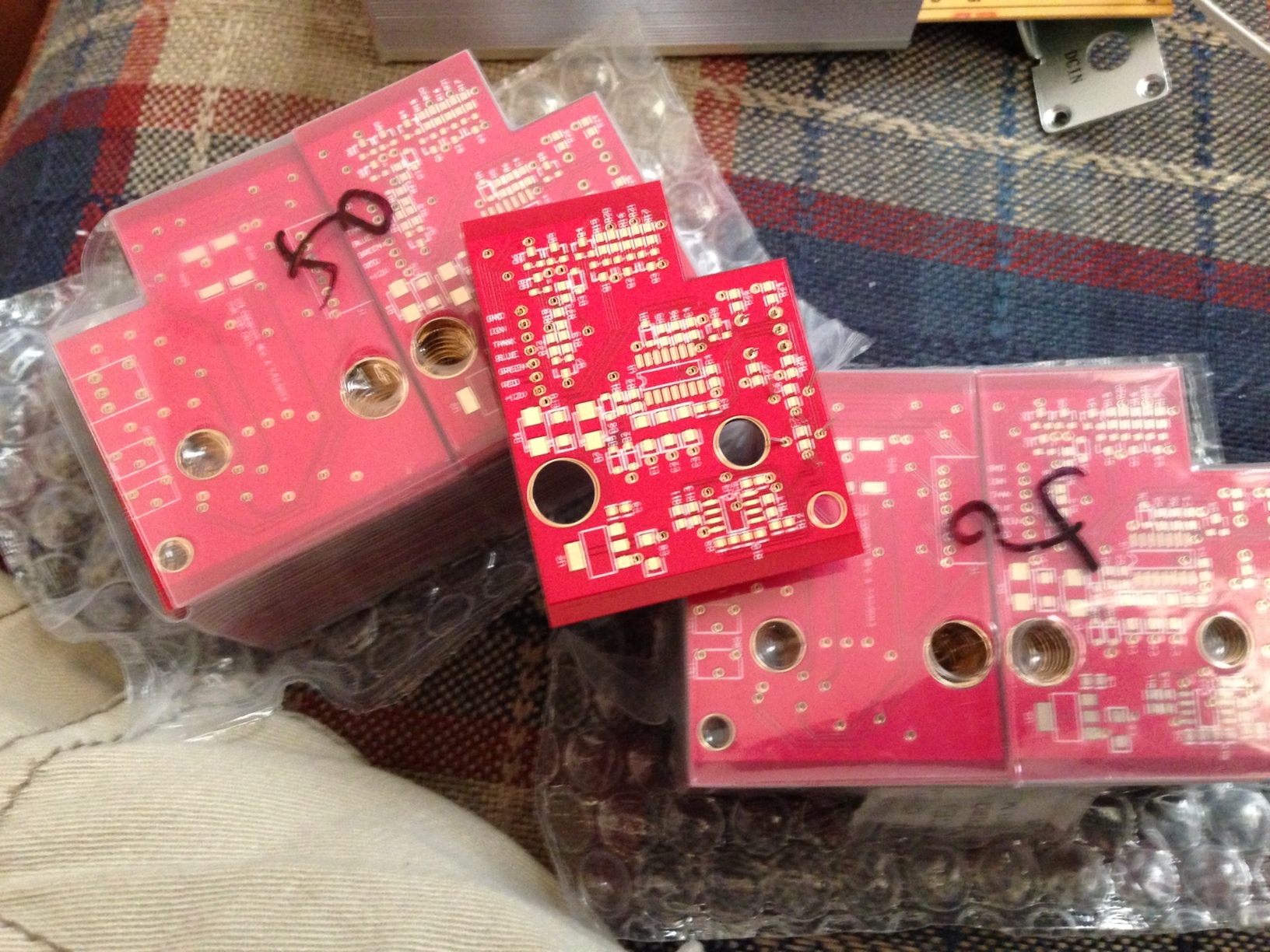

Some progress today, the circuit boards have arrived!

Attached Image

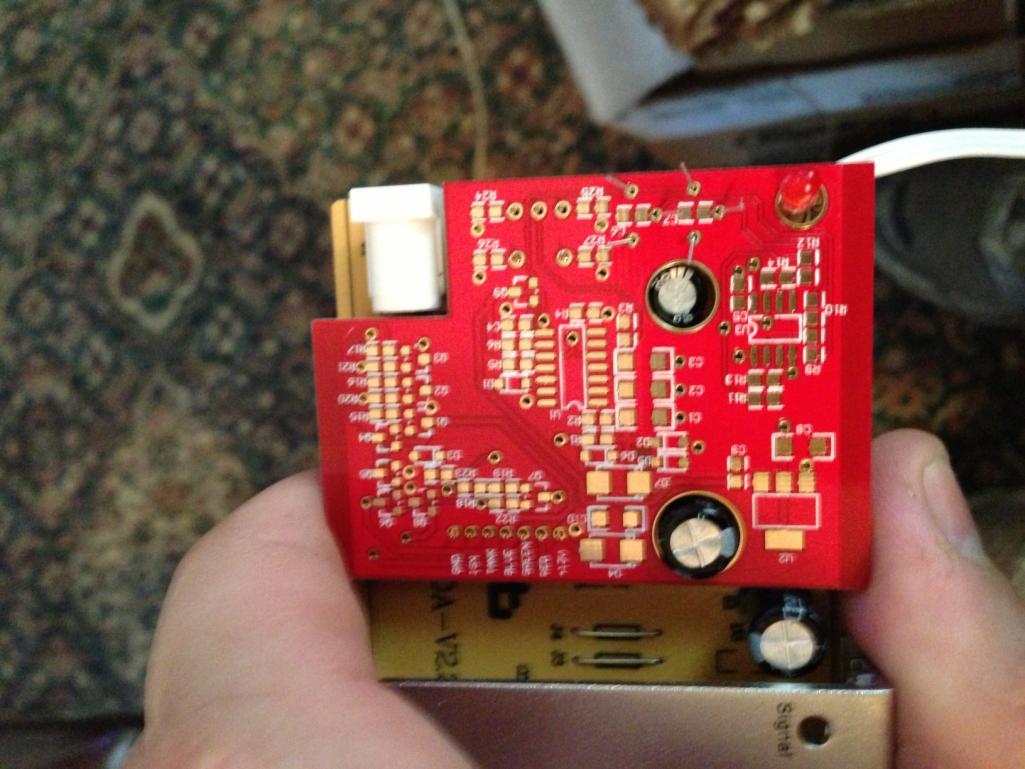

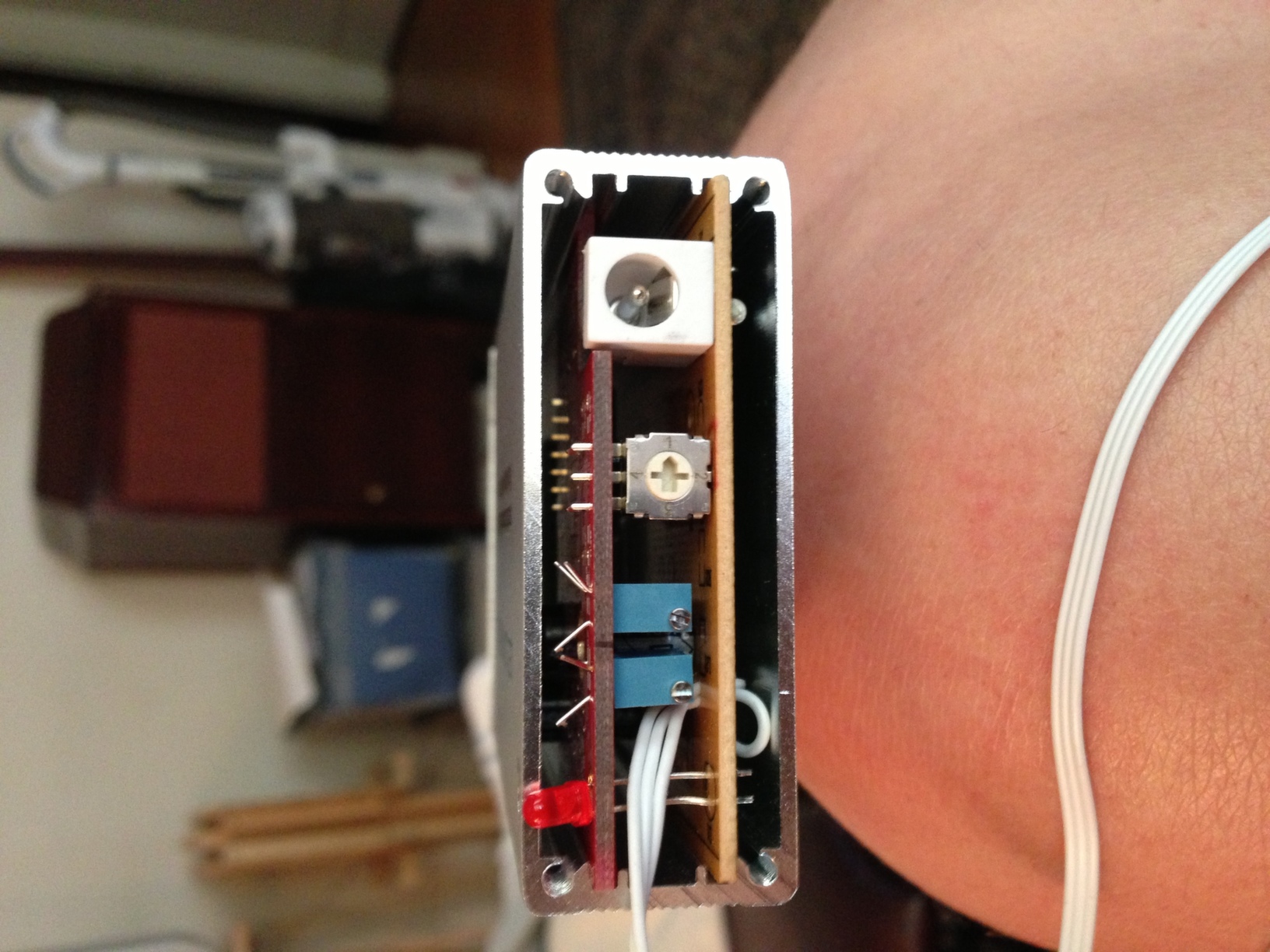

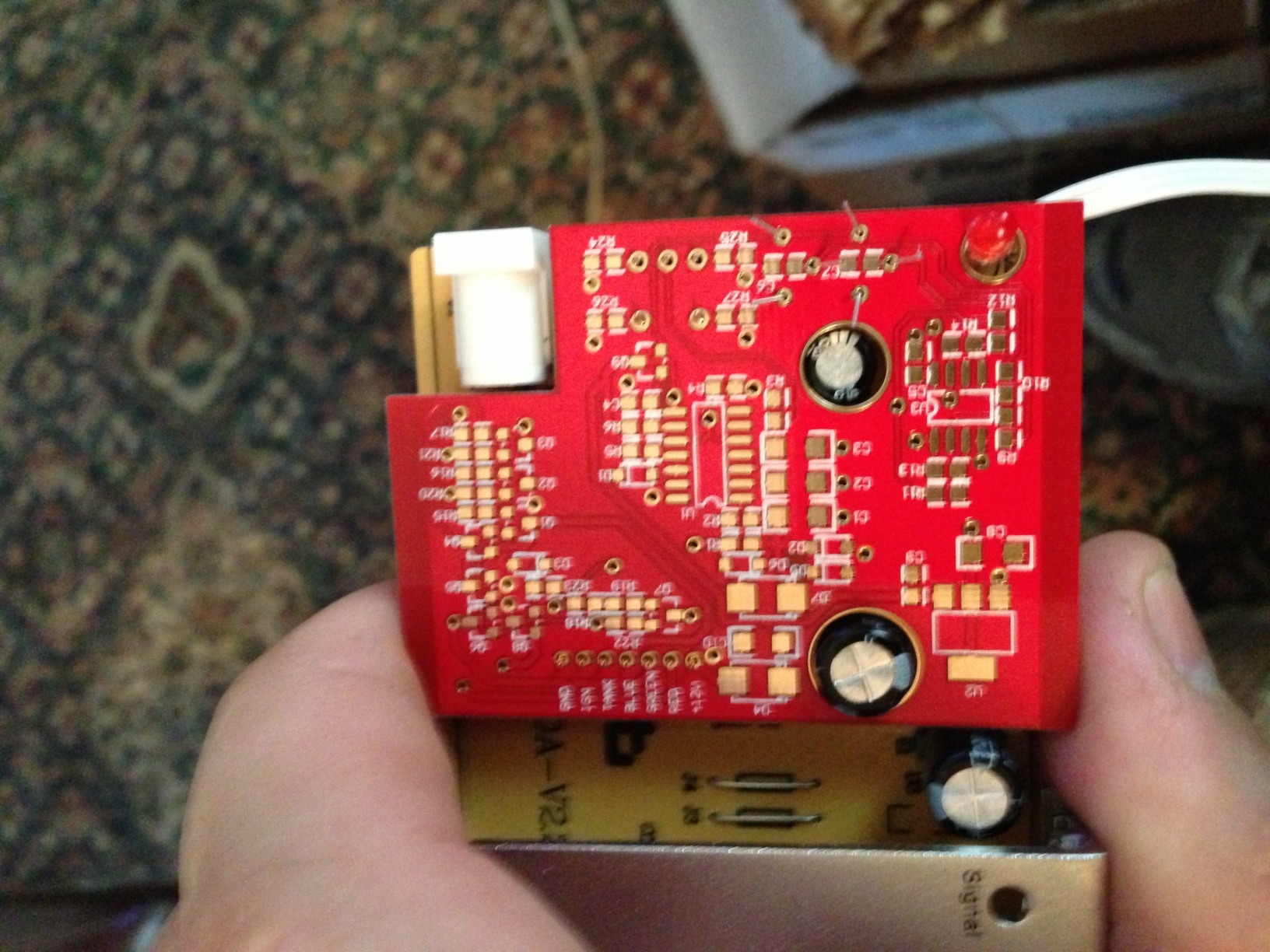

Our new board was designed to sit ontop the Chinese RGB controller circuit board and fit within the aluminum housing
Attached Image

Attached Image

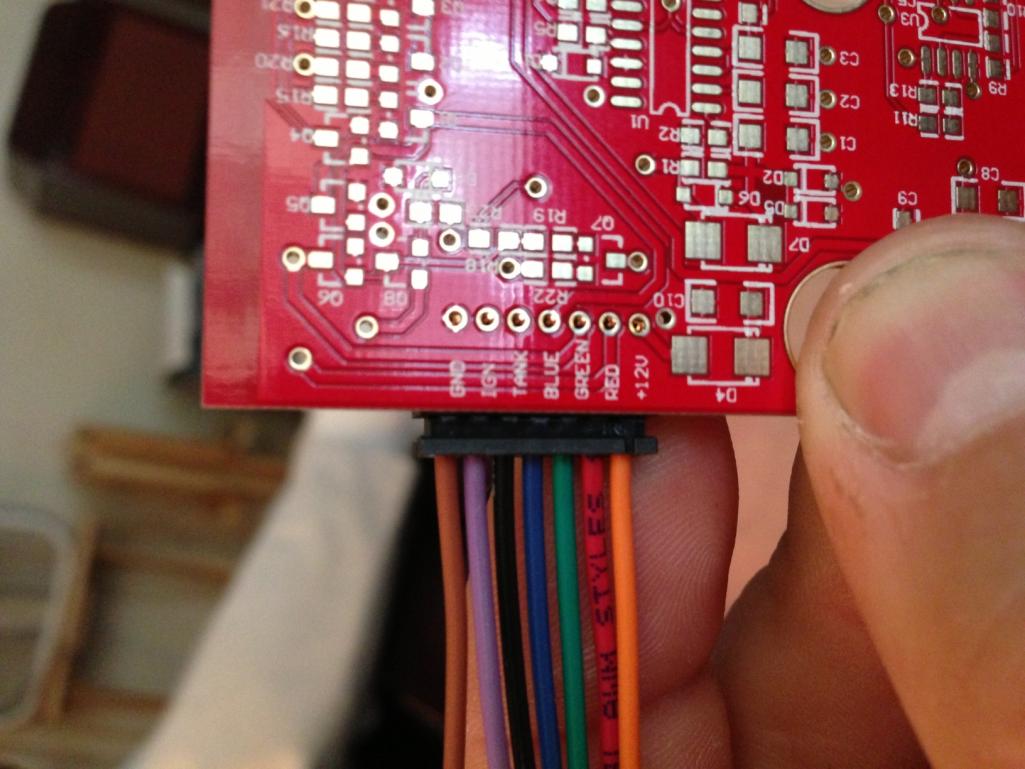

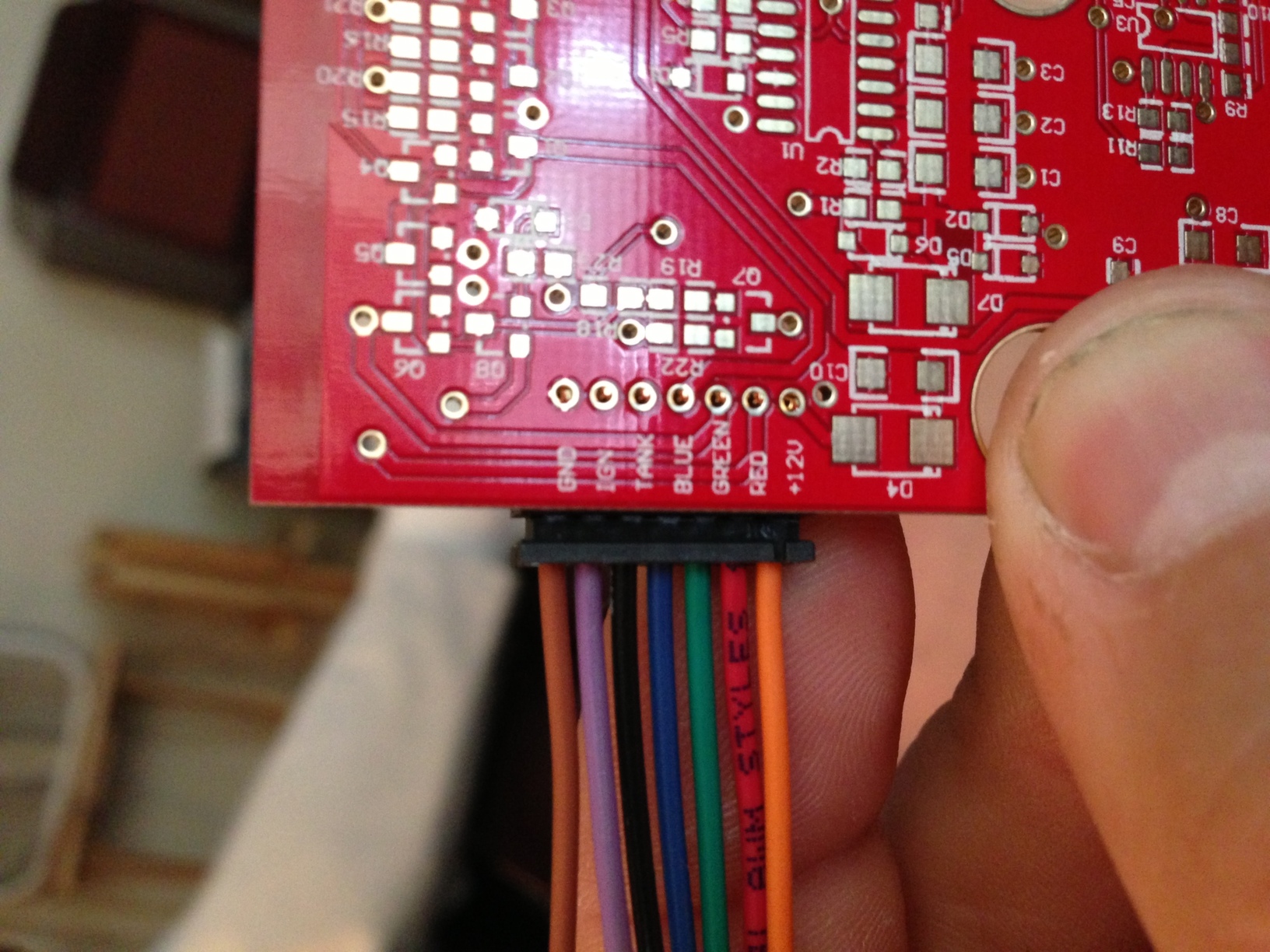

The wires will all be internal, except for the tank empty wire and tach, this will make for a very clean install
Attached Image

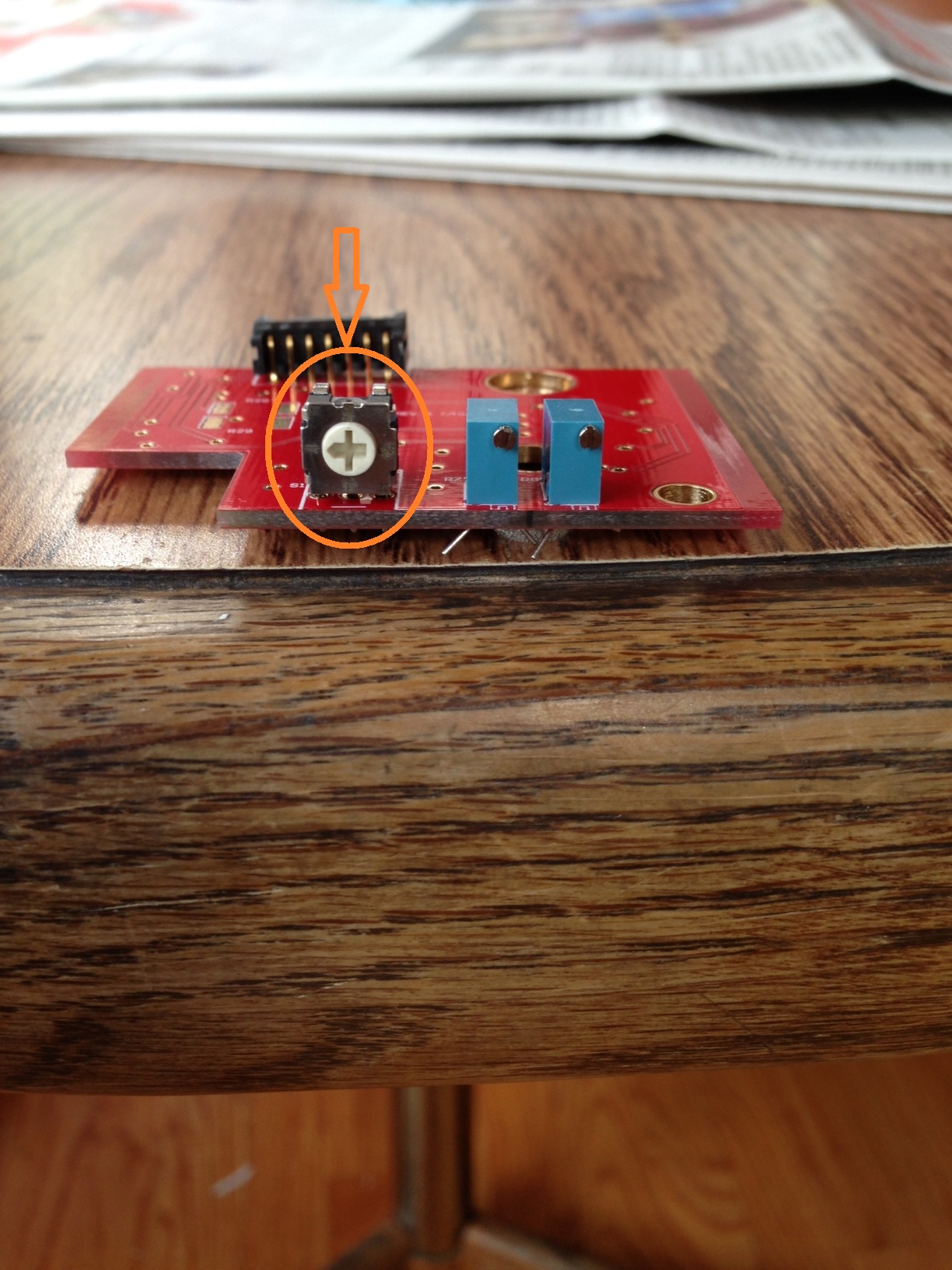

The business end. This is where you can adjust the RPM yellow or red indication lights or turn them off. The rotary switch is for 4, 6, 8 or 12 cylinder engines.
Attached Image


Exciting stuff, within a few days I'll have the first circuit all soldered up (IMG:style_emoticons/default/welder.gif) When this is done and the proof of concept does indeed work, I'll post a video of these gauges in action.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mr.242
post Jul 17 2013, 11:55 AM
Post #42


May your glass be smaller so it's always FULL!
***

Group: Members
Posts: 1,079
Joined: 10-June 08
From: Seattle
Member No.: 9,160
Region Association: Pacific Northwest
Do you have a time turn around on your work on a set of gauges?

I figure you will be busy during the winter months (no one driving 914's); however, if turn around is about a week. I'm thinking your experience and knowledge would be highly beneficial.

(IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
timothy_nd28
post Jul 17 2013, 11:59 AM
Post #43


Advanced Member
****

Group: Members
Posts: 2,299
Joined: 25-September 07
From: IN
Member No.: 8,154
Region Association: Upper MidWest
Turn around time will be one day. I'd hate to keep any 914 from being able to drive during this beautiful weather.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
lonewolfe
post Jul 17 2013, 02:00 PM
Post #44


Senior Member
***

Group: Members
Posts: 819
Joined: 12-September 11
From: Oakland, CA
Member No.: 13,549
Region Association: Northern California
Put me down for one set including your labor. Can you repaint the needles while you have the gauges opened up?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
lonewolfe
post Jul 17 2013, 02:02 PM
Post #45


Senior Member
***

Group: Members
Posts: 819
Joined: 12-September 11
From: Oakland, CA
Member No.: 13,549
Region Association: Northern California
QUOTE(lonewolfe @ Jul 17 2013, 01:00 PM) *

Put me down for one set including your labor. Can you repaint the needles while you have the gauges opened up?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
timothy_nd28
post Jul 17 2013, 02:29 PM
Post #46


Advanced Member
****

Group: Members
Posts: 2,299
Joined: 25-September 07
From: IN
Member No.: 8,154
Region Association: Upper MidWest
QUOTE(lonewolfe @ Jul 17 2013, 12:02 PM) *

QUOTE(lonewolfe @ Jul 17 2013, 01:00 PM) *

Put me down for one set including your labor. Can you repaint the needles while you have the gauges opened up?



Yep, I was planning on doing that anyways, except for the guy who had the original 914-6 gauges.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Jul 17 2013, 06:44 PM
Post #47


914-6 GT in waiting
***************

Group: Members
Posts: 19,220
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
Put me down for a kit. DIY, Let me know when you want the paypal, check, whatever. thanks, mark
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
timothy_nd28
post Jul 19 2013, 09:34 PM
Post #48


Advanced Member
****

Group: Members
Posts: 2,299
Joined: 25-September 07
From: IN
Member No.: 8,154
Region Association: Upper MidWest

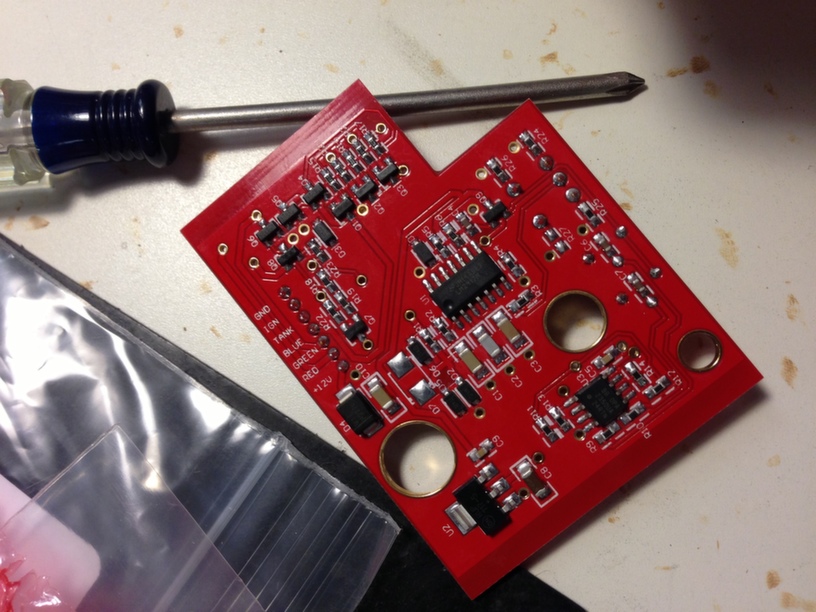

Got the prototype circuit board soldered up today. So far so good, it functions as designed on paper. Hopefully I will have this installed in my 914 tomorrow! (IMG:style_emoticons/default/piratenanner.gif)
I think when I get everything situated, I'll accept paypal to help streamline the whole process.
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
timothy_nd28
post Jul 19 2013, 09:58 PM
Post #49


Advanced Member
****

Group: Members
Posts: 2,299
Joined: 25-September 07
From: IN
Member No.: 8,154
Region Association: Upper MidWest
I have the redline red light to activate around 5500 rpm. What is a good rpm for the yellow light to come on?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mrholland2
post Jul 19 2013, 10:57 PM
Post #50


Senior Member
***

Group: Members
Posts: 750
Joined: 7-September 11
From: Santa Maria,CA
Member No.: 13,531
Region Association: Central California
What's a good shift point? Mom's 64 Lemans had a moveable yellow pointer on the tach that she set at the "best" shift point. (IMG:style_emoticons/default/confused24.gif)


QUOTE(timothy_nd28 @ Jul 19 2013, 08:58 PM) *

I have the redline red light to activate around 5500 rpm. What is a good rpm for the yellow light to come on?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
monkeyboy
post Jul 19 2013, 11:11 PM
Post #51


Senior Member
***

Group: Members
Posts: 808
Joined: 8-June 08
From: Los Angeles, Ca
Member No.: 9,147
Region Association: None
I am usually getting ready to shift at 5,000. Then you aren't past the HP peak when you actually get the clutch in.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
timothy_nd28
post Jul 19 2013, 11:12 PM
Post #52


Advanced Member
****

Group: Members
Posts: 2,299
Joined: 25-September 07
From: IN
Member No.: 8,154
Region Association: Upper MidWest
Both lights are adjustable. I'll adjust the controller to whatever RPM you wish. Currently, I have the prototype board set to switch to yellow at 4000 rpm then to red at 5400 rpm. I'm thinking that yellow may be set too low and might be annoying when driving around. I'm thinking 4600 or 4800 rpm might be the answer, if it is indeed annoying, I can adjust the yellow to never come on, just the red light at 5400 rpm. When you install this controller to your car, you can change the settings easily.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Jul 20 2013, 03:42 AM
Post #53


914-6 GT in waiting
***************

Group: Members
Posts: 19,220
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(timothy_nd28 @ Jul 20 2013, 01:12 AM) *

Both lights are adjustable. I'll adjust the controller to whatever RPM you wish. Currently, I have the prototype board set to switch to yellow at 4000 rpm then to red at 5400 rpm. I'm thinking that yellow may be set too low and might be annoying when driving around. I'm thinking 4600 or 4800 rpm might be the answer, if it is indeed annoying, I can adjust the yellow to never come on, just the red light at 5400 rpm. When you install this controller to your car, you can change the settings easily.


Great. I plan to install in the 6. Redline is 6850.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
euro911
post Jul 20 2013, 05:19 AM
Post #54


Retired & living the dream. God help me if I wake up!
*****

Group: Members
Posts: 8,845
Joined: 2-December 06
From: So.Cal. & No.AZ (USA)
Member No.: 7,300
Region Association: Southern California
Wow, Tim ... I just saw this particular thread and your progress has has grown exponentially in a relatively short time (IMG:style_emoticons/default/thumb3d.gif)

I'm planning to get your 'first generation' gauges installed in the 'BB' later this week (IMG:style_emoticons/default/smile.gif)

I just wanted more illumination for my old eyes, but being able to fine-tune the tach's red-line color change, as well as low fuel, hi temps, or other critical notifications is a really cool idea.

I've got a feeling that you're gonna be selling a lot of these ... and yes, I believe AL would be quite proud of your continued development efforts.

(IMG:style_emoticons/default/popcorn[1].gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Jul 20 2013, 07:01 AM
Post #55


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,403
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
Very cool
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
eric9144
post Jul 20 2013, 08:57 AM
Post #56


Advanced Member
****

Group: Members
Posts: 2,732
Joined: 30-March 11
From: San Diego, CA
Member No.: 12,876
Region Association: Southern California
Can you do the small center console gauges as well? If so I'm in too, I've has LED bulbs in mine for years and they really kind of suck, especially compared to this! (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
zambezi
post Jul 20 2013, 10:02 AM
Post #57


Senior Member
***

Group: Members
Posts: 711
Joined: 14-April 08
From: Lafayette, LA
Member No.: 8,920
Region Association: South East States
This is going to be really cool. I will definitely want it when they are done.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
timothy_nd28
post Jul 20 2013, 10:03 AM
Post #58


Advanced Member
****

Group: Members
Posts: 2,299
Joined: 25-September 07
From: IN
Member No.: 8,154
Region Association: Upper MidWest
I haven't opened up the smaller console gauges before, but I don't see why not.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Harpo
post Jul 20 2013, 10:39 AM
Post #59


Senior Member
***

Group: Members
Posts: 1,304
Joined: 21-August 11
From: Motor City aka Detroit
Member No.: 13,469
Region Association: None
This is very impressive. Looking forward to this upgrade.

David
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mikeyb33
post Jul 20 2013, 11:07 AM
Post #60


Slightly-usedbie
**

Group: Members
Posts: 84
Joined: 23-November 04
From: Santa Clara, CA
Member No.: 3,168
Amazing, fantastic work!

Would be interested in buying a set. I have the 914-6 gauge cluster - which includes a separate fuel gauge (center 'console' mounted).

Undecided yet on whether DIY/M or sending my gauges to you - won't be able to take apart my car for another month at least. (And I've got this thread bookmarked now..)

Speaking of fuel gauge: I thought mine was std Porsche, but it has no 'low fuel' light as has been mentioned here... Would anyone know if the low-fuel light version is a direct drop-in replacement? Will post pics later showing what I have.

Thanks again for sharing your outstanding work!!! (IMG:style_emoticons/default/aktion035.gif) (IMG:style_emoticons/default/smilie_pokal.gif)
