> Front End Bracing
57lincolnman
post Aug 17 2013, 08:41 PM
Post #1


Member
**

Group: Members
Posts: 174
Joined: 14-September 10
From: Los Angeles
Member No.: 12,175
Region Association: Southern California
My 75 has a dealer installed a/c unit. The lower pan in the front trunk was cut out years ago by the dealer. Has anyone tried to fabricate cross bracing to tighten the front end? I think the structural integrity of the unibody was compromised by this "dealer authorized" surgical procedure. Interested in your thoughts. Thanks.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
messix
post Aug 17 2013, 08:50 PM
Post #2


AKA "CLUTCH KILLER"!
*****

Group: Members
Posts: 6,995
Joined: 14-April 05
From: between shit kickers and pinky lifters/ puget sound wa.north of Seattle south of Canada
Member No.: 3,931
Region Association: Pacific Northwest
if it's just the sheet metal behind the front part of the trunk after about 3" and along the sides 2" from the front sub frame box it should be ok.

looks bad but the strength is in the box sections
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
57lincolnman
post Aug 17 2013, 08:57 PM
Post #3


Member
**

Group: Members
Posts: 174
Joined: 14-September 10
From: Los Angeles
Member No.: 12,175
Region Association: Southern California
QUOTE(messix @ Aug 17 2013, 06:50 PM) *

if it's just the sheet metal behind the front part of the trunk after about 3" and along the sides 2" from the front sub frame box it should be ok.

looks bad but the strength is in the box sections


Yes. Your dimensions accurately describe my set-up. The cut out begins about 3" from the front and I have about 2" to the box frames on each side. Thanks for your help.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
57lincolnman
post Aug 17 2013, 08:59 PM
Post #4


Member
**

Group: Members
Posts: 174
Joined: 14-September 10
From: Los Angeles
Member No.: 12,175
Region Association: Southern California
QUOTE(messix @ Aug 17 2013, 06:50 PM) *

if it's just the sheet metal behind the front part of the trunk after about 3" and along the sides 2" from the front sub frame box it should be ok.

looks bad but the strength is in the box sections


I suppose what I lost in the transaction was the toe hook (mounted in that section of the panel removed) and drain tubes.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
messix
post Aug 17 2013, 09:22 PM
Post #5


AKA "CLUTCH KILLER"!
*****

Group: Members
Posts: 6,995
Joined: 14-April 05
From: between shit kickers and pinky lifters/ puget sound wa.north of Seattle south of Canada
Member No.: 3,931
Region Association: Pacific Northwest
QUOTE(57lincolnman @ Aug 17 2013, 07:59 PM) *

QUOTE(messix @ Aug 17 2013, 06:50 PM) *

if it's just the sheet metal behind the front part of the trunk after about 3" and along the sides 2" from the front sub frame box it should be ok.

looks bad but the strength is in the box sections


I suppose what I lost in the transaction was the toe hook (mounted in that section of the panel removed) and drain tubes.

there are more effective tow hooks that bolt on to the front torsion bar mount. search for it in member vendors I think some one here makes them.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Aug 17 2013, 09:42 PM
Post #6


Resident German
*************************

Group: Admin
Posts: 41,651
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(messix @ Aug 17 2013, 07:50 PM) *
it should be ok.

I dis-agree ...

I think any cutting that close to the front A-Arm mounts has to have a negative impact.
(IMG:style_emoticons/default/popcorn[1].gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
messix
post Aug 17 2013, 09:56 PM
Post #7


AKA "CLUTCH KILLER"!
*****

Group: Members
Posts: 6,995
Joined: 14-April 05
From: between shit kickers and pinky lifters/ puget sound wa.north of Seattle south of Canada
Member No.: 3,931
Region Association: Pacific Northwest
I think the only forces put on that section is horizontal axis locating the front of the A-arm, most all loaded force is placed on the back mount at the cross member.

if there is a lot cut out of the front vertical panel at the nose I would worry more about that!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
FourBlades
post Aug 17 2013, 10:01 PM
Post #8


From Wreck to Rockin
****

Group: Members
Posts: 2,054
Joined: 3-December 07
From: Brevard, FL
Member No.: 8,414
Region Association: South East States

Restoration Design just started making a perfect panel to fix this if you want to.

They totally rock when it comes to Porsche repair panels.

John
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
messix
post Aug 17 2013, 10:05 PM
Post #9


AKA "CLUTCH KILLER"!
*****

Group: Members
Posts: 6,995
Joined: 14-April 05
From: between shit kickers and pinky lifters/ puget sound wa.north of Seattle south of Canada
Member No.: 3,931
Region Association: Pacific Northwest
QUOTE(FourBlades @ Aug 17 2013, 09:01 PM) *

Restoration Design just started making a perfect panel to fix this if you want to.

They totally rock when it comes to Porsche repair panels.

John

unless he wants to keep the a/c if it is working....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
FourBlades
post Aug 17 2013, 10:08 PM
Post #10


From Wreck to Rockin
****

Group: Members
Posts: 2,054
Joined: 3-December 07
From: Brevard, FL
Member No.: 8,414
Region Association: South East States
QUOTE(messix @ Aug 17 2013, 09:05 PM) *

QUOTE(FourBlades @ Aug 17 2013, 09:01 PM) *

Restoration Design just started making a perfect panel to fix this if you want to.

They totally rock when it comes to Porsche repair panels.

John

unless he wants to keep the a/c if it is working....


Doh! I did not catch that part.. (IMG:style_emoticons/default/biggrin.gif)

John
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
messix
post Aug 17 2013, 10:24 PM
Post #11


AKA "CLUTCH KILLER"!
*****

Group: Members
Posts: 6,995
Joined: 14-April 05
From: between shit kickers and pinky lifters/ puget sound wa.north of Seattle south of Canada
Member No.: 3,931
Region Association: Pacific Northwest
I just went out to put my '75 back in the garage and looked at it, and it looks like there is a lot of "bracing" on the front of the later cars. if it's just a street car I don't think its worth worrying about.

if it keeps nagging at you weld in some 3/4 square tube along the inside edge.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Sixer
post Aug 18 2013, 06:44 AM
Post #12


914 Guru
*****

Group: Members
Posts: 8,886
Joined: 17-January 05
From: San Angelo Texas
Member No.: 3,457
Region Association: Southwest Region
Yes, 75-76 do have a little more structure to them due to the heavy bumpers. The front bumper brace runs almost the full length of the wheel well whereas the 73-74 only goes half the distance. The U shaped brackets had some strength too. The 70-72 do not have this extra bracing. Early cars are the ones I would be concerned about.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jimkelly
post Aug 18 2013, 06:57 AM
Post #13


Delaware USA
****

Group: Members
Posts: 4,969
Joined: 5-August 04
From: Delaware, USA
Member No.: 2,460
Region Association: MidAtlantic Region

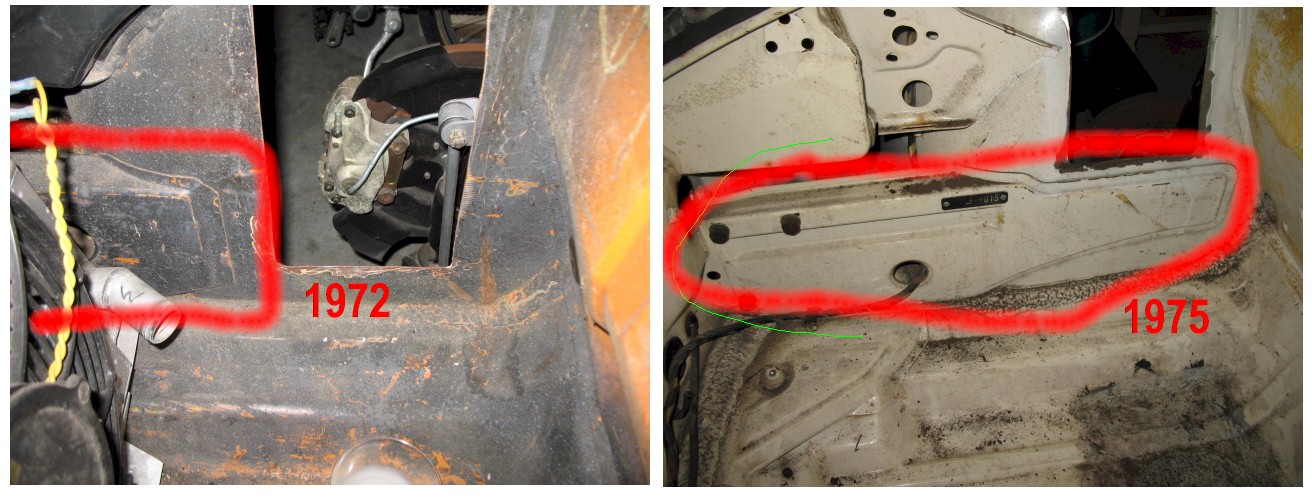

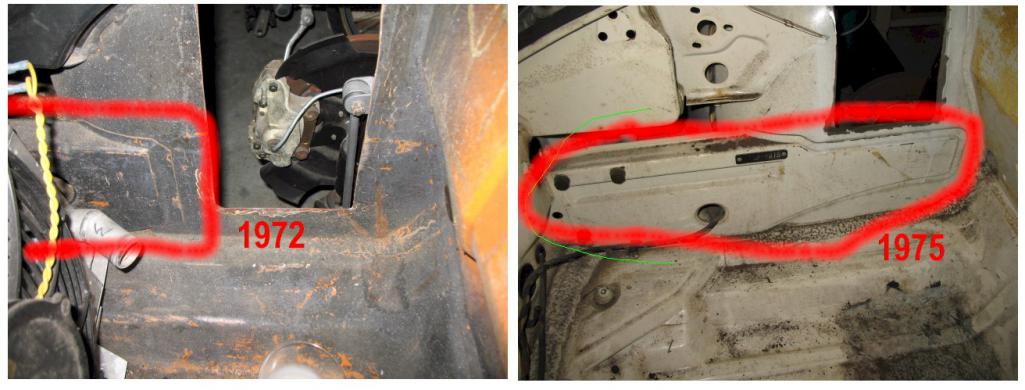

comparision


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Aug 18 2013, 07:38 AM
Post #14


I am Tangerine Racing
*****

Group: Members
Posts: 7,927
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
QUOTE(messix @ Aug 17 2013, 11:24 PM) *

...if it's just a street car I don't think its worth worrying about.

if it keeps nagging at you weld in some 3/4 square tube along the inside edge.

(IMG:style_emoticons/default/agree.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Aug 18 2013, 08:27 AM
Post #15


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,081
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch
cracks can result that run towards the front control arm mounting points. plus there are bunch of holes for the hoses that would have to be welded up and in most cases the pass side engine shelve gets butchered. as noted installs vary. somewhat clean to out right dog crap.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
57lincolnman
post Aug 18 2013, 10:24 AM
Post #16


Member
**

Group: Members
Posts: 174
Joined: 14-September 10
From: Los Angeles
Member No.: 12,175
Region Association: Southern California
I have invested quite a bit to have working a/c, so I want to keep that. I've thought about welding in some "x" cross-bracing just above a/c unit to get some rigidity back. With a uni-body it seems to me that this floor pan acts as a diaphragm to resist some torsional forces between the box beams.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
zambezi
post Aug 18 2013, 11:54 AM
Post #17


Senior Member
***

Group: Members
Posts: 711
Joined: 14-April 08
From: Lafayette, LA
Member No.: 8,920
Region Association: South East States

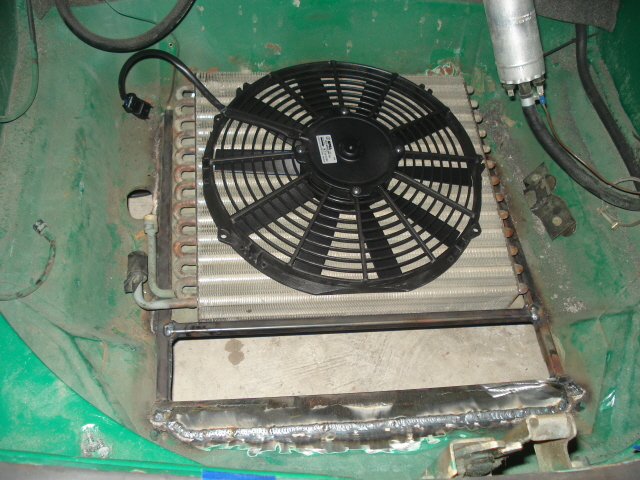

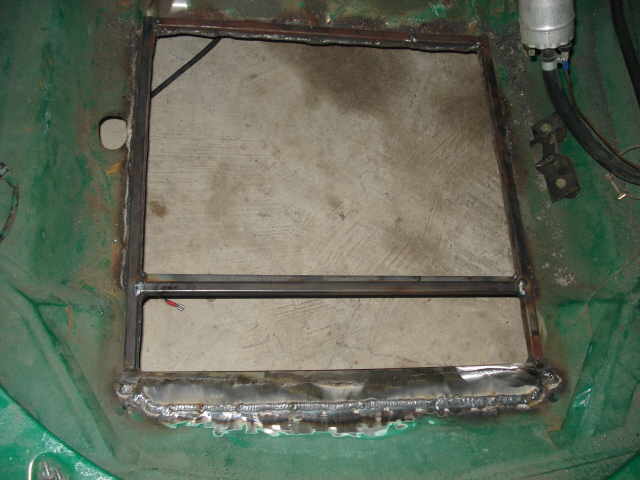

Heres what I did. Not sure if it added any structural rigidity, but it should not let cracks form and travel.
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Aug 18 2013, 04:44 PM
Post #18


I am Tangerine Racing
*****

Group: Members
Posts: 7,927
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
QUOTE(57lincolnman @ Aug 18 2013, 11:24 AM) *

I have invested quite a bit to have working a/c, so I want to keep that. I've thought about welding in some "x" cross-bracing just above a/c unit to get some rigidity back. With a uni-body it seems to me that this floor pan acts as a diaphragm to resist some torsional forces between the box beams.

THe biggest loads at the front mounts are twisting forces from stock rubber bushings or tight polygraphite bushings binding. There are no loads transfered from the torsion bars through the front mounts, and the side loading from cornering is much smaller at the front than at the rear.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Larry.Hubby
post Aug 18 2013, 06:01 PM
Post #19


Member who doesn't post much, but has a long time in 914s
**

Group: Members
Posts: 186
Joined: 24-November 04
From: Palo Alto, CA
Member No.: 3,172
Region Association: Northern California
If you've ever looked at the floor of the front trunk on a 911, you'd worry less. 911's have a hole, albeit with a flanged edge, that covers practically the entire area between the two A-arm mounts.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sean_v8_914
post Aug 18 2013, 07:58 PM
Post #20


Chingon 601
****

Group: Members
Posts: 4,011
Joined: 1-February 05
From: San Diego
Member No.: 3,541
if anyone has evidence of stresses in this area, please post pictures. i have not seen much movement up there. the rear is a different story. the
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
