Subaru Transmission Cable Linkage, Some Photos with a Rule |
Mike Bellis |
Oct 18 2014, 12:55 PM
Post
#241
|
Resident Electrician Group: Members Posts: 8,345 Joined: 22-June 09 From: Midlothian TX Member No.: 10,496 Region Association: None |

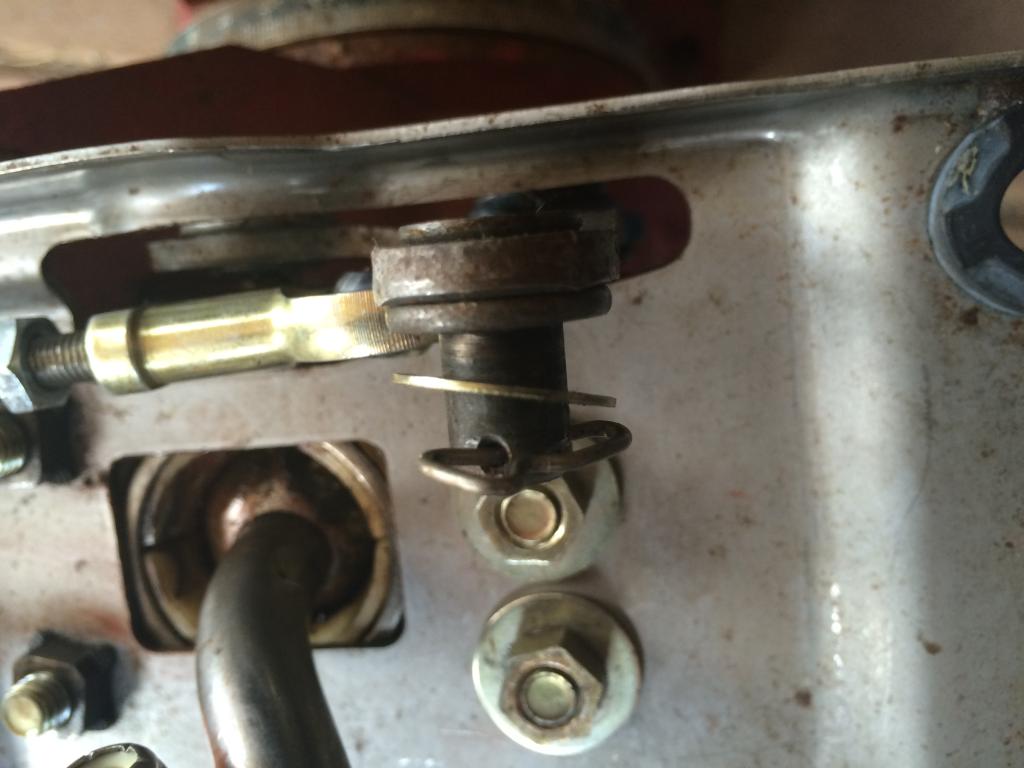

I would cut off the cotter pin tang and drill a hole through for a bolt. The pressed in piece can be used as a bushing of sorts. Make sure the pivot point give you enough throw to activate the cable all the way. I have had to weld extensions on shift linkage to get more throw.
(IMG:http://www.914world.com/bbs2/uploads_offsite/i786.photobucket.com-5327-1413616324.4.jpg) |
IanJ |
Oct 18 2014, 05:15 PM
Post
#242
|
Member Group: Members Posts: 90 Joined: 28-December 05 From: Perth, Western Australia Member No.: 5,327 Region Association: Australia and New Zealand |
Thanks for the tips. Will look at it again today.
|
El Vikingo Tropical |
Oct 18 2014, 05:56 PM
Post
#243
|
Newbie Group: Members Posts: 39 Joined: 10-October 14 From: Canary islands Member No.: 18,003 Region Association: None |

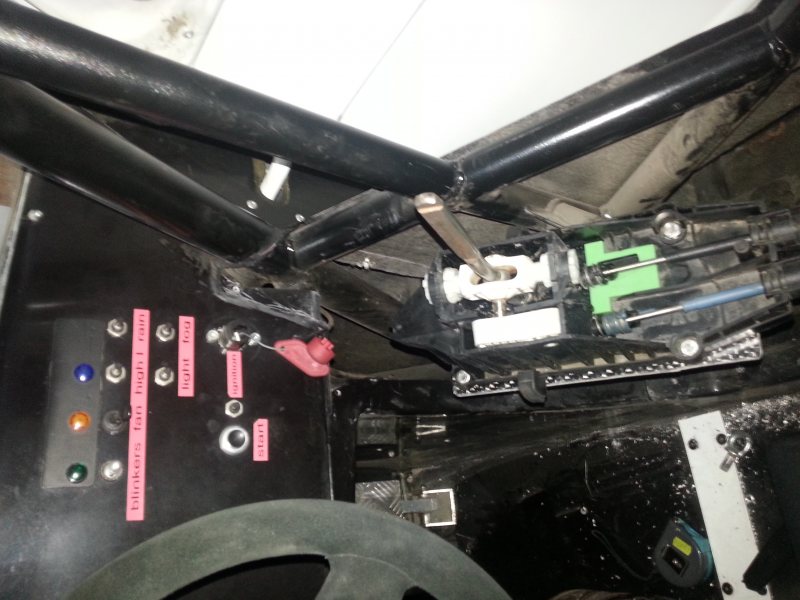

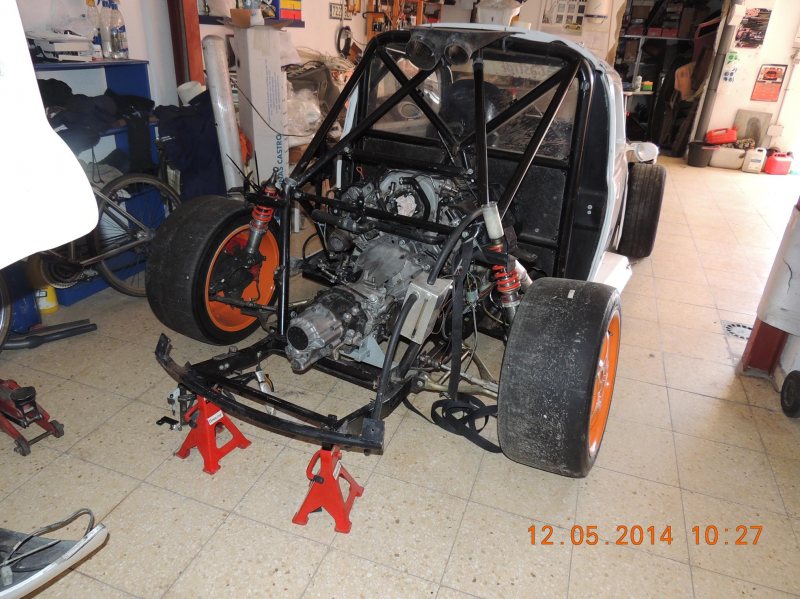

I use the Boxster shifter on a mid engine race car that I have and it works wel.
Attached image(s) |
Mike Bellis |
Oct 18 2014, 09:01 PM
Post
#244
|
Resident Electrician Group: Members Posts: 8,345 Joined: 22-June 09 From: Midlothian TX Member No.: 10,496 Region Association: None |
I use the Boxster shifter on a mid engine race car that I have and it works wel. That looks like an 01E tranny not a Subi but it could be made to work with the Boxster cables and some fab. I've done it by buying 10mm ball studs and making custom linkage at the tranny. |
jimkelly |
May 20 2016, 10:35 PM
Post
#245
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
wow, very afforsable : )
http://www.donovanequipment.com/search.htm...h+pull&t=pc thanks jim -- http://www.donovanequipment.com/catalog_c324325_1.html Just want to throw this link out there for cable craft cables at a great price. They have 1/4 & 5/16 bulk head mount cables for around $40 each. Far cheaper than McMaster. |
charliew |
Jul 24 2016, 12:41 PM
Post
#246
|
Advanced Member Group: Members Posts: 2,363 Joined: 31-July 07 From: Crawford, TX. Member No.: 7,958 |
so I guess I was off in la la land and missed out on one of these kits. dang, I started out thinking I would need to build my own and I guess it has gone back to that. I sent Ian a pm but he must be doing other things now.
I read the post again and did not see the mfg or the length of the cables that were the final choice. edit: I found the length for the straight ones to be 7 feet so that is what I will try first. I'm hoping that will put the shifter close to the wheel. thanks to DB for starting this and everyone one else for their input. The prototype Ian put together used a aluminum throttle bell crank I found online but I haven't found a steel one yet. I will order the 7 foot cables go from there I guess. |
72black914 |
Aug 4 2016, 04:22 AM
Post
#247
|
Newbie Group: Members Posts: 11 Joined: 27-June 15 From: Ohio Member No.: 18,894 Region Association: Middle East |
If we could get a few people together I think I could duplicate mine and get a few made. If you're interested let me know. Only problem is that the throw on this one was calibrated for the MR2 shifter, so if you're using some other shifter that would probably change. I might be able to accommodate that too, but will need to find out. So if you're interested let me know. If I'm taking things apart I could probably get the cables made as well (they were custom from a shop in Fresno) so all you'd need to do would be find and install the MR2 shifter. EDIT: Hold up. Re-reading Doug's post about Ian's cradle, and then looking at the photo in Jim's post, there's a kind of funny drop to the transmission mount, looks like angle iron. I remember talking about that when he was designing it, and think that was to accommodate using either a 901 or Subaru transmission with the same cradle. I can't see well in those photos, but it could be that that mount would interfere with the main cable locator bracket and where the cable runs. Would it be possible to get more detailed photos from different angles, to try to see if there would be interference before I take mine apart to make copies? I'm not good at searching on this site so did you ever make a cable set for a tailshift? Thx Nick |
DBCooper |
Oct 11 2016, 10:46 AM
Post
#248
|
14's in the 13's with ATTITUDE Group: Members Posts: 3,079 Joined: 25-August 04 From: Dazed and Confused Member No.: 2,618 Region Association: Northern California |
I'm not good at searching on this site so did you ever make a cable set for a tailshift? Thx Nick No, never did. I'm pretty lazy so was actually kind of laying out the information and hoping someone else would. It's been a while, and I can add some things to this thread. I've been driving my car again after two years of not being able to get into the damned thing because of a bad back. A little while back my son put a Subaru transmission into his car. It already had a WRX motor and he lived in a house where his lease prohibited working on cars, so we assembled the parts we needed to get the transmission into it in a weekend, so no one would notice. That meant we used mostly purchased parts instead of fabricating. One of the things we bought was a cable shift kit that included a bell crank to rotate the shift rod, where the linkage on my car (described in this thread) uses a longer cable that loops around so it comes in to the rod at a 90 degree angle and rotates the rod directly. Both cars are done now, both with WRX engines and the same Subaru transmissions, which means we can compare the cars side by side. My linkage, with the direct cable connection, is crisper, more precise, really nice. His car is good to very good, very drive-able, but doesn't shift quite as nicely as mine. We also used the stock 914 brake master and a plate from 76-914 to use a Honda clutch master. The Honda master is excellent, lighter and nicer to use and a lot cheaper than my Tilton pedals and Howe clutch and brake masters. More legroom, too. The other thing that turned out really well was a lightened Subaru flywheel. I generally don't like lightened flywheels in street cars, but the 914 is much lighter than a Subaru so really benefits, making the car much more responsive without losing much or any drive-ability. Anyway, nothing earth-shattering, just you don't often get a chance to do a side-by-side of converted cars, so interesting and hopefully helpful to someone. |
dwillouby |
Oct 11 2016, 12:01 PM
Post
#249
|
Member Group: Members Posts: 392 Joined: 27-December 02 From: Mt Washington, KY Member No.: 29 Region Association: None |
Did you design one for the 901 trans?
David |
72black914 |
Jan 25 2017, 07:02 PM
Post
#250
|
Newbie Group: Members Posts: 11 Joined: 27-June 15 From: Ohio Member No.: 18,894 Region Association: Middle East |
If we could get a few people together I think I could duplicate mine and get a few made. If you're interested let me know. Only problem is that the throw on this one was calibrated for the MR2 shifter, so if you're using some other shifter that would probably change. I might be able to accommodate that too, but will need to find out. So if you're interested let me know. If I'm taking things apart I could probably get the cables made as well (they were custom from a shop in Fresno) so all you'd need to do would be find and install the MR2 shifter. EDIT: Hold up. Re-reading Doug's post about Ian's cradle, and then looking at the photo in Jim's post, there's a kind of funny drop to the transmission mount, looks like angle iron. I remember talking about that when he was designing it, and think that was to accommodate using either a 901 or Subaru transmission with the same cradle. I can't see well in those photos, but it could be that that mount would interfere with the main cable locator bracket and where the cable runs. Would it be possible to get more detailed photos from different angles, to try to see if there would be interference before I take mine apart to make copies? I'm not good at searching on this site so did you ever make a cable set for a tailshift? Thx Nick I appreciate the reply. Your car sounds like it would be a blast to drive. Thanks Again, Nick |
flmont |
Jan 1 2018, 02:12 PM
Post
#251
|
Senior Member Group: Members Posts: 879 Joined: 21-October 08 From: Tucson,Az Member No.: 9,676 Region Association: Southwest Region |
Any cable kits for a 901 trans.
|
mepstein |
Jan 1 2018, 02:23 PM
Post
#252
|
914-6 GT in waiting Group: Members Posts: 19,253 Joined: 19-September 09 From: Landenberg, PA/Wilmington, DE Member No.: 10,825 Region Association: MidAtlantic Region |
|
flmont |
Jan 1 2018, 03:47 PM
Post
#253
|
Senior Member Group: Members Posts: 879 Joined: 21-October 08 From: Tucson,Az Member No.: 9,676 Region Association: Southwest Region |
Mepstein,..any experience with this vendor,.I would like to go this route on my build ??? Thanks Frank
|
mepstein |
Jan 1 2018, 04:32 PM
Post
#254
|
914-6 GT in waiting Group: Members Posts: 19,253 Joined: 19-September 09 From: Landenberg, PA/Wilmington, DE Member No.: 10,825 Region Association: MidAtlantic Region |
Mepstein,..any experience with this vendor,.I would like to go this route on my build ??? Thanks Frank Not personally. PMS sells their version of this for non tradional builds and there are many reviews on the web. Most are positive. It’s the only - off the shelf - cable shifter for a 914 trans that I’ve ever seen. Many guys (including me) plan to build their own but few get done. Since you are using a 914 trans, you can always stick with conventional rod linkage. |
