> Electrical mods for a SIX conversion, Are any required?
Kerrys914
post Dec 20 2004, 09:02 AM
Post #1


Dear, the parts I just sold paid for that part ;)
***

Group: Members
Posts: 1,568
Joined: 26-December 02
From: Williamsburg, VA
Member No.: 16
Getting the last few things ready to start the conversion and am curious about the electrical conversion.

What is needed to modify the stock '74 electrical system to work with the 911 engine. I assume the Fuel pump + lead will come from the engine bay realy board.

I have a crane ignition system (Hi-6, XR-700, and PS-91 coil).

Thanks.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Dec 20 2004, 09:37 AM
Post #2


Village Idiot
*****

Group: Members
Posts: 8,320
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
There are only a few simple mods you will have to make. The biggest one is the wiring off of the alternator. There are 4 leads that come off the back of the alt.

B+
D+
D-
DF

The B+ goes down to the starter (big bolt terminal)

The other three simply use the 914-4 volt reg and just mach them up. Now for the trick, you can pull off the volt reg on the 914-4 circut board to find out which one is which, when you do that, the terms are flipped on the other plug on the circut board. It is hard to explain without drawing a picture. I know I did somewere on my 914-6 thread, flip through it. Other than that, I think the fuel pump wires go dead because there is a sensor tied into the engine (type 4 FI) that kicked power to them. I used a different power lead.

The oil idoit light wire is green/grey I think?

You use/modify the 914-4 wirring harnes. Shorten a few wires, lengthen a few if needed sort of thing.

ANother tricky one is (if I remember right?? (IMG:http://www.914world.com/bbs2/html/emoticons/wacko.gif) ) the wires that go to the coil are both black, so test which one comes live for the coil + term, then the other one is for the tach.

Wirring is on this page:

http://www.914world.com/bbs2/index.php?act...2&t=15282&st=60
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Kerrys914
post Dec 20 2004, 11:00 AM
Post #3


Dear, the parts I just sold paid for that part ;)
***

Group: Members
Posts: 1,568
Joined: 26-December 02
From: Williamsburg, VA
Member No.: 16
Thanks...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Dec 20 2004, 11:42 AM
Post #4


Village Idiot
*****

Group: Members
Posts: 8,320
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
(IMG:http://www.914world.com/bbs2/html/emoticons/boldblue.gif) No problem! I love it when a six comes together! (IMG:http://www.914world.com/bbs2/html/emoticons/boldblue.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
IronHillRestorations
post Dec 20 2004, 12:35 PM
Post #5


I. I. R. C.
*****

Group: Members
Posts: 6,719
Joined: 18-March 03
From: West TN
Member No.: 439
Region Association: None
The last three cars I did had internally regulated alternators, and the fuel pump was relocated up front so I removed the relay board, and make the 6 harness to connect right to the fourteen pin connector that plugs into the forward part of the chassis harness. Makes for a clean install. These were all carb'd engines though.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Dec 20 2004, 12:39 PM
Post #6


Village Idiot
*****

Group: Members
Posts: 8,320
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
Kerry's is a carb'd engine so this would be an option for sure. Little more work, but cleaner engine compartment.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Series9
post Dec 20 2004, 03:17 PM
Post #7


Lesbians taste like chicken.
*****

Group: Members
Posts: 5,444
Joined: 22-August 04
From: DeLand, FL
Member No.: 2,602
Region Association: South East States

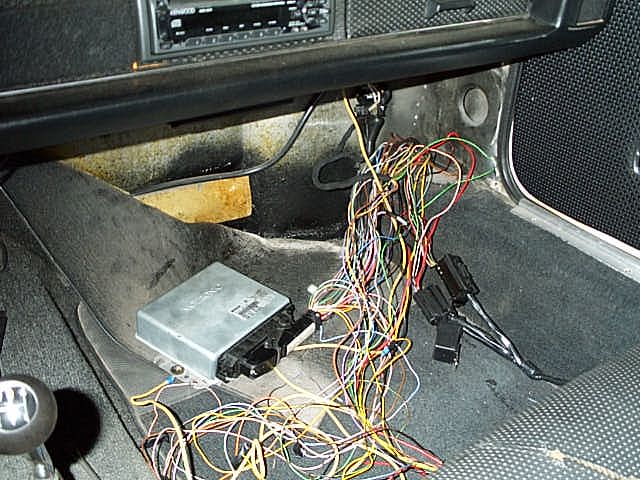

Well, if you're using a Motronic FI, it's a little more complicated...


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Dec 20 2004, 03:24 PM
Post #8


Village Idiot
*****

Group: Members
Posts: 8,320
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
(IMG:http://www.914world.com/bbs2/html/emoticons/drooley.gif) spagetti (IMG:http://www.914world.com/bbs2/html/emoticons/laugh.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Dec 20 2004, 03:29 PM
Post #9


914 Wizard
**********

Group: Members
Posts: 10,431
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains

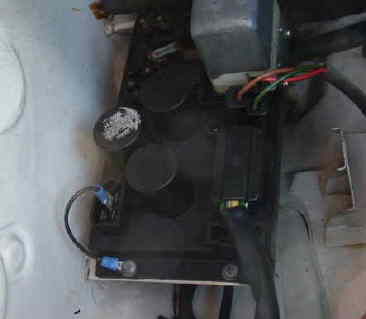

If you keep the relay board just ground the terminal in the picture and your fuel pump will run stock relay/fuse. Good place for anti theft device too.

front left (outside) spade of 4 spade injection plugin.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Dec 20 2004, 04:14 PM
Post #10


Send me your transmission!
***************

Group: Members
Posts: 22,995
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
Hows about CIS? I can't wait. (IMG:http://www.914world.com/bbs2/html/emoticons/dry.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Joe Bob
post Dec 20 2004, 04:17 PM
Post #11


Retired admin, banned a few times
***************

Group: Members
Posts: 17,427
Joined: 24-December 02
From: Boulder CO
Member No.: 5
Region Association: None
"I" jumpered the relay board and used the CIS fuel pump....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Kerrys914
post Dec 20 2004, 06:25 PM
Post #12


Dear, the parts I just sold paid for that part ;)
***

Group: Members
Posts: 1,568
Joined: 26-December 02
From: Williamsburg, VA
Member No.: 16
I like the idea of getting rid of the relay board. I guess I will look at the board diagram and see what I need to keep.

Should I cut the connecters off and solder/heat shrink the wires or ?

Cheers
Kerry
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
IronHillRestorations
post Dec 20 2004, 10:07 PM
Post #13


I. I. R. C.
*****

Group: Members
Posts: 6,719
Joined: 18-March 03
From: West TN
Member No.: 439
Region Association: None
QUOTE (Kerrys914 @ Dec 20 2004, 04:25 PM)
Should I cut the connecters off and solder/heat shrink the wires or ?

No, that would definately constitute a hack job! (IMG:http://www.914world.com/bbs2/html/emoticons/ohmy.gif)

You spend the $18 or whatever it is now and get the mating 14 pin connector.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
campbellcj
post Dec 20 2004, 10:08 PM
Post #14


I can't Re Member
****

Group: Members
Posts: 4,545
Joined: 26-December 02
From: Agoura, CA
Member No.: 21
Region Association: Southern California
My car still has the relay board as well, but I wouldn't mind getting rid of it since it doesn't do anything.

Definitely a good idea to move the fuel pump up front out of the heat and road hazards/dirt, since you're doing all the other major stuff anyway.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Series9
post Dec 20 2004, 10:15 PM
Post #15


Lesbians taste like chicken.
*****

Group: Members
Posts: 5,444
Joined: 22-August 04
From: DeLand, FL
Member No.: 2,602
Region Association: South East States

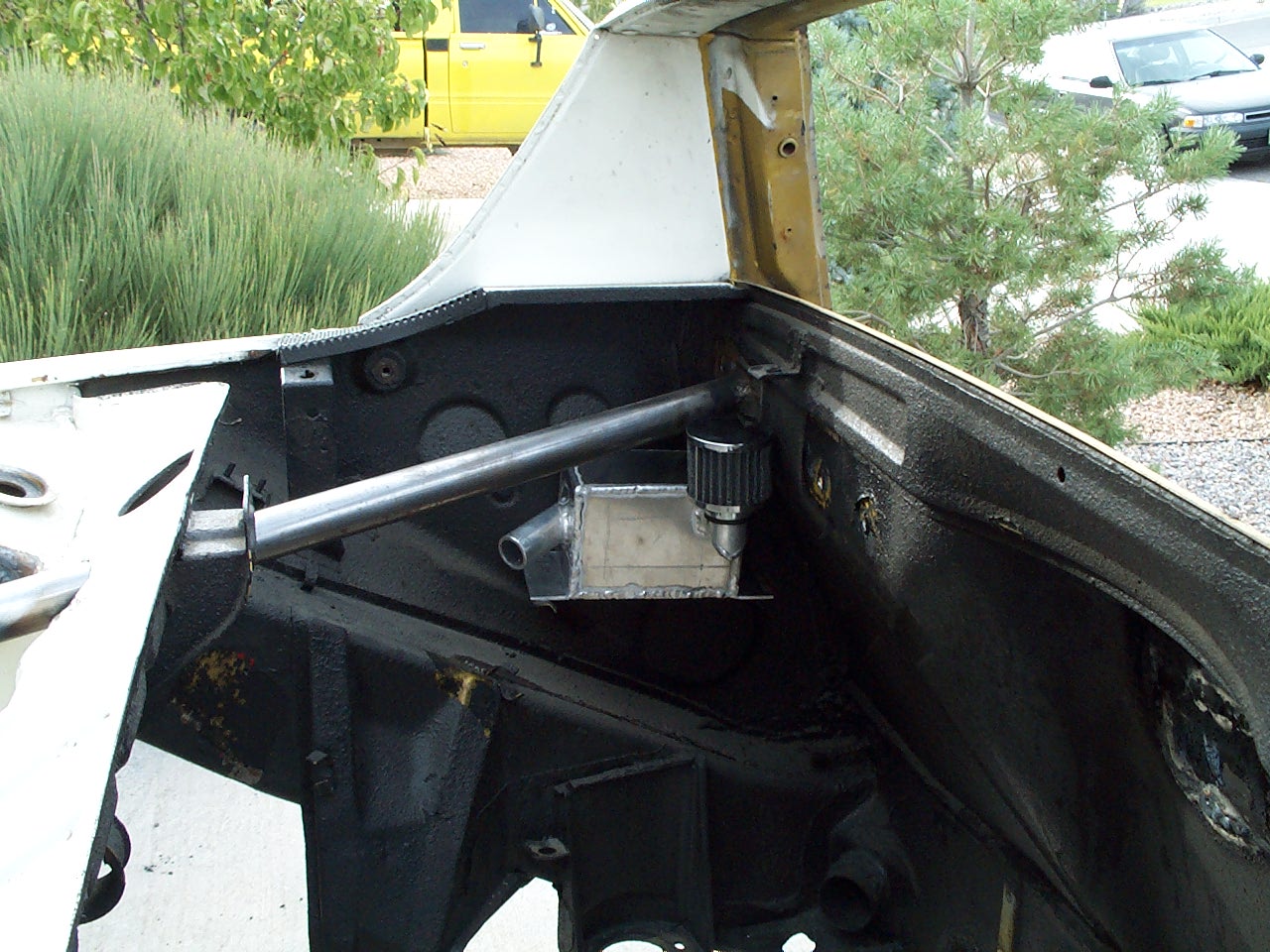

Sorry for the pre-dip condition of the engine bay.

Since my oil tank is in the front, I made this to replace my relay board. It's a breather box.

I'm a fan of removing the relay board if it's not needed because it's a breeding ground for electrical problems.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Trekkor
post Dec 20 2004, 10:25 PM
Post #16


I do things...
*****

Group: Members
Posts: 7,809
Joined: 2-December 03
From: Napa, Ca
Member No.: 1,413
Region Association: Northern California
This is sooo cool. All these six-miesters trying to get it done. (IMG:http://www.914world.com/bbs2/html/emoticons/wink.gif)

I'll be following this one for sure...

KT
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Series9
post Dec 20 2004, 10:32 PM
Post #17


Lesbians taste like chicken.
*****

Group: Members
Posts: 5,444
Joined: 22-August 04
From: DeLand, FL
Member No.: 2,602
Region Association: South East States

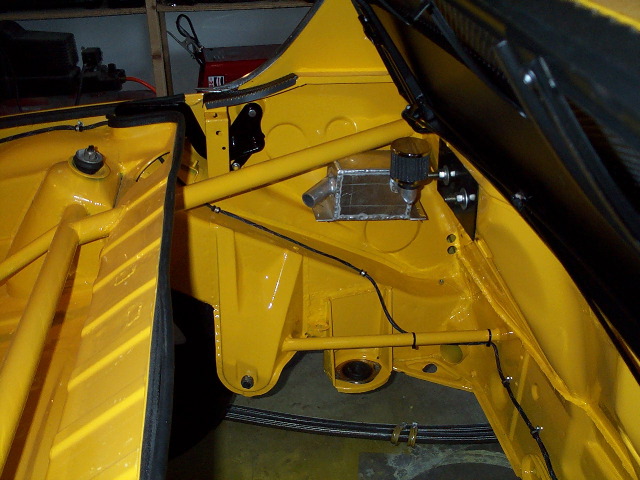

Oh man, here's a way better picture.

Isn't it neat without the relay board and all new wiring.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Kerrys914
post Dec 21 2004, 09:58 AM
Post #18


Dear, the parts I just sold paid for that part ;)
***

Group: Members
Posts: 1,568
Joined: 26-December 02
From: Williamsburg, VA
Member No.: 16
Don't want a hack job here (IMG:http://www.914world.com/bbs2/html/emoticons/ohmy.gif) I just figured it I make a clean hard soldered connection and re-wrap it that would be better then some sort of connector. The car is not going back to a 4 so there is no worries about putting the board back.

What are the details on this 14 pin connector (part number and photo)? Does it connect the 14 and 12 pin connectors together?

I was looking at the relay board wiring diagram and can see that the two pin connectors just need to be connected together. Is this correct?

I assume this 14 pin connector would just allow the two to just be connected.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
RON S.
post Dec 21 2004, 10:08 AM
Post #19


9140430841, FINALLY RUNNING
***

Group: Members
Posts: 1,212
Joined: 22-May 03
From: WALTERBORO,S.C.
Member No.: 724
Region Association: South East States
I took the route of buy a wiring harness from Patrick.
I describe to him what I wanted to accomplish,and they made the harness accordingly.
I had them make it so I did away with the relay board completely.
It was an easy plug-in deal.About 400.00 I think.
Came w/an interface for the tach & fuel pump.

Don't know if this helps,but it was a clean install for me.

Ron
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Dec 21 2004, 11:08 AM
Post #20


Village Idiot
*****

Group: Members
Posts: 8,320
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
Getting rid of the relay board is something I have never done. I have always gone with "Touch as little as possible" when doing conversions. But wow, I sure like the thought of getting rid of all that mess over there! I might try it out on my own six this winter, just for fun. (IMG:http://www.914world.com/bbs2/html/emoticons/mueba.gif)
