> Build #2, No huge car progress...but...cool new toys!
jd74914
post Dec 24 2013, 11:09 PM
Post #1


Its alive
****

Group: Members
Posts: 4,216
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States



Hello all.

I figured I’d throw up a progress thread for my car’s second rebuild. For those who don’t know me my name is James and I’ve been a 914 addict since age 13 (now 26) and used to hang around here a bunch more. It seems like a good start to this thread would be some background information. Its first build took place when I was in high school (age 13) and ended as a freshman in college. When I originally purchased the car it didn’t run and had some pretty serious external rust problems. I rebuilt the motor, fixed tons of electrical issues, replaced all of the rotten metal with new (all hand-formed since I didn’t have the money to pay for reproduction pieces), and repainted. Everything was done in my garage with the exception of turning/balancing the flywheel and I learned how to MIG weld and paint from my dad, some books, and through a lot of practice.

After reassembly, it was my daily driver for 3.5 years during my undergrad degree. I pretty much drove it hard and put it away wet for the entirety of these years and it never saw a garage. Something about getting a mechanical engineering degree, dating a few girls, working throughout the year as a design engineering intern, and finding FSAE cars really limited the amount of time I spend on my own car. By the end of my undergrad degree there were some pretty rough spots, mostly in terms of the suspension/brakes and a pesky ignition switch (replaced 3 or 4 times and it kept failing), which pushed me to taking it off the road and fixing everything correctly. I thought it might take about a year-that was 3.5 years ago! (IMG:style_emoticons/default/wacko.gif)

Just like after the first rebuild, life got in the way and the car sat as I went through a master’s degree, worked full time, continued to play with FSAE cars, and starting working on friend’s real racecars. Now I’ve finally finished my MS (and know way too much about fluid dynamics and heat transfer (IMG:style_emoticons/default/laugh.gif) ), am applying to schools for a Ph.D., still haven’t stopped [advising] FSAE design, and really want to drive her! The play was to start and finish rebuilding the suspension last summer (I saw Chris Foley-Racer Chris in the grocery store one day and told him this), but I got carried away and a bit behind. This thread is to chronicle the build back to the road.

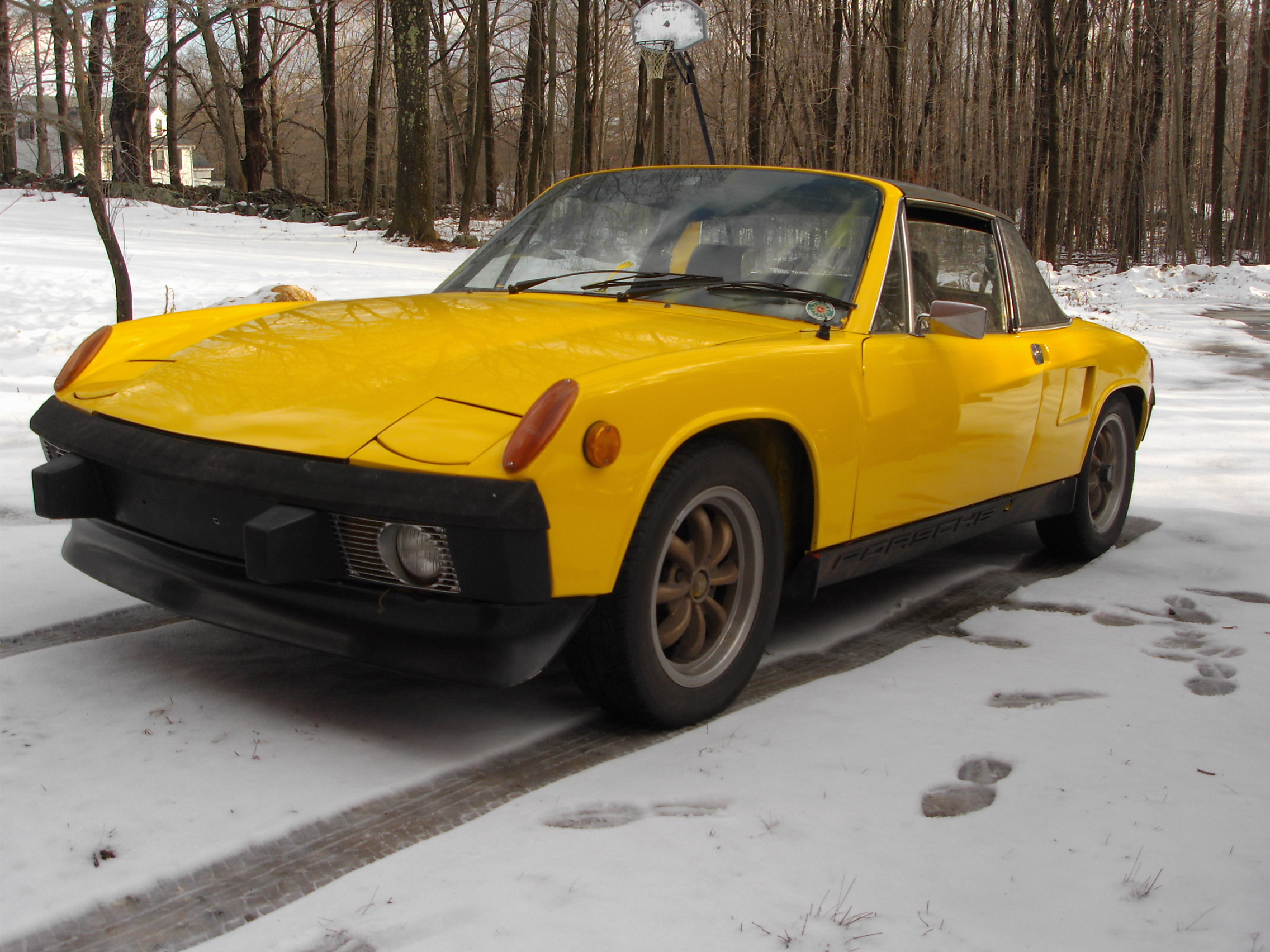

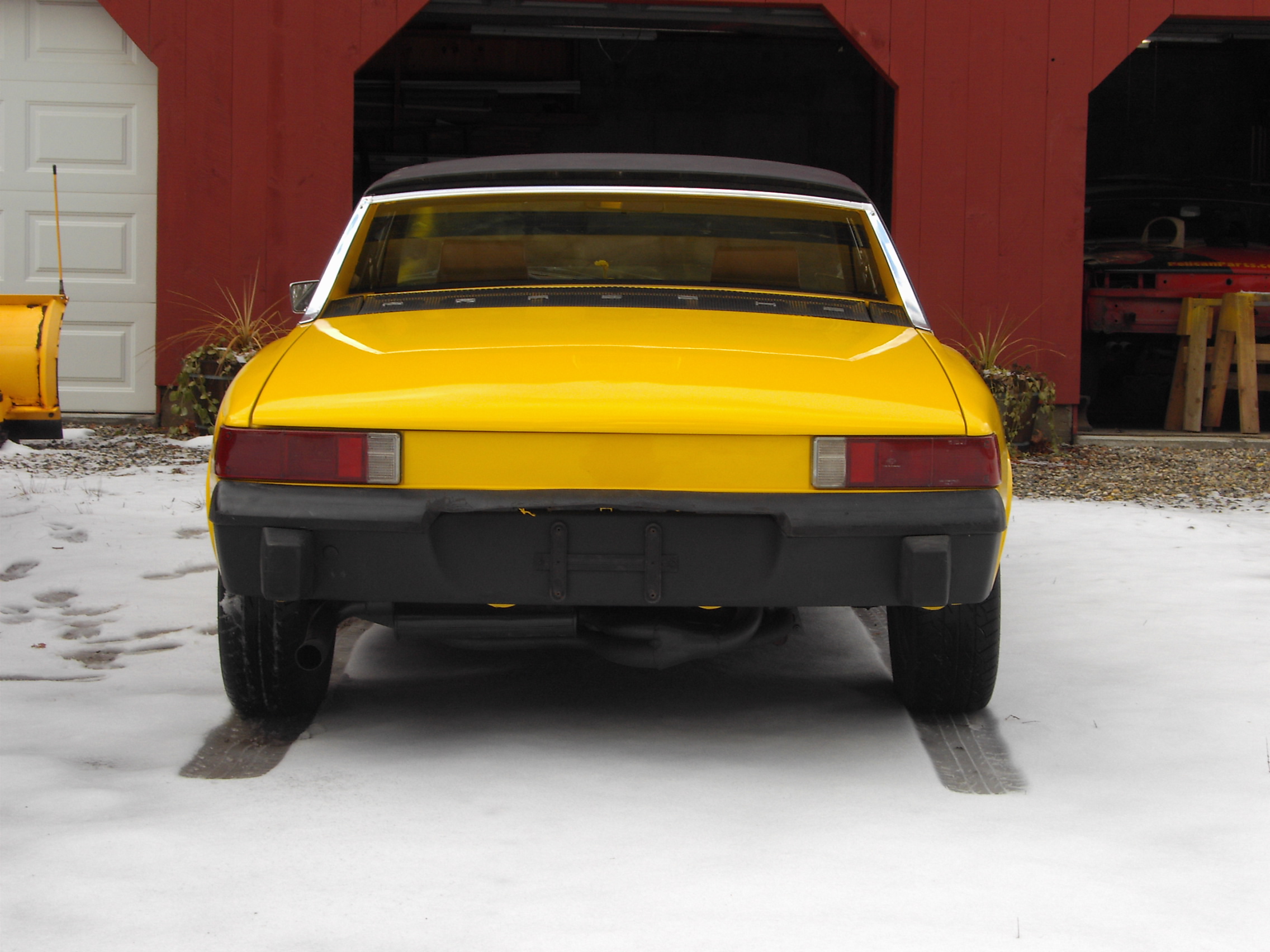

We’ll start with a few pictures from when it was originally completed in 2006/7 (well, it's missing the plates and still has the original windshield but...).

Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jd74914
post Dec 24 2013, 11:41 PM
Post #2


Its alive
****

Group: Members
Posts: 4,216
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States



***** Hijack Start *****

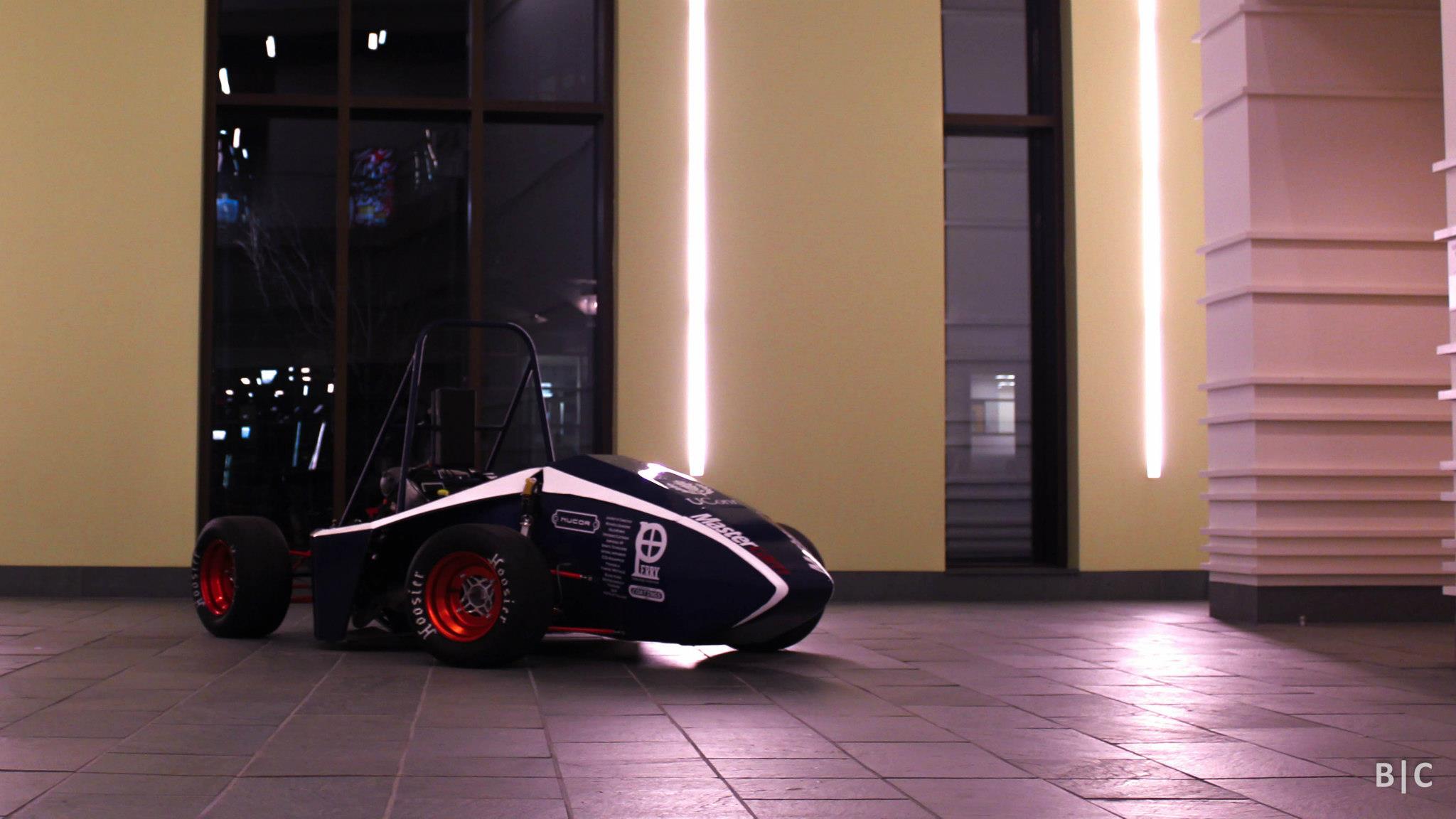

Since it’s been my main non-academic/vocational distraction for the last 7 years, a few OT FSAE pictures are probably warranted. For those who don’t know, FSAE is a college competition in which teams design and build a formula-style racecar for international competition. The cars are new every year, and the teams cycle members about every 3-4 years since they are academically-linked. I personally think it is the best learning experience for future engineers. And now for the sale’s plug: If anyone is interested in donating funds, components, or machining/RPing time, the guys would love to talk to you.

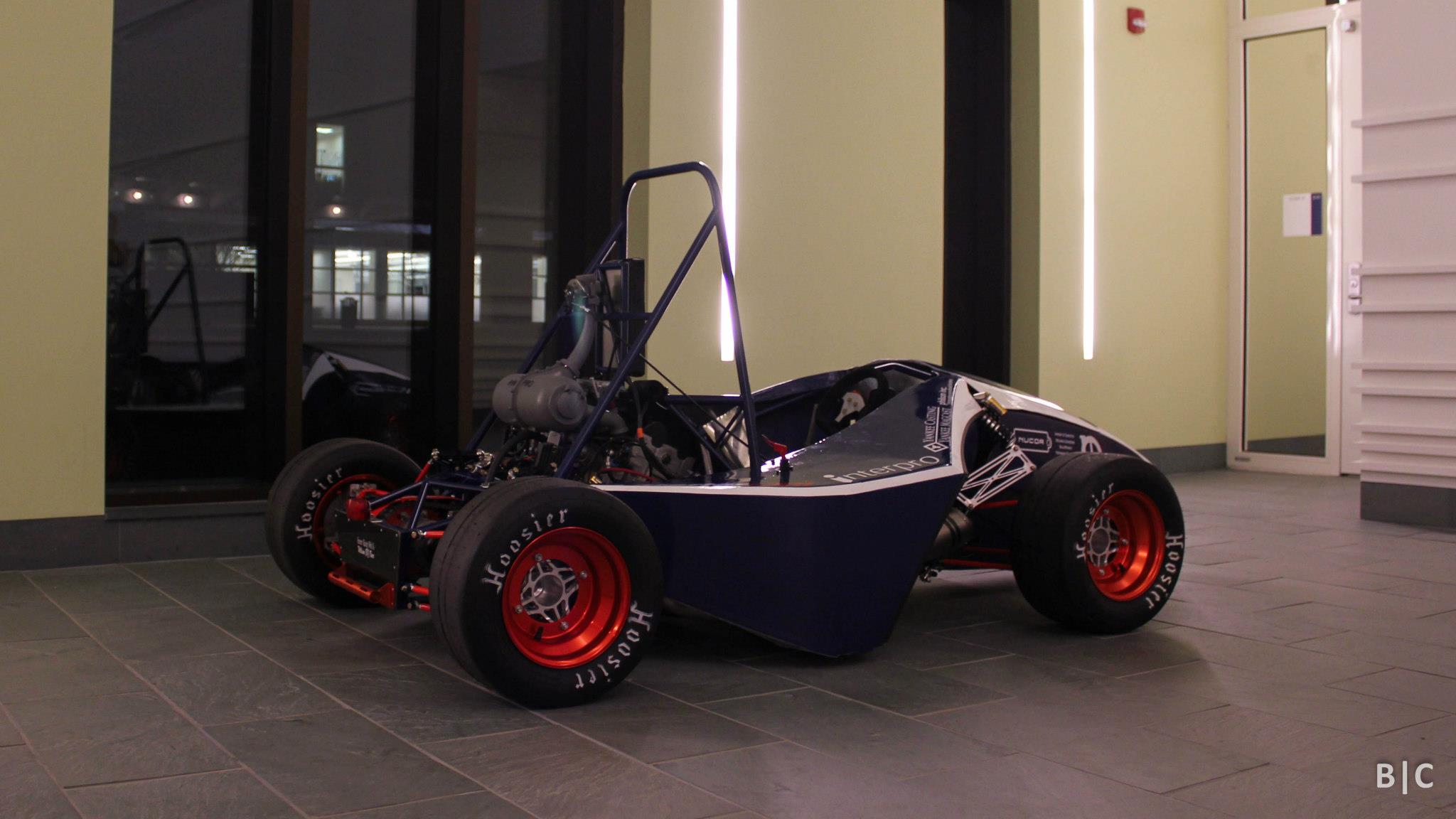

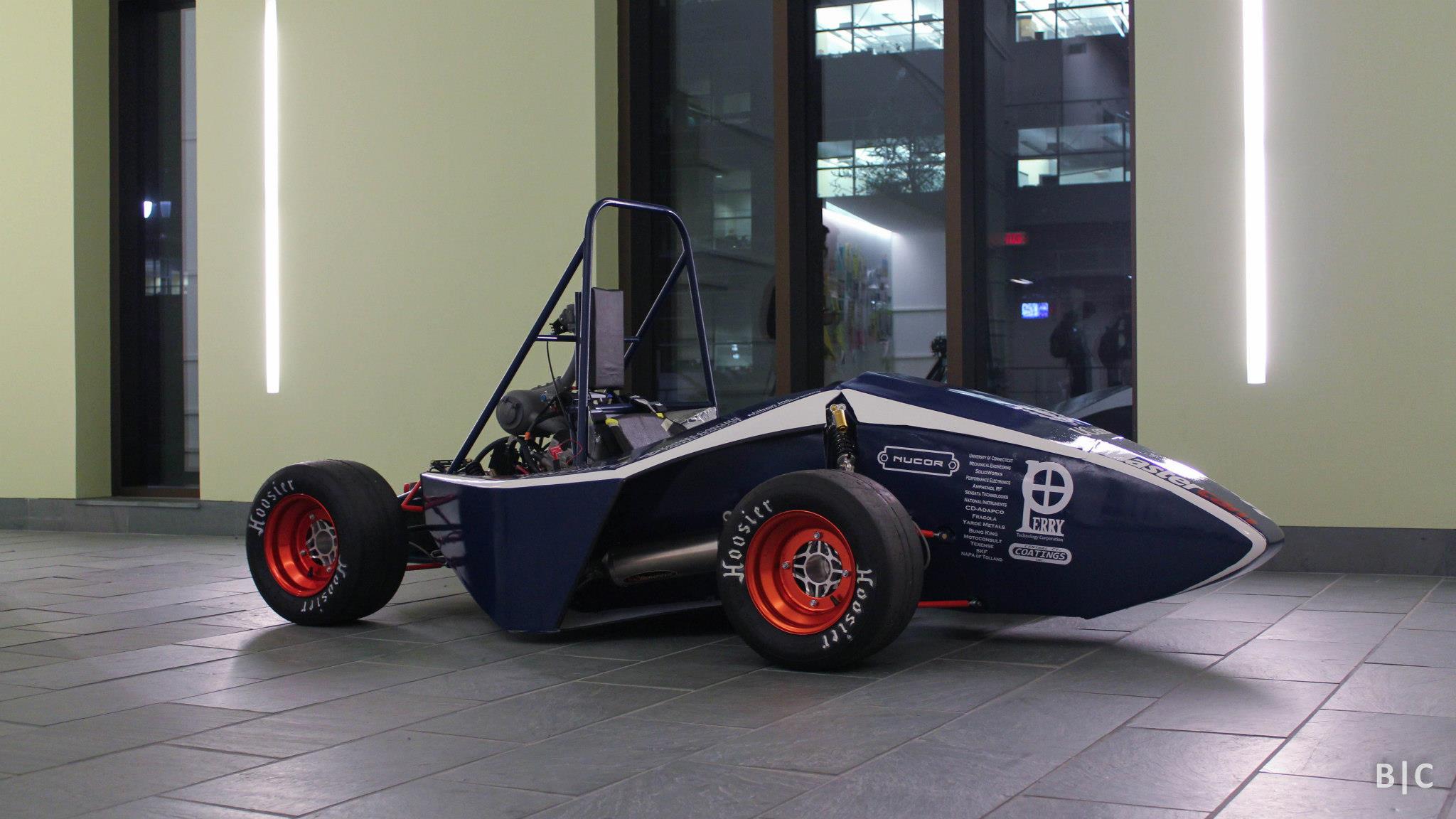

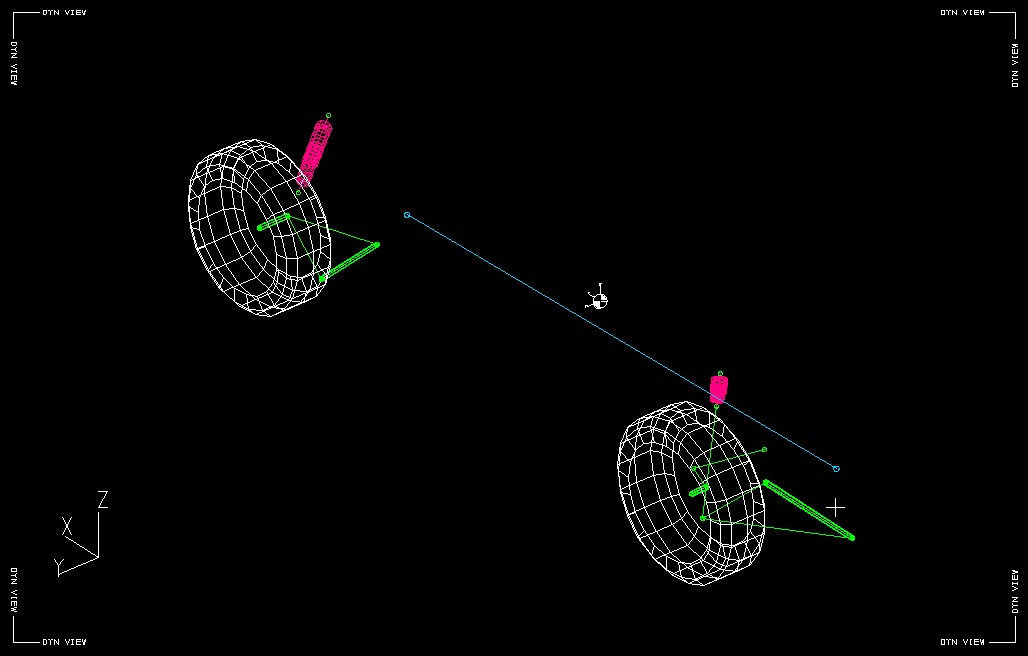

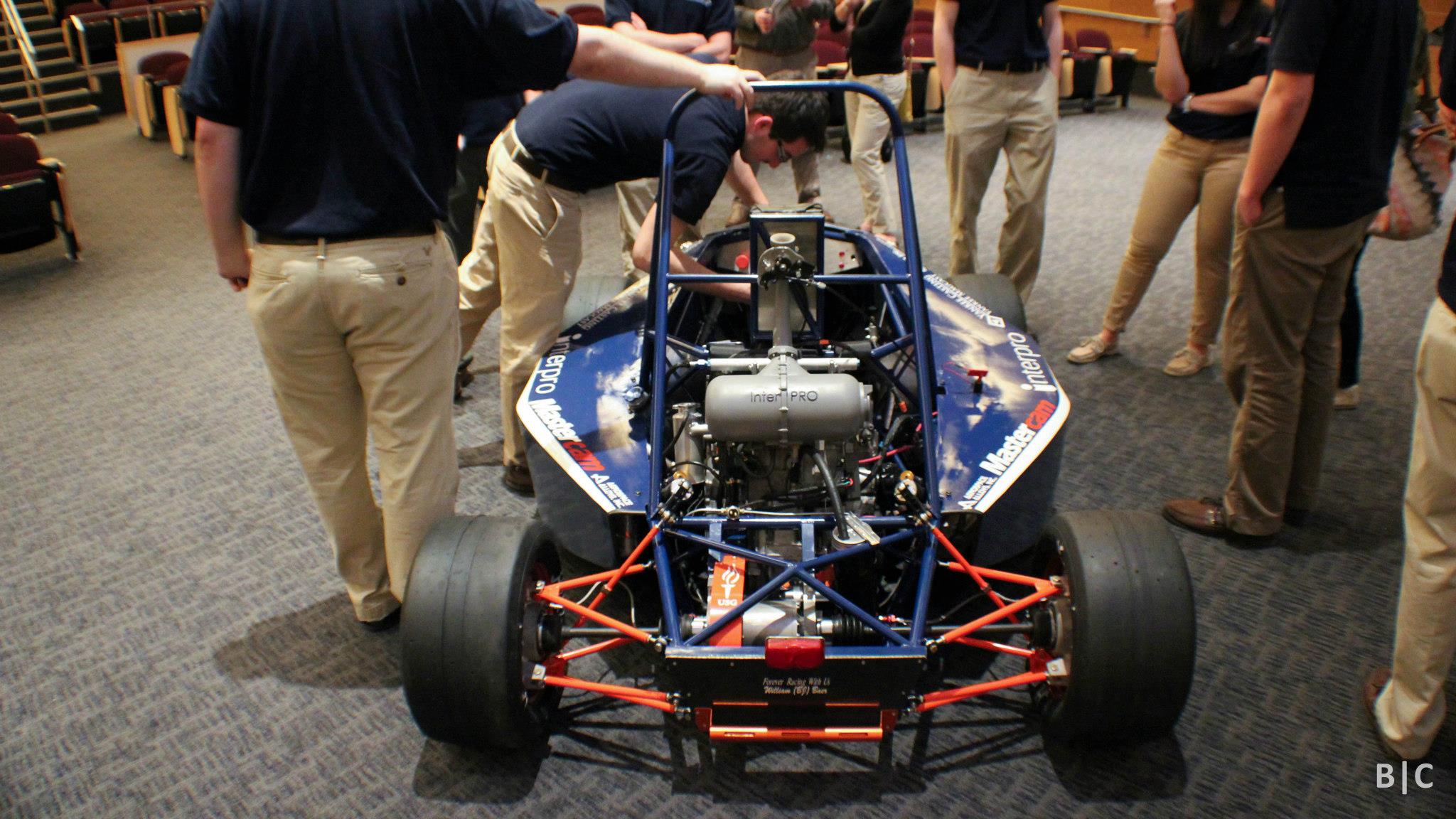

2013 UCONN FSAE Quick Spec. Notes

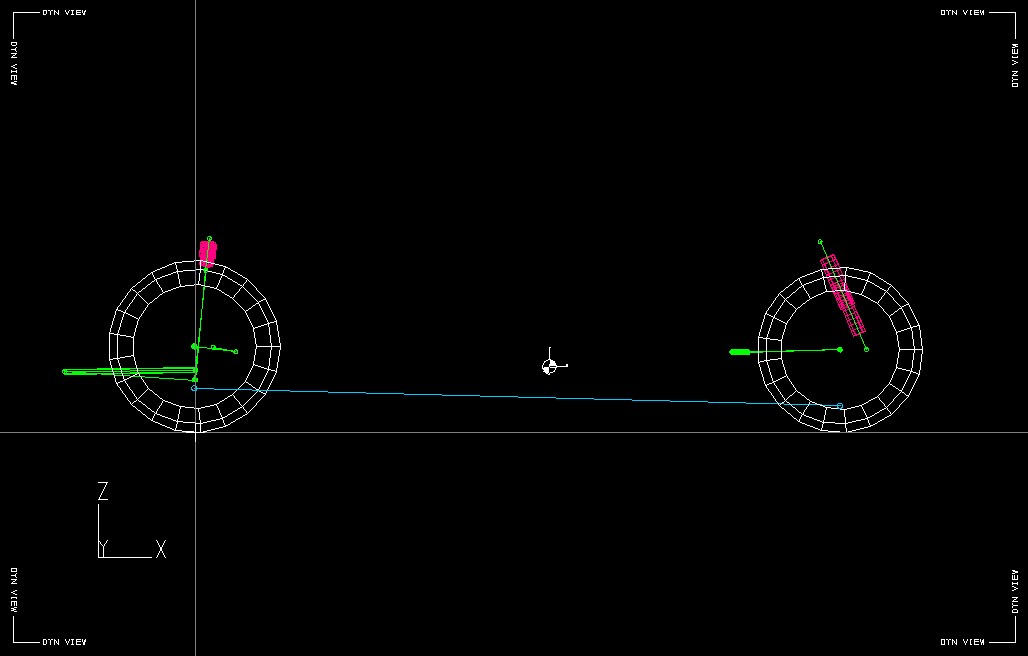

Suspension
10" wheels, 18.5x7.5" tires
Cast magnesium uprights
75 and 85 mm deep groove ball bearings
Custom "hindle" - Integrated hub, spindle, wheel center(6061-T6) with 4340 RC50 tripod inserts
Symmetric hindle design (same for all 4 corners)
LSA suspension, push-rod actuated dampers, front ARB
100% Ackermann
30 deg max steering angle
Kaz Tech/Cane Creek double-adjustable dampers


Brakes
Wilwood PS-1
Titon rear-pivot masters
Remote-mount bias adjust

Drivetrain
Semi-custom salisbury differential (built using BMW E30 LSD clutches and ramps)
Cast magnesium case, aluminum end caps
15.9# overall weight (including mounting pillow blocks, bearings, sprocket, stub axles, etc.)

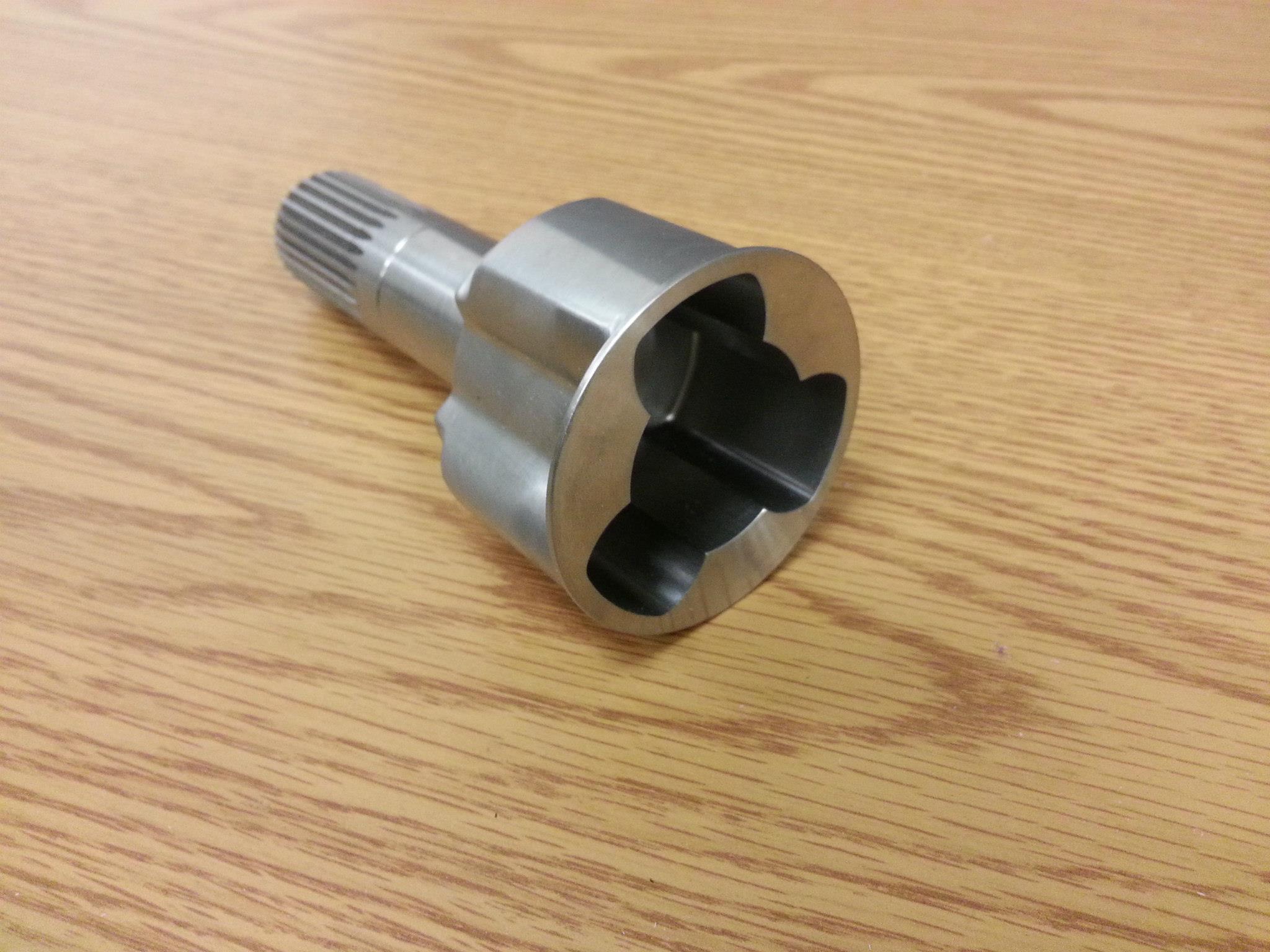

Custom 4340 tripod stub axles
3 speed transmission, max speed 77.9 mph @ 12 krpm (which has problems eating gears...now drive 2nd and driven 2nd and 6th are cryo'd and shot-peened)

Chassis
4130, TIG welded, normalized
1800 ft-lb/degree twist
65# base frame weight, 70# fully loaded (not incl. stressed panels)
CFRP stressed floor, firewall, rear bulkhead
435# assembled weight goal (haven't weighed yet)

Engine/Controls
2001-2003 GSX-R600 motor
13:1 compression
Est. 85 hp @ 9.5 krpm, 45 ft-lb @ 8 krpm

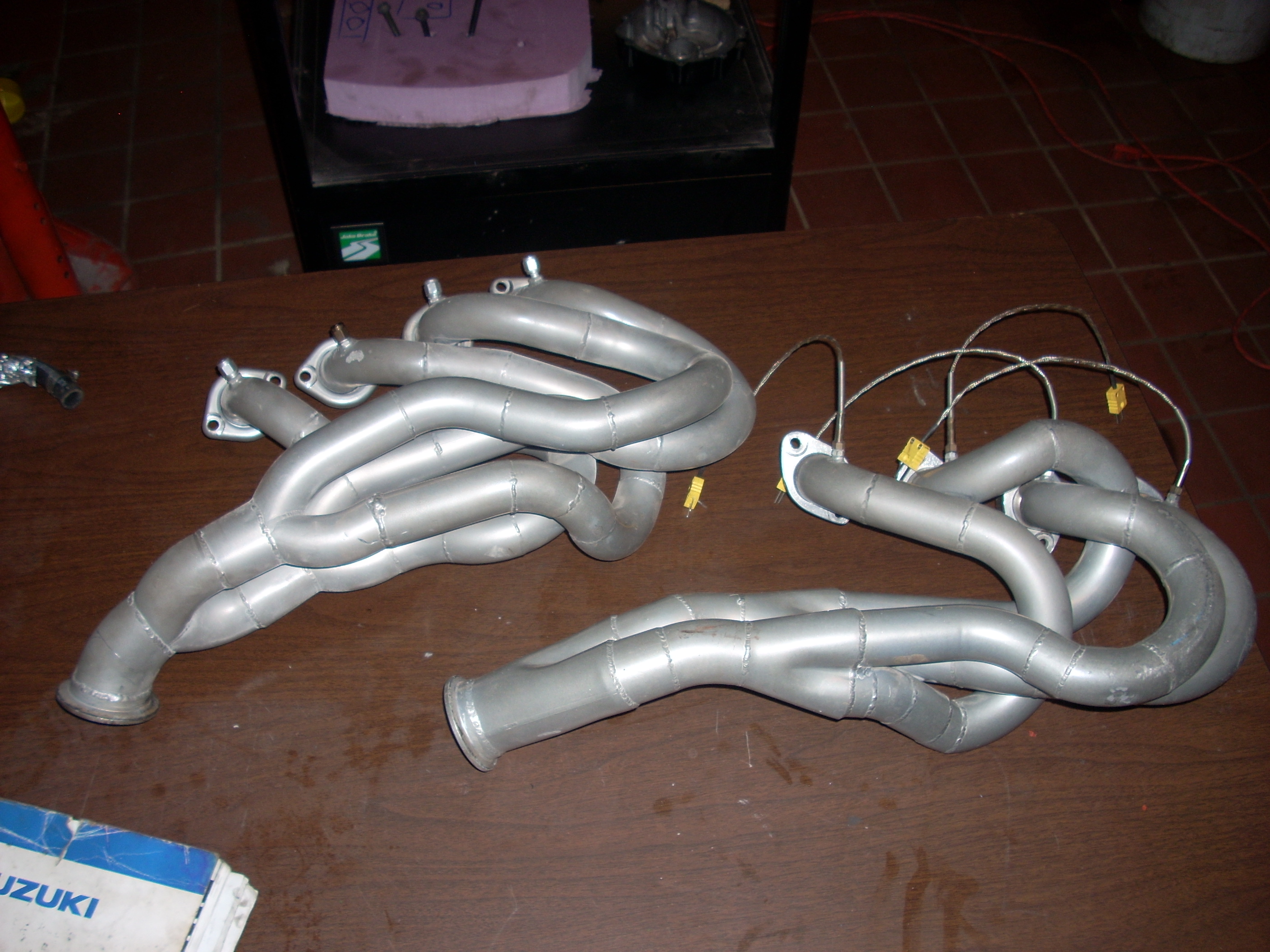

Eq. length 4-2-1 headers tuned for 2nd resonant freq. @ 7.5 krpm, 18 ga mild steel, ceramic coated
Ti Akropovic muffler

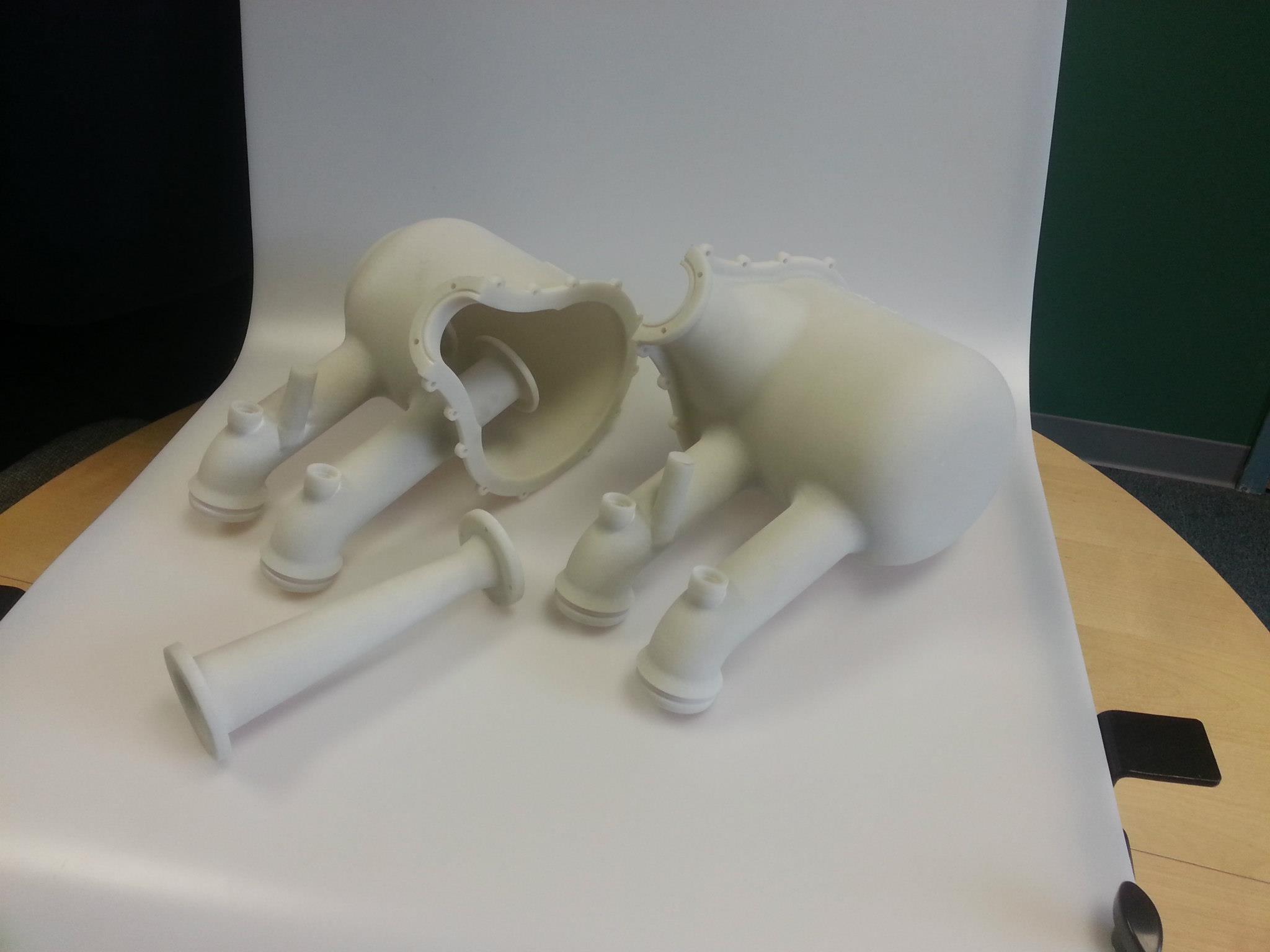

Intake tuned for 2nd resonant freq. @ 8.5 krpm, 40% glass-filled nylon SLS
28mm SLS throttle body
Performance Electronics PE-3 ECU
Texense shift cut (programmed ignition cut in ECU for clutchless shifting)
Manual shifter/hand clutch

Attached Image
Attached Image
Attached Image
Attached Image
Attached Image
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jd74914
post Dec 24 2013, 11:46 PM
Post #3


Its alive
****

Group: Members
Posts: 4,216
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States

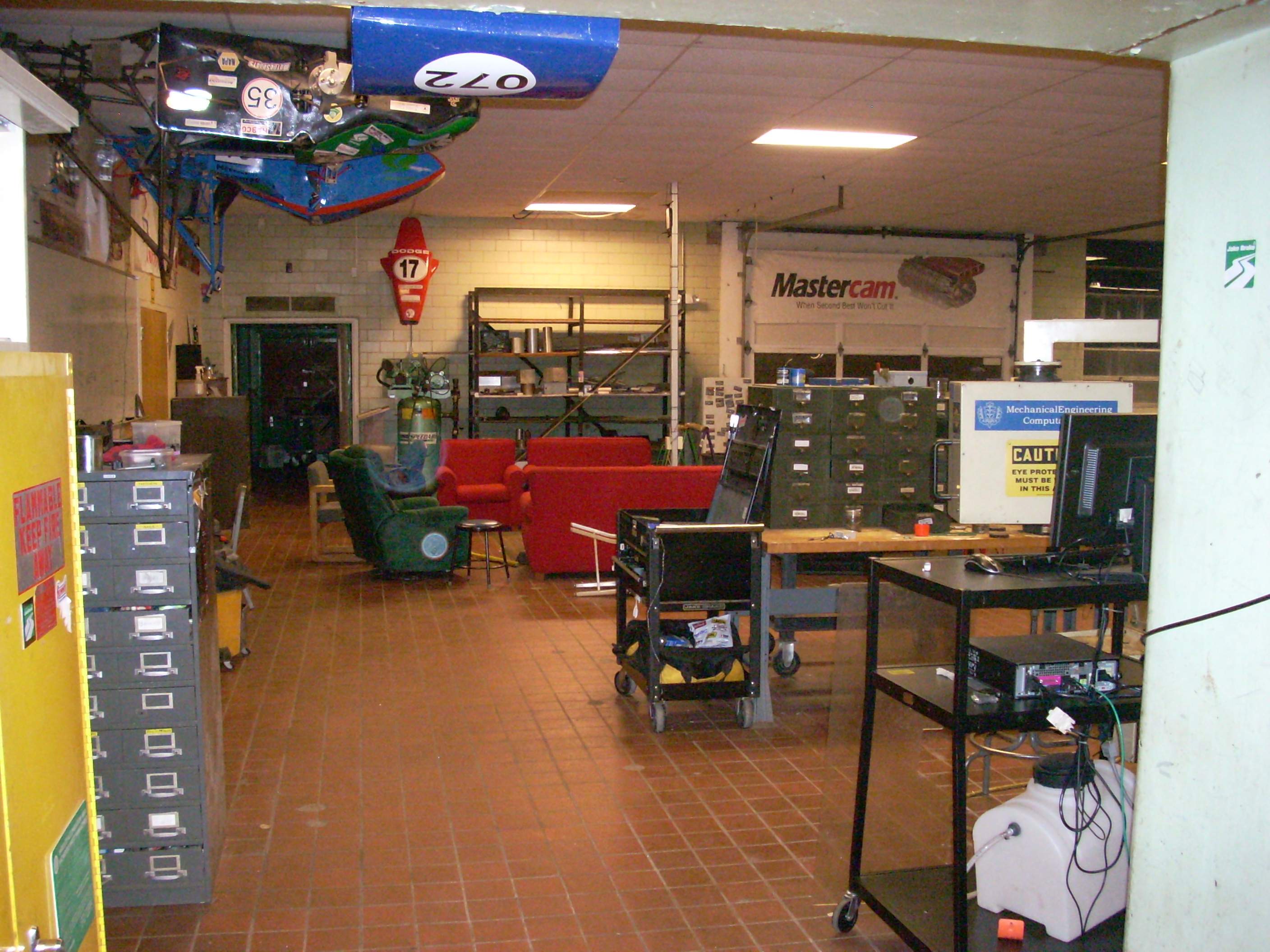

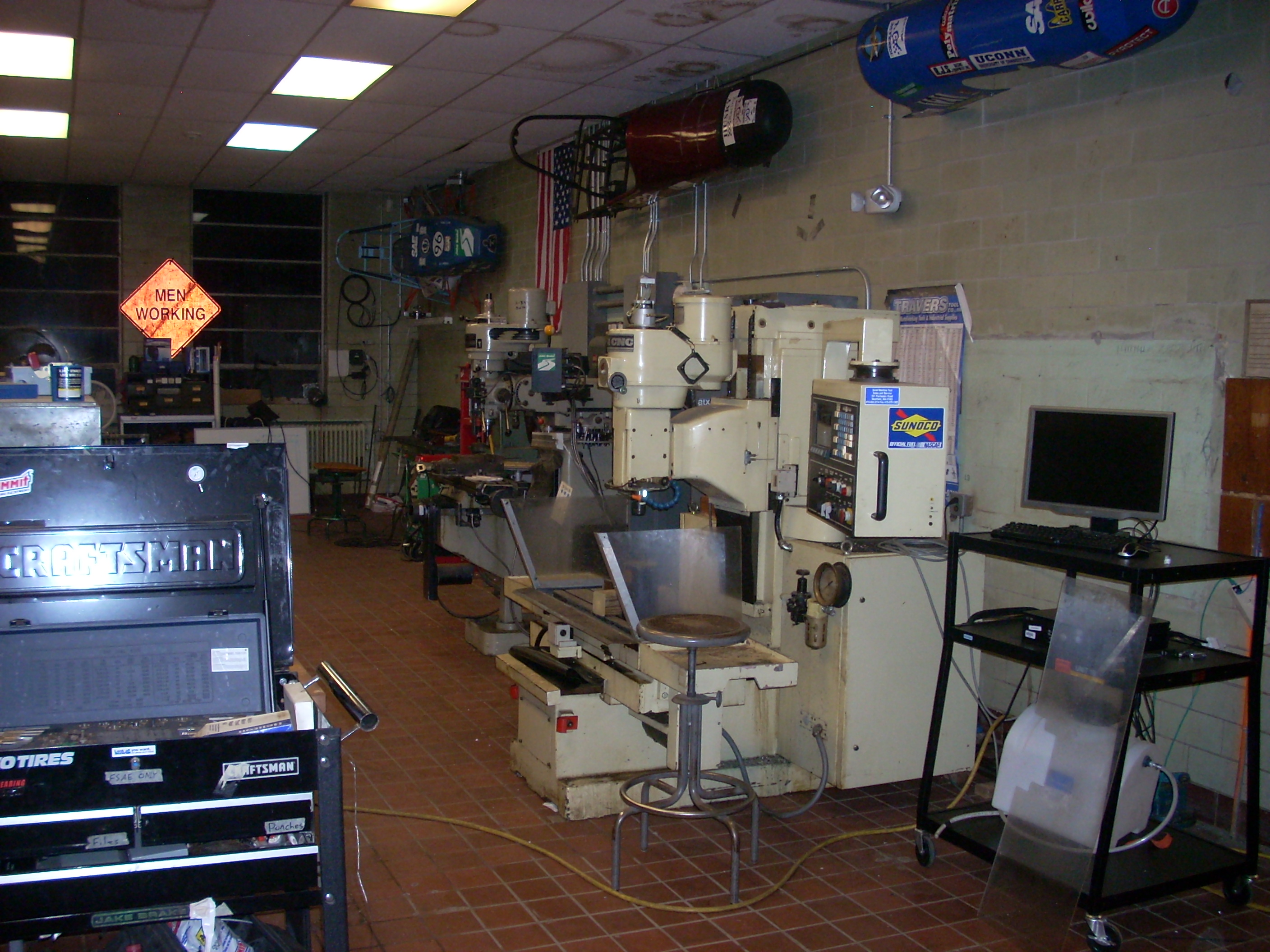

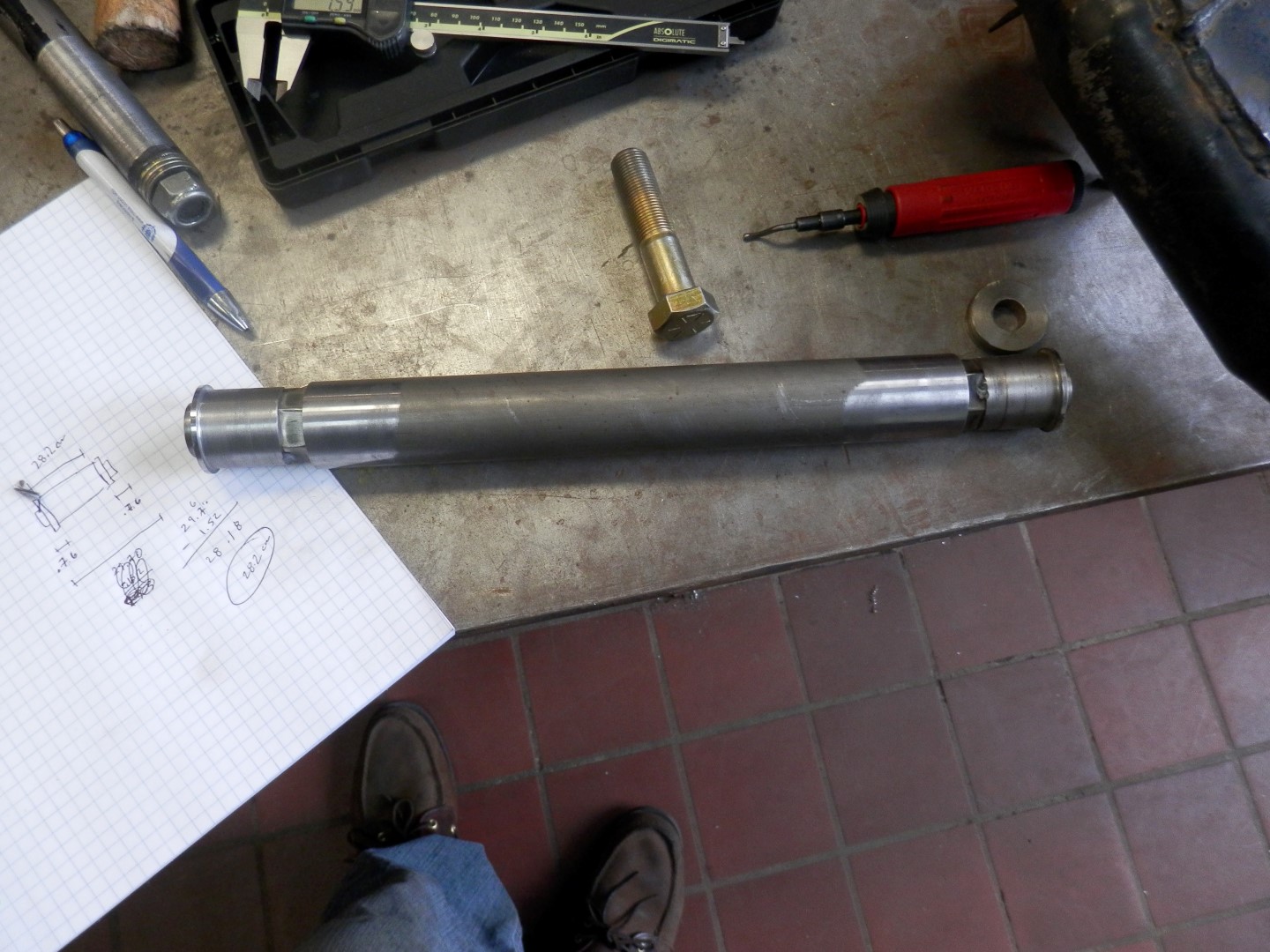

And a few shop pics just because...There is a nice Stuska dyno, manual lathe, and pretty OK design room with computers as well (always looking for more CFD/FEA machines (IMG:style_emoticons/default/laugh.gif) ).

Attached Image
Attached Image

***** Hijack over - Back to normal programming *****
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
EdwardBlume
post Dec 25 2013, 07:31 AM
Post #4


914 Wizard
**********

Group: Members
Posts: 11,798
Joined: 2-January 03
From: N Cal
Member No.: 81
Region Association: Northern California



Good luck with your build(s)....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Dec 25 2013, 10:40 PM
Post #5


Custom Member
***************

Group: Members
Posts: 22,475
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States



Good to see you back at it again, now stop getting distracted and get her going again.

You may want to research the option of a push button starter switch like some race cars use, along with the reliable power function of the ignition switch.

Rich
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jd74914
post Dec 25 2013, 11:55 PM
Post #6


Its alive
****

Group: Members
Posts: 4,216
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States



Thanks Rich and Rob...I'm definitely trying to get her going...albeit somewhat slowly as I'm pretty easily distracted. (IMG:style_emoticons/default/laugh.gif)

My initial plan (May 2013) was to replace the stock EFI with a MegaSquirt3. When I was actually driving the car, I had been having problems with intermittent failures and random broken wires. Figuring that these problems were mostly related to the 40 year old wires, the easiest solution seemed like remaking the FI harness. After thinking about it a little more, it seemed like a waste to remake an entire wire harness and still be handicapped by an antiquated controller. I’ve had experience building harnesses and tuning with a few aftermarket engine management systems [Performance Electronics PE1 and PE3, Adaptronic e420c, MicroSquirt] through FSAE and some other modified car builds so I picked the MS3 mostly for the cost and fact that I haven’t had the opportunity to play with any newer MS stuff.

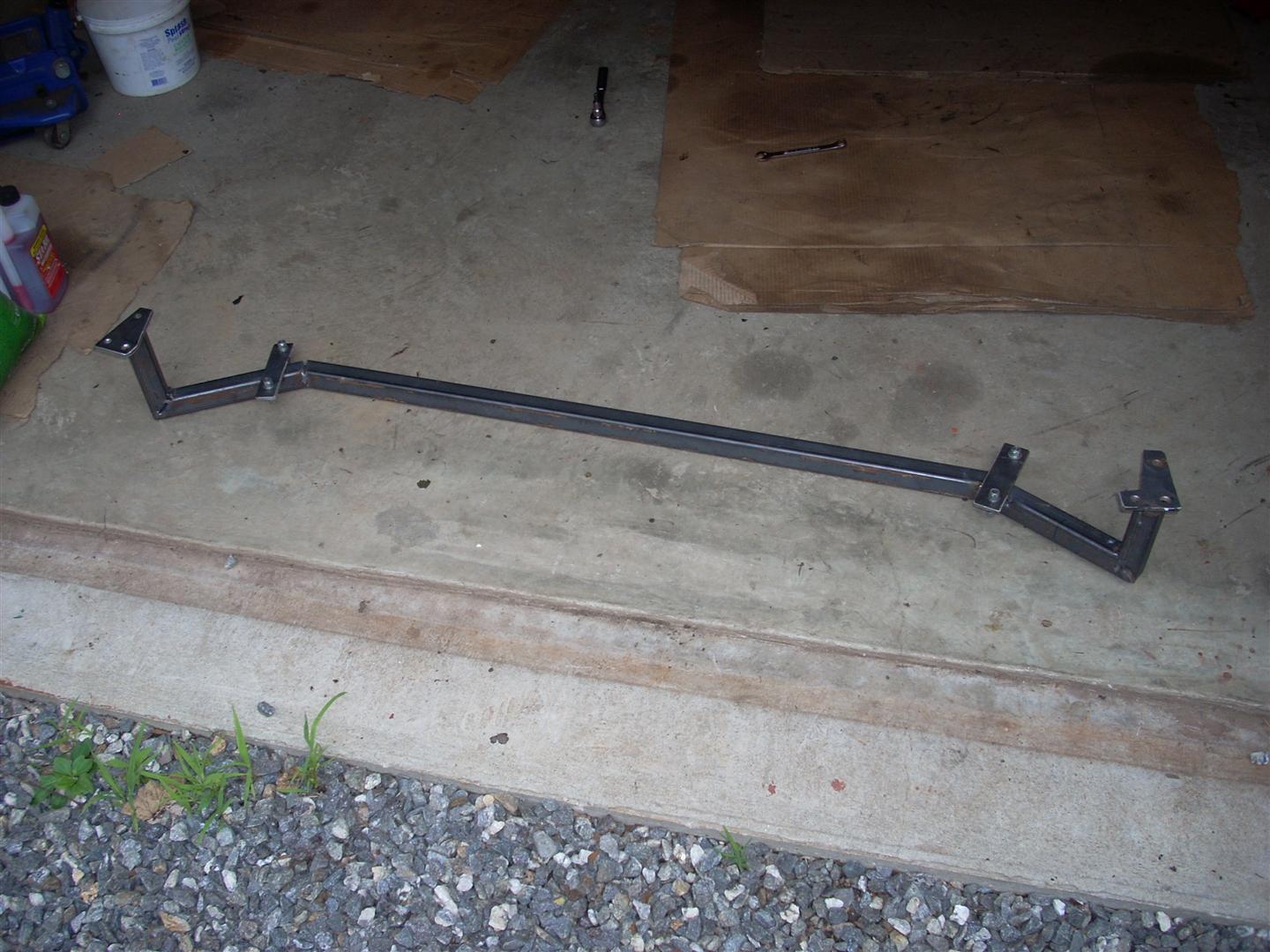

The first step in any harness build is measuring out the harness end locations, so I pulled the motor to measure wire lengths, add cam/crank position sensors, reseal the oil cooler, and repaint the tin. As I was doing this I noticed some rust on “jacking” donuts and rear right trailing arm mounts so out they came. While in there I started poking at the frame rails and noticed some rot so out they came as well.

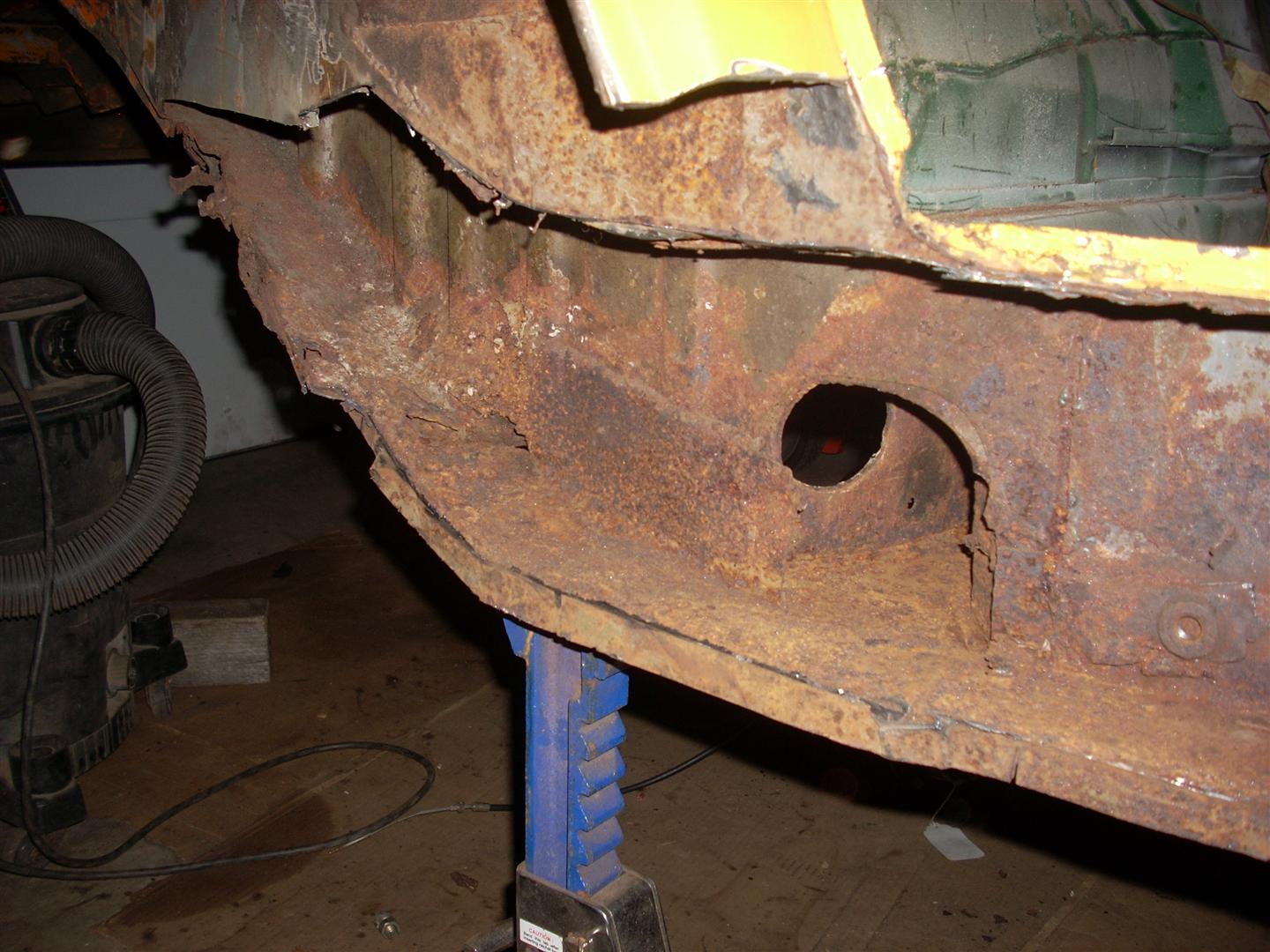

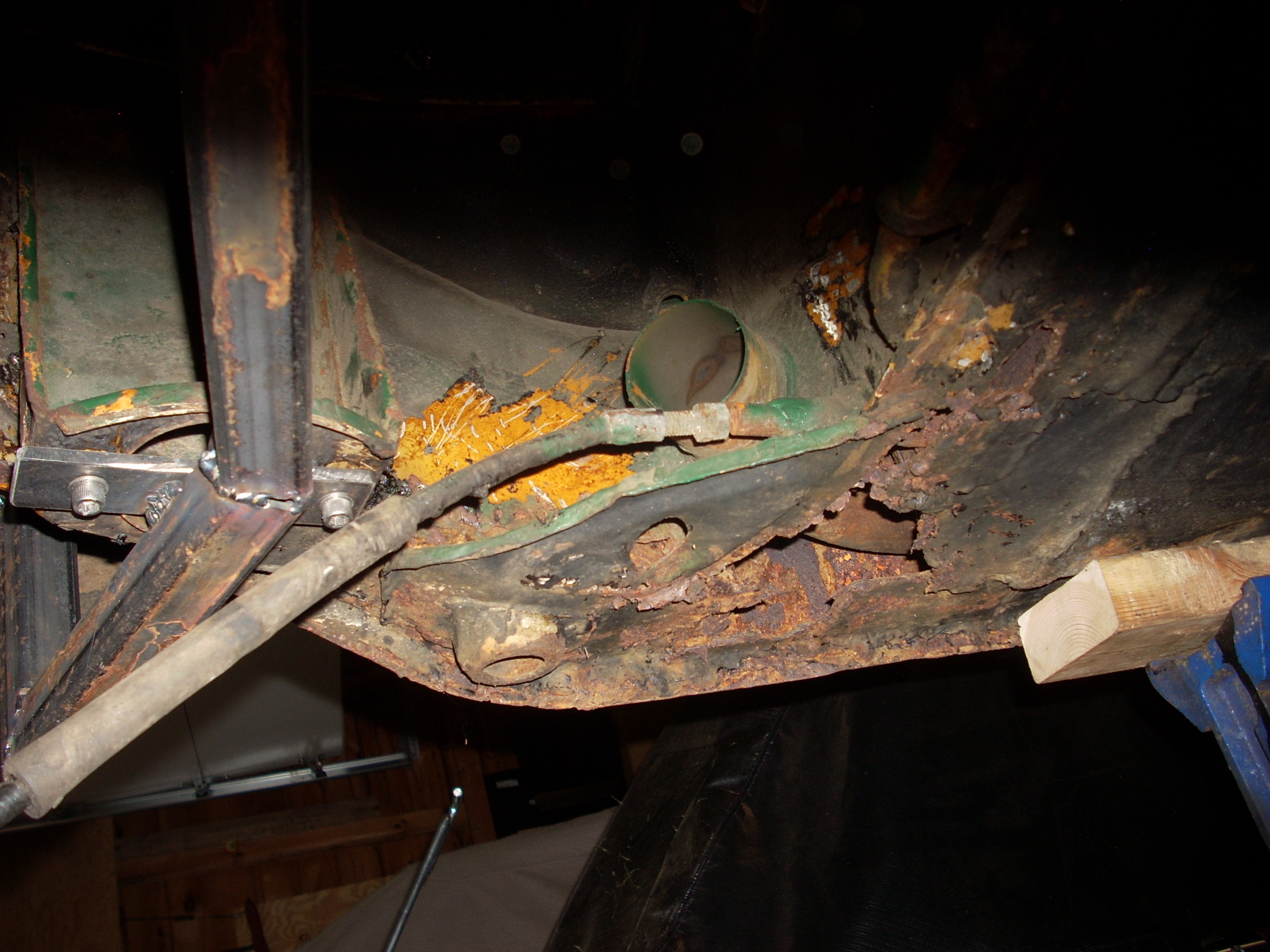

The first few pictures show some of the damage and then the quick suspension jig made to keep everything aligned after cutting. The door jams are also braced with angle welded from the upper seat belt bolt mounts to lower door jambs.

Attached Image
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jd74914
post Dec 26 2013, 12:04 AM
Post #7


Its alive
****

Group: Members
Posts: 4,216
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States

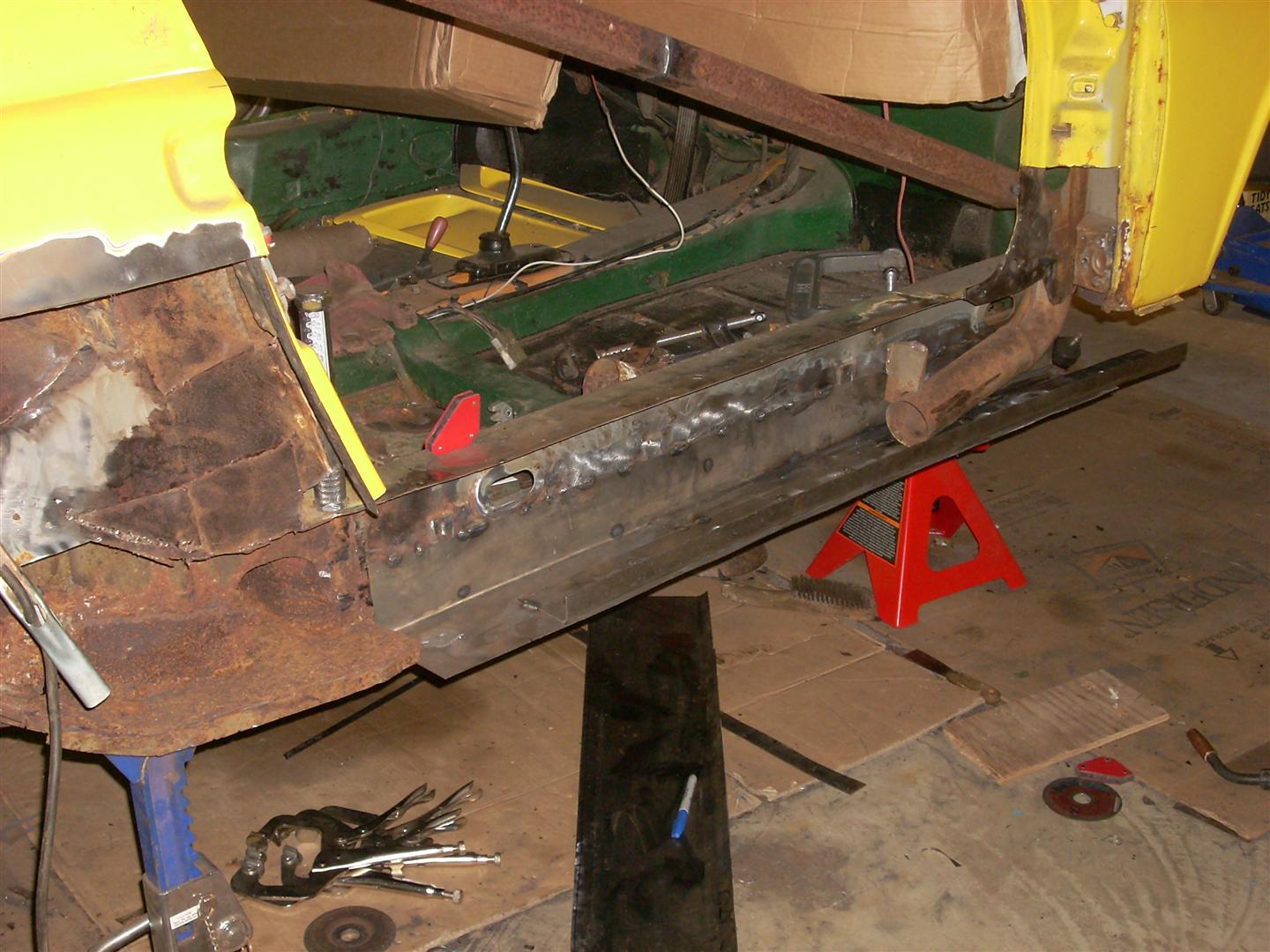

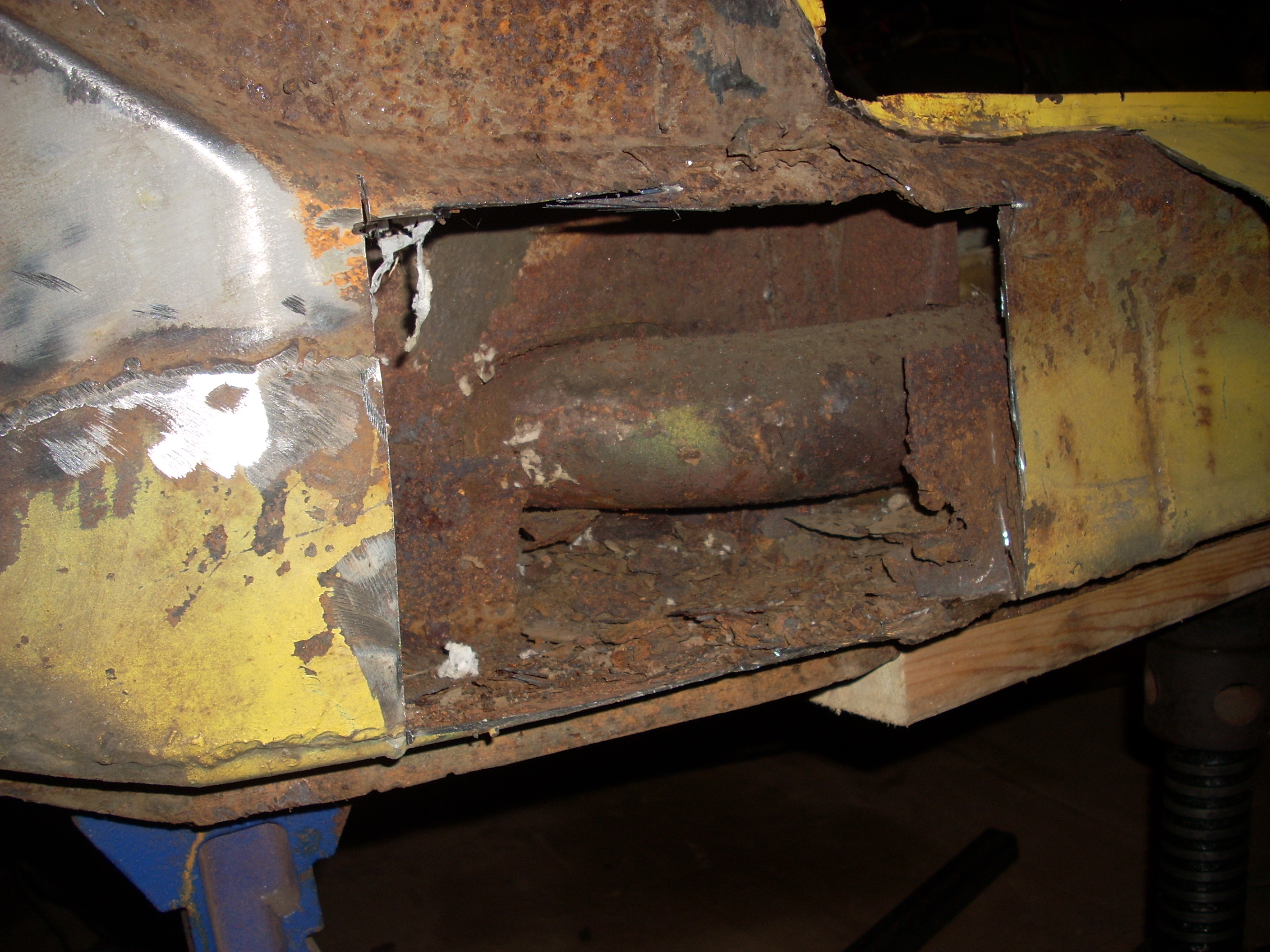

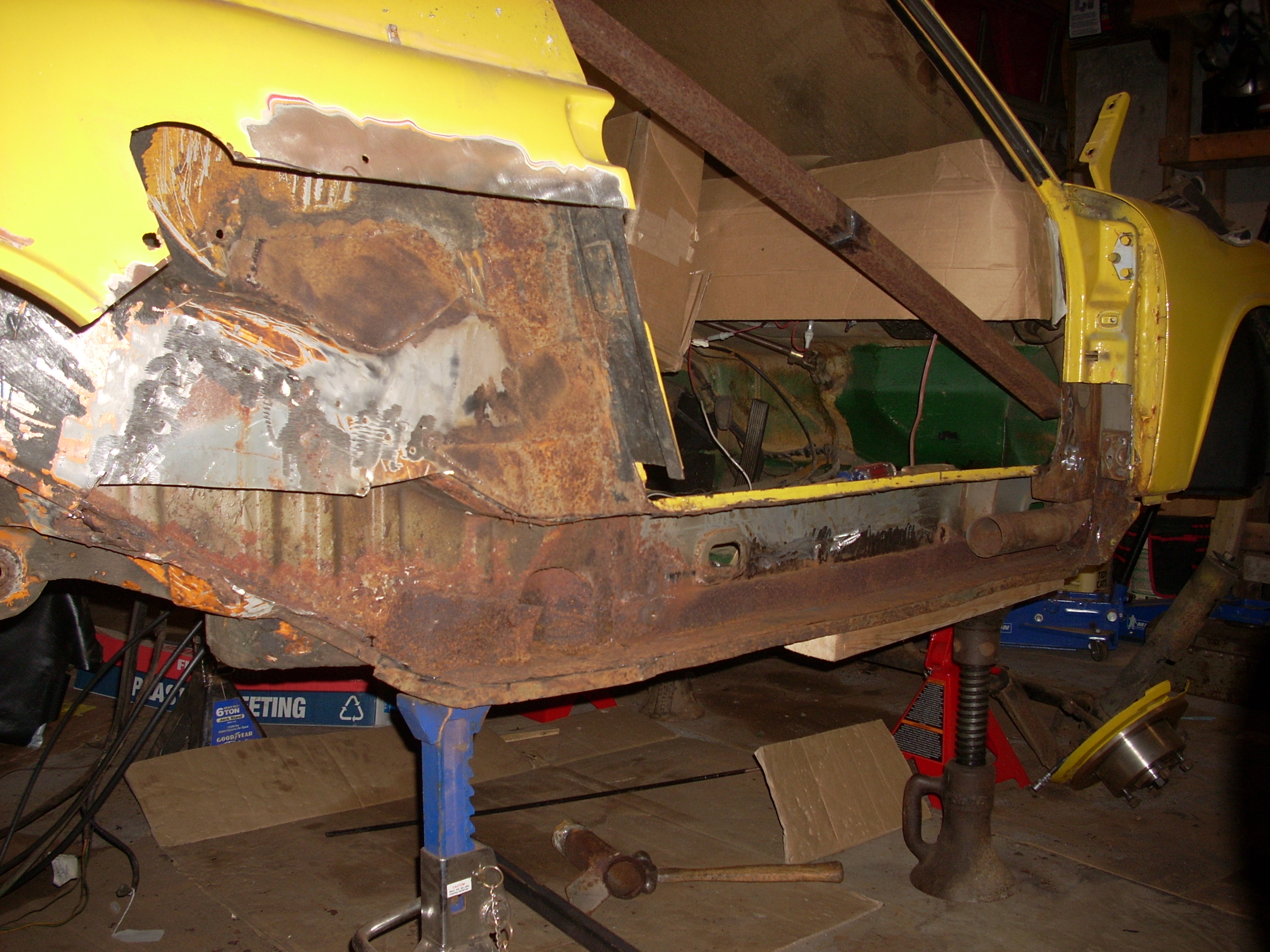

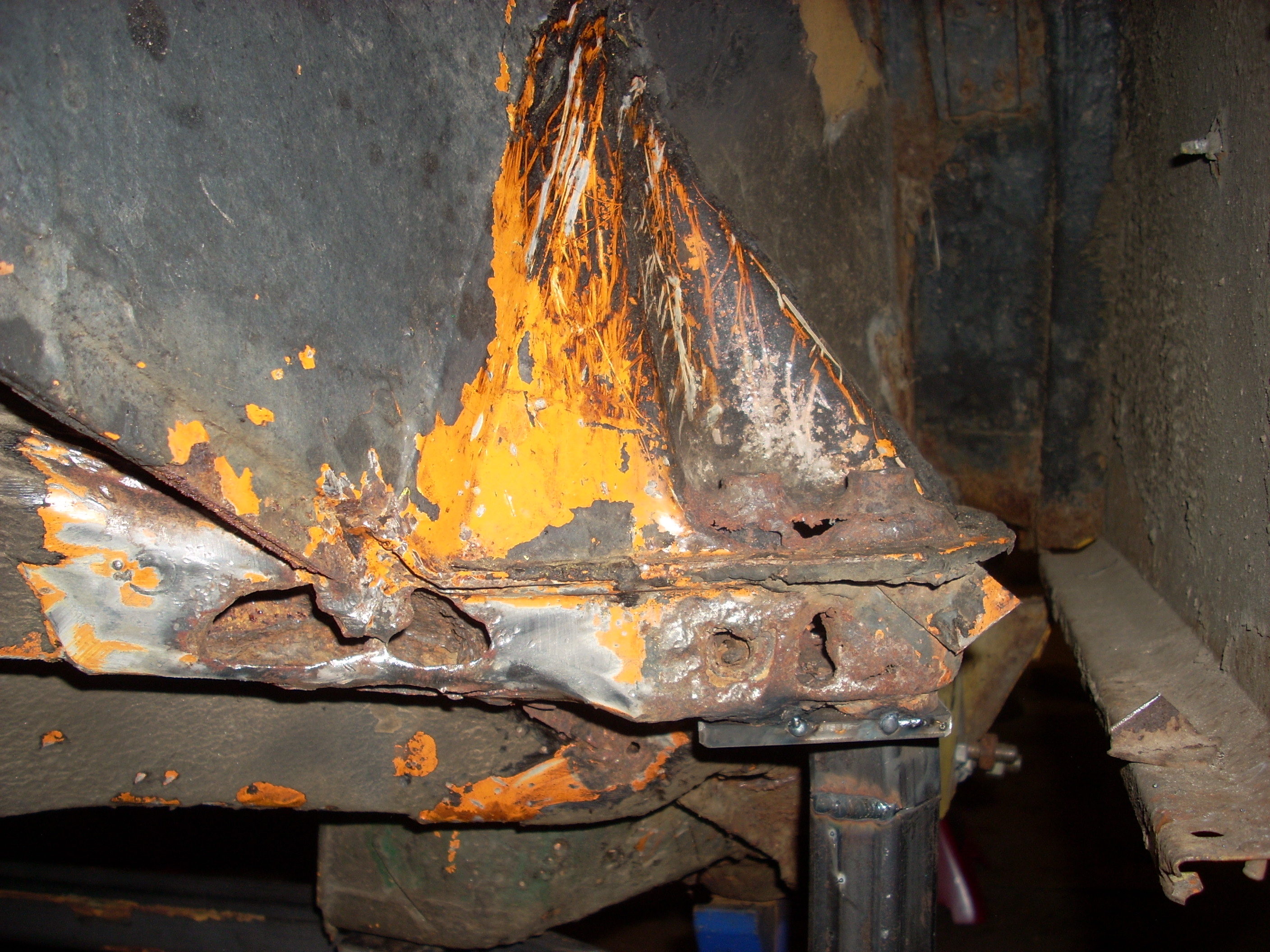

Off came the fender for easy cutting into the longs. That's only a little rust, right? (IMG:style_emoticons/default/laugh.gif)

Note the old patch (80's perhaps) on the bottom left part of the image.

Attached Image

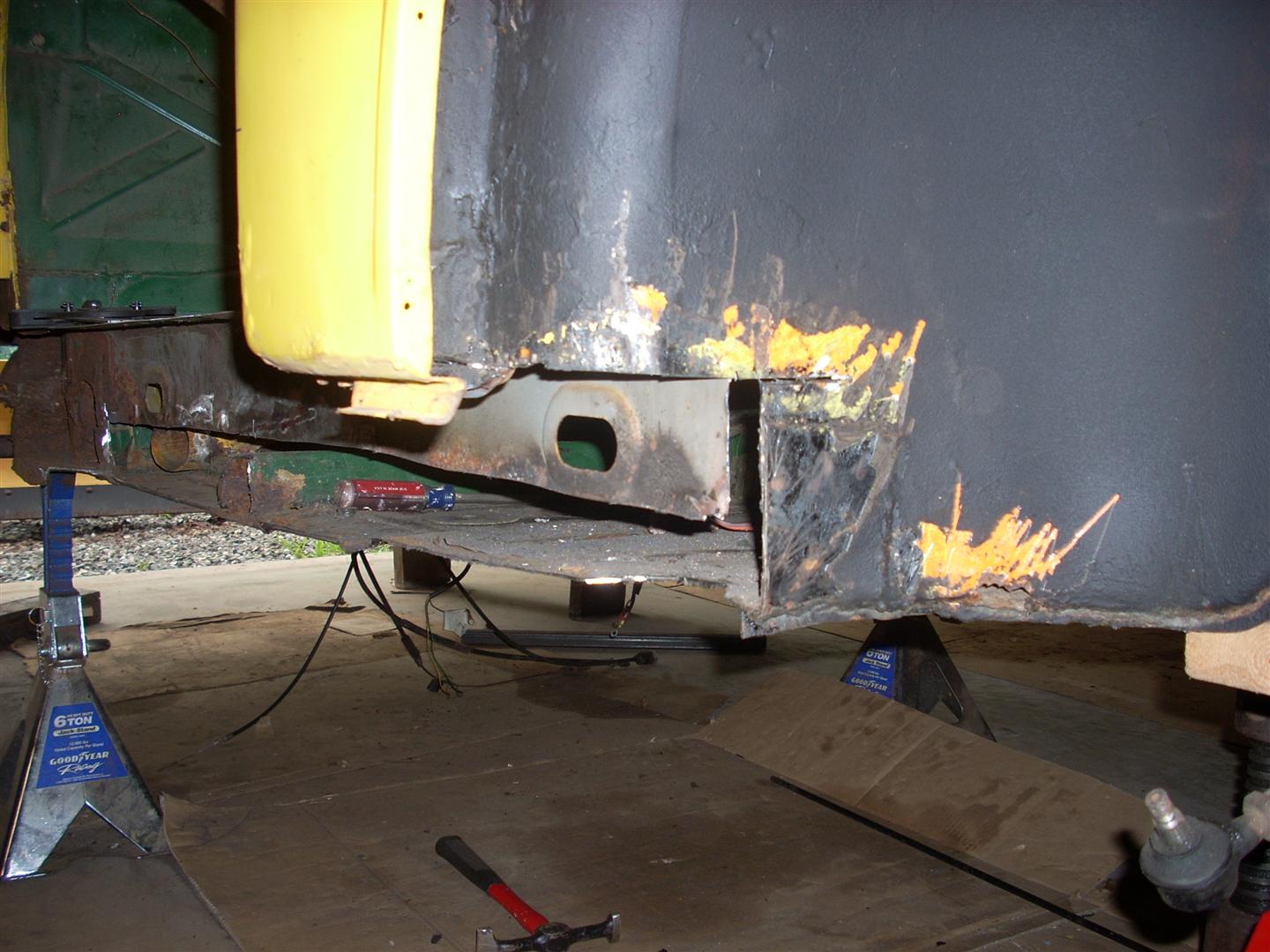

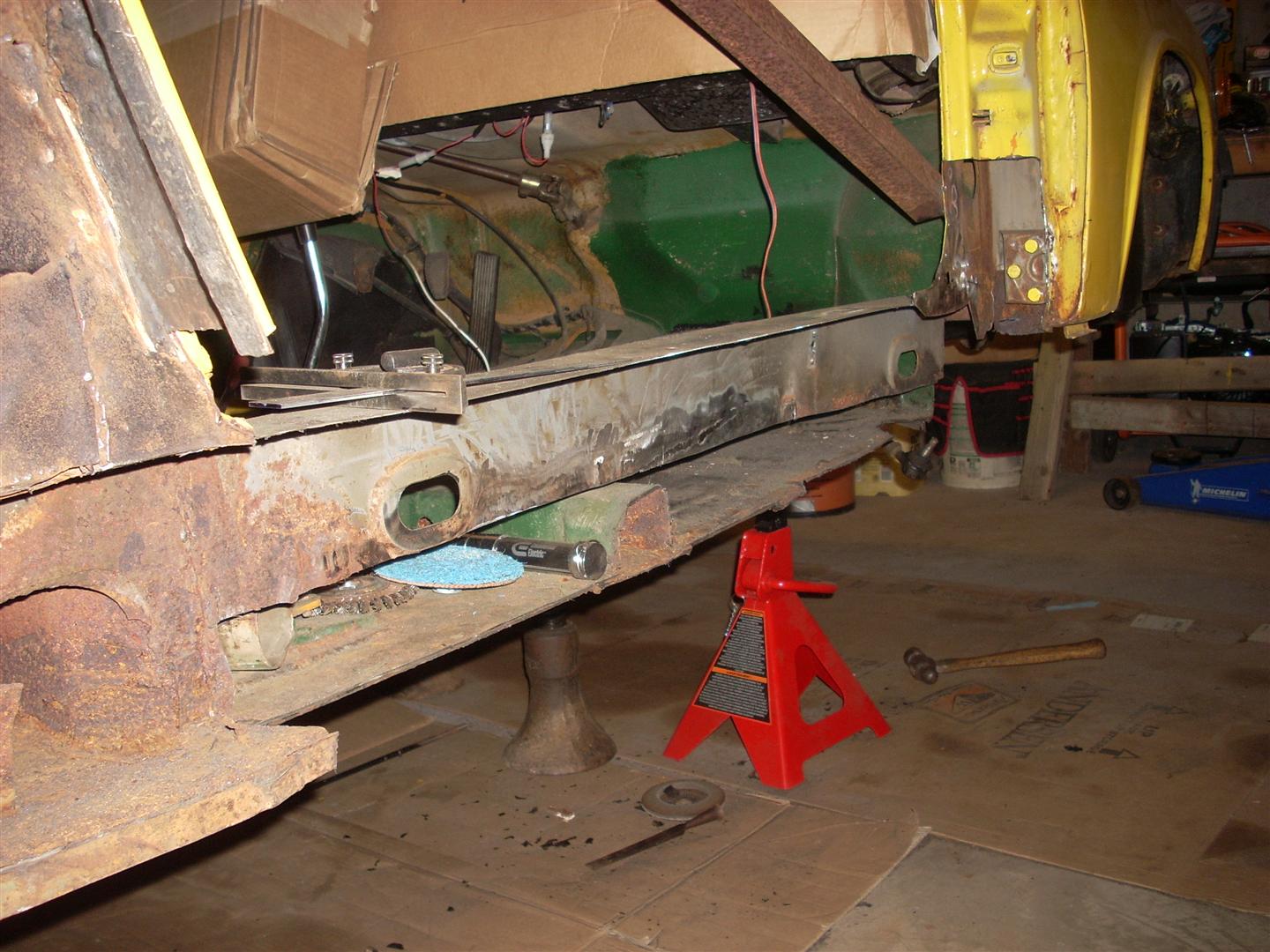

A view from the back (read: I hate jack posts).

Attached Image

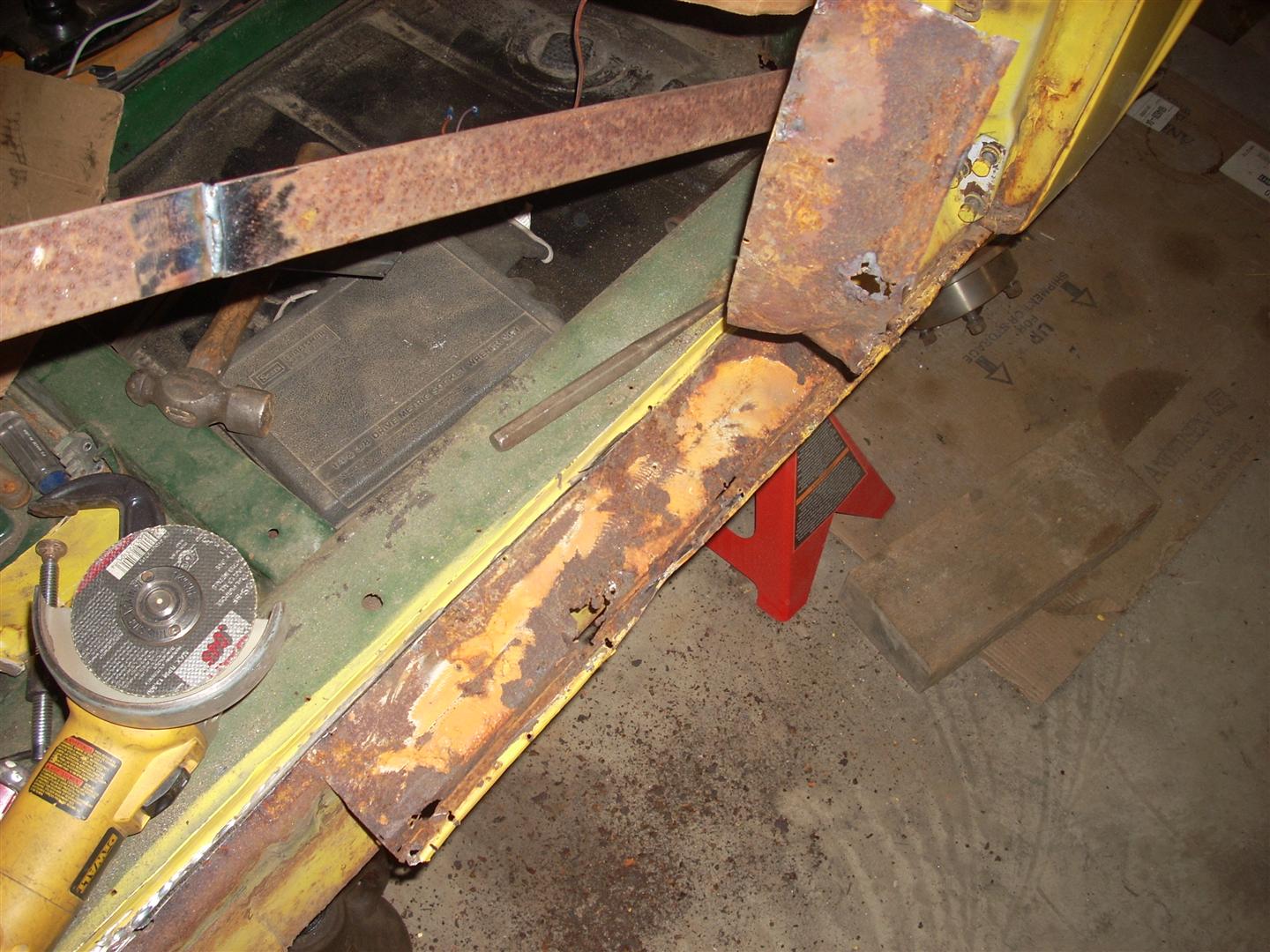

Don't you love thresholds covering old rusty thresholds? (IMG:style_emoticons/default/dry.gif)

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jd74914
post Dec 26 2013, 12:15 AM
Post #8


Its alive
****

Group: Members
Posts: 4,216
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States



Once the cutting started, I had a really hard time stopping...

Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jd74914
post Dec 26 2013, 12:38 AM
Post #9


Its alive
****

Group: Members
Posts: 4,216
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States

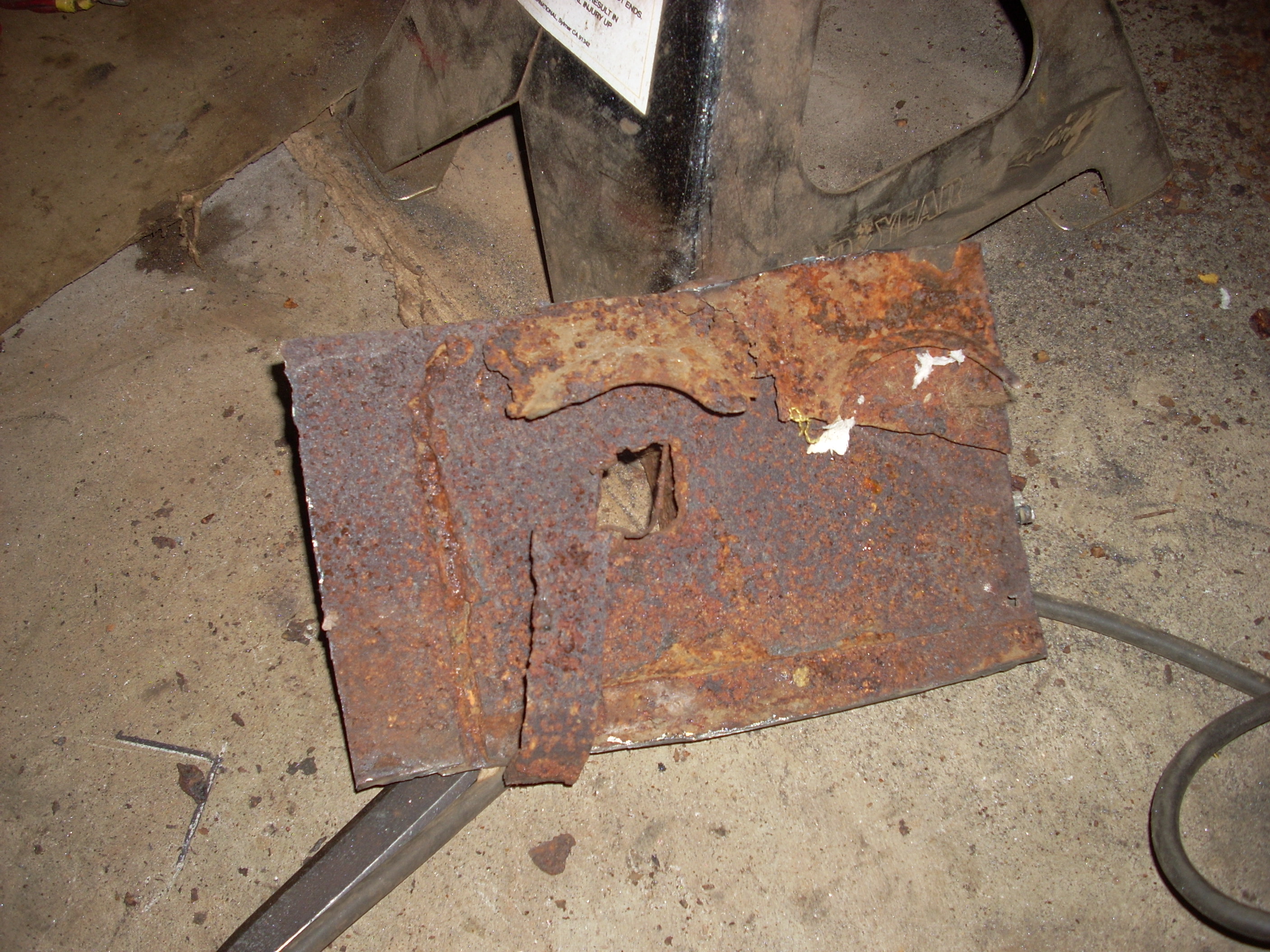

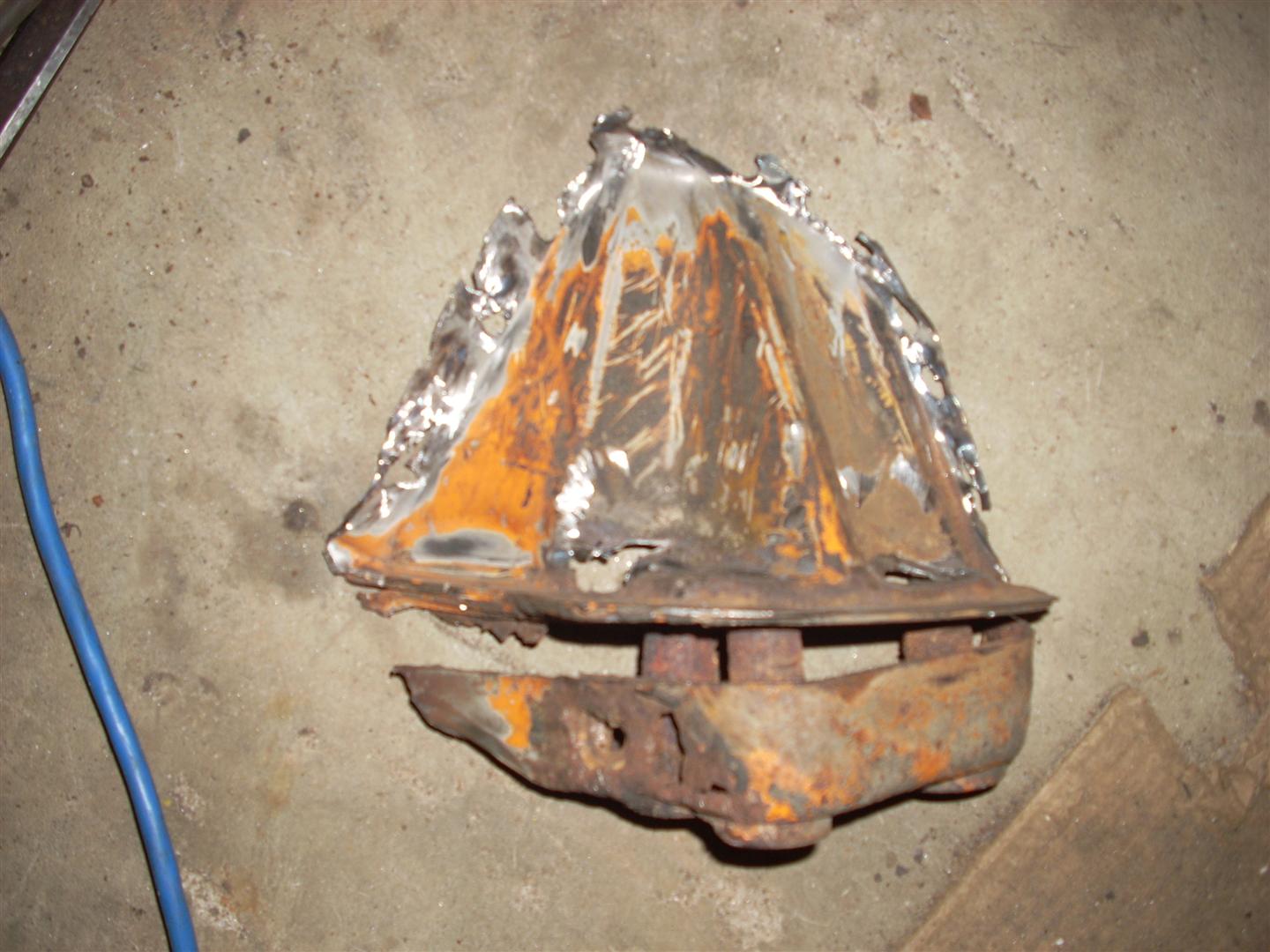

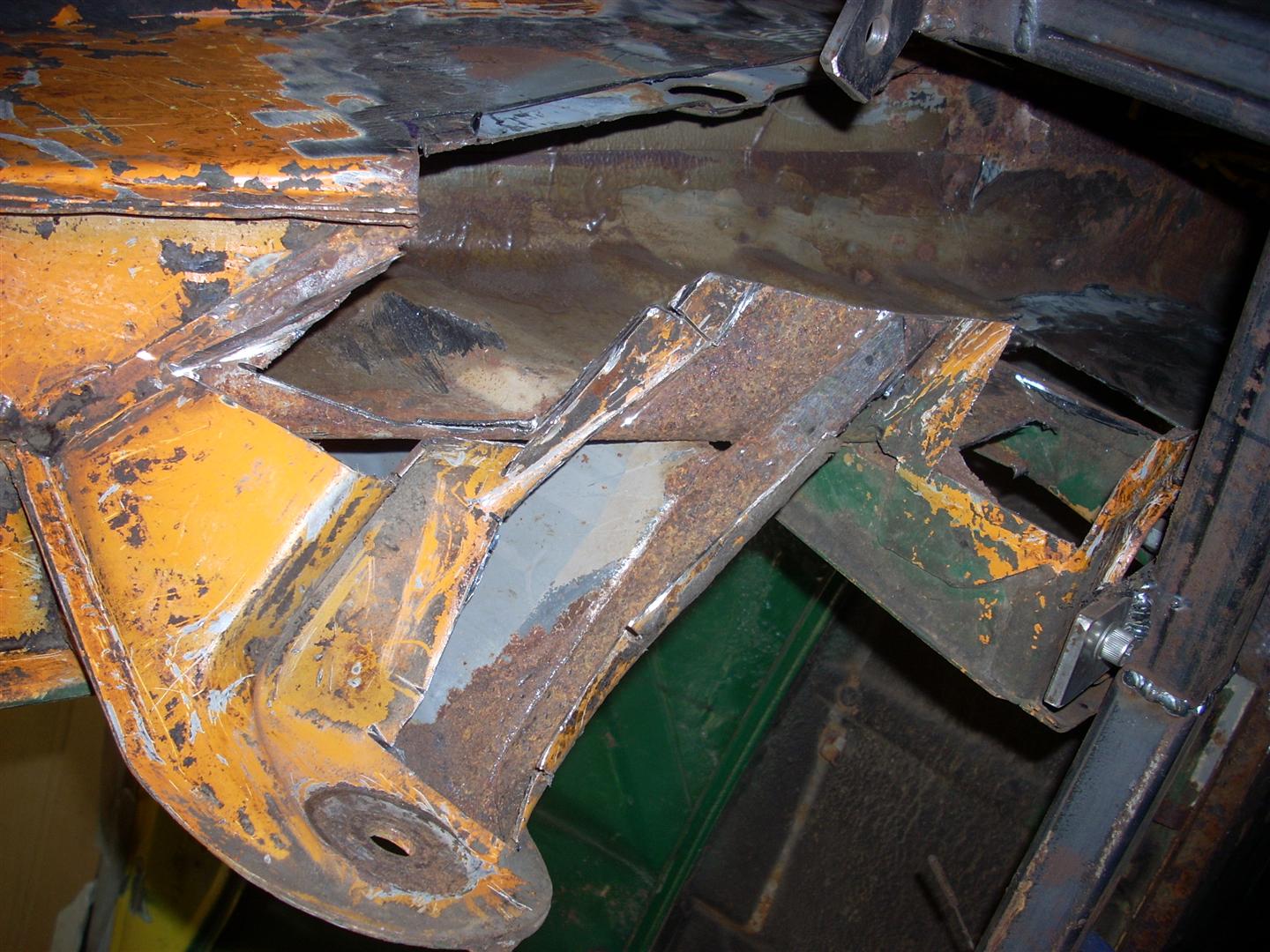

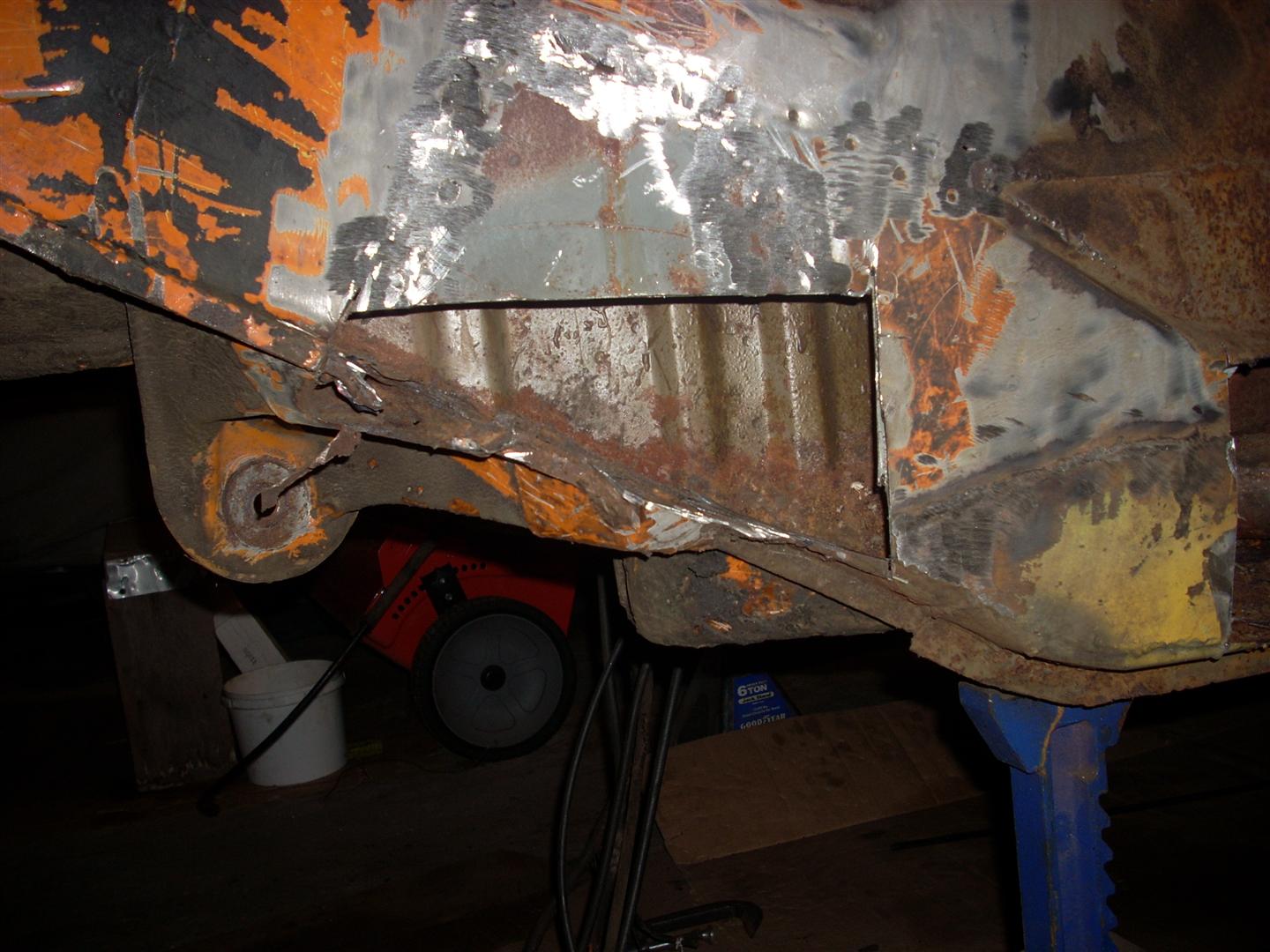

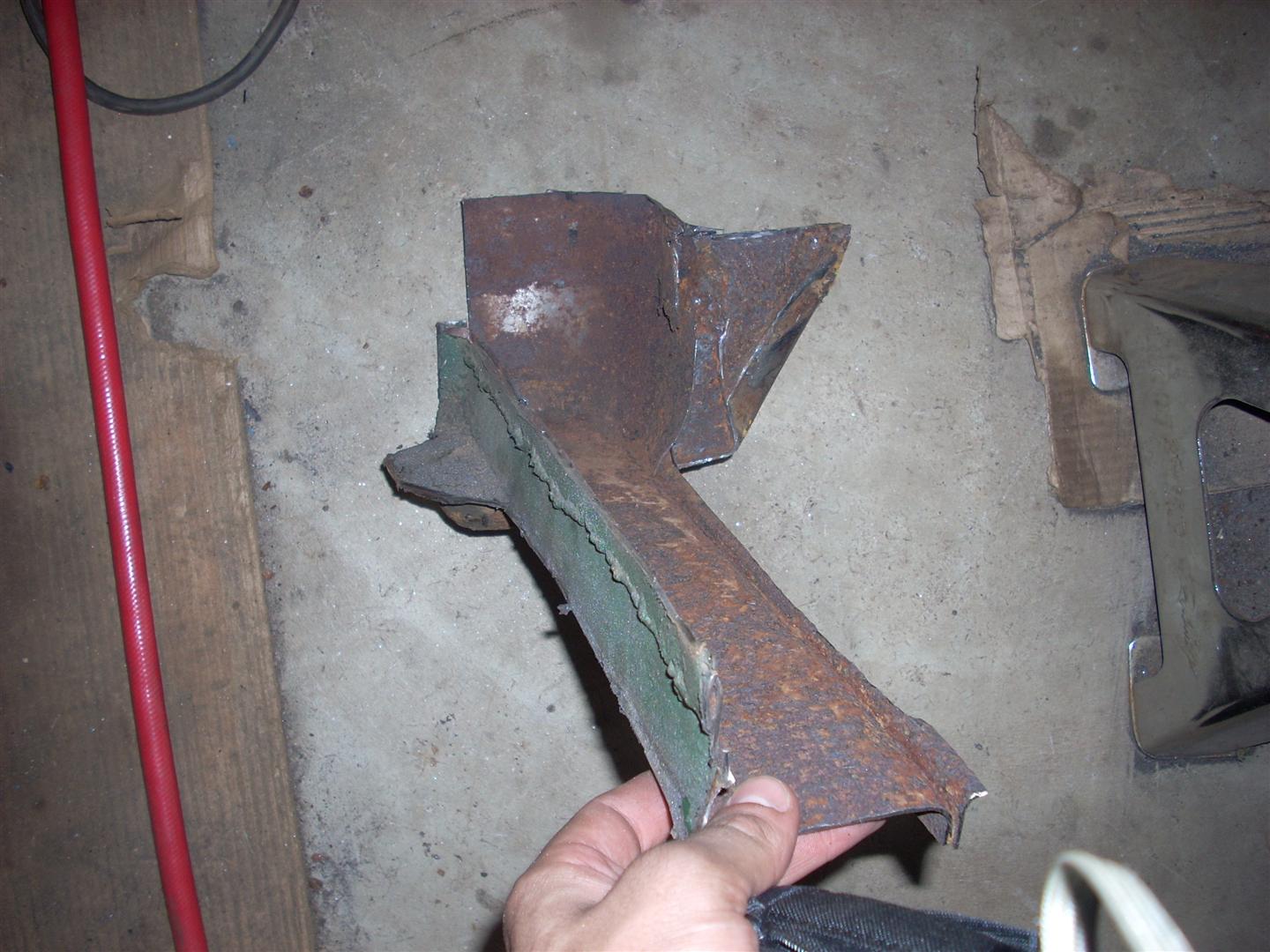

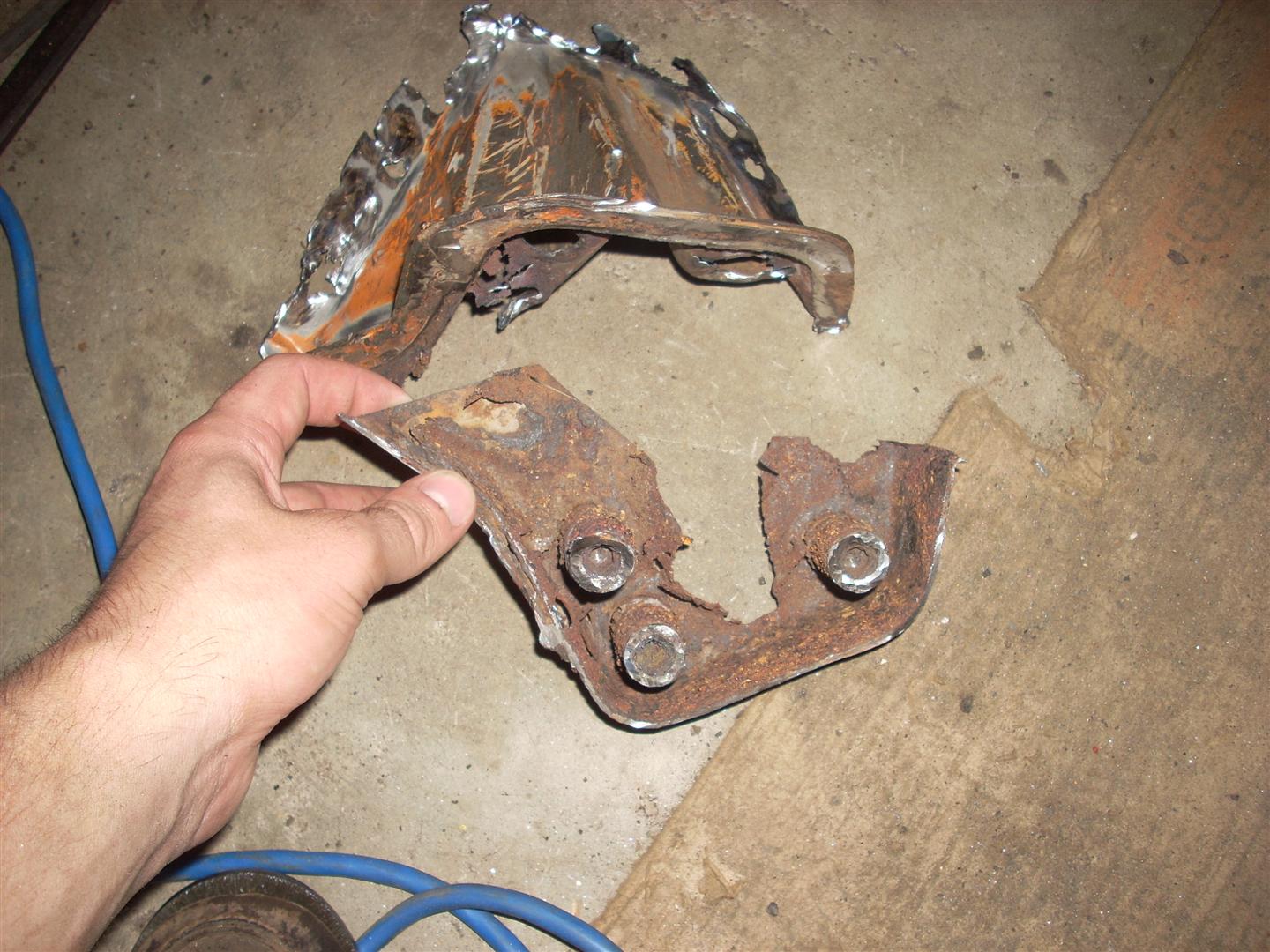

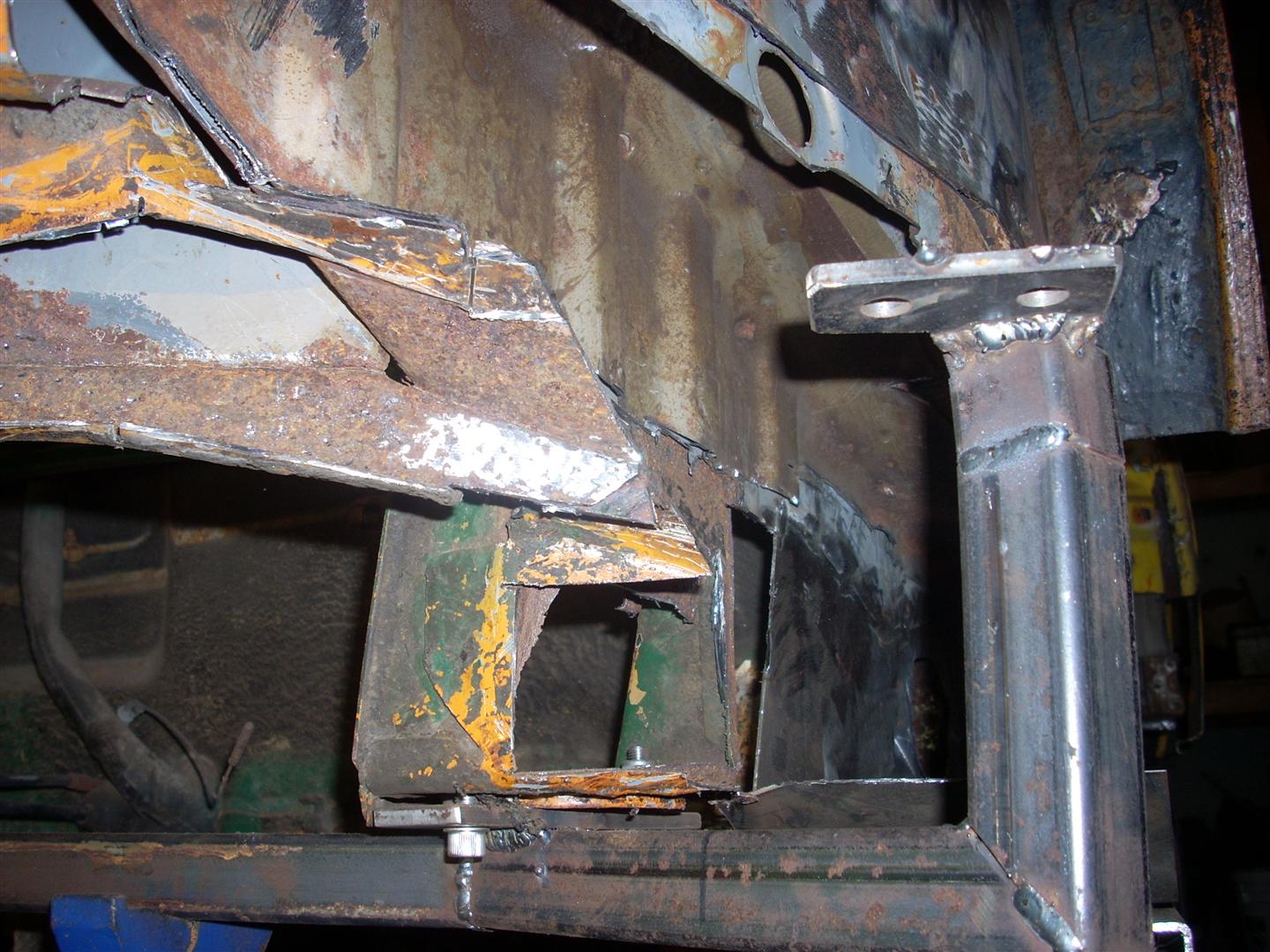

A few more pictures of the suspension console and long. deconstruction.

Attached Image
Attached Image
Attached Image
Attached Image
Attached Image
Attached Image
Attached Image

I'm on the quest to get everything up-to-date so more to come tomorrow.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Dec 26 2013, 09:17 AM
Post #10


Michael
*****

Group: Members
Posts: 5,360
Joined: 1-November 08
From: San Ramon Valley, CA
Member No.: 9,712
Region Association: Northern California



Terrific story and glad to see you are working towards your Ph.D - single biggest factor in being able to continue playing with our cars. I love seeing these cars go under the knife to repair their rusting bones. Best wishes and have fun restoring your lifetime friend.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
jd74914
post Dec 27 2013, 01:59 AM
Post #11


Its alive
****

Group: Members
Posts: 4,216
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States



QUOTE(Cairo94507 @ Dec 26 2013, 10:17 AM) *

Terrific story and glad to see you are working towards your Ph.D - single biggest factor in being able to continue playing with our cars. I love seeing these cars go under the knife to repair their rusting bones. Best wishes and have fun restoring your lifetime friend.


Thanks! (IMG:style_emoticons/default/smile.gif)

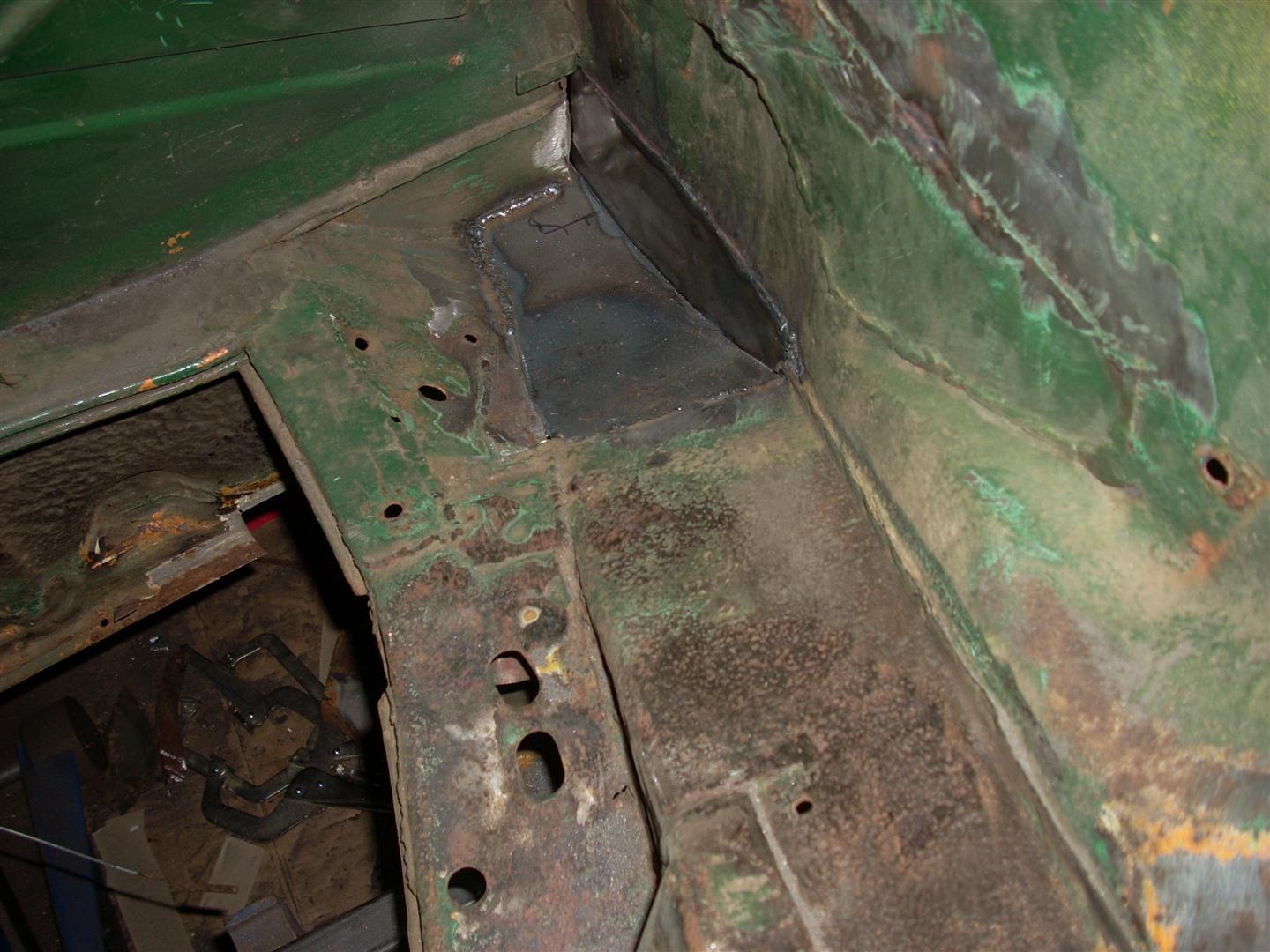

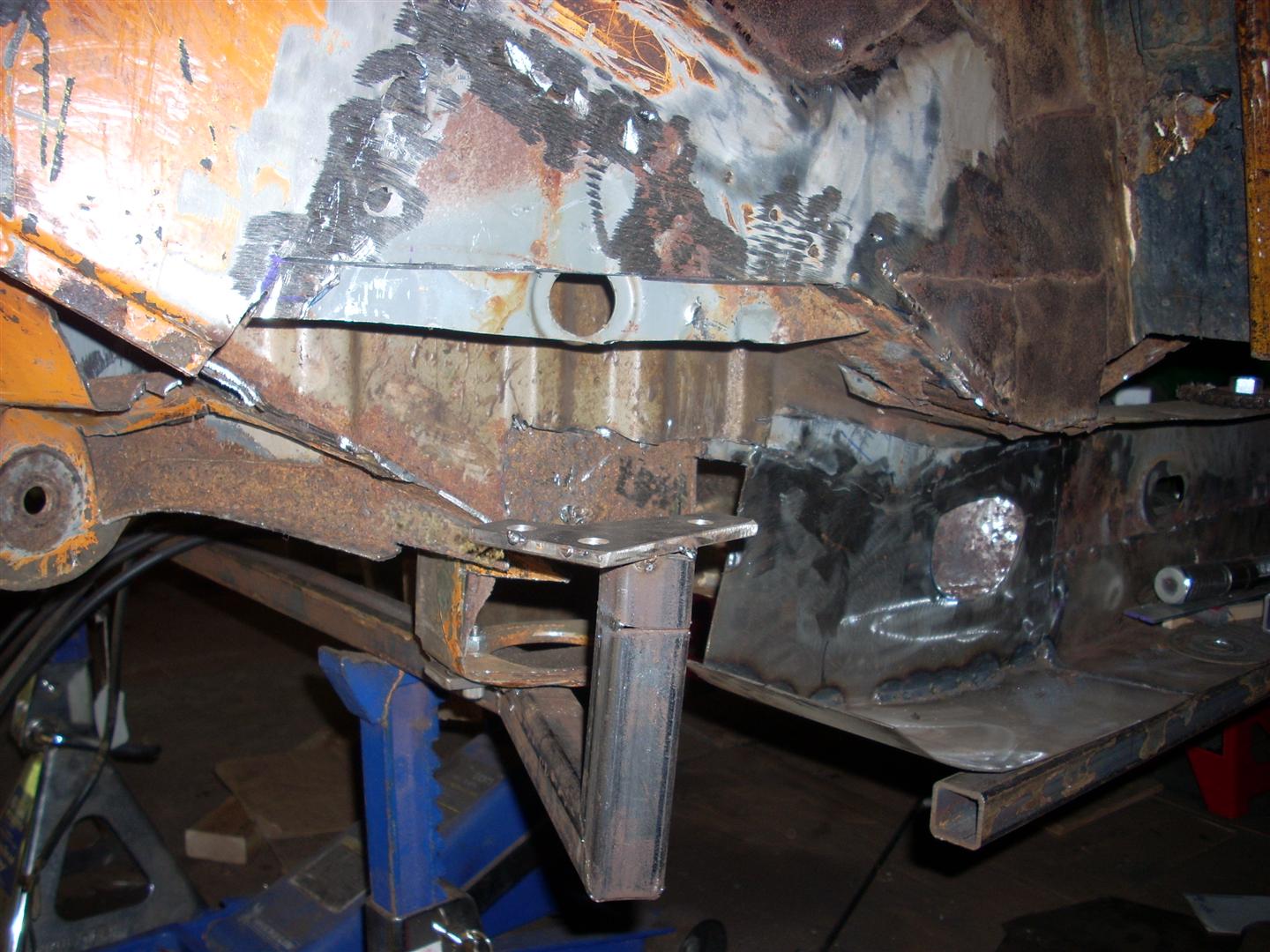

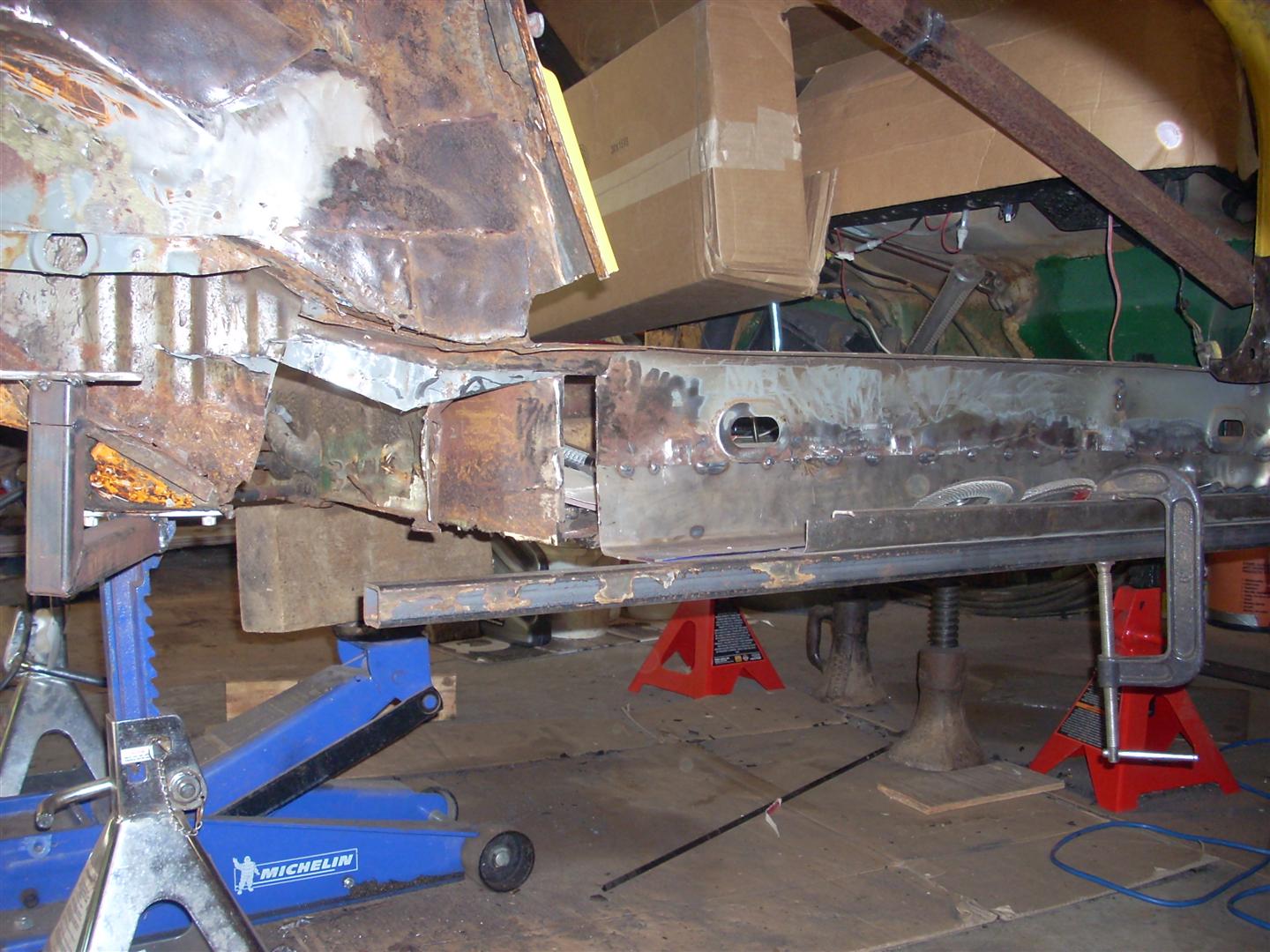

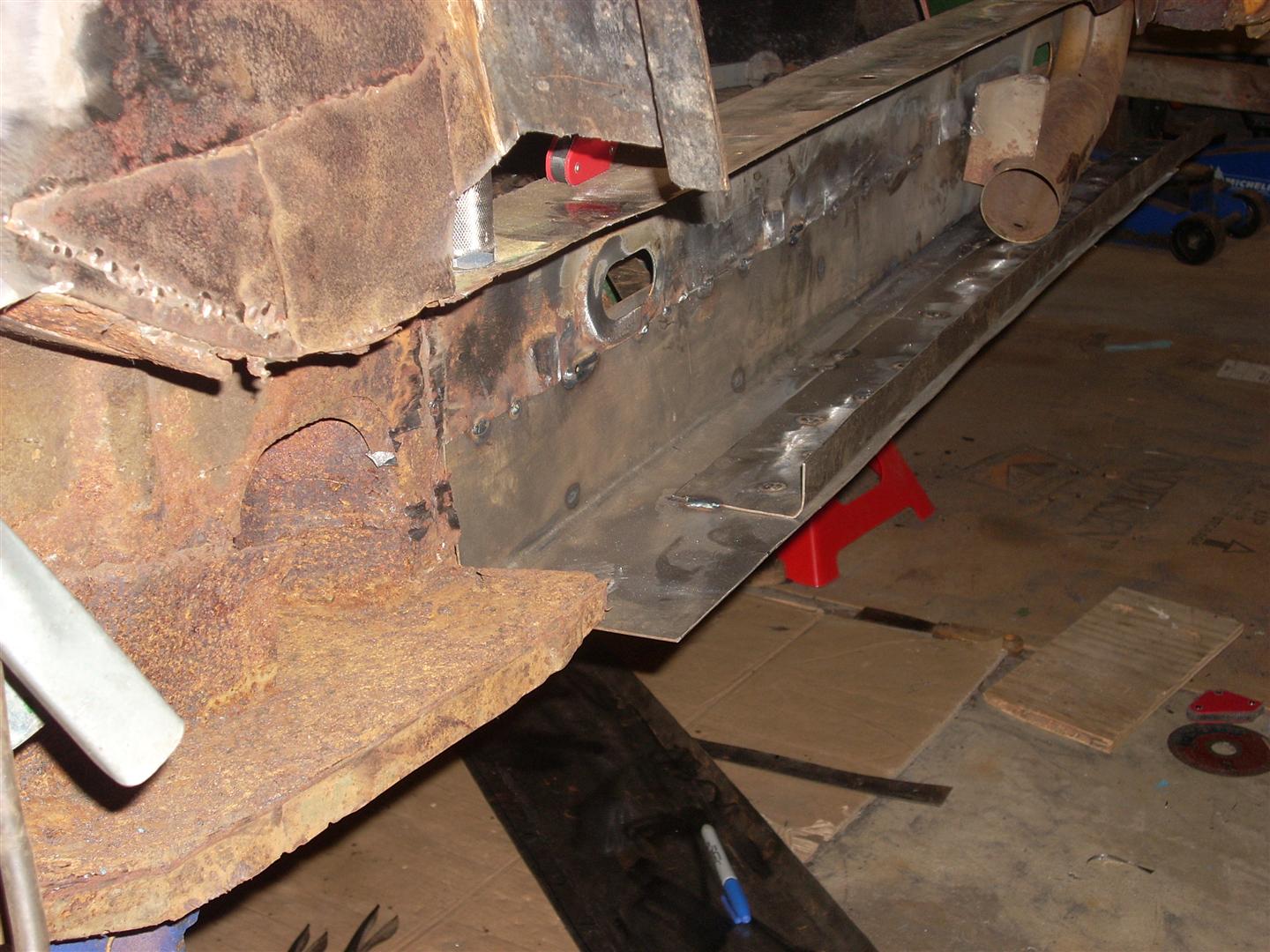

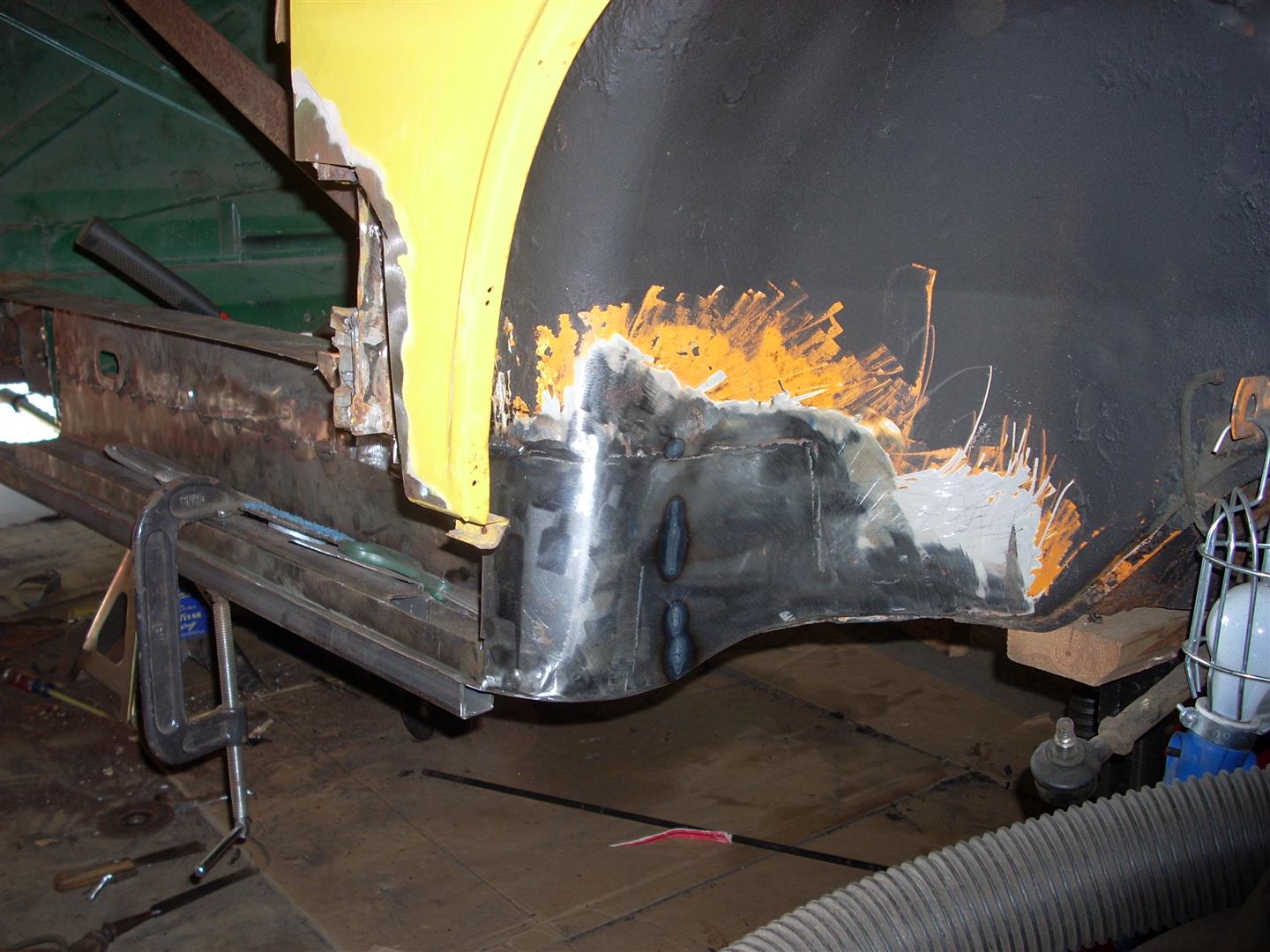

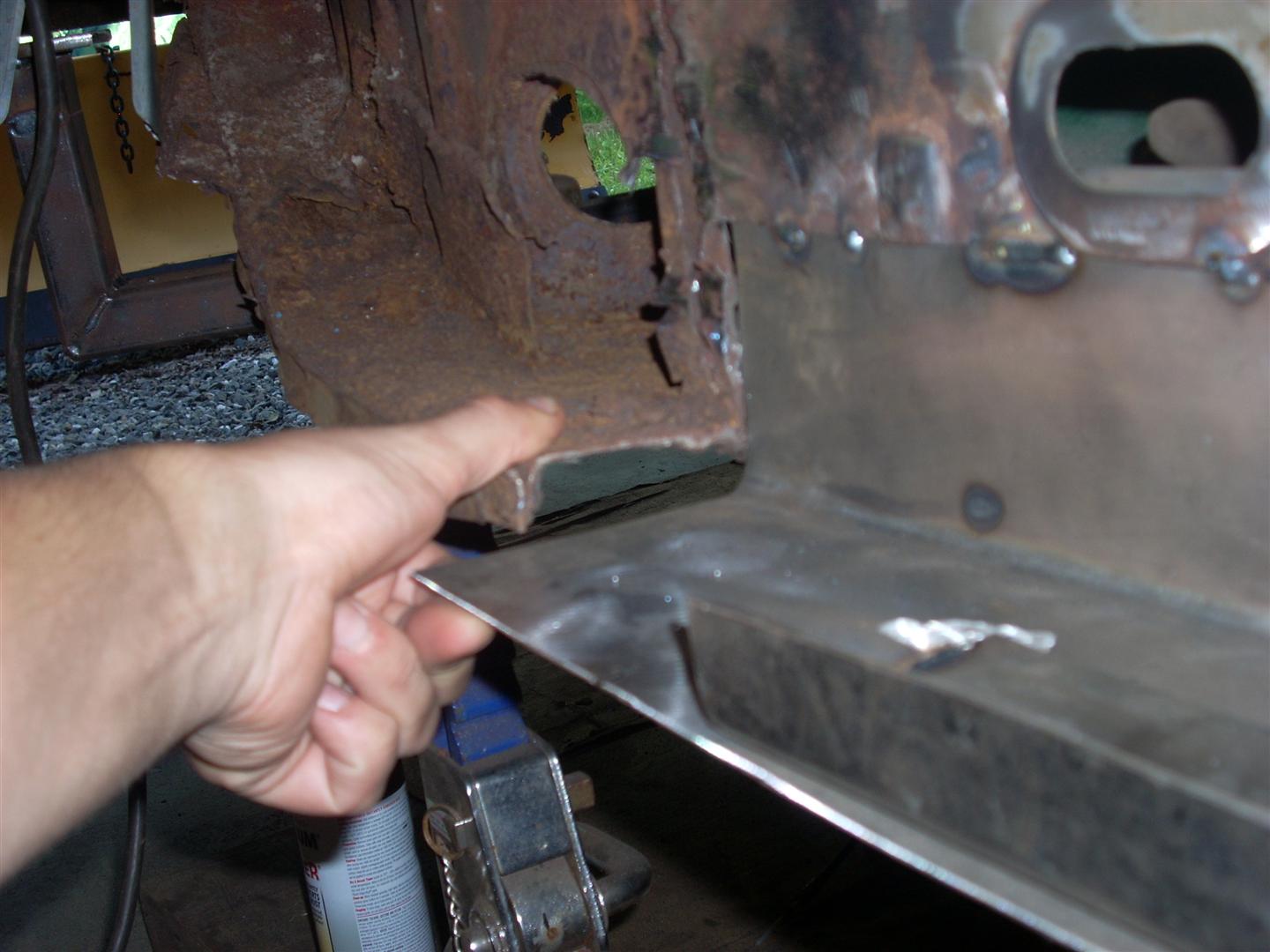

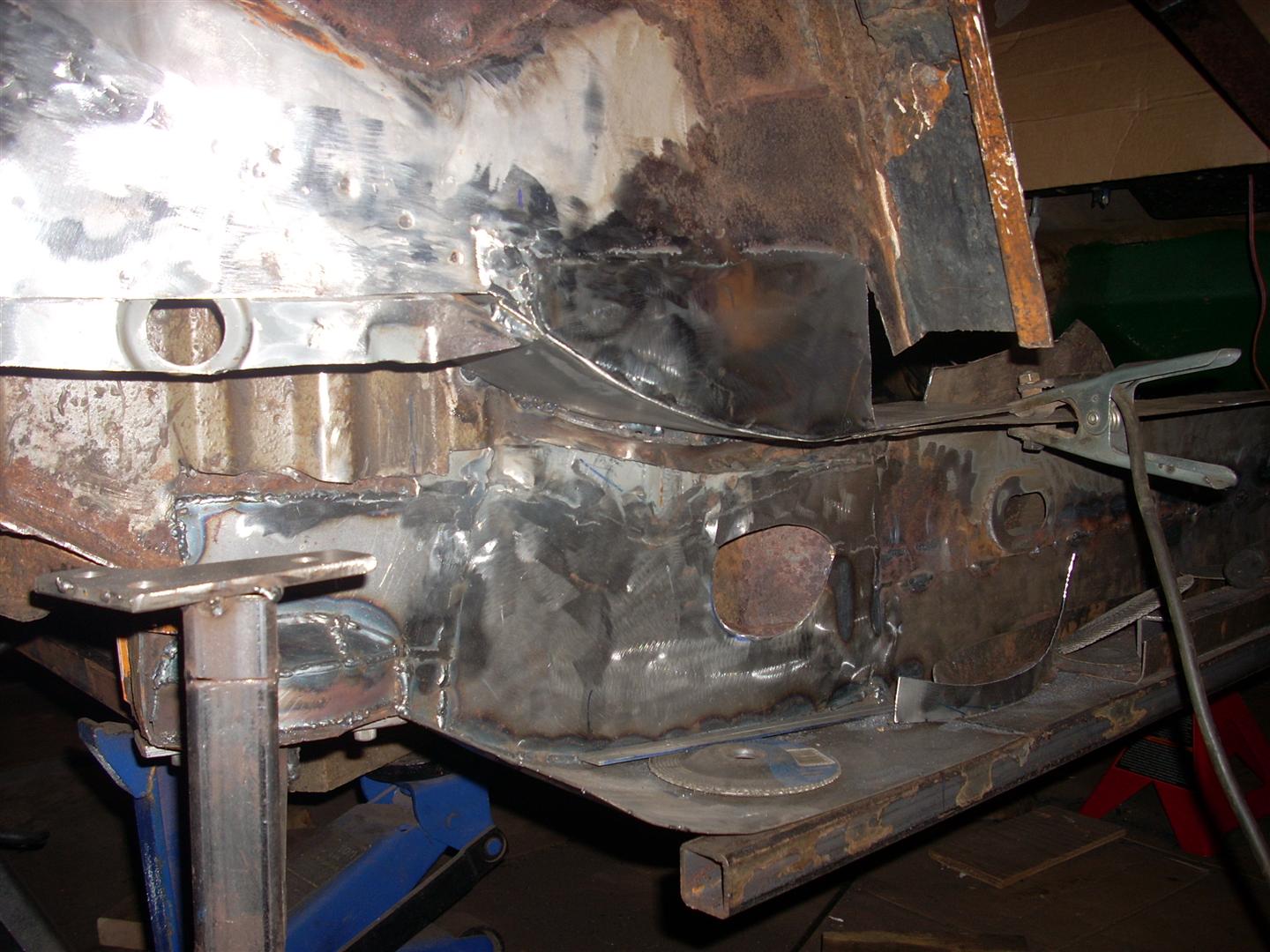

The last pictures ended with about 60% of the right long pulled off and a whole bunch more metal cut out. Since the car was dimensionally-unstable at this point, the immediate need was to fix most of the structure. The next pictures show the first portion of the inner long fix.

You'll notice that I'm not remaking the metal in exactly the same fashion as it was removed, it's actually about 12mm taller than the original cross-section and will have extra stiffening plates installed on the top and bottom faces. This modification increases stiffness more than an Engman kit (I'm tired now, but I'll write in the moment of inertial calculations later) without adding much additional weight (it's stiffness-to-weight efficiency is actually much better than Engman's and slightly better than the factory). It also has the added benefit of being essentially free since I'm making all of the pieces from sheet anyways. The oddly placed channel is for this buildup. When I get to posting the math details I'll also post a sketch of the new metal so everyone who wants can see how I'm adding it.

The inner fender well repair panel needed to have a slightly odd end finish to match the frame rail end, but I think it came out pretty nicely.

The rest of the pictures show some additional metal replacement at the engine mounts and hot air inlet duct section. Chances are these heater ducts will not come back in as originally intended and will instead become wire chase-ways for the ECU. The duct cutout in the new metal at duct inlet is funny looking (weird non-oval shape) since it has yet cut to the exact opening. The hell hole bottom wasn't too bad, but while in there seemed like a prudent replacement.

That's all for now...so enjoy some pictures. (IMG:style_emoticons/default/smile.gif)

Attached Image
Attached Image
Attached Image
Attached Image
Attached Image
Attached Image
Attached Image
Attached Image
Attached Image
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Dec 27 2013, 07:59 AM
Post #12


I am Tangerine Racing
*****

Group: Members
Posts: 7,333
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None



Wow, a little bit of project creep there. Better now than later though.
Looks like a good time to install a raised suspension pickup kit while you're at it. (IMG:style_emoticons/default/smile.gif)

We have a chassis here which needs much of the same repair work.
Ed's busy bolting it down to our Slutty bench right now.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Dec 27 2013, 06:38 PM
Post #13


Custom Member
***************

Group: Members
Posts: 22,475
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States



When the heck did you do that? Last week?

And Chris, I must have missed the slutty bench last time I was there, it's on my must see list how.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jd74914
post Dec 27 2013, 11:52 PM
Post #14


Its alive
****

Group: Members
Posts: 4,216
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States



QUOTE(Racer Chris @ Dec 27 2013, 08:59 AM) *

Wow, a little bit of project creep there. Better now than later though.
Looks like a good time to install a raised suspension pickup kit while you're at it. (IMG:style_emoticons/default/smile.gif)


Yes, just a little scope creep. I figured it'd be nice to build what I [think I] want the first time around. I just raised the front spindles and have been thinking about the rear. (IMG:style_emoticons/default/laugh.gif)

QUOTE

Ed's busy bolting it down to our Slutty bench right now.

(IMG:style_emoticons/default/lol-2.gif)

QUOTE(r_towle @ Dec 27 2013, 07:38 PM) *

When the heck did you do that? Last week?


Hahaha A few weeks ago...I'm trying to get everything up to date now.

--------------------------

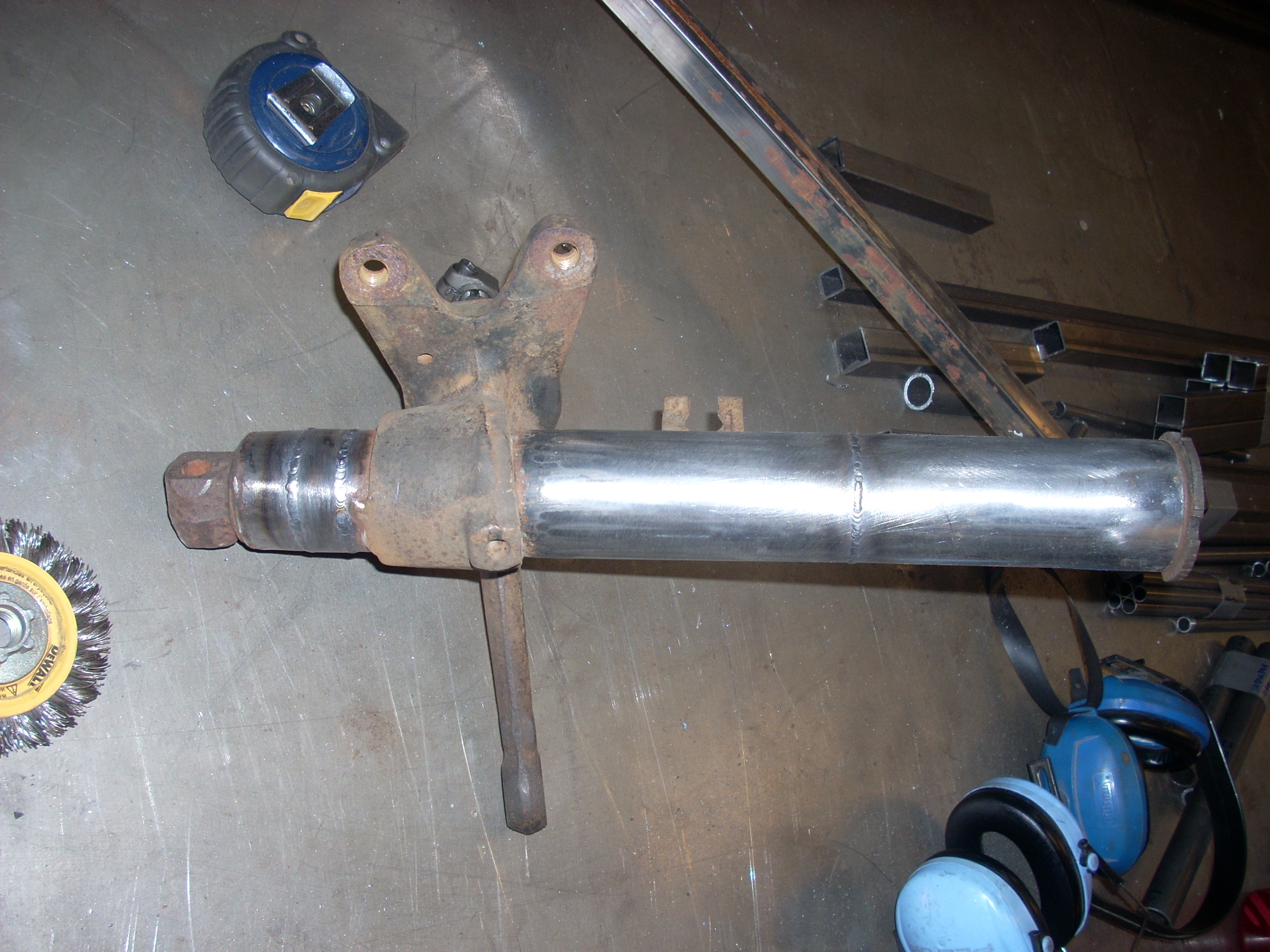

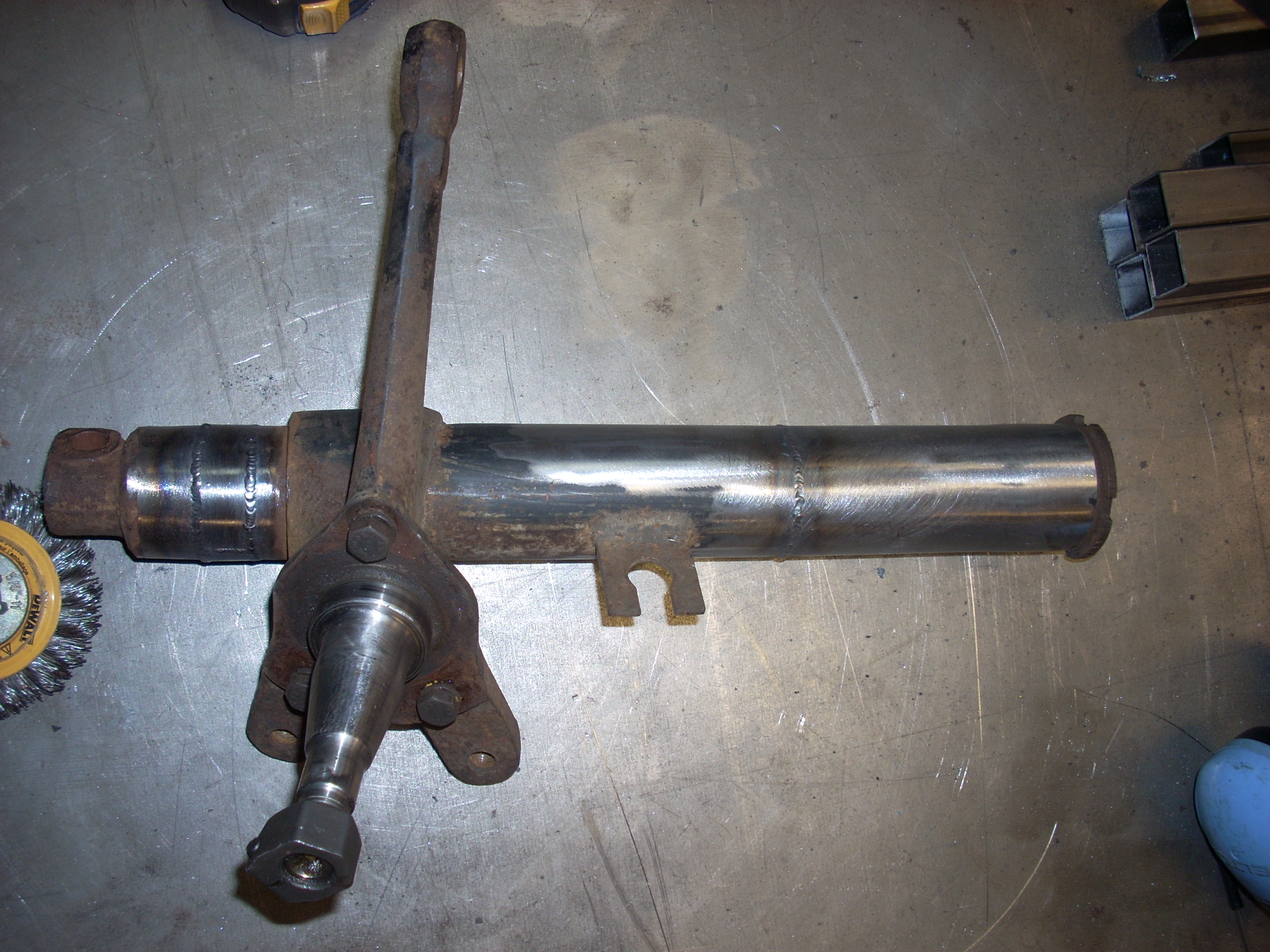

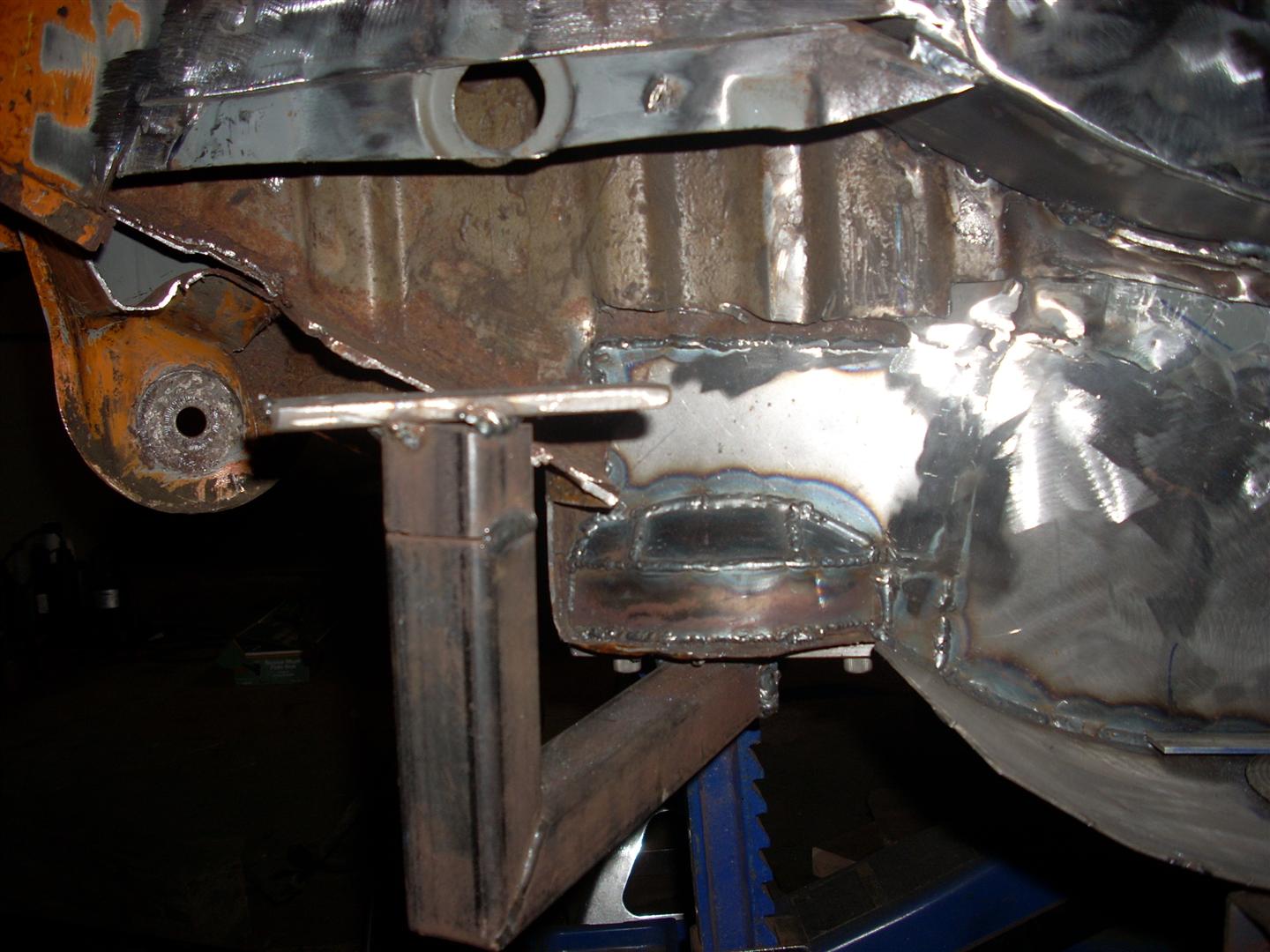

As a change of pace I raised my front spindles 18mm (slightly under the fit limit of a 15 inch wheel). Since I started with tapered Boge struts, raising required a little sectioning rather than a simple weld cut, press, and new weld. I sectioned a length from the strut top, cut the strut bottom, and then TIG'd the spool in. Note that the sectioned piece needed to be tacked and then shaved length-wise to fit the strut bottom's smaller dimensions. Unfortunately, I didn't take pictures of the process, only the "final" product.

Note that I'm going to put a RSR-style double shear tie rod mount onto the strut, machine a tapered bolt to fit the existing tie rod end, and a few spacers to play with the bumpsteer.

Attached Image
Attached Image

*The strut housings are straight despite ho they might look in pictures. (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
saigon71
post Dec 28 2013, 08:45 AM
Post #15


Senior Member
***

Group: Members
Posts: 1,667
Joined: 1-June 09
From: Dillsburg, PA
Member No.: 10,428
Region Association: MidAtlantic Region



Looking good...especially the jig to insure the suspension console is in the right spot.

In my experience, project creep just happens with these cars.

(IMG:style_emoticons/default/beerchug.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
jd74914
post Dec 29 2014, 03:09 PM
Post #16


Its alive
****

Group: Members
Posts: 4,216
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States



A late thanks Bob! (IMG:style_emoticons/default/smile.gif)

I was going through my camera and found some pictures of the next steps of this project (only a year after the last post haha).

In the past year I've jet-set all over the place for work, lost my job due to company bankruptcy, signed up for full time doctoral research in laser diagnostics, started an engineering consulting gig, had the opportunity to play with LeMans-grade engine control hardware (see Life Racing F88) and way too much more so my 914 progress has been super slooooooooooooooooooow. (IMG:style_emoticons/default/blink.gif) (IMG:style_emoticons/default/smile.gif) Hopefully life will let me get a little more done this year! (IMG:style_emoticons/default/laugh.gif)

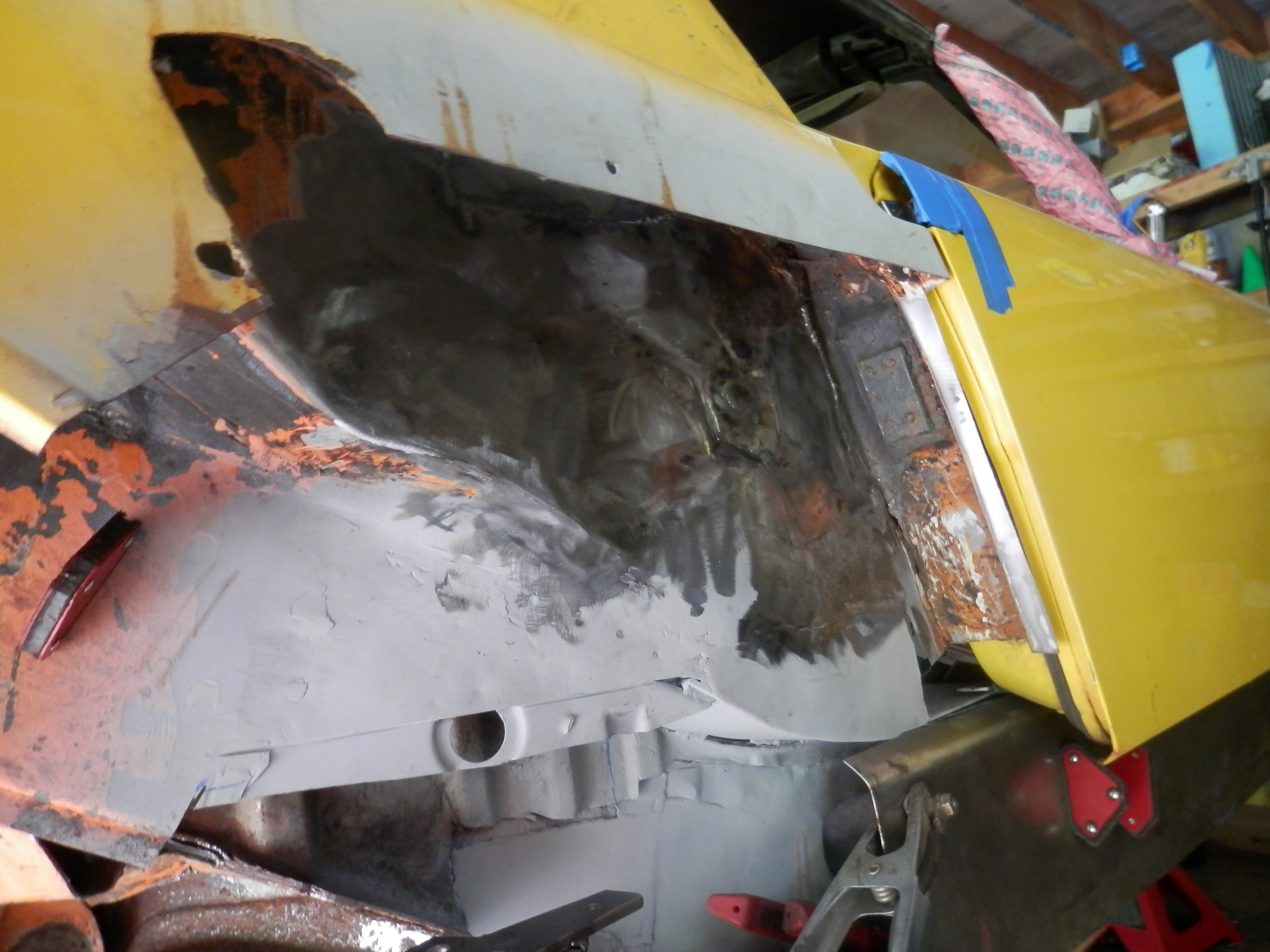

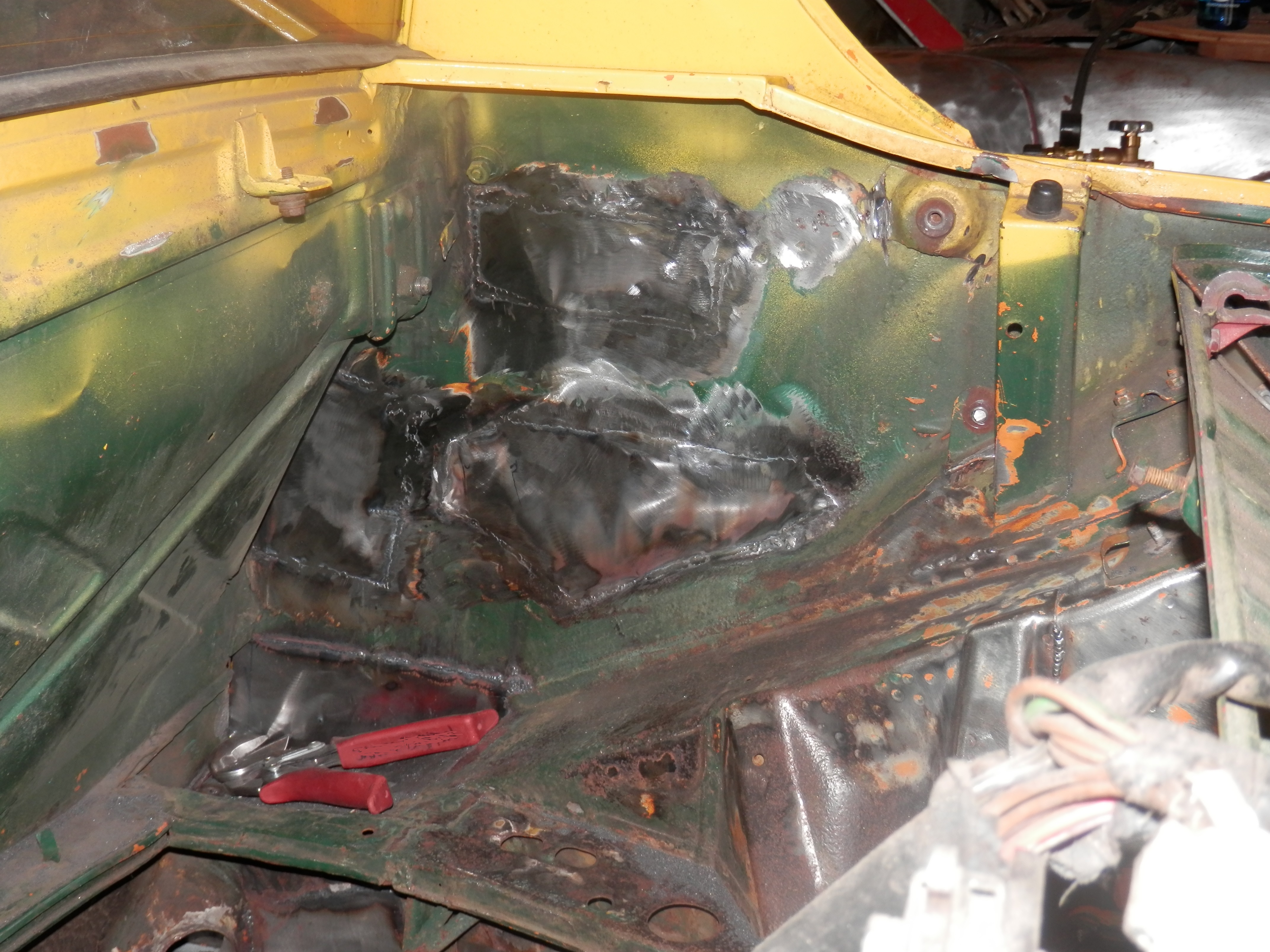

The first pictures show fixes to the general inner fender structure where the metal was either soft or had been poorly replaced the first time around.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jd74914
post Dec 29 2014, 03:10 PM
Post #17


Its alive
****

Group: Members
Posts: 4,216
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States



Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Dec 29 2014, 03:15 PM
Post #18


I am Tangerine Racing
*****

Group: Members
Posts: 7,333
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None



QUOTE(jd74914 @ Dec 29 2014, 04:09 PM) *

...
, lost my job due to company bankruptcy,
...

How convenient for the new company to run out of money so quickly. Previous owner seemed to make it work for the long term.
I wondered how you made out when that happened but figured you would land on your feet either way.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Dec 29 2014, 03:23 PM
Post #19


Custom Member
***************

Group: Members
Posts: 22,475
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States



is the car originally green, orange, or yellow?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jd74914
post Dec 29 2014, 03:43 PM
Post #20


Its alive
****

Group: Members
Posts: 4,216
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States



Over the course of last winter, I couldn't stop thinking about lowering the rear of the car. Unfortunately, I wasn't comfortable dropping the roll center super low just by cranking down on a set of threaded spring perches without making any kinematic changes. I actually drew up both the front and rear suspension in a kinematic software I have access to and looked into modifying the pivot points, etc. Through this modeling I decided to raise the rear trailing arm mounts (just as a note changing from trailing arm to multi-link suspension was considered, but in the end I decided to stay semi-trailing arm since an suspension genre switch is really easier in a full custom car).

Additionally the car needed new bushings. As this project was moving more into the realm of questionably street-able I decided to try something different and switch to spherical bearings in the rear pivots. I'm still a little worried about how they are going to work, but my rationale was that in the worst case I would just throw away my modified arms and cut the inner pivot out of the car for replacement with something a different. The cost to change is pretty low so I'm not too worried; the most disappointing part would be throwing away the machining necessary to make the new "pivot shafts."

Just for size reference, the sphericals have a 3/4" bore. I went with this size because it most closely matched the size of the existing pivots. I don't remember the exact numbers, by the factor of safety for the spherical (radially-loaded) is something like 8 if the car experiences a 3g bump, 2g brake, and 2g lateral load all at the same time with the entire weight of the car on a rear wheel. (IMG:style_emoticons/default/laugh.gif)

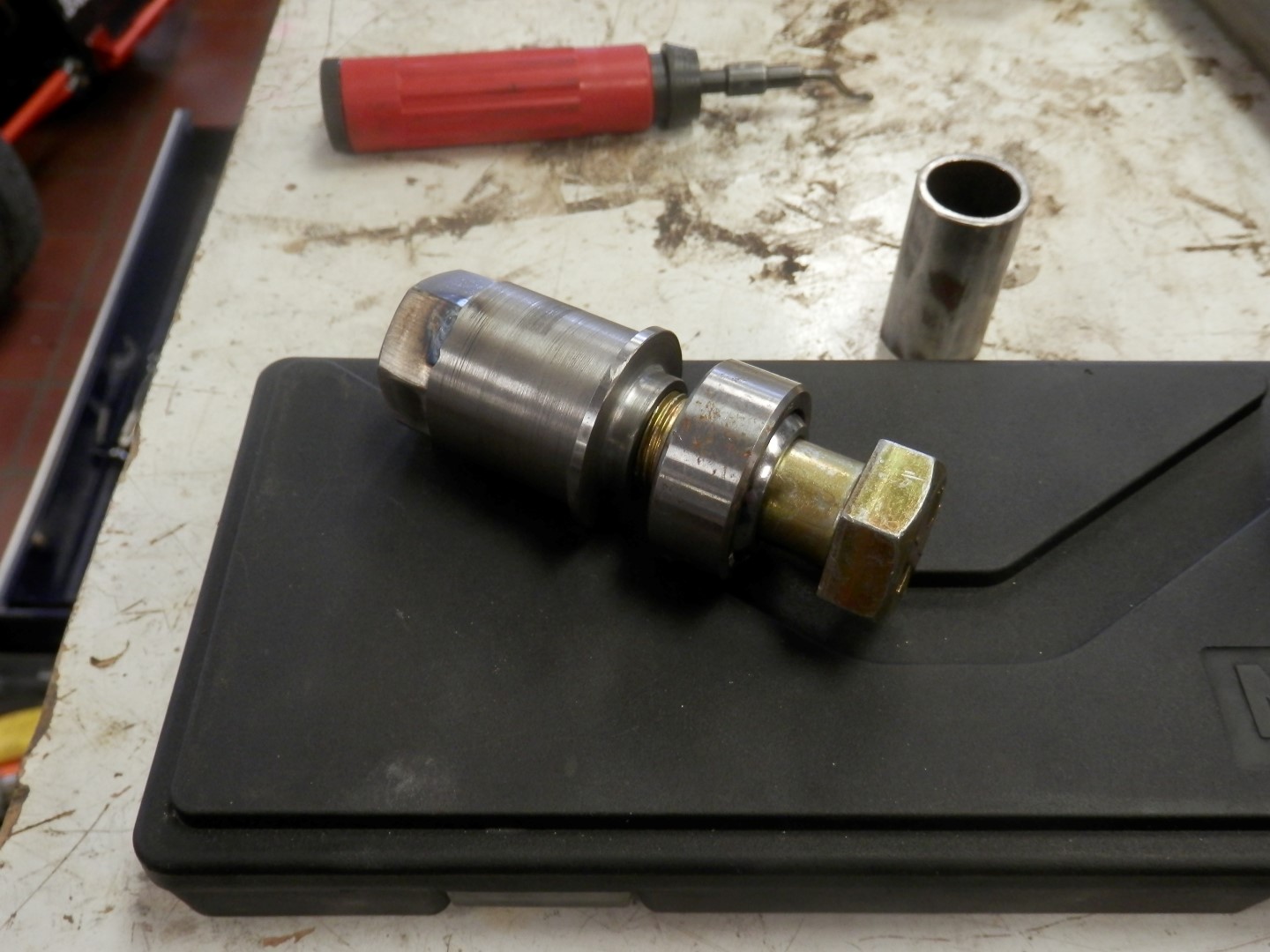

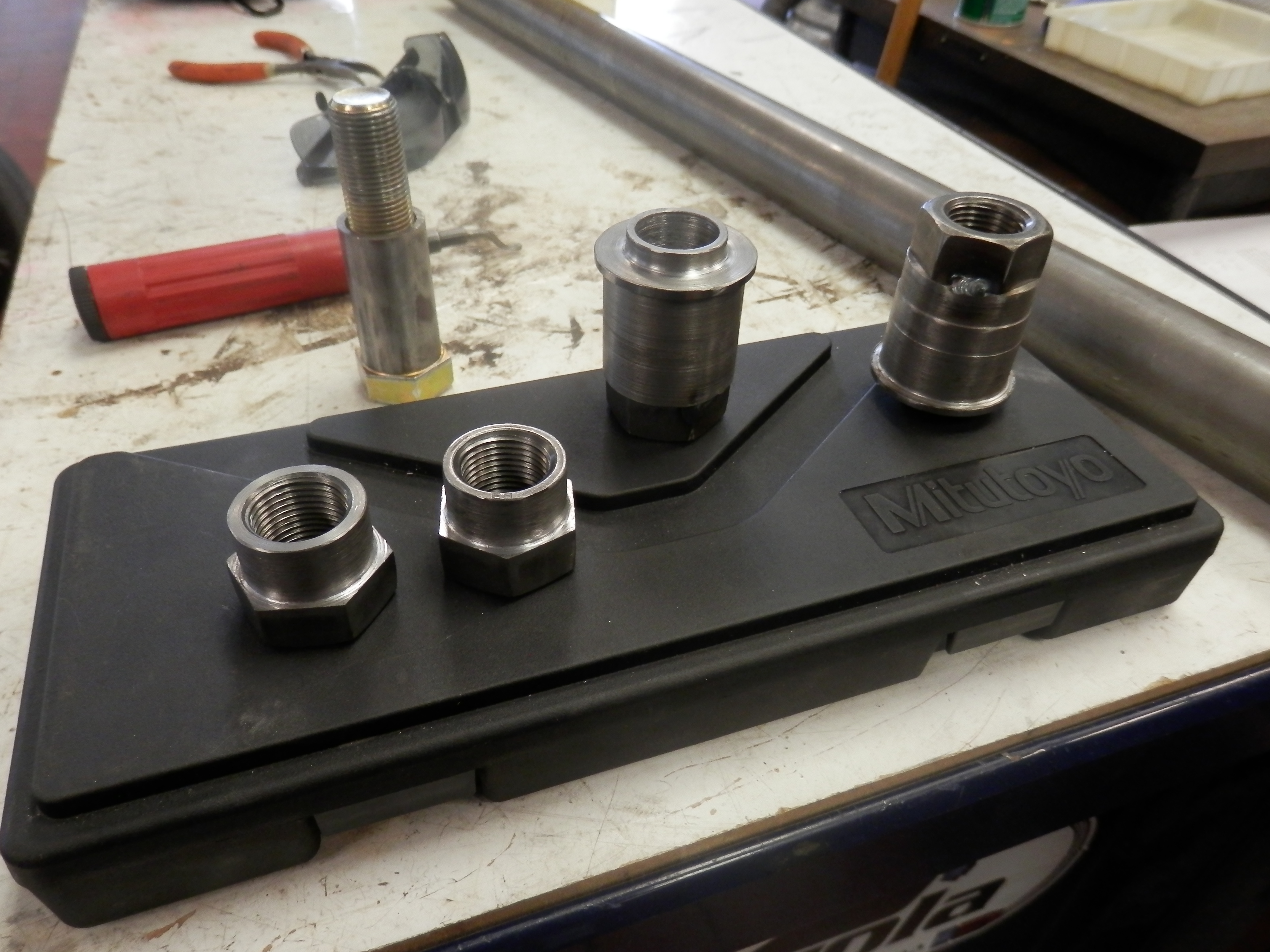

Anyways, the next pictures show a little suspension modeling (no real kinematics unless some really wants to see plots) and then the trailing arm inserts. They were machined as such because I did not want a stress concentration for the bolt at the trailing arm/spherical interface. As designed, the bolt shank goes through the spherical and into a flat in the trailing arm and the the threaded portion starts. The tube everything is combined in gets pressed into the trailing arms and the edges welded. I don't have pictures of the part but it all went pretty smoothly.

Attached Image
Attached Image
Attached Image
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

5 Pages V  1 2 3 > »
Reply to this topicStart new topic
1 User(s) are reading this topic (1 Guests and 0 Anonymous Users)
0 Members:





- Lo-Fi Version Time is now: 13th December 2018 - 09:20 PM
