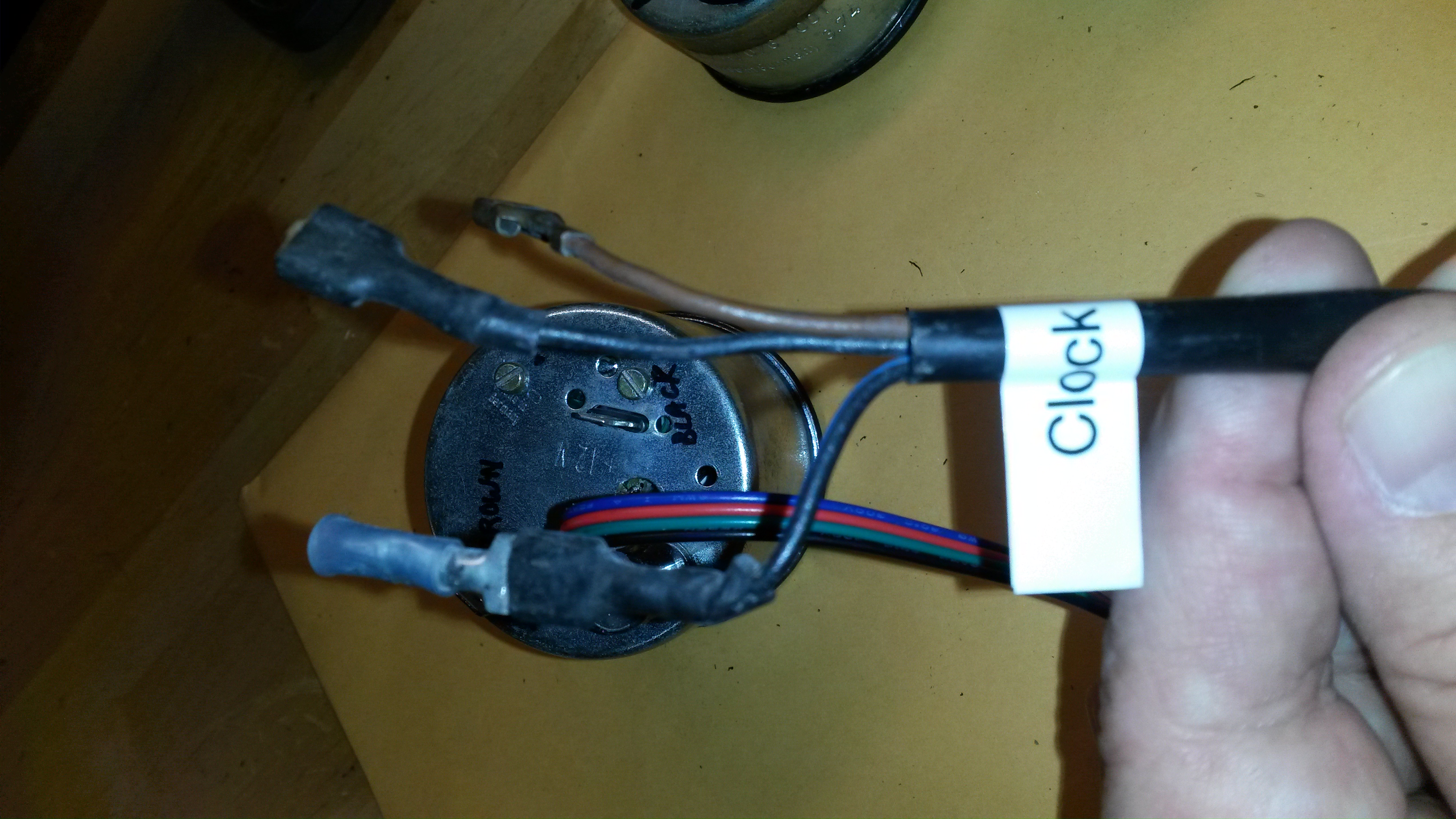

I took off the console wires and labeled the wires and gauges on the end I took off before paint.

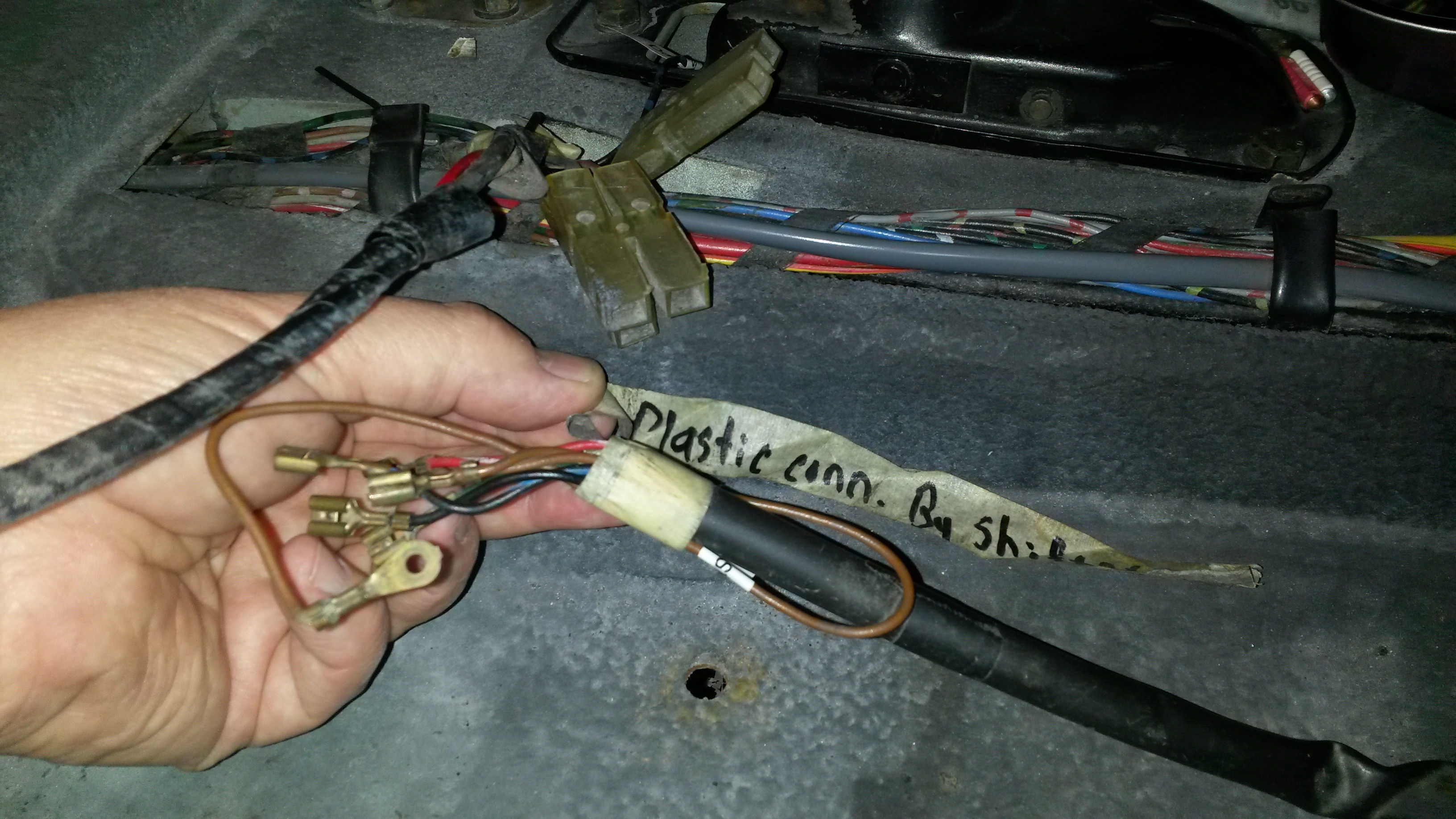

 After I got my car back from the paint shop I found the other side of the cable disconnected and sitting in the floor of the car with a note on the tape that said plastic conn. by shifter.  The problem is the wires do not seem to match exactly. Should it match like this? Plastic connectors_____Console wire gauge end Black Black/Red_____Black xxxxxxxxxxxxxxx____Black/Blue Brown______________(2) brown wires Black/Blue (Defrost)___Brown (Defrost) Red/White____________Red/White Green/Black__________Green/Black Gray________________xxxxxxxxx Anyone got the correct way to match the wires? |
   |

|
Posts in this topic
914four Console Wiring Jan 18 2014, 08:49 PM
dangrouche here is club member who penciled it out
http://ww... Jan 18 2014, 09:24 PM 914four Thanks Dangrouche! That is exactly what I nee... Jan 19 2014, 09:17 AM  |
