> push rod wear, can anyone explain?
malcolm2
post Apr 5 2014, 07:24 PM
Post #1


Advanced Member
****

Group: Members
Posts: 2,747
Joined: 31-May 11
From: Nashville
Member No.: 13,139
Region Association: South East States
Just helped remove a 1.7 today and this is what came out of it.

There were probably 4 push rods that had varying amounts of this wear. I could make a guess at what caused it, but this end was seated in the lifter.

Just curious.... anyone want to guess?

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
stugray
post Apr 5 2014, 07:41 PM
Post #2


Advanced Member
****

Group: Members
Posts: 3,825
Joined: 17-September 09
From: Longmont, CO
Member No.: 10,819
Region Association: None
wow that was close to failure!

the pushrod retainer spring was installed wrong and it has been rubbing.
Apparently for a long time.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Apr 5 2014, 07:41 PM
Post #3


Custom Member
***************

Group: Members
Posts: 24,705
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
Push rod tube retainer spring is installed improperly and rubbed against the push rod....for a while it looks like.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
malcolm2
post Apr 5 2014, 07:59 PM
Post #4


Advanced Member
****

Group: Members
Posts: 2,747
Joined: 31-May 11
From: Nashville
Member No.: 13,139
Region Association: South East States
QUOTE(r_towle @ Apr 5 2014, 08:41 PM) *

Push rod tube retainer spring is installed improperly and rubbed against the push rod....for a while it looks like.



That is what I thought. But the end with the notch was opposite the end with the spring. All the rods with damage were seated in the lifters. I pulled the 1st one out and said, "man, I wonder what that lifter did to the push rod."

So the next guess is that someone did a tremendous dis-service and installed junk parts.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
stugray
post Apr 5 2014, 10:29 PM
Post #5


Advanced Member
****

Group: Members
Posts: 3,825
Joined: 17-September 09
From: Longmont, CO
Member No.: 10,819
Region Association: None
maybe that's someone's idea of lightening the valve train (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bob L.
post Apr 5 2014, 10:52 PM
Post #6


Senior Member
***

Group: Members
Posts: 848
Joined: 7-August 11
From: Austin TX
Member No.: 13,411
Region Association: Southwest Region
Maybe the DAPO flipped them around when they noticed it? (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Black22
post Apr 5 2014, 10:59 PM
Post #7


Senior Member
***

Group: Members
Posts: 886
Joined: 1-November 07
From: Creswell, OR
Member No.: 8,290
Region Association: Pacific Northwest
That actually looks machined! Almost too perfect for rubbing on the retaining wire.
(IMG:style_emoticons/default/WTF.gif) (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
VaccaRabite
post Apr 6 2014, 09:23 AM
Post #8


En Garde!
**********

Group: Admin
Posts: 13,728
Joined: 15-December 03
From: Dallastown, PA
Member No.: 1,435
Region Association: MidAtlantic Region
QUOTE(Black22 @ Apr 5 2014, 11:59 PM) *

That actually looks machined! Almost too perfect for rubbing on the retaining wire.
(IMG:style_emoticons/default/WTF.gif) (IMG:style_emoticons/default/confused24.gif)

(IMG:style_emoticons/default/agree.gif)
That looks like it was turned on a lathe. And it's not on the spring end.
Zach
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
VaccaRabite
post Apr 6 2014, 09:48 AM
Post #9


En Garde!
**********

Group: Admin
Posts: 13,728
Joined: 15-December 03
From: Dallastown, PA
Member No.: 1,435
Region Association: MidAtlantic Region
That was turned on a lathe. Someone goofed on their geometry and started shortening the pushrod. The left cut is the same angle as the shoulder and the groove is the same length as the pushrod tip.
LOL!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Apr 6 2014, 09:49 AM
Post #10


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
If the lifter is doing its job right, it spins a little each time it moves. So the pushrods turn with it and this is what you get.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jake Raby
post Apr 6 2014, 09:49 AM
Post #11


Engine Surgeon
*****

Group: Members
Posts: 9,398
Joined: 31-August 03
From: Lost
Member No.: 1,095
Region Association: South East States
Nope, retaining wire got it.. It was probably inverted at some point by someone who didn't care, or didn't know any better.

The pushrod rotates as it reciprocates, which is what leads to this perfectly machined surface.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MrHyde
post Apr 6 2014, 10:51 AM
Post #12


Senior Member
***

Group: Members
Posts: 525
Joined: 13-October 10
From: Ontario, Canada
Member No.: 12,268
Region Association: None
That looks like one "spirited drive" away from becoming 2 pieces
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
stugray
post Apr 6 2014, 10:55 AM
Post #13


Advanced Member
****

Group: Members
Posts: 3,825
Joined: 17-September 09
From: Longmont, CO
Member No.: 10,819
Region Association: None
That just makes me wonder how much we could machine off the pushrods and they would be fine.
Every gram we take off the valve train helps (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jake Raby
post Apr 6 2014, 01:04 PM
Post #14


Engine Surgeon
*****

Group: Members
Posts: 9,398
Joined: 31-August 03
From: Lost
Member No.: 1,095
Region Association: South East States
QUOTE(stugray @ Apr 6 2014, 08:55 AM) *

That just makes me wonder how much we could machine off the pushrods and they would be fine.
Every gram we take off the valve train helps (IMG:style_emoticons/default/biggrin.gif)


Just because it lives doesn't mean that it won't deflect.. Deflection costs lift and duration at the valve.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Apr 6 2014, 02:11 PM
Post #15


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada

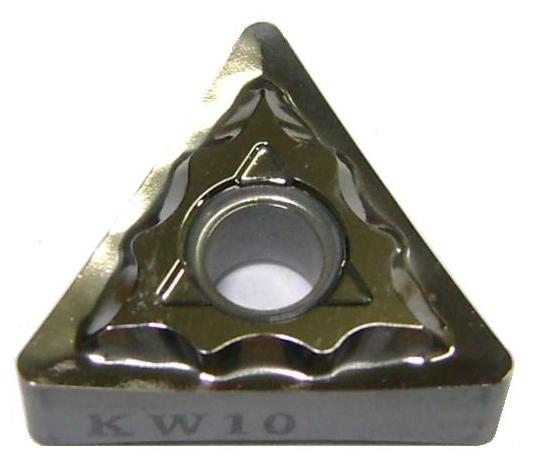

Turned on a lathe with a TNMG insert.

Attached Image

so.. you want to machine.
Titanium Nitride coated by vapour deposition.
tnmg is the code descriptor of one of thousands of configurations available.
the catalogs are great tomes too large to print these days so we download pdfs.
//http://www.sandvik.coromant.com//
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Apr 6 2014, 05:05 PM
Post #16


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
QUOTE(veekry9 @ Apr 6 2014, 01:11 PM) *

Turned on a lathe with a TNMG insert.

Teenage Ninja Mutant Gecko?


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Elliot Cannon
post Apr 6 2014, 07:15 PM
Post #17


914 Guru
*****

Group: Retired Members
Posts: 8,487
Joined: 29-December 06
From: Paso Robles Ca. (Central coast)
Member No.: 7,407
Region Association: None

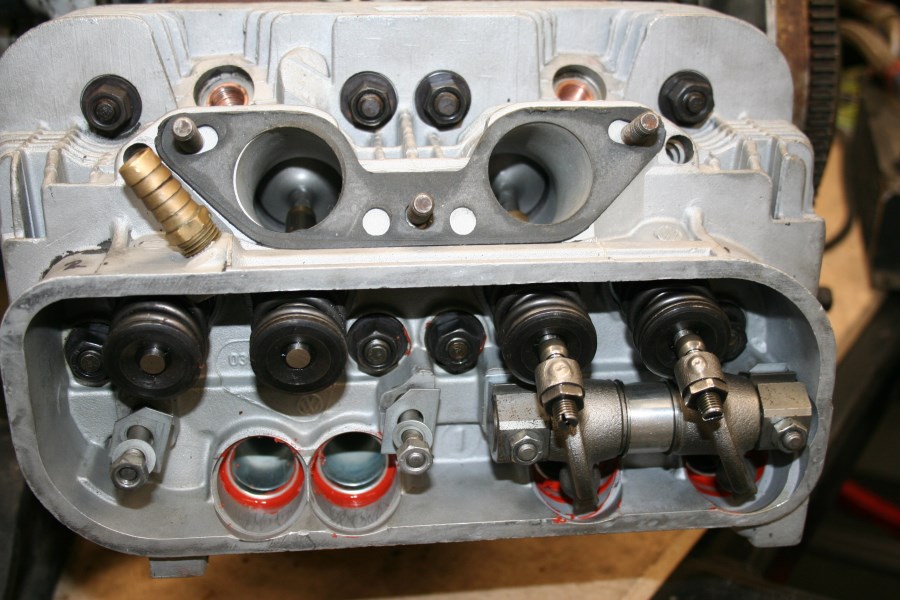

Push rod tube retainer springs? (IMG:style_emoticons/default/confused24.gif) I'm not sure what you're talking about. (IMG:style_emoticons/default/av-943.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Black22
post Apr 6 2014, 08:14 PM
Post #18


Senior Member
***

Group: Members
Posts: 886
Joined: 1-November 07
From: Creswell, OR
Member No.: 8,290
Region Association: Pacific Northwest
(IMG:style_emoticons/default/slap.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jake Raby
post Apr 6 2014, 09:52 PM
Post #19


Engine Surgeon
*****

Group: Members
Posts: 9,398
Joined: 31-August 03
From: Lost
Member No.: 1,095
Region Association: South East States
Dual springs with stock rocker studs.. Playing with fire!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Elliot Cannon
post Apr 6 2014, 09:59 PM
Post #20


914 Guru
*****

Group: Retired Members
Posts: 8,487
Joined: 29-December 06
From: Paso Robles Ca. (Central coast)
Member No.: 7,407
Region Association: None
Playing with fire for 25,000 miles. So far, so good. (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
