Under cowl A/C unit design input thread and gauging interest, replacing behr with burrr! |
Chris914n6 |
Jul 23 2014, 08:24 PM
Post
#1
|
Jackstands are my life. Group: Members Posts: 3,303 Joined: 14-March 03 From: Las Vegas, NV Member No.: 431 Region Association: Southwest Region |
Dusted off another one of my projects from when I first built my waterpumper. Heater and A/C replacing the factory fresh air blower unit.
History. I built the unit using a tube/fin core from my Uncle's buddy Dave @ Hotrod Air. HRA went under in the recession and so did the company that actually made the cores. Oddly enough this is a benefit despite having made some really nice wood vacuum forming bucks. The good news. For version 2 I went with separate heater and evap cores. The heater is off the shelf, I just need to trim the tubes. The evap I'm having made by a company I met at the 2013 SEMA show and is modern plate type. Blower is a 3 speed. The nitty gritty. Uses stock controls and stock air deflector boxes. Hoses run Pass side like DPD/VPC. I did design a setup for modern controls and deflector boxes with a separate side vent path, but it's a bit complicated to make. I have plans to offer 3 versions. Model B - A/C and heat for us waterpumpers. Runs recirc through the heater tube holes so no cutting. Unit is too tight of a fit for fresh air. I'll have an optional drainage piece for those that don't seal the grill. Model A - A/C only for aircooled cars. Because the heater tube holes are being used for heat, air intake will be from the grill opening. You could cut a 2.5" hole in the cowl for recirc instead if you wanted or use just one heat exchanger. Model H - Heater only for waterpumpers. Same unit as the A/C only except that recirc is possible through the heater hose holes OR model B with no evap, haven't decided yet. In the kit - Main unit, mounting brackets, air hoses & clamps, blower wiring, expansion valve, instructions. Options - Cabin filter. Grill water drain. The other pieces... Condensers- it depends on the radiator you using and what you can make fit, no point in me trying to keep an inventory. The exception could be a replacement to the DPD/VPC Condenser unit for air-cooled cars, I haven't gotten past doodles yet. Receiver-driers of the universal type can be had on Ebay for under $15 shipped, I'll pick one out for you, same with the pressure switch. Hoses, too many variations and too much overhead for me, but Vegas has 3 places that will build them on your car so I assume that's practically everywhere. Prices trend $100-$150. Hard lines- Research has spec'd it as 6063 aluminum. DPD/VPC used hard lines along the rocker and up the wheel wells. Heater hose- nothing special about it but it's long and 5/8"ID. Prices... about the same as the Hotrod kits. Manufacturing time is unknown and the biggest factor of course. I will have to buy 50+ evap cores to make this happen, so even if you are a year or more away from buying one speak up. Any feedback and who wants one? |
rnellums |
Jul 23 2014, 10:24 PM
Post
#2
|
Professional Enthusiast Group: Members Posts: 1,646 Joined: 26-November 09 From: Littleton, CO Member No.: 11,072 Region Association: Rocky Mountains |
In for H
|
Chris914n6 |
Jul 23 2014, 11:03 PM
Post
#3
|
Jackstands are my life. Group: Members Posts: 3,303 Joined: 14-March 03 From: Las Vegas, NV Member No.: 431 Region Association: Southwest Region |

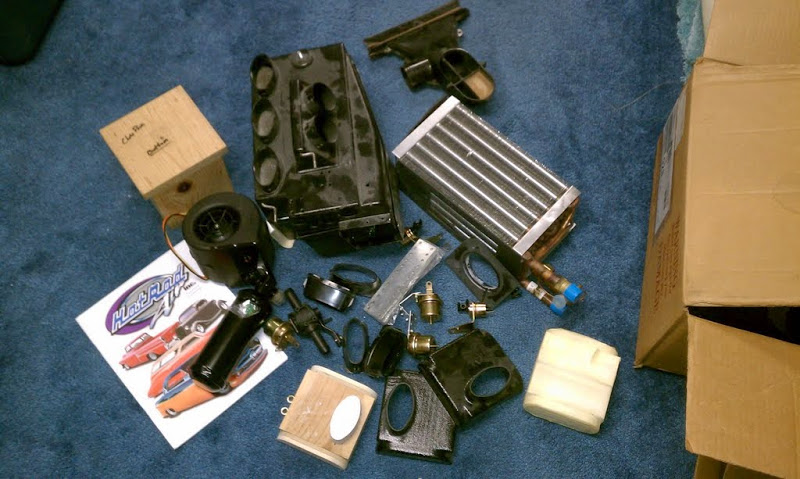

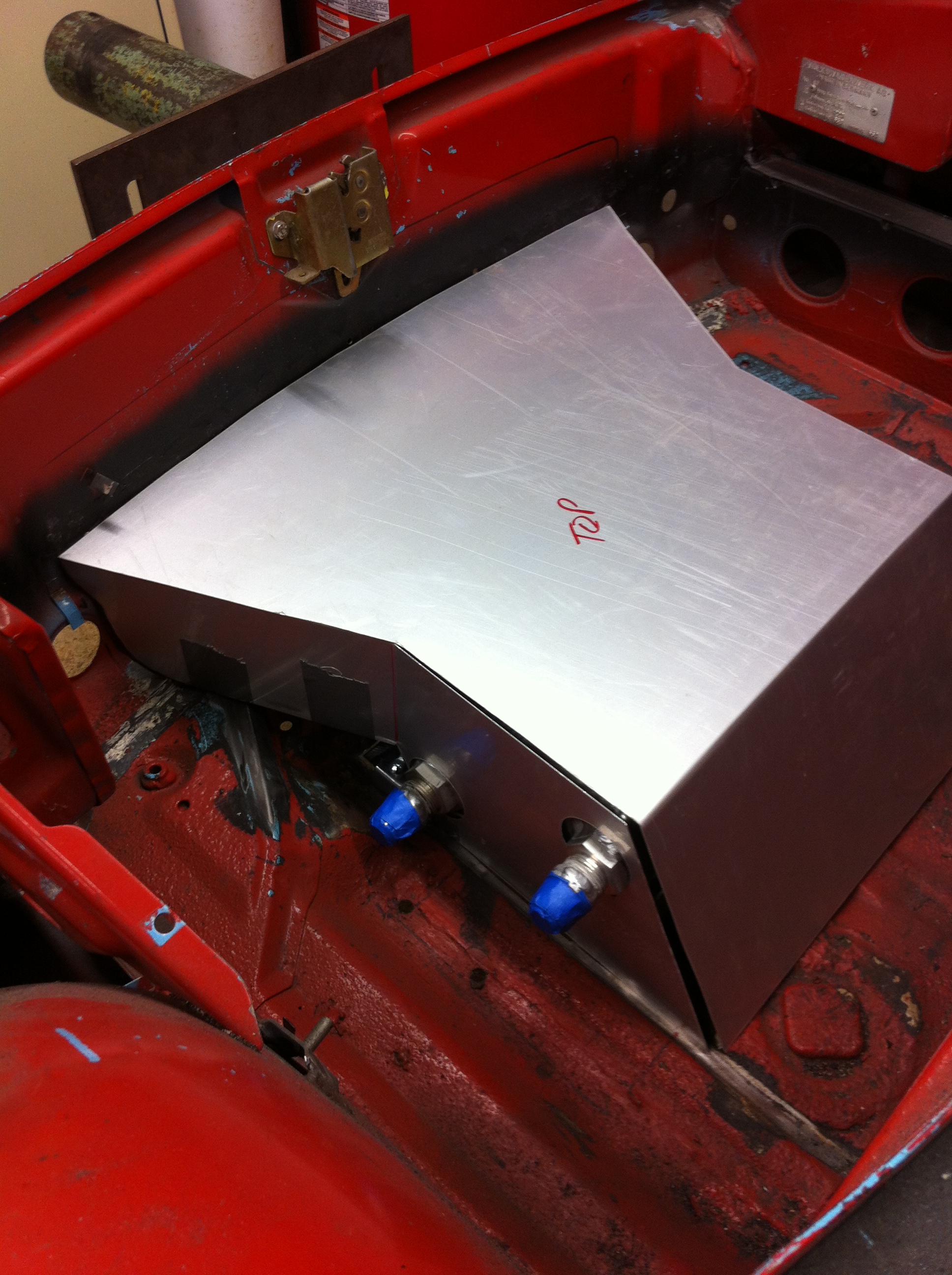

I promised a pic in another thread. Problem is I can't show the unit without giving away the details on how I got it to fit to the 2 other known fellas trying to do this. So this will have to do. It's all V1 stuff with the buck and pieces for the flapper boxes I was going to run with.
(IMG:http://www.914world.com/bbs2/uploads_offsite/lh4.googleusercontent.com-431-1406178212.1.jpg) |
914dave |
Jul 24 2014, 04:38 AM
Post
#4
|
914 Addict Group: Members Posts: 700 Joined: 19-October 03 From: Willow Grove Pa. Member No.: 1,262 Region Association: North East States |
I'd be interested in an AC only unit for my six conversion. Will the the AC will function in the standard heat and defrost channels? I would really like to hide the unit under the dash instead of below. I have a front mounted cooler that I made that should allow for the condensor, if its not too big. I have a 14 1/2 x 7 x 4 1/2" envelope to mount the condensor in direct air flow. There's a fan behind the oil cooler for traffic situations.
|
DBCooper |
Jul 24 2014, 06:58 AM
Post
#5
|
14's in the 13's with ATTITUDE Group: Members Posts: 3,079 Joined: 25-August 04 From: Dazed and Confused Member No.: 2,618 Region Association: Northern California |
Model B for me. I'm so happy you're taking this on, one of the few times I can remember that procrastination's worked out for me.
|
DRPHIL914 |
Jul 24 2014, 07:27 AM
Post
#6
|
Dr. Phil Group: Members Posts: 5,758 Joined: 9-December 09 From: Bluffton, SC Member No.: 11,106 Region Association: South East States |
Model A --
so do i understand correctly that this would be put in place of where the current fresh air box is, under the cowel, just in front of the gas tank? can you give me more information about how this all would hook up, such as the other necessary parts and how it hooks up, wiring, evap, compressor etc. |
pdlightning |
Jul 24 2014, 12:33 PM
Post
#7
|
Member Group: Members Posts: 207 Joined: 4-February 11 From: Santa Clarita Member No.: 12,660 Region Association: Southern California |
Model A -- so do i understand correctly that this would be put in place of where the current fresh air box is, under the cowel, just in front of the gas tank? can you give me more information about how this all would hook up, such as the other necessary parts and how it hooks up, wiring, evap, compressor etc. I am definitely in for Model B . I have a LS conversion and have been looking for someone like you! (IMG:style_emoticons/default/smile.gif) |
76-914 |
Jul 24 2014, 01:32 PM
Post
#8
|
Repeat Offender & Resident Subaru Antagonist Group: Members Posts: 13,490 Joined: 23-January 09 From: Temecula, CA Member No.: 9,964 Region Association: Southern California |
+1 on a B, here.
|
Chris914n6 |
Jul 24 2014, 01:43 PM
Post
#9
|
Jackstands are my life. Group: Members Posts: 3,303 Joined: 14-March 03 From: Las Vegas, NV Member No.: 431 Region Association: Southwest Region |
I'd be interested in an AC only unit for my six conversion. Will the the AC will function in the standard heat and defrost channels? I would really like to hide the unit under the dash instead of below. I have a front mounted cooler that I made that should allow for the condensor, if its not too big. I have a 14 1/2 x 7 x 4 1/2" envelope to mount the condensor in direct air flow. There's a fan behind the oil cooler for traffic situations. It is a direct replacement in form and function for the stock fresh air box. 2 outlets to the stock air deflector boxes. For aircooled motors the heat side stays stock. In the first pic I have a piece of cardboard blocking the defrost channel from fresh air to get more out of the side vent. Foggy windows not much of a problem where I'm at. The smallest aftermarket parallel flow condensers I've seen were 10"x18" or 12"x16". Might be something shorter in OEM. Found an 84-89 911 130mm x 477mm for ~$500 (IMG:style_emoticons/default/barf.gif) It's essentially just a high pressure ready heat exchanger so something else could work. |
Chris914n6 |
Jul 24 2014, 02:14 PM
Post
#10
|
Jackstands are my life. Group: Members Posts: 3,303 Joined: 14-March 03 From: Las Vegas, NV Member No.: 431 Region Association: Southwest Region |
Model A -- so do i understand correctly that this would be put in place of where the current fresh air box is, under the cowel, just in front of the gas tank? can you give me more information about how this all would hook up, such as the other necessary parts and how it hooks up, wiring, evap, compressor etc. You will need a compressor on the motor, pretty sure there is a kit of sorts by a member. You will need ac hoses made (local shop ideally) to go from the compressor to the receiver-drier and condenser (usually mounted in the front truck), from the condenser to the expansion valve and evaporator (my contributions), then from the evaporator back to the compressor. I think it was Bowlsby that had the VPC/DPD system install manuals on his website, the way they did it can't be beat. You will need an A/C on/off switch (I've got a few ideas to share). The new blower is a 3 speed like the stock controls so that's easy to wire, I might make a harness. |
andys |
Jul 24 2014, 02:49 PM
Post
#11
|
Advanced Member Group: Members Posts: 2,165 Joined: 21-May 03 From: Valencia, CA Member No.: 721 Region Association: None |
The smallest aftermarket parallel flow condensers I've seen were 10"x18" or 12"x16". Might be something shorter in OEM. Found an 84-89 911 130mm x 477mm for ~$500 (IMG:style_emoticons/default/barf.gif) It's essentially just a high pressure ready heat exchanger so something else could work. When I was kicking around some ideas and trying to find a small evaporator, I considered a power steering oil cooler as they're available in small sizes. Attach an expansion valve and fittings. Andys |
Chris914n6 |
Jul 25 2014, 01:52 PM
Post
#12
|
Jackstands are my life. Group: Members Posts: 3,303 Joined: 14-March 03 From: Las Vegas, NV Member No.: 431 Region Association: Southwest Region |

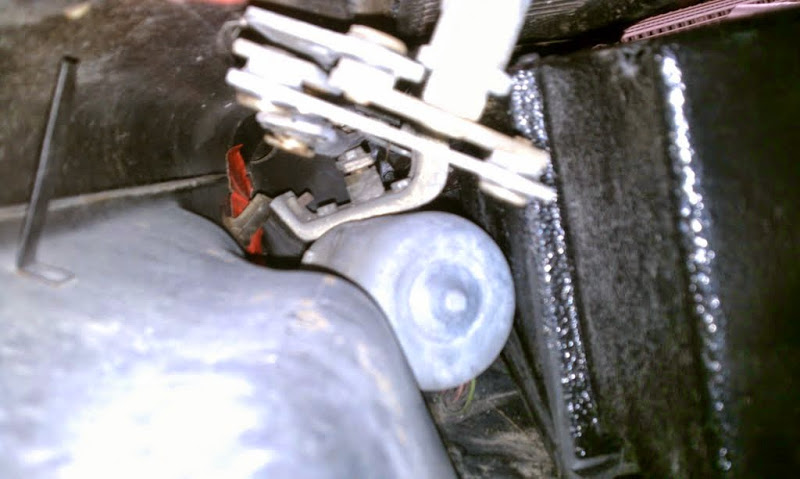

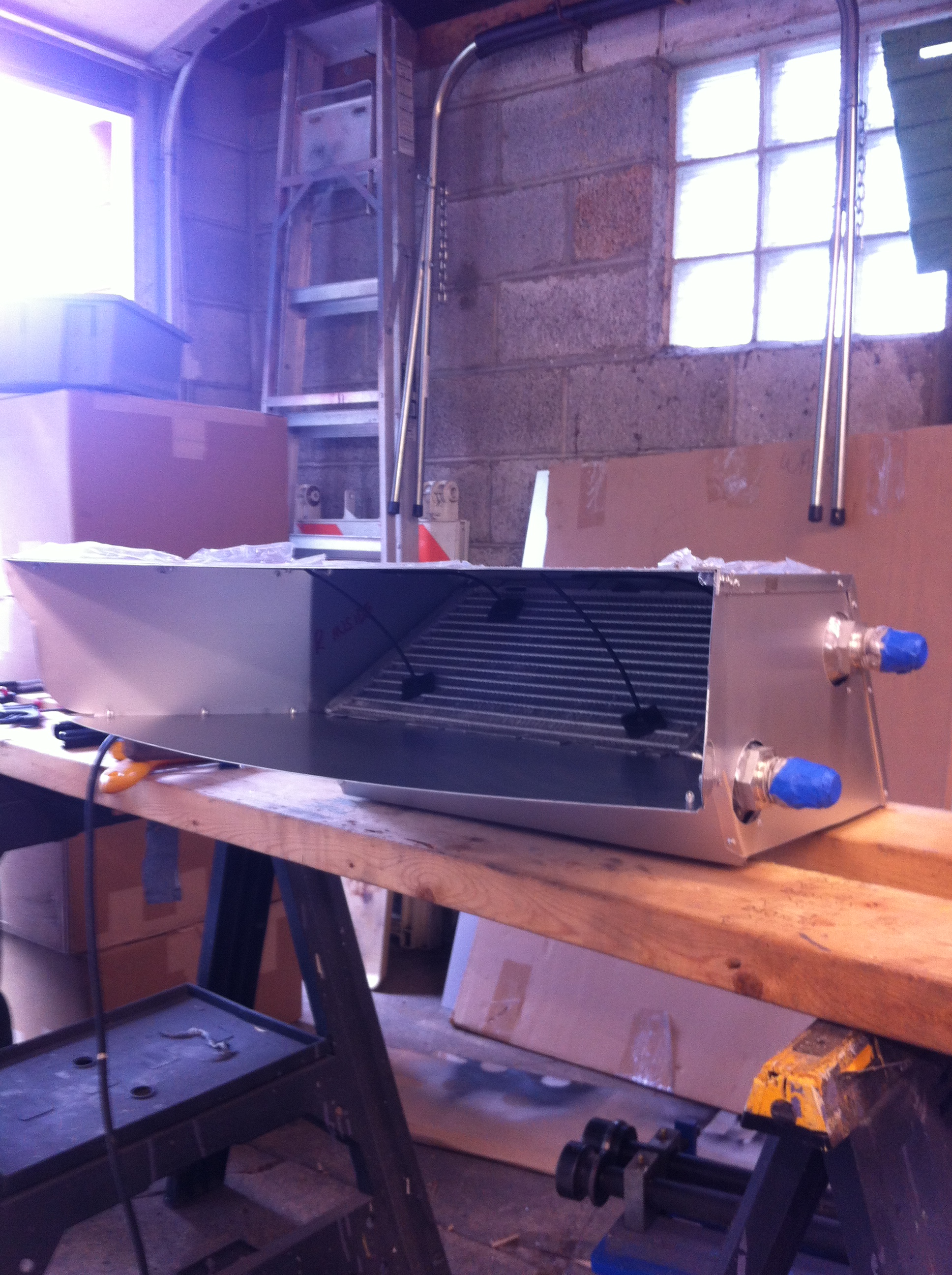

Ok, a teaser pic...
(IMG:http://www.914world.com/bbs2/uploads_offsite/lh3.googleusercontent.com-431-1406317936.1.jpg) Looks like I'll need to add a rubber wiper mount to my 914rubber shopping list. |
Chris H. |
Jul 25 2014, 02:04 PM
Post
#13
|
Senior Member Group: Members Posts: 4,027 Joined: 2-January 03 From: Chicago 'burbs Member No.: 73 Region Association: Upper MidWest |
Model B for me.
|
timothy_nd28 |
Jul 25 2014, 02:52 PM
Post
#14
|
Advanced Member Group: Members Posts: 2,299 Joined: 25-September 07 From: IN Member No.: 8,154 Region Association: Upper MidWest |
Thanks for taking on this project. (IMG:style_emoticons/default/beerchug.gif) I had a plan of redesigning the fresh air box by use of a 3d printer, but my project never gained traction. What type of metering device did you have in mind?
|
Chris914n6 |
Jul 25 2014, 07:11 PM
Post
#15
|
Jackstands are my life. Group: Members Posts: 3,303 Joined: 14-March 03 From: Las Vegas, NV Member No.: 431 Region Association: Southwest Region |
Thanks for the Thanks. I live in Vegas, it was kinda mandatory (IMG:style_emoticons/default/happy11.gif)
V2 is turning out better in every way over V1... guess sitting on it for 10 years wasn't such a bad thing (IMG:style_emoticons/default/yellowsleep[1].gif) Metering device? |
racerx9146 |
Jul 25 2014, 07:35 PM
Post
#16
|
good design never goes out of date.. Group: Members Posts: 174 Joined: 1-January 04 From: Sacramento, CA Member No.: 1,483 Region Association: Northern California |
As for me, been thinking of this for some time. As I get older comfort trumps ultimate performance!
Hope this comes to reality. Daron |
dadaDaveed |
Jul 25 2014, 09:39 PM
Post
#17
|
Member Group: Members Posts: 111 Joined: 19-February 09 From: San Antonio, TX Member No.: 10,071 Region Association: Southwest Region |
Ooh, Model B for me! Texas only has two seasons. Summer and Summerer.
|
7TPorsh |
Jul 25 2014, 10:05 PM
Post
#18
|
7T Porsh Group: Members Posts: 2,691 Joined: 27-March 06 From: Glendale Ca Member No.: 5,782 Region Association: Southern California |
Ya, type B....SoCal like Texas.... (IMG:style_emoticons/default/biggrin.gif)
|
Chris914n6 |
Aug 8 2014, 06:51 PM
Post
#19
|
Jackstands are my life. Group: Members Posts: 3,303 Joined: 14-March 03 From: Las Vegas, NV Member No.: 431 Region Association: Southwest Region |
(IMG:style_emoticons/default/smash.gif) (IMG:style_emoticons/default/smash.gif) (IMG:style_emoticons/default/smash.gif) (IMG:style_emoticons/default/smash.gif) (IMG:style_emoticons/default/smash.gif) (IMG:style_emoticons/default/smash.gif) (IMG:style_emoticons/default/smash.gif)
So 19 evaps spoken for on just World in 2 weeks felt like a good start. I've been building a full mockup of B that I'm hoping to get installed and release pics this weekend. I've got the design down to 1 body mod and a few screw holes, plus various ac hose holes in line with the DPD system. Enjoy your weekend... I'll be (IMG:style_emoticons/default/smash.gif) (IMG:style_emoticons/default/smash.gif) (IMG:style_emoticons/default/smile.gif) |
JmuRiz |
Aug 8 2014, 08:30 PM
Post
#20
|
914 Guru Group: Members Posts: 5,422 Joined: 30-December 02 From: NoVA Member No.: 50 Region Association: MidAtlantic Region |
A would be great, if only I could find some good heat exchangers for a /6 that work and don't cost a fortune. Maybe put the condenser in front of the oil cooler in the front.
Heat and a/c in a 914 would be awesome. |
