> Eliminating the Electrical Box and Wiring, under the passenger seat in a '75
euro911
post Dec 15 2014, 01:24 AM
Post #1


Retired & living the dream. God help me if I wake up!
*****

Group: Members
Posts: 8,845
Joined: 2-December 06
From: So.Cal. & No.AZ (USA)
Member No.: 7,300
Region Association: Southern California



I'd like to eliminate the electrical relay box and associated wiring that's under the passenger seat. Most of the connections look pretty bad and a PO did bypass some of the connections.

I'm never going to restore this car back to stock '75 specs. I think this it's just something that's eventually going to go wrong.

Has anyone else eliminated this stuff? ... and how did you do it?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SLITS
post Dec 15 2014, 07:33 AM
Post #2


"This Utah shit is HARSH!"
**********

Group: Benefactors
Posts: 13,602
Joined: 22-February 04
From: SoCal Mountains ...
Member No.: 1,696
Region Association: None



I think that box is the seat belt relay system. Join the two big yellow (w/ red trace?) wires together and toss the rest. Seat belt buzzer and dash light won't work after removal, but starter will.

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Dec 15 2014, 07:35 AM
Post #3


914 Wiring Harnesses
*****

Group: Members
Posts: 8,438
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None

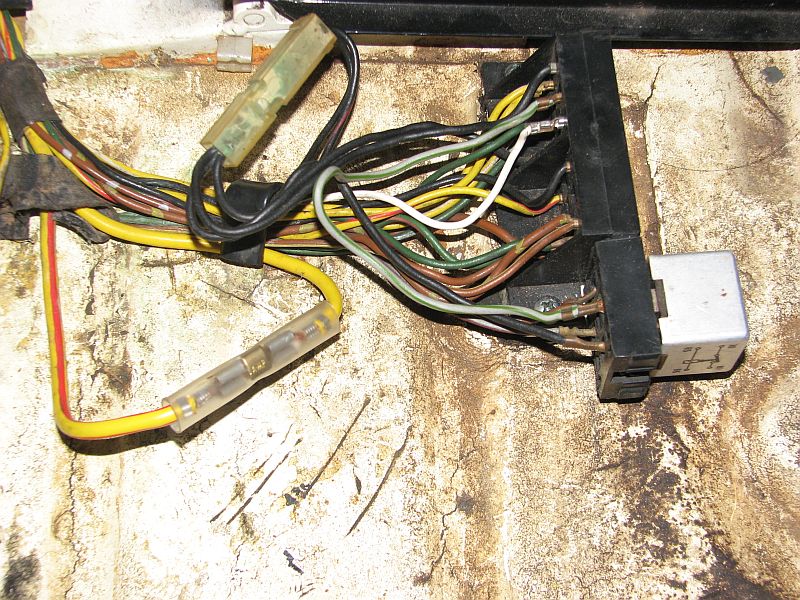

Bypass the two large yellow wires, other than that the other wires can just be abandoned. Leave them in the relay base or wrap them to assure they do not short to ground if you don't have the relay base any longer.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
NS914
post Dec 15 2014, 12:21 PM
Post #4


Member
**

Group: Members
Posts: 197
Joined: 9-June 09
From: Dartmouth, Nova Scotia
Member No.: 10,455
Region Association: Canada



Thanks for this picture Jeff (and Euro11 for posting) ...I have joined the two wires together already but had that mess as well....will be cleaning that and many other items up this winter.

Grant
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ndfrigi
post Dec 15 2014, 01:01 PM
Post #5


Advanced Member
****

Group: Members
Posts: 2,925
Joined: 21-August 11
From: Orange County
Member No.: 13,474
Region Association: Southern California



Thanks Mark for starting the thread! So all the wiring connections below the passenger seat are only for door buzzer and seat belt warning? If yes, can we just cut all the wires and make the lower floor clean under passenger seat?

Thanks!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Dec 15 2014, 01:12 PM
Post #6


914 Wiring Harnesses
*****

Group: Members
Posts: 8,438
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None



QUOTE(ndfrigi @ Dec 15 2014, 11:01 AM) *

Thanks Mark for starting the thread! So all the wiring connections below the passenger seat are only for door buzzer and seat belt warning? If yes, can we just cut all the wires and make the lower floor clean under passenger seat?

Thanks!



NNNNOOOOOooooooooOOOooooooOOOOoooO!!!!!!!!

Don't cut any wires ever, for any reason, there is never a need, it can cause more problems than it solves and is difficult to repair correctly.

Wires under the passenger seat of 1974-76 cars are more than just the door buzzer and seatbelt interlock. The two big yellow wires are the main ignition circuit. Study the schematics to understand the others.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ndfrigi
post Dec 15 2014, 01:15 PM
Post #7


Advanced Member
****

Group: Members
Posts: 2,925
Joined: 21-August 11
From: Orange County
Member No.: 13,474
Region Association: Southern California



ok thanks! my 75 1.8 FI has the thick yellow wire already by pass. I was just thinking if we can totally eliminate everything. Well you said the big NO already. thanks again!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GregAmy
post Dec 15 2014, 02:13 PM
Post #8


Advanced Member
****

Group: Members
Posts: 2,262
Joined: 22-February 13
From: Middletown CT
Member No.: 15,565
Region Association: North East States



My 1974 2L has absolutely zero wires under the passenger seat...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Dec 15 2014, 02:39 PM
Post #9


914 Wiring Harnesses
*****

Group: Members
Posts: 8,438
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None



QUOTE(GregAmy @ Dec 15 2014, 12:13 PM) *

My 1974 2L has absolutely zero wires under the passenger seat...



Huh? Was it modified? A euro car maybe?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
euro911
post Dec 16 2014, 12:14 AM
Post #10


Retired & living the dream. God help me if I wake up!
*****

Group: Members
Posts: 8,845
Joined: 2-December 06
From: So.Cal. & No.AZ (USA)
Member No.: 7,300
Region Association: Southern California



QUOTE(Jeff Bowlsby @ Dec 15 2014, 05:35 AM) *
Bypass the two large yellow wires, other than that the other wires can just be abandoned. Leave them in the relay base or wrap them to assure they do not short to ground if you don't have the relay base any longer.
Thanks Ron & Jeff. The large yellow wire is already spliced together.

The problem I have, is that the plastic terminal block next to the relay is pretty deteriorated and some of the connection tabs are gone. Also, some of the slide on lugs on the wiring ends have corroded away and are already taped up.

I was hoping I could just remove the whole mess if possible, but I've never been able to decipher Porsche's electrical diagrams (IMG:style_emoticons/default/headbang.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Dec 16 2014, 10:54 AM
Post #11


914 Idiot
**********

Group: Members
Posts: 14,974
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California



There are two things under the seat. The Dreaded Seatbelt Interlock Relay, and the door buzzer. The only wires going to either that affect anything else are the big fat yellow or yellow/red wires that go to the starter. Splice those together, and unplug the relay and buzzer, and the whole little panel is a nothing.

If you want, you can cut all of those wires. Make sure to connect together all of the ones that were crimped into a single connector, though. That is, if two wires were crimped into a single metal connector, connect them together. There should be a few of those.

I do not recommend cutting anything--I'm in Jeff's camp on this one. Cutting is a very difficult operation to reverse.... But it is your car in the end.

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cap'n Krusty
post Dec 16 2014, 11:54 AM
Post #12


Cap'n Krusty
**********

Group: Members
Posts: 10,794
Joined: 24-June 04
From: Santa Maria, CA
Member No.: 2,246
Region Association: Central California



Remove the connectors from the box and shrink tube each connector.

The Cap'n
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
euro911
post Dec 16 2014, 03:33 PM
Post #13


Retired & living the dream. God help me if I wake up!
*****

Group: Members
Posts: 8,845
Joined: 2-December 06
From: So.Cal. & No.AZ (USA)
Member No.: 7,300
Region Association: Southern California



I can do that. Then I can remove the defunct relay/terminal block completely, right?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cap'n Krusty
post Dec 16 2014, 04:24 PM
Post #14


Cap'n Krusty
**********

Group: Members
Posts: 10,794
Joined: 24-June 04
From: Santa Maria, CA
Member No.: 2,246
Region Association: Central California



Yup. If possible, I'd move the resulting collection of wires up behind the backpad. Get 'em off the floor and out of the way.

The Cap'n
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ndfrigi
post Dec 16 2014, 06:09 PM
Post #15


Advanced Member
****

Group: Members
Posts: 2,925
Joined: 21-August 11
From: Orange County
Member No.: 13,474
Region Association: Southern California



Thanks Mark for starting this thread! And thanks to all again for sharing your knowledge and experienced!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ThunderbirdDrive
post Jun 3 2016, 11:40 AM
Post #16


Newbie
*

Group: Members
Posts: 31
Joined: 3-March 16
From: Toronto Canada
Member No.: 19,724
Region Association: Canada



I know I'm digging up an old post, but this has been most helpful.

I just picked up a '76 (my first time in a 914) and while going through all the various wiring runs, I came across a large bundle of wires with nothing attached under the passenger seat.

Thanks to this post I now know what these are. Will look to pull them up behind the backpad if I can. Right now they are bundled in a ball under the carpet.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Jun 3 2016, 08:36 PM
Post #17


Get that VIN ?
*****

Group: Members
Posts: 9,225
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California



One other thing: IIRC there is a grey wire that runs from the ignition switch to those relays under the seat. It's hot when the key is left in the ignition......you can verify thus with a simple circuit tester. (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Jun 4 2016, 08:30 AM
Post #18


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,453
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California



Damn, I miss the Cap'n. (IMG:style_emoticons/default/sad.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
abes914
post Jun 4 2016, 10:03 AM
Post #19


Member
**

Group: Members
Posts: 366
Joined: 30-March 11
From: Long Beach
Member No.: 12,880
Region Association: Southern California



QUOTE(76-914 @ Jun 4 2016, 07:30 AM) *

Damn, I miss the Cap'n. (IMG:style_emoticons/default/sad.gif)


I was thinking the same thing.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Oct 21 2018, 10:44 AM
Post #20


"I got blisters on me fingers"
*****

Group: Members
Posts: 9,889
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest



Time to reboot this topic ...again.
I think the the topic of defeating or bypassing the nanny circuit is by now well understood & documented but after a couple of searches the actual "logic" or how its supposed to work, doesnt seem to be clearly described.

So here goes:
IIUC (if I understand correctly) if the system is is place and working as it should, the ignition can't be triggered unless both a butt is in the seat AND the seatbelt for driver is connected.
There is both a pressure sensor in the seat cushion and the seat belt receptacle with electrical contacts that close/connect the circuit.
There is also a buzzer and a warning light on the dash but scouring the various manuals I haven't found a clear description of how the dash light is supposed to work.
The Buzzer will sound if the key is in the Ign., not to be confused with door ajar buzzer, but if you aren't sitting in the drivers seat & reach in to key the Ignition should it start ?
What happens with the warning light? Is it supposed to stay illuminated until you latch the seat belt or just flash when keying the ignition?
