> LED Front Turnsignal And Rear Brake/Taillight/Turnsignals
Spoke
post Jan 15 2015, 10:25 PM
Post #1


Jerry
*****

Group: Members
Posts: 6,964
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None



This is a group buy for front turnsignal bucket LED boards, rear tail/brake light LED boards, and rear turnsignal LED boards.

Please respond to this thread if you are interested. Purchase requests will be handled in order as they are recieved in this thread.

The only thing group buy of these boards are the bare PCBs. The boards are hand assembled one by one, tested and delivered as they are finished. I will not request payment until your PCBs are to be assembled. Time between payment and shipping should be about 2 weeks. This group buy will last several months so please be patient.

I will PM you when I am prepared to assemble your boards. If I PM you and your plans have changed, please let me know.

Front LED and rear LED boards will be shipped separately. Shipping for CONUS for front or rear LED boards is $10.

@@@@@@@@@

Now is a good time to seal up the front and rear buckets to protect your LED board investments.

I am very pleased to be able to offer bundle pricing for front and rear bucket and rear lens seals by 914Rubber for anyone purchasing front or rear LED boards.

Prices:
Front bucket seals: $12.50 savings of 24% over retail
Rear housing seals: $16.00 savings of 33% over retail
Rear lens beads: $5.00 savings of $28% over retail

Front Bucket Seal

Rear Housing Seal

Rear Lens Bead
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Jan 15 2015, 10:28 PM
Post #2


Jerry
*****

Group: Members
Posts: 6,964
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None



The rear LED board is available in 3 different configurations:

1) Brake Light: RED LEDs: Price: $90/pair
2) Turnsignal: RED LEDs: Price: $90/pair
3) Turnsignal: AMBER LEDs: Price: $90/pair

Shipping:
CONUS: $10
Outside CONUS: Determined at purchase.

CONUS payment examples:
Brake LED only: $90 + $10 = $100
Brake LED and RED/AMBER Turnsignal LED: $180 + $10 = $190

Each pair includes:
o 2 PCBs
o Brake/Taillights: 56 RED LEDs
o Turnsignals:56 AMBER (Euro) or RED (US) LEDs - Rearward facing; 8 side-facing LEDs to replace the small side running light. Side LEDs are AMBER (Euro) or RED (US) to match taillight lens.

Electrical Connection:
o Brake: Pigtail with 1157 base to plug directly into existing bulb socket.
o Turnsignal: Pigtail with 1156 base (turnsignal) and 5007 base (small side light)

6 clips for each pair to mount the boards to existing taillight housing for plug-n-play installation.

6 screws per PCB pair for clips + 1 extra

1 piggyback spade connector per turnsignal PCB pair in case existing turnsignal flasher is replaced by EP36 LED flasher from your FLAPS.

1 year guarantee

Electrical Characteristics:
Brake/Turnsignal: 0.35A @ 14V (4.9 Watt) each PCB
Taillight: 0.06A @ 14V (0.8 Watt) each PCB

Example boards shown with early prototype brass clips. Clips are plastic for these boards.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Jan 15 2015, 10:28 PM
Post #3


Jerry
*****

Group: Members
Posts: 6,964
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None



The front bucket LED board is available in 3 different configurations:

1) US Version: All AMBER LEDs: $120/pair
2) Euro Version - No Blanking: WHITE LEDs in clear of lens; Rest AMBER LEDs: Price: $130/pair
3) Euro Version - w/Blanking: WHITE LEDs in clear of lens; Rest AMBER LEDs: Price: $140/pair

Shipping:
CONUS: $10
Outside CONUS: Determined at purchase.

CONUS payment examples:
US Version: $120 + $10 = $130
Euro Version - No Blanking: $130 + $10 = $140
Euro Version - w/Blanking: $140 + $10 = $150

Each pair includes:
o 2 PCBs
o US Version: 69 AMBER LEDs.
o Euro Versions: 21 WHITE LEDS (Running lights) and 48 AMBER LEDs (Turnsignal).

Euro Version with optional blanking will turn off WHITE LEDs when turnsignal is engaged.

Pigtail with 1157 base to plug directly into existing bulb socket.

4 clips for each pair to mount the boards to existing front bucket housing for plug-n-play installation.

4 screws for clips + 1 extra

1 piggyback spade connector if existing turnsignal flasher is replaced by EP36 LED flasher from your FLAPS.

1 year guarantee

Electrical Characteristics US version:
Turnsignal: 0.39A @ 14V (5 Watt) each PCB
Running light: 0.07A @ 14V (1 Watt) each PCB

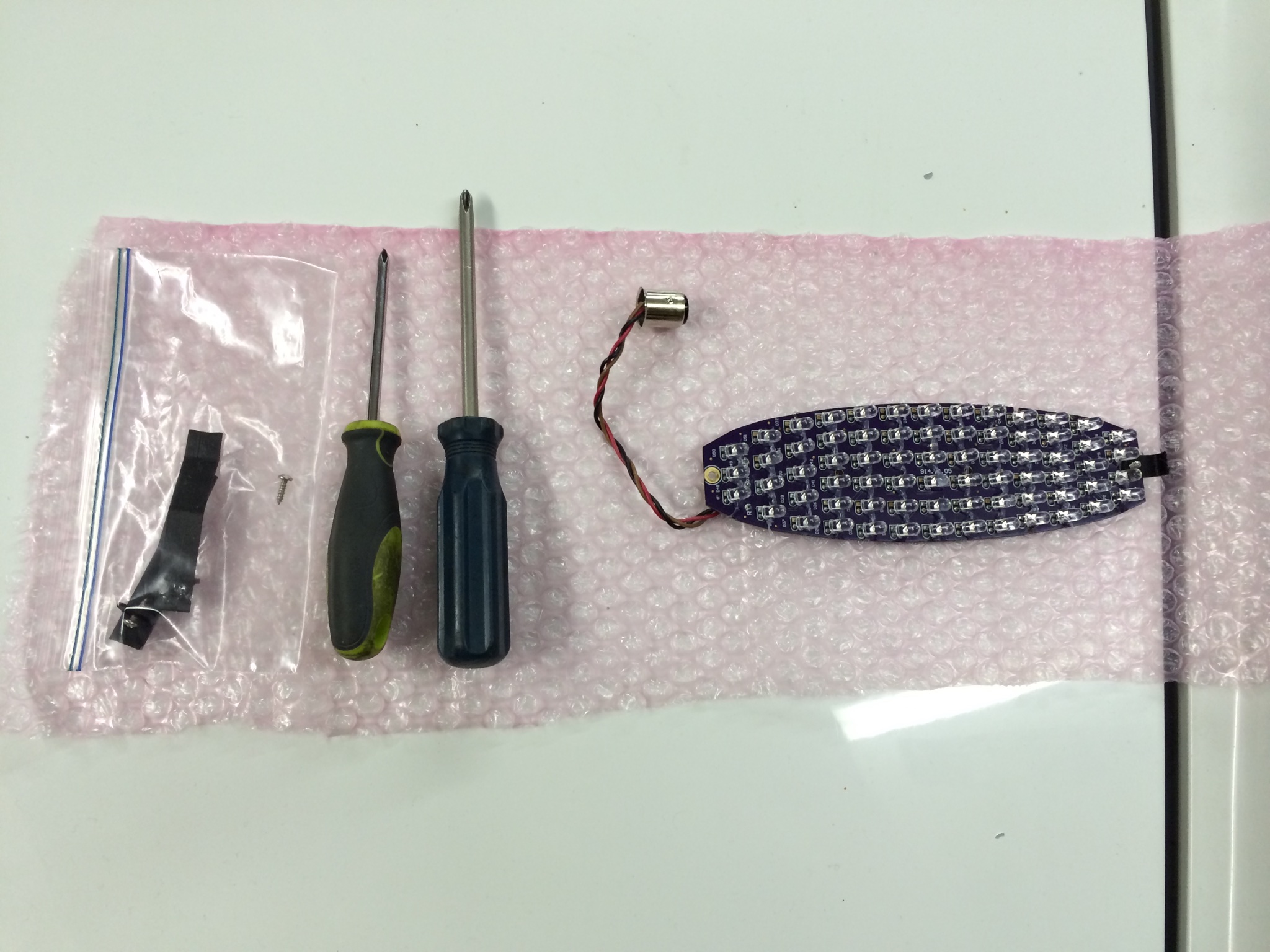

Example front LED board shown with only tools needed: large Philips screwdriver for lens screws and smaller Philips screwdriver for PCB mounting screw.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Jan 15 2015, 10:44 PM
Post #4


Jerry
*****

Group: Members
Posts: 6,964
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None



Installation of the rear LED boards.

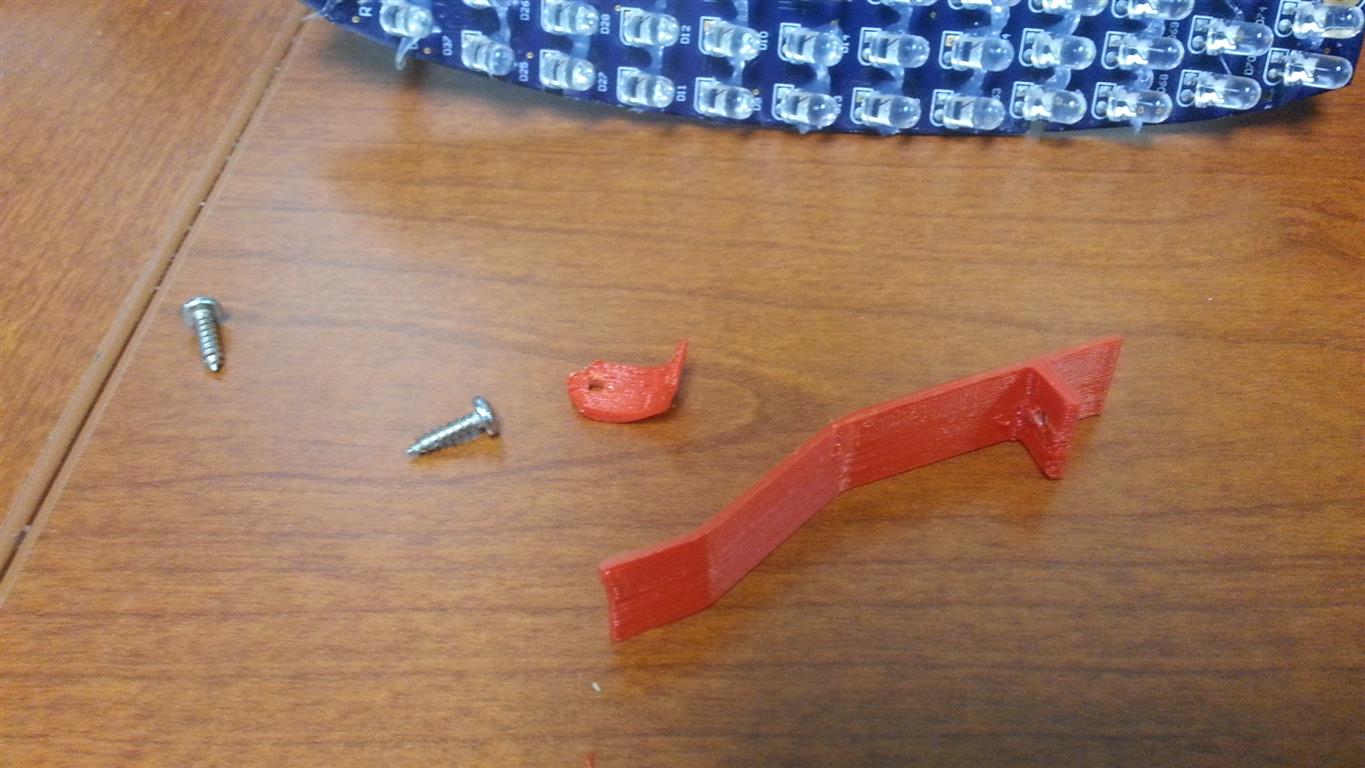

For the brake/tailight PCB, 2 long straight clips go toward the inside of the car, one short clip on the outside of the car. Screw in screws so the clips are loose.

Attached Image

Attached Image

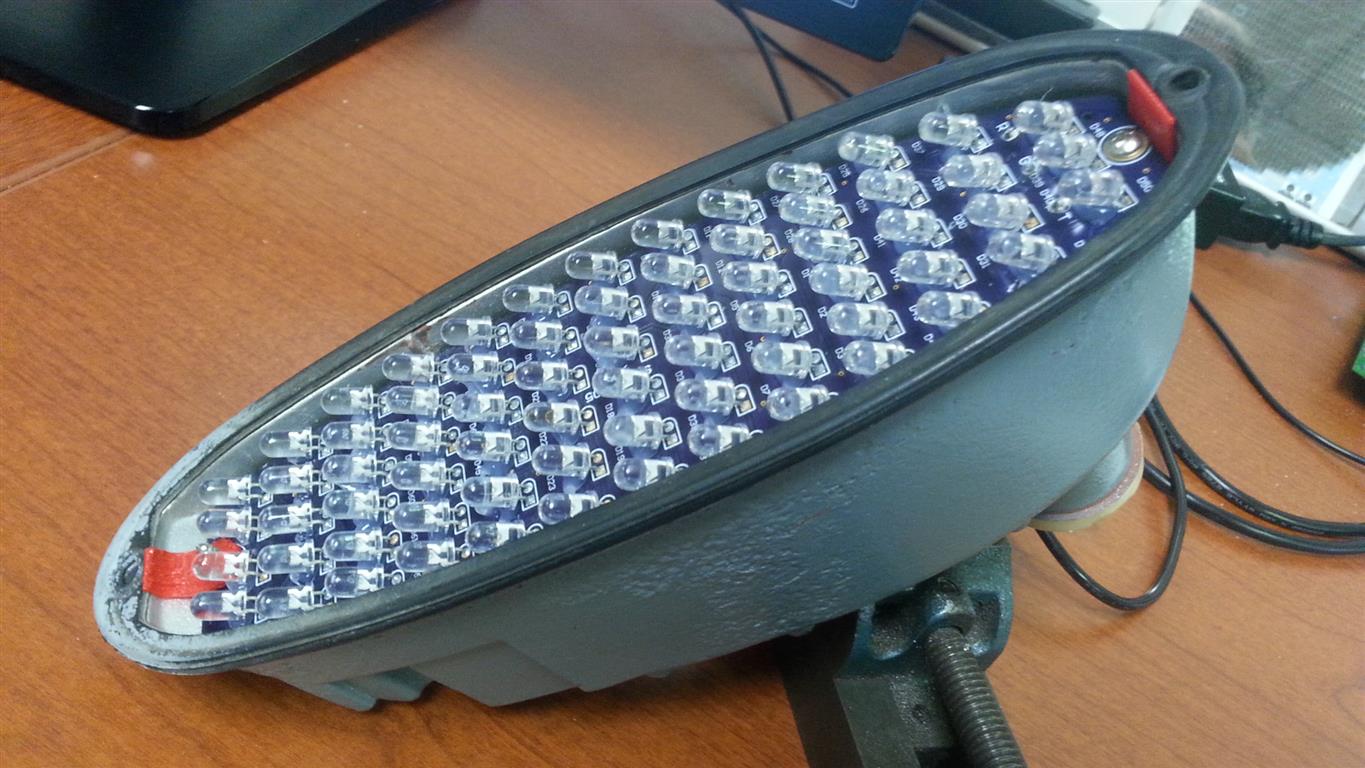

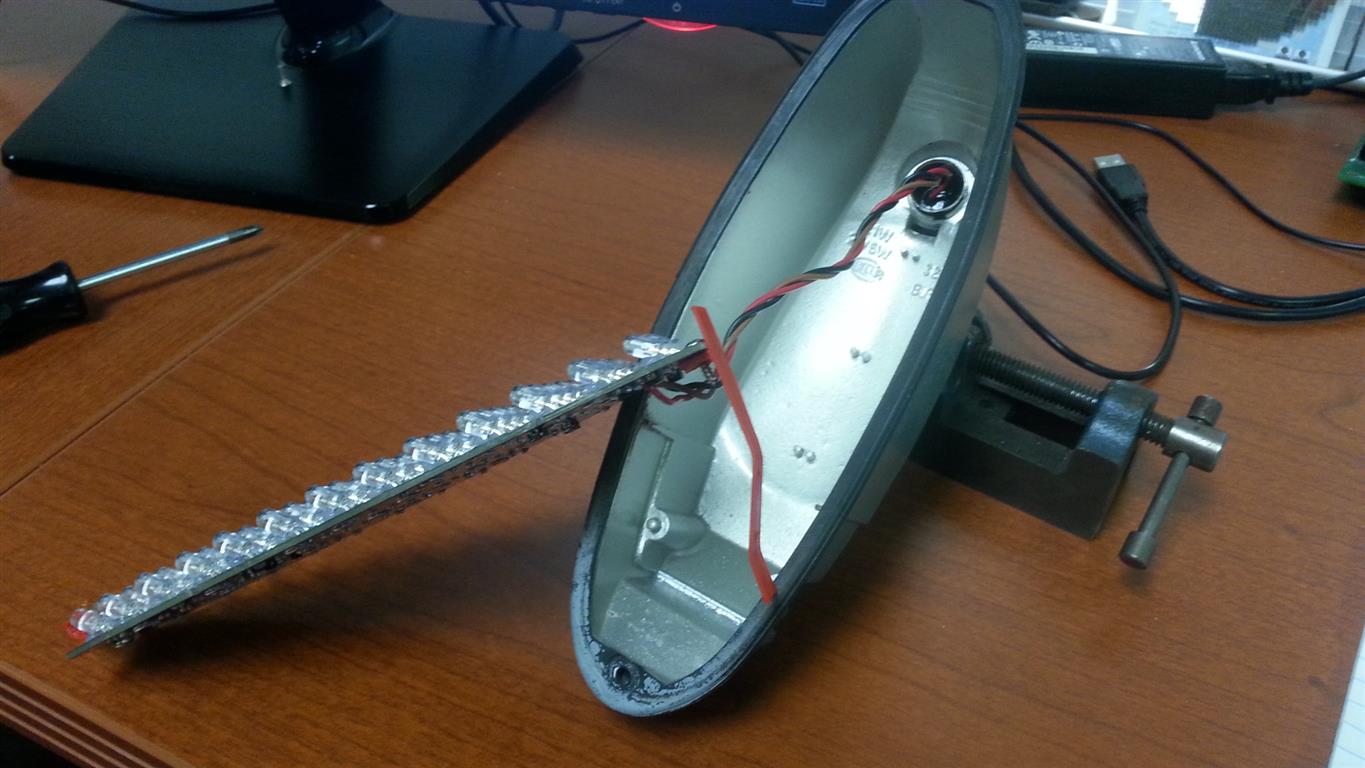

After removing the bulb and securing the LED bulb base, gently press in the board evenly side to side.

Attached Image

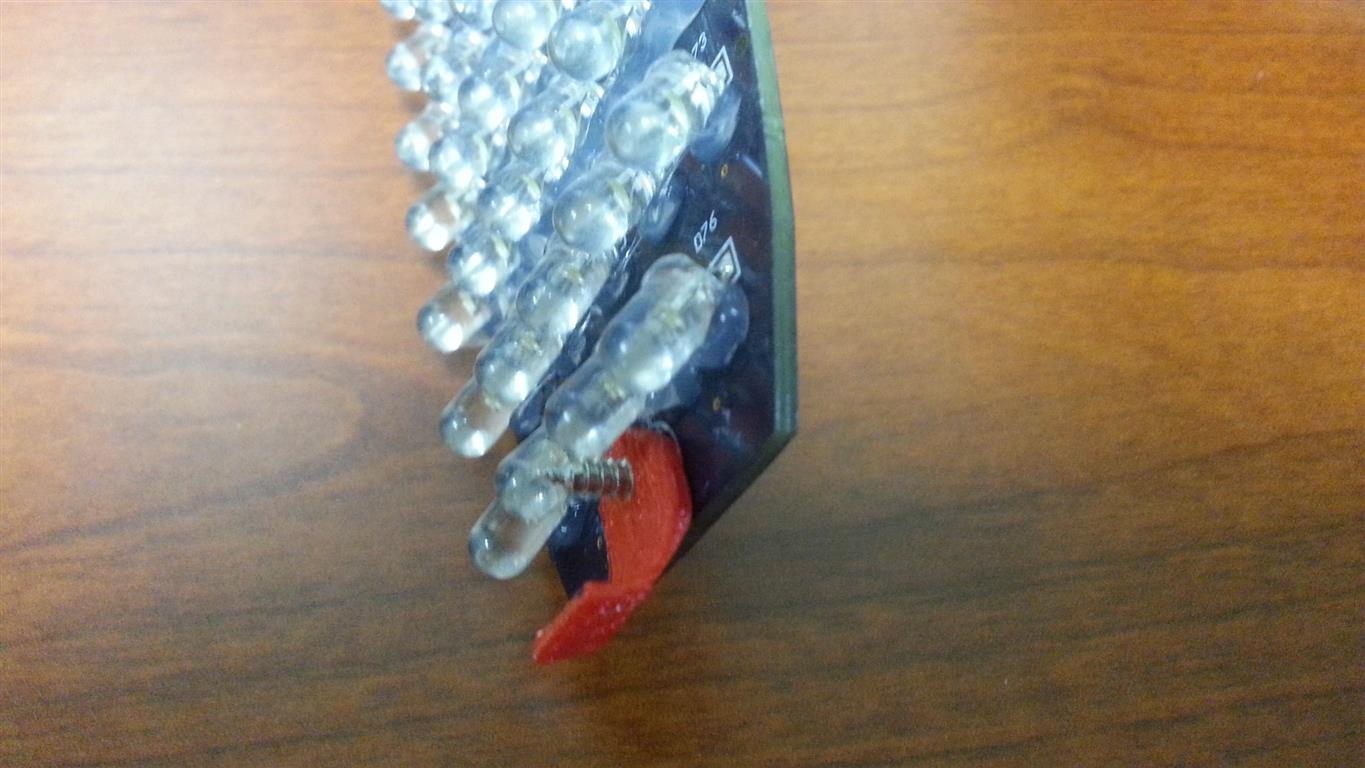

Once the board is seated, gently tighten screws until tight. Try not to overtighten.

Attached Image

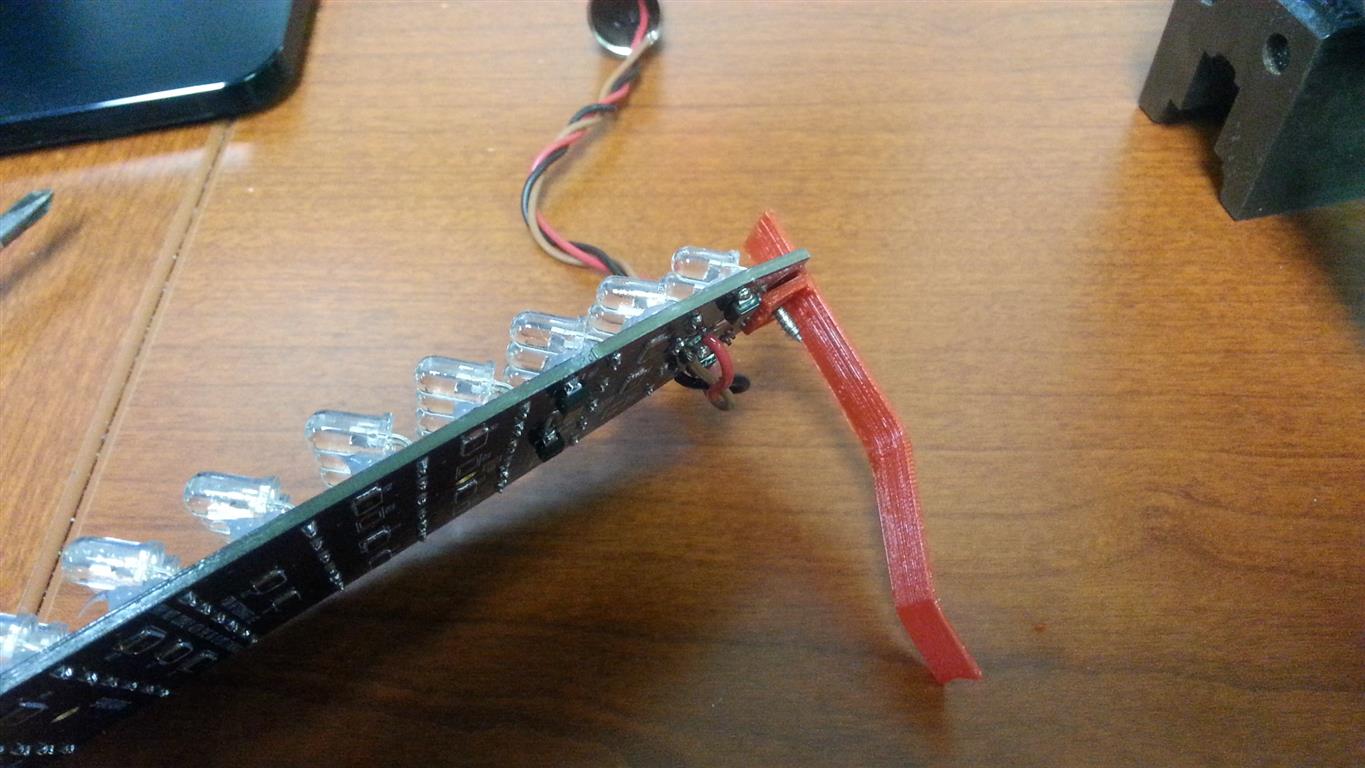

For the turnsignal PCBs, screw in the 2 long clips with a bend on the side of the board with 2 holes. The side with one hole uses the largest clip mounted on the bottom of the board as shown. You can gently tighten the clips before mounting.

Attached Image

Attached Image

After removing the bulb and securing the LED bulb base, gently press in the board evenly side to side.

Attached Image

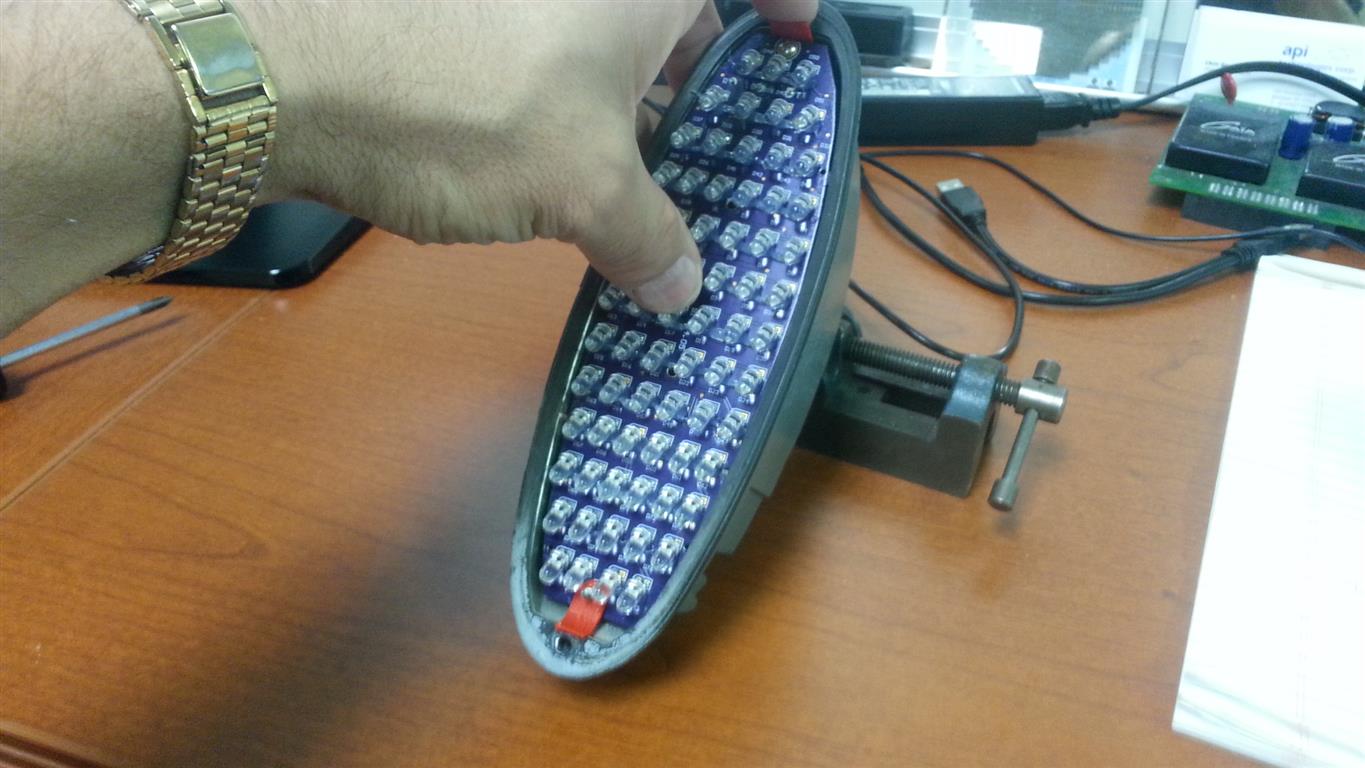

The clearance of the lens and the clips between the brake and turnsignal is very tight. Make sure the lens does not get caught on the clips. It should fit right between the clips.
