> 914-6/904 project begins
Unobtanium-inc
post Nov 19 2020, 07:01 PM
Post #921


Advanced Member
****

Group: Members
Posts: 2,358
Joined: 29-November 06
From: New York
Member No.: 7,276
Region Association: None
QUOTE(bretth @ Nov 19 2020, 04:07 PM) *

Big John gonna karate chop that thing in half? (IMG:style_emoticons/default/smile.gif) Those are some long rear suspension plates on the 550 frame. Looking great.

I told him to use his laser vision.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Unobtanium-inc
post Nov 19 2020, 07:03 PM
Post #922


Advanced Member
****

Group: Members
Posts: 2,358
Joined: 29-November 06
From: New York
Member No.: 7,276
Region Association: None
QUOTE(Bruce Hinds @ Nov 19 2020, 04:34 PM) *

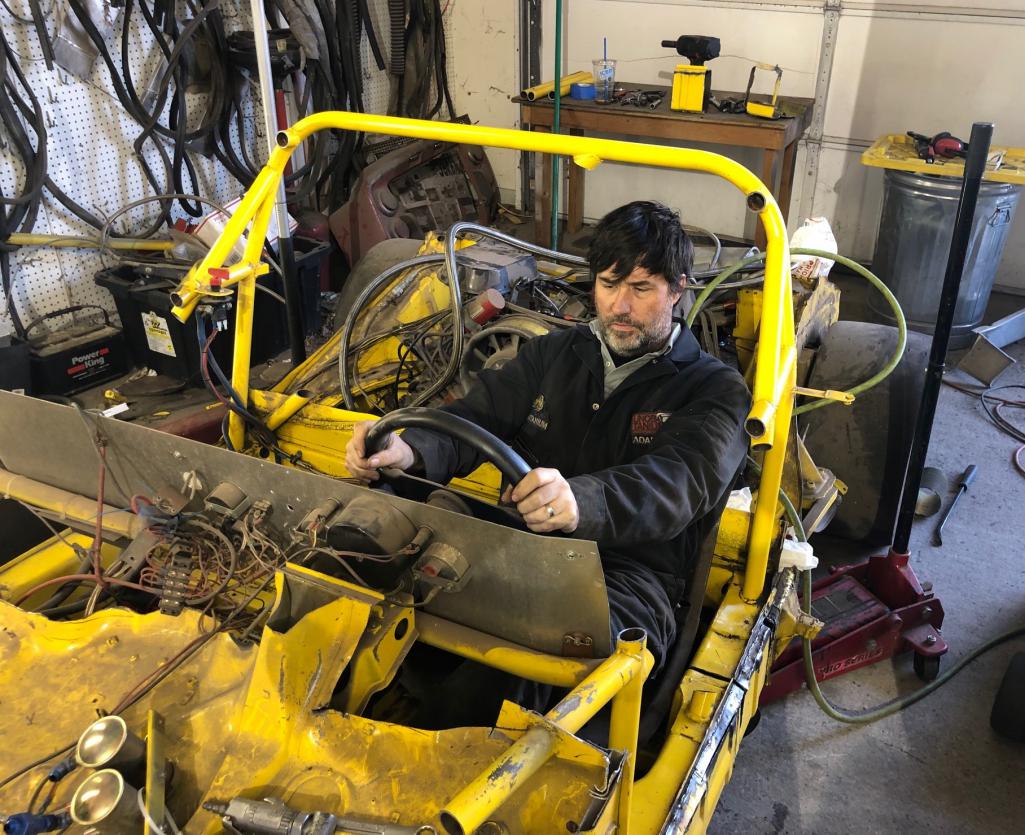

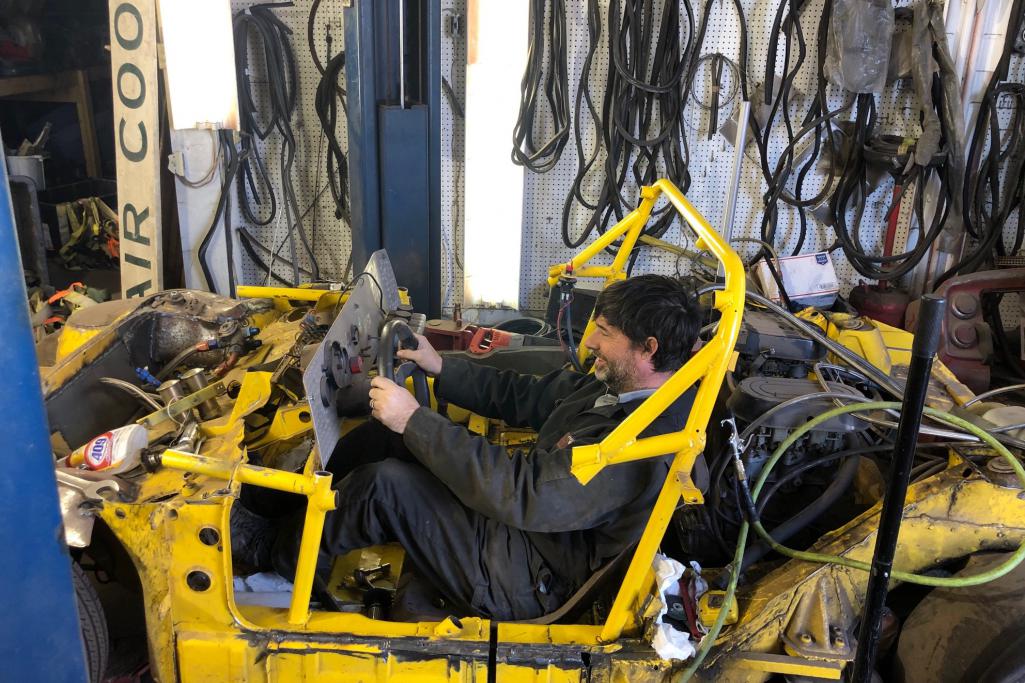

Yikes - 5 inches is a lot!

I may have to shorten my femur's! I'm glad I'm not a tall dude, because tall and 904 don't work. I'm 5'9" and I look squeezed in this real one 904-0014.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Unobtanium-inc
post Nov 20 2020, 01:41 PM
Post #923


Advanced Member
****

Group: Members
Posts: 2,358
Joined: 29-November 06
From: New York
Member No.: 7,276
Region Association: None

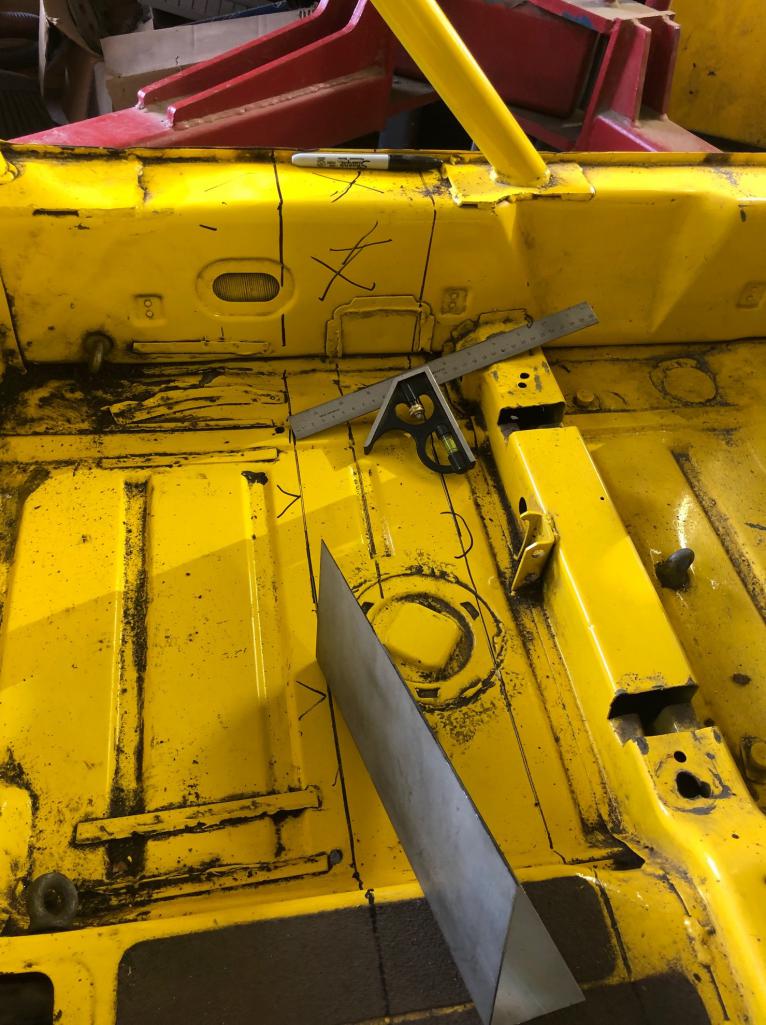

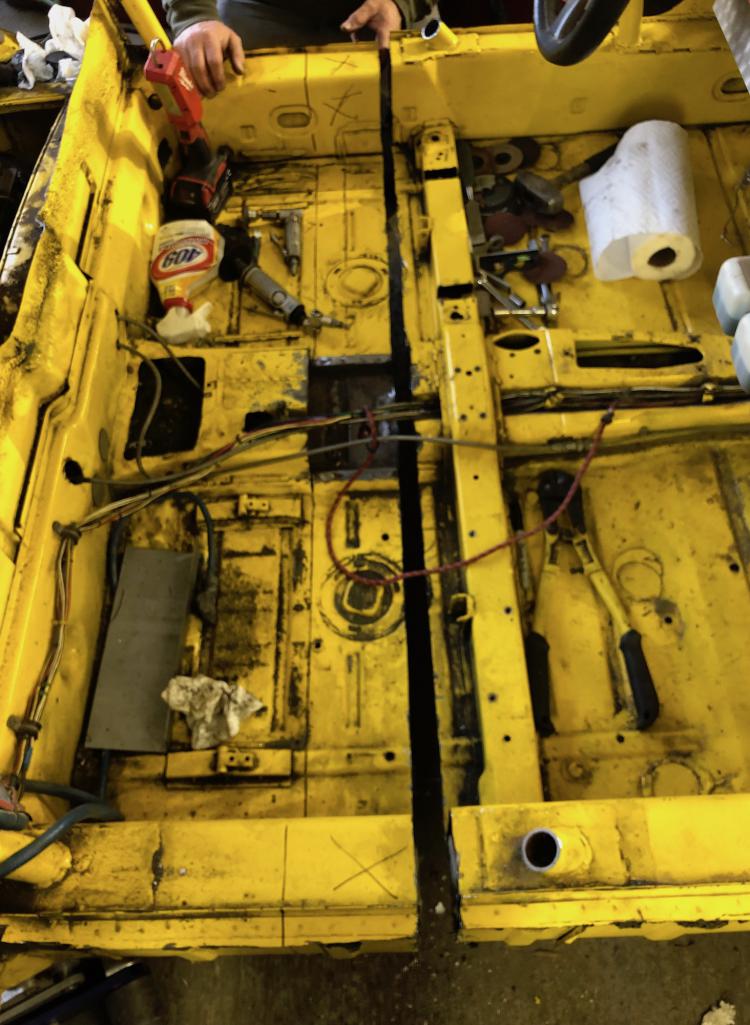

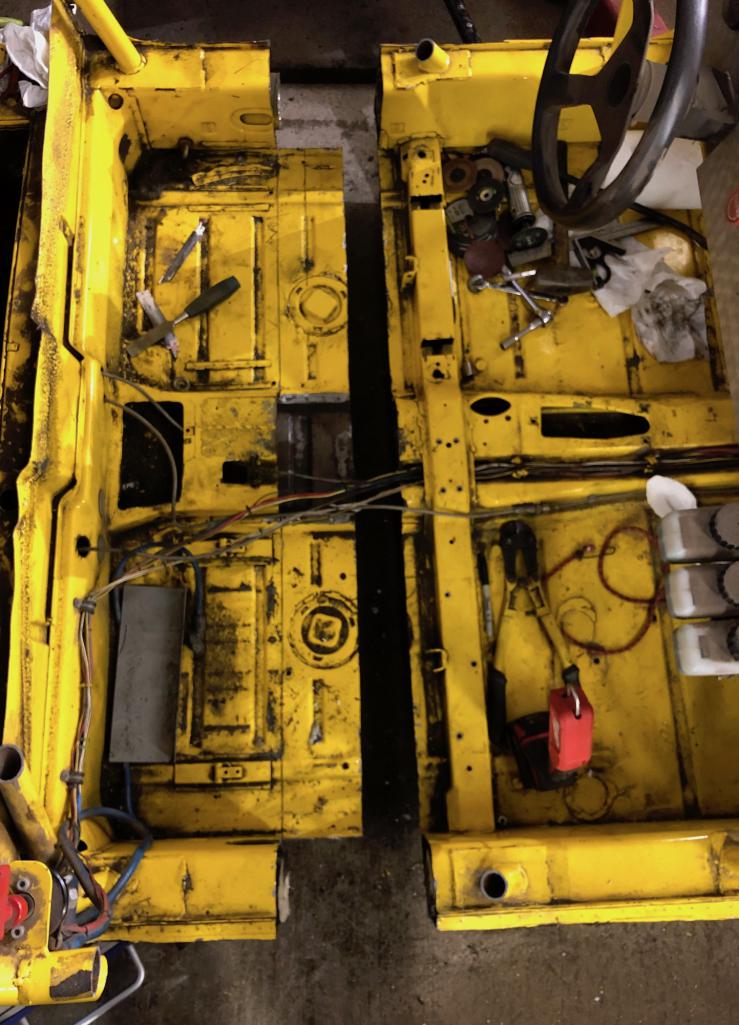

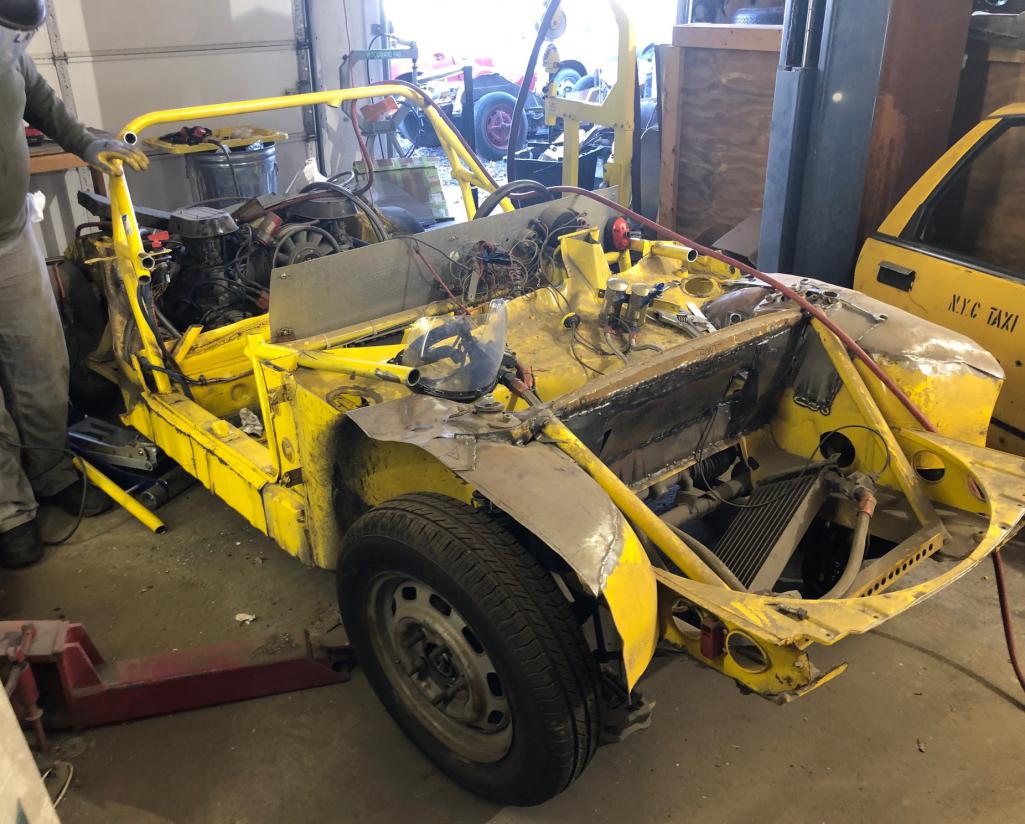

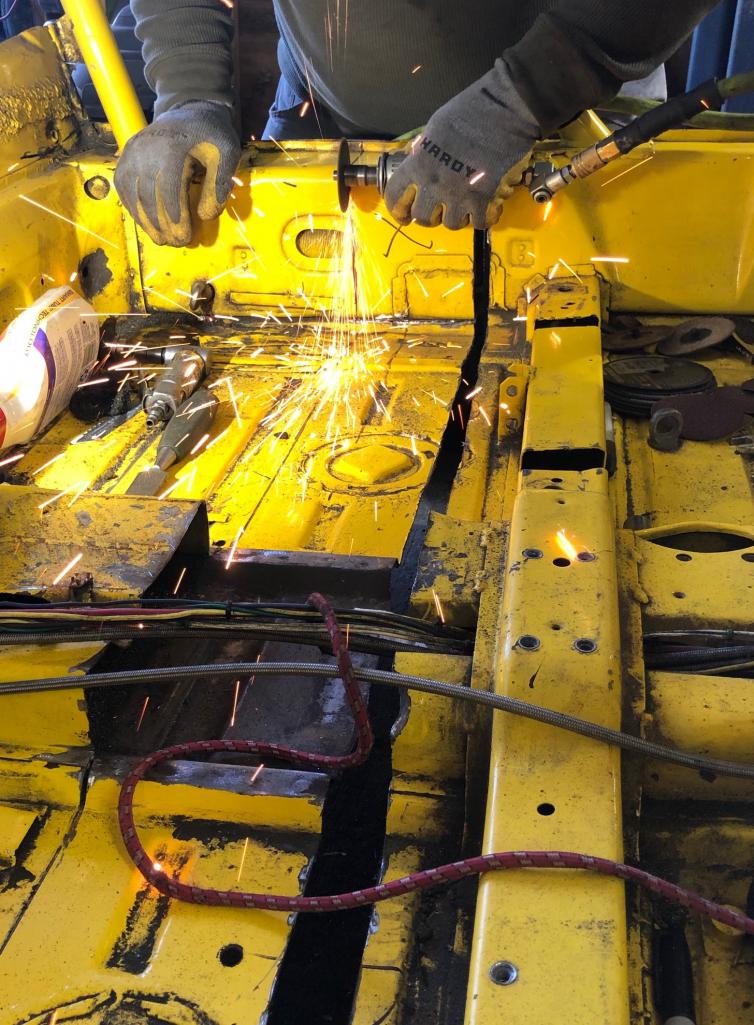

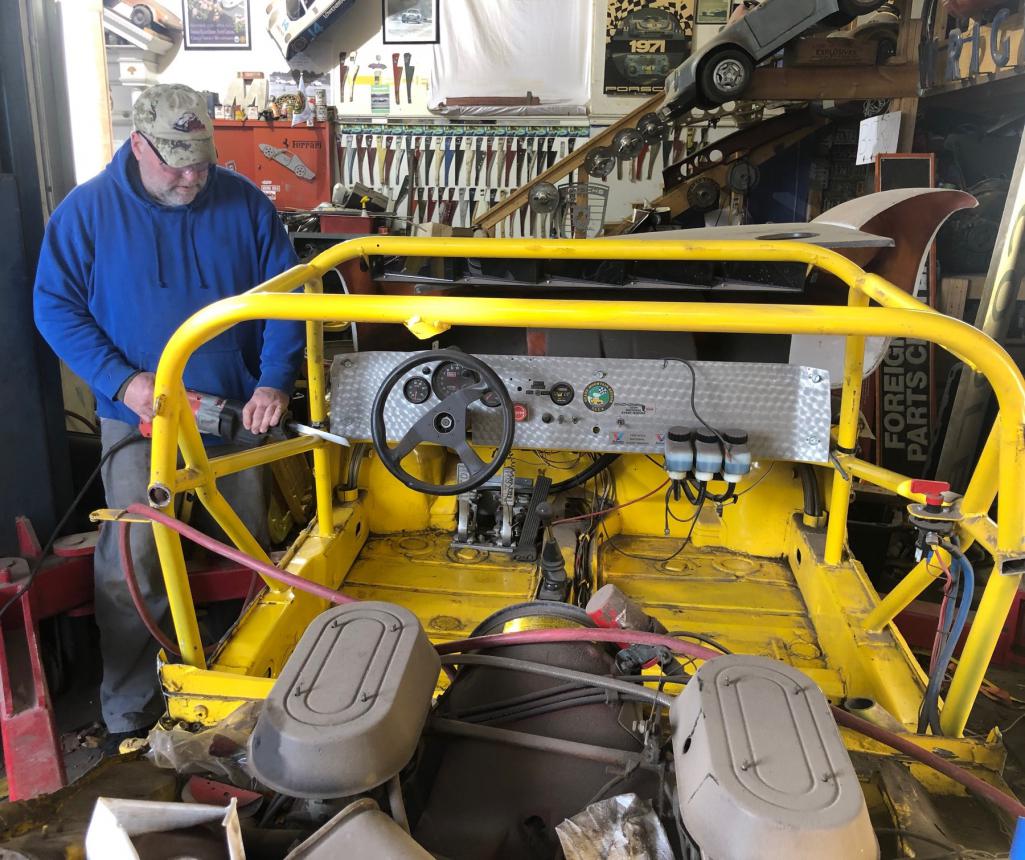

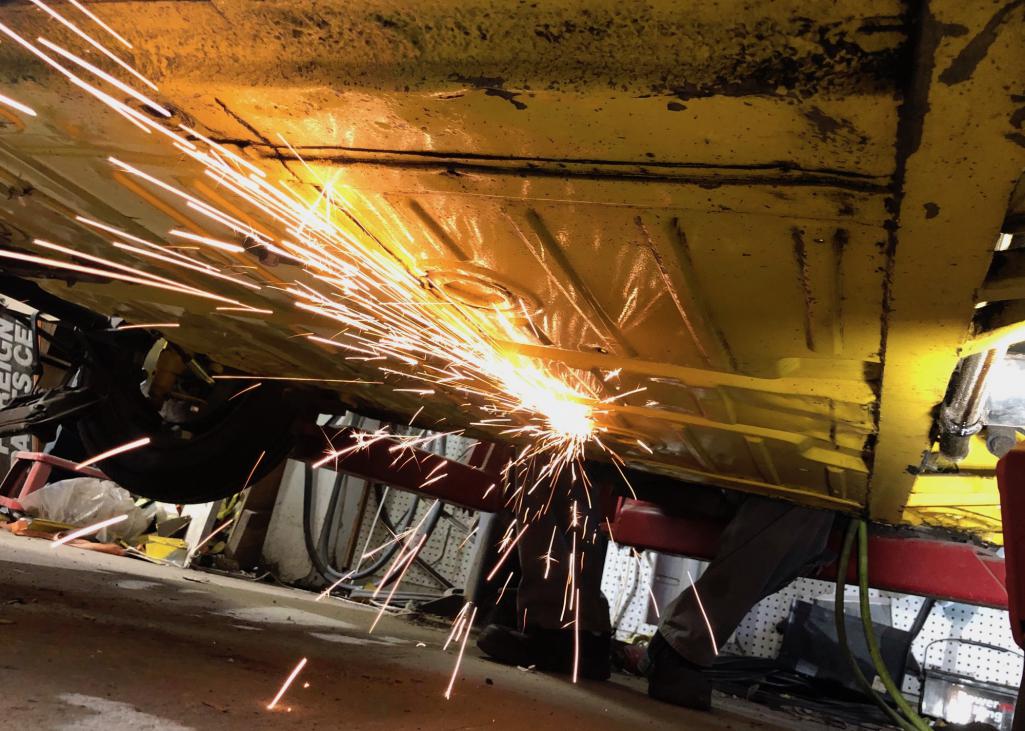

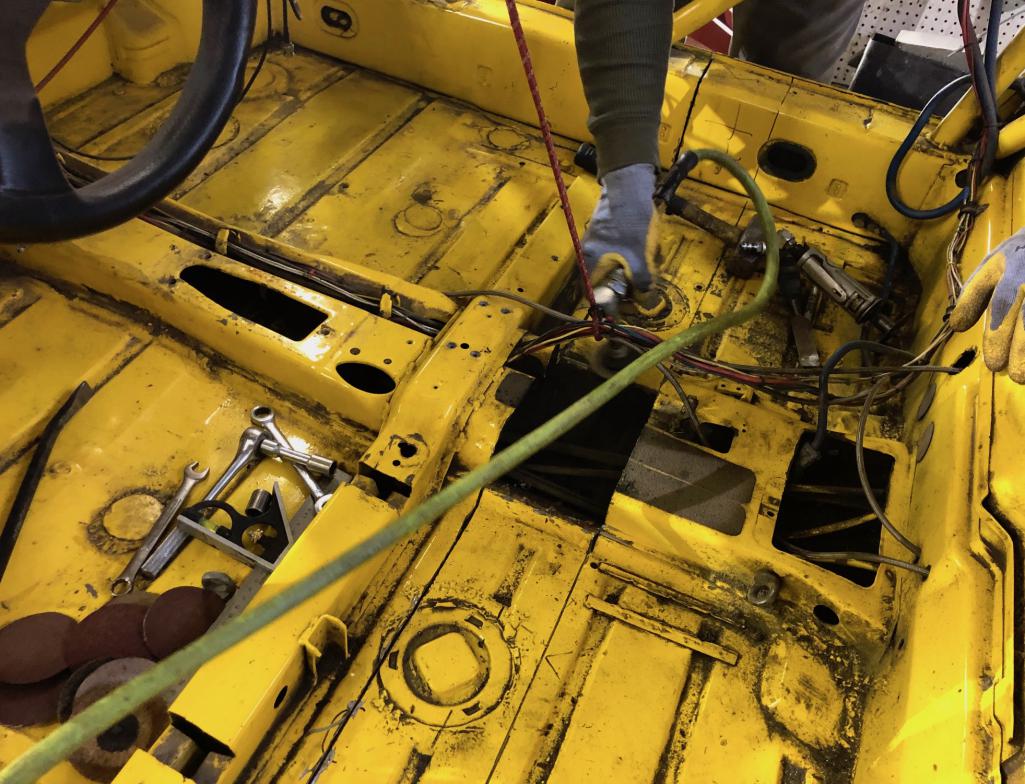

Ok, scary day, big cut done, it is currently two cars. We chopped the 5 inches out and you can see it's now as tight as a 904. Look for more updates on Monday when we seam it back up. Glad this part is about to be behind me in the build, I dreaded this part.


Attached thumbnail(s)
Attached Image Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Unobtanium-inc
post Nov 20 2020, 01:42 PM
Post #924


Advanced Member
****

Group: Members
Posts: 2,358
Joined: 29-November 06
From: New York
Member No.: 7,276
Region Association: None
More pics.


Attached thumbnail(s)
Attached Image Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TJB/914
post Nov 20 2020, 03:07 PM
Post #925


Mid-Engn.
****

Group: Members
Posts: 4,435
Joined: 24-February 03
From: Plymouth & Petoskey, MI
Member No.: 346
Region Association: Upper MidWest
(IMG:style_emoticons/default/first.gif) (IMG:style_emoticons/default/w00t.gif) (IMG:style_emoticons/default/pray.gif)
Like (IMG:style_emoticons/default/wub.gif)
Tom
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bretth
post Nov 20 2020, 03:18 PM
Post #926


Senior Member
***

Group: Members
Posts: 899
Joined: 23-June 15
From: Central TX
Member No.: 18,882
Region Association: Southwest Region
Wow that's tight. Maybe you can sneak in another inch or two by denting in the lower cross member behind the seat? Go-cart for sure.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Unobtanium-inc
post Nov 20 2020, 03:44 PM
Post #927


Advanced Member
****

Group: Members
Posts: 2,358
Joined: 29-November 06
From: New York
Member No.: 7,276
Region Association: None
QUOTE(bretth @ Nov 20 2020, 01:18 PM) *

Wow that's tight. Maybe you can sneak in another inch or two by denting in the lower cross member behind the seat? Go-cart for sure.

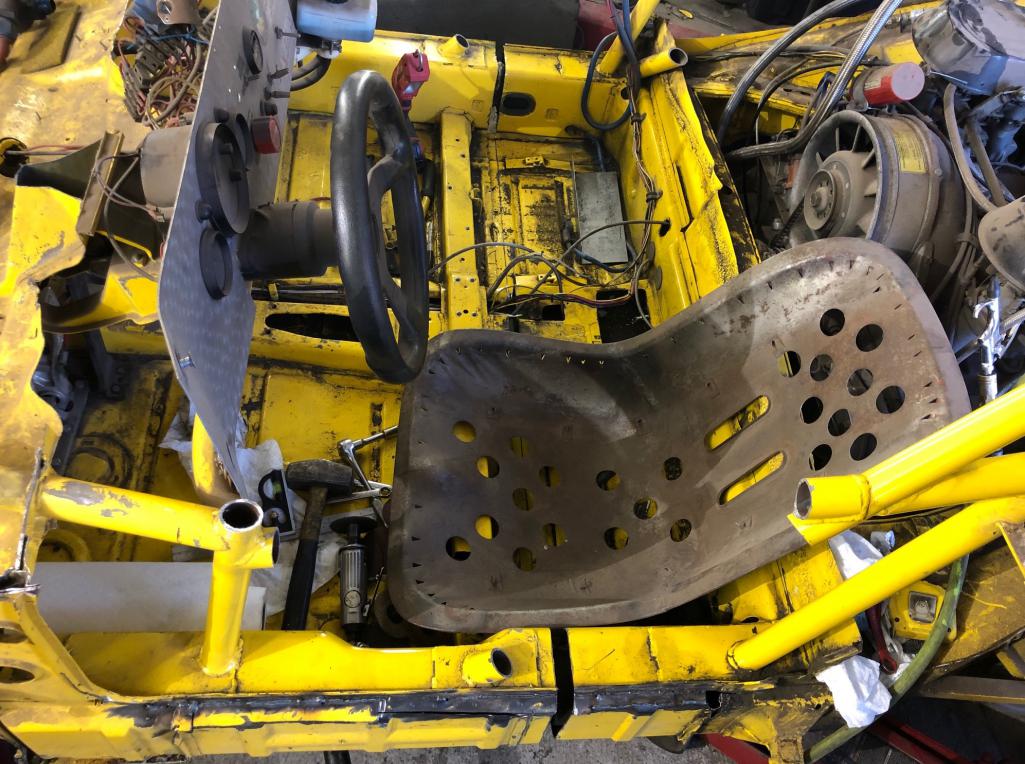

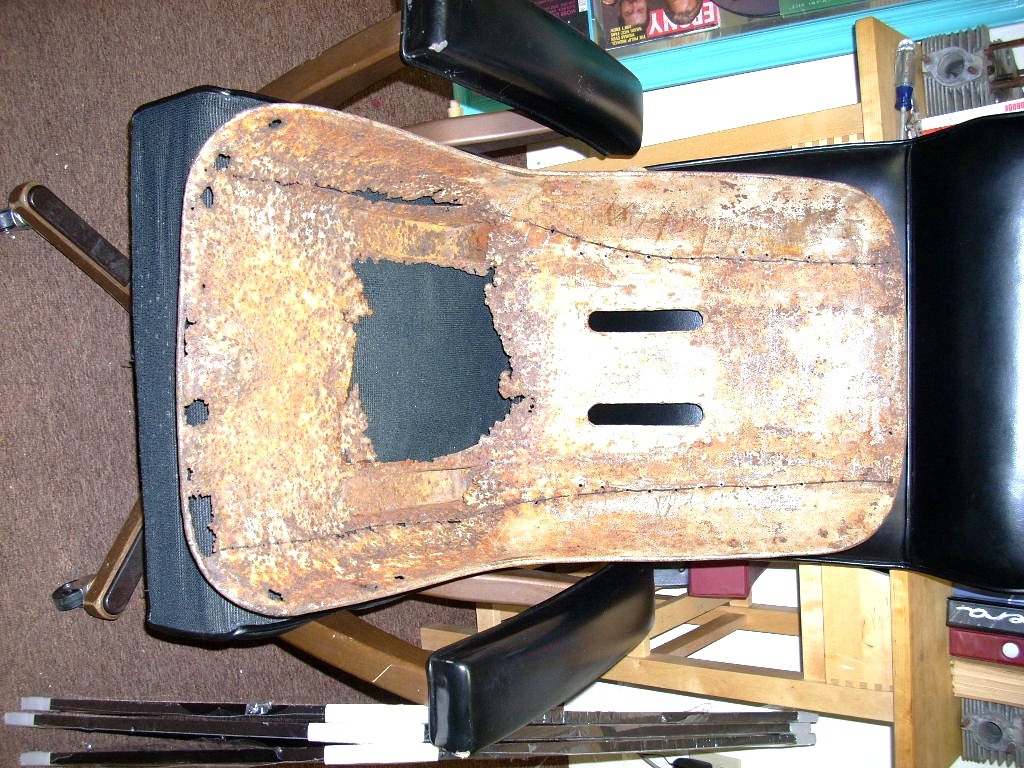

I have a couple of tricks I can do to squeeze a little more room out. Instead of a Speedster seat I can use a Spyder seat, they are smaller.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Unobtanium-inc
post Nov 23 2020, 02:22 PM
Post #928


Advanced Member
****

Group: Members
Posts: 2,358
Joined: 29-November 06
From: New York
Member No.: 7,276
Region Association: None

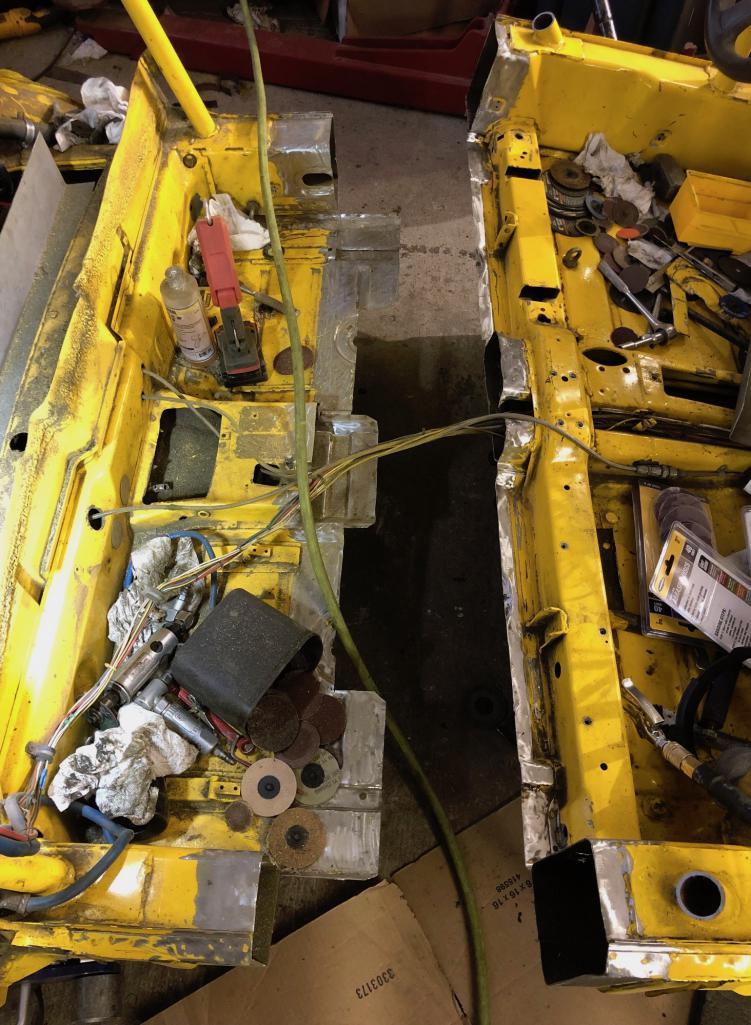

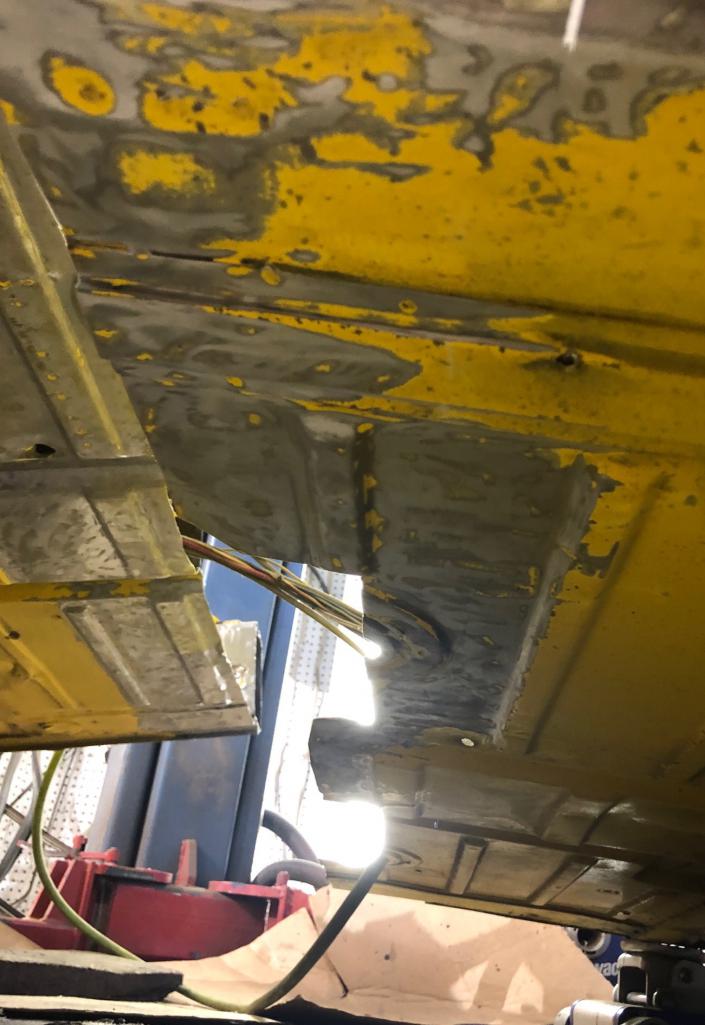

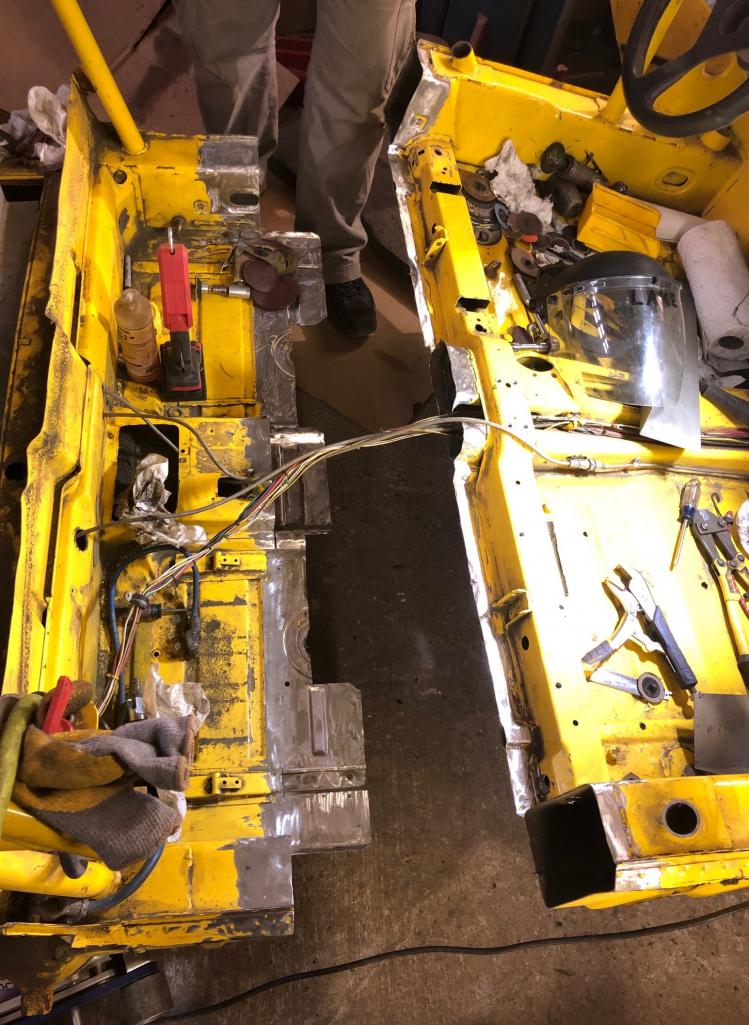

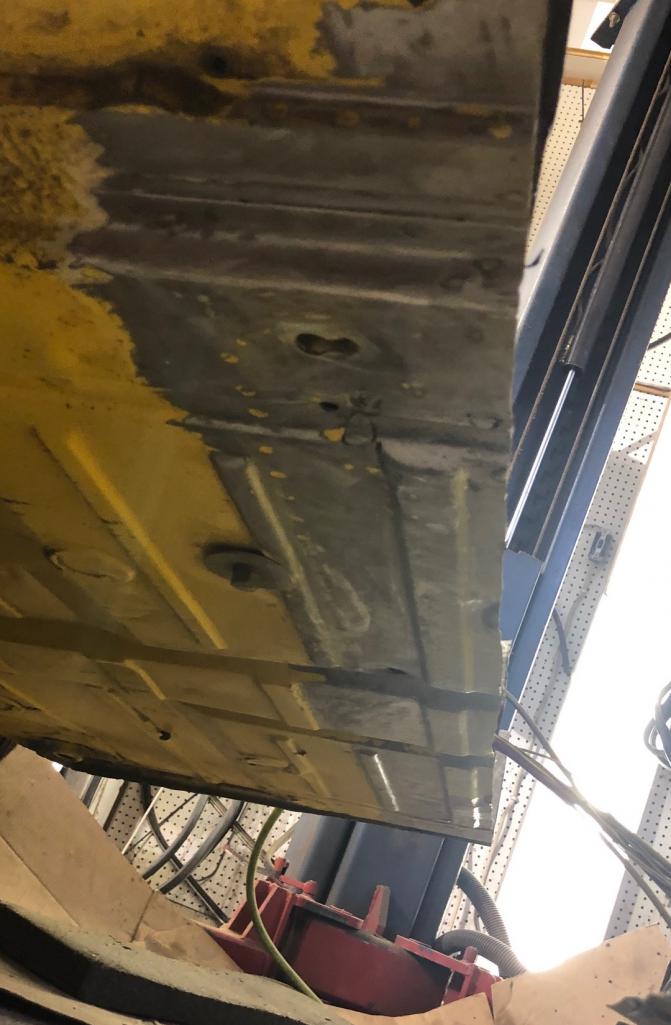

Prepped the two pieces of the car to go into one tomorrow. Everything is lining up well and fitting nicely. Stay tuned.


Attached thumbnail(s)
Attached Image Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Tdskip
post Nov 23 2020, 02:30 PM
Post #929


Advanced Member
****

Group: Members
Posts: 3,740
Joined: 1-December 17
From: soCal
Member No.: 21,666
Region Association: None
Holy cow!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Unobtanium-inc
post Nov 24 2020, 02:24 PM
Post #930


Advanced Member
****

Group: Members
Posts: 2,358
Joined: 29-November 06
From: New York
Member No.: 7,276
Region Association: None

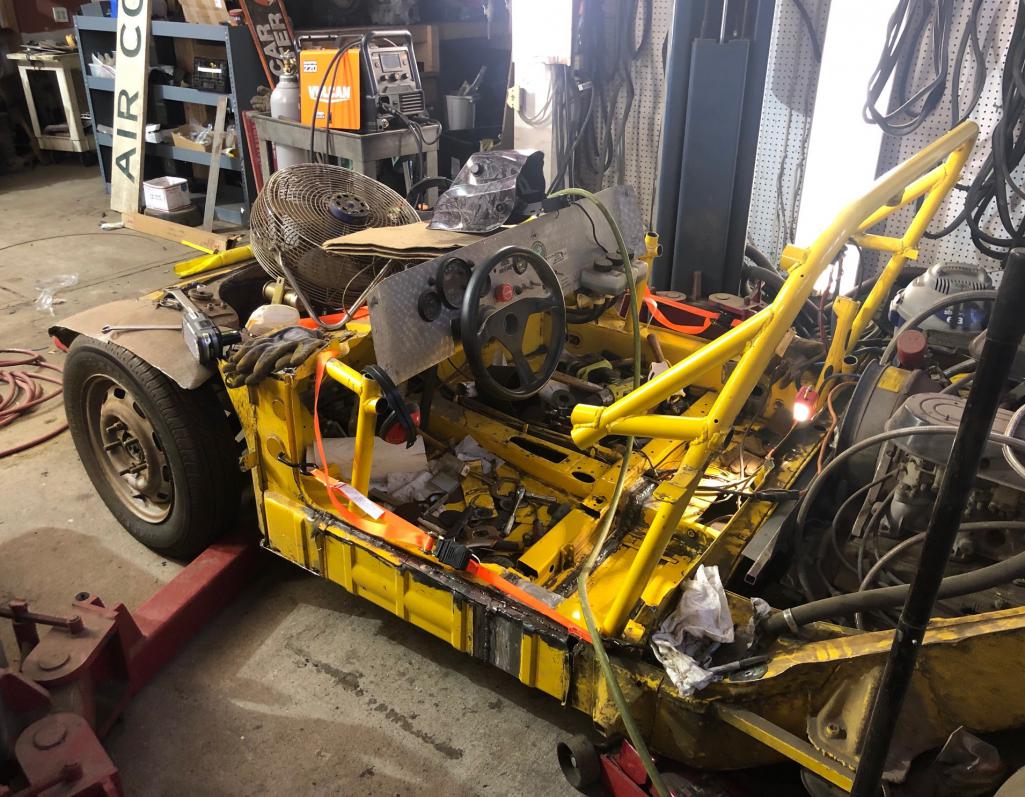

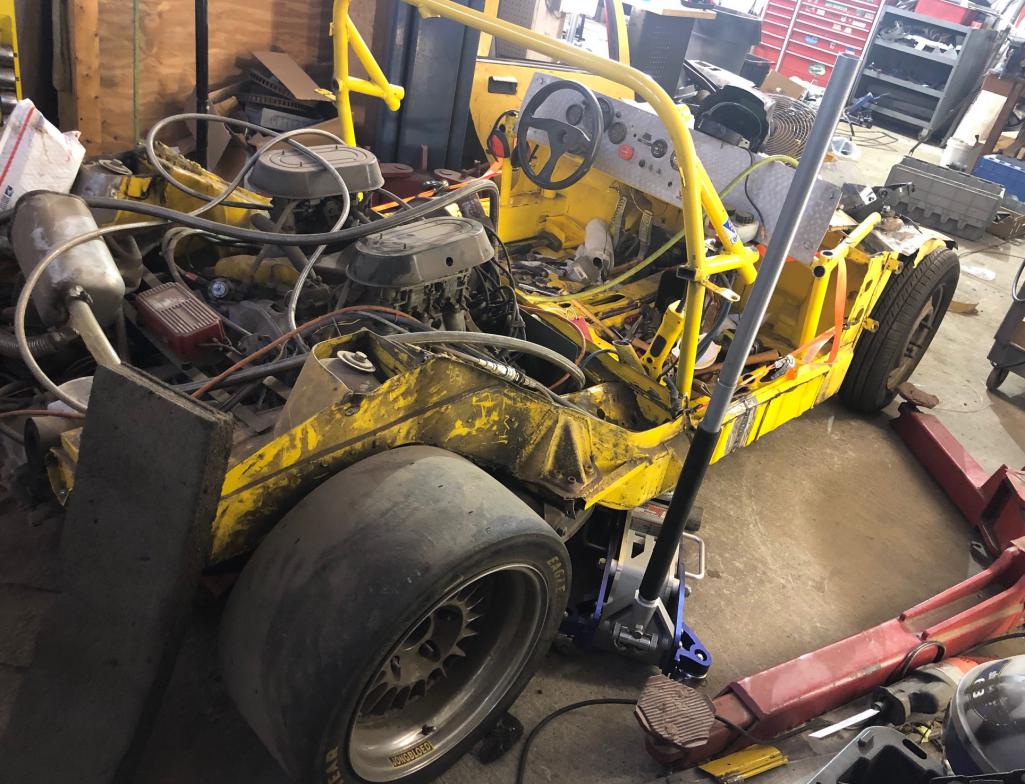

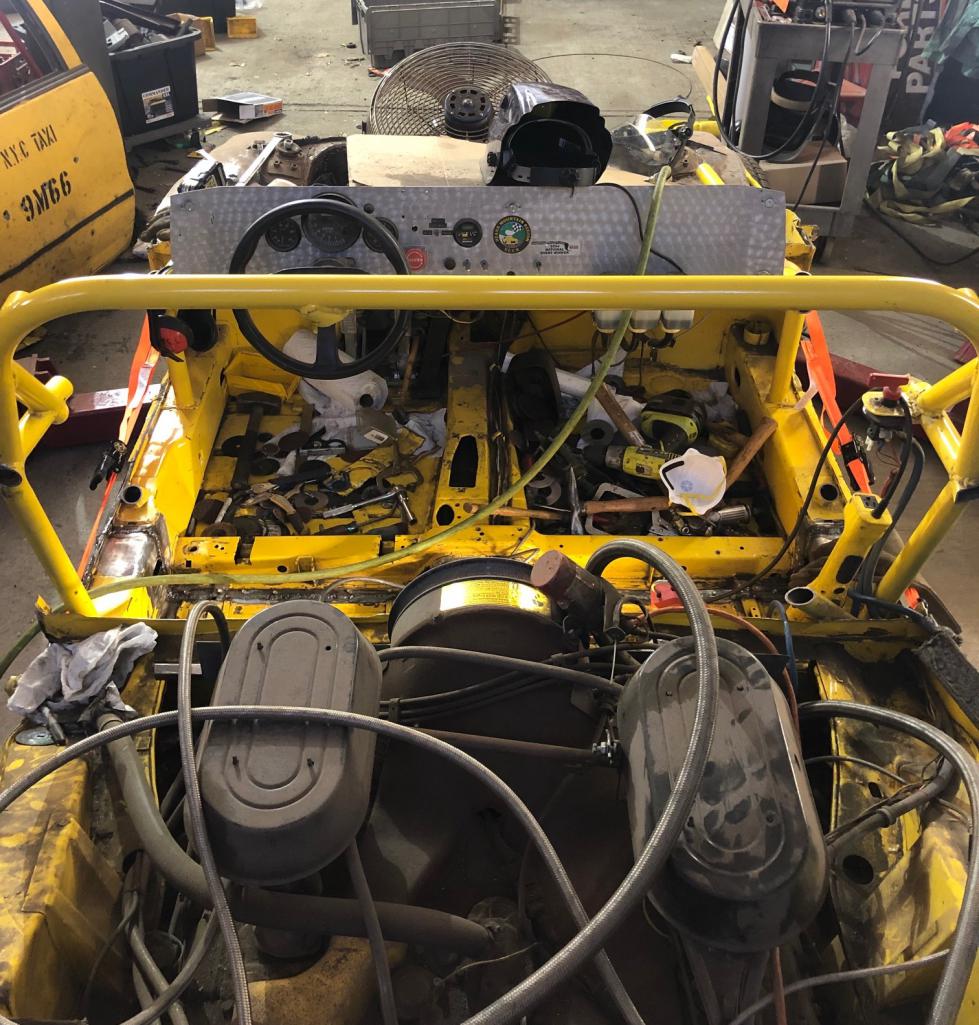

What was once two pieces, is one again.

Reunited, and it feels so good!

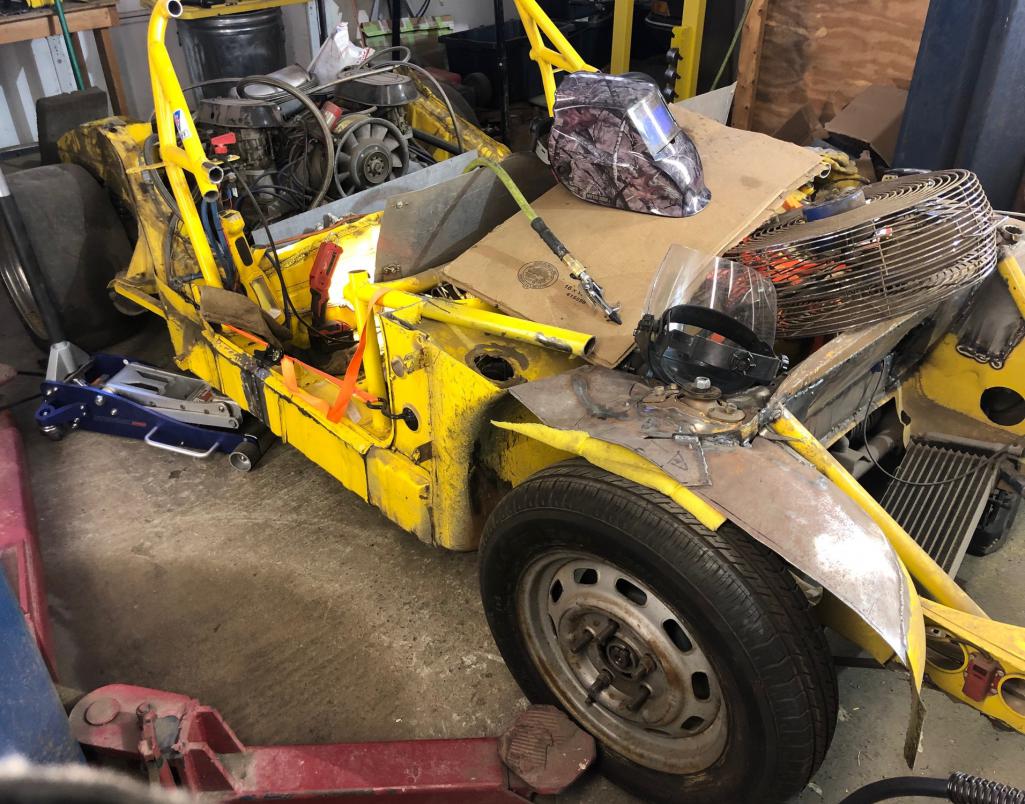

Now we are back to normal stuff like trimming out the front fenders and fitting the body, no more scary parts.

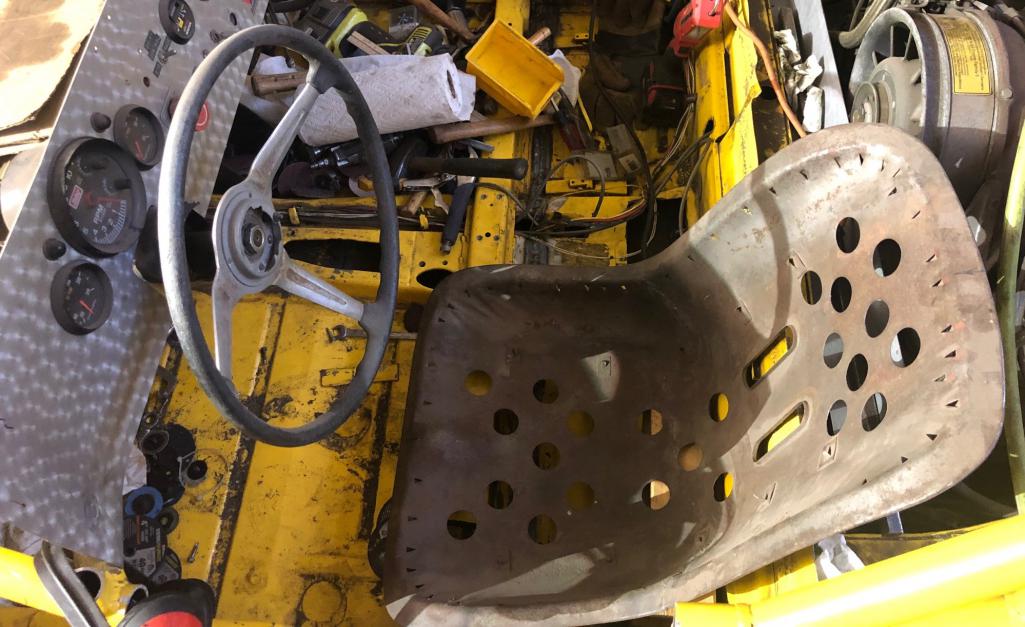

Sitting in the car is tight, but it feels as tight as when I sat in a real 904. My brother is 5'6" and sat in it, it is much more suited for him than me at 5'9".


Attached thumbnail(s)
Attached Image Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Nov 24 2020, 02:35 PM
Post #931


Michael
**********

Group: Members
Posts: 10,447
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Amazing! Loving this project. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Nov 24 2020, 05:05 PM
Post #932


914 Guru
*****

Group: Members
Posts: 7,650
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Wow
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Unobtanium-inc
post Nov 24 2020, 08:23 PM
Post #933


Advanced Member
****

Group: Members
Posts: 2,358
Joined: 29-November 06
From: New York
Member No.: 7,276
Region Association: None

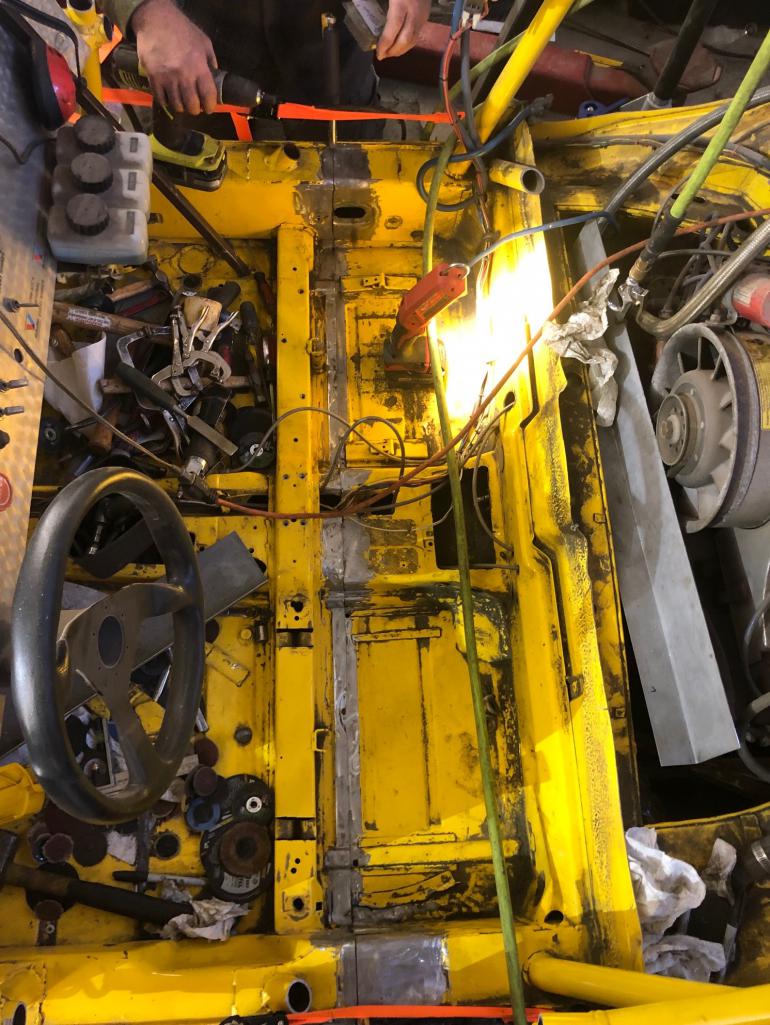

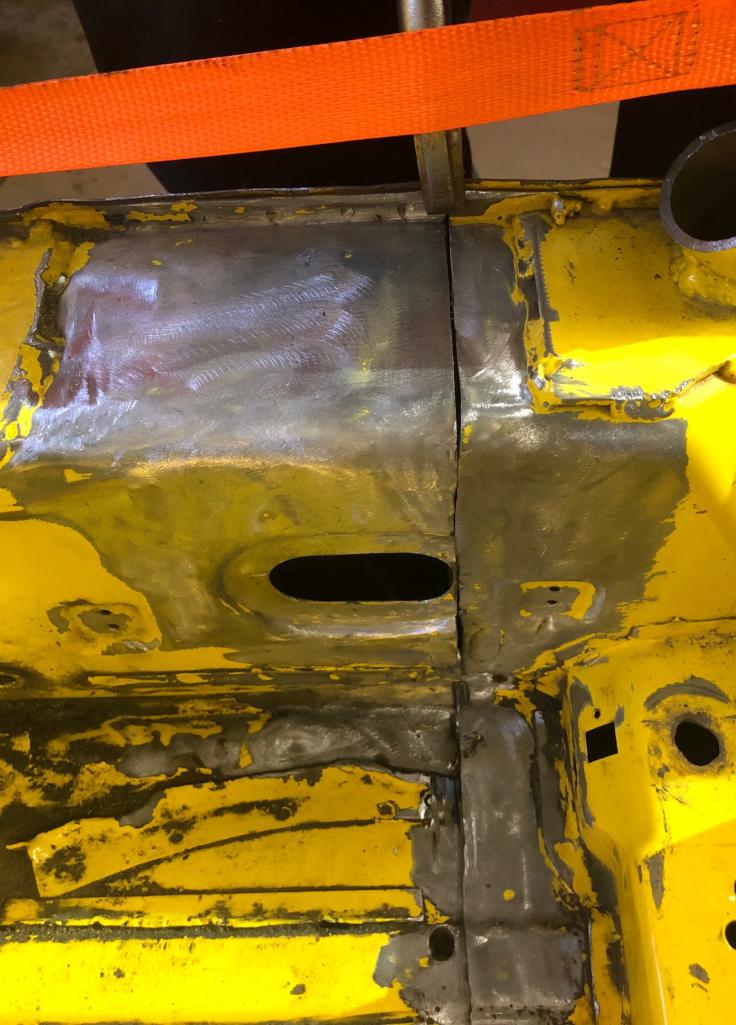

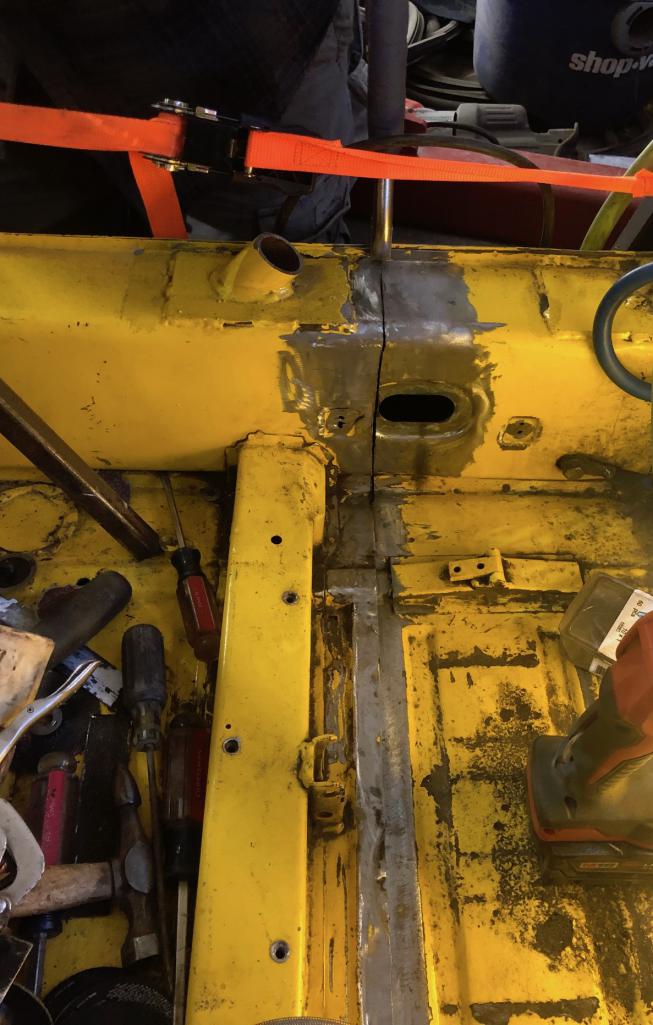

Here are some pre-welding shots, to show how tight we got it.


Attached thumbnail(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rjames
post Nov 24 2020, 09:05 PM
Post #934


I'm made of metal
****

Group: Members
Posts: 4,382
Joined: 24-July 05
From: Shoreline, WA
Member No.: 4,467
Region Association: Pacific Northwest
Damn, that is a tight space!
User is online!Profile CardPM
Go to the top of the page
+Quote Post
jd74914
post Nov 25 2020, 07:54 AM
Post #935


Its alive
****

Group: Members
Posts: 4,855
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States
That is a small space, wow.

Before you go further Adam you really should do a string alignment with special focus on toe and wheel position. It’d be a shame to get everything else fit up and find out that the center of the car is at a slight angle which results in a crab walk which can’t be adjusted out.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
db9146
post Nov 25 2020, 04:06 PM
Post #936


Senior Member
***

Group: Members
Posts: 953
Joined: 21-December 04
From: Atlanta, GA
Member No.: 3,315
Region Association: None
Better have some WD40 to spray your back side to get into that....wow.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Carbon-14
post Nov 26 2020, 12:48 AM
Post #937


Senior Member
***

Group: Members
Posts: 765
Joined: 7-May 20
From: Toronto, Ontario, Canada
Member No.: 24,238
Region Association: Canada

Attached Image

Yeah,
I'm loving it.

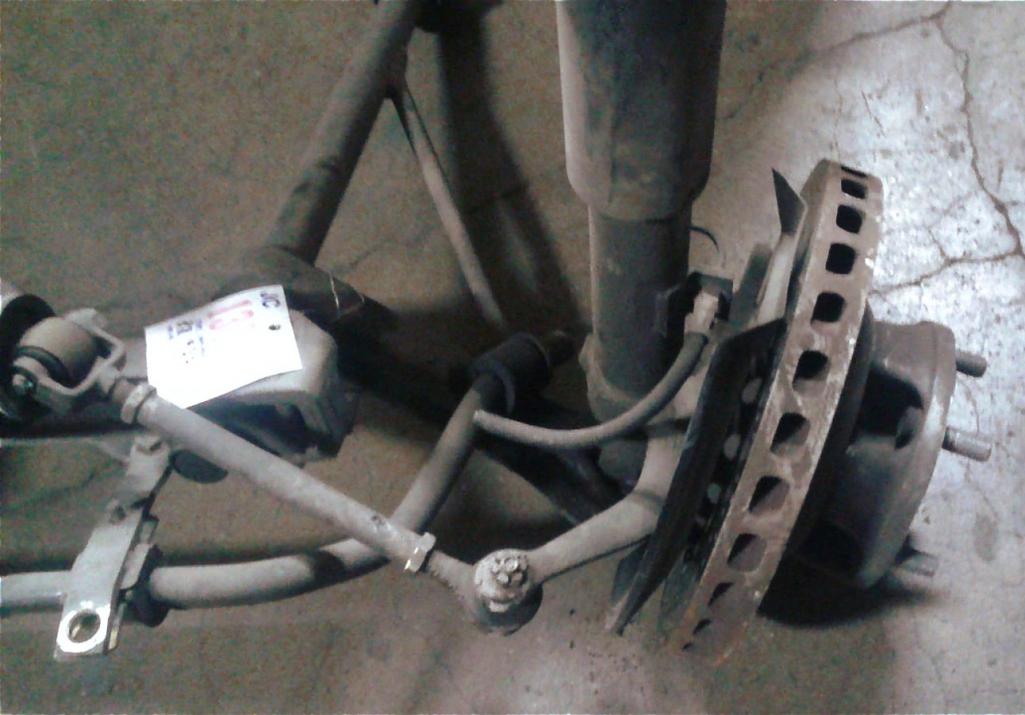

The front steering geometry has now been altered, the instantaneous and imaginary, intersections must be recalculated, determined.
This is the part where it becomes interesting, to emulate the performance of the factory design, 60 years later, with computers.
https://www.google.com/search?q=4%20wheel%2...483&bih=742
https://www.restoration-design.com/store/SRCH?Search=PP355
http://www.scielo.br/scielo.php?script=sci...782011000400007
https://www.turnology.com/features/chassis-...ineering-speed/
http://performancetrends.com/SuspAnzr.htm
https://www.susprog.com/download/SusProg3D.pdf
Cameras mounted at the corners to analyze tire contact patch, while testing, the motions, the heat transfer by infrared.
That will be fun, enjoying the build, hope to hear it make nice sounds.
(IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
stownsen914
post Nov 26 2020, 08:25 AM
Post #938


Senior Member
***

Group: Members
Posts: 965
Joined: 3-October 06
From: Ossining, NY
Member No.: 6,985
Region Association: None
One option to address seating position would be to shorten the steering column and move the pedals forward. I've done this to 911 and 914 racecars now. A bit of a PITA, but really helps with the seat position.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Unobtanium-inc
post Nov 26 2020, 08:45 AM
Post #939


Advanced Member
****

Group: Members
Posts: 2,358
Joined: 29-November 06
From: New York
Member No.: 7,276
Region Association: None
QUOTE(stownsen914 @ Nov 26 2020, 06:25 AM) *

One option to address seating position would be to shorten the steering column and move the pedals forward. I've done this to 911 and 914 racecars now. A bit of a PITA, but really helps with the seat position.

Stan,
I think you're onto something. I consulted with a friend of mine last night who owns 904-0014 and this is what he said,
"The length is adjustable. Since 904 seats do not adjust, they made both the steering and pedal ass'y adjustable.

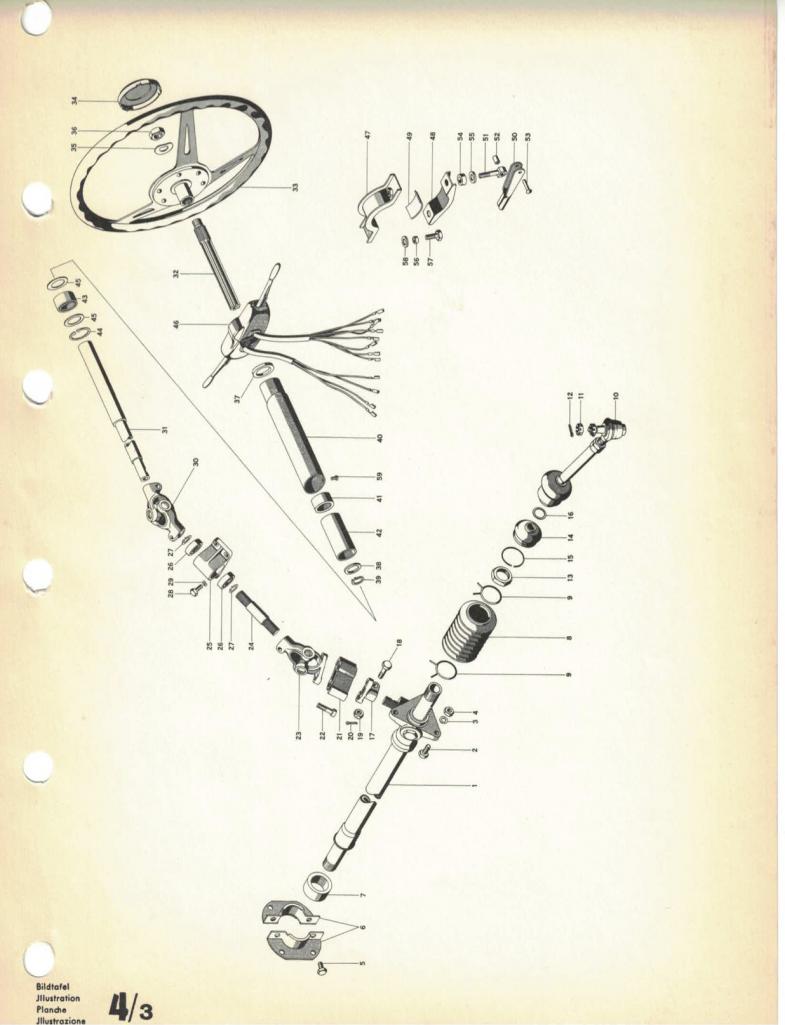

Attached is a page from the 904 parts book showing the steering.

When you are strapped into your seat, you should reach out above the steering wheel, drop your straight arms down and your wrists should touch the top of the steering wheel. That allows you full control of the car w/o taking your hands off the wheel."

I might have to entice you to head upstate to consult with me!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mate914
post Nov 26 2020, 11:12 AM
Post #940


Matt
***

Group: Members
Posts: 900
Joined: 27-February 09
From: Eagles mere, PA
Member No.: 10,102
Region Association: North East States
This is a great build....
Wish I could help....
Matt
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
