| last337 |
 Jun 20 2015, 11:47 AM
Post
#1
|
|
Member  Group: Members Posts: 421 Joined: 4-December 12 From: New Orleans Member No.: 15,221 Region Association: None  |

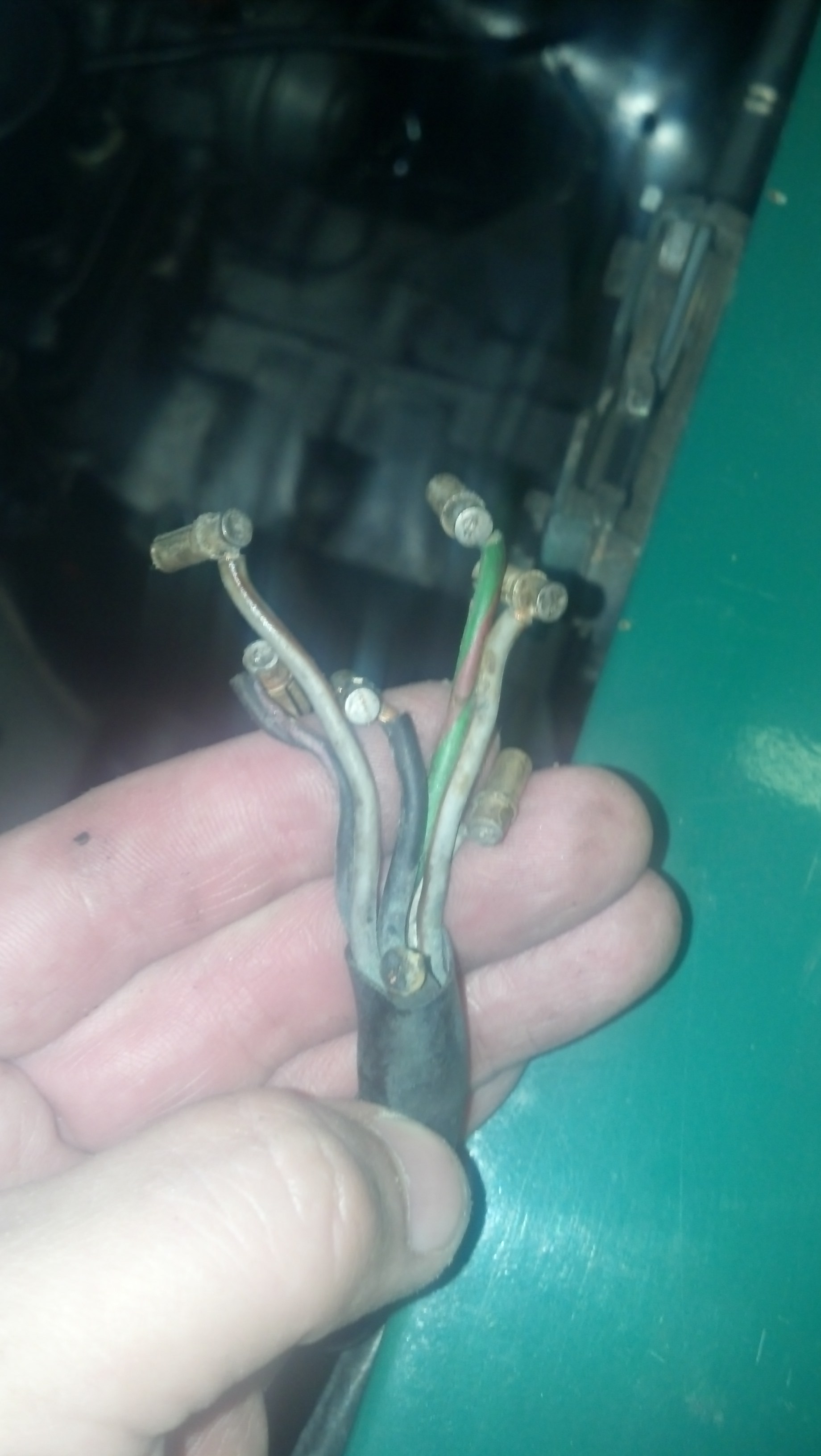

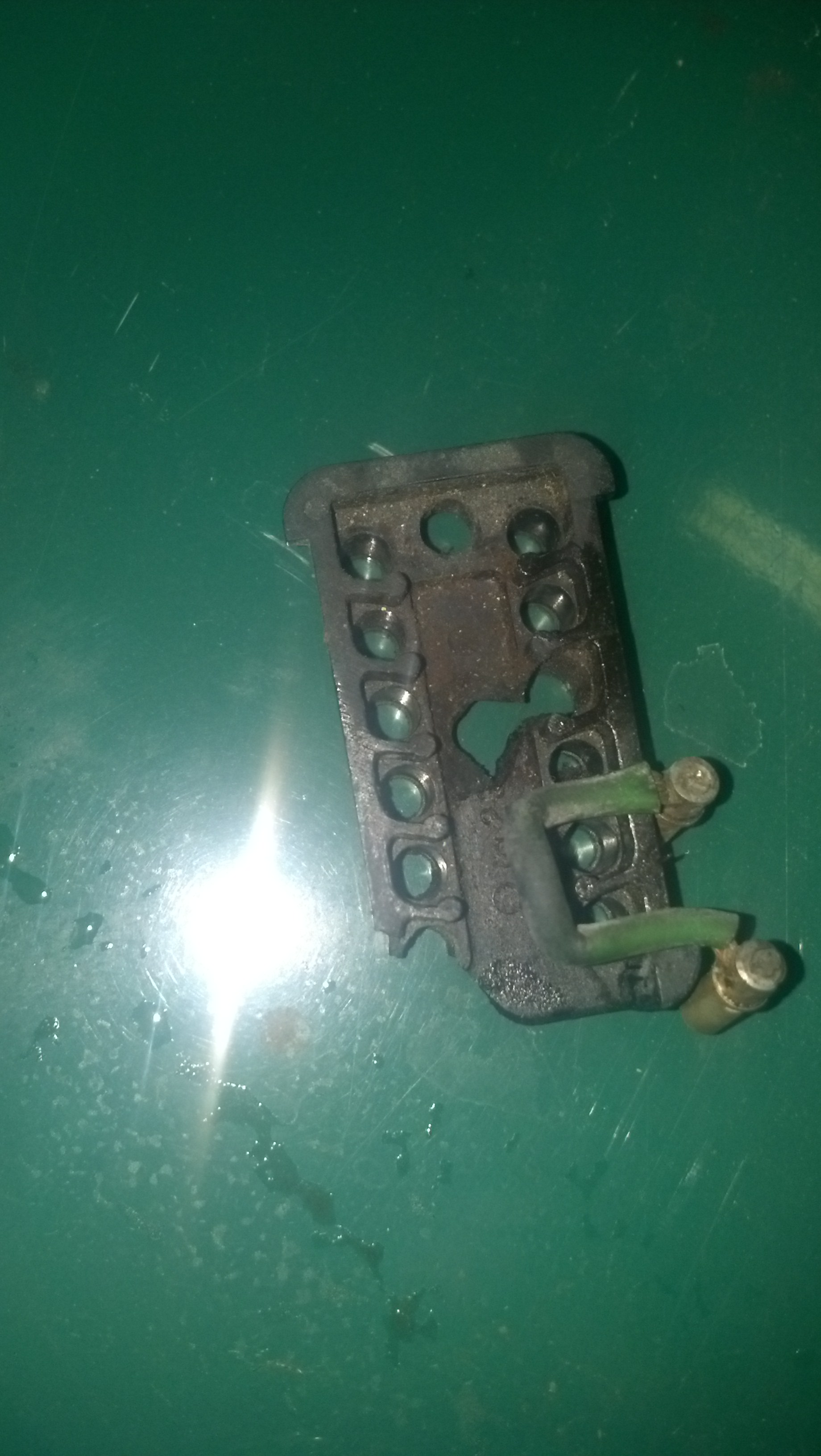

The wiring is a rats nest and I'm so lost. To make matters worse as we put the plug back in the back comes off and all connectors jump out of their spots. It still looks like original wiring so colors probably match still but I'm unable to find any diagrams of it. Plus I'm coclorblind but thankfully I have a non color impaired helper today. Anyone know how this goes?
 Attached thumbnail(s)
|
   |

|
Posts in this topic
last337 harness wiring engine compartment Jun 20 2015, 11:47 AM
Mark Henry For one it goes in a better connector :blink: Jun 20 2015, 01:08 PM
Jeff Bowlsby Download the diagram you need from here:
http://b... Jun 20 2015, 01:36 PM  |
