> Solid State Relay Board
Steve_R
post Jul 6 2015, 05:28 PM
Post #1


Member
**

Group: Members
Posts: 68
Joined: 8-August 12
From: San Diego, CA
Member No.: 14,777
Region Association: None
Well, it’s been about a year since I finished my 914 restoration, you can read all about it

HERE.

Everything works perfect except for the electrical problems I’ve been having with the relay board. I spent lots of hours trouble shooting electrical issues with the fuel pump. It turs out that my relay board had some bad connections for the fuel pump relay. After searching this site I discovered that the relay board is truly the weakest link in the 914. I tried to remove the epoxy bedding underneath the board and resolder the connections. This worked for a while but the fuel pump would sometimes stop and kill the engine. I finally figured out that the contacts for the fuel pump relay to the board were causing the problem. This seems like a never ending problem. I could buy another 40 year old used board and have the same problems.

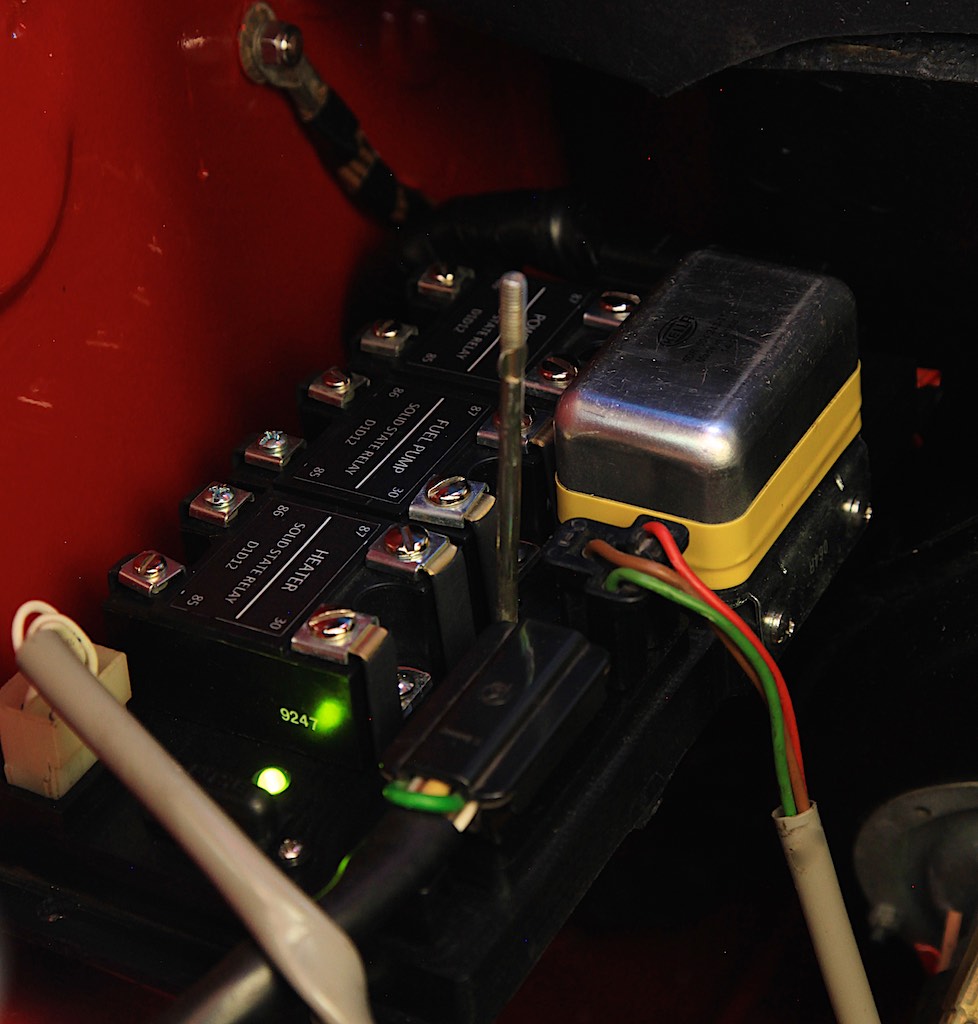

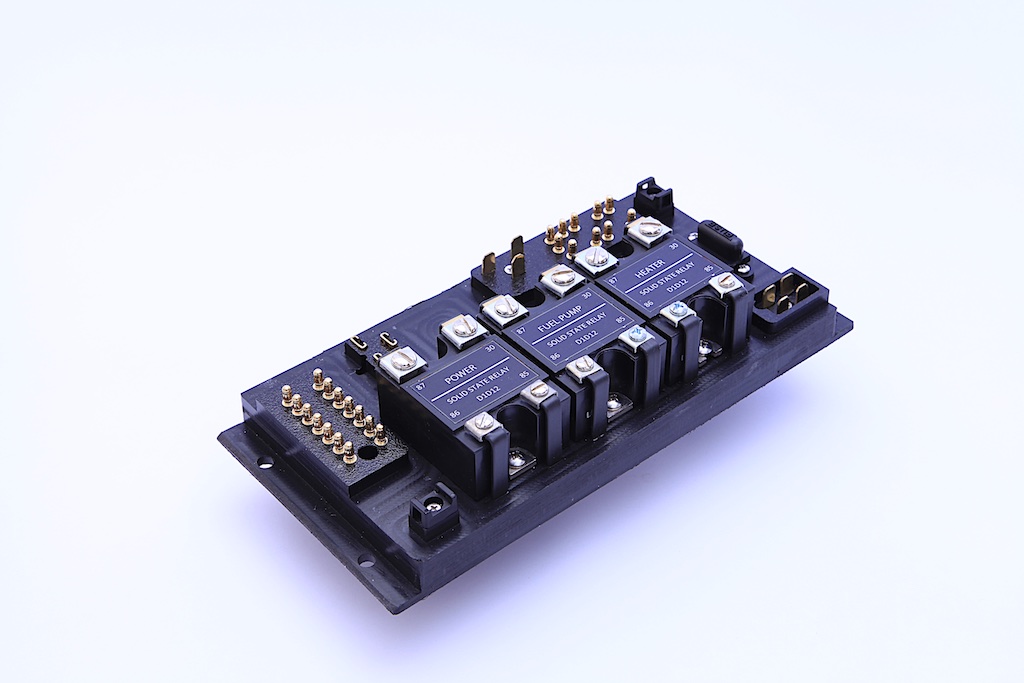

So, to make a long story short, I decided to design a new relay board from scratch. I replaced the original electromechanical relays with industrial solid state relays. They have the same connection labels as the stock relays: 85 & 86 for the coil and 30 & 87 for the switch. The relays are available at most electrical parts dealers like Mouser or Digi-Key if one ever needs to be replace. They also use a lot less power than the original 914 relays. Also, since they are solid state and don’t have any moving parts they will last a lot longer and are more reliable. I also replaced the old ceramic fuse with a modern ATC style fuse and added an LED that illuminates when the fuel pump has power. This is great for trouble shooting fuel pump issues. It comes on for a few seconds after the key is turned on and stays on when the engine is running. Also, I removed the connections and plug for the rear window defroster. I used wires soldered to the connectors eliminating all of the riveted connections. All connections are soldered. To make the board I CNC machined the board out of high density polyethylene plastic.
I built a few extra boards to offset some of the development costs. They are quite labor extensive to build so I don’t plan to mass produce them. PM me if you want one. I would like to get $500.00 each. That includes the board with the solid stare relays. It does not include the voltage regulator. I used a solid state one from Pelican Parts. Both the stock and solid state voltage regulators will work.




Attached thumbnail(s)
Attached Image

Attached image(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jul 6 2015, 05:35 PM
Post #2


914 Wiring Harnesses
*****

Group: Members
Posts: 8,485
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
Wow...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
steuspeed
post Jul 6 2015, 05:44 PM
Post #3


Senior Member
***

Group: Members
Posts: 1,005
Joined: 12-July 11
From: Portland, Oregon
Member No.: 13,308
Region Association: Pacific Northwest
(IMG:style_emoticons/default/agree.gif) (IMG:style_emoticons/default/shades.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Jul 6 2015, 05:47 PM
Post #4


Resident German
*************************

Group: Admin
Posts: 41,607
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
(IMG:style_emoticons/default/smilie_pokal.gif)
Very nice!

Just a FYI, i was able to buy a brand new relay board from Porsche not too long ago.
(IMG:style_emoticons/default/shades.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Jul 6 2015, 05:59 PM
Post #5


Get that VIN ?
*****

Group: Members
Posts: 9,265
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California
Thanks for posting; I saw your car at the PCA Concours in Dan Point and was impressed with your relay board.....very clean looking. Is this going to be a one-off or are your going to produce them ? Even a kit would be very cool (IMG:style_emoticons/default/smile.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
McMark
post Jul 6 2015, 06:00 PM
Post #6


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Really cool! (IMG:style_emoticons/default/thumb3d.gif)

What's the back look like? Did you make the pins as well? I'm working on a similar project, but will be severely modifying the layout to better suit my car.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Harpo
post Jul 6 2015, 06:04 PM
Post #7


Senior Member
***

Group: Members
Posts: 1,304
Joined: 21-August 11
From: Motor City aka Detroit
Member No.: 13,469
Region Association: None
Very impressive. You have some skills there.

David
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post Jul 6 2015, 06:09 PM
Post #8


Resident Electrician
*****

Group: Members
Posts: 8,345
Joined: 22-June 09
From: Midlothian TX
Member No.: 10,496
Region Association: None
I like it!

I'm running solid state relays on my car too. They work great and trigger as low as 3VDC.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mblizzard
post Jul 6 2015, 07:08 PM
Post #9


Advanced Member
****

Group: Members
Posts: 3,033
Joined: 28-January 13
From: Knoxville Tn
Member No.: 15,438
Region Association: South East States
Holy crap that is cool!

Wish I had the cash as that is likely one of the best changes you could make in a 40 year electrical system.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
somd914
post Jul 6 2015, 07:12 PM
Post #10


Member
***

Group: Members
Posts: 1,171
Joined: 21-February 11
From: Southern Maryland
Member No.: 12,741
Region Association: MidAtlantic Region
(IMG:style_emoticons/default/drooley.gif) (IMG:style_emoticons/default/drooley.gif) (IMG:style_emoticons/default/drooley.gif)

Very nice work. Not in my budget right now, but perhaps in the future...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
saigon71
post Jul 6 2015, 08:15 PM
Post #11


Senior Member
***

Group: Members
Posts: 1,998
Joined: 1-June 09
From: Dillsburg, PA
Member No.: 10,428
Region Association: MidAtlantic Region
Very impressive - nice work! (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Steve_R
post Jul 7 2015, 06:55 AM
Post #12


Member
**

Group: Members
Posts: 68
Joined: 8-August 12
From: San Diego, CA
Member No.: 14,777
Region Association: None
QUOTE(McMark @ Jul 6 2015, 05:00 PM) *

Really cool! (IMG:style_emoticons/default/thumb3d.gif)

What's the back look like? Did you make the pins as well? I'm working on a similar project, but will be severely modifying the layout to better suit my car.


Thanks,
The back is filled with epoxy to seal in all of the wires. I found a supplier for the pins. Are you using solid state relays?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Sixer
post Jul 7 2015, 08:47 AM
Post #13


914 Guru
*****

Group: Members
Posts: 8,871
Joined: 17-January 05
From: San Angelo Texas
Member No.: 3,457
Region Association: Southwest Region
Am I missing it or is there no plug for the heated back window? Very upscale replacement.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Jul 7 2015, 09:40 AM
Post #14


914 Freak!
***************

Group: Members
Posts: 17,146
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
Damn...that is a nice assembly....Tormach mill?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
thieuster
post Jul 7 2015, 09:47 AM
Post #15


Member
**

Group: Members
Posts: 447
Joined: 31-January 15
From: 275 mls NW from Stuttgart.
Member No.: 18,384
Region Association: Europe
I take my hat off, sir! Amazing stuff!

Menno
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
clapeza
post Jul 7 2015, 12:07 PM
Post #16


Member
**

Group: Members
Posts: 229
Joined: 7-February 11
From: South GA
Member No.: 12,677
Region Association: South East States
Doesn't this belong in the Sandbox?

...because that is pure 914 porn!

(IMG:style_emoticons/default/drooley.gif)

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Steve_R
post Jul 7 2015, 07:47 PM
Post #17


Member
**

Group: Members
Posts: 68
Joined: 8-August 12
From: San Diego, CA
Member No.: 14,777
Region Association: None
QUOTE(914Sixer @ Jul 7 2015, 07:47 AM) *

Am I missing it or is there no plug for the heated back window? Very upscale replacement.


There was only room on the board for 3 solid state relays - Power, Fuel Pump and Heater.
Also, my car doesn't have a heated back window.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jul 7 2015, 10:26 PM
Post #18


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
QUOTE(Steve_R @ Jul 7 2015, 05:55 AM) *

QUOTE(McMark @ Jul 6 2015, 05:00 PM) *

Really cool! (IMG:style_emoticons/default/thumb3d.gif)

What's the back look like? Did you make the pins as well? I'm working on a similar project, but will be severely modifying the layout to better suit my car.


Thanks,
The back is filled with epoxy to seal in all of the wires. I found a supplier for the pins. Are you using solid state relays?

Wasn't planning on it. I'm a bit of a nut about emulating originality, so I'm debating between original round relays and more modern Bosch square relays. But I still totally appreciate the upgrade to solid state. If I could find a solid state that looked exactly like an original round relay, I'll buy 100 right now. (IMG:style_emoticons/default/wink.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Jul 7 2015, 10:51 PM
Post #19


914 Freak!
***************

Group: Members
Posts: 17,146
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
QUOTE(McMark @ Jul 7 2015, 09:26 PM) *

QUOTE(Steve_R @ Jul 7 2015, 05:55 AM) *

QUOTE(McMark @ Jul 6 2015, 05:00 PM) *

Really cool! (IMG:style_emoticons/default/thumb3d.gif)

What's the back look like? Did you make the pins as well? I'm working on a similar project, but will be severely modifying the layout to better suit my car.


Thanks,
The back is filled with epoxy to seal in all of the wires. I found a supplier for the pins. Are you using solid state relays?

Wasn't planning on it. I'm a bit of a nut about emulating originality, so I'm debating between original round relays and more modern Bosch square relays. But I still totally appreciate the upgrade to solid state. If I could find a solid state that looked exactly like an original round relay, I'll buy 100 right now. (IMG:style_emoticons/default/wink.gif)


What is the diameter of the stock round units? There are mini-ISO relays that are ≈25mm square, maybe remove round covers and put these over? There are smaller ones but then you get into thru hole mount or surface mount assembly and your costs are really going to go up.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jul 8 2015, 12:20 AM
Post #20


Advanced Member
****

Group: Members
Posts: 4,636
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
