> newbie 74 1.8 project, rustoration turning into a GT lookalike
jmitro
post Jul 30 2015, 08:48 PM
Post #1


Senior Member
***

Group: Members
Posts: 713
Joined: 23-July 15
From: Oklahoma
Member No.: 18,986
Region Association: None
Hey guys, what's up?
Newbie checking in; been tinkering with & racing cars for 20 years; lots of BMWs and Porsches (944, 996, 912, 911SC). My newest project is this 74 914 1.8; picked it up for $1500US. Looks like it has factory air conditioning and option wheels.

From my initial look it appears complete and almost rust free; it hasn't been registered for almost 20 years, so probably hasn't run for that long either. Cool thing is the car still has the ORIGINAL purchase invoice from Forest Lane Porsche in Dallas, Texas.

EFI has been replaced by some sort of carb setup. This will be my first experience with a carb engine. Any suggestions on how to get the motor going? I need to make sure it turns by hand first.

Anyhow, this board looks like a wealth of knowledge and I will be reading often. (IMG:style_emoticons/default/beerchug.gif)


Attached Image

Attached Image

Attached Image

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
7 Pages V < 1 2 3 4 > »
 Reply to this topicStart new topic
Replies(20 - 39)
jmitro
post Sep 17 2015, 11:11 AM
Post #21


Senior Member
***

Group: Members
Posts: 713
Joined: 23-July 15
From: Oklahoma
Member No.: 18,986
Region Association: None

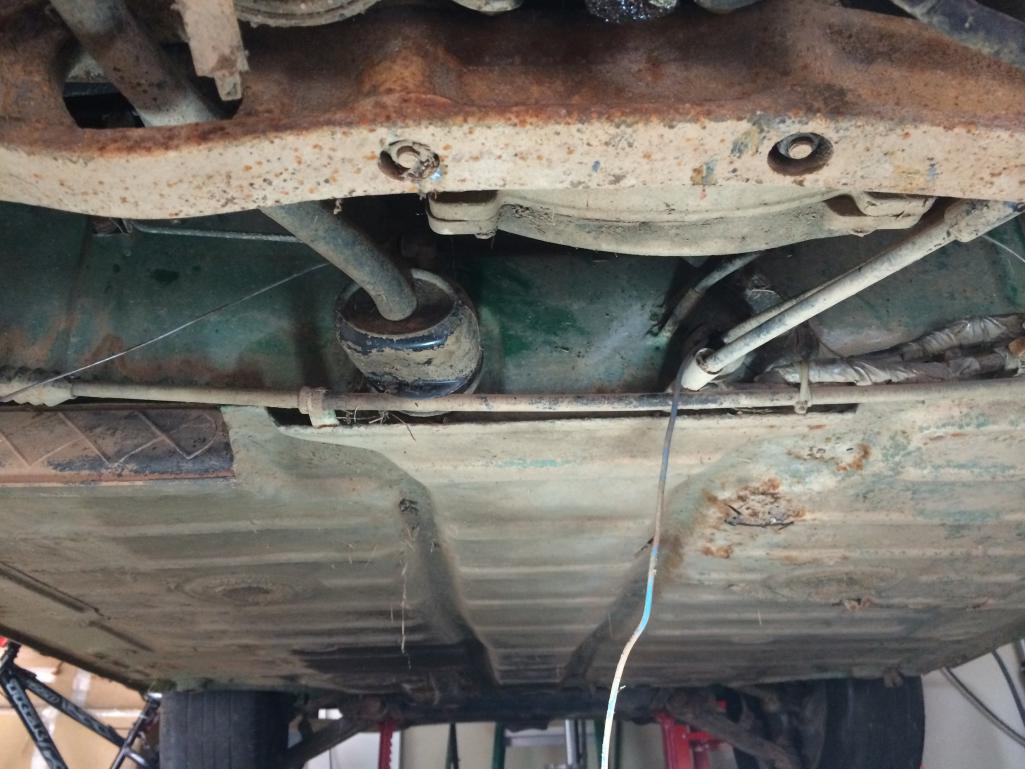

some of the sheetmetal is in decent shape.

Attached Image

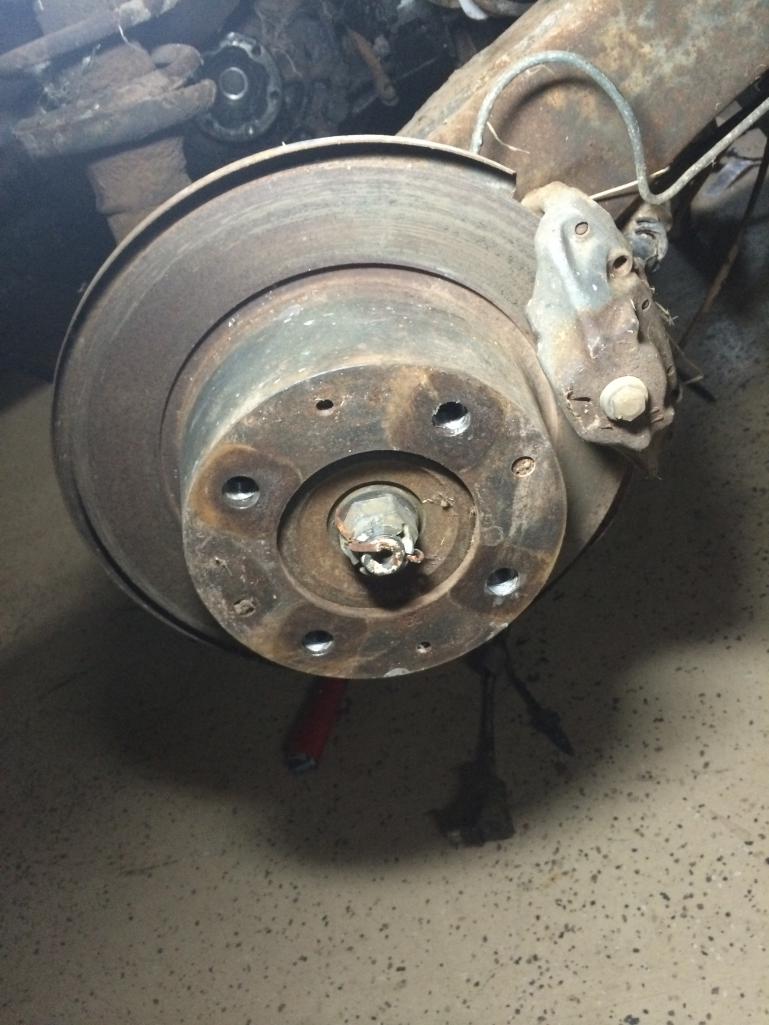

Planning on a 5lug swap using the PMB drilling method. (IMG:style_emoticons/default/biggrin.gif)

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jmitro
post Sep 17 2015, 11:13 AM
Post #22


Senior Member
***

Group: Members
Posts: 713
Joined: 23-July 15
From: Oklahoma
Member No.: 18,986
Region Association: None
Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jmitro
post Sep 17 2015, 11:17 AM
Post #23


Senior Member
***

Group: Members
Posts: 713
Joined: 23-July 15
From: Oklahoma
Member No.: 18,986
Region Association: None

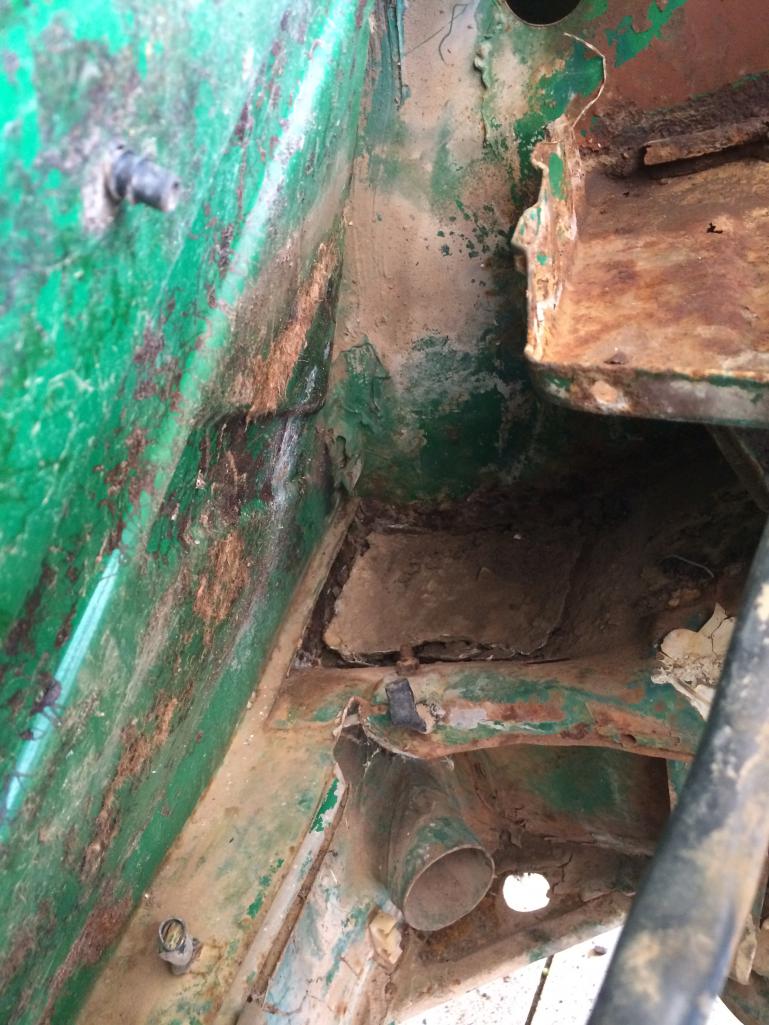

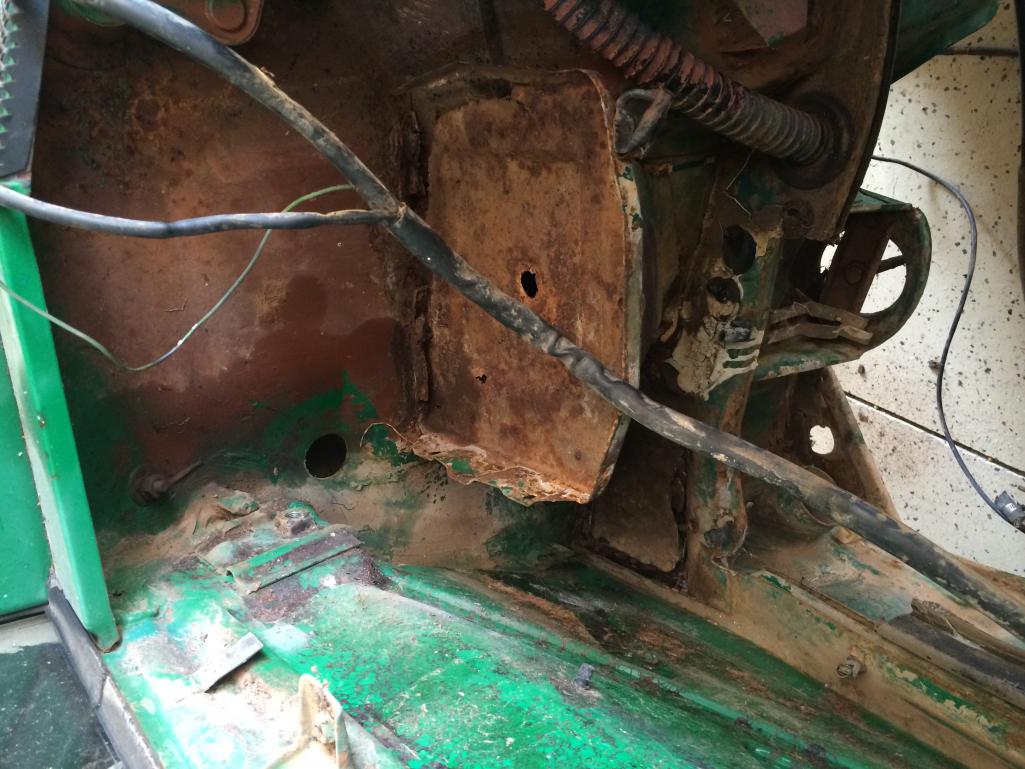

Hell hole will need some thorough inspection and probably a lot of work.

Attached Image

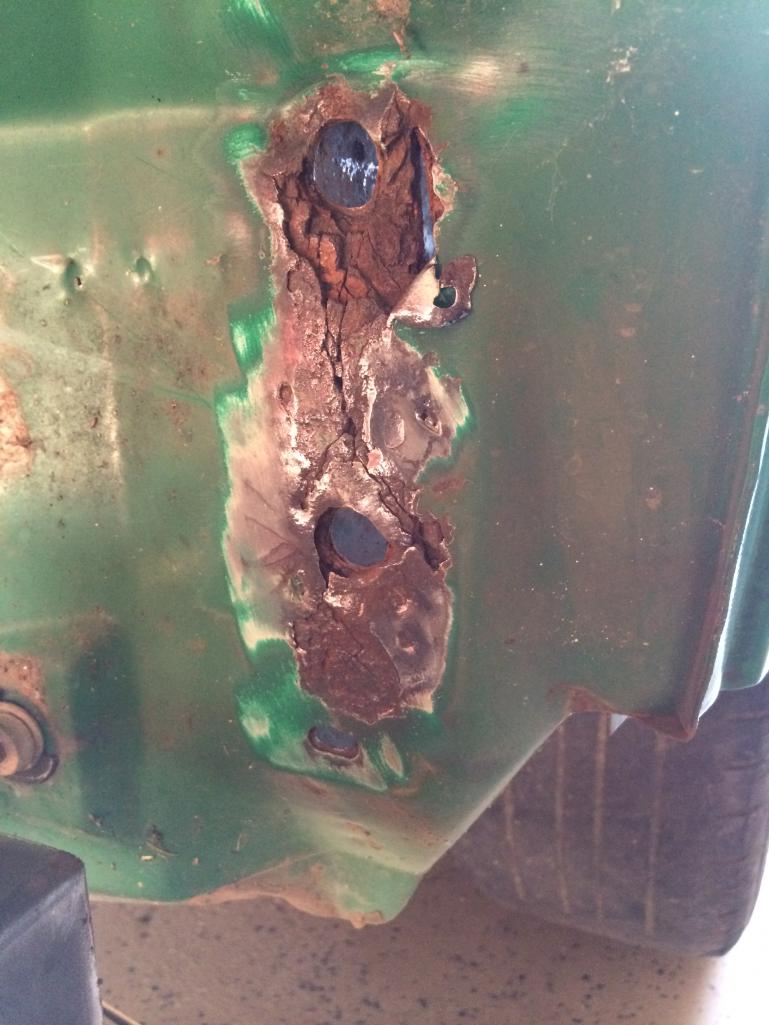

Front bumper mounts are rusty; sheetmetal attached to them has rusted through and will need to be cut out and patched at least.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jmitro
post Sep 17 2015, 11:20 AM
Post #24


Senior Member
***

Group: Members
Posts: 713
Joined: 23-July 15
From: Oklahoma
Member No.: 18,986
Region Association: None

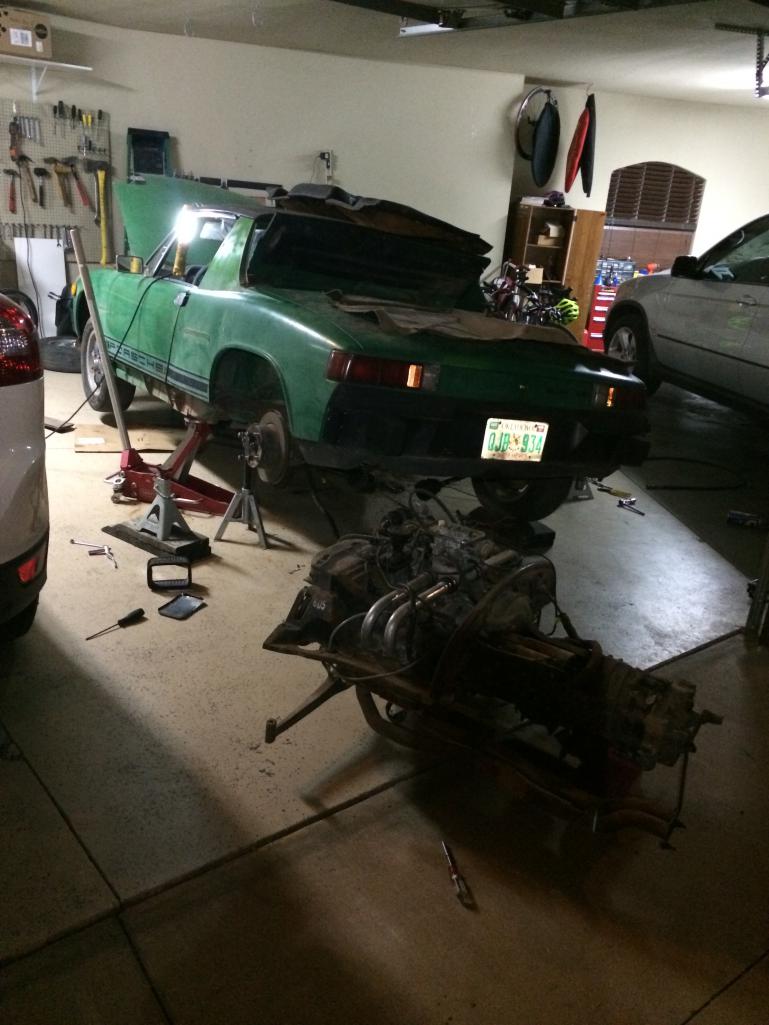

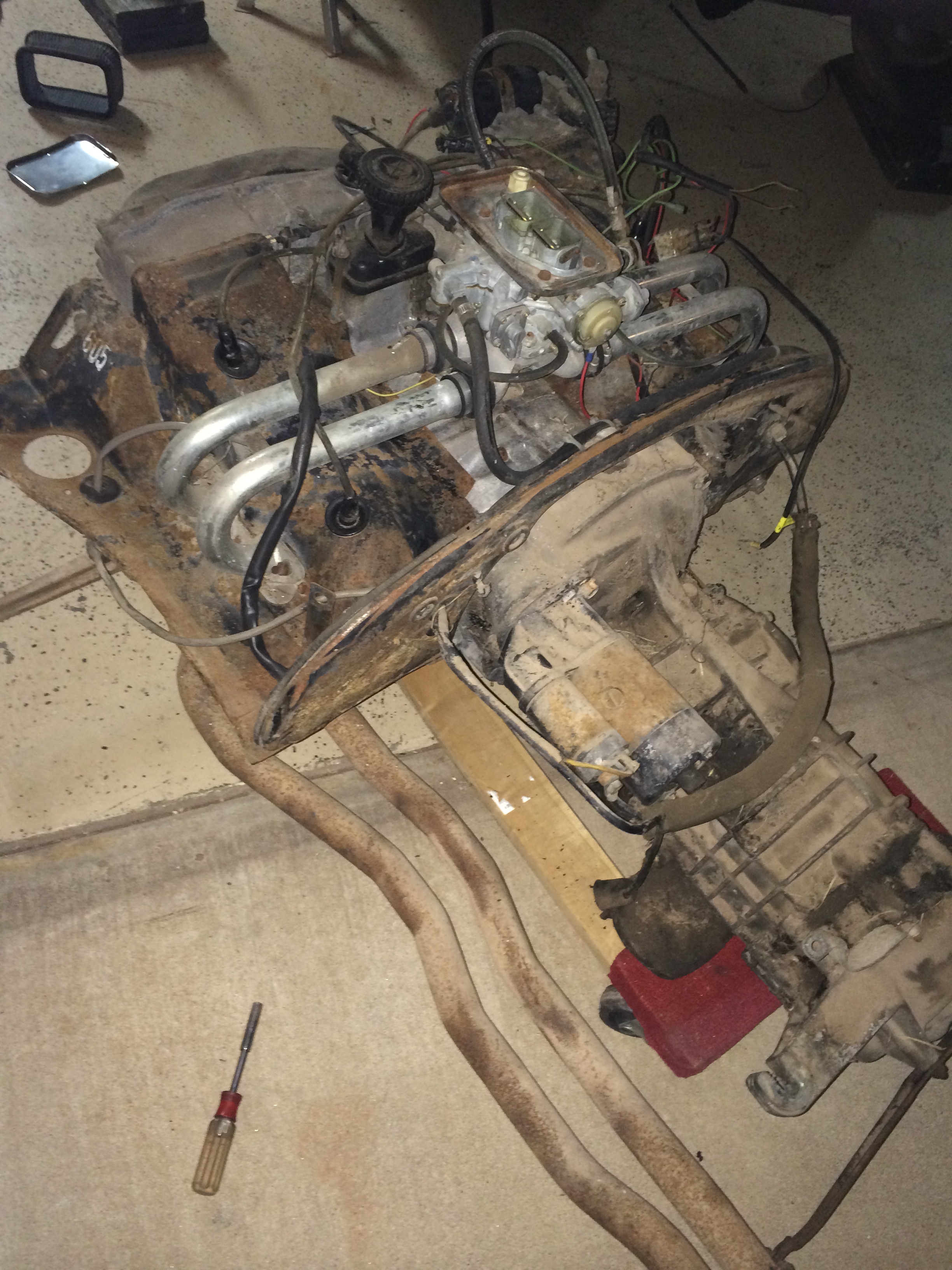

pulled the engine and transmission

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jmitro
post Sep 17 2015, 11:37 AM
Post #25


Senior Member
***

Group: Members
Posts: 713
Joined: 23-July 15
From: Oklahoma
Member No.: 18,986
Region Association: None

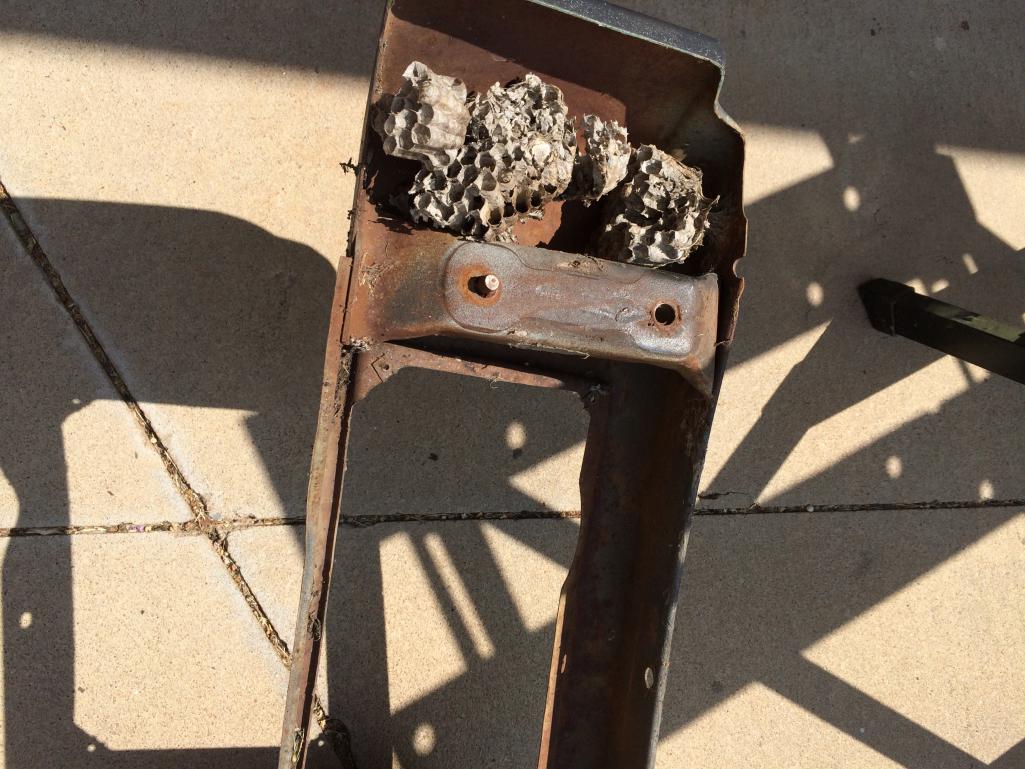

found a dead rat and lots of hornets nests; I won't post a photo of the rat like socalandy did LOL (IMG:style_emoticons/default/beerchug.gif)

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jmitro
post Sep 17 2015, 11:39 AM
Post #26


Senior Member
***

Group: Members
Posts: 713
Joined: 23-July 15
From: Oklahoma
Member No.: 18,986
Region Association: None

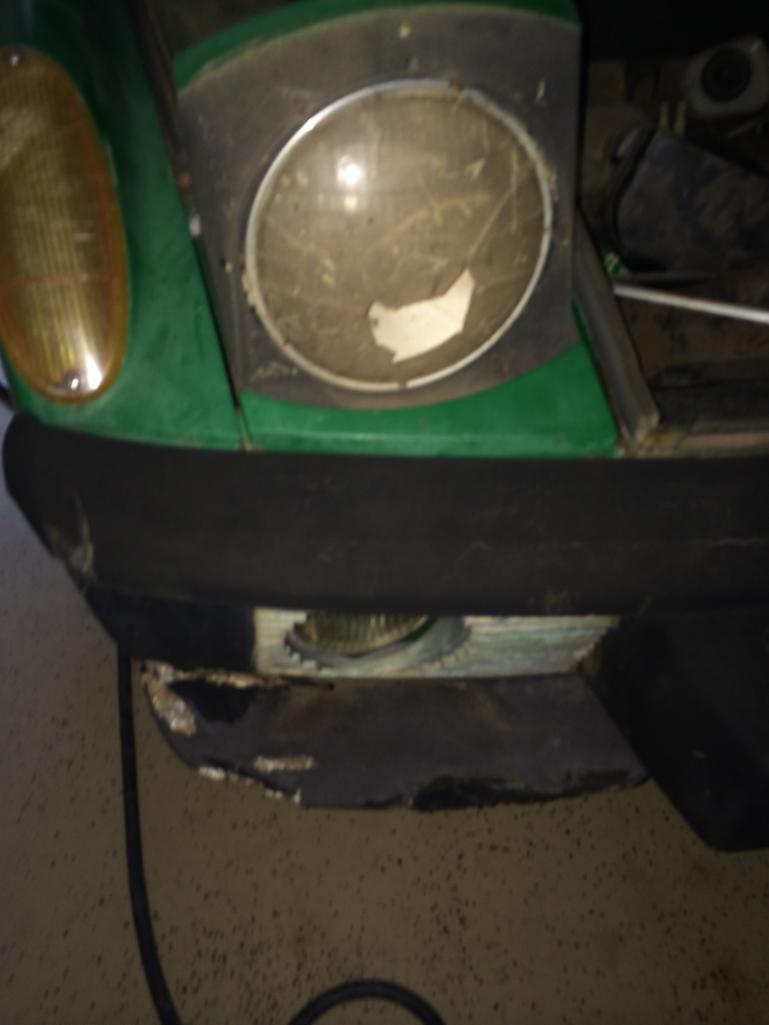

Broken headlight lens and Lots of really crusty rubber. Fiberglass bumper dam is so severely damaged it probably cannot be saved. Foglights appear to be in good shape, however.

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jmitro
post Sep 17 2015, 11:41 AM
Post #27


Senior Member
***

Group: Members
Posts: 713
Joined: 23-July 15
From: Oklahoma
Member No.: 18,986
Region Association: None

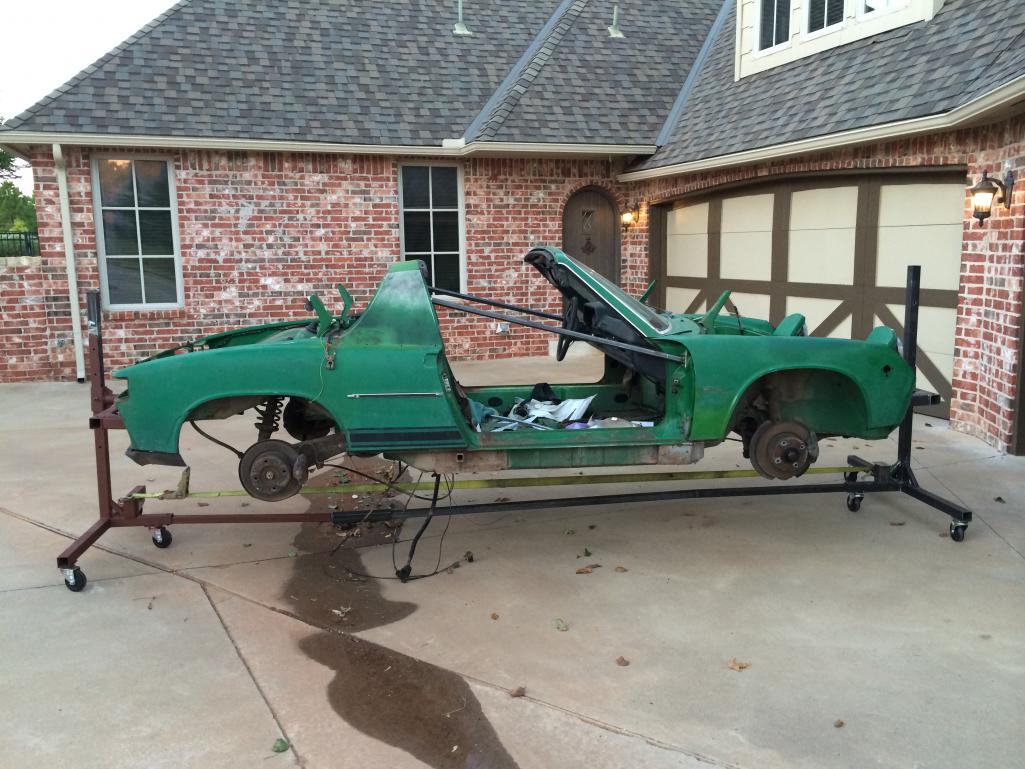

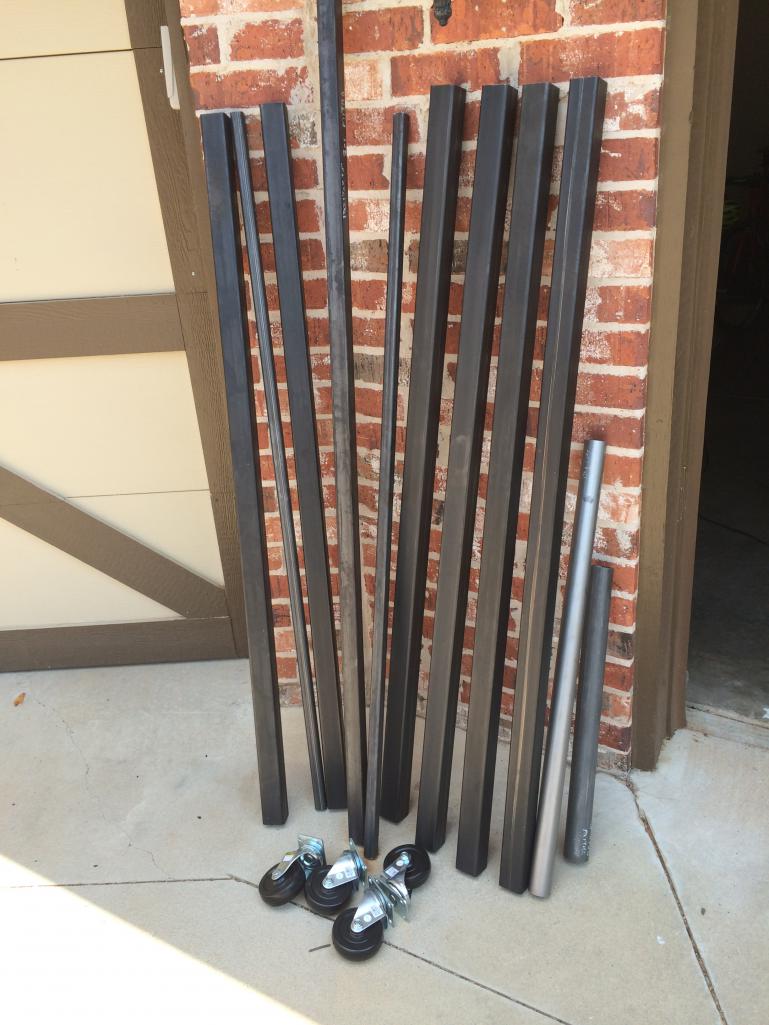

Spent the last 4 weeks fabricating my own rotisserie. Finally got the car mounted last night, now will remove the suspension pieces, windshield, and start drilling out spot welds and replacing bad metal.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jmitro
post Sep 17 2015, 11:41 AM
Post #28


Senior Member
***

Group: Members
Posts: 713
Joined: 23-July 15
From: Oklahoma
Member No.: 18,986
Region Association: None
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Sep 17 2015, 11:47 AM
Post #29


914 Idiot
***************

Group: Members
Posts: 15,161
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California

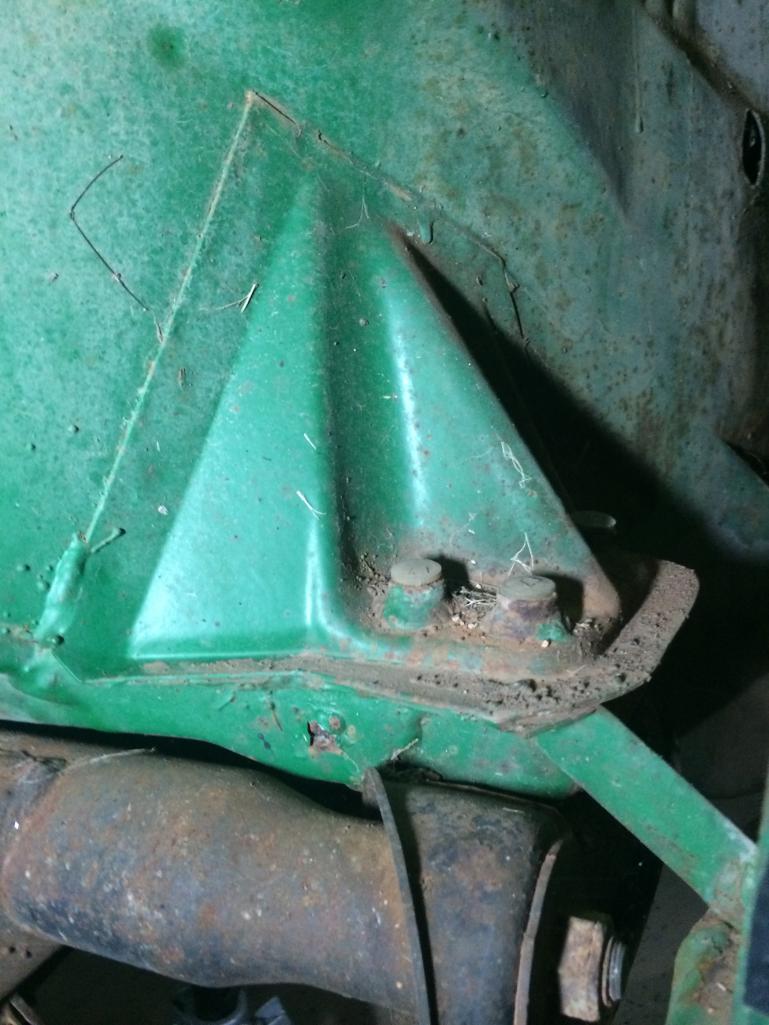

Do future-you a favor: Pull off the plastic caps on top of the outboard rear suspension mounting point bolts, and spray some PB Blaster or Kroyl into them. Then put the caps back on. That will help save future-you (and future-wheel-alignment folks) a whole lot of aggravation later.

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Ed_F
post Sep 22 2015, 03:45 PM
Post #30


Member
**

Group: Members
Posts: 158
Joined: 29-September 09
From: Lakehills, TX
Member No.: 10,861
Region Association: None
QUOTE(jmitro @ Sep 17 2015, 09:03 AM) *

Air conditioning condensor, drier, compressor, hoses, console all going in the trash.



Passenger floorpan under the seat was a cesspool of dirt, rust, trash, screws, old carpet, etc




You might try selling the console on the classifieds here. AC consoles seem to be hard to come by. There is a member here who rebuilt consoles and sold them for charity. Even the AC bits could put extra cash back in your pocket. Good luck! (IMG:style_emoticons/default/welder.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris H.
post Sep 22 2015, 04:43 PM
Post #31


Senior Member
****

Group: Members
Posts: 4,056
Joined: 2-January 03
From: Chicago 'burbs
Member No.: 73
Region Association: Upper MidWest
Great work on that rotisserie. So far the rust isn't too bad at all. Definitely a keeper (except for the single carb).
User is online!Profile CardPM
Go to the top of the page
+Quote Post
jmitro
post Oct 8 2015, 01:31 PM
Post #32


Senior Member
***

Group: Members
Posts: 713
Joined: 23-July 15
From: Oklahoma
Member No.: 18,986
Region Association: None

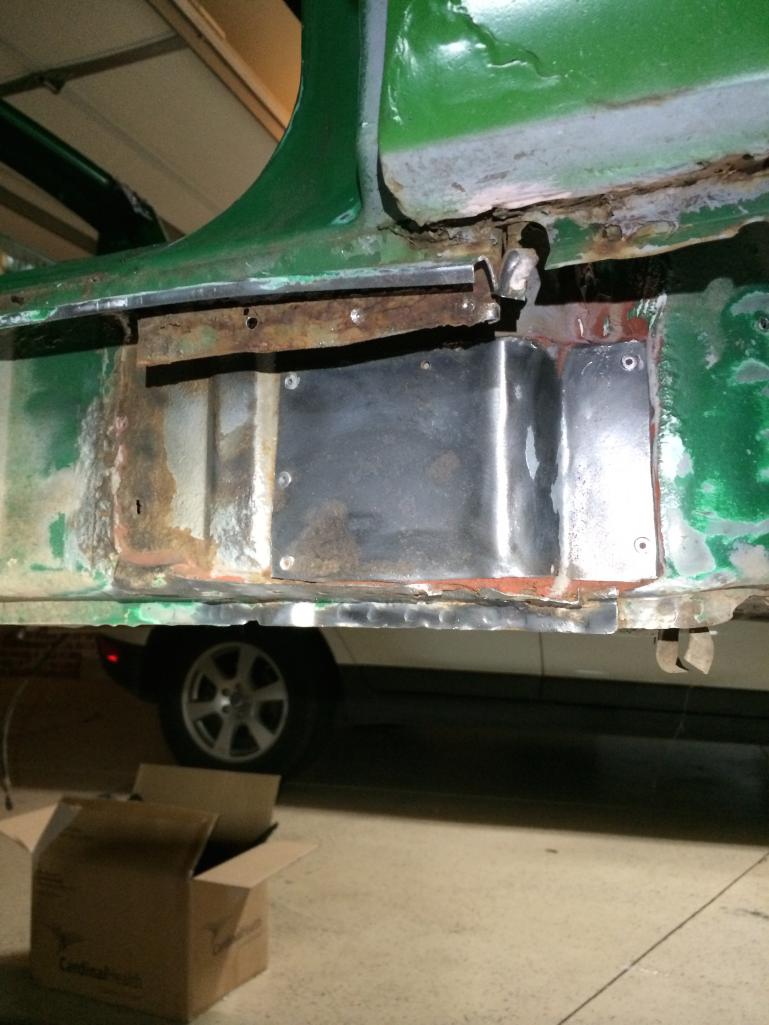

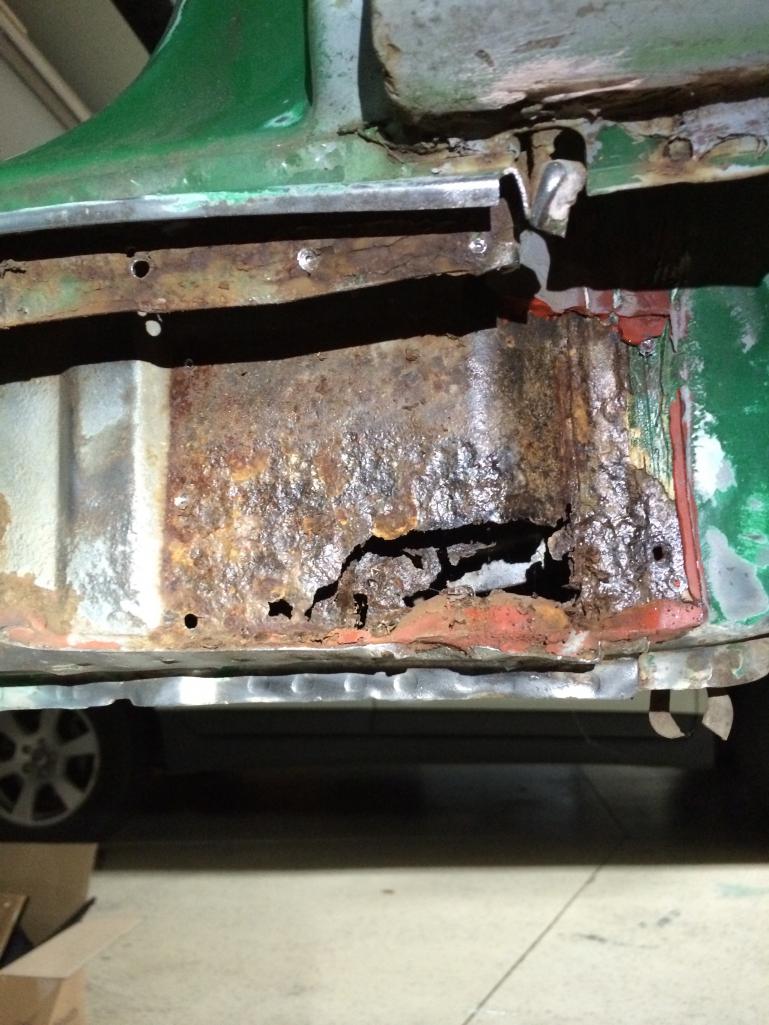

Like I Previously mentioned, the PO had some creative methods of hiding rust with some stock sheetmetal. This piece was riveted to the outer long sheetmetal. After removing it, look what was underneath:

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
VWTortuga336
post Oct 8 2015, 07:48 PM
Post #33


Member
**

Group: Members
Posts: 285
Joined: 5-October 14
From: Kansas City, Missouri
Member No.: 17,979
Region Association: None
(IMG:style_emoticons/default/blink.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jmitro
post Oct 9 2015, 09:56 PM
Post #34


Senior Member
***

Group: Members
Posts: 713
Joined: 23-July 15
From: Oklahoma
Member No.: 18,986
Region Association: None

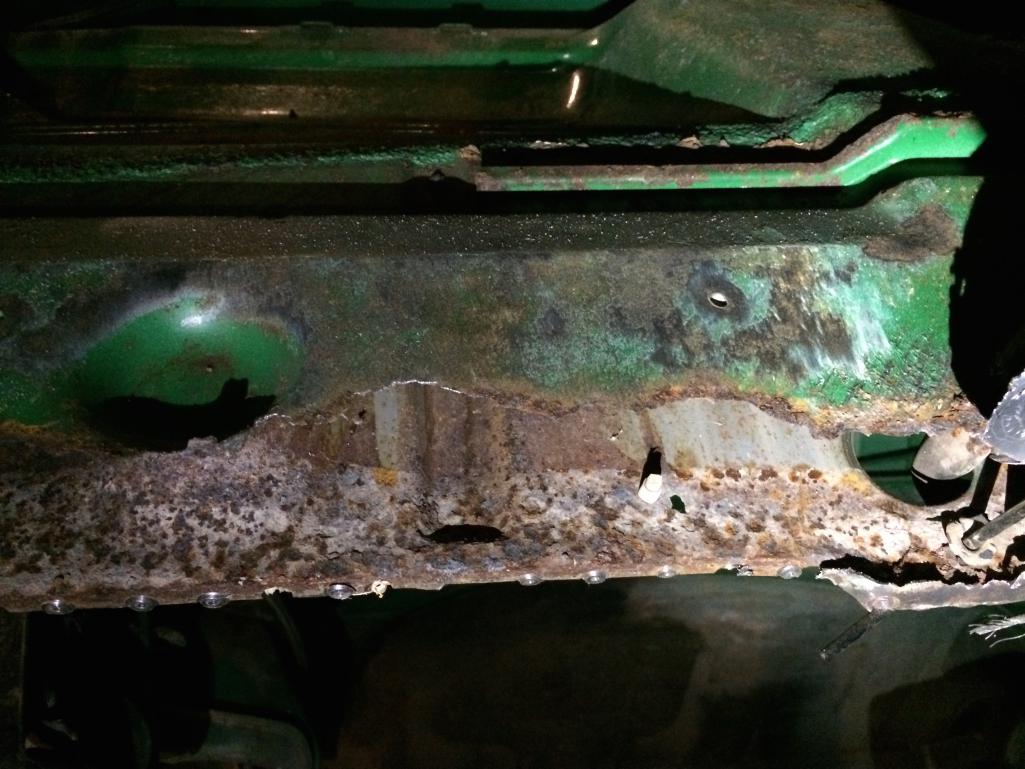

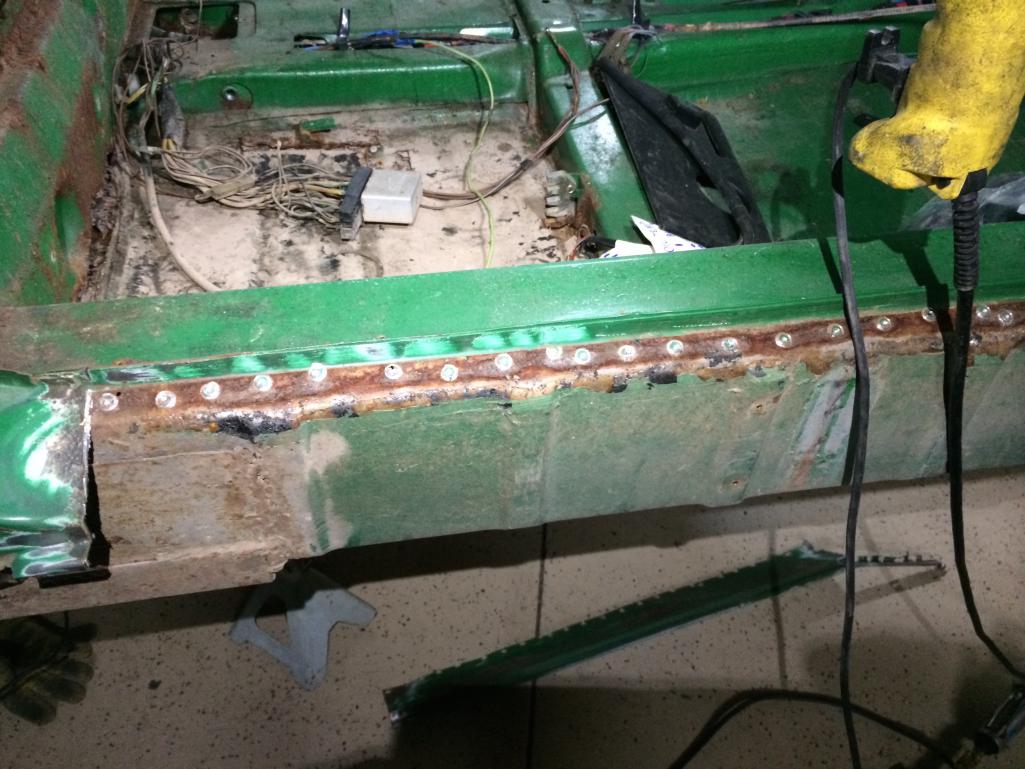

Rocker cover removed to reveal the underlying cancer in the hellhole. This is going to take a lot of work

Attached Image

Removed the rotten passenger side rear floorpan. Yuck!!


Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jmitro
post Oct 9 2015, 10:00 PM
Post #35


Senior Member
***

Group: Members
Posts: 713
Joined: 23-July 15
From: Oklahoma
Member No.: 18,986
Region Association: None

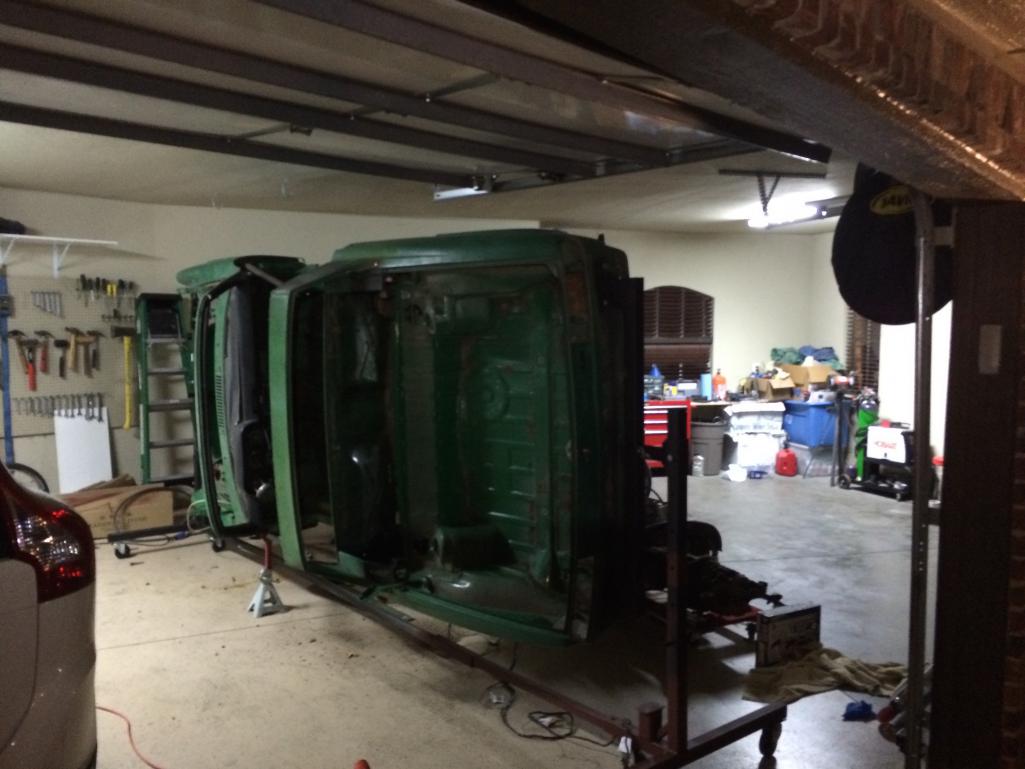

Rotisserie finally completed and the car can be rotated 360 degrees. For now it's on the side so I can access the floorpans and hellhole.

Attached Image

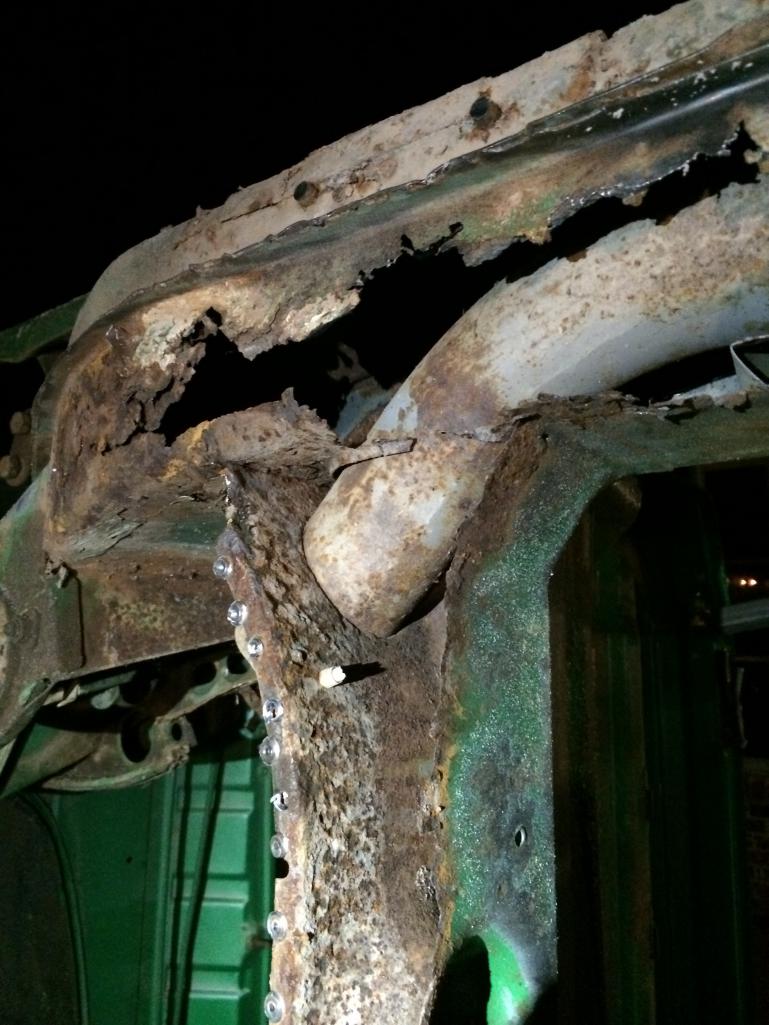

with the passenger rear floorpan cut out, you can see just how rotten the bottom edge of the firewall really is. I'll cut this out and graft in some fresh metal.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jmitro
post Oct 9 2015, 10:06 PM
Post #36


Senior Member
***

Group: Members
Posts: 713
Joined: 23-July 15
From: Oklahoma
Member No.: 18,986
Region Association: None

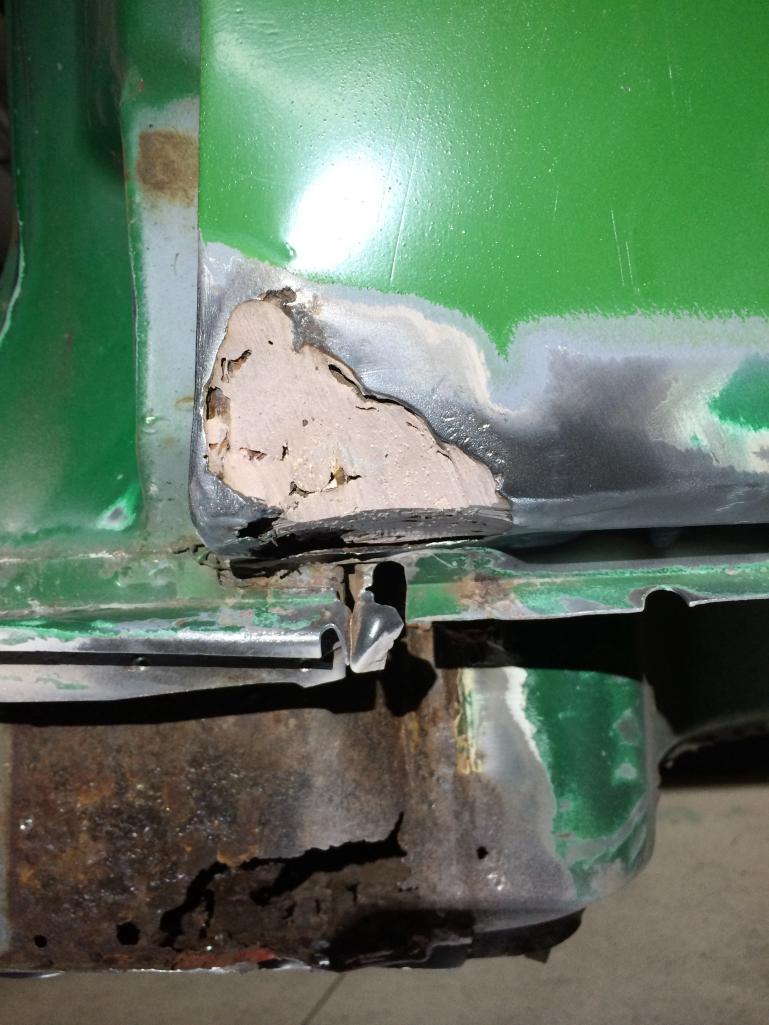

Passenger front fender had a rust hole at the bottom corner that was filled with literally gobs of bondo. Haha. Another patch to be done.....

Attached Image

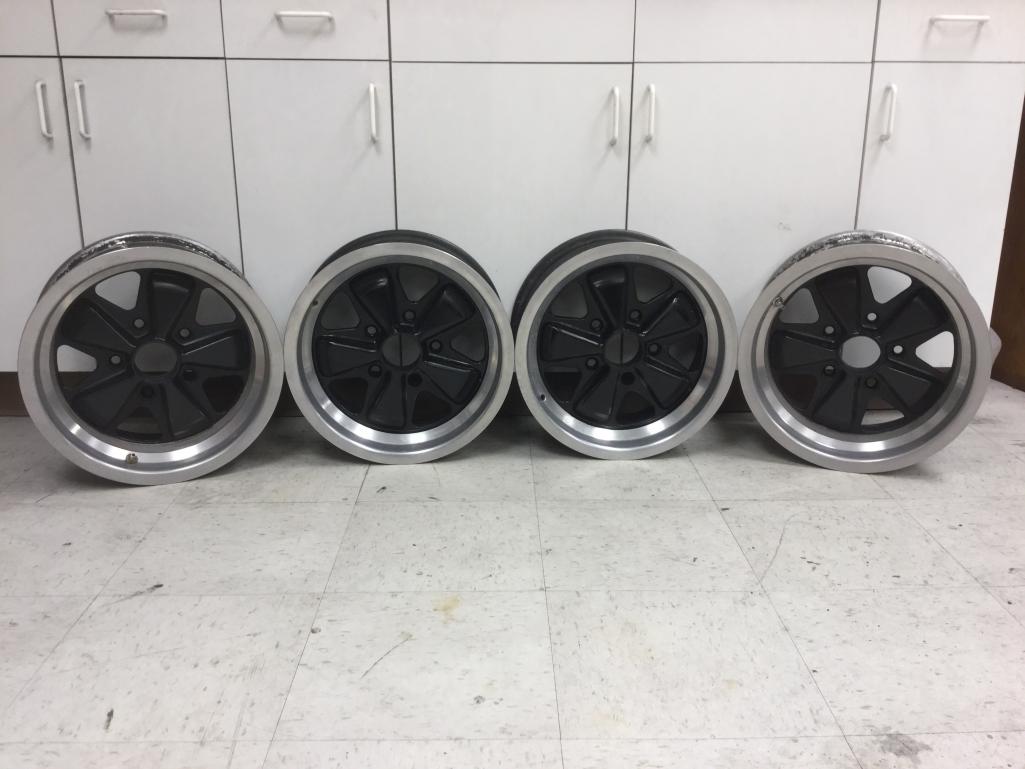

To begin my parts collection, the first parts of the "new" car came today. 15x7/8 Fuchs reps.
Thanks John!

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bigkensteele
post Oct 9 2015, 10:33 PM
Post #37


Major Member
****

Group: Members
Posts: 2,200
Joined: 30-August 04
From: Cincinnati, OH
Member No.: 2,660
Region Association: South East States
I have to ask - are you sure that you want to continue with this tub? From years of personal experience and reading threads on this board, you would most likely be much better off finding a better tub in SoCal or AZ and having it shipped to you. Perhaps you enjoy welding and grinding, but I fear that you have only discovered the tip of a very big iceberg.

However you proceed, good luck! It looks like you have some talent, so this should be a fun thread!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jmitro
post Oct 9 2015, 11:02 PM
Post #38


Senior Member
***

Group: Members
Posts: 713
Joined: 23-July 15
From: Oklahoma
Member No.: 18,986
Region Association: None
QUOTE(bigkensteele @ Oct 9 2015, 11:33 PM) *

I have to ask - are you sure that you want to continue with this tub? From years of personal experience and reading threads on this board, you would most likely be much better off finding a better tub in SoCal or AZ and having it shipped to you. Perhaps you enjoy welding and grinding, but I fear that you have only discovered the tip of a very big iceberg.

However you proceed, good luck! It looks like you have some talent, so this should be a fun thread!


believe it or not, I looked for a car that needed work. I enjoy the cutting, grinding, welding, and making something new out of this old tired chassis. It will be a long process to fully restore this car, but I enjoy the restoration journey as much as the end result (IMG:style_emoticons/default/beerchug.gif)


Oh yeah, I'm also training for the Houston Marathon in January. With a family and full time job. I'm living life to the fullest! (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jmitro
post May 18 2016, 12:38 PM
Post #39


Senior Member
***

Group: Members
Posts: 713
Joined: 23-July 15
From: Oklahoma
Member No.: 18,986
Region Association: None
Past few months have been busy moving, setting up my new workshop, running the Houston Marathon, and finally getting back to work on the 914.
I was lucky enough to buy a nearly new house with a 9000lb two post lift in the second garage. Here the car is upside down on the rotisserie, working on the front trunk floor

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jmitro
post May 18 2016, 12:46 PM
Post #40


Senior Member
***

Group: Members
Posts: 713
Joined: 23-July 15
From: Oklahoma
Member No.: 18,986
Region Association: None

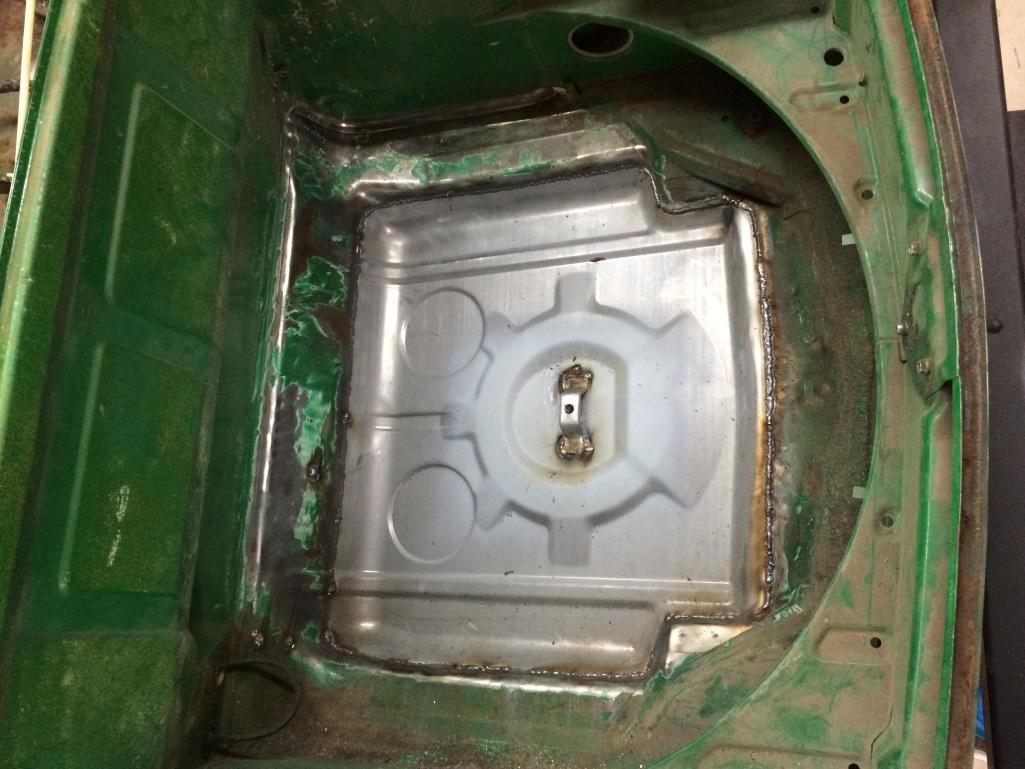

New front trunk floorpan welded in place

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
