 jim kelly's 1975 914 suby build, water pump housing and header interference ??? |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
| jimkelly |
  Sep 26 2015, 10:40 AM
Post
#1
|
|
Delaware USA  Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region  |
i have a 1975 914 roller and a a few ej22 engines and a couple of suby 5 spd transaxles
https://www.diyautotune.com/shop/megasquirt...ed/microsquirt/ microsquirt with 8" harness $370 GM clt sensor 3/8 npt $17 GM iat sensor 3/8 npt $22 GM map sensor $75 3/8 npt tap $10 18x1.5 tap $12 18x1.5 bung for aem o2 sensor $4 AEM 30-4110 $165 Set of 6 Pcs Spark Plug Ignition Wire Lead For 2.8L VW Passat $30 VW bug Beetle golf oem 2.0 ignition coil pack assembly 032905106b $20 Subaru WRX OEM Crankshaft Timing Sprocket pn-13021AA141 $30 celica radiator 2 row - $170 (see post #2 and my v8 thread) exhaust header - $35 ebay (see post #152) (decided to go with wrx oem stock header for compactness) stainless fuel lines - $99 tangerine - 8mm supply and 8mm return stopper drive pinion - made myself http://www.914world.com/bbs2/index.php?showtopic=104513 stock 914 axles machined on one end - $150 Dutchman tires - 185x50x15 - $300+-[/b] engine cradle and trans hangars - mepstein $550 (see post #32) mr2 shifter - $35 ebay shift knob ebay $12 (see post #170) front bumper grills - $35 dflesburg stock style fuses - ebay $13 set of speed bleeders - $30 pelican brake peddle switch - $24 pelican ebrake handle assy with cable and equalizer - $56 bdstone914 lug bolts to roll car around my garage - free mark epstein set of nice complete late model doors - $150 (thanks lorin, series9, rat rod charlie) center section of fuse box - free mark epstein a front steel bumper - free mark epstein late model tach with single directional indicator - cabinetmaker $40 shipped : ) two pair front amber lens bought from 914rubber for both my cars. https://weddleindustries.com/products/1000186/1001853 - flange $50 shipped type 1 to type 2/4 starter 23300AA560 - http://www.914world.com/bbs2/index.php?showtopic=303903 /////////////////////////////////////////////////////////////////////////////////////////// looking forward to... good fuel mileage modern fuel injection modern 5spd transaxle - useable 1st gear for taking off from dead stop & in traffic light weight car big space in engine bay running some low profile 15 inch tires on 5.5" wheels - maybe 185x50x15 ////////////////////////////////////////////////////////////////////////////////////////// reference materials and links... http://www.shoptalkforums.com/viewtopic.php?t=136053 http://www.surrealmirage.com/subaru/swap/electrical.html http://legacycentral.org/ http://www.northursalia.com/modifications/...lschematics.pdf http://www.main.experiencetherave.com/subaru_manual_scans/ vanagon related links... http://subaruvanagon.com/conversion_services_Wiring.htm https://smallcar.com/vanagon/subaru-vanagon...cation-kit.html http://www.kennedyenginc.com/Pages/SubaruVanagonGen.aspx http://www.rockymountainwesty.com/v/vspfil...nstructions.pdf http://www.weidefamily.net/vanagon/HTML/05/main.html http://www.ultimatesubaru.org/forum/topic/...iring-diagrams/ http://www.numbchuxconversions.com/Files/Harness%20info.pdf http://consumerguide.com/used/1990-94-subaru-legacy/ pulling ej22 harness from subaru (Tim Seward) per tim 90 and 91 harnesses are same https://www.youtube.com/watch?v=GfQJnZBljsw be sure to watch all (busaru) segments https://www.youtube.com/watch?v=ENm6S3WkKJc Subaru engine test stand (Jeff Robenolt) https://www.youtube.com/watch?v=_IN5rfK9a_8 |
   |

|
  |
Replies(100 - 119)
| Chris H. |
Apr 5 2017, 02:52 PM
Post
#101
|
|
Senior Member Group: Members Posts: 4,059 Joined: 2-January 03 From: Chicago 'burbs Member No.: 73 Region Association: Upper MidWest
|
Yeah the MS should work great. I just bought a Megasquirt 3 system. Should be here tomorrow (IMG:style_emoticons/default/chowtime.gif) . The 2.2 and 3.3 are easy to set up.
So Jim.... (IMG:style_emoticons/default/idea.gif) ...you gonna use all 4 of those 2.2's (IMG:style_emoticons/default/biggrin.gif) ? I need something for my Vanagon. |
|
|
|
| jimkelly |
Apr 5 2017, 04:01 PM
Post
#102
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
mine will be NA. baby steps for me.
i WAS thinking one engine at a time but who knows (IMG:style_emoticons/default/smile.gif) i have one known good, one known bad, and two unknown condition, mostly for spare parts. pretty certain the one 5spd trans i have is good. hopefully i will have some sort of update in the next month or so (IMG:style_emoticons/default/popcorn[1].gif) |
|
|
|
| 76-914 |
Apr 5 2017, 04:10 PM
Post
#103
|
|
Repeat Offender & Resident Subaru Antagonist Group: Members Posts: 13,735 Joined: 23-January 09 From: Temecula, CA Member No.: 9,964 Region Association: Southern California
|
hopefully i will have some sort of update in the next month or so (IMG:style_emoticons/default/popcorn[1].gif) [/quote] You'd better or we're going to drag you out of the house and make you finish it. (IMG:style_emoticons/default/av-943.gif) (IMG:style_emoticons/default/lol-2.gif) |
|
|
|
| jimkelly |
Apr 15 2017, 06:14 AM
Post
#104
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
got gm iat sensor, gm clt sensor, on order. plan to tap the pcv valve hole for the iat and tap the coolant manifold for the clt senor.
https://www.youtube.com/watch?v=-sXdjRlBUnE seems like aem uego is a decent buy and about $100 less than innovate lm2. https://www.youtube.com/watch?v=HoXTz2aDBqw |
|
|
|
| Andyrew |
Apr 15 2017, 11:22 AM
Post
#105
|
|
Spooling.... Please wait Group: Members Posts: 13,380 Joined: 20-January 03 From: Riverbank, Ca Member No.: 172 Region Association: Northern California
|
QUOTE(jimkelly @ Apr 15 2017, 05:14 AM)  got gm iat sensor, gm clt sensor, on order. plan to tap the pcv valve hole for the iat and tap the coolant manifold for the clt senor. https://www.youtube.com/watch?v=-sXdjRlBUnE seems like aem uego is a decent buy and about $100 less than innovate lm2. https://www.youtube.com/watch?v=HoXTz2aDBqw https://www.amazon.com/gp/product/B004MDT8M...=UTF8&psc=1 I have this one. I like it a lot, I have it plugged into my boost controller. Really easy to read and pretty bright. |
|
|
|
| jimkelly |
Apr 17 2017, 08:03 PM
Post
#106
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |

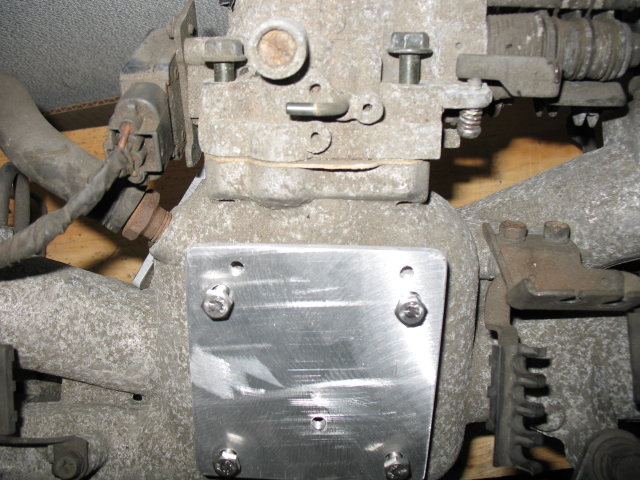

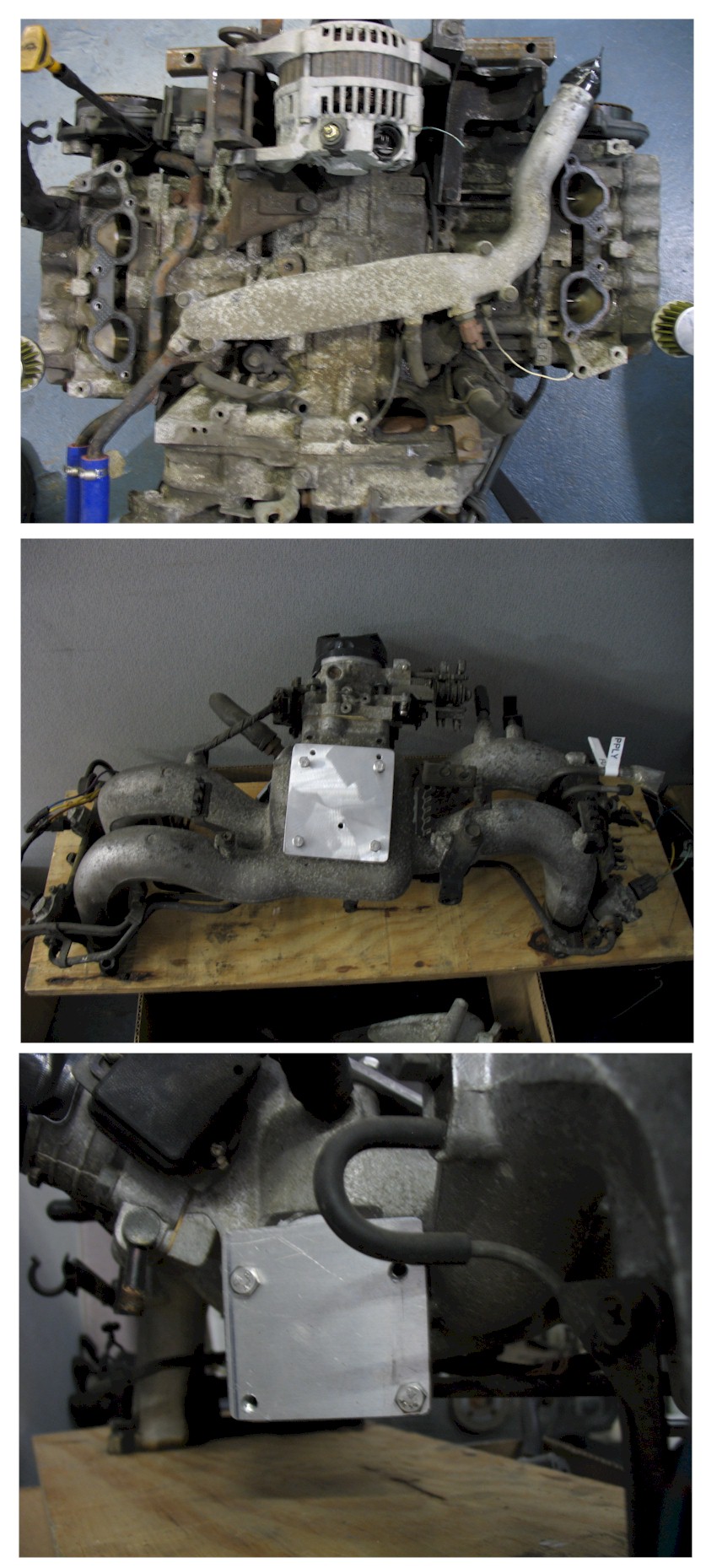

pulled intake and coolant manifold off test engine. made blanking plate for the IACV and plate to mount vw coil. ordered some m6 bolts to mount it all.
i assume next to coolant sensor is a sensor for a coolant dummy light (one wire)? what do you guys think about drilling and tapping the pcv bung in the manifold for the install of a iat sensor. or should i just add another bung for the iat and keep pcv valve in place? Attached thumbnail(s)  Attached image(s)
|
|
|
|
| Chris914n6 |
Apr 18 2017, 01:43 AM
Post
#107
|
|
Jackstands are my life. Group: Members Posts: 3,488 Joined: 14-March 03 From: Las Vegas, NV Member No.: 431 Region Association: Southwest Region |
QUOTE(jimkelly @ Apr 17 2017, 07:03 PM) pulled intake and coolant manifold off test engine. made blanking plate for the IACV and plate to mount vw coil. ordered some m6 bolts to mount it all. i assume next to coolant sensor is a sensor for a coolant dummy light (one wire)? what do you guys think about drilling and tapping the pcv bung in the manifold for the install of a iat sensor. or should i just add another bung for the iat and keep pcv valve in place? There are 2 temp sensors. 2 wire for the ecu and 1 wire for the gauge. You need the pvc valve. Other note, I thought MS3 could be setup for different sensors. The benefit is the Subaru sensors already bolt in and fit the harness. If you are not boosted then the iat can go anywhere. Most factory locations are the airbox after the filter. |
|
|
|
| jimkelly |
Apr 18 2017, 09:59 AM
Post
#108
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
my coworker suggested i put the iat sensor thru the iacv block off plate. sounds reasonable.
the nice thing about gm senors is they are cheap, like $15 $20 new each. iat and clt. https://www.diyautotune.com/shop/sensors-da...essure-sensors/ i'm not using subaru harness, just microsquirt harness to sensor pigtails. |
|
|
|
| jimkelly |
Apr 18 2017, 10:21 AM
Post
#109
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
as for pcv removal.
i have one breather on each head. shouldn't that suffice? fwiw - the thread on subaru iat and clt sensors is M12-1.5 |
|
|
|
| jimkelly |
Apr 19 2017, 07:50 AM
Post
#110
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |

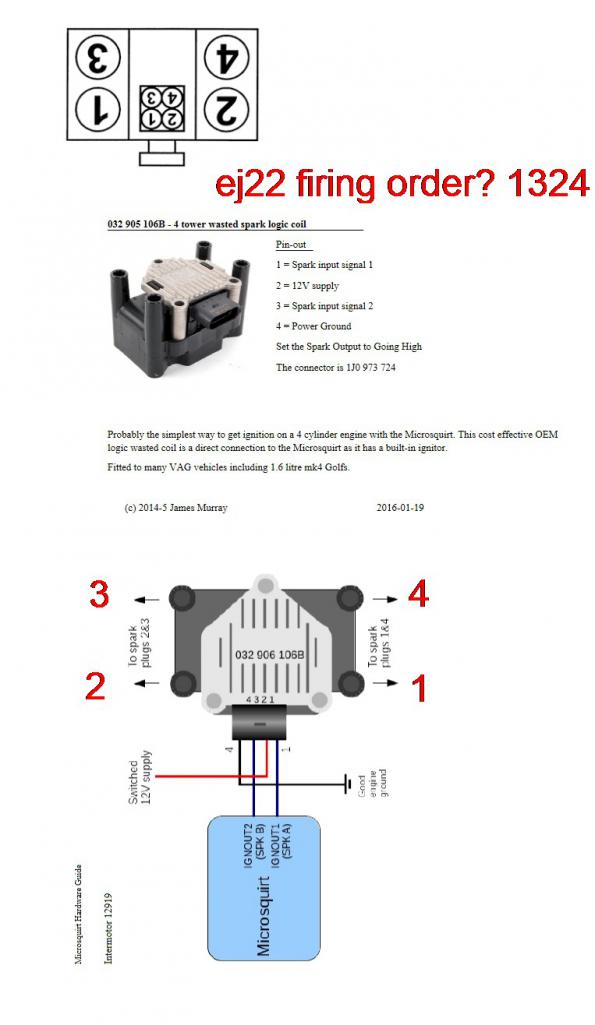

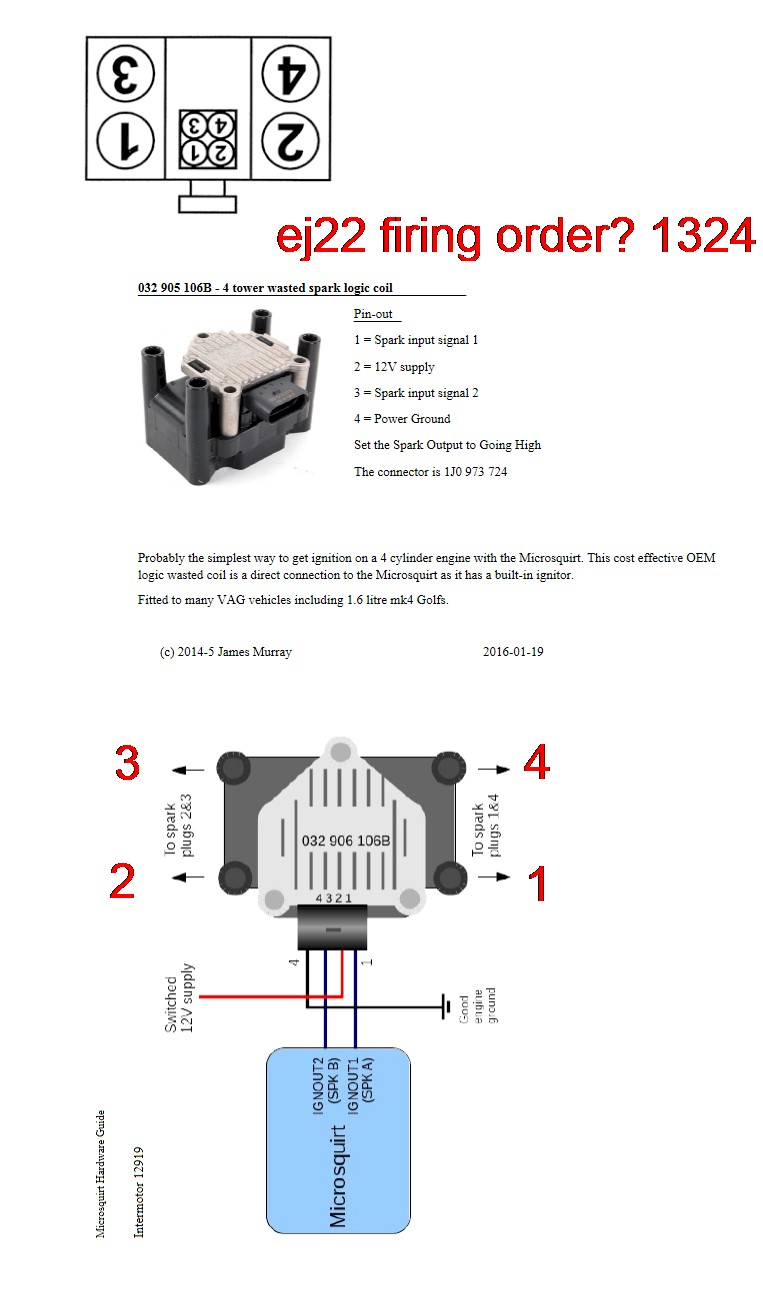

my latest confusion. seems coil does not line up with cylinder location on engine.
http://www.msextra.com/doc/pdf/html/Micros...are-3.4-62.html ej22 clockwise starting front left, 1,3,4,2 coil 2,3,4,1 i thought banks mattered with batch spark? i realize most won't understand my question, in fact i am not sure i understand it myself (IMG:style_emoticons/default/sad.gif) Attached thumbnail(s)
|
|
|
|
| 914forme |
Apr 19 2017, 08:35 AM
Post
#111
|
|
Times a wastin', get wrenchin'! Group: Members Posts: 3,896 Joined: 24-July 04 From: Dayton, Ohio Member No.: 2,388 Region Association: None
|
You only have 17 possible combinations. (IMG:style_emoticons/default/confused24.gif)

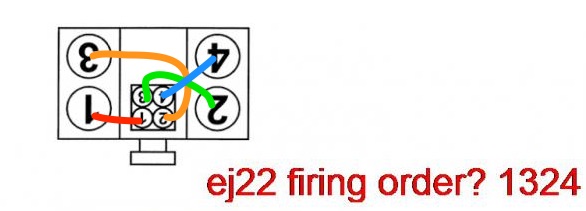

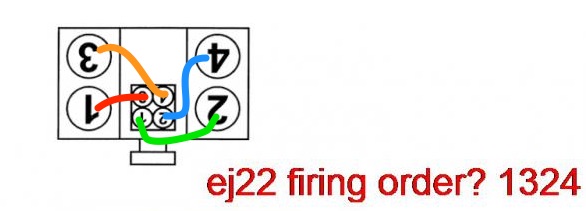

Yes that is me being a smart arse. And four of them will work, but we will make this easy as we can. Spark plug 1 goes to coil plug 1 Spark Plug 3 goes to coil plug 2 Spark Plug 2 goes to Coil plug 3 Spark Plug 4 goes to coil plug 4  That solution makes the wires cross over each other. What a mess so this while logically more strain is easier on the eye. So Spark plug 1 to coil plug 3 Spark Plug 2 to coil plug 1 Spark Plug 3 to Coil plug 4 Spark Plug 4 to coil plug 2  Much easier with coil on plug, or individual coils. BTW, re-lable the coil to match your final working solution. Hope that helps if I missed the question o the description, let me know I will modify my post not to steer anyone wrong. |
|
|
|
| jimkelly |
Apr 19 2017, 09:28 AM
Post
#112
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
stephen, very awesome, thank you! jim
|
|
|
|
| jimkelly |
Apr 19 2017, 09:36 AM
Post
#113
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |

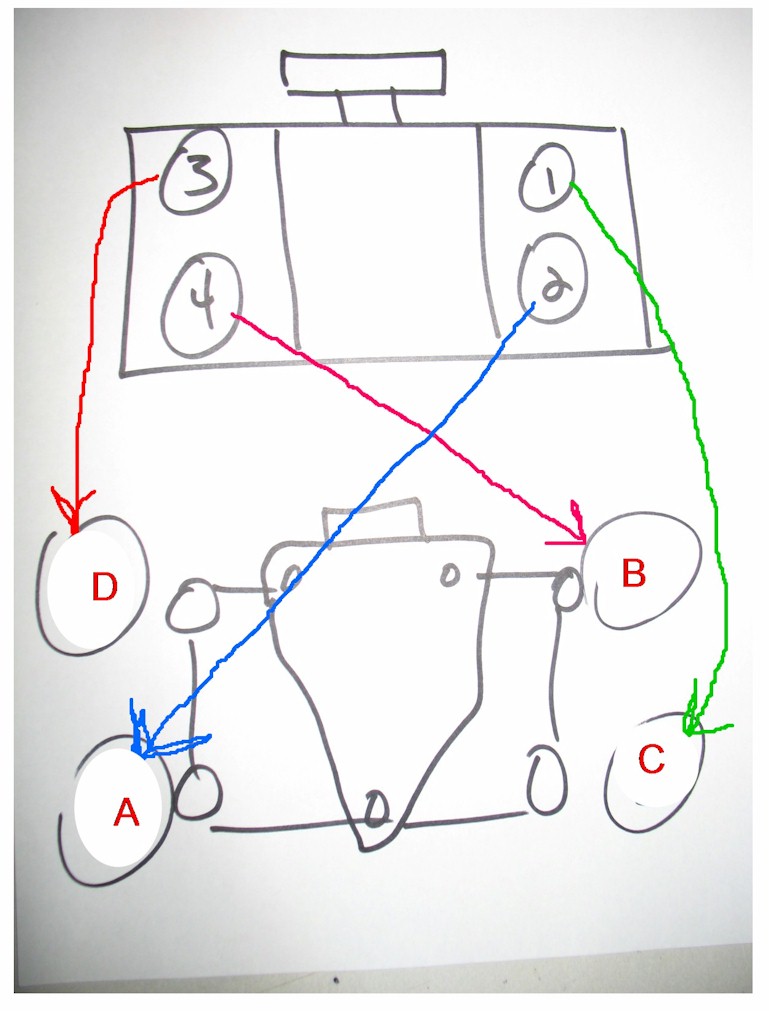

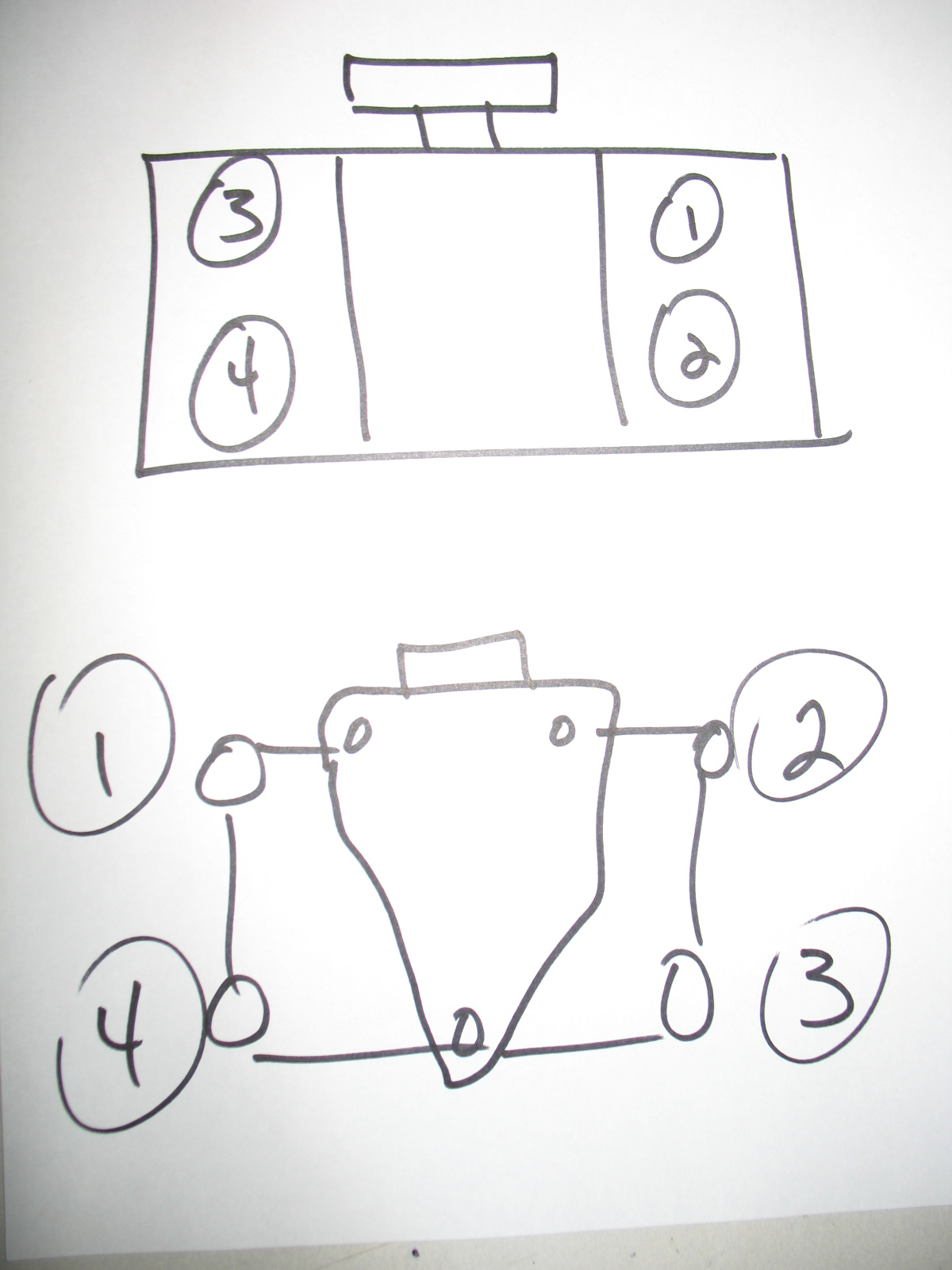

i am being told that this is the firing order.
Attached thumbnail(s)
|
|
|
|
| 914forme |
Apr 19 2017, 10:38 AM
Post
#114
|
|
Times a wastin', get wrenchin'! Group: Members Posts: 3,896 Joined: 24-July 04 From: Dayton, Ohio Member No.: 2,388 Region Association: None
|
Mount the coil upside down. (IMG:style_emoticons/default/w00t.gif) (IMG:style_emoticons/default/confused24.gif)
If you make your pickup 180 degrees out it also has the same effect as mounting the coil upside down. (IMG:style_emoticons/default/screwy.gif) Your now running with crazy, the key to the entire thing is pretty simple you want to fire on alternating coil packs. In a 6 cylinder you just add a third so coil pack 1, 2, 3, 1, ,2, 3. V8 1,2,3,4,1,2,3,4 V10 1,2,3,4,5,1,2,3,4,5 V12 1,2,3,4,5,6,1,2,3,4,5,6 or 1,2,3,1,2,3 Dual plugs you just run multiple coil packs in redundancy. 1a&1b,2a&2b, you get the idea. This is all wasted spark setups, once you go with sequential, things get so much easier (IMG:style_emoticons/default/av-943.gif) Then you have to figure out the logic to drive the coils in the order you want them to fire. I am now taking this beyond your question and sorry for that. Maybe I should do a mini school on EFI logic, and wiring. We are getting into so many engine combinations it is not longer just a discussion type-IV, and -6 engines. Even -6s with twin plugs makes things just a tad worse. Luckily your Subaru 2.2 is about as basic of an EFI engine as you can get, so a MicroSquirt unit should be pretty simple. Being said we have not gotten into doing anything the EFI input sides. Back off my mad ramblings the firing order of the engine 1-3-2-4. In your drawing you have the order correctly as that is the firing order, but your cylinder numbers or as I called spark plug is not. 1 in your drawing is cylinder or spark plug number 1 hook it up to coil side 1/4 2 in your drawing is cylinder or spark plug number 3 hook it up to coil side 2/3 3 in your drawing is cylinder or spark plug number 2 hook it up to coil side 1/4 4 in your drawing is cylinder or spark plug number 4 hook it up to coil side 2/3 Makes it any clearer than the mud it is? |
|
|
|
| jimkelly |
Apr 19 2017, 11:45 AM
Post
#115
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
stephen

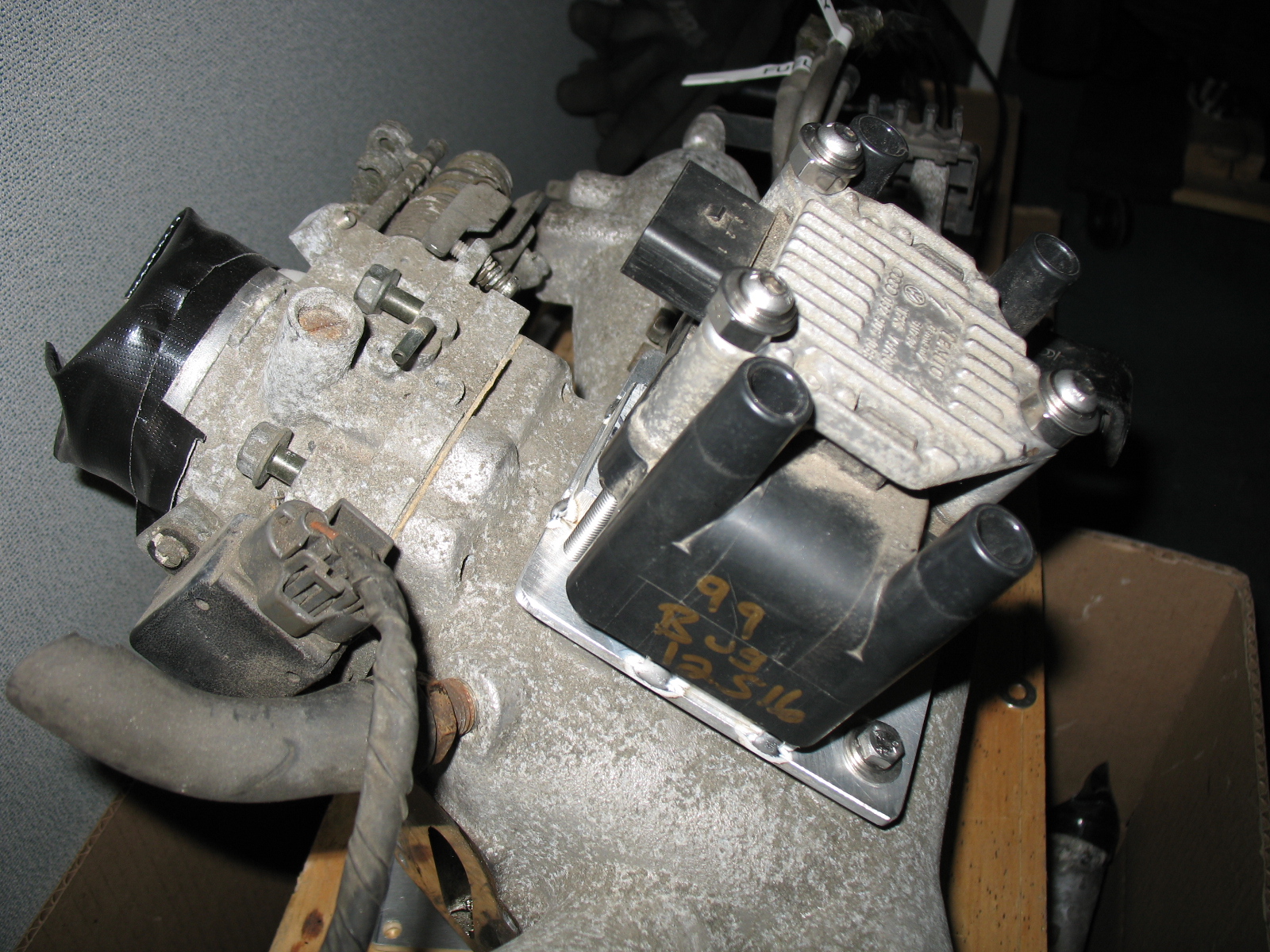

your last 4 lines are GOLD, pure gold : ) except for cylinder 2. got my coil mounted thanks Attached thumbnail(s)
|
|
|
|
| 914forme |
Apr 19 2017, 12:34 PM
Post
#116
|
|
Times a wastin', get wrenchin'! Group: Members Posts: 3,896 Joined: 24-July 04 From: Dayton, Ohio Member No.: 2,388 Region Association: None
|
Fixed that is what I get for copy and pasting my work load (IMG:style_emoticons/default/biggrin.gif)
|
|
|
|
| jimkelly |
Apr 19 2017, 01:16 PM
Post
#117
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
thanks - big help (IMG:style_emoticons/default/smile.gif)
|
|
|
|
| jimkelly |
Apr 19 2017, 04:18 PM
Post
#118
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |

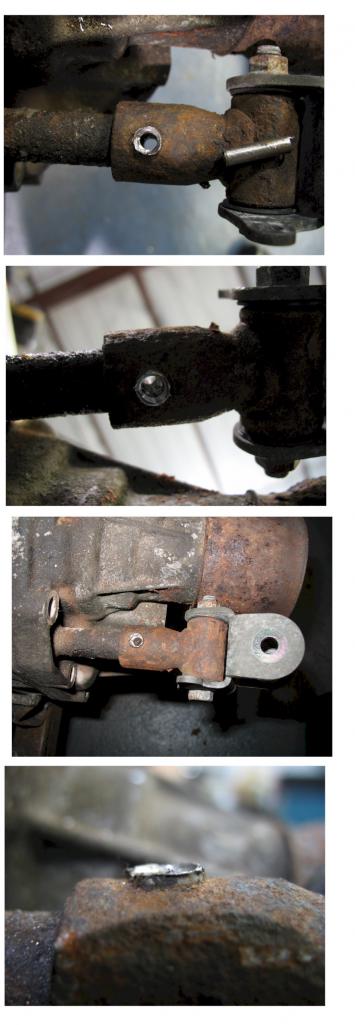

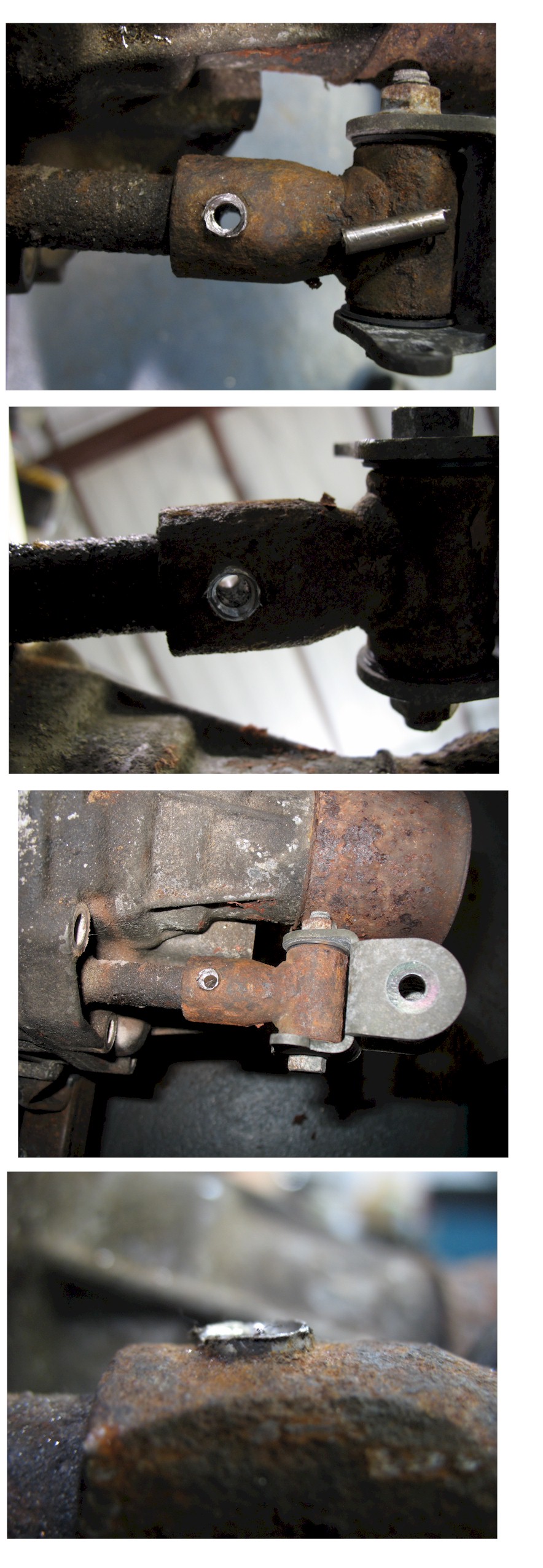

trying to remove my trans tail cover to convert to 2wd. but roll pin came put but shifter piece won't come off, rusty. also does this piece normally have protrusions where the roll pin goes in. see last pic.
nevermind, answered my own question, there was more roll pin left, outter section. might have to use cut wheel and angle grinder to remove this piece though (IMG:style_emoticons/default/dry.gif) gonna try soaking with pb blaster first. need to get a puller to remove 6/7 crank sprocket, so i can install 36-2-2-2 sprocket. Attached thumbnail(s)
|
|
|
|
| jimkelly |
Apr 19 2017, 08:17 PM
Post
#119
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
Attached thumbnail(s)  Attached image(s)
|
|
|
|
| jimkelly |
Apr 20 2017, 08:11 AM
Post
#120
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |

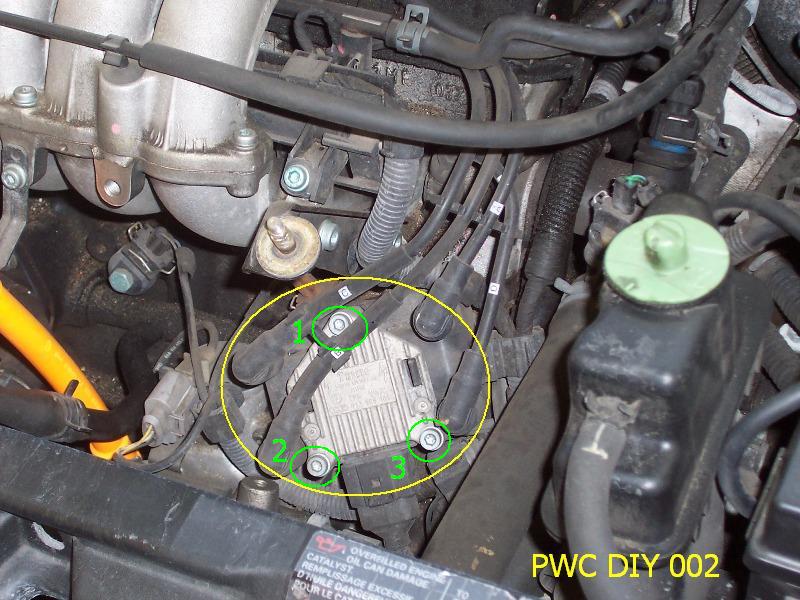

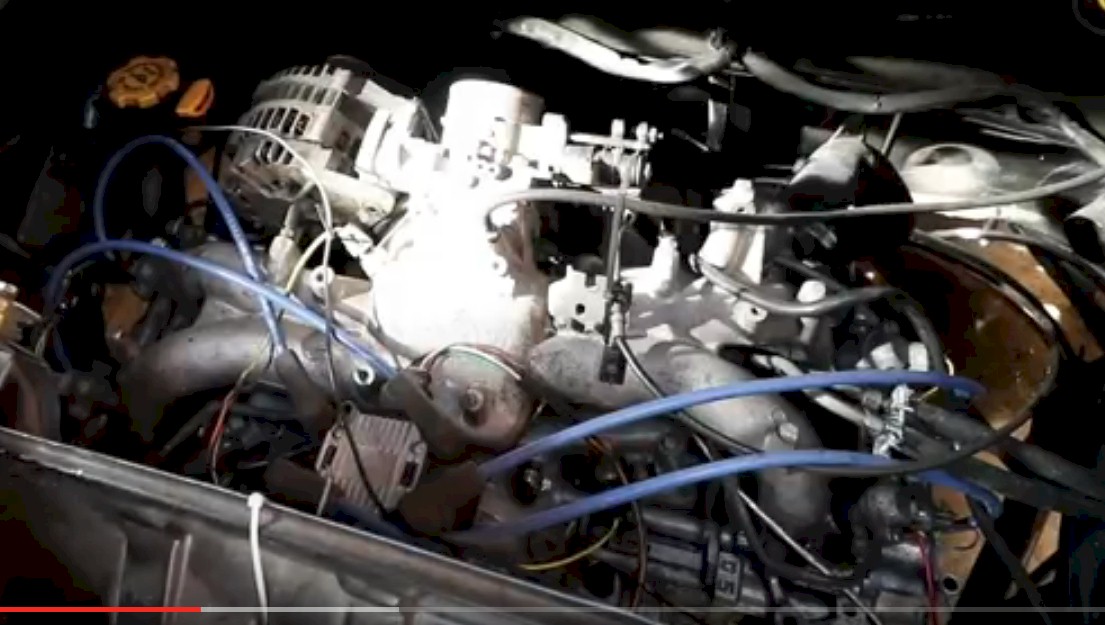

guys, how to i order and make spark plug wires for subaru spark plugs and 1999 vw bug coil plugs?
Attached image(s)
|
|
|
|
|
