i have a 1975 914 roller and a a few ej22 engines and a couple of suby 5 spd transaxles
https://www.diyautotune.com/shop/megasquirt...ed/microsquirt/ microsquirt with 8" harness $370 GM clt sensor 3/8 npt $17 GM iat sensor 3/8 npt $22 GM map sensor $75 3/8 npt tap $10 18x1.5 tap $12 18x1.5 bung for aem o2 sensor $4 AEM 30-4110 $165 Set of 6 Pcs Spark Plug Ignition Wire Lead For 2.8L VW Passat $30 VW bug Beetle golf oem 2.0 ignition coil pack assembly 032905106b $20 Subaru WRX OEM Crankshaft Timing Sprocket pn-13021AA141 $30 celica radiator 2 row - $170 (see post #2 and my v8 thread) exhaust header - $35 ebay (see post #152) (decided to go with wrx oem stock header for compactness) stainless fuel lines - $99 tangerine - 8mm supply and 8mm return stopper drive pinion - made myself http://www.914world.com/bbs2/index.php?showtopic=104513 stock 914 axles machined on one end - $150 Dutchman tires - 185x50x15 - $300+-[/b] engine cradle and trans hangars - mepstein $550 (see post #32) mr2 shifter - $35 ebay shift knob ebay $12 (see post #170) front bumper grills - $35 dflesburg stock style fuses - ebay $13 set of speed bleeders - $30 pelican brake peddle switch - $24 pelican ebrake handle assy with cable and equalizer - $56 bdstone914 lug bolts to roll car around my garage - free mark epstein set of nice complete late model doors - $150 (thanks lorin, series9, rat rod charlie) center section of fuse box - free mark epstein a front steel bumper - free mark epstein late model tach with single directional indicator - cabinetmaker $40 shipped : ) two pair front amber lens bought from 914rubber for both my cars. https://weddleindustries.com/products/1000186/1001853 - flange $50 shipped type 1 to type 2/4 starter 23300AA560 - http://www.914world.com/bbs2/index.php?showtopic=303903 /////////////////////////////////////////////////////////////////////////////////////////// looking forward to... good fuel mileage modern fuel injection modern 5spd transaxle - useable 1st gear for taking off from dead stop & in traffic light weight car big space in engine bay running some low profile 15 inch tires on 5.5" wheels - maybe 185x50x15 ////////////////////////////////////////////////////////////////////////////////////////// reference materials and links... http://www.shoptalkforums.com/viewtopic.php?t=136053 http://www.surrealmirage.com/subaru/swap/electrical.html http://legacycentral.org/ http://www.northursalia.com/modifications/...lschematics.pdf http://www.main.experiencetherave.com/subaru_manual_scans/ vanagon related links... http://subaruvanagon.com/conversion_services_Wiring.htm https://smallcar.com/vanagon/subaru-vanagon...cation-kit.html http://www.kennedyenginc.com/Pages/SubaruVanagonGen.aspx http://www.rockymountainwesty.com/v/vspfil...nstructions.pdf http://www.weidefamily.net/vanagon/HTML/05/main.html http://www.ultimatesubaru.org/forum/topic/...iring-diagrams/ http://www.numbchuxconversions.com/Files/Harness%20info.pdf http://consumerguide.com/used/1990-94-subaru-legacy/ pulling ej22 harness from subaru (Tim Seward) per tim 90 and 91 harnesses are same https://www.youtube.com/watch?v=GfQJnZBljsw be sure to watch all (busaru) segments https://www.youtube.com/watch?v=ENm6S3WkKJc Subaru engine test stand (Jeff Robenolt) https://www.youtube.com/watch?v=_IN5rfK9a_8 |
   |

|
  |
Replies(120 - 139)
| 914forme |
Apr 20 2017, 09:04 AM
Post
#121
|
|
Times a wastin', get wrenchin'! Group: Members Posts: 3,896 Joined: 24-July 04 From: Dayton, Ohio Member No.: 2,388 Region Association: None
|
VW coil pack, wow your picture threw me for a minute, but yes that is a VW 2.0L engine out of a golf or jetta, based on the pwoersteering fluid resivor, I would say 1999 - 2001 time frame.
As far as the plug wires, It is a standard on the one end and the other. Most V8 plug wires should work (IMG:style_emoticons/default/confused24.gif) you can get them nice custom ones that you make up, or just go wit a generic set that gets you where your going. MSD stuff just for example, the price made me dizzy |
|
|
|
| jimkelly |
Apr 20 2017, 10:32 AM
Post
#122
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |

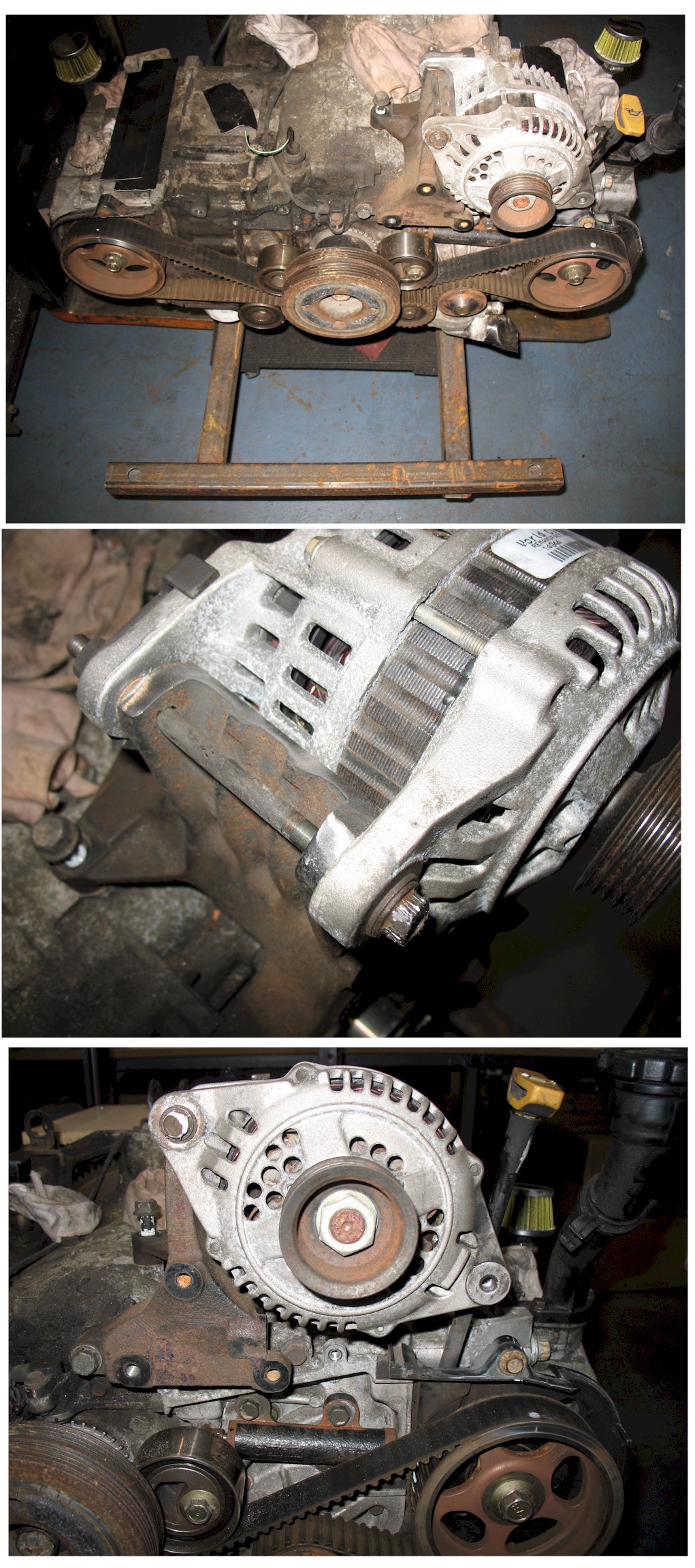

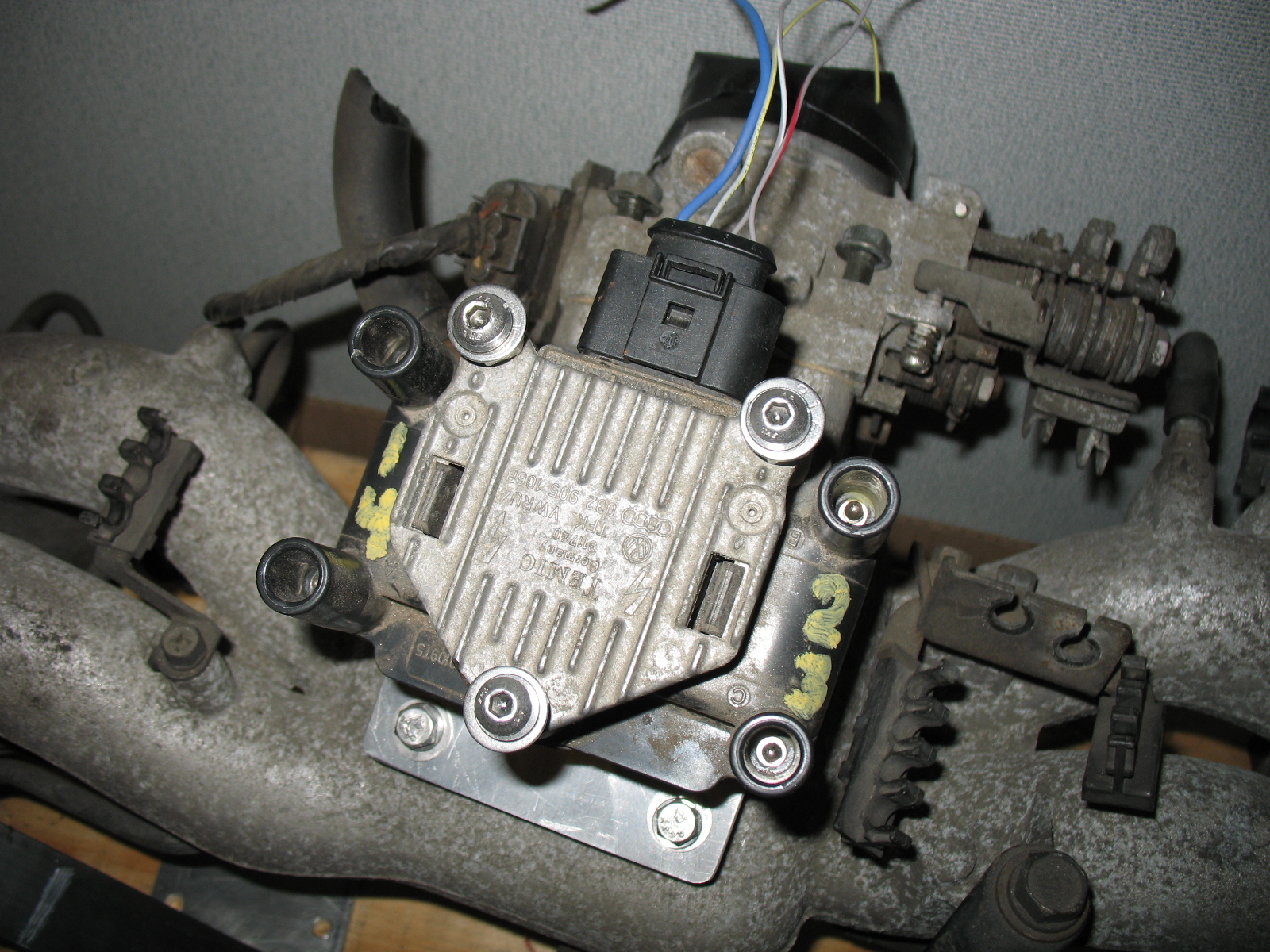

the vw coil is different than most as it has a pin in the center, see pic. and pic of vw coil mounted on my suby intake manifold.

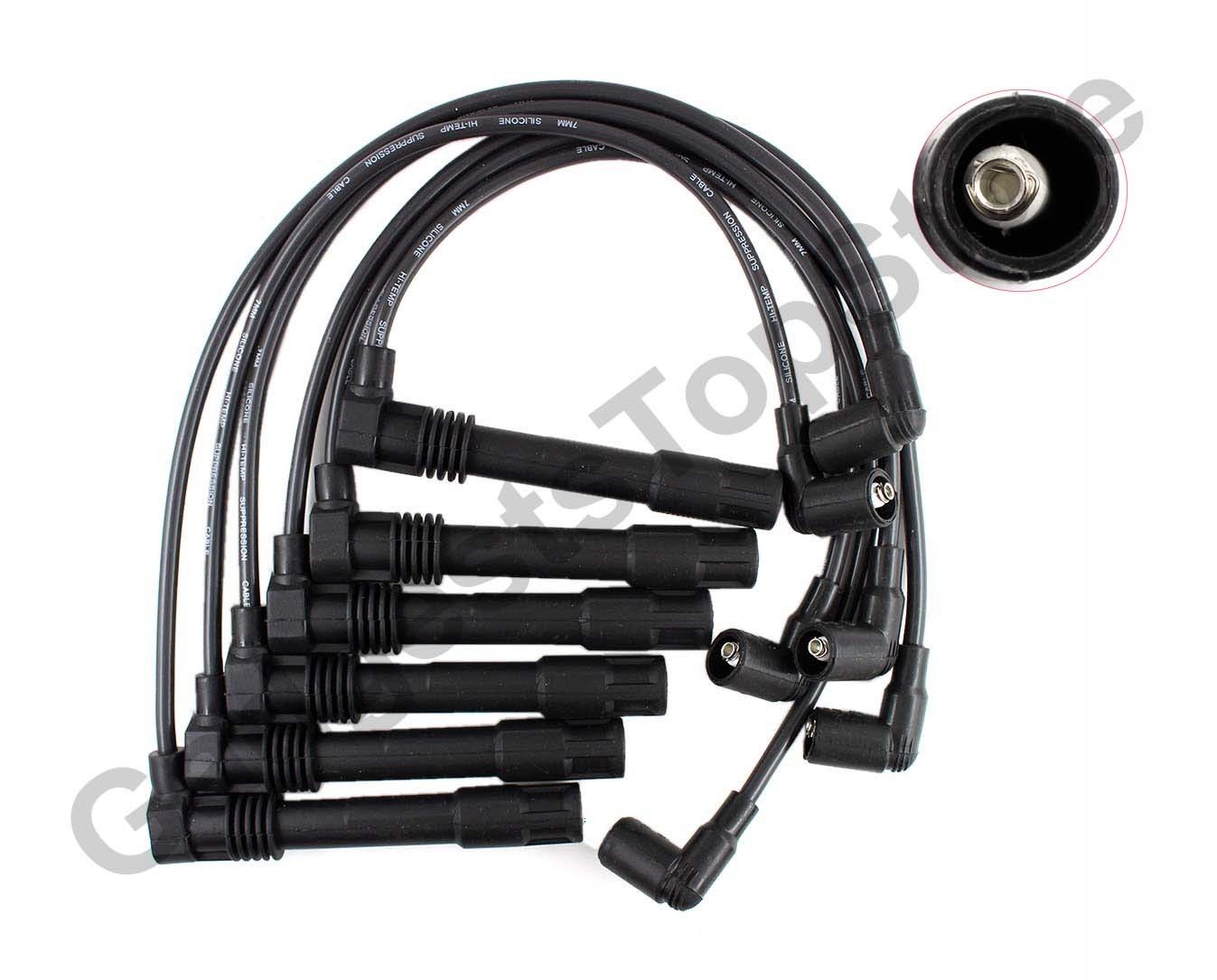

i'm thinking about these audi wires from ebay: Set of 6 Pcs Spark Plug Ignition Wire Lead For 2.8L VW Passat Audi A4 A6 Quattro Attached thumbnail(s)
|
|
|
|
| jimkelly |
Apr 20 2017, 05:11 PM
Post
#123
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
ok, as usual, i am confused. i just installed 36-2-2-2 crank wheel after making the belt at all 3 timing marks. i removed idlers and belt. removed old sprocket and installed new sprocket, lined up the belts 3 marks with the marks on the 2 pulleys and the new sprocket, but after all buttoned up, i noticed that when the cams are lined up and paint marker marks are lined up too, the sprocket mark lines up with my paint marker line, but i about 1 inch counter clockwise of its timing mark.
the odd thing is if i reinstall belt with cam pulleys and sprocket aligned with their timing marks, i expect my paint marker lines won't. i just checked an image of a new 36-2-2-2 sprocket and my old sprocket and they both have their timing mark 180 degrees from the keyway. guess i'll never know how my paint mark is off (IMG:style_emoticons/default/idea.gif) Attached thumbnail(s)
|
|
|
|
| 914forme |
Apr 20 2017, 06:31 PM
Post
#124
|
|
Times a wastin', get wrenchin'! Group: Members Posts: 3,896 Joined: 24-July 04 From: Dayton, Ohio Member No.: 2,388 Region Association: None
|
Might be a tad short, don't know, I forgot about the pin / never paid attention to it. I only had one car with that igniter, it was a 1999 very early production Jetta. Thing had more electrical issues than all the Lucas cars combined. It was possessed, so I gladly push it out of my memory banks ever chance I get. Everything else I own VW either uses Coil on plug, or does not use spark plugs at all.
I honestly prefer the latter, love my TDIs, and will be getting another one very soon. |
|
|
|
| 914forme |
Apr 20 2017, 06:35 PM
Post
#125
|
|
Times a wastin', get wrenchin'! Group: Members Posts: 3,896 Joined: 24-July 04 From: Dayton, Ohio Member No.: 2,388 Region Association: None
|
Chris H mentioned the same issue in his build thread I think it was Chris. Getting older (IMG:style_emoticons/default/dry.gif) but I recall he ir someone resembling him in my mind had this issue when they did their timing belt. Reason it sticks out in my mind is that I figured I would have fallen for the same Subaru magic trick. Seems odd and that is how Subaru will do the trick, I could be completely off base here also, what the F do I really know (IMG:style_emoticons/default/confused24.gif)
|
|
|
|
| jimkelly |
Apr 20 2017, 06:51 PM
Post
#126
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
i just turned 53 yesterday. few on this planet can talk to me about old age (IMG:style_emoticons/default/slits.gif)
|
|
|
|
| jimkelly |
Apr 24 2017, 05:15 PM
Post
#127
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
reinstalled timing belt and think i got it pretty close this time.

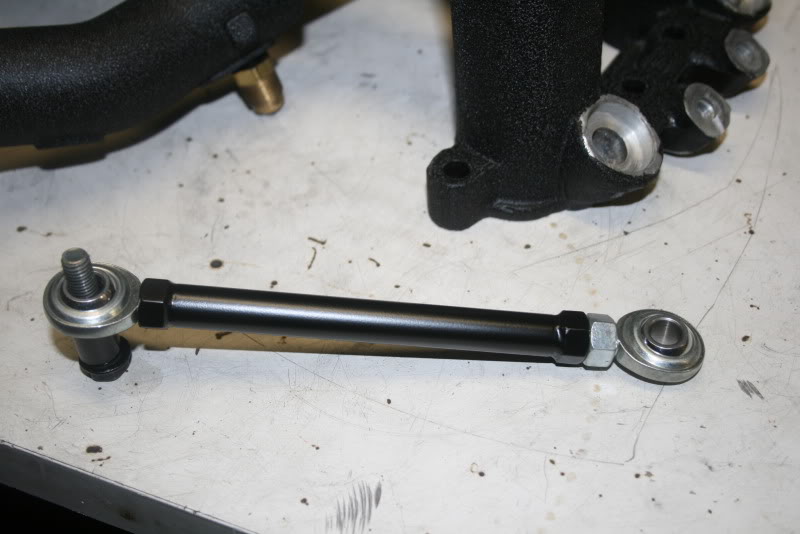

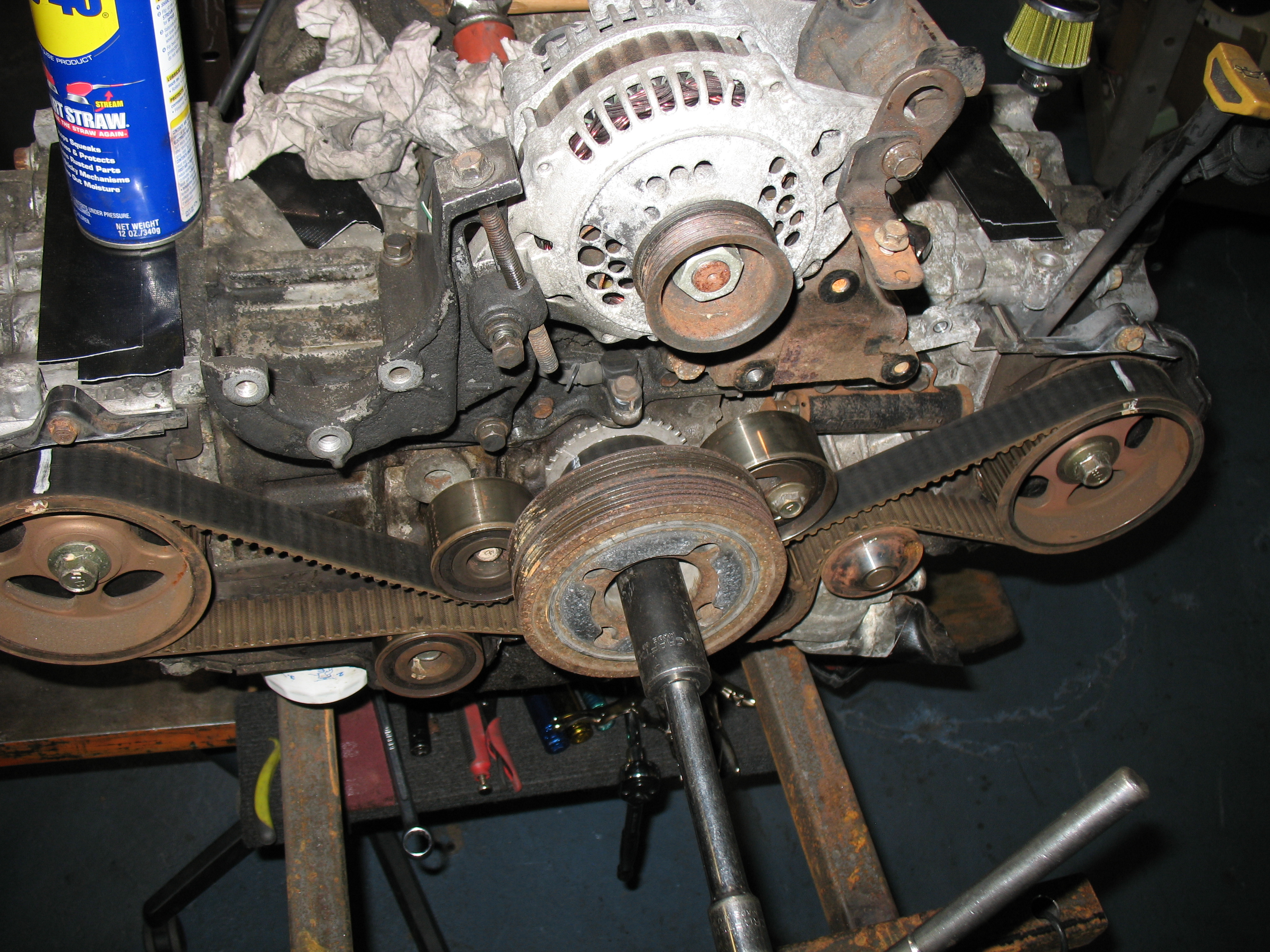

also cut off the top of the alternator bracket so i can swing alt to drivers side, so i can install intake facing rear. tomorrow night i will do some tapping for clt and iat sensors. got to make a bracket for alternator adjustment. might use some threaded rod ends. Attached thumbnail(s)
|
|
|
|
| 914forme |
Apr 24 2017, 06:10 PM
Post
#128
|
|
Times a wastin', get wrenchin'! Group: Members Posts: 3,896 Joined: 24-July 04 From: Dayton, Ohio Member No.: 2,388 Region Association: None
|
That is looking good
|
|
|
|
| 76-914 |
Apr 24 2017, 07:12 PM
Post
#129
|
|
Repeat Offender & Resident Subaru Antagonist Group: Members Posts: 13,735 Joined: 23-January 09 From: Temecula, CA Member No.: 9,964 Region Association: Southern California
|
Jim, is your engine a "0" clearance style? You might want to remove the plugs to spin the motor by hand. You want to be sure a valve doesn't embed itself in the top of a piston once started. (IMG:style_emoticons/default/beerchug.gif)
|
|
|
|
| Chris914n6 |
Apr 24 2017, 07:56 PM
Post
#130
|
|
Jackstands are my life. Group: Members Posts: 3,488 Joined: 14-March 03 From: Las Vegas, NV Member No.: 431 Region Association: Southwest Region |
QUOTE(jimkelly @ Apr 20 2017, 04:11 PM)  On a Nissan that means the belt is backwards. The mark is off 3 teeth or so on one side for some Japanese logic reason (IMG:style_emoticons/default/confused24.gif) Also, a new belt will have the marks on it if you don't feel 100% with yours. |
|
|
|
| jimkelly |
Apr 25 2017, 05:43 AM
Post
#131
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
i made the marks on my belt MYSELF and could have certainly installed back on flipped?
the earlier ej22 are NON interference and is one of the reasons i like them. http://www.scoobyenthusiast.com/subaru-faq...n-interference/ waiting on a U bend of 1.75" so i can merge my exhaust and put a bung in place for the o2 sensor. getting the belt right was a little tricky, had to make sure all lined up and all the slack in the belt was in the area of the tensioner. got to make an alternator adjuster like this. from this thread. https://www.thesamba.com/vw/forum/viewtopic.php?p=5365250 question, does threaded part between two tie rods have a right hand thread on one side and a left hand thread on the other? Attached image(s)
|
|
|
|
| jimkelly |
Apr 25 2017, 05:40 PM
Post
#132
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |

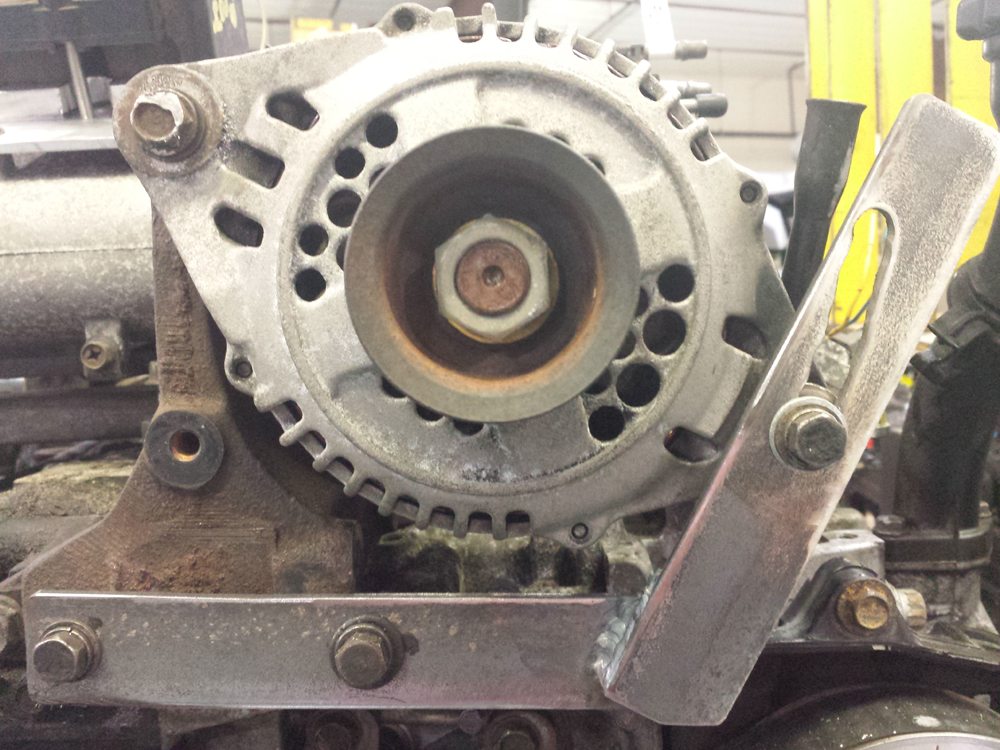

alternator bracket version 1 done. may interfere with timing covers?
now i gotta find a 5 rib belt to turn it. was gonna install my intake manifold flipped but had one metal fuel line IN THE WAY. will need to cut the line and put some inches of rubber line. next up is to merge exhaust for 02 bung. down the road is shift linkage. https://www.youtube.com/watch?v=KOgNXNUn8zI Attached image(s)
|
|
|
|
| jimkelly |
Apr 26 2017, 02:11 PM
Post
#133
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |

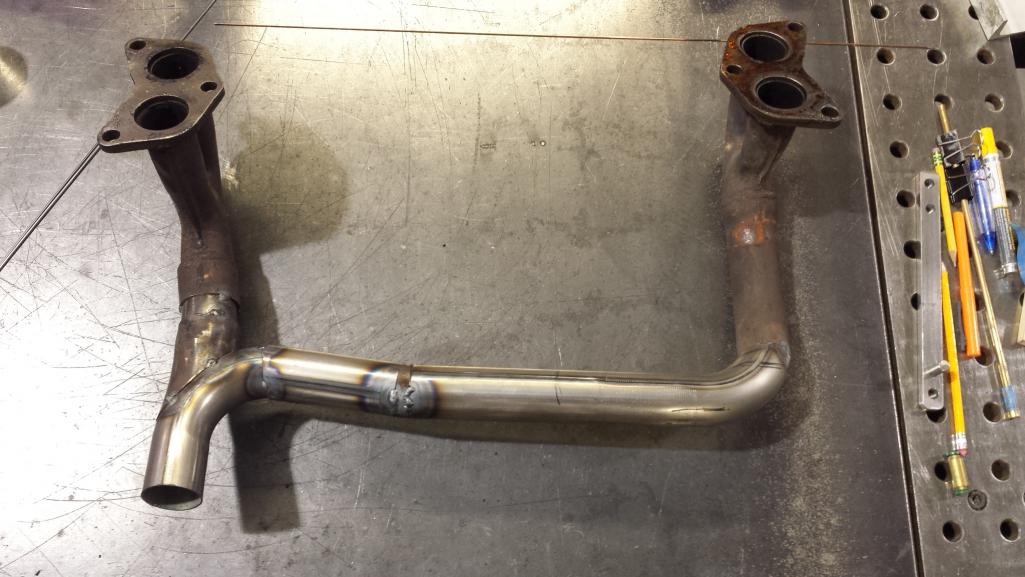

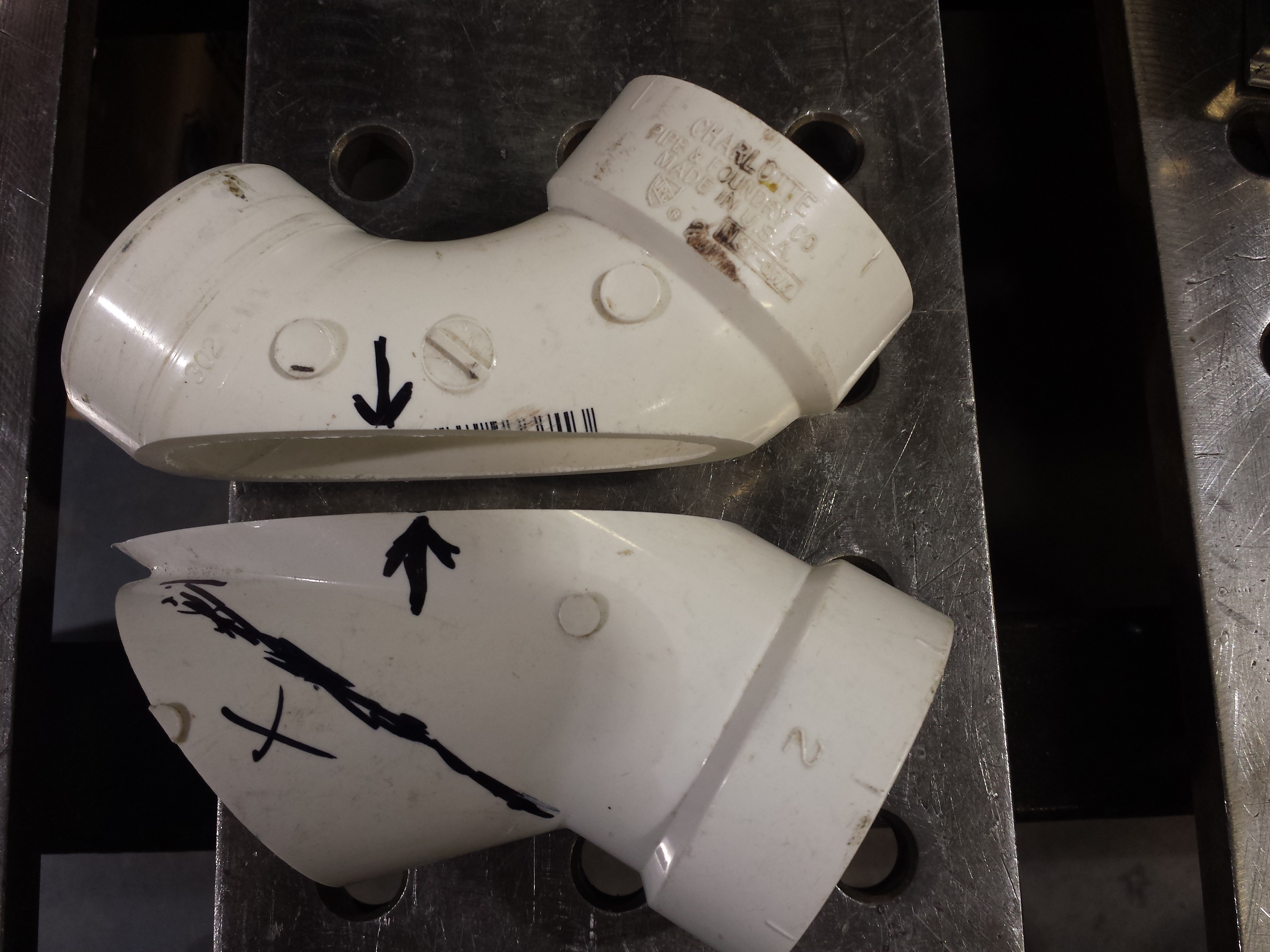

got to fab a run stand exhaust that is 2 into one. did some test cuts on pcv to figure what would be involved.
Attached thumbnail(s)
|
|
|
|
| Chris914n6 |
Apr 26 2017, 04:27 PM
Post
#134
|
|
Jackstands are my life. Group: Members Posts: 3,488 Joined: 14-March 03 From: Las Vegas, NV Member No.: 431 Region Association: Southwest Region |
Belts are measured in mm. Use a "cloth tape" to measure max and min for the alt adjustment as the belt will be in 5mm or 10mm increments. 5K### or ###K5
|
|
|
|
| jimkelly |
Apr 26 2017, 06:12 PM
Post
#135
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
thanks, good info that i did not know.

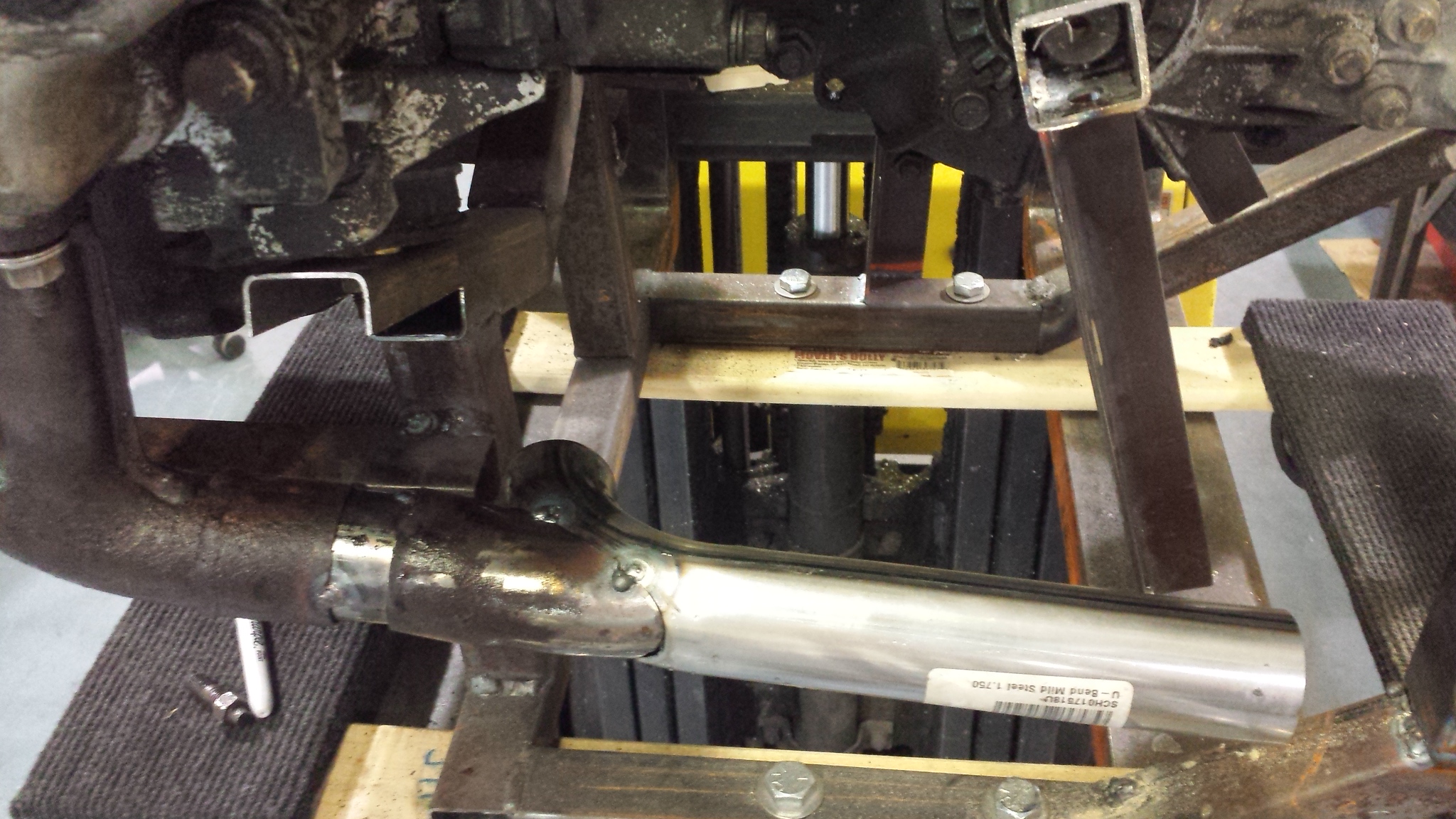

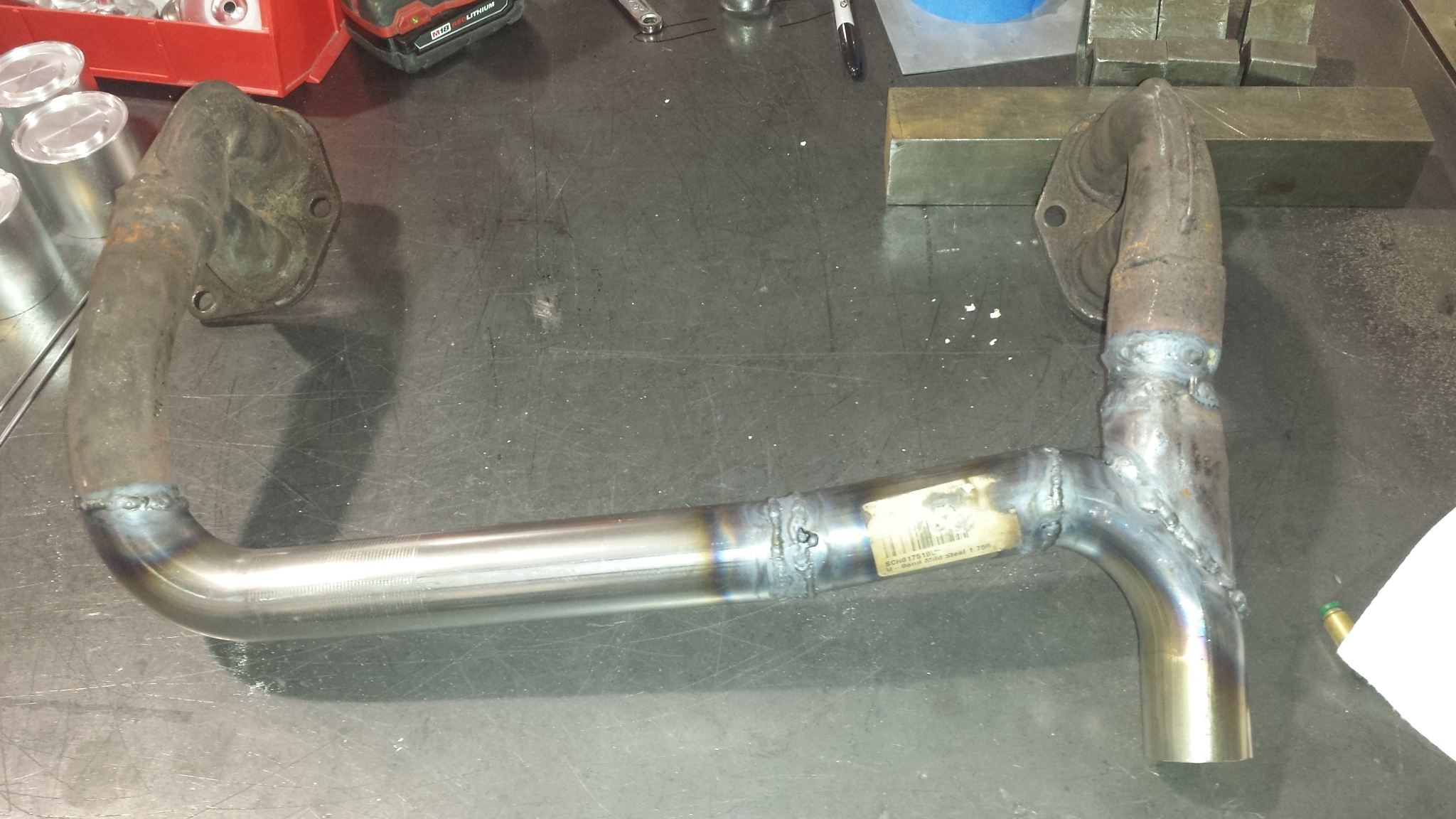

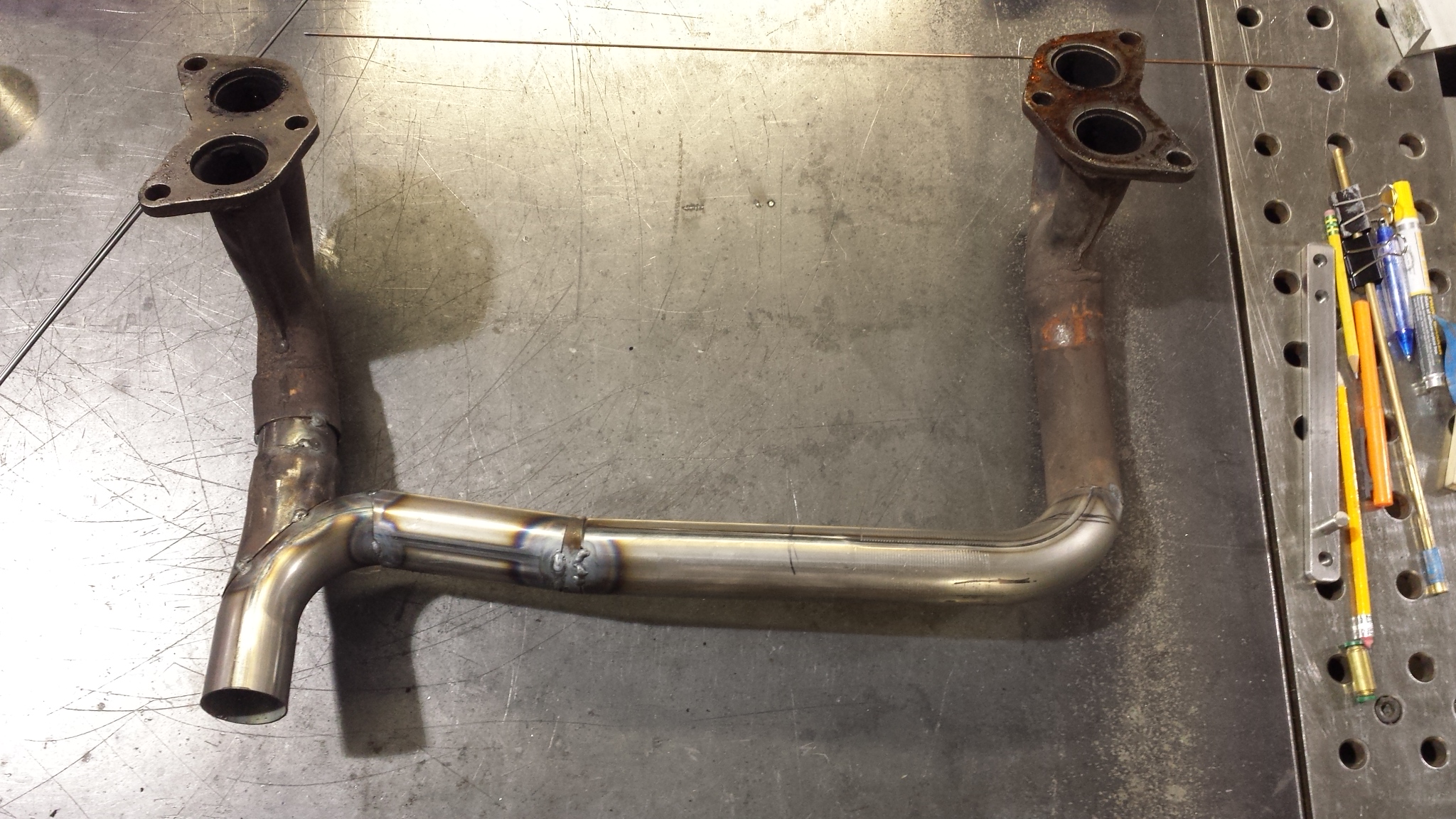

got test stand exhaust mostly completely tacked up. gonna ask pro welder to finish it up. got to add a bit more tail pipe and put a bung in it somewhere. decided to go ahead and weld it up and let pro welder fix my blow thrus/etc (IMG:style_emoticons/default/smile.gif) and yes that is TIG but most could never tell (IMG:style_emoticons/default/sad.gif) Attached thumbnail(s)
|
|
|
|
| jimkelly |
Apr 27 2017, 03:57 PM
Post
#136
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |

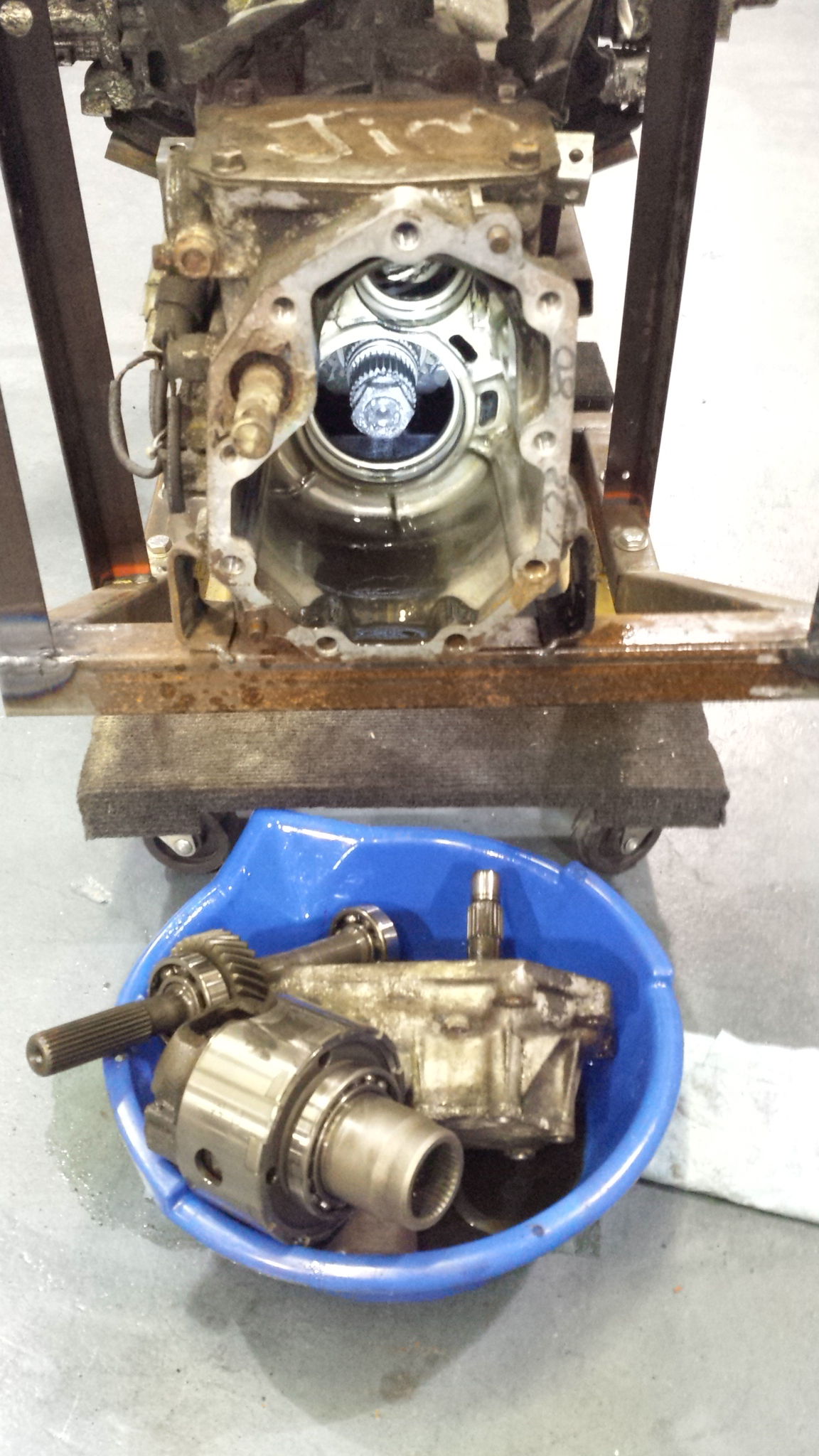

popped the trans open and will make the conversion coupler.
like these fellas done did. http://www.914world.com/bbs2/index.php?showtopic=104513 https://www.youtube.com/watch?v=qmPTNe0D-Uc Attached thumbnail(s)
|
|
|
|
| 76-914 |
Apr 27 2017, 04:24 PM
Post
#137
|
|
Repeat Offender & Resident Subaru Antagonist Group: Members Posts: 13,735 Joined: 23-January 09 From: Temecula, CA Member No.: 9,964 Region Association: Southern California
|
QUOTE(jimkelly @ Apr 26 2017, 05:12 PM) thanks, good info that i did not know. got test stand exhaust mostly completely tacked up. gonna ask pro welder to finish it up. got to add a bit more tail pipe and put a bung in it somewhere. decided to go ahead and weld it up and let pro welder fix my blow thrus/etc (IMG:style_emoticons/default/smile.gif) and yes that is TIG but most could never tell (IMG:style_emoticons/default/sad.gif) Looks OK, Jim. I doubt it will blow loose on those welds. No one can say that you didn't get it hot enough. You can fill that with water to test before installing. Keep 'em coming. You'll be there in no time. (IMG:style_emoticons/default/beerchug.gif) |
|
|
|
| jimkelly |
Apr 27 2017, 05:04 PM
Post
#138
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
waiting on a 1' piece of 1.75 od exhaust tubing to add to the end and add the bung. (IMG:style_emoticons/default/smile.gif) |
|
|
|
| jimkelly |
May 2 2017, 07:26 AM
Post
#139
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |

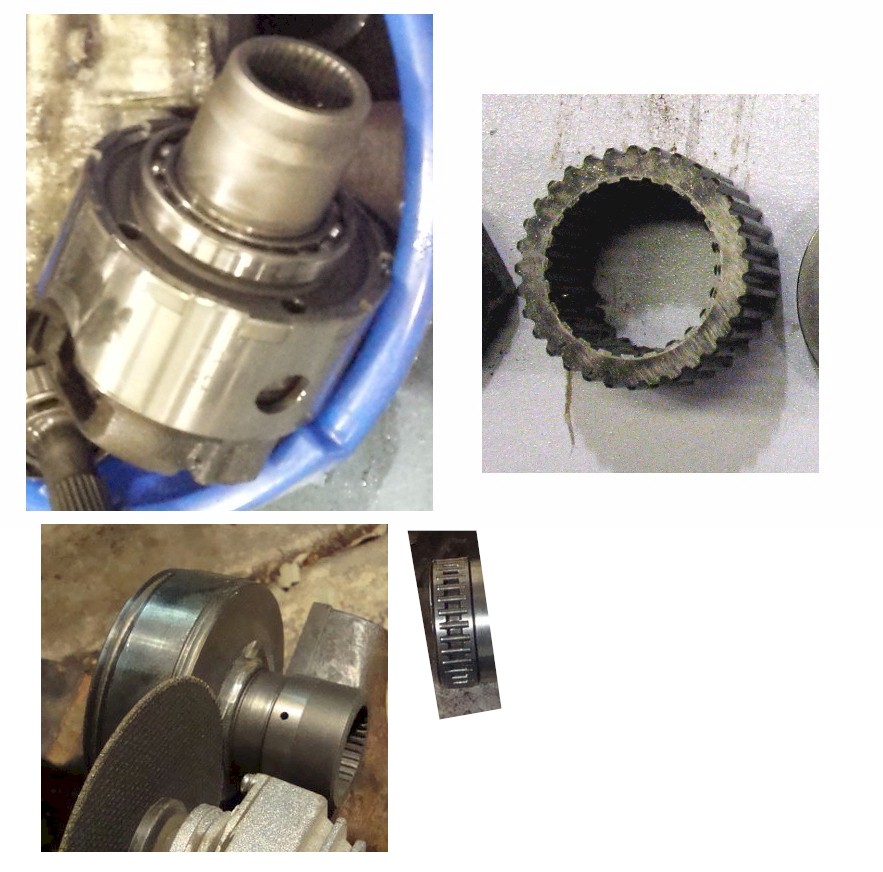

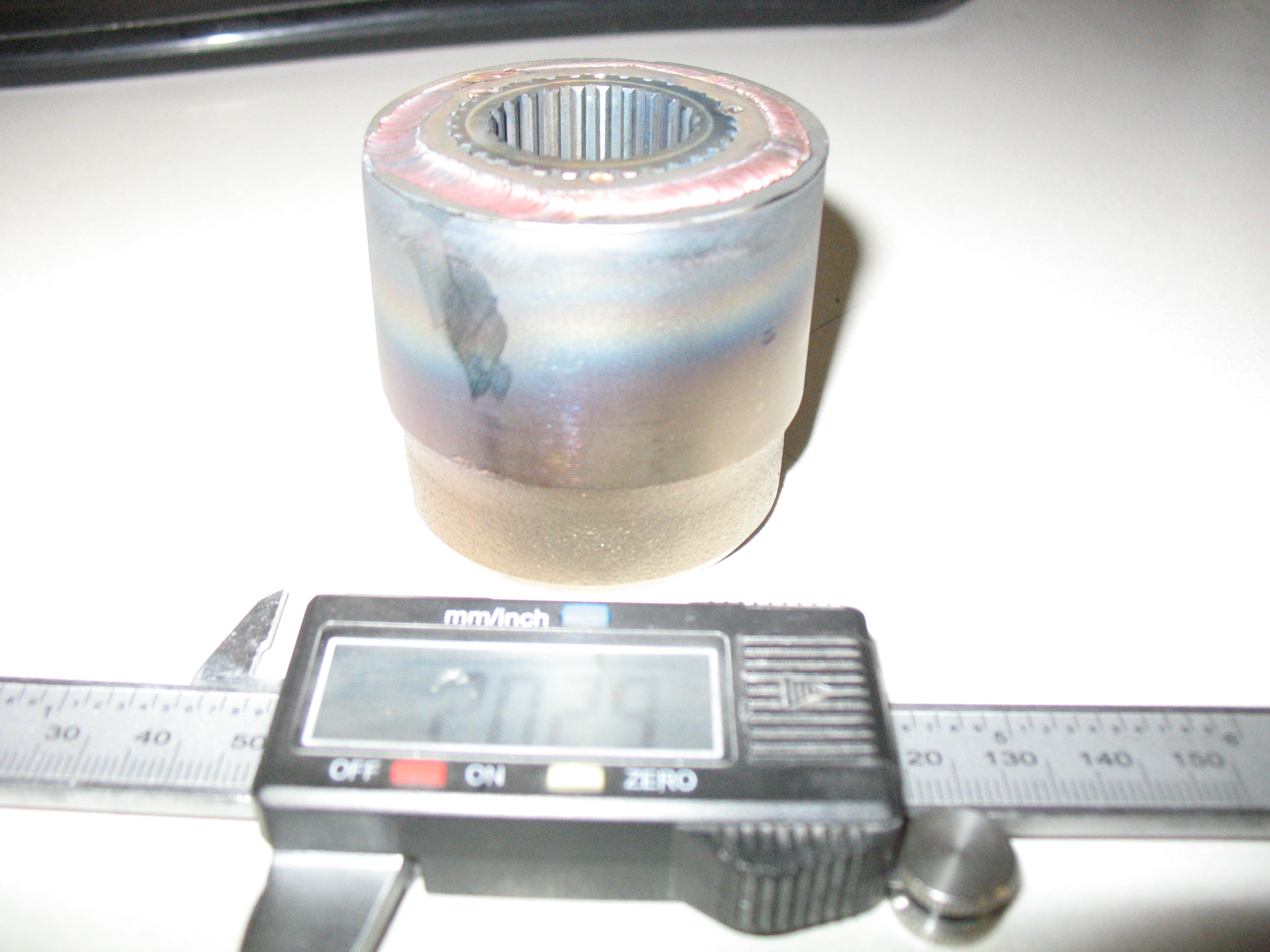

my coupler, 2" tall about. hope it holds together.
Attached thumbnail(s)
|
|
|
|
| jimkelly |
May 2 2017, 08:25 AM
Post
#140
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
side pic

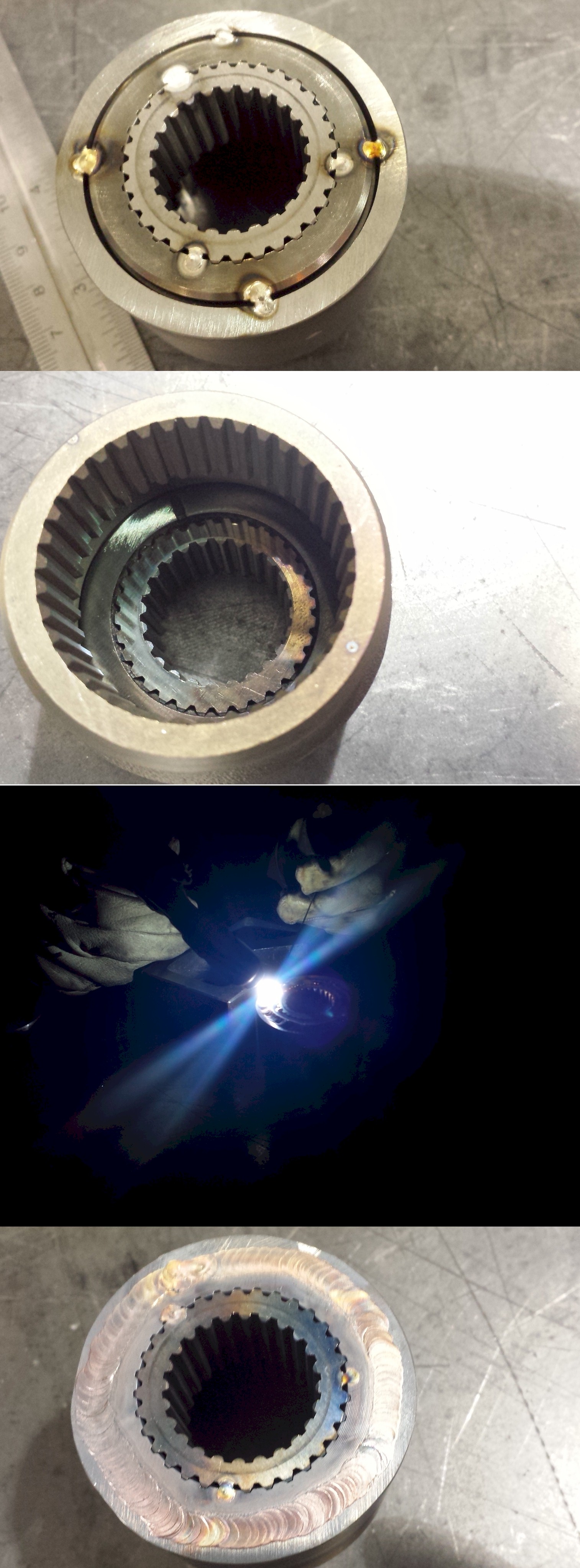

if anyone is going ther bremar coupling route and have these parts left over, i'll take them (IMG:style_emoticons/default/smile.gif) Attached thumbnail(s)  Attached image(s)
|
|
|
|
|
