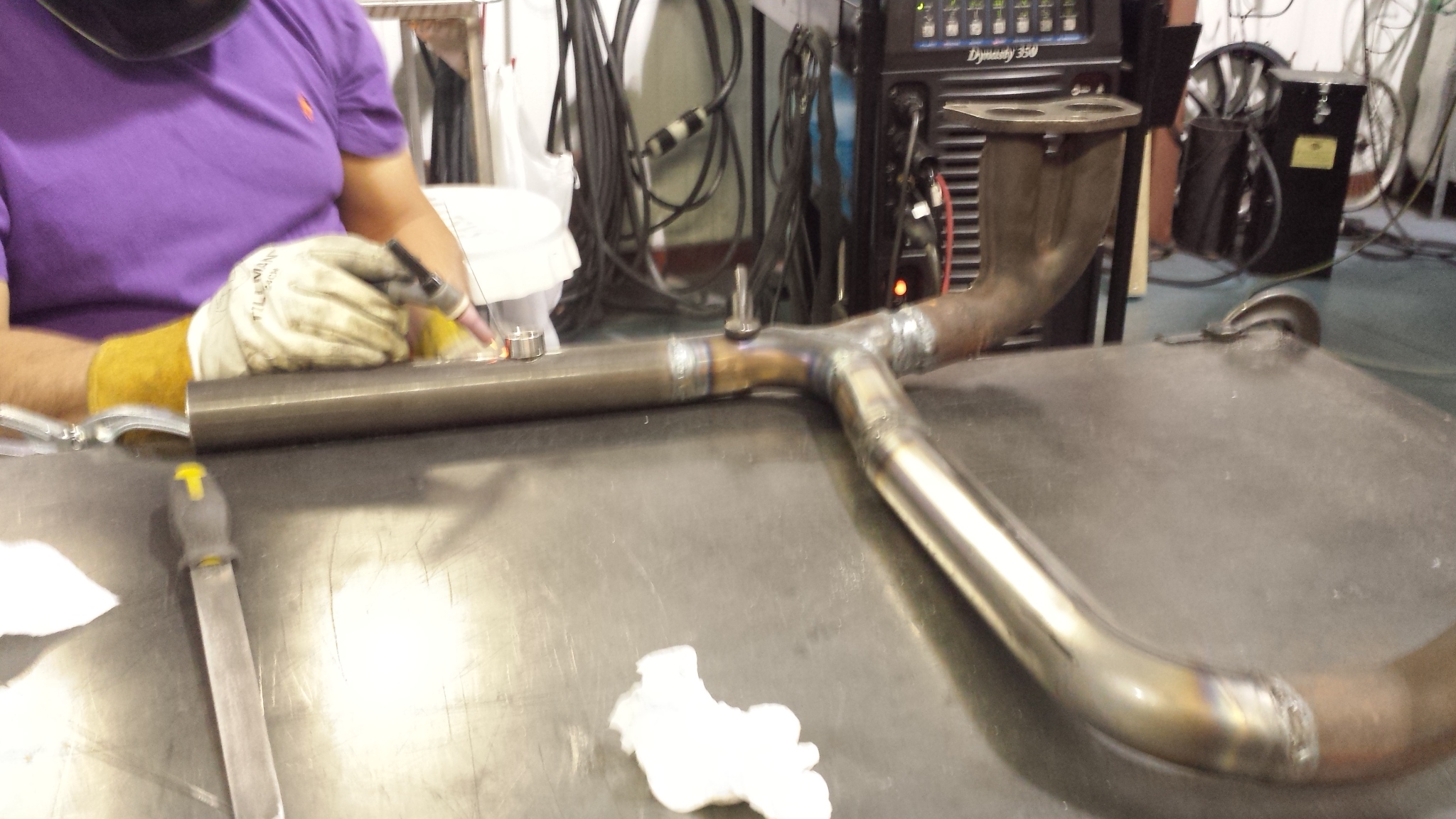

well. i added the 12" piece of exhaust pipe and then decided to ATTEMPT TO weld the bung on. bad idea. ordered a tap.
Attached thumbnail(s) |
jimkelly |
May 2 2017, 07:09 PM
Post
#142
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
a downside of making the coupler yourself is that it will UNLIKELY slide right on with no pressure. thus getting it off one day could be a bitch. a bremar for $175 beans might be easily removable.
wanted to button up trans but realized i never order 10-1.25 20mm bolts for thin cover (IMG:style_emoticons/default/sad.gif) |
jimkelly |
May 7 2017, 07:55 AM
Post
#143
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
so the consensus is to not use a bell crank?
and to go at the trans from the side for side to side motion. I think the bell crank version allows for 2 the same length cables, attractive to me. https://www.youtube.com/watch?v=S_e9jk6z83k https://www.youtube.com/watch?v=ncmaxYd1WNI and another version https://www.youtube.com/watch?v=E1DyhcQuiJQ |
jimkelly |
May 10 2017, 04:04 PM
Post
#144
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |

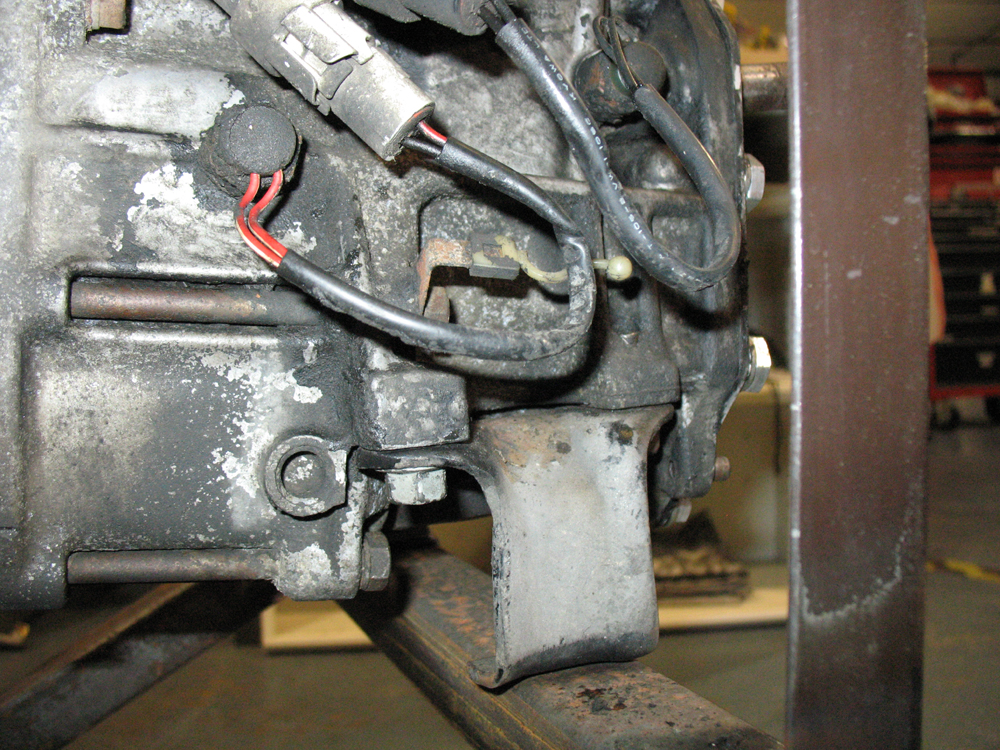

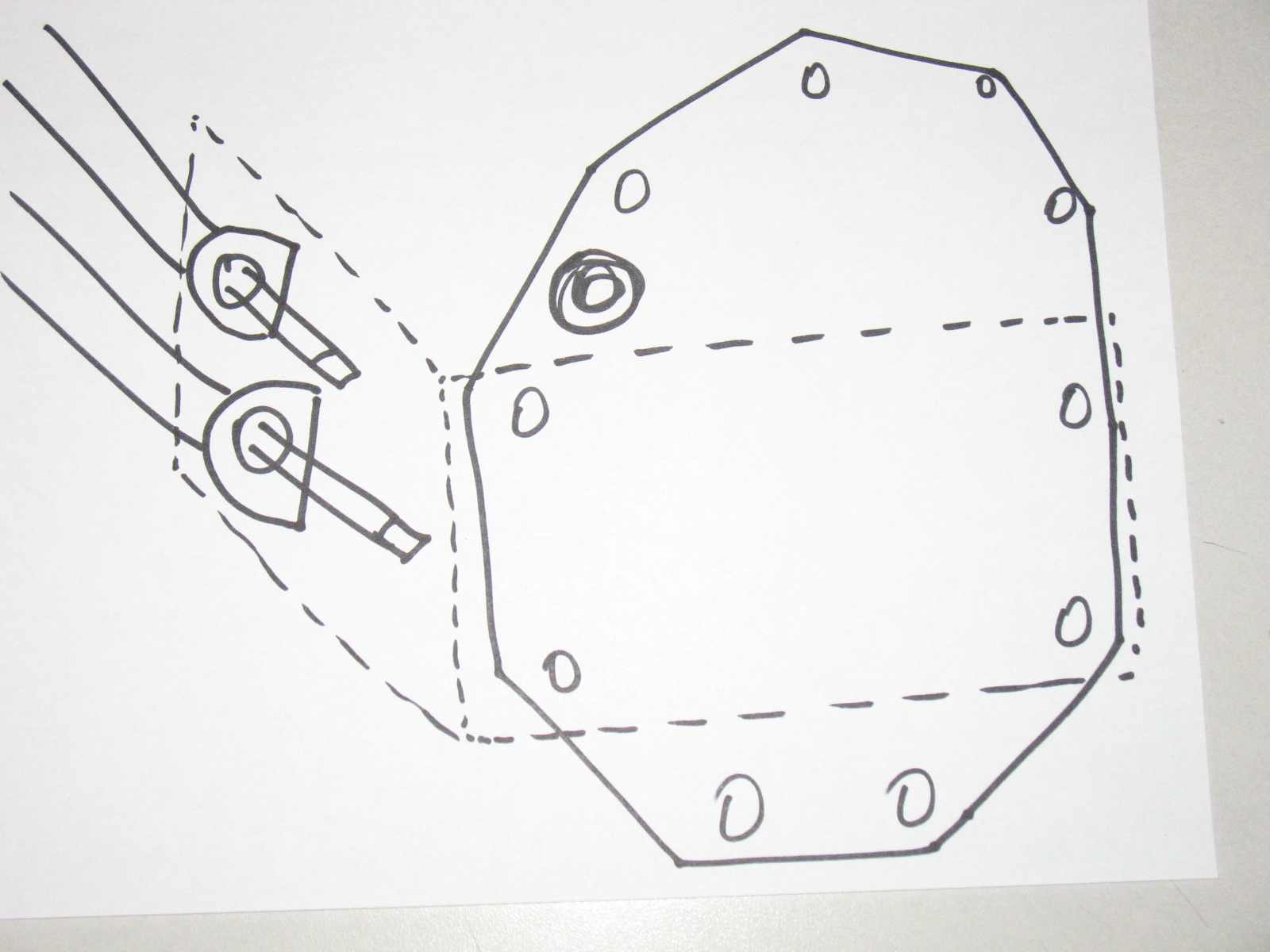

SOB, my trans does not have the threaded bungs on it, like ian designed his set up for, which i was attempting to recreate. now i need to fab up something quite different.

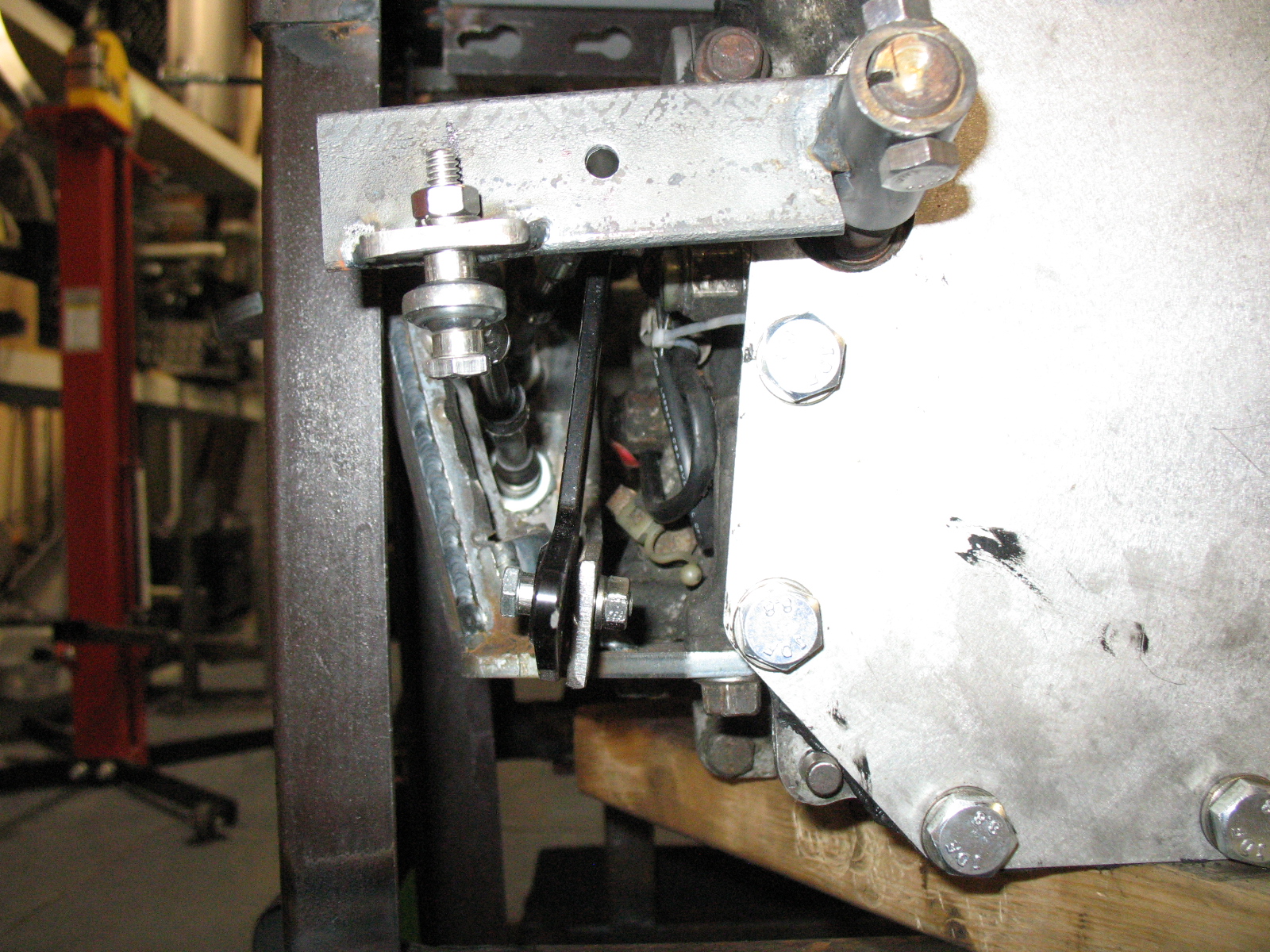

only realized this when i pull out trans to measure holes to drill holes in braket to final size (IMG:style_emoticons/default/dry.gif) i guess i'll make a plate that attached with 4 trans cover plate bolts, that wraps around the side of the trans? or maybe i will weld a bracket onto the coldwater trans hanger drivers side? Attached thumbnail(s) Attached image(s) |
76-914 |
May 10 2017, 06:52 PM
Post
#145
|
Repeat Offender & Resident Subaru Antagonist Group: Members Posts: 13,485 Joined: 23-January 09 From: Temecula, CA Member No.: 9,964 Region Association: Southern California |
.........or you could chunk the bell cranks and go with 2 different length cables! And does your wife know that you find the same length cables attractive? (IMG:style_emoticons/default/happy11.gif)
|
jimkelly |
May 13 2017, 12:11 PM
Post
#146
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
she has always suspected (IMG:style_emoticons/default/biggrin.gif)

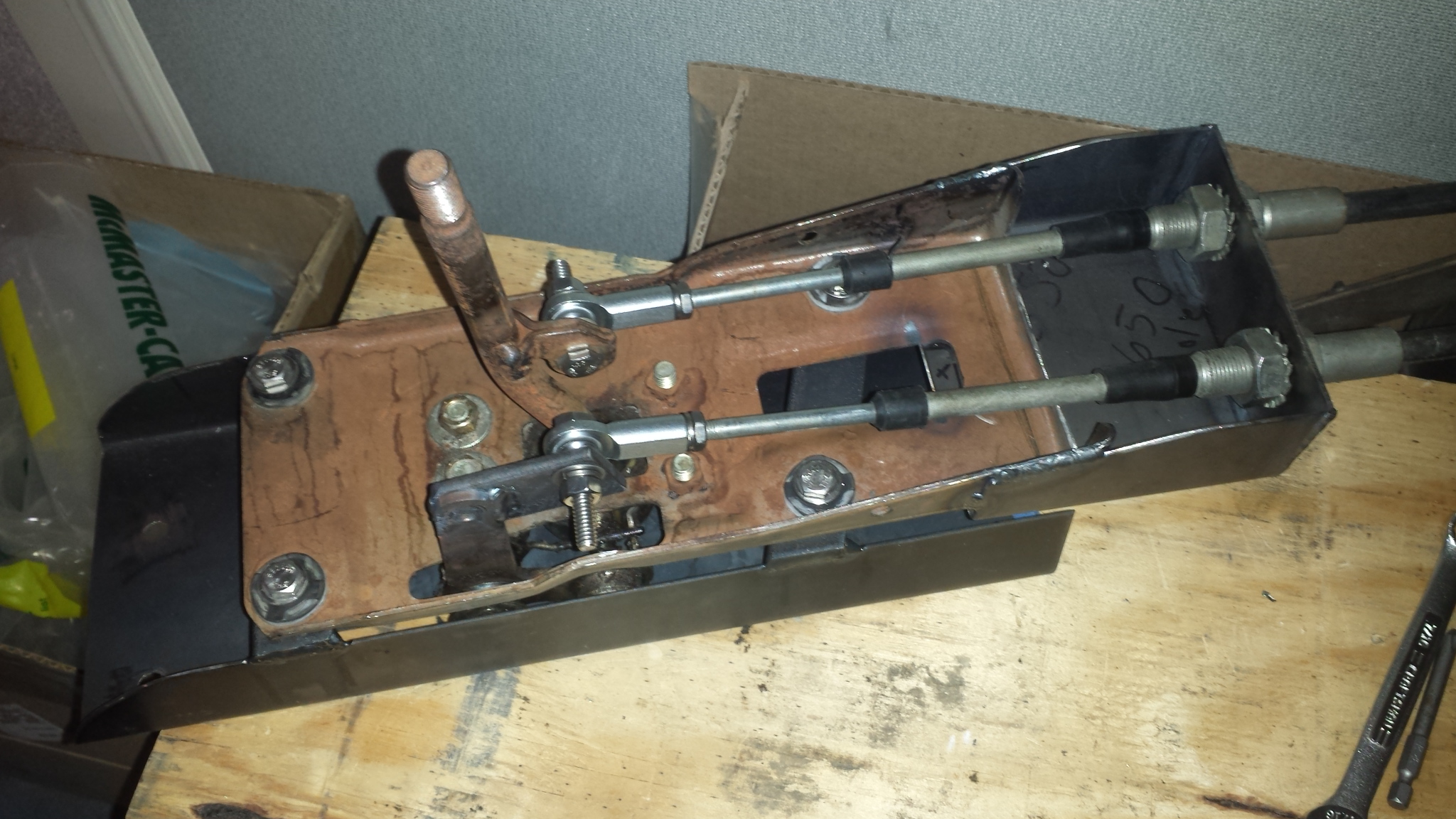

also, at my work they have/had two 90" push pull cables 1/4-28 that have been in deep dusty storage for years. I just dusted them off for my project and thus will go with bell crank, at least initially. lastly, my plan for a mr2 shifter mount. bottom flat steel plate with slots for forward backward movement using the 3 stock 914 mounting holes, and this plate will have 2" offsets that the shifter will be bolted or welded to. .........or you could chunk the bell cranks and go with 2 different length cables! And does your wife know that you find the same length cables attractive? (IMG:style_emoticons/default/happy11.gif) Attached thumbnail(s) |
jimkelly |
May 15 2017, 01:51 PM
Post
#147
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |

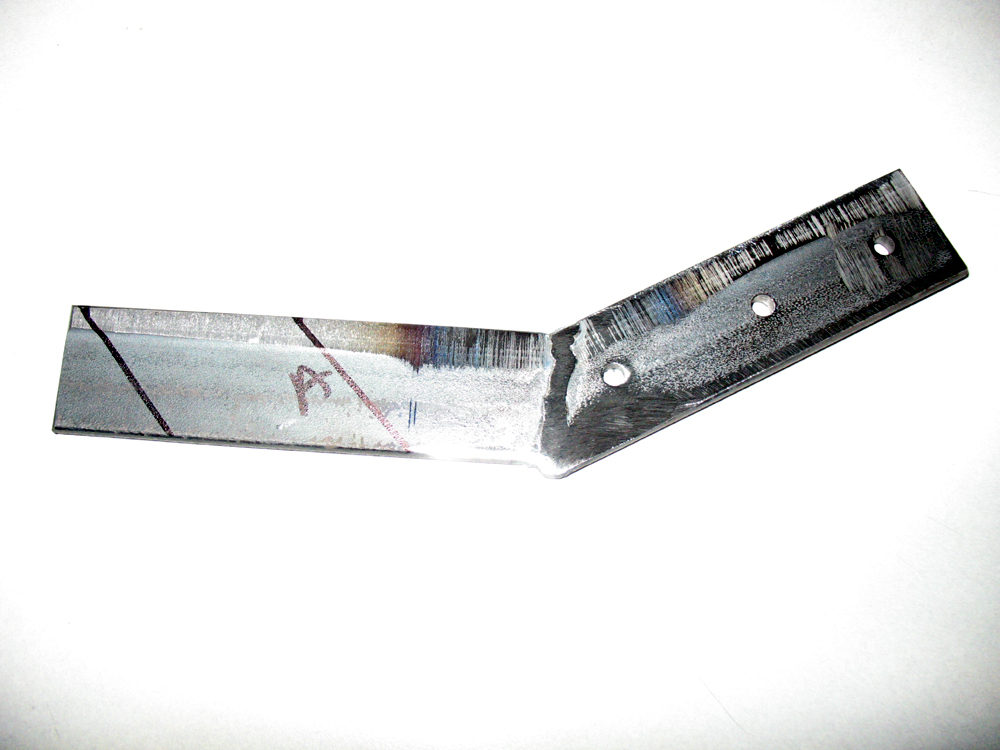

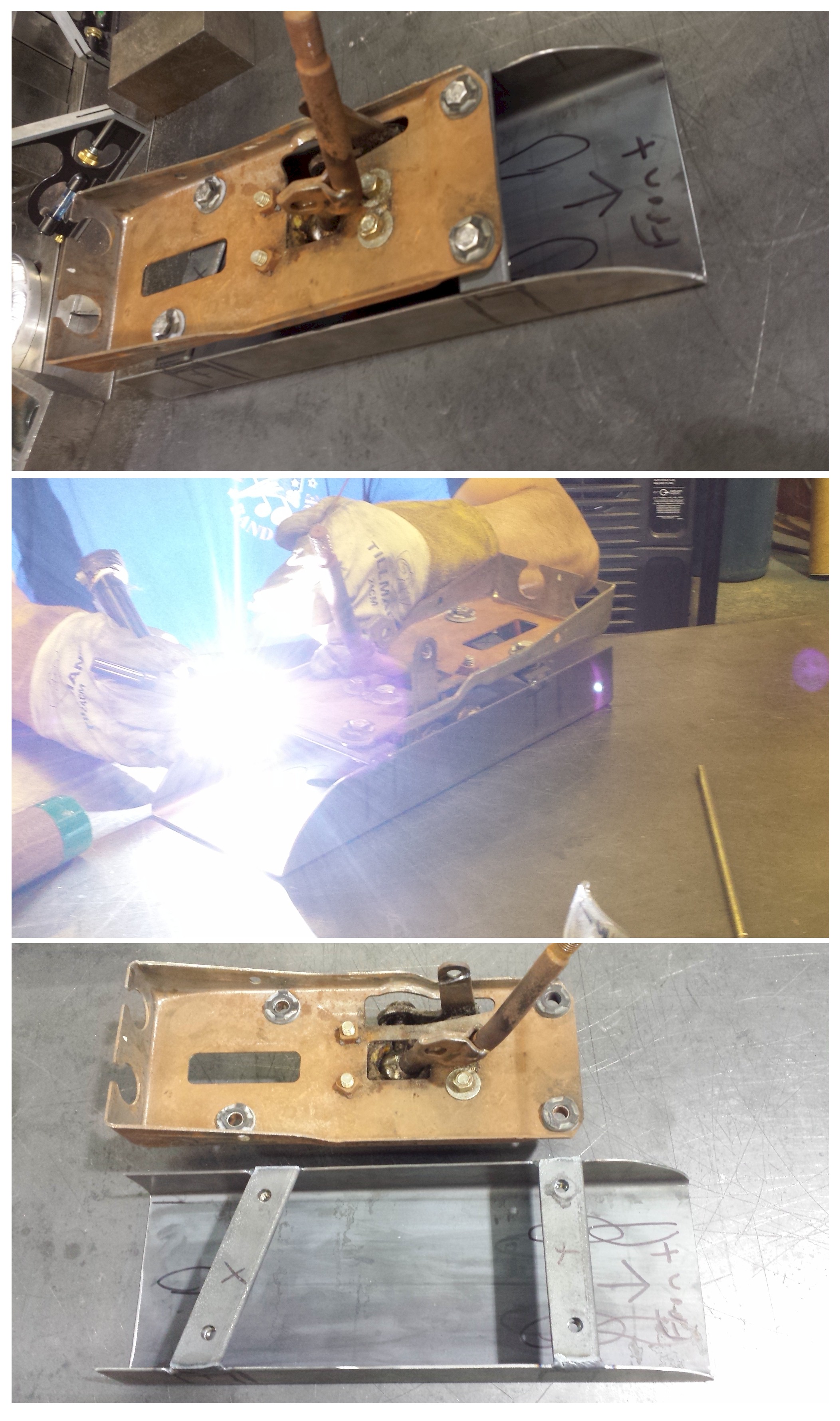

obviously a chnge of plan, decide to bend thinner metal instead.

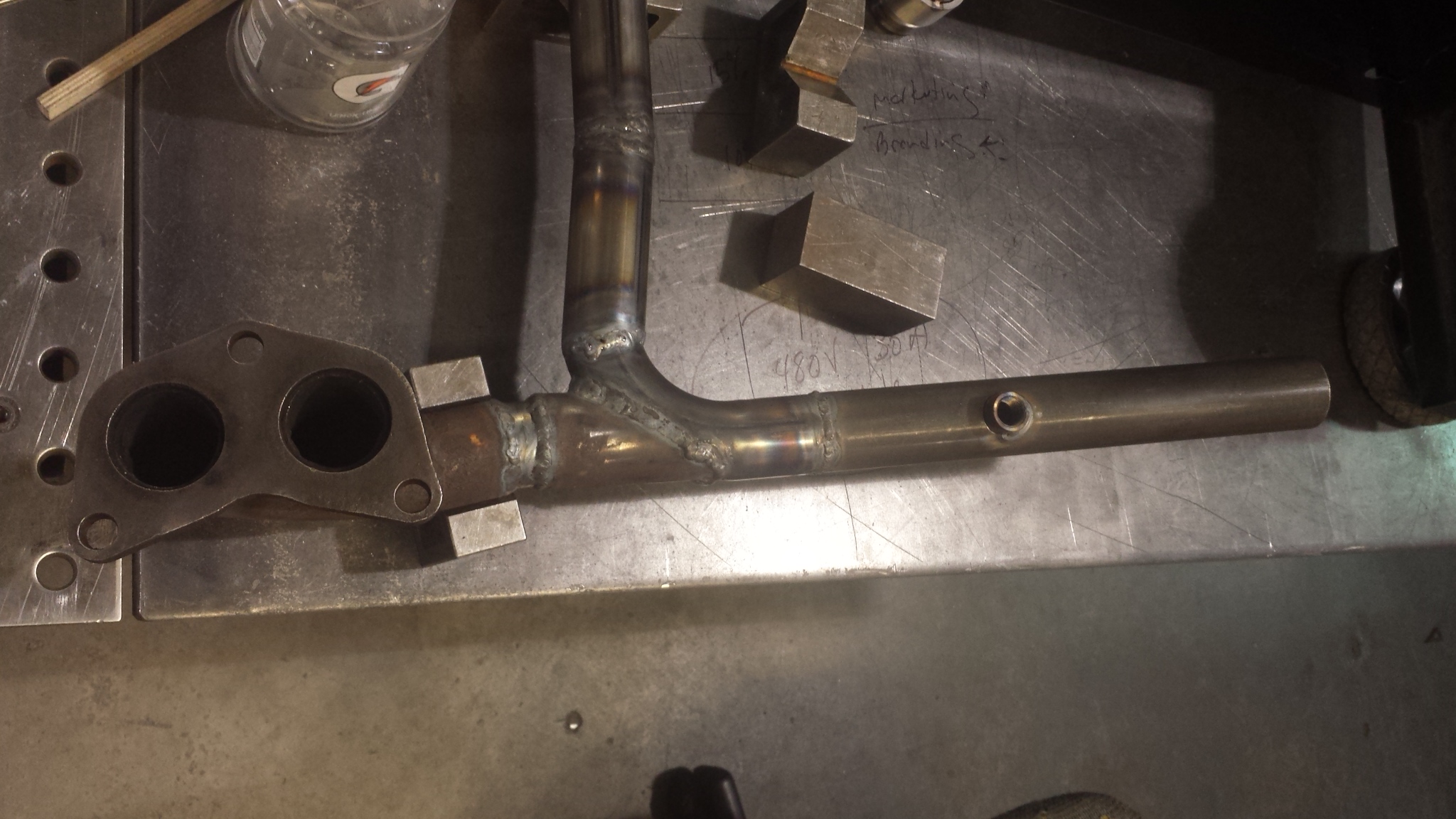

i need to now add the 3 slots. needless to say, needed a bunch o changes. correct sized bung 18x1.5 on exhaust. Attached thumbnail(s) |
jimkelly |
May 18 2017, 02:03 PM
Post
#148
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |

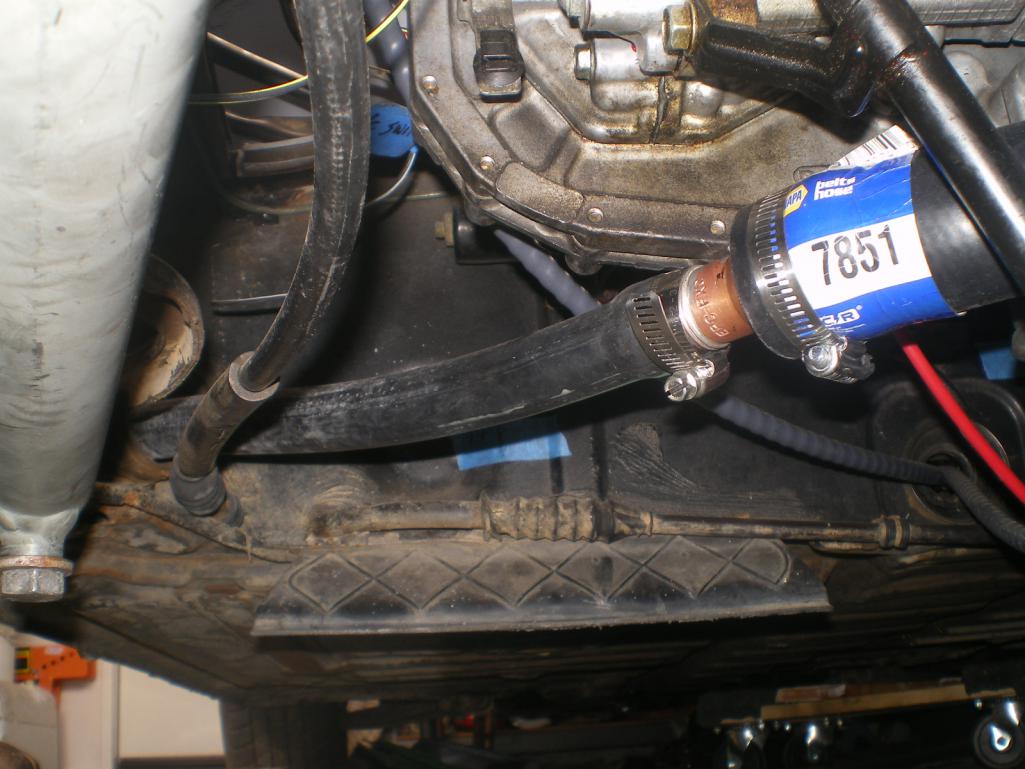

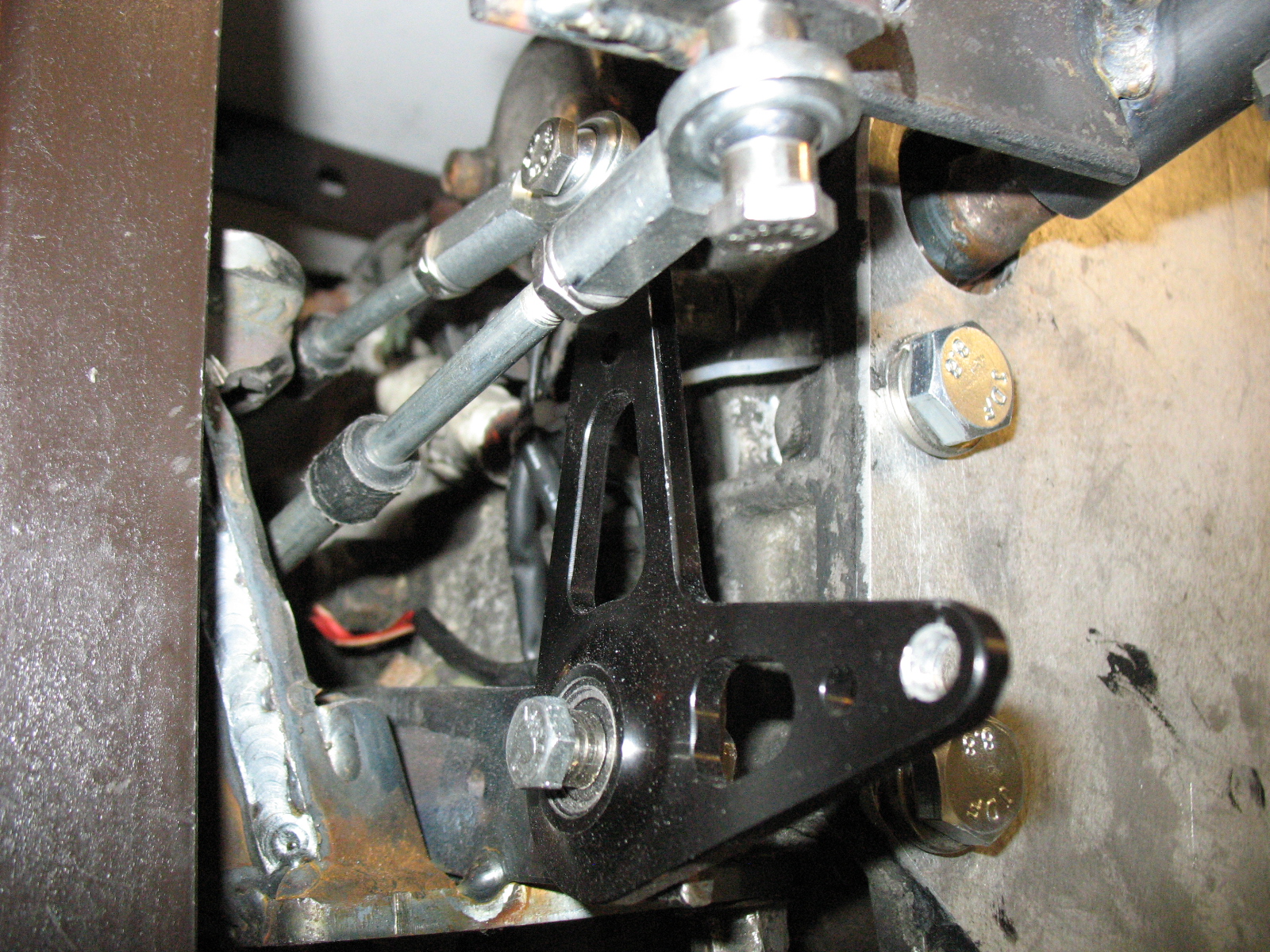

so kent (76-914) ran his push pull cables right thru the big hole, hum : )
Attached image(s) |
76-914 |
May 18 2017, 02:17 PM
Post
#149
|
Repeat Offender & Resident Subaru Antagonist Group: Members Posts: 13,485 Joined: 23-January 09 From: Temecula, CA Member No.: 9,964 Region Association: Southern California |
so kent (76-914) ran his push pull cables right thru the big hole, hum : ) What was I supposed to do? It winked at me! (IMG:style_emoticons/default/av-943.gif) |
Andyrew |
May 18 2017, 04:04 PM
Post
#150
|
Spooling.... Please wait Group: Members Posts: 13,376 Joined: 20-January 03 From: Riverbank, Ca Member No.: 172 Region Association: Northern California |
so kent (76-914) ran his push pull cables right thru the big hole, hum : ) What was I supposed to do? It winked at me! (IMG:style_emoticons/default/av-943.gif) I did the same thing (IMG:style_emoticons/default/smile.gif) I mean it is the shifter hole isnt it? |
jimkelly |
May 19 2017, 11:01 AM
Post
#151
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |

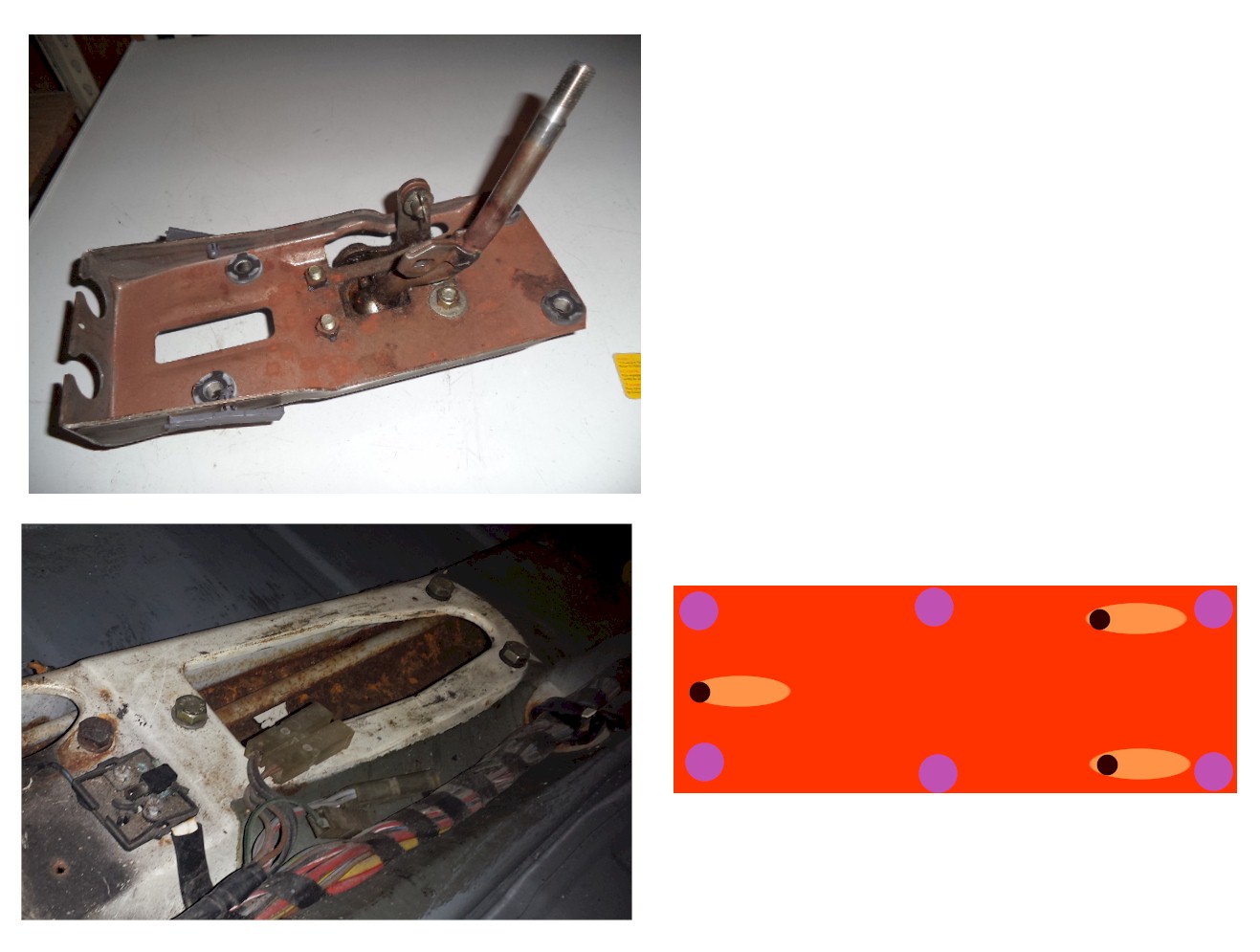

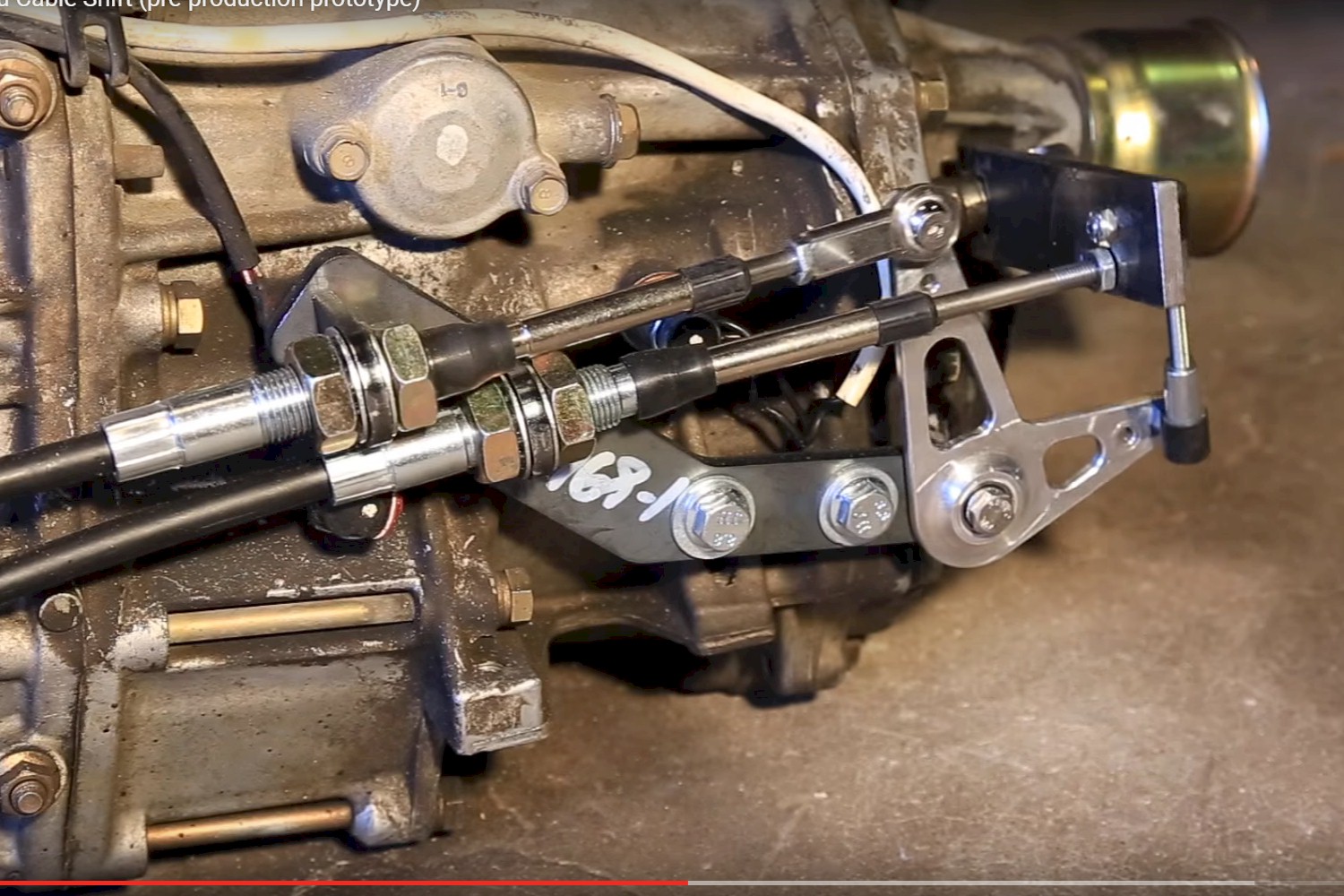

just found this helpful pic
and another and the original and a custom version of coldwater's http://www.914world.com/bbs2/index.php?sho...mp;hl=coldwater http://www.914world.com/bbs2/index.php?sho...baru&st=100 http://www.914world.com/bbs2/index.php?sho...=258603&hl= Attached thumbnail(s) Attached image(s) |
jimkelly |
May 20 2017, 05:15 AM
Post
#152
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |

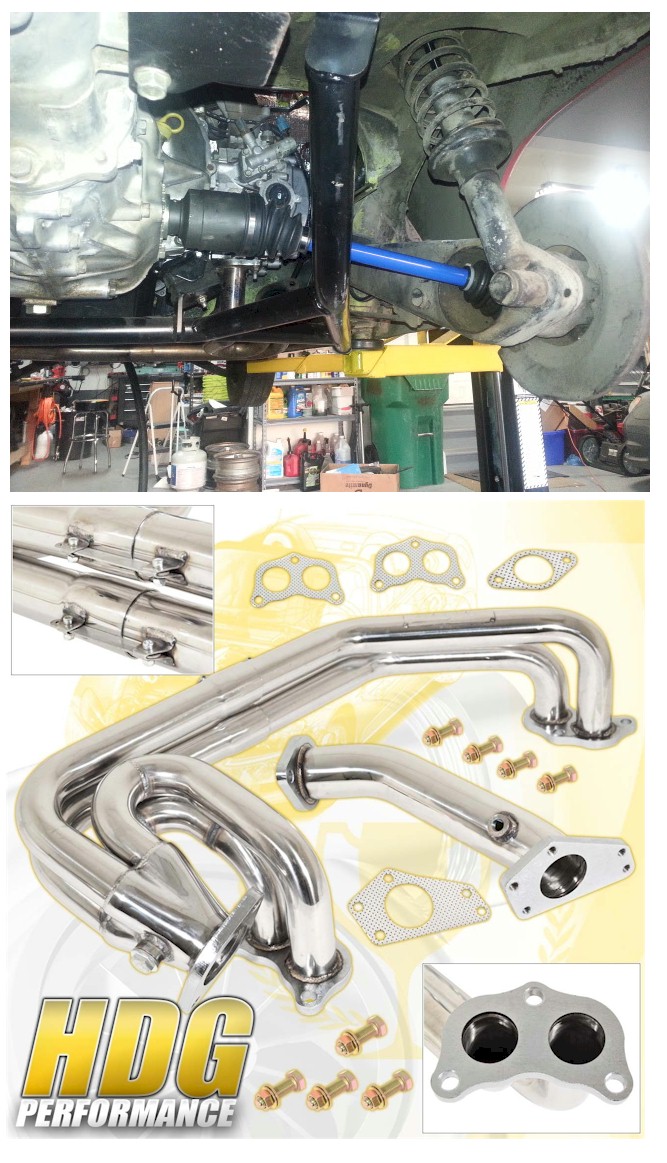

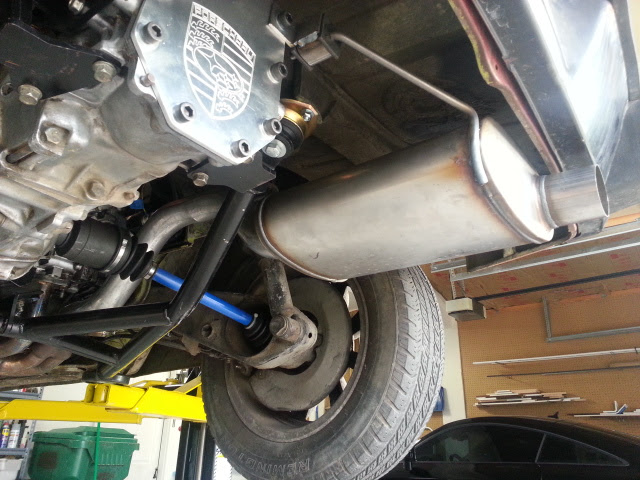

and for then I get to exhaust for engine IN CAR it seems apmech used a header like this with coldwater cradle.
http://www.914world.com/bbs2/index.php?sho...baru&st=100 Attached thumbnail(s) Attached image(s) |
jimkelly |
May 20 2017, 07:36 AM
Post
#153
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |

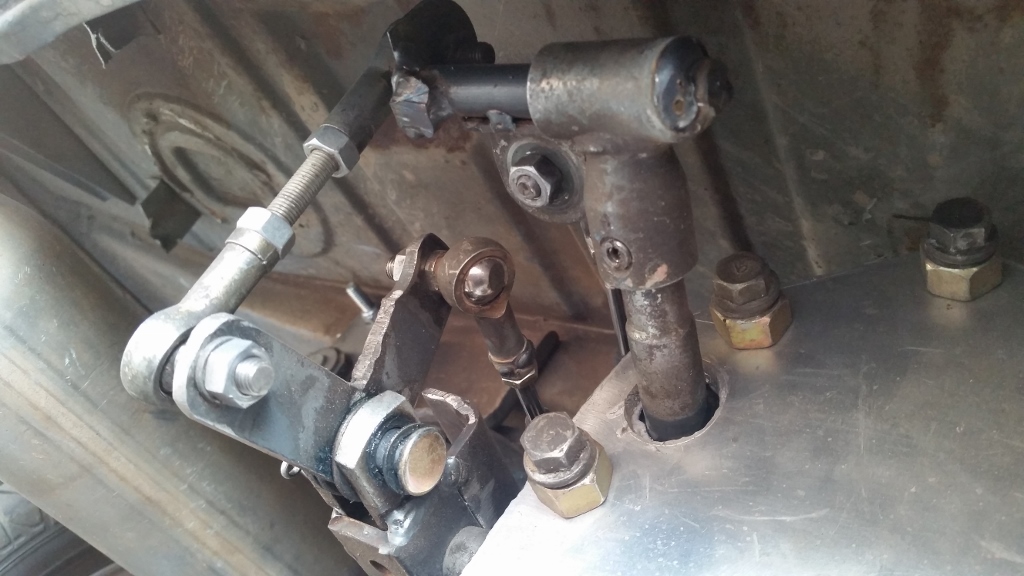

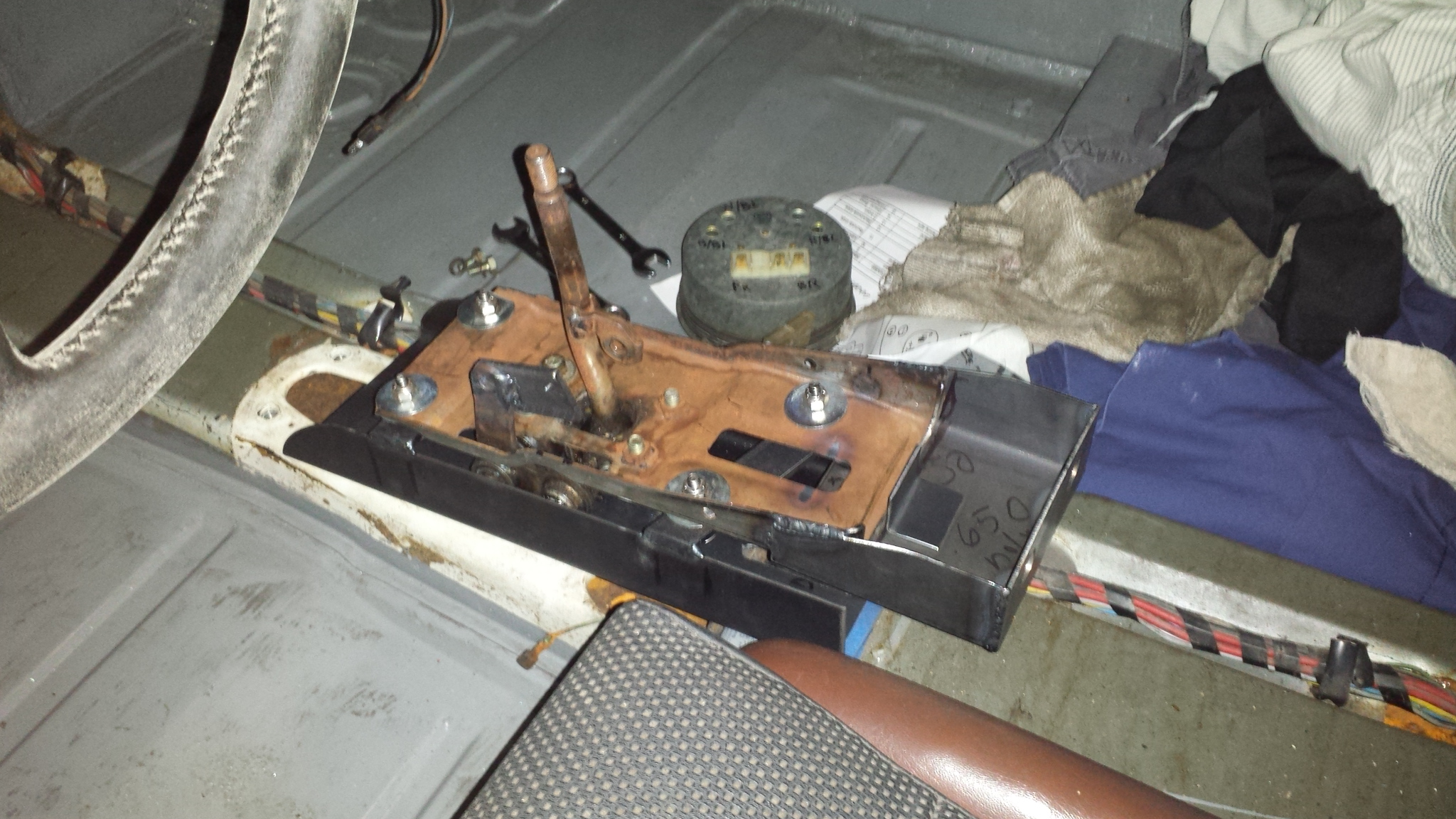

ok. laid my shifter assy in my car and sat down next to it. seems I will want to mount it another 2-3" rearward. time to weld on another piece of steel and drill 2 new holes.
Attached thumbnail(s) |
76-914 |
May 20 2017, 07:56 AM
Post
#154
|
Repeat Offender & Resident Subaru Antagonist Group: Members Posts: 13,485 Joined: 23-January 09 From: Temecula, CA Member No.: 9,964 Region Association: Southern California |
Jim, you might look at heating and bending it back a bit, first. Your already rear of the original shifter location. Personally, I like the short throw. IIRC, Chris used an extension to meet his needs. (IMG:style_emoticons/default/beerchug.gif)
|
JRust |
May 20 2017, 09:17 AM
Post
#155
|
914 Guru Group: Members Posts: 6,305 Joined: 10-January 03 From: Corvallis Oregon Member No.: 129 Region Association: Pacific Northwest |
ok. laid my shifter assy in my car and sat down next to it. seems I will want to mount it another 2-3" rearward. time to weld on another piece of steel and drill 2 new holes. I would consider raising it up as well. When you sat in the car & shifted. Did it seem to be height wise in position. I had changed mine from it original spot which was right next to my knee for shifting. I brought it up 3" & it was better but when I reinstall with my new setup. I think it will be closer to 5-6" higher. Makes for quick steering to shift transition. Plus you get to make your center console higher. Which makes the arm rest in an actual comfortable spot. Anyway my 2 cents which is about all its worth (IMG:style_emoticons/default/evilgrin.gif) |
jimkelly |
May 22 2017, 10:42 AM
Post
#156
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |

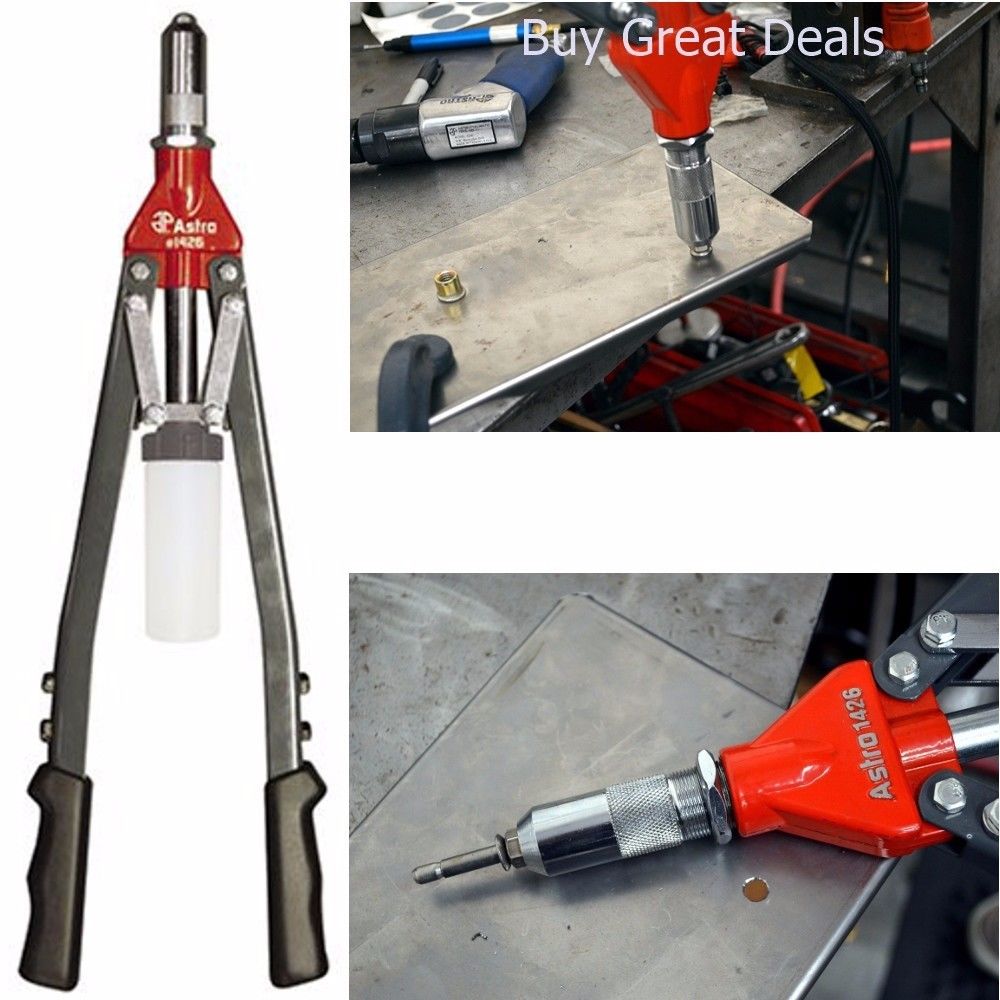

getting me a new tool (IMG:style_emoticons/default/biggrin.gif)
Attached image(s) |
jimkelly |
May 22 2017, 05:34 PM
Post
#157
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |

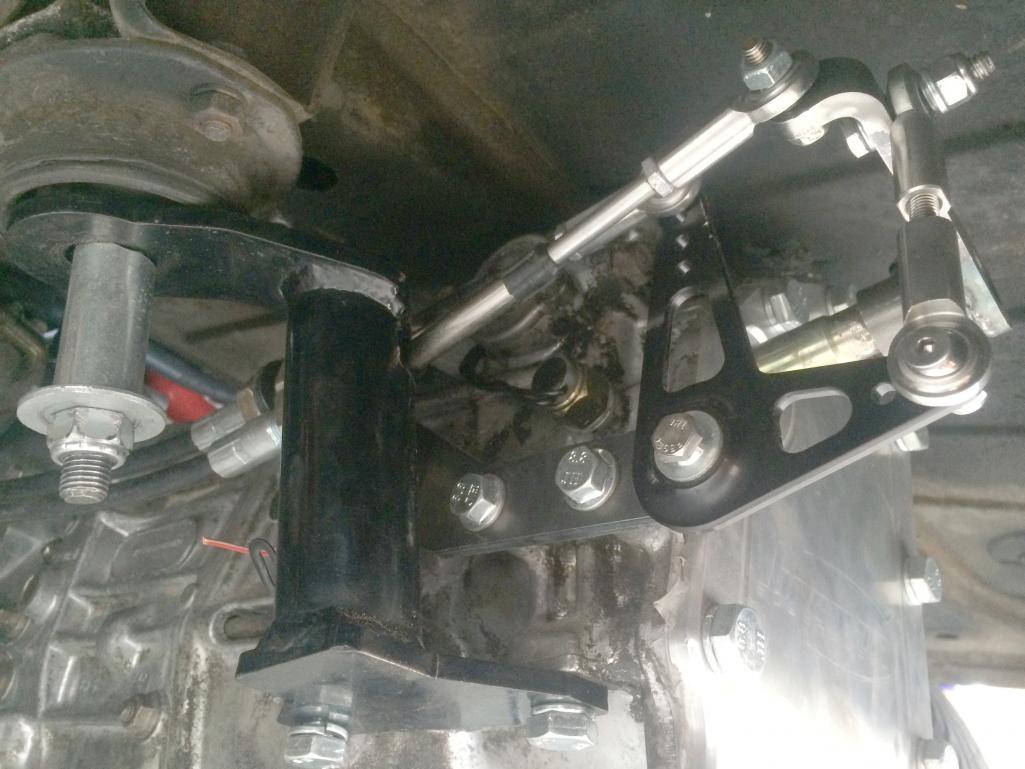

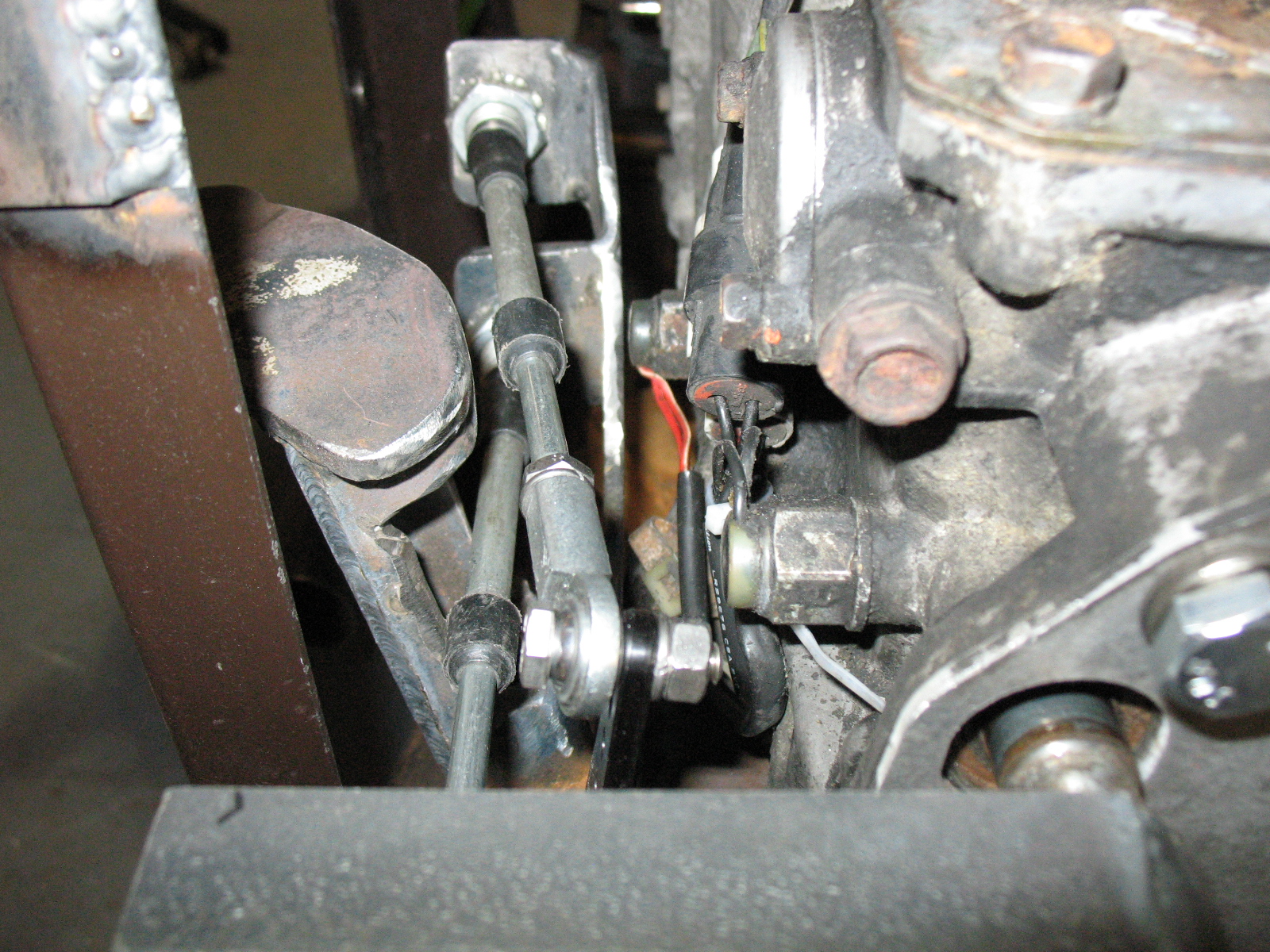

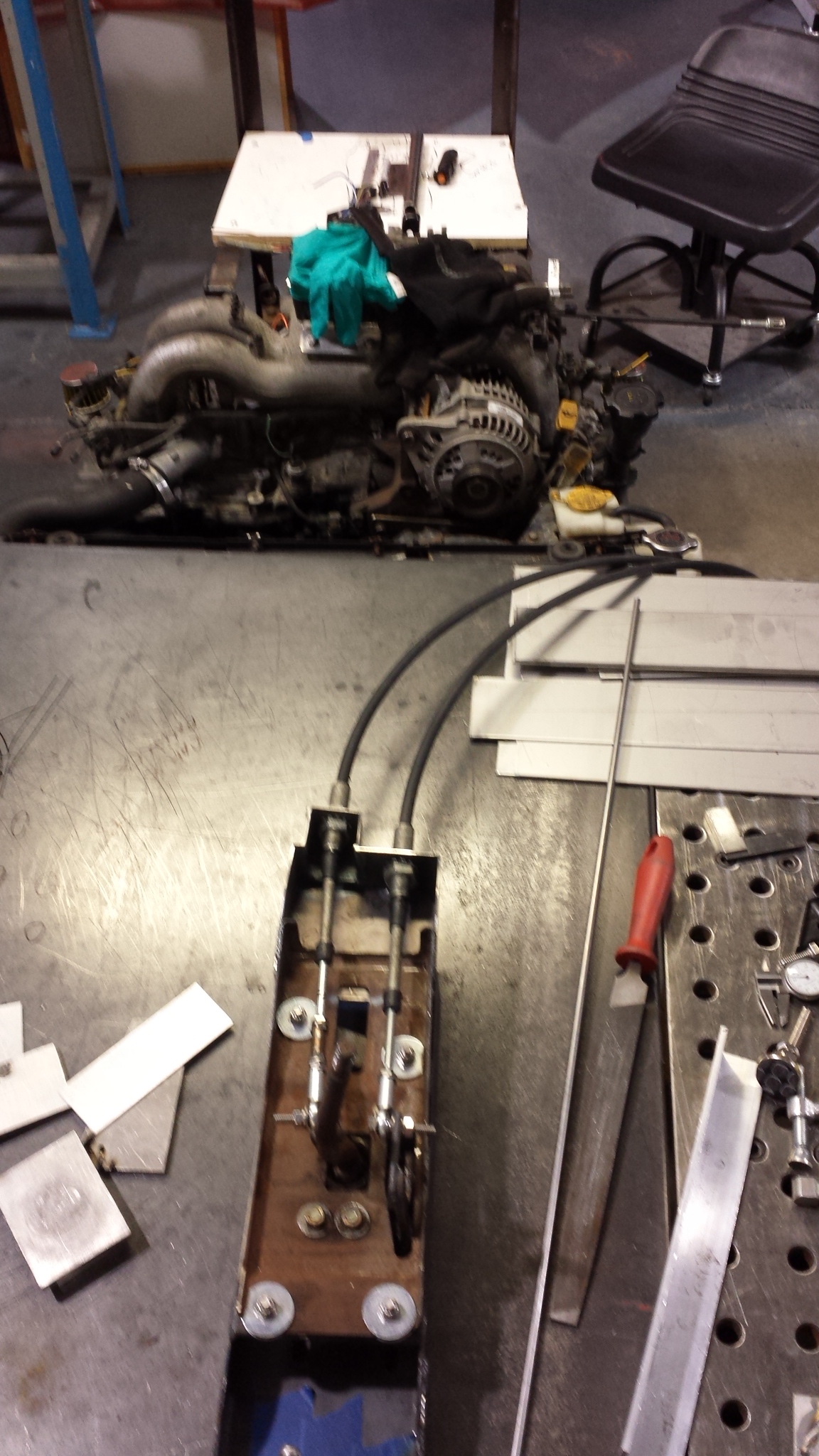

making some linkage progress.
another variable are the cables being different from brand to brand. clearly i need to lengthen my bracket cause once i add rod ends, i will need more length in bracket. Attached image(s) |
Andyrew |
May 22 2017, 08:02 PM
Post
#158
|
Spooling.... Please wait Group: Members Posts: 13,376 Joined: 20-January 03 From: Riverbank, Ca Member No.: 172 Region Association: Northern California |
Got one, Wish I got it way earlier!! |
jimkelly |
May 23 2017, 08:33 PM
Post
#159
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |

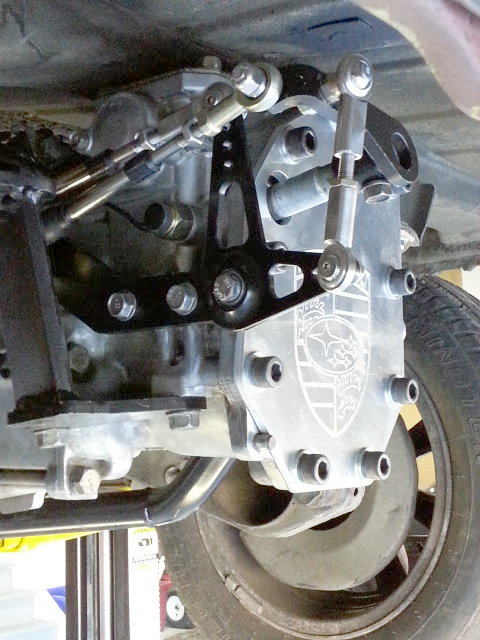

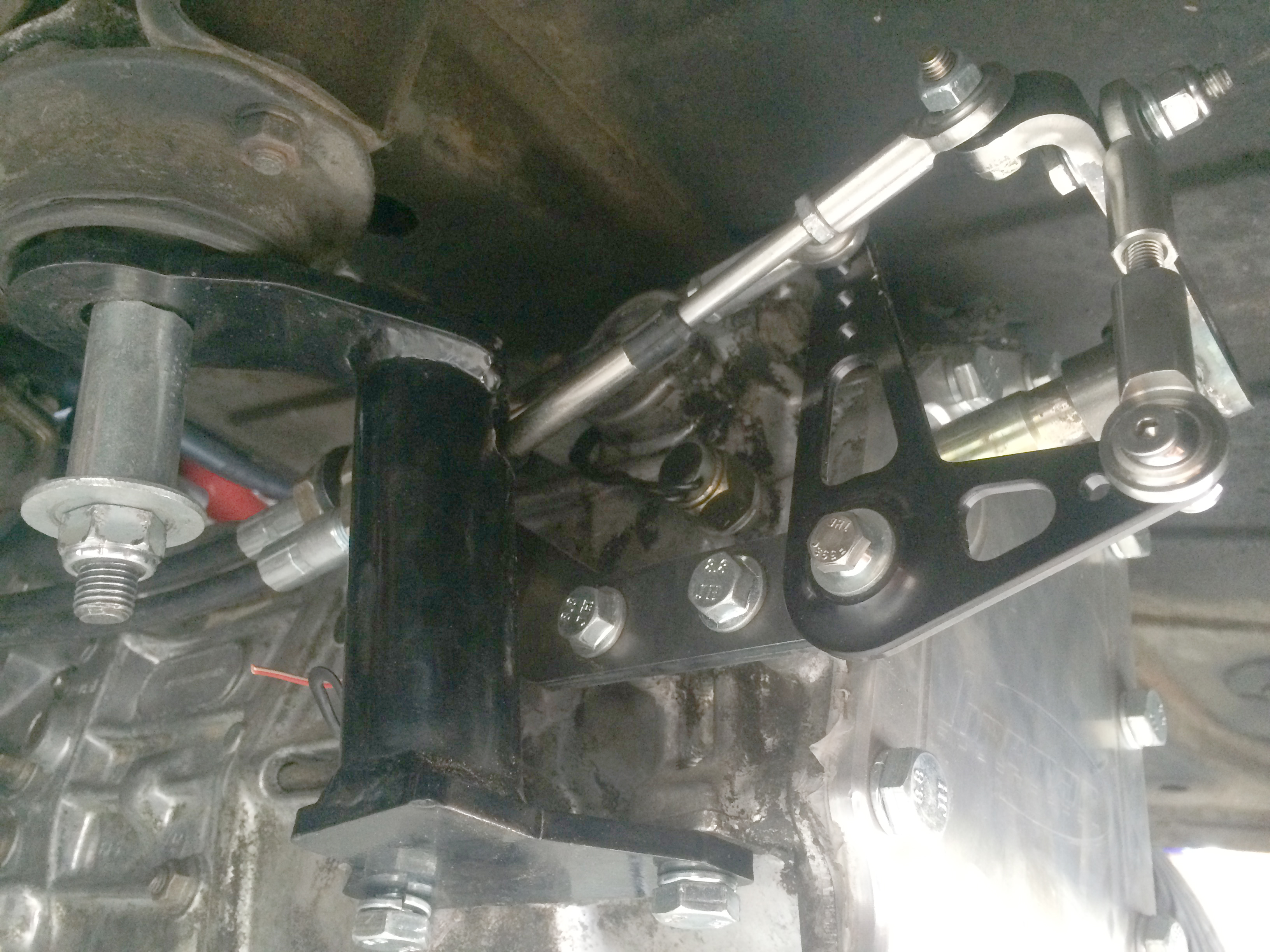

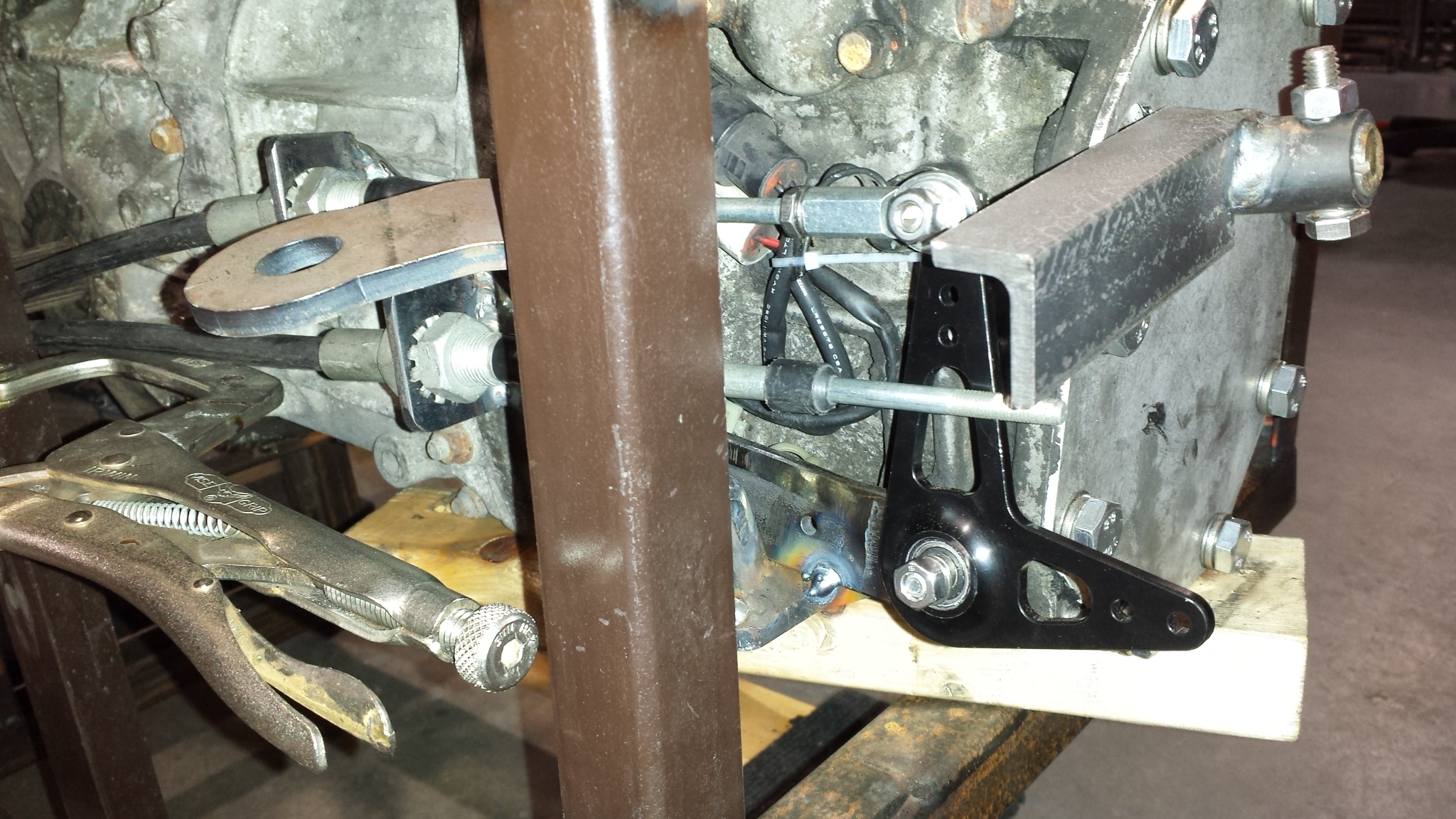

making a little more shifter progress. should be able to test tomorow. see that one little tack holding the rear assy to the trans hanger (IMG:style_emoticons/default/smile.gif) which is obscurred by a leg of my test stand.
i have to say, i should work slower and check for straightness far more often and i would would love to use more stainless steel but mild steel is so much easier to cut and drill. fwiw. oh yeah, seems many push pull cables are threaded for 1/4-28 and a few couplers and rod ends will be needed of same thread. lastly i have to say HOLY SHIT to ian at coldwater for his amazing talent to develop the system he did. truly stunning craftsmanship (IMG:style_emoticons/default/beer.gif) my craftsmanship is more like craftsmanshit compared (IMG:style_emoticons/default/sad.gif) Attached thumbnail(s) |
jimkelly |
May 24 2017, 05:13 PM
Post
#160
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |

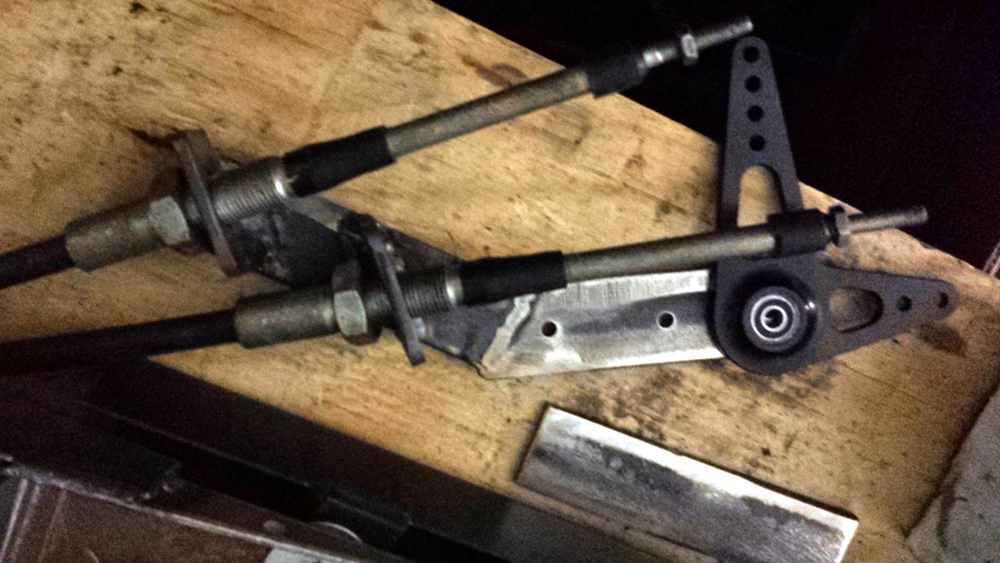

i am one rod end away from testing the shifter OUT OF CAR.
i will have a video for you guys (NO GIRLS) tomorrow : ) Attached thumbnail(s) |
