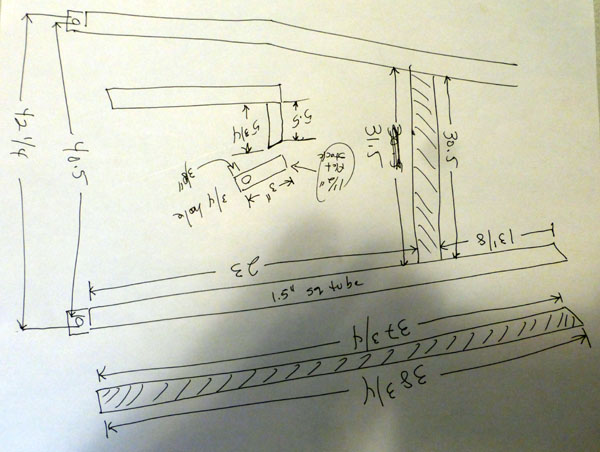

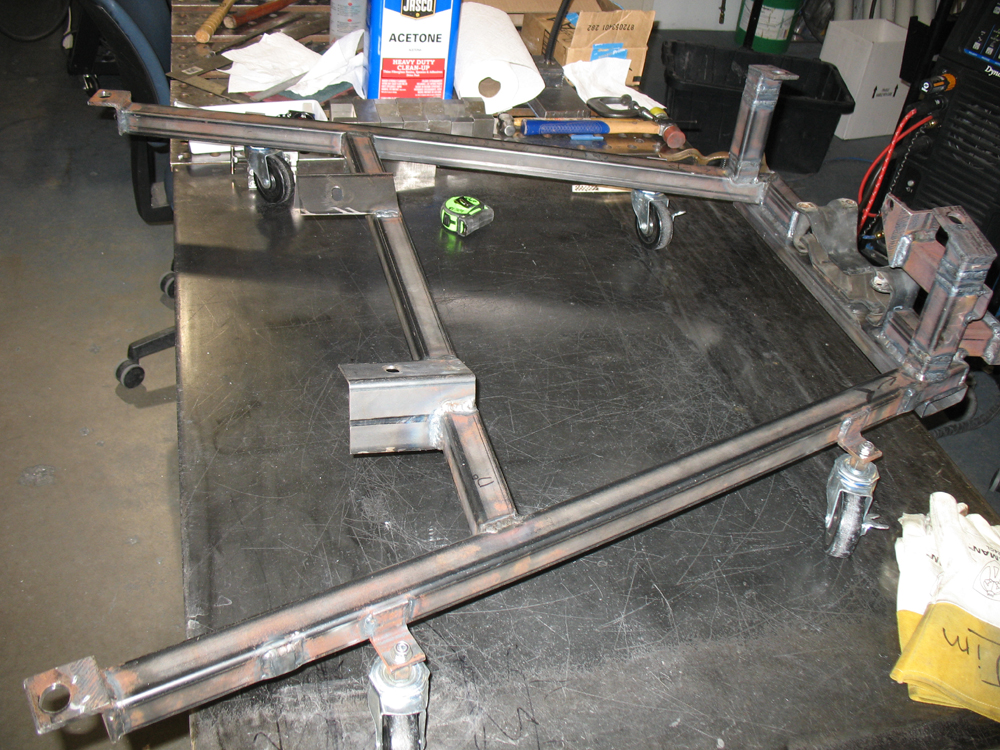

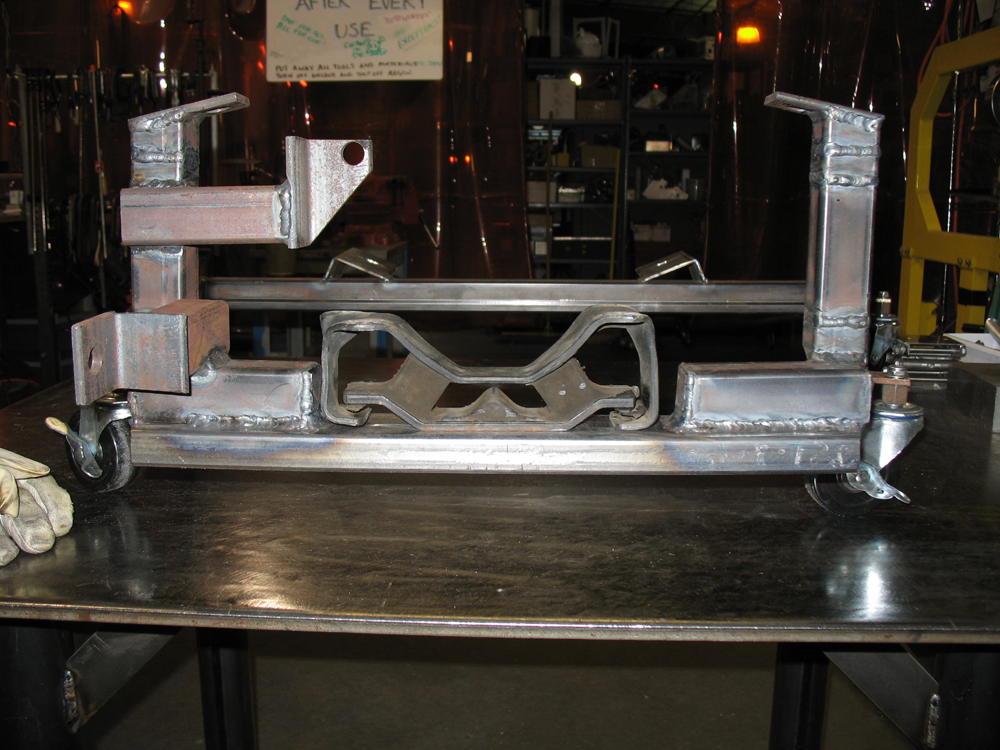

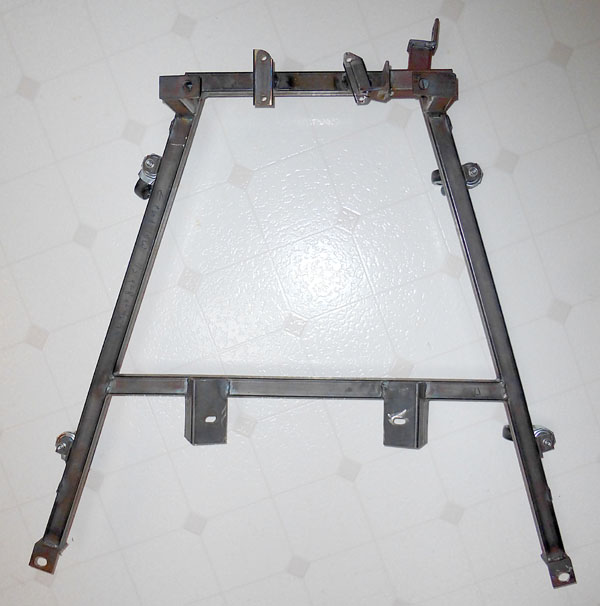

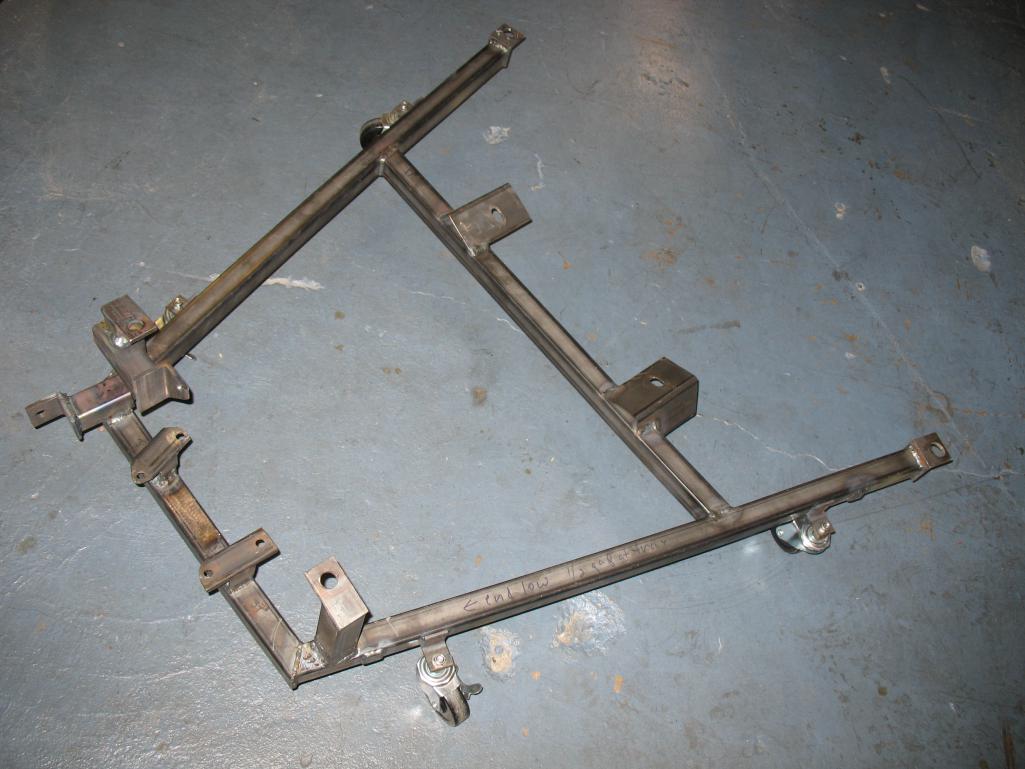

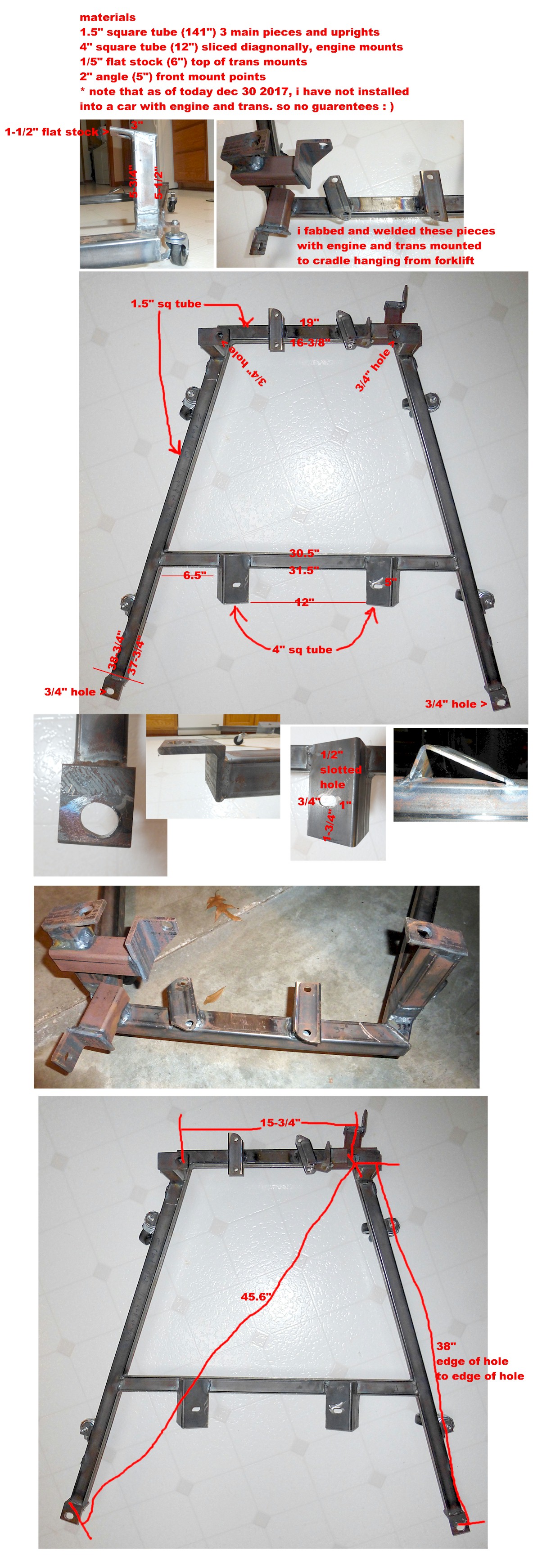

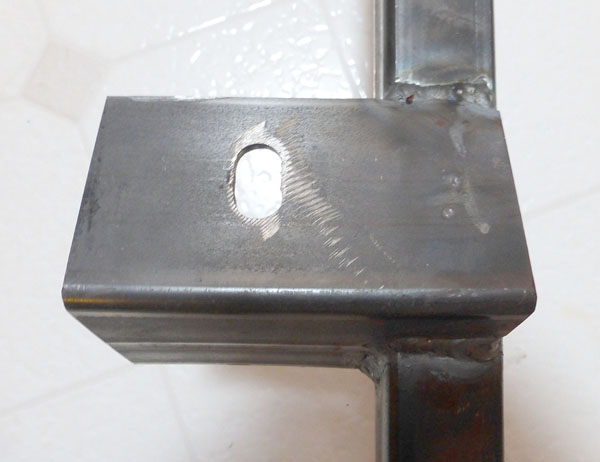

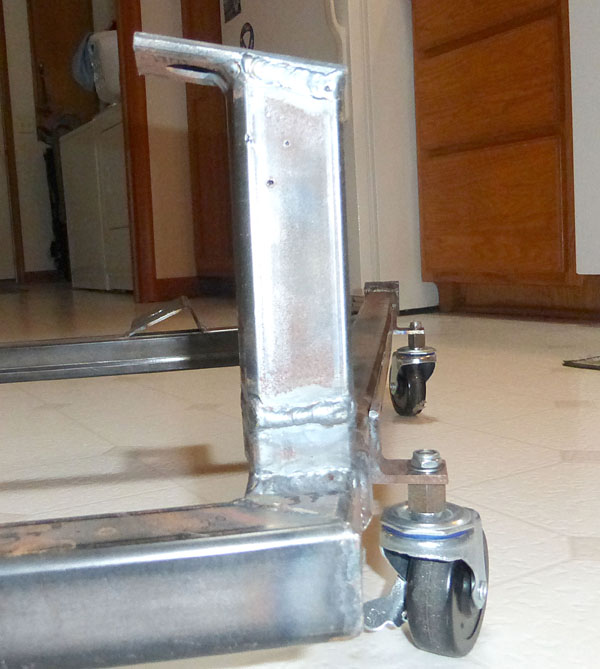

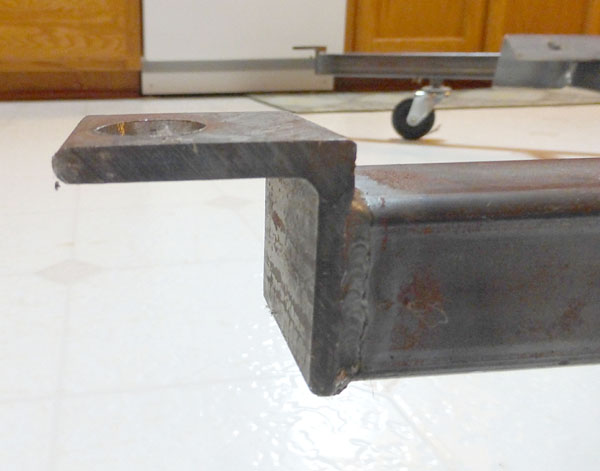

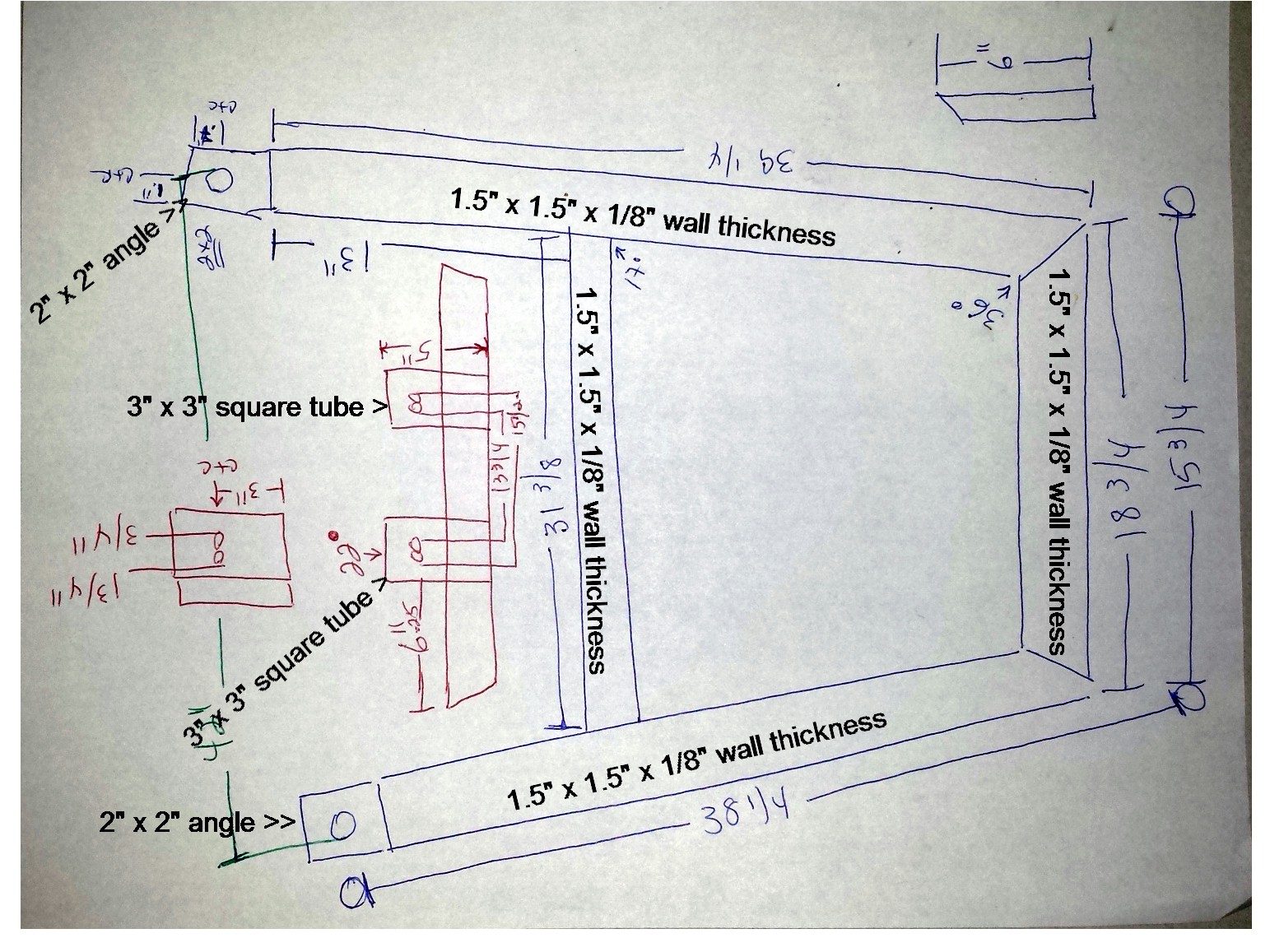

complete lack of energy and funds to proceed but plan to get back on it soon. thought i'd at least share info about the cradle i made based on coldwater's cradle's dimensions. for subaru ej series engine and 5 spd trans. you'll noticed some ovaled holes and such, this is my first draft which i took these measurements from. i have more notes at work that i will compare these to. i would have liked to fine tune this design and sell them but shipping (fully welded) is cost prohibitive.
Attached thumbnail(s) Attached image(s) |
BeatNavy |
Dec 30 2017, 03:35 PM
Post
#263
|
Certified Professional Scapegoat Group: Members Posts: 2,924 Joined: 26-February 14 From: Easton, MD Member No.: 17,042 Region Association: MidAtlantic Region |
Jim, was wondering how you were doing. Hadn't seen an update in a while.
Happy New Year, though (IMG:style_emoticons/default/beer.gif) |
hockeymutt |
Dec 30 2017, 06:41 PM
Post
#264
|
Member Group: Members Posts: 84 Joined: 4-August 08 From: NJ Member No.: 9,388 Region Association: None |
Great looking mount! if you could soft mount everything and see it works I would totally pick one up from you! I could even come down and give you a hand with it.
|
jimkelly |
Dec 30 2017, 07:27 PM
Post
#265
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |

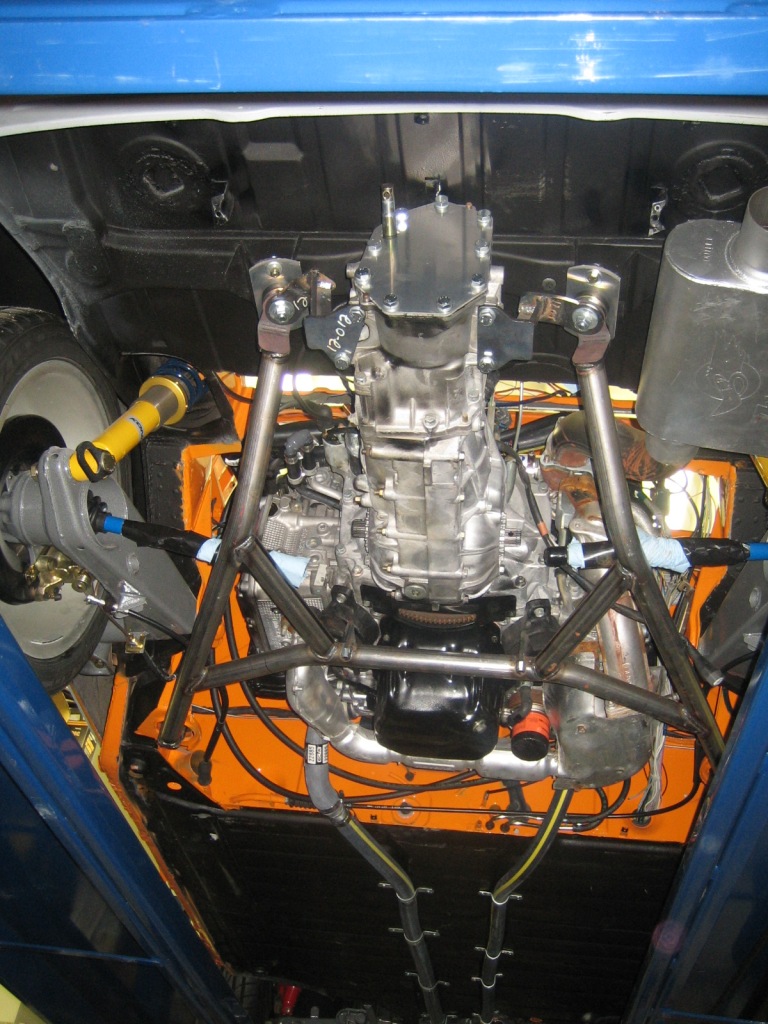

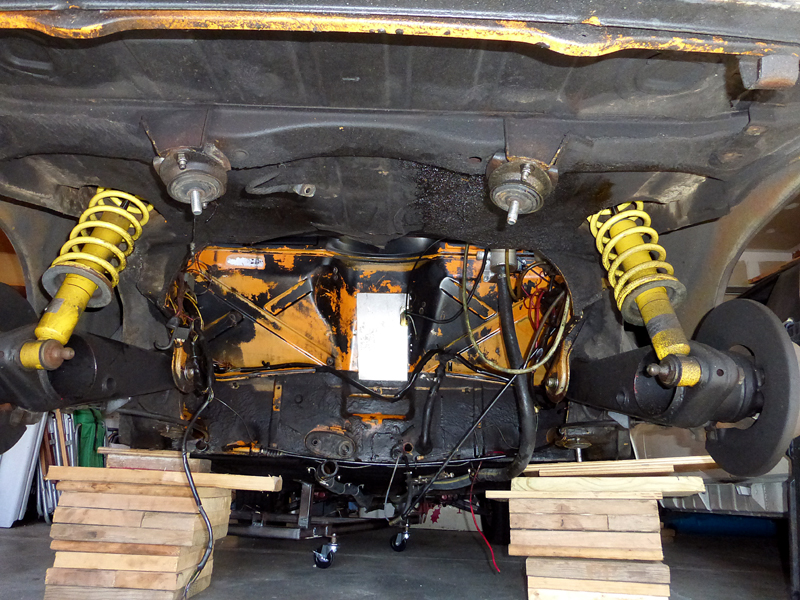

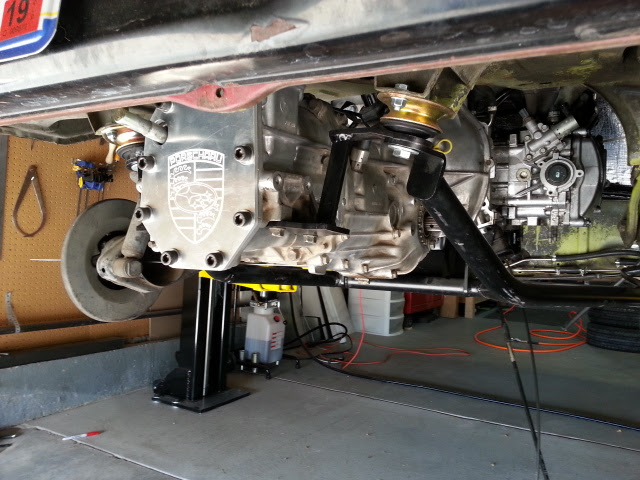

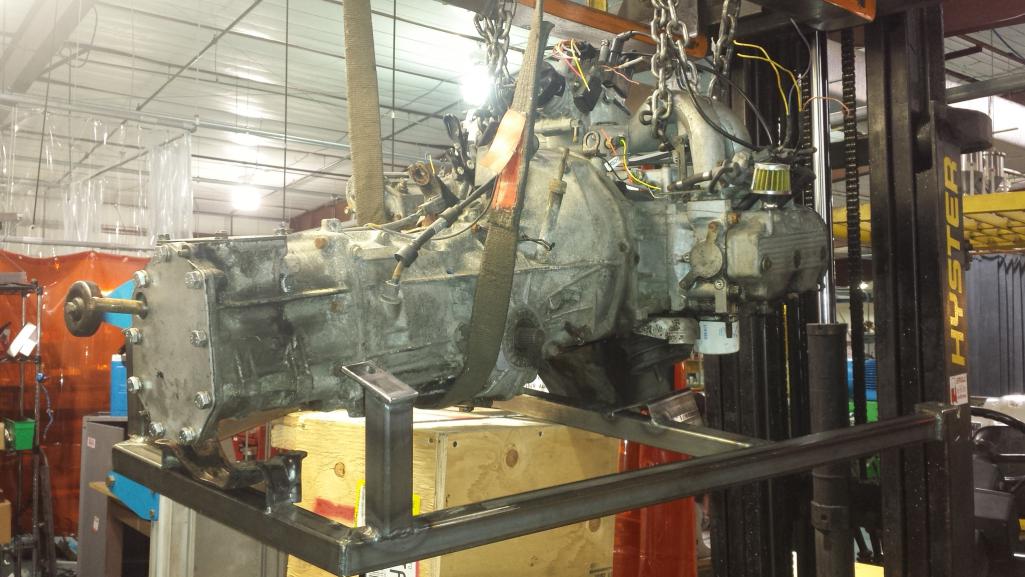

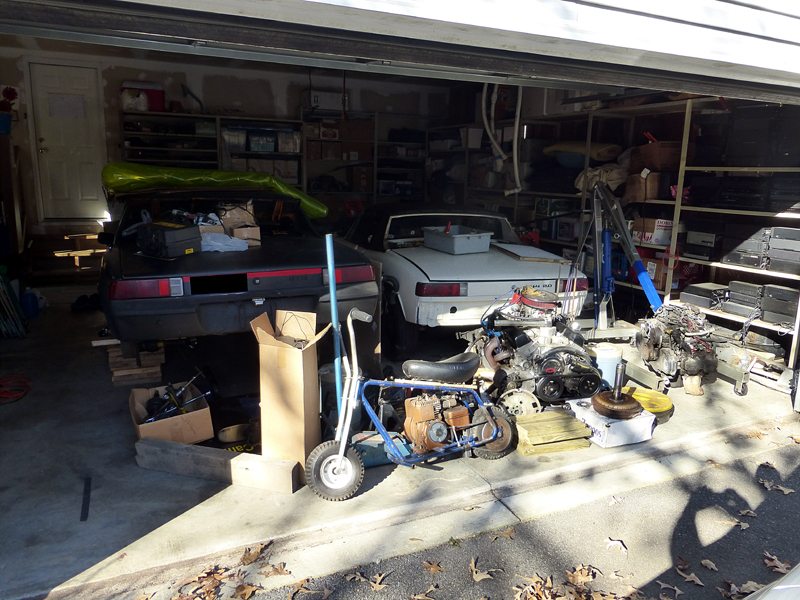

i'd like to think that 4 porsche rubber mounts would be adequate. but i have complete suby trans mounts at work and will look into this. some random pics.
Attached thumbnail(s) Attached image(s) |
76-914 |
Dec 31 2017, 10:40 AM
Post
#266
|
Repeat Offender & Resident Subaru Antagonist Group: Members Posts: 13,483 Joined: 23-January 09 From: Temecula, CA Member No.: 9,964 Region Association: Southern California |
The Suby stock mounts are fine. One day I'll need to replace one and I want to be able to source one easily i.e. a Subaru dealer. I wouldn't remember remember where I bought a custom engine/trans mount. Stay after it and it will happen. (IMG:style_emoticons/default/beerchug.gif)
|
jimkelly |
Jan 1 2018, 10:45 AM
Post
#267
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |

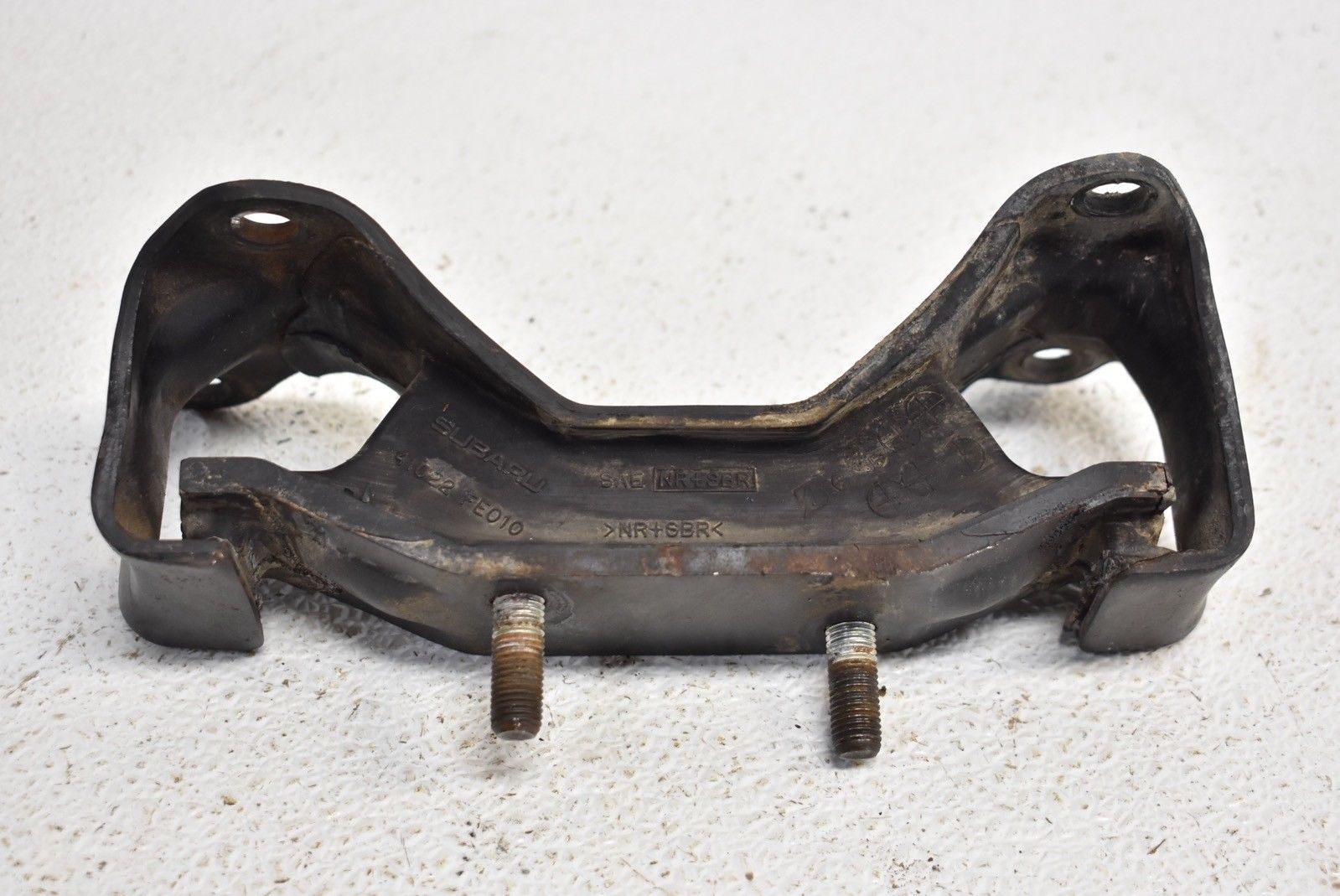

flmont's thread gave me a little boost of motivation : )

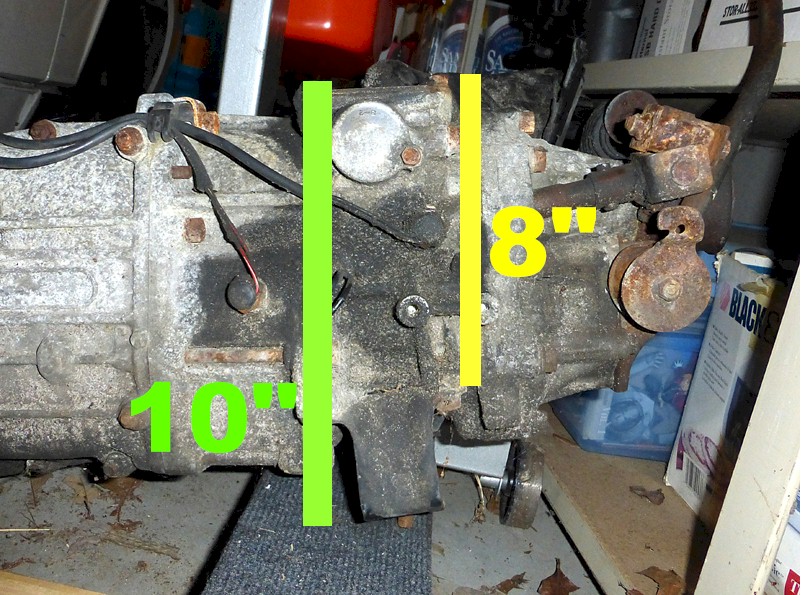

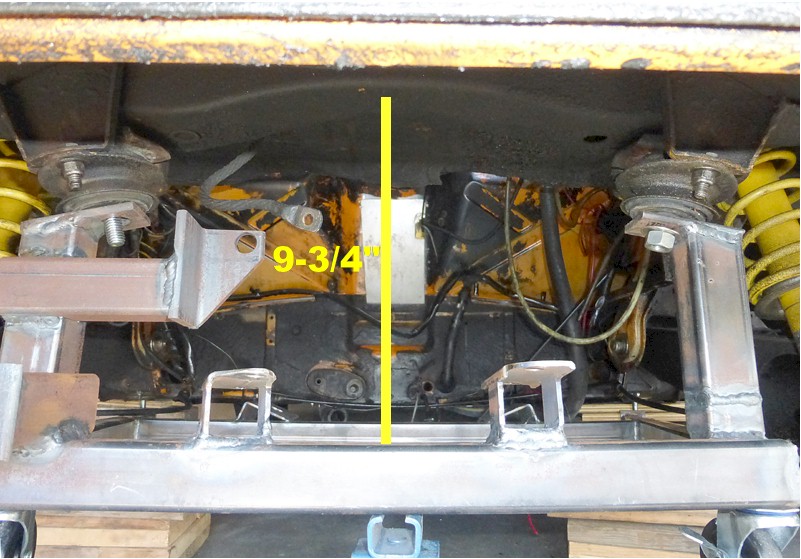

i corrected one engine mount i had in crooked and quickly installed engine mount in order to measure height between mount and body where trans occupies at trans mounts area. 9-3/4" space i have. time to double check if this is enough. then i'll replace half assed trans brackets with a real subaru bolt in trans mount. 14 degrees in delaware today, burr. guess i could cut out section with half assed mounts and weld in a piece of angle iron so i have a flat at the bottom side for 2 bolts bolts for suby trans mount. based on spare subaru 5 spd trans in my garage, about 10" of clearance is needed. so i am almost ON THE MONEY as it stands, using spacers as needed should suffice? Attached image(s) |
jimkelly |
Jan 2 2018, 08:25 PM
Post
#268
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |

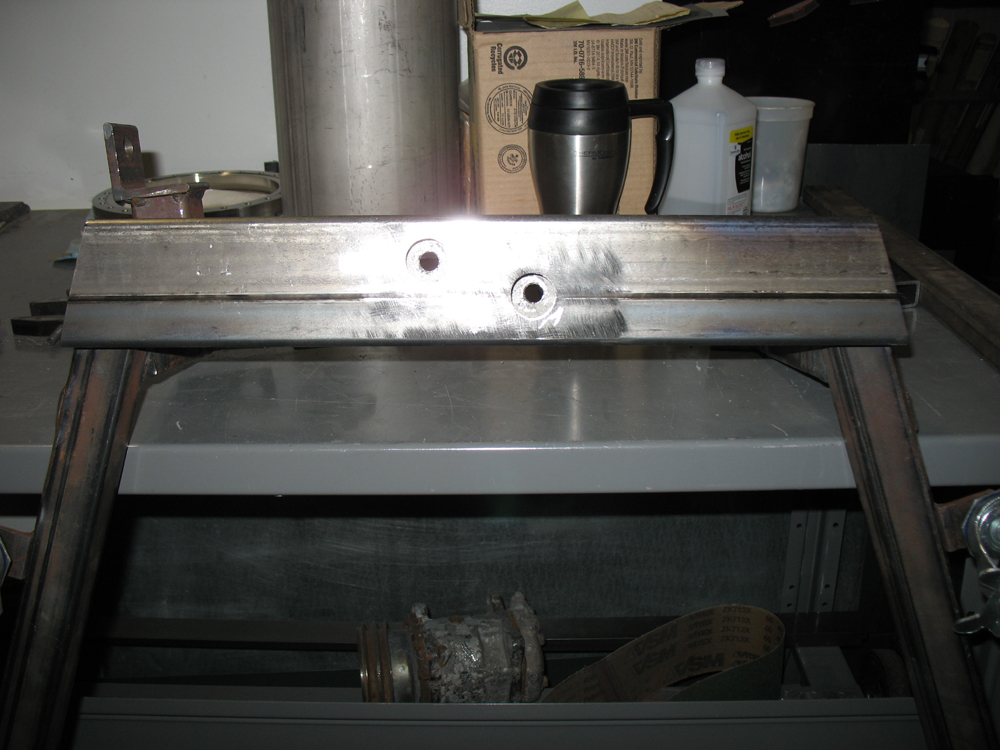

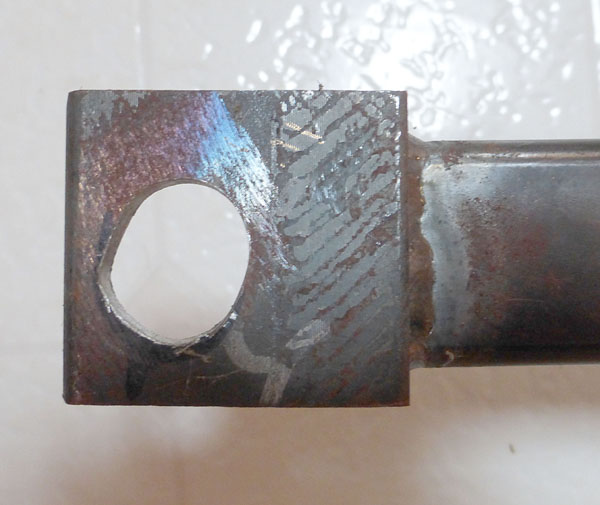

ok, i cut out section with homemade mounts and drilled for subaru mount. now i need to weld a piece of rectangular tube 1x3 i'm thinking underneath to get strength back. this piece will have holes for suby mount on top side and holes large enough for the nuts that hold mount secure.
well i am on hold till my machine shop orders some steel and includes my 20" piece of 1"x3" .125 wall rectangle tube. Attached thumbnail(s) |
jimkelly |
Jan 17 2018, 05:47 PM
Post
#269
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |

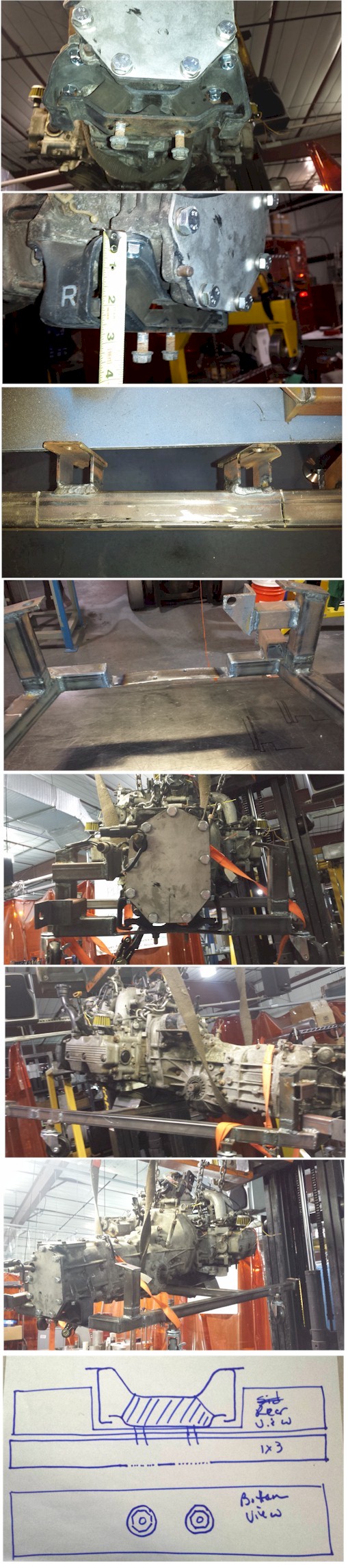

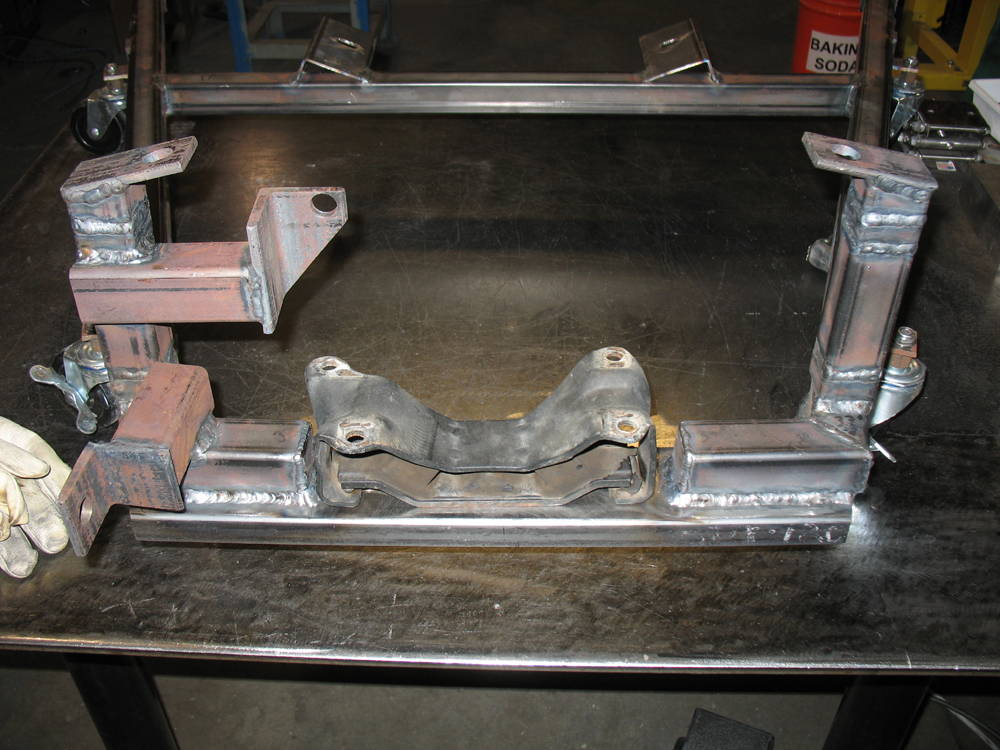

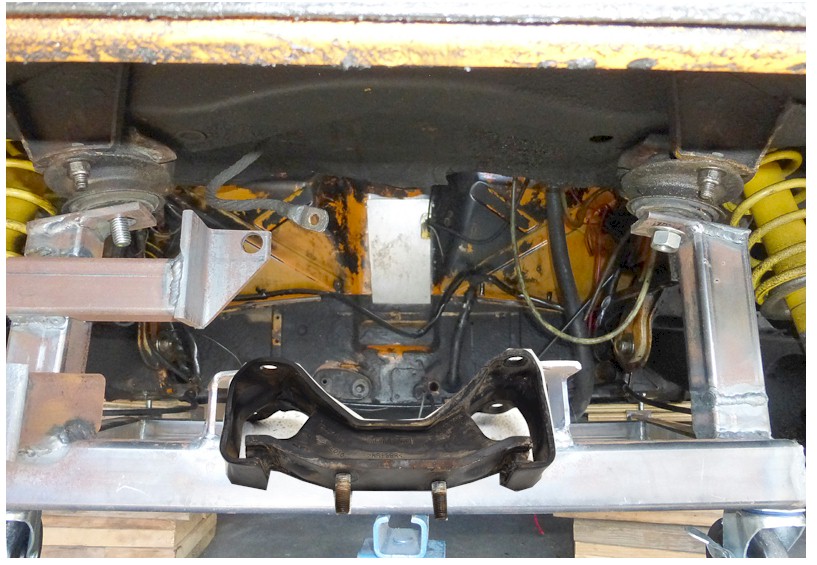

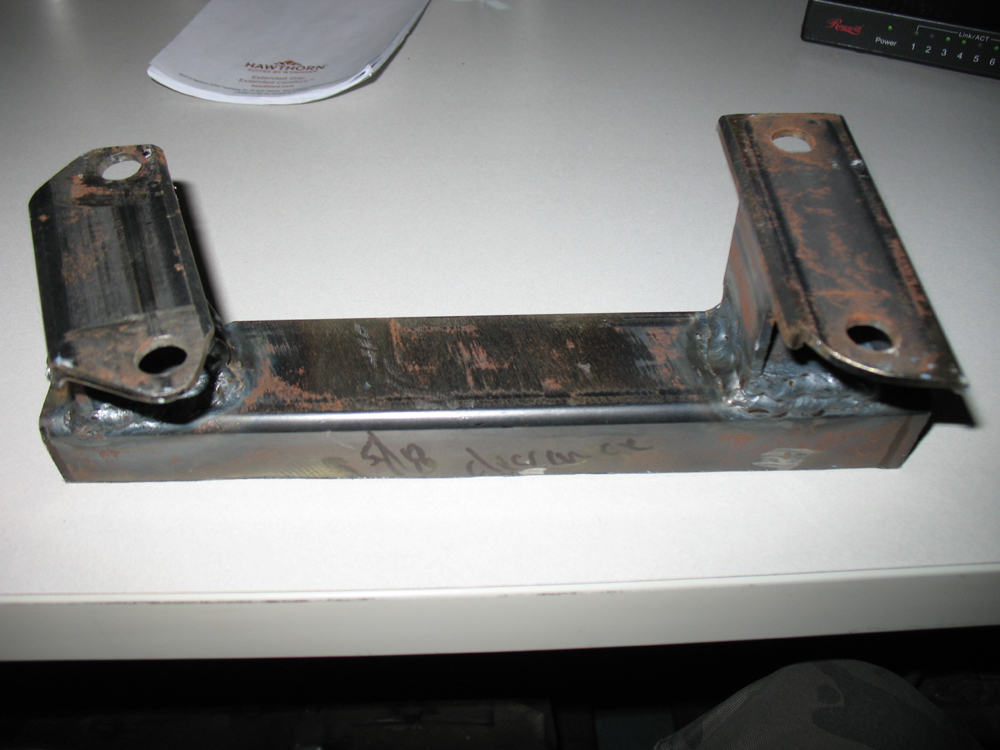

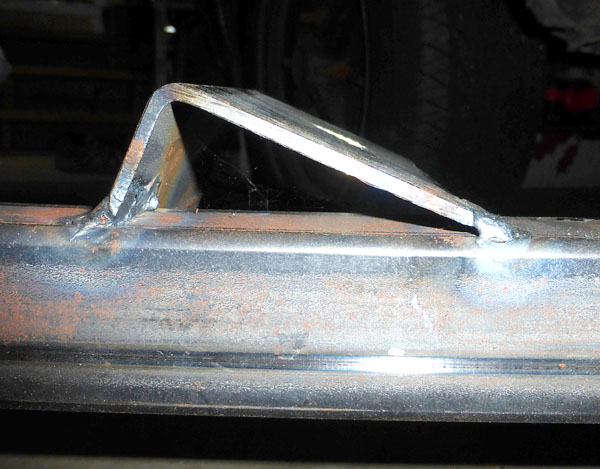

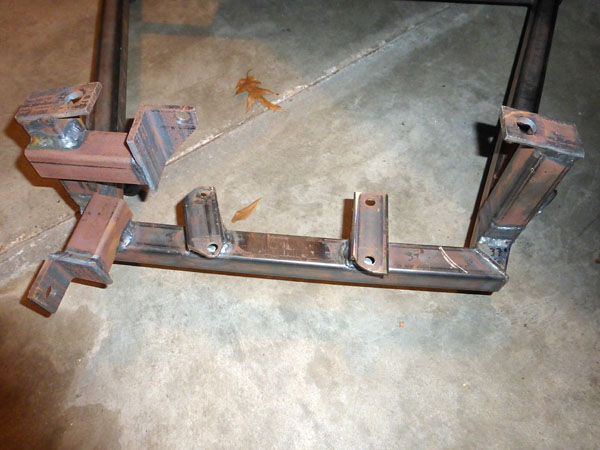

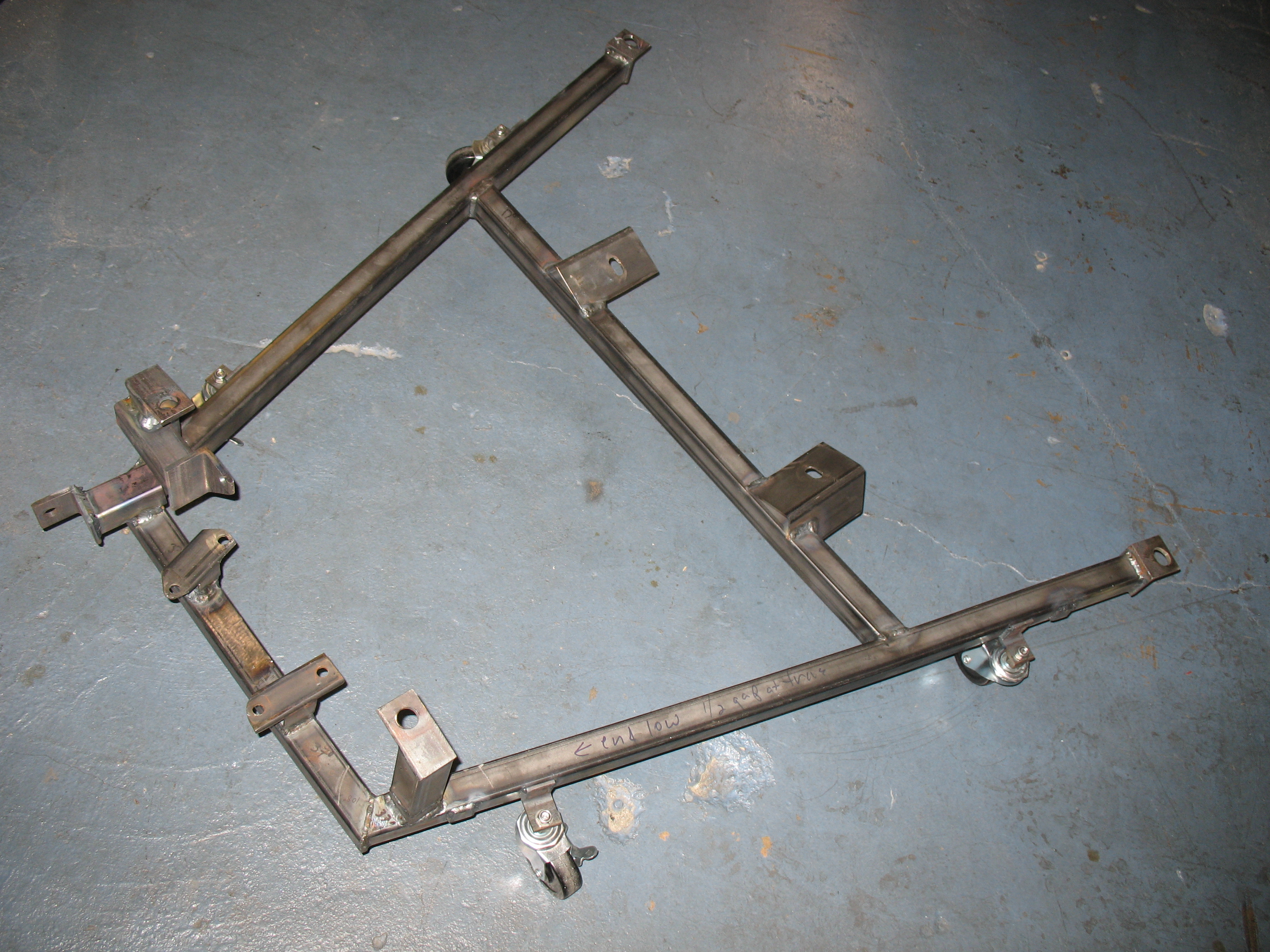

finally got my cradle revised to use oem subaru trans mount : )
looking forward to mounting it my car one day ; ) the cross bar is 1 x 3 and it has small holes on top to receive the subaru mount's studs and big 1" holes on bottom to allow for the flanged nuts to pass thru. Attached image(s) |
914forme |
Jan 17 2018, 06:53 PM
Post
#270
|
Times a wastin', get wrenchin'! Group: Members Posts: 3,896 Joined: 24-July 04 From: Dayton, Ohio Member No.: 2,388 Region Association: None |
Great but all I can say was you where correct the first time. Hard mount the engine and trans and shift linkage as one unit. And then use mounts in the factory locations. This keeps everything together in a really nice way.
So what it does for you is keeps the shifting, all nice and tight as it does with the trans and engine. Everything that can move does as one unit. Solves so many little detail problems. Best of luck in your venture. (IMG:style_emoticons/default/beer.gif) |
jimkelly |
Jan 17 2018, 07:02 PM
Post
#271
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
connundrum.
i'll have 914 mounts in all four corners but i HAD them and the rubber subaru motor mounts prior to this change. thus the engine could move and only the trans was ACTUALLY hard mounted to cradle. though i did not think about how this added allowance for movement will effect shifting (IMG:style_emoticons/default/blink.gif) i saved this in case i need it for my frankenstein cradle (IMG:style_emoticons/default/biggrin.gif) Attached image(s) |
76-914 |
Jan 17 2018, 09:30 PM
Post
#272
|
Repeat Offender & Resident Subaru Antagonist Group: Members Posts: 13,483 Joined: 23-January 09 From: Temecula, CA Member No.: 9,964 Region Association: Southern California |
Have you weighed that cradle yet?
|
jimkelly |
Jan 21 2018, 03:13 PM
Post
#273
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
http://www.ausubaru.com/forum/showthread.php?t=8756

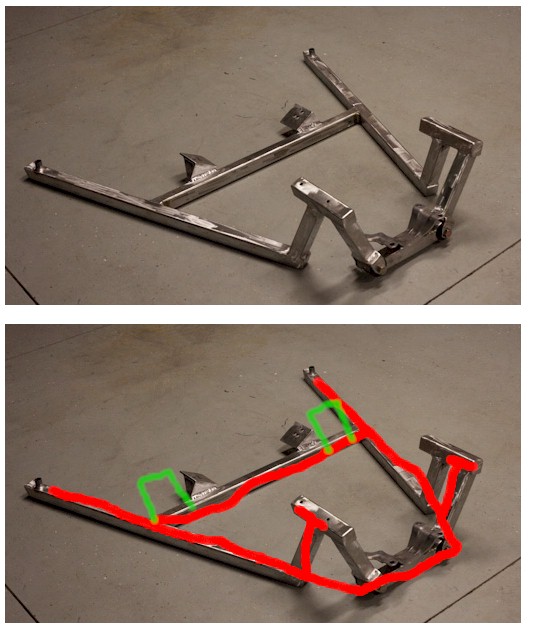

https://www.youtube.com/watch?v=WScRBmKsV3U https://www.youtube.com/watch?v=LyW71RGKcpA https://shoptalkforums.com/viewtopic.php?f=19&t=125689 https://shoptalkforums.com/viewtopic.php?t=132524 https://prachapter34.com/converting_engines.htm http://forum.britishv8.org/read.php?6,8510,8552 read replies https://www.youtube.com/watch?v=1H9YVh3FIoI http://www.gofastforless.com/ignition/tfi.htm http://offroadingsubarus.com/forum/index.php?topic=1247.20 https://www.youtube.com/watch?v=HuR33yu-x7k 38 lbs, plus subaru trans mount 3 lbs. Attached thumbnail(s) |
Chi-town |
Sep 10 2018, 06:51 PM
Post
#274
|
Senior Member Group: Members Posts: 850 Joined: 31-August 18 From: Disneyland Member No.: 22,446 Region Association: Southern California |
I think you need to get these into production (IMG:style_emoticons/default/idea.gif)
|
jimkelly |
Feb 19 2019, 06:59 PM
Post
#275
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
interum distraction : )

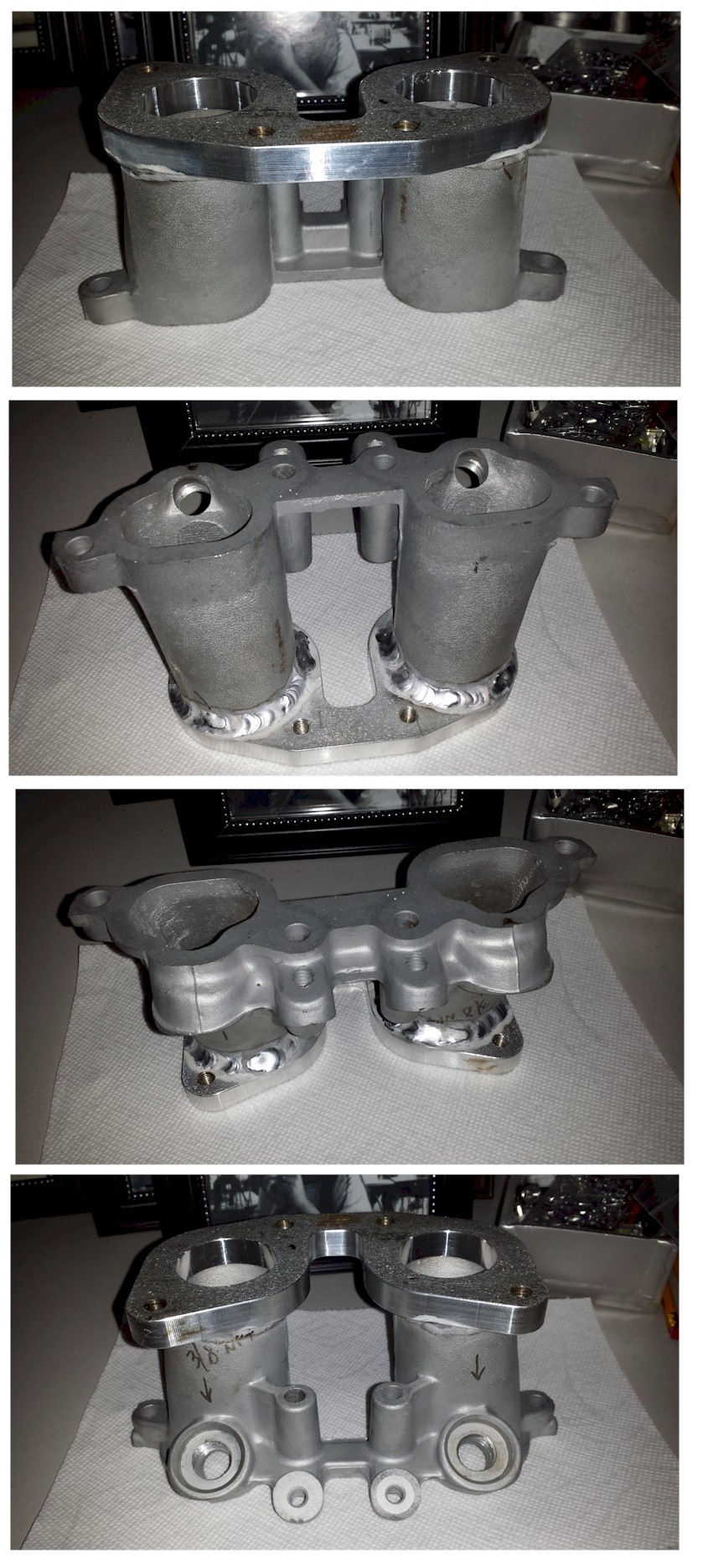

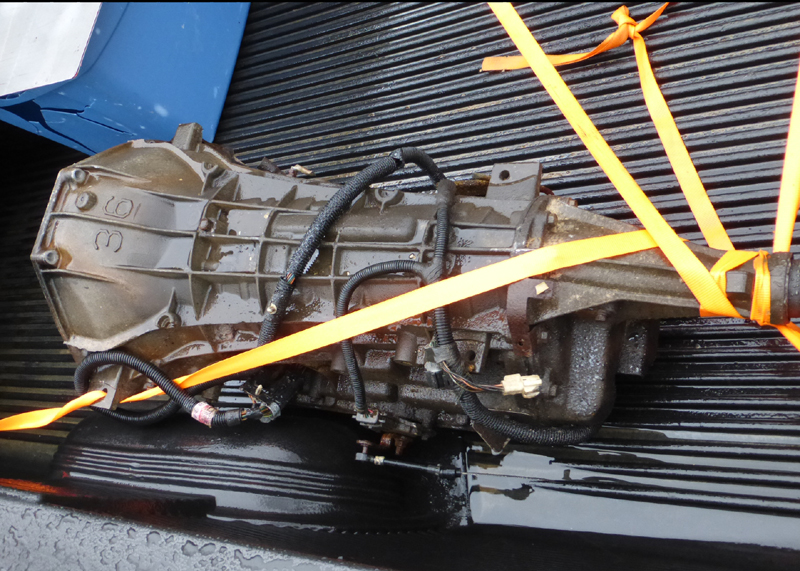

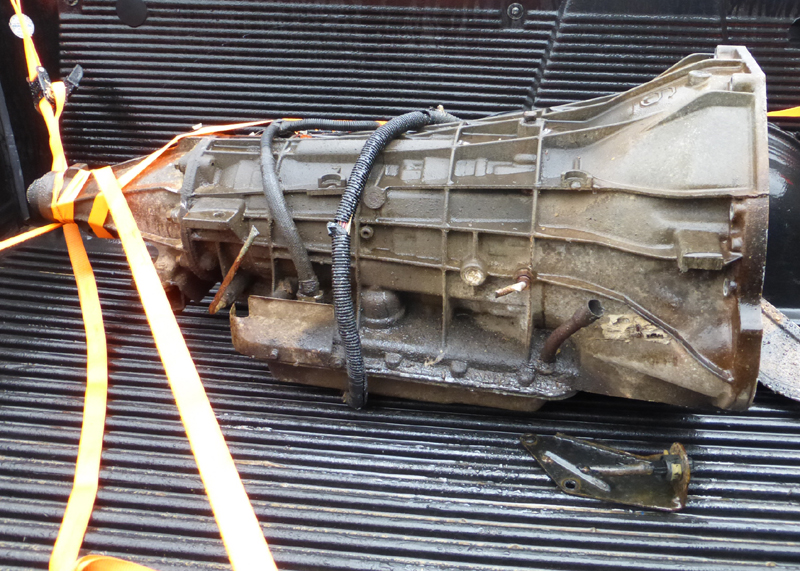

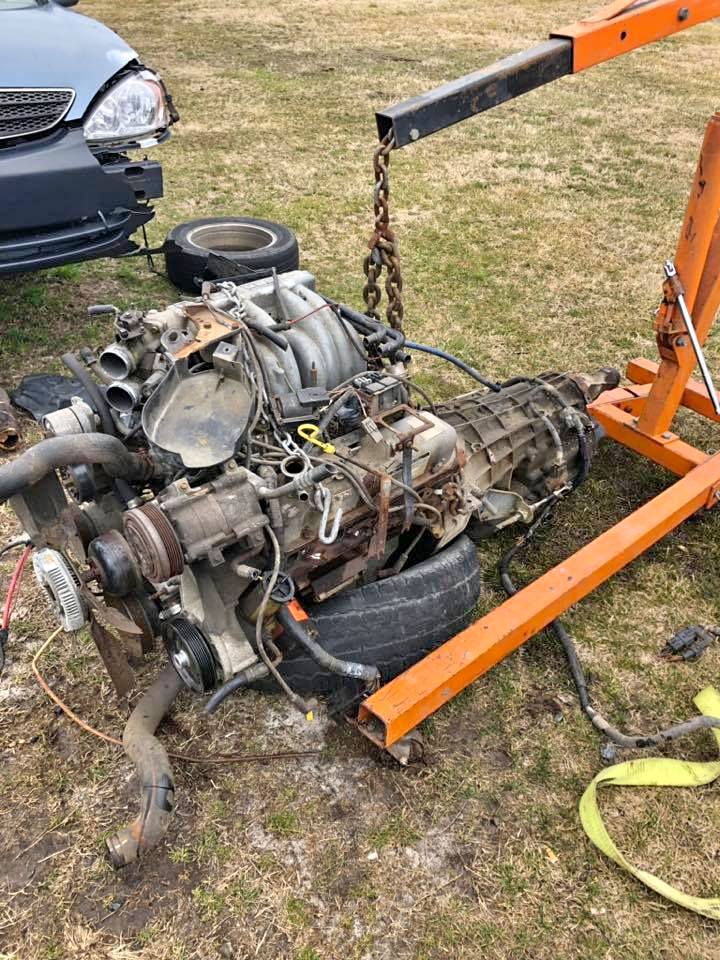

and some pics of the 1993 e4od trans i just got for my 1995 f150 2wd 4.9L http://www.914world.com/bbs2/lofiversion/i...php?t31515.html https://www.thesamba.com/vw/forum/viewtopic...asc&start=0 http://www.dunebuggyarchives.com/forum/top...how.pl?tid=1491 https://www.facebook.com/groups/864424797008986/ https://www.facebook.com/groups/subaruvolkswagens/ https://www.shoptalkforums.com/viewforum.ph...01419db50a8a608 Attached thumbnail(s) Attached image(s) |
Chi-town |
Feb 19 2019, 08:44 PM
Post
#276
|
Senior Member Group: Members Posts: 850 Joined: 31-August 18 From: Disneyland Member No.: 22,446 Region Association: Southern California |
At our age we're supposed to have less carbs in our life (IMG:style_emoticons/default/laugh.gif)

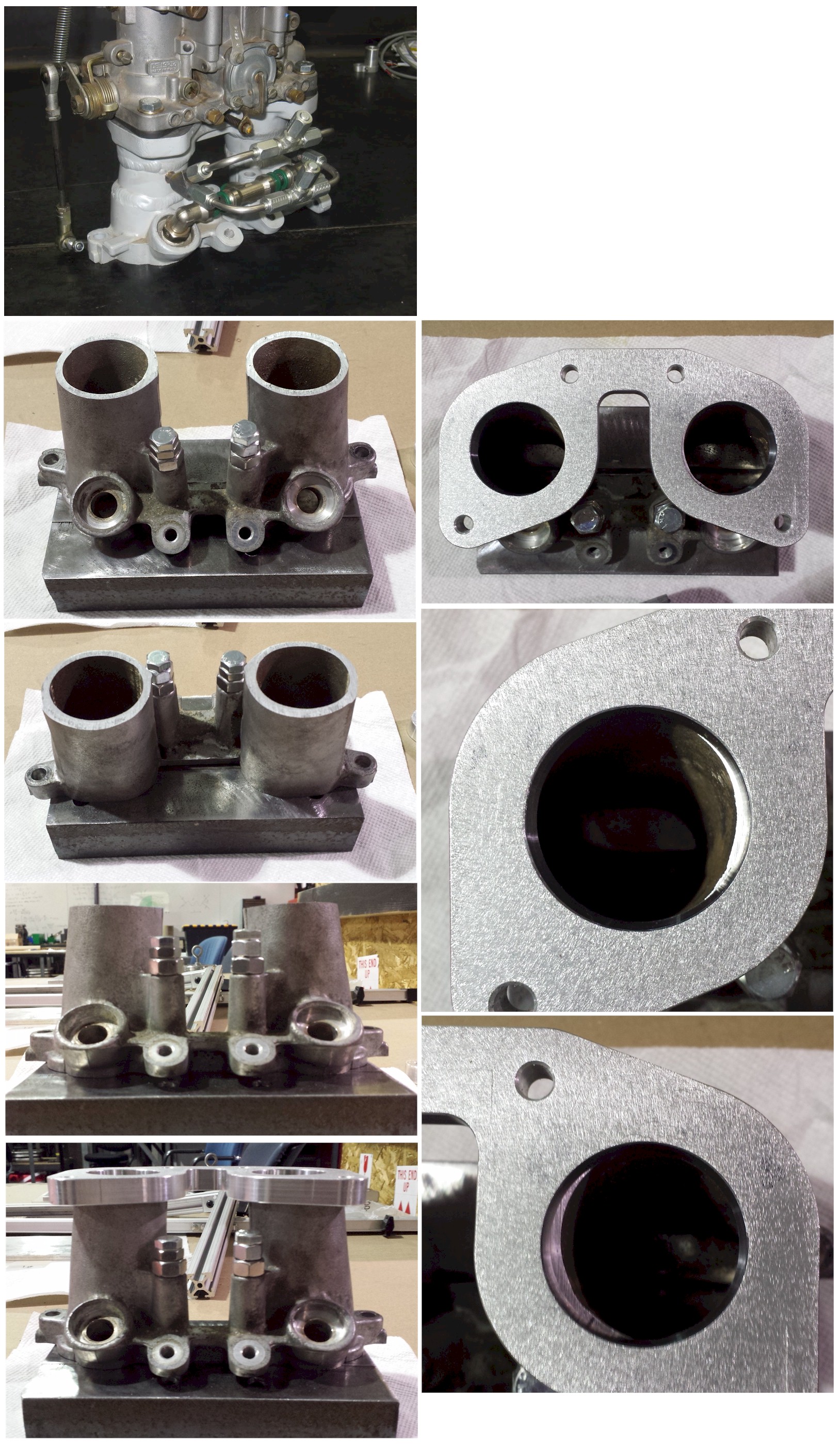

There are some rather inexpensive itb options for 4 cylinder Subaru engines https://www.ebay.com/itm/OBX-Red-Individual...5-/201807196159 |
jimkelly |
Apr 23 2019, 06:54 AM
Post
#277
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
i agree. just F N around mostly.
Attached thumbnail(s) |
rhodyguy |
Apr 23 2019, 08:42 AM
Post
#278
|
Chimp Sanctuary NW. Check it out. Group: Members Posts: 22,054 Joined: 2-March 03 From: Orion's Bell. The BELL! Member No.: 378 Region Association: Galt's Gulch |
Any idea what the induction system on the bug is?
|
jimkelly |
Apr 24 2019, 09:24 AM
Post
#279
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
here is the link to the carbed subaru bug
https://www.shoptalkforums.com/viewtopic.ph...45bfc358f949886 |
jpnovak |
Sep 25 2019, 02:44 PM
Post
#280
|
They call me "Nanoman" Group: Members Posts: 231 Joined: 26-August 09 From: Austin TX Member No.: 10,736 Region Association: Southwest Region |
Any update on your project or availability of a cradle?
|
