my car is without a relay box and my fuse panel may be a little jacked up, so I will be replacing it. I am checking my lights using a battery charger which seems to be putting out about 9.2 volts.

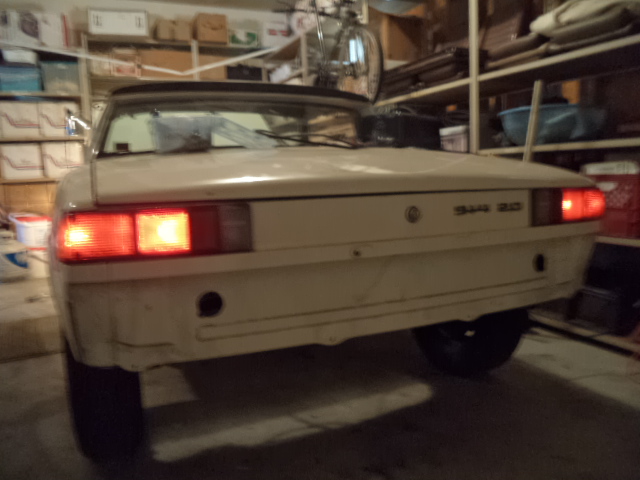

I've pulled my headlight motors cause i will be running my car with lights UP all the time. when I pull my headlight switch out, I get tail lights, front amber and front side amber, but no head lights. I was wondering if the power to the headlight motors in part of the ciurcuit to make the head lights function? when I pull my emergency light switch, I hear a buzz in its flasher, maybe its flasher is no good. i turned ignition key and did see my wipers work, but real slow, i'm guessing 9 volts is not quite cutting it. yeah, i am missing a few fuses, got a big pack on oprder from an ebay seller. Attached image(s) ![]() ![]() ![]() |
JDW914 |
![]()
Post
#2
|
Newbie ![]() Group: Members Posts: 25 Joined: 27-April 11 From: Toledo, Ohio Member No.: 12,990 Region Association: Upper MidWest ![]() |
Dumb question, but: Are you pulling the switch out all the way? It has two positions, with the first being parking-lights-only and the second being all lights, which should raise the headlights.
Other than that, the motors themselves act as headlight switches. At the ends of their travel, the same switches that stop the motor rotation connect power to the lights. If the motors are removed, this whole circuit needs to be bypassed, but is contained in the motor casing itself, so just plugging the power wire into the headlamp should make it work properly. |
jimkelly |
![]()
Post
#3
|
Delaware USA ![]() ![]() ![]() ![]() Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region ![]() |

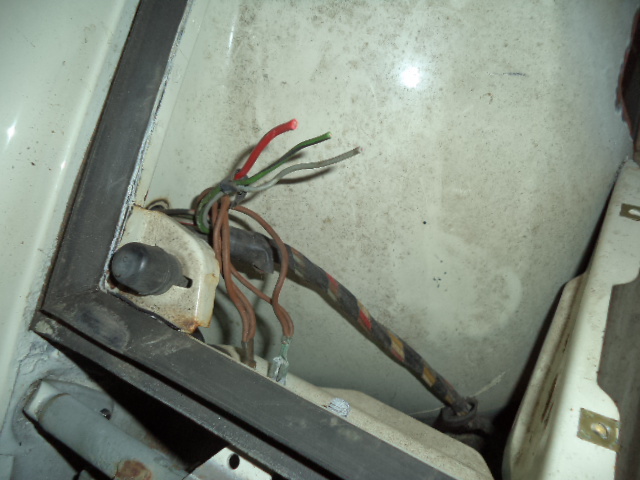

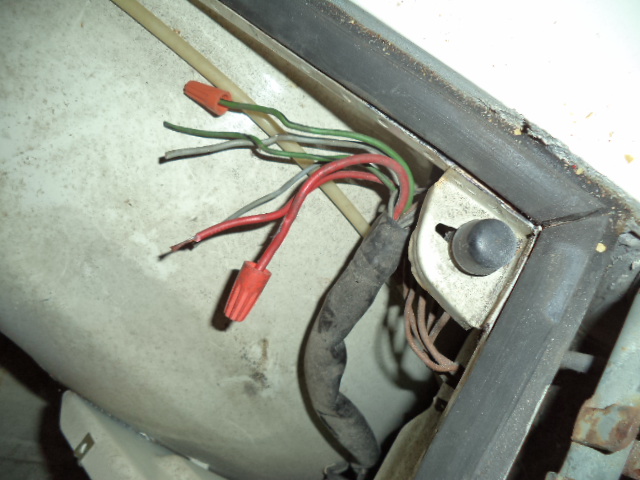

I think you are answering my question, seems I need to do something with the loose wires that were previously connected to the headlight motors. thanks.

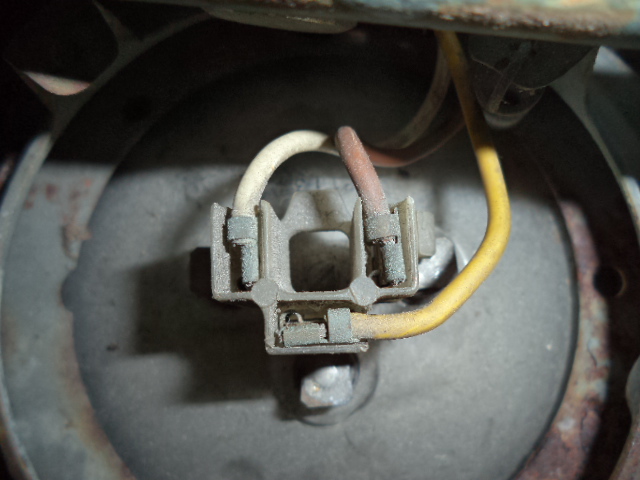

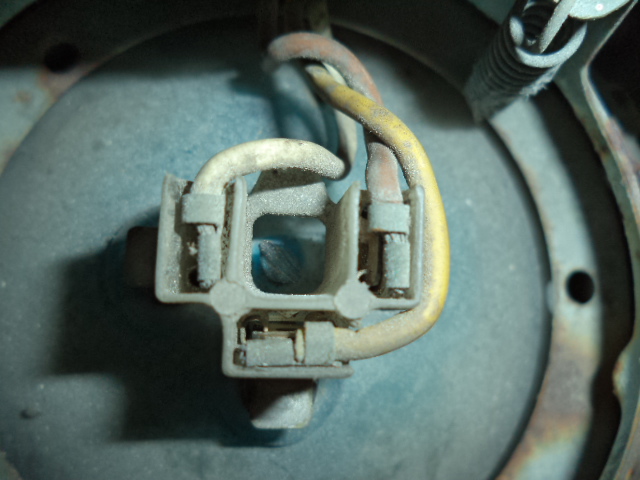

oh, and yes, I have been puling switch out all the way, just double checked that is was. so I need to figure out which wires on the headlight tri plug needs power, and where they get power from for low beams and for high beams. clearly I had no idea the motors acted like switches too (IMG:style_emoticons/default/dry.gif) Attached image(s) ![]() ![]() |
jimkelly |
![]()
Post
#4
|
Delaware USA ![]() ![]() ![]() ![]() Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region ![]() |

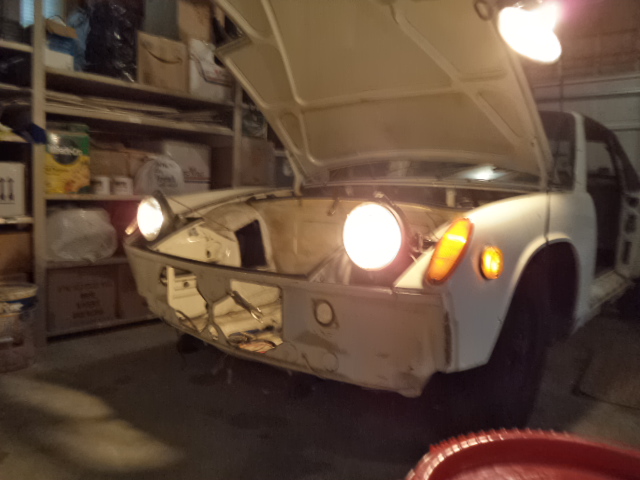

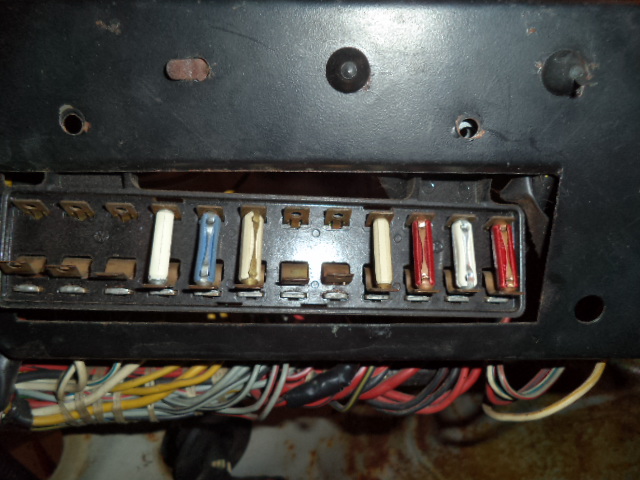

swapped around some fuses and turned the ignition key and then - bam (IMG:style_emoticons/default/smile.gif) - headlights. seems i need to get more fuses to test my electrical out more fully.

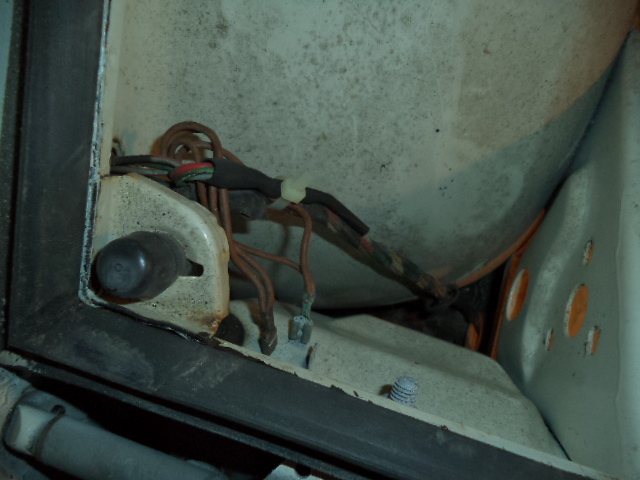

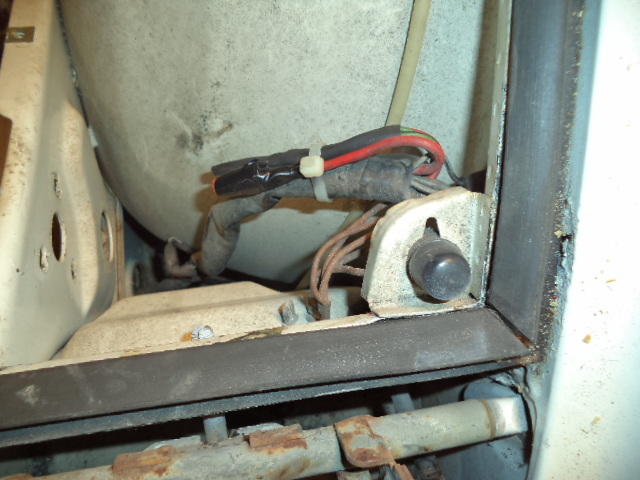

seems like the wires I cut that went to the head light motors are not needed, at least not for head lights low and high beam. I rebuttoned up the loose wires that used to go to my head light motors. Attached image(s) ![]() ![]() ![]() ![]() |
Dave_Darling |
![]()
Post
#5
|
914 Idiot ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() Group: Members Posts: 15,153 Joined: 9-January 03 From: Silicon Valley / Kailua-Kona Member No.: 121 Region Association: Northern California ![]() ![]() |
The headlight motor wires are only for the headlight motors. They have switches in the linkage, but that is only to tell the motor when to stop spinning.
The headlights themselves are powered by the fuse panel. One fuse each for: left low beam, right low beam, left high beam, right high beam. I believe those are fuses 1-4. (I could have the order wrong.) Those fuses get their power from the high/low relay on top of the fuse panel, which gets its power from the headlight switch, which gets its power from the ignition switch. I strongly suggest you dig up the wiring diagram for your car before you go messing with things more. --DD |
