> Just another Factory 6 being fixed up
rick 918-S
post Mar 17 2025, 04:55 PM
Post #221


Hey nice rack! -Celette
***************

Group: Members
Posts: 21,139
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
Wow nice stash
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ctc911ctc
post Mar 17 2025, 06:21 PM
Post #222


Senior Member
***

Group: Members
Posts: 1,287
Joined: 9-June 18
From: boston
Member No.: 22,206
Region Association: North East States
QUOTE(rgalla9146 @ Dec 9 2024, 07:45 AM) *

Beautiful Luke. Well done.
That building would give me 100 percent lot coverage, double my property tax and
give my neighbors another reason to shoot me.
(IMG:style_emoticons/default/beerchug.gif)



Rory and I live in the same neighborhood with the same neighbors - though mine are in Boston
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Mar 18 2025, 10:27 AM
Post #223


Village Idiot
*****

Group: Members
Posts: 8,862
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
Always thought that would be cool if someone could assemble a complete 914 from NOS sheet metal. At that point, could you VIN it (as long as you have a title I guess) whatever year you like?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
burton73
post Mar 18 2025, 10:36 AM
Post #224


Senior member, and old dude
****

Group: Members
Posts: 3,923
Joined: 2-January 07
From: Los Angeles
Member No.: 7,414
Region Association: Southern California
@Luke M

Love the set up. You must be very happy

Best Bob B
(IMG:style_emoticons/default/first.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Mar 19 2025, 04:22 AM
Post #225


914 Guru
*****

Group: Members
Posts: 7,693
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
QUOTE(Luke M @ Mar 17 2025, 01:32 PM) *

I've been busy moving stuff into the new shop. I thought it would be cool to set up the NOS parts and take a few pics.

Heck I maybe able to make a NOS chassis soon... (IMG:style_emoticons/default/idea.gif)



That’s awesome. Wish I had those front pieces
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Luke M
post Mar 20 2025, 02:20 PM
Post #226


Senior Member
***

Group: Members
Posts: 1,442
Joined: 8-February 05
From: WNY
Member No.: 3,574
Region Association: North East States
Thanks guys.. (IMG:style_emoticons/default/beerchug.gif)
I have a few more things in the works so stay tuned.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Luke M
post Sep 13 2025, 06:47 AM
Post #227


Senior Member
***

Group: Members
Posts: 1,442
Joined: 8-February 05
From: WNY
Member No.: 3,574
Region Association: North East States

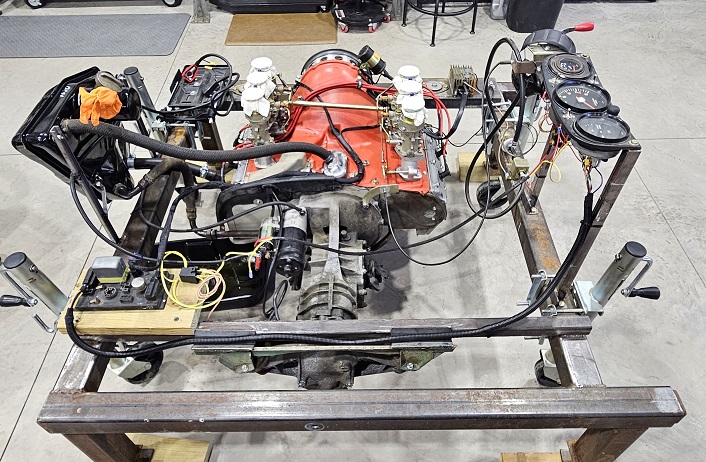

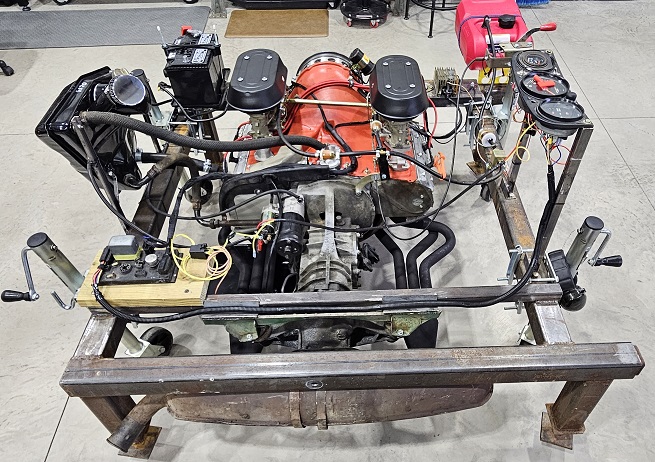

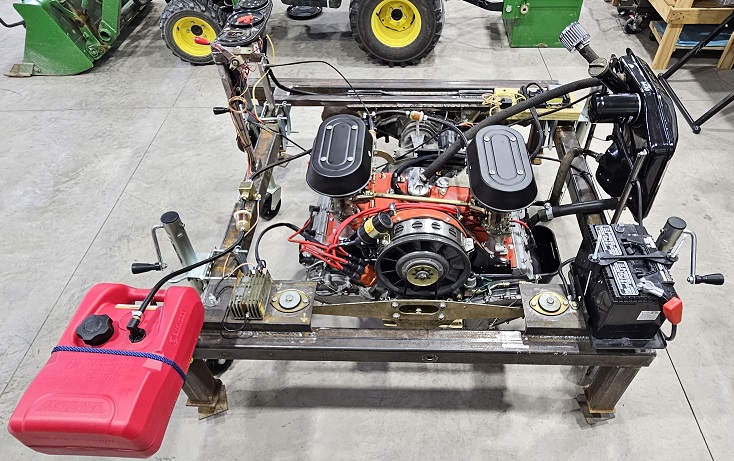

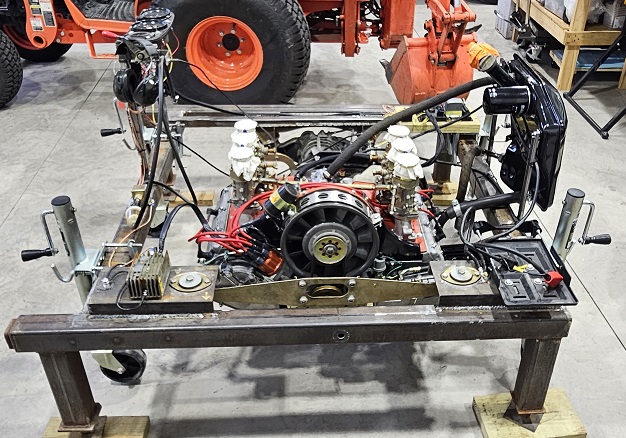

I finally got around to installing my 2.7 RS spec engine onto my test stand.
She fired right up and runs strong. I didn't have to mess with the timing or carbs. Ran it to break in the new cams, rockers, and seat the rings. I ran it again yesterday a few more times to get a few hot cycles done. I'll probably run it again today then let it cool overnight. I'll have to remove the valve covers and re-torque all of the head stud nuts and check the rocker/shafts as well. This will be my 5th 911 engine build and still have my 3.4 to do yet. My org 6's 2.0/901 is shelved so at some point that will be done as well. My plan is to get a few things moved around the new shop then start on the 6 chassis. I'd like to run this 2.7/901 in my 6 for a summer then swap it out for the 3.4/915 setup.


Attached image(s)
Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Sep 13 2025, 07:12 AM
Post #228


Michael
**********

Group: Members
Posts: 10,511
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Outstanding work. Love the engine run stand too. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Luke M
post Sep 18 2025, 05:09 PM
Post #229


Senior Member
***

Group: Members
Posts: 1,442
Joined: 8-February 05
From: WNY
Member No.: 3,574
Region Association: North East States

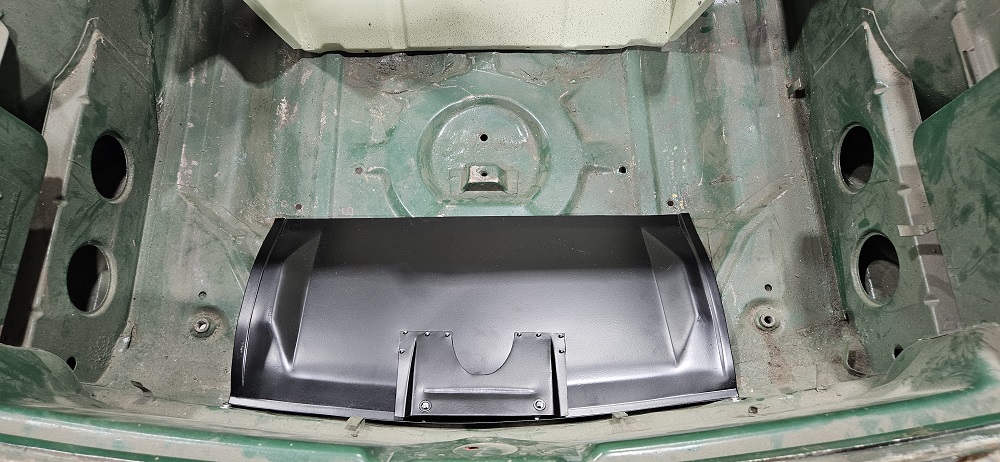

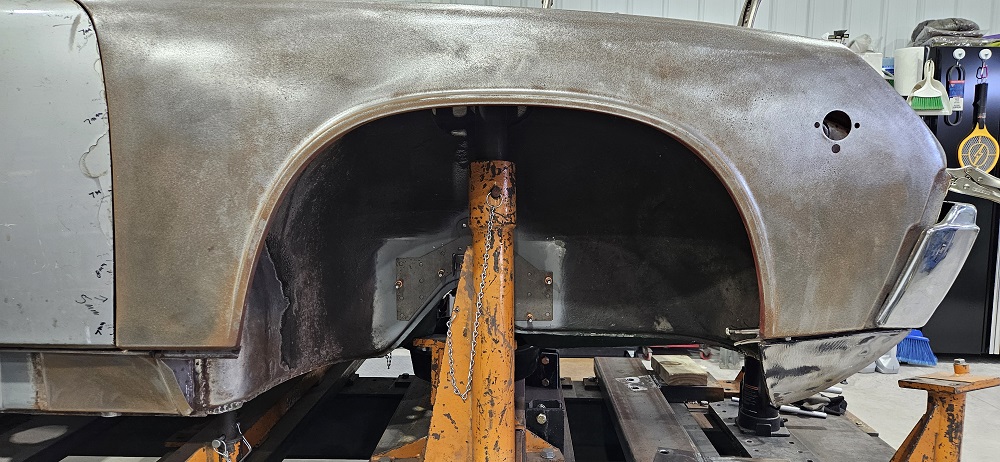

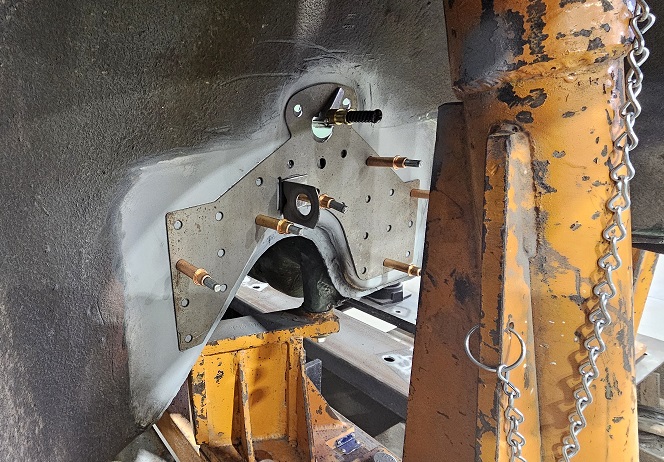

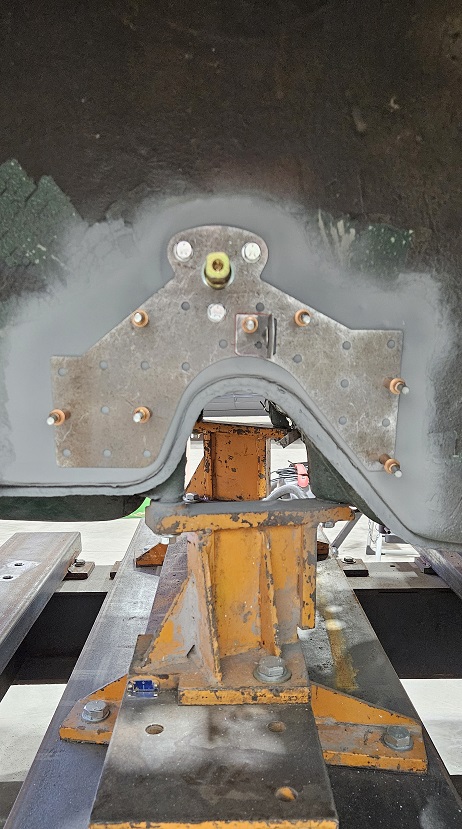

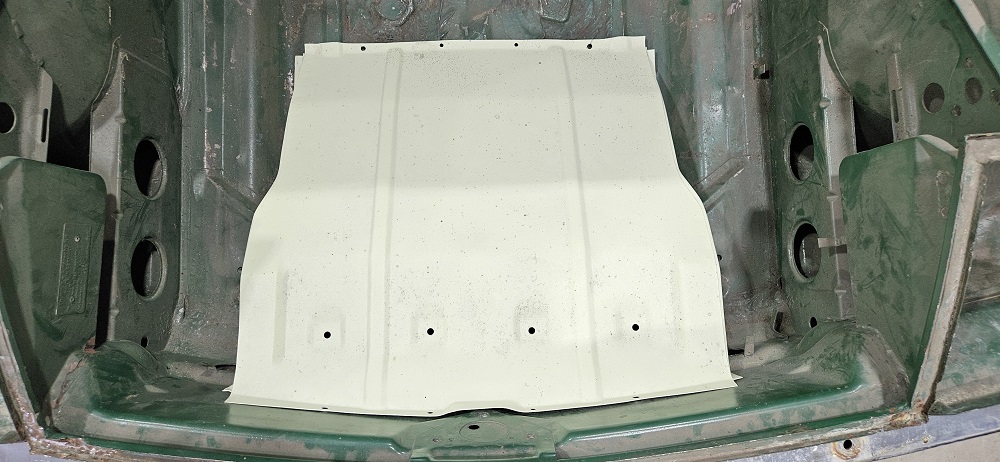

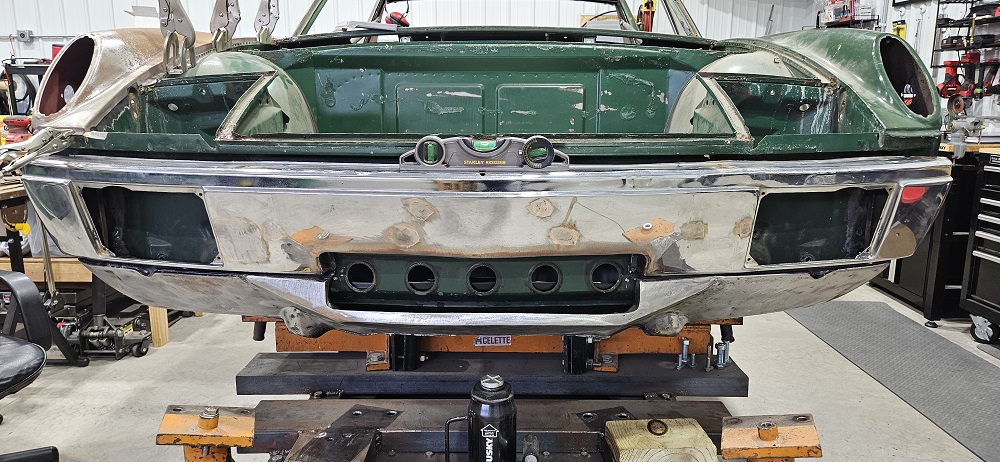

Started with the 6 chassis repair again. Installed Ben's GT front bumper/valance combo then the NOS fender to see how thing line up. While I was there I dug out my steel GT oil cooler ducts to test fit them as well. I also started working on installing the front sway bar reinforcement plates.


Attached image(s)
Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JmuRiz
post Sep 18 2025, 08:16 PM
Post #230


914 Guru
*****

Group: Members
Posts: 5,604
Joined: 30-December 02
From: NoVA
Member No.: 50
Region Association: MidAtlantic Region
Nice steel cooler ducts, I’m waiting on the restoration design ones to come out…hopefully I can stomach the $$

Btw I’ll need to save your shop photos for when I eventually move to the farm. Wanna share the plans (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Sep 18 2025, 08:54 PM
Post #231


914-6 GT in waiting
***************

Group: Members
Posts: 20,280
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(JmuRiz @ Sep 18 2025, 10:16 PM) *

Nice steel cooler ducts, I’m waiting on the restoration design ones to come out…hopefully I can stomach the $$

Btw I’ll need to save your shop photos for when I eventually move to the farm. Wanna share the plans (IMG:style_emoticons/default/biggrin.gif)

I didn’t know RD would be making a steel version. If so, I’m in. I’m not using any fiberglass on my GT car.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Luke M
post Sep 25 2025, 08:15 AM
Post #232


Senior Member
***

Group: Members
Posts: 1,442
Joined: 8-February 05
From: WNY
Member No.: 3,574
Region Association: North East States

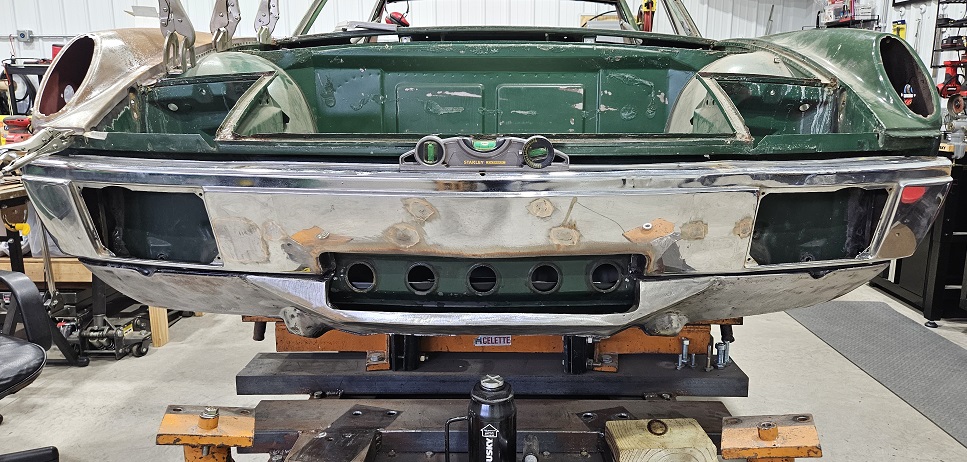

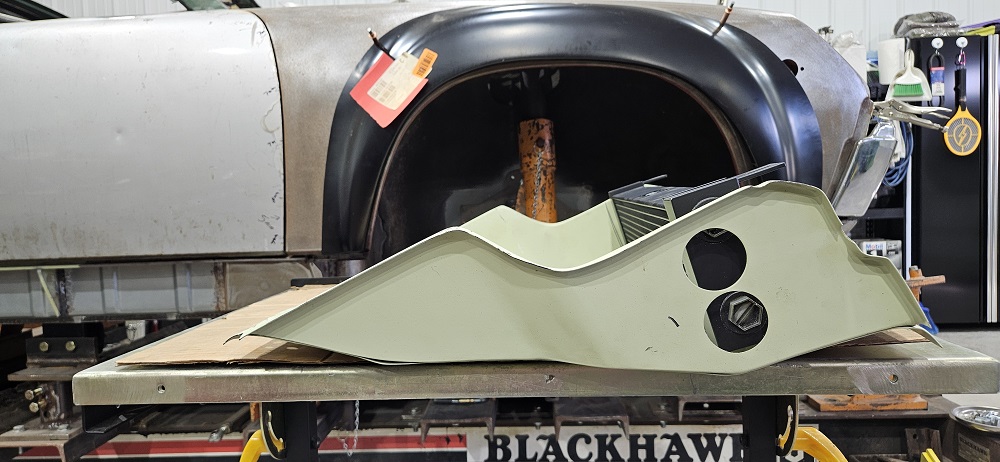

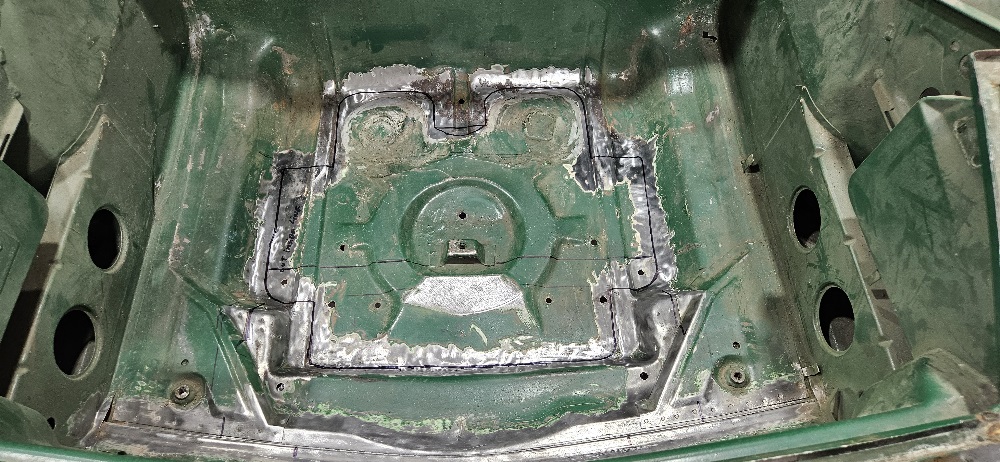

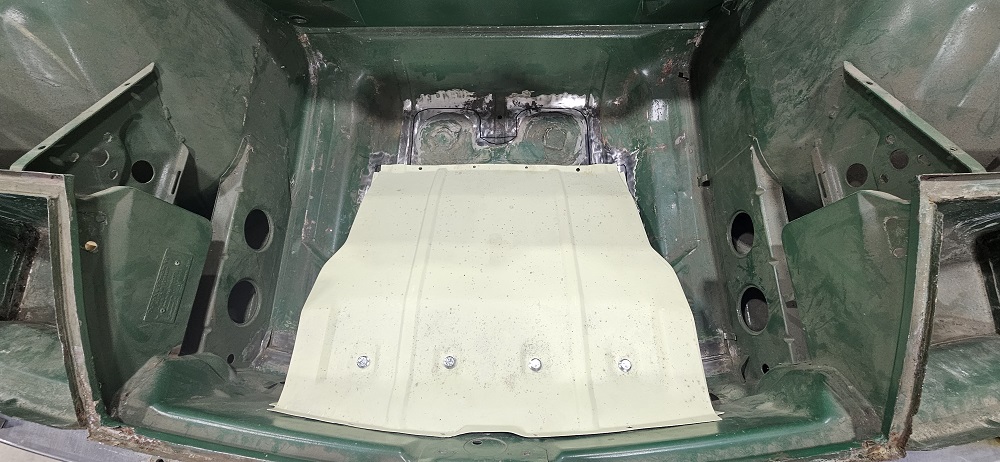

I had no idea RD was working on steel GT cooler shrouds either. I purchased the steel shrouds after I tested fitted the fiberglass units and didn't care for the fitment. The only thing that I'm missing is the screen/stone guard that mounts to the nose panel. So, I started looking at the best way to install these GT shrouds and found very little info online. I looked at a few build threads from here, PMS and Pelican but with very little info/details regarding the install process. I installed a front cooler on my brothers 6 conv. 4 years ago and back then I didn't have much info to go by with so I improvised. I will more then likely redo his at a later time. With my brothers car I ended up bolting the cooler down to the chassis side using rubber mounts. Based on my research the cooler is supposed to be mounted to the underside of the shroud. I don't know how well that will work with a fiberglass shroud. Guess it'll be a wait and see unless someone can tell me real world outcomes from their use.

With all that said, I figured I'd show the way I'm doing mine for future reference. First is figuring out the placement for the shrouds so I know where to install the exit air vents. I ended up making a cardboard template then tracing it onto the steel louvered panel that I got from PMS. The lower air guide usually gets welded into place but I do not want to do that so I'm going to be bolting it in. I may install a cross brace like the factory GT cars as well. That brace would get welded in below the air guide. The upper GT cover needed some slight work to make it fit snug up against the front nose panel. This is pretty straight forward as it just bolts in. Now is where I got a little lost, I saw a few different ways to install the cooler. Some mounted to the chassis and some to the underside of the shroud. I looked at Andy's (socalandy) build thread and he mounted the cooler under his shroud.

http://www.914world.com/bbs2/index.php?sho...1062&st=420

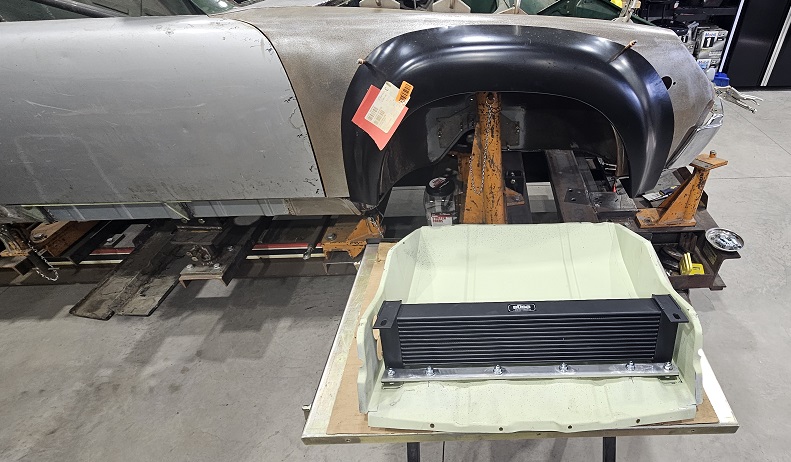

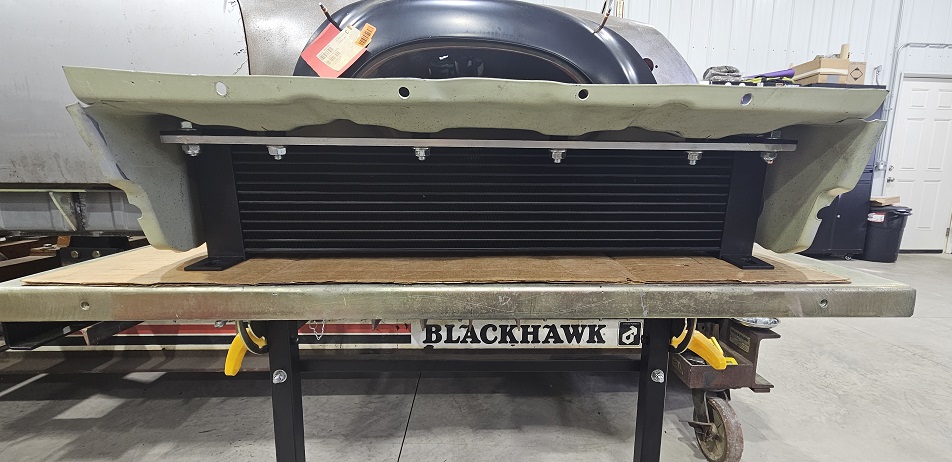

I plan to install my cooler under the shroud as well. I made a bracket to mount the two together and ran into a cooler fitting/shroud hole issue. I can weld up the shroud holes and drill the openings to where I need them. I wish the manufacture didn't drill these holes and let the end user do that. Just another thing to add to the to do list.

I also looked at ajserrano GT build on Pelican.

https://forums.pelicanparts.com/porsche-914...-project-5.html

Both of these threads where the best I could come up with as far as showing the install. Now, it depends on which oil cooler that's being used as well. I'm using the oil cooler that PMS sells. I used this same oil cooler setup on my brothers car as well.
Andy's car is using the same cooler that I have but Armondo is using the factory 914-6 GT cooler.

http://www.914world.com/bbs2/index.php?showtopic=375225

I don't really want to drop 3 grand on a GT cooler so I'm gonna run what I have.
I'll update this as I move forward with the install.


Attached image(s)
Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Luke M
post Sep 26 2025, 07:31 PM
Post #233


Senior Member
***

Group: Members
Posts: 1,442
Joined: 8-February 05
From: WNY
Member No.: 3,574
Region Association: North East States

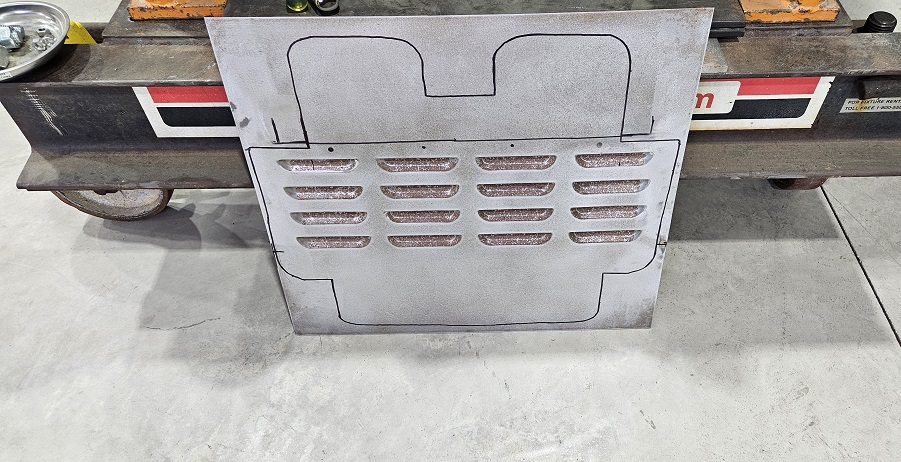

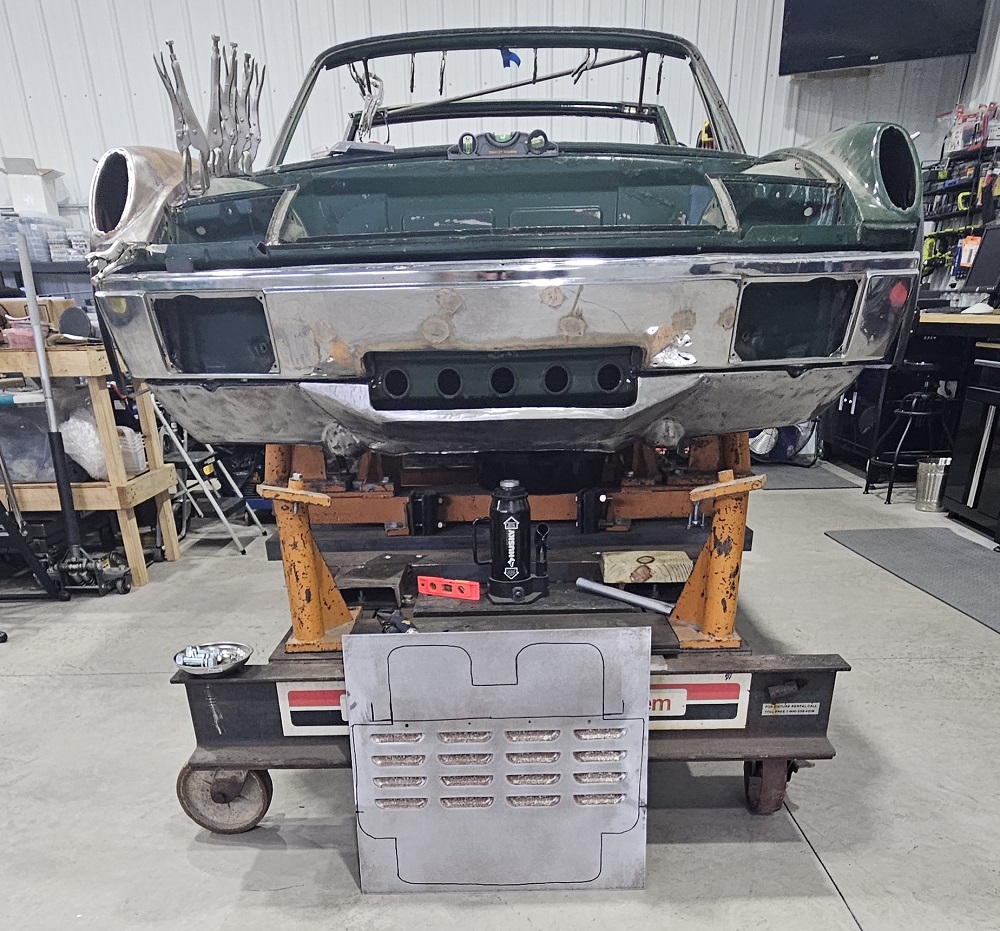

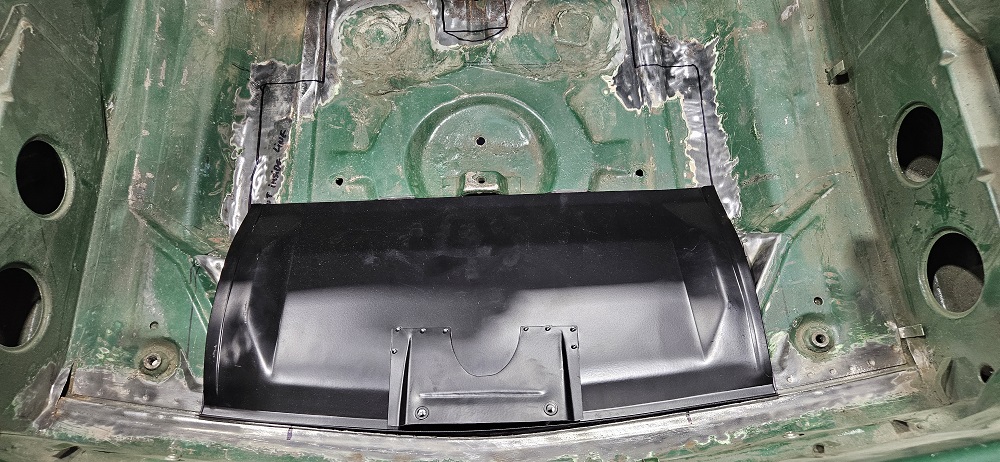

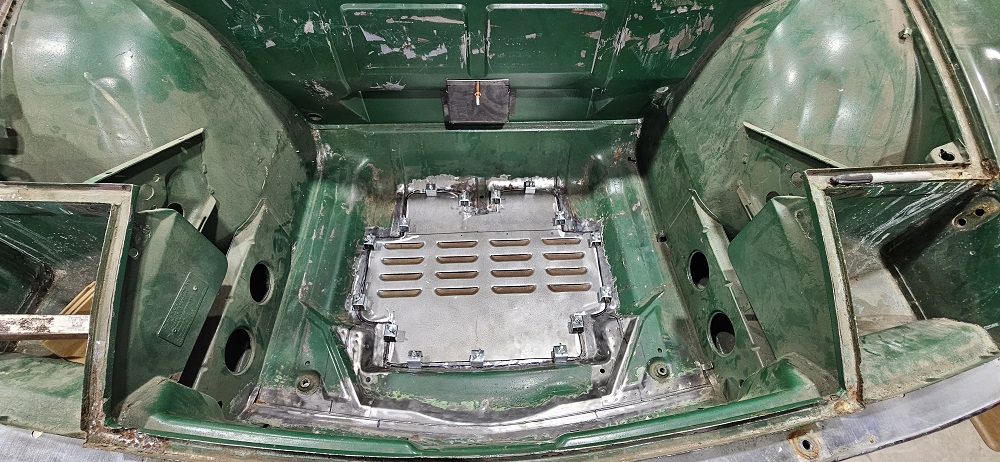

Got the front trunk floor all cut out and fitted the louvered lower vent belly pan. What a pain. (IMG:style_emoticons/default/sawzall-smiley.gif) (IMG:style_emoticons/default/smash.gif)
I plan to do the welding next week. (IMG:style_emoticons/default/beer.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Montreal914
post Sep 26 2025, 08:33 PM
Post #234


Senior Member
***

Group: Members
Posts: 1,971
Joined: 8-August 10
From: Claremont, CA
Member No.: 12,023
Region Association: Southern California
Beautiful work!

Definitely love the duct and detailed explanation on how the PMS cooler is being fitted. (IMG:style_emoticons/default/popcorn[1].gif)

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Luke M
post Sep 30 2025, 04:16 PM
Post #235


Senior Member
***

Group: Members
Posts: 1,442
Joined: 8-February 05
From: WNY
Member No.: 3,574
Region Association: North East States

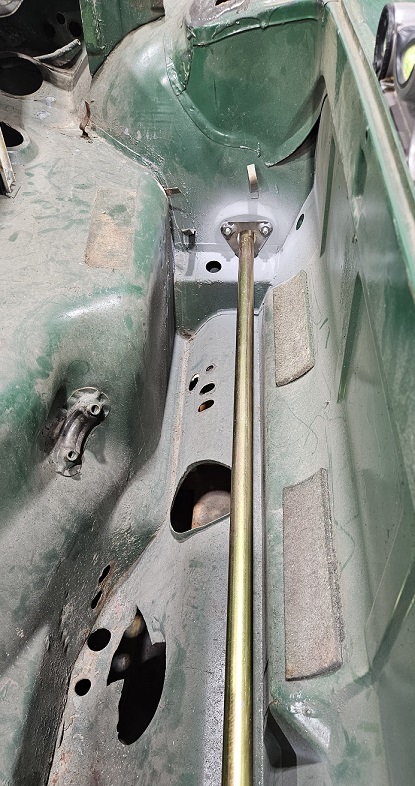

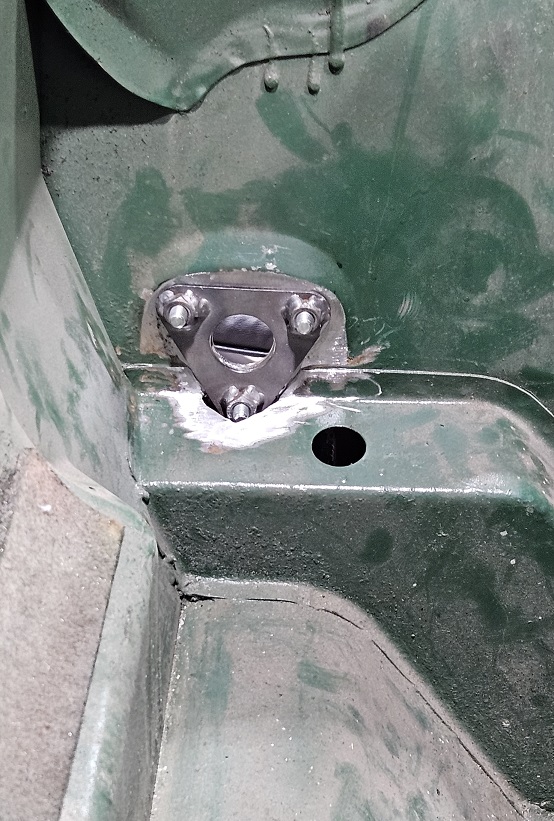

Working away... Made the brace that will be welded in under the oil cooler air duct then got the drivers side sway bar plate prepped to weld. Hopefully I'll be able to weld all this in the next few day.


Attached image(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Sep 30 2025, 04:50 PM
Post #236


914-6 GT in waiting
***************

Group: Members
Posts: 20,280
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
I received an ad from Sierra Madre showing the metal cooler shroud and screen. I was wondering who was producing them. Not cheap but a nice looking piece of kit.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Luke M
post Oct 1 2025, 06:30 AM
Post #237


Senior Member
***

Group: Members
Posts: 1,442
Joined: 8-February 05
From: WNY
Member No.: 3,574
Region Association: North East States
QUOTE(mepstein @ Sep 30 2025, 03:50 PM) *

I received an ad from Sierra Madre showing the metal cooler shroud and screen. I was wondering who was producing them. Not cheap but a nice looking piece of kit.



Hi Mark,

SMC is where I got the lower air pan from. The upper air duct I purchased from a member from the UK. He originally purchased it from Mittelmotor in Germany.
SMC has the screen but it's out of stock. Mittelmotor makes these as well.
I don't know if all of the steel parts that SMC sells is from Mittelmotor.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Oct 1 2025, 07:48 AM
Post #238


914-6 GT in waiting
***************

Group: Members
Posts: 20,280
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(Luke M @ Oct 1 2025, 08:30 AM) *

QUOTE(mepstein @ Sep 30 2025, 03:50 PM) *

I received an ad from Sierra Madre showing the metal cooler shroud and screen. I was wondering who was producing them. Not cheap but a nice looking piece of kit.



Hi Mark,

SMC is where I got the lower air pan from. The upper air duct I purchased from a member from the UK. He originally purchased it from Mittelmotor in Germany.
SMC has the screen but it's out of stock. Mittelmotor makes these as well.
I don't know if all of the steel parts that SMC sells is from Mittelmotor.

Thanks!
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Luke M
post Oct 1 2025, 04:28 PM
Post #239


Senior Member
***

Group: Members
Posts: 1,442
Joined: 8-February 05
From: WNY
Member No.: 3,574
Region Association: North East States

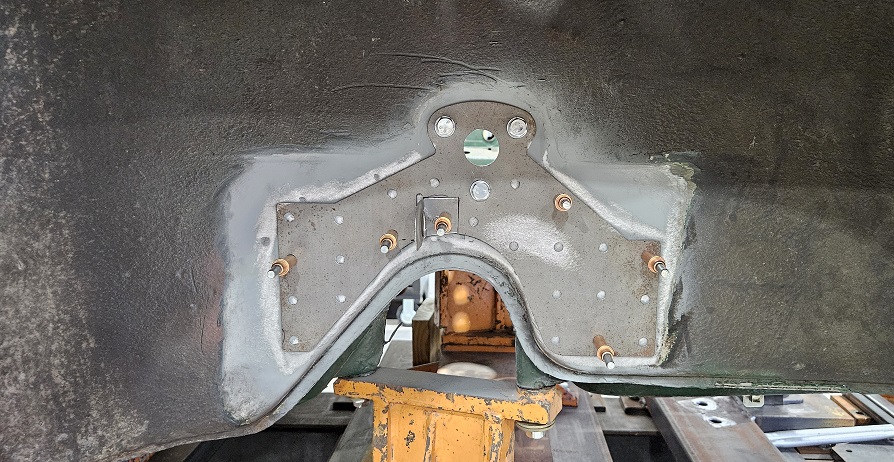

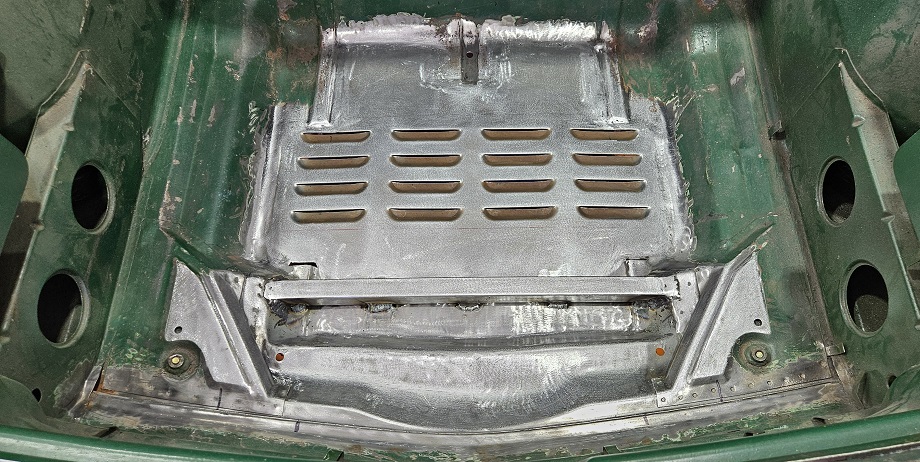

40 mins of welding and 2 hours of grinding later. (IMG:style_emoticons/default/wacko.gif) (IMG:style_emoticons/default/beer3.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Oct 2 2025, 07:12 AM
Post #240


Michael
**********

Group: Members
Posts: 10,511
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Very, very nice. A metal shroud is absolutely the way to go. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
