Porsche 914 Dash Repair via CFRP Wrapping Process Options

[dovsky]

CFRP stands for Carbon Fiber Reinforced Polymer, which is the technical term for what most people refer to as just simply “carbon fiber”. CFRP is a composite material comprised of the carbon fiber itself (in this case in the form of woven fabric) and a formulated resin compound acting as a plasticizer.

In this thread I’ll be showing step-by-step how we (www.compositedimensions.com) were able not only to repair and save a cracked 914 dash, but to also make it look and feel as if it was originally made from CFRP.

Below are a few photos of the dash prior to the repair.

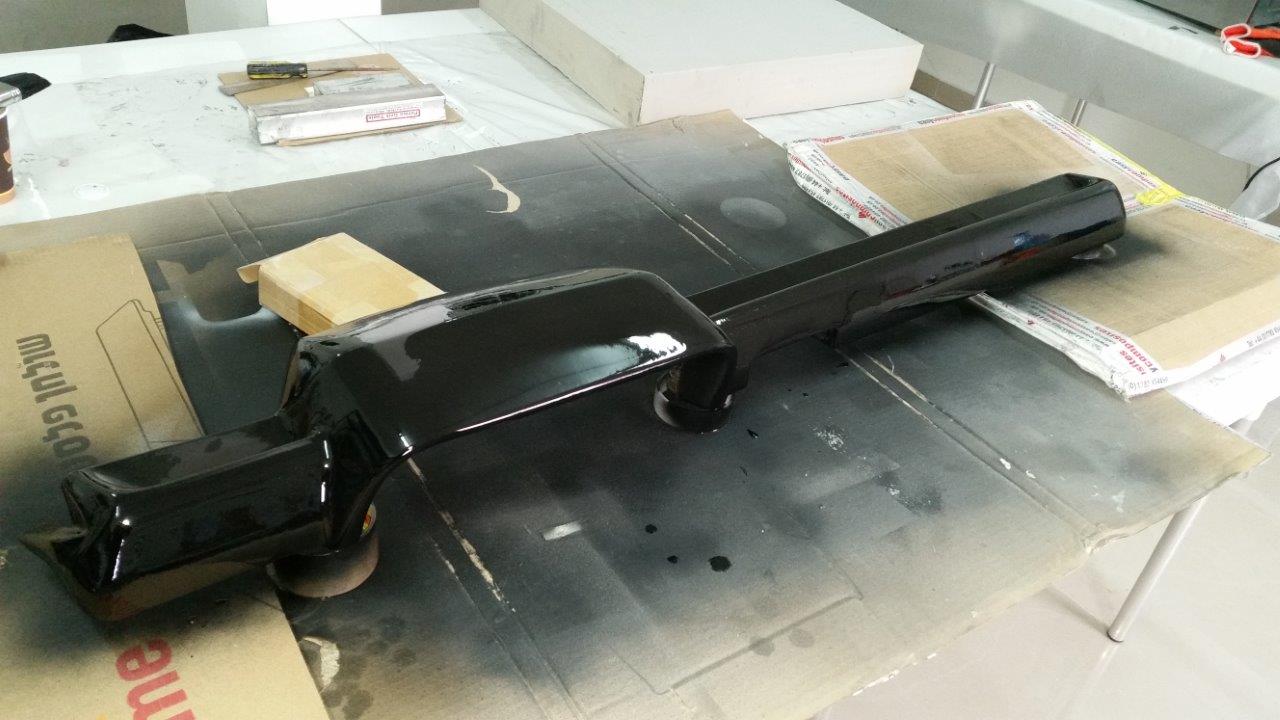

STEP 1 – Crack Sealing. We used a 2-part epoxy putty compound to fill and seal each crack. An unlike most polyester-based body fillers, this compound is compatible with the epoxy resin system used in the later steps.


STEP 2 – Epoxy Based Coat. This base coat provides an ideal black background for the carbon fiber fabric and allows the dash to gain back some of its rigidity at this early stage. After its application, it’s left to reach a “tacky” stage (approx. 4 hours).


STEP 3 – Making Cutting Templates. Carbon fiber fabric is expensive. This particular fabric is $50 per square meter. In order to minimize material waste, cutting templates is a must. This not only saves material but also provides more accurate placement with minimal seems, and eliminates “bridging” on intricate contoured areas. The fabric itself is a high quality 200 grams/sq. meter 2/2 twill 3K.

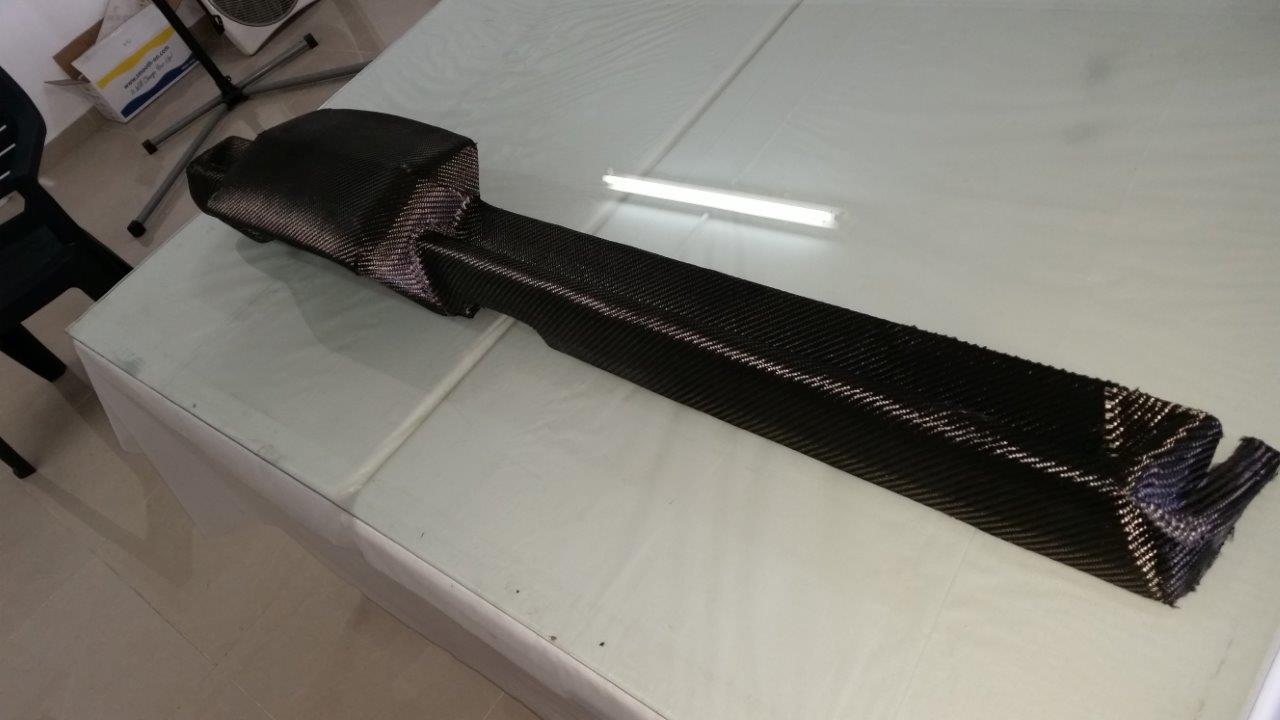

STEP 4 – Carbon Fiber Wrapping (Dry). While taking advantage of the tacky surface on the base coat, and with the aid of a compatible spray adhesive, the various pre-cut carbon fiber pieces are carefully placed into position. Notice that we also wrapped the visible underside areas.



STEP 5 – Clear Epoxy Resin. Once all the carbon fiber is laid, we applied 3 coats of a specially formulated high viscosity epoxy resin. Minimal sanding in between coats is performed to remove obvious high-spots before allowing the final coat to cure overnight.

All visible areas on the underside are also addressed.


STEP 6 – Sanding (Dry & Wet). The dash was sanded dry using 120 grit paper to remove any remaining high-spots before moving on to wet sanding with progressively finer girt paper (240, 400, 800 and 1200), leaving a smooth satin finish at the end. This is by far the longest process step.

Dash after dry-sanding it with coarse 120 grit paper:

Dash after wet-sanding it with fine 1200 grit paper:


STEP 7 – Finishing. We applied 2 coats of UV-stable high-gloss lacquer. Once cured we then machined-polished all surfaces to achieve a professional finish.







The dash is finally done and ready to be installed back.
Project duration: 2.5 weeks including curing & drying times (epoxy resin and lacquer coats).
Total Labor hours: 45 (most of them spent on surface sanding)

I hope you enjoyed this article. All questions are welcome.
