> Gaffer's Tape for Re-wrapping Harness Authentically., But how do you find the correct width..... :)
Series9
post Feb 4 2016, 11:09 AM
Post #1


Lesbians taste like chicken.
*****

Group: Members
Posts: 5,444
Joined: 22-August 04
From: DeLand, FL
Member No.: 2,602
Region Association: South East States
The width of the original tape is about .330". Although gaffer's tape is a very close substitute, that width is simply not available.

So.....

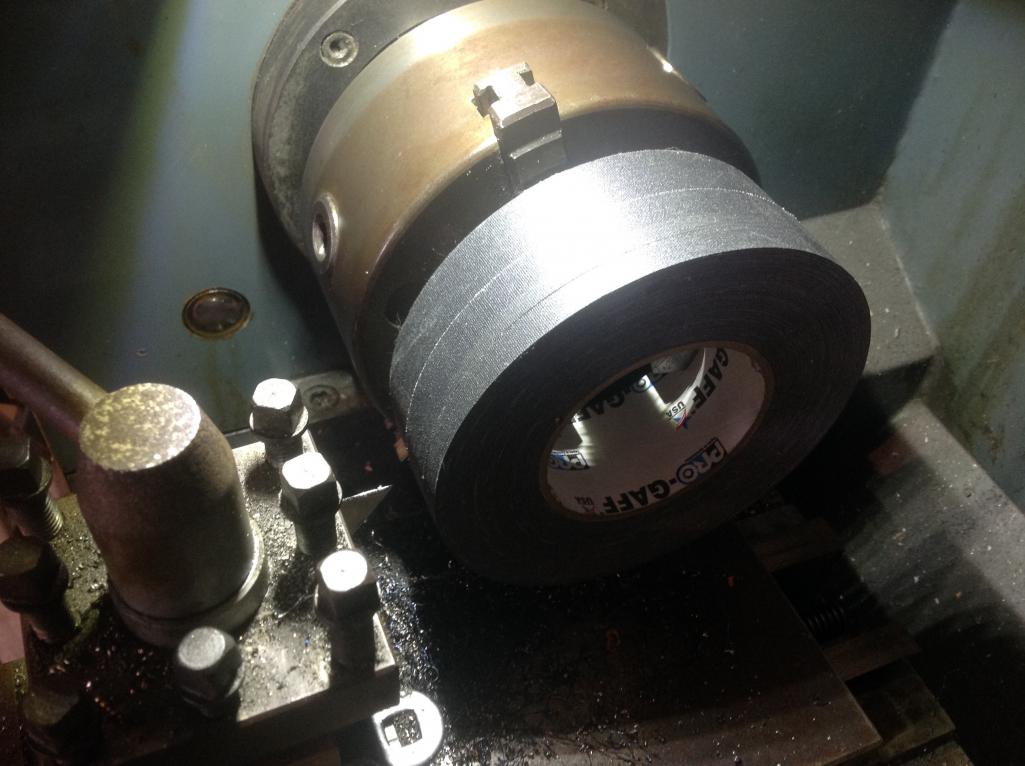

Creative lathing ensues. Place roll of three inch gaffer's tape in the lathe and set up a new razor blade in the tool holder....


Look at that nice clean cut. It's the dark one that's barely visible. 90 rpm and the blade cut in neatly. Now I have some tape to work on Byron's /6 harness.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Feb 4 2016, 11:13 AM
Post #2


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,490
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
Hey Joe, IIRC Chris @ Tangerine sells some about that size. I don't know where my roll is or I'd measure it for you. (IMG:style_emoticons/default/dry.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Series9
post Feb 4 2016, 11:14 AM
Post #3


Lesbians taste like chicken.
*****

Group: Members
Posts: 5,444
Joined: 22-August 04
From: DeLand, FL
Member No.: 2,602
Region Association: South East States

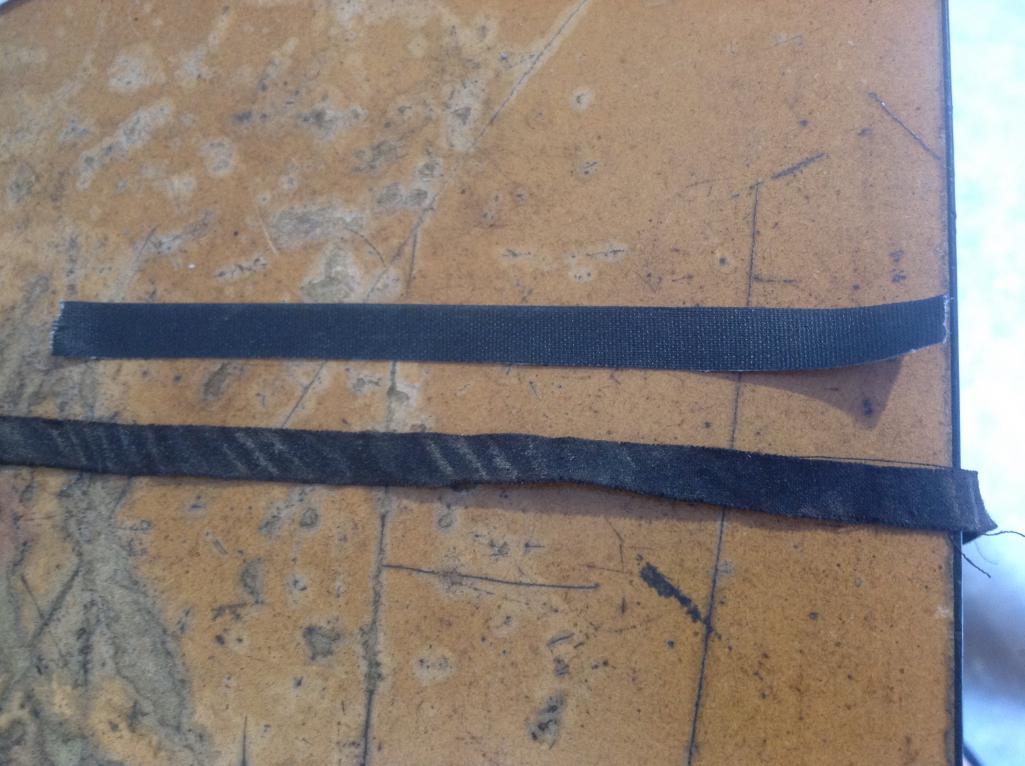

Old and new:



Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
'73-914kid
post Feb 4 2016, 11:21 AM
Post #4


Senior Member
***

Group: Members
Posts: 1,473
Joined: 1-November 08
From: Vista, CA
Member No.: 9,714
Region Association: Southern California
For what it's worth:

The factory used a brand called Tesa for the cloth tape. You can buy it on Amazon. It's what we used throughout the 917. It's a high temperature cloth tape made specifically for wrapping wire harnesses.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Tom_T
post Feb 4 2016, 11:47 AM
Post #5


TMI....
*****

Group: Members
Posts: 8,318
Joined: 19-March 09
From: Orange, CA
Member No.: 10,181
Region Association: Southern California
Another option Joe & all, is to check with Jeff Bowlsby on what he uses for his harness resto's & his source, since he's got a good match to the OE stuff.

It may be what Ethan said, which is another great option from the "Porsche-horse's-mouth" so to speak! (IMG:style_emoticons/default/smile.gif)

This is for others on here reading this for their own restos ....

I added Jeff as an additional source for others looking to resto their own chassis harnesses. AFAIK Jeff only does 914 engine bay harnesses - get them from him to save time/grief with finding connectors/boots/etc. (IMG:style_emoticons/default/blink.gif)
> IIRC he also restores the engine bay relay boards too, including re-tarring the undersides. (IMG:style_emoticons/default/smilie_pokal.gif)

... & Ethan is with Porsche's historic racing resto shop - when he says "what we use" - so it's correct! (IMG:style_emoticons/default/first.gif)

Cheers! (IMG:style_emoticons/default/beerchug.gif)
Tom
///////
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Andyrew
post Feb 4 2016, 11:50 AM
Post #6


Spooling.... Please wait
**********

Group: Members
Posts: 13,376
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California
I've got some Tesa tape as well. Really nice looking stuff.

http://www.amazon.com/Tesa-51608-Interior-...words=tesa+tape
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
pete000
post Feb 4 2016, 11:59 AM
Post #7


Senior Member
***

Group: Members
Posts: 1,885
Joined: 23-August 10
From: Bradenton Florida
Member No.: 12,094
Region Association: South East States
I have been using the Gaffer cloth tape for years. Very sticky stuff.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Series9
post Feb 4 2016, 04:03 PM
Post #8


Lesbians taste like chicken.
*****

Group: Members
Posts: 5,444
Joined: 22-August 04
From: DeLand, FL
Member No.: 2,602
Region Association: South East States

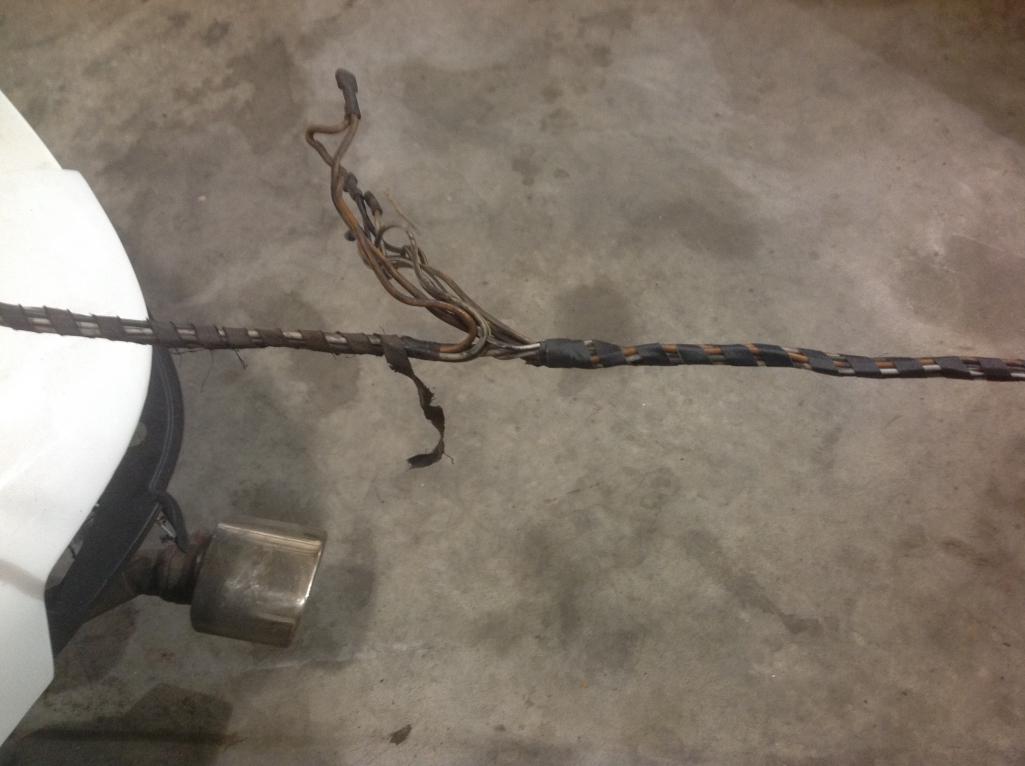

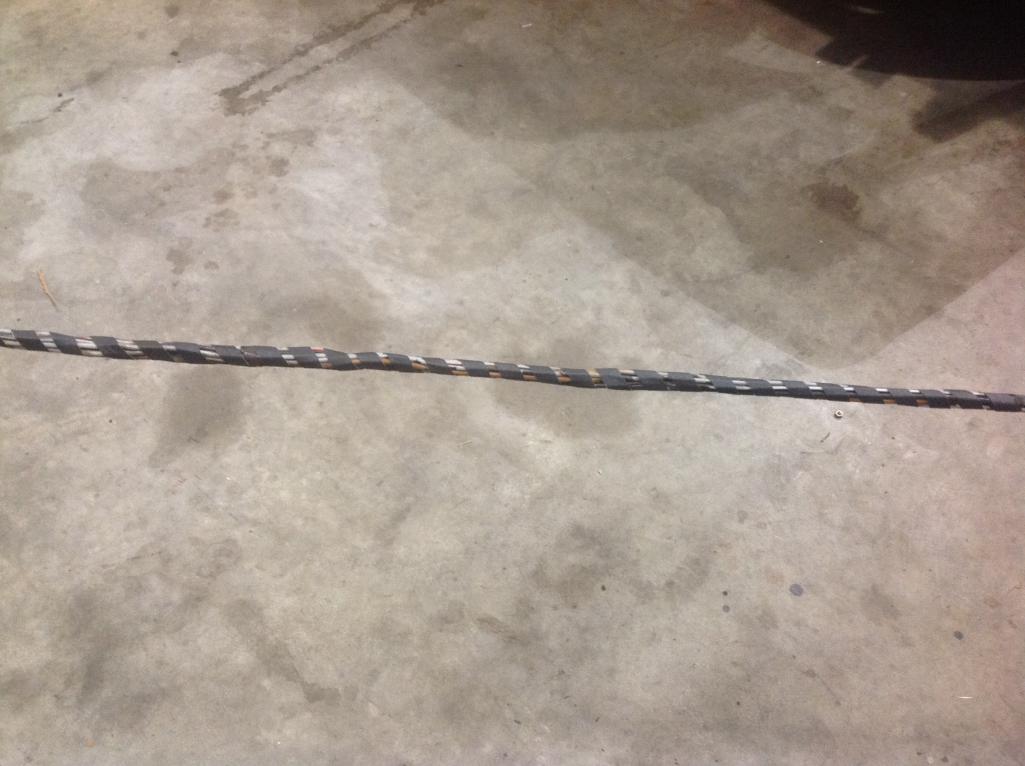

Here's the test section on the rear harness of the /6.

I think it's pretty close:



Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Feb 4 2016, 04:36 PM
Post #9


Custom Member
***************

Group: Members
Posts: 24,562
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
A man with a lathe is a dangerous thing
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Series9
post Feb 4 2016, 04:43 PM
Post #10


Lesbians taste like chicken.
*****

Group: Members
Posts: 5,444
Joined: 22-August 04
From: DeLand, FL
Member No.: 2,602
Region Association: South East States
QUOTE(r_towle @ Feb 4 2016, 05:36 PM) *

A man with a lathe is a dangerous thing




Ever saw a roll of tape in a metal lathe? (IMG:style_emoticons/default/laugh.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Feb 4 2016, 04:46 PM
Post #11


Michael
*****

Group: Members
Posts: 9,711
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Just takin' it to the next level......wow (IMG:style_emoticons/default/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rgalla9146
post Feb 4 2016, 05:00 PM
Post #12


Advanced Member
****

Group: Members
Posts: 4,545
Joined: 23-November 05
From: Paramus NJ
Member No.: 5,176
Region Association: None

Wasn't this known a "friction" tape or electrical tape ?...... which is available in 3/4" width.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
iankarr
post Feb 4 2016, 10:20 PM
Post #13


The wrencher formerly known as Cuddy_K
****

Group: Members
Posts: 2,471
Joined: 22-May 15
From: Heber City, UT
Member No.: 18,749
Region Association: Intermountain Region
I mistakenly ordered extra rolls of the stuff from tangerine and it would cost more than they're worth to ship them back. I think I have 3. PM me if you want one free....

Ps...Joe...are you in the production biz like me? Most people call it duct tape unless they've spent some time in the trenches....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bandjoey
post Feb 4 2016, 11:40 PM
Post #14


bandjoey
****

Group: Members
Posts: 4,923
Joined: 26-September 07
From: Bedford Tx
Member No.: 8,156
Region Association: Southwest Region
Old timers Used friction tape as electrical wire wrap before plastic electrical tape. Another sub if still available is cloth bicycle handlebar tape.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cwpeden
post Feb 5 2016, 02:03 AM
Post #15


Great White North, huh?
***

Group: Members
Posts: 916
Joined: 20-August 06
From: Victoria BC
Member No.: 6,693
Region Association: Canada
(IMG:style_emoticons/default/dry.gif) I used hockey tape and ripped it in half by hand as I wrapped. Was temped to use white, then it passed.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
thieuster
post Feb 5 2016, 02:37 AM
Post #16


Member
**

Group: Members
Posts: 447
Joined: 31-January 15
From: 275 mls NW from Stuttgart.
Member No.: 18,384
Region Association: Europe
The Tesa brand is a household name here in Europe. I suppose you can get it on every motor factors... Try the European eBay sites for the correct tape!
The correct tape costs 3 euros/roll overhere.

Menno
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Darren C
post Feb 5 2016, 06:42 AM
Post #17


Member
**

Group: Members
Posts: 392
Joined: 26-December 14
From: Chichester UK
Member No.: 18,255
Region Association: England
When I did my loom I got the correct tape here:

http://www.ebay.co.uk/itm/251808817142?_tr...K%3AMEBIDX%3AIT

It's the correct tape, far cheaper per roll than gaffer tape and you don't need a lathe either..:-)

Just search Tesa tape
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
raynekat
post Feb 5 2016, 08:27 AM
Post #18


Advanced Member
****

Group: Members
Posts: 2,153
Joined: 30-December 14
From: Coeur d'Alene, Idaho
Member No.: 18,263
Region Association: Pacific Northwest
This has been a great thread.

Many thanks to all that have contributed all their experience and knowledge.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Feb 5 2016, 10:20 AM
Post #19


914 Wiring Harnesses
*****

Group: Members
Posts: 8,477
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
The correct tape is not 19mm wide.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Darren C
post Feb 5 2016, 10:44 AM
Post #20


Member
**

Group: Members
Posts: 392
Joined: 26-December 14
From: Chichester UK
Member No.: 18,255
Region Association: England
There's a drop box on the ebay listing link I posted where you select width.

They offer 9mm wide :-)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
