> BUILD-OFF CHALLENGE: Tygaboy's '75 LS3, It seemed a good idea at the time...
tygaboy
post Nov 11 2018, 06:33 PM
Post #1321


914 Guru
*****

Group: Members
Posts: 5,266
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

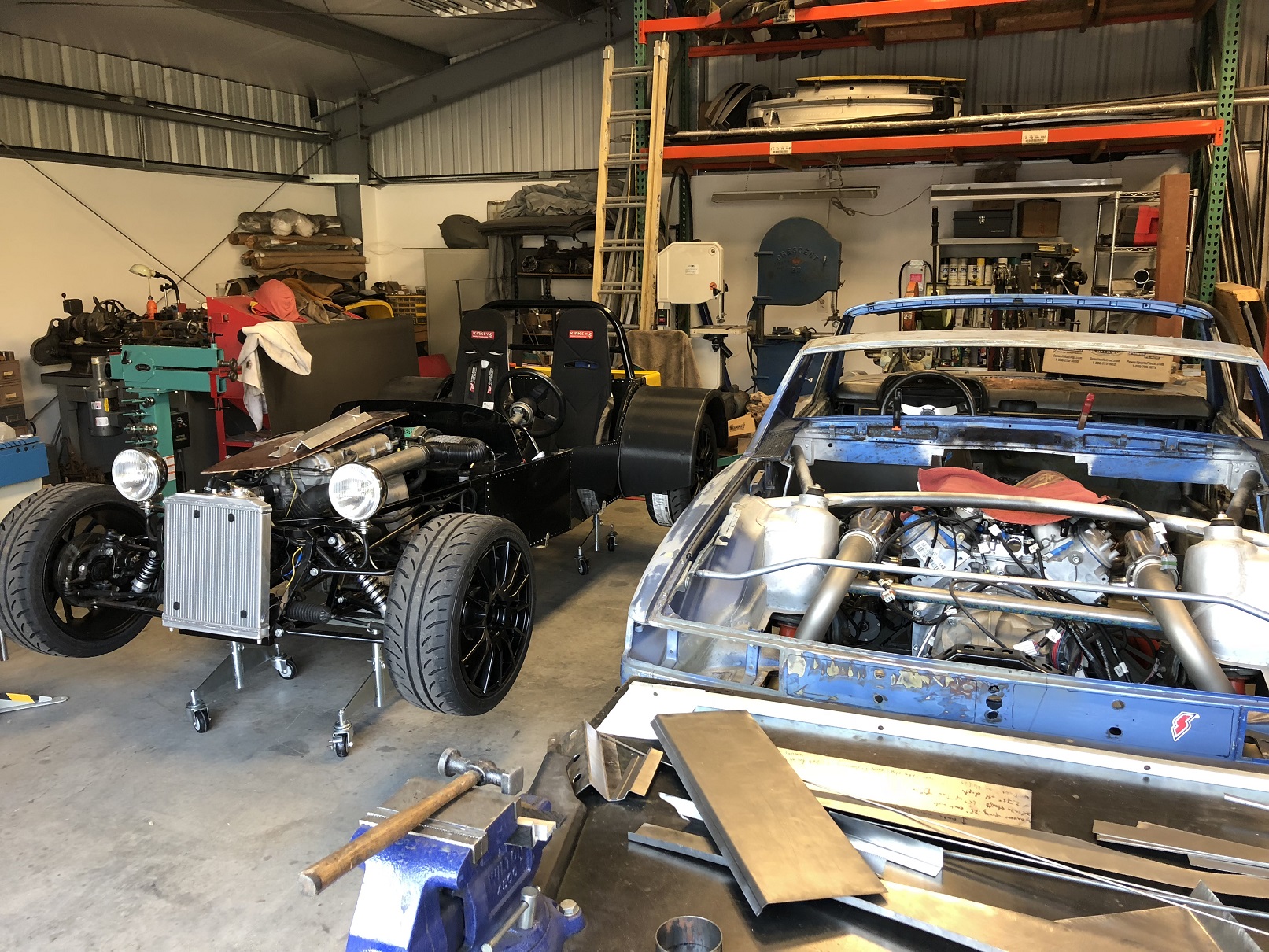

The shop just got a bit more crowded.

And so much for retirement. I'm now a member of the fab team at Orbis. Only part time. Check out the 4-wheel drive Civic Type R hybrid. This really is pretty cool stuff. We just got back from a successful week at SEMA, showing off the Civic.

https://orbisdriven.com/

so - this Lotus 7 replica is going to be converted to a 200 hp, 4-wheel drive electric vehicle via installation of Orbis wheels at each corner.

This will be a great learning experience.

Will 2 of these wheel show up on the front of my 914? 430 hp to the rear wheels and 100 to the fronts? (IMG:style_emoticons/default/idea.gif) What could possibly go wrong?


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Nov 11 2018, 06:46 PM
Post #1322


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
Are you freakin' kidding me? The master fabricator has gone pro. (IMG:style_emoticons/default/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 11 2018, 07:07 PM
Post #1323


914 Guru
*****

Group: Members
Posts: 5,266
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(bbrock @ Nov 11 2018, 04:46 PM) *

Are you freakin' kidding me? The master fabricator has gone pro. (IMG:style_emoticons/default/aktion035.gif)


I know, right? Never thought anyone would pay me to fab (my yard art stuff aside).

It was a major milestone. I did my first "paid for welding" to help prep the trailer to take the Civic to SEMA.
No Olympic Welding Team for me...!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Nov 11 2018, 07:27 PM
Post #1324


RN
****

Group: Members
Posts: 2,762
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region
Congrats Chris, that is awesome! (IMG:style_emoticons/default/piratenanner.gif) We’ll be seeing you in F1 next!
Yes I see some of that tech in your build. (IMG:style_emoticons/default/happy11.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dan10101
post Nov 11 2018, 11:21 PM
Post #1325


TORQUE-o-holic
***

Group: Members
Posts: 1,140
Joined: 29-April 03
From: Eagle Point, Or
Member No.: 626
Region Association: Pacific Northwest


https://orbisdriven.com/

take one perfectly good wheel and completely reinvent it.

It sounds right down your road, Chris.

Enjoy the ride. However, us hangers-ons will be be needing regular 914 LS fixes... Just sos you know... (IMG:style_emoticons/default/sawzall-smiley.gif) (IMG:style_emoticons/default/welder.gif) (IMG:style_emoticons/default/stirthepot.gif) (IMG:style_emoticons/default/pray.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Andyrew
post Nov 12 2018, 12:00 AM
Post #1326


Spooling.... Please wait
**********

Group: Members
Posts: 13,376
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California
Awesome!!!!! Congrats on the fun gig!

I've been thinking of ways to power the front wheels via an electric motor for a while now. 100hp is just about right to make things interesting!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cracker
post Nov 12 2018, 06:32 AM
Post #1327


Advanced Member
****

Group: Members
Posts: 2,148
Joined: 2-February 10
From: Atlanta (area)
Member No.: 11,316
Region Association: South East States
So the teener will be delayed a bit more (too funny). As stated you are the "right man for the job!". I am glad this came to fruition for you Chris. Regarding the wheel: Do you think they will be able to get that "hum" out of the system? The demo alone is enough to drive me off/crazy.

T
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Nov 12 2018, 09:25 AM
Post #1328


914 Freak!
***************

Group: Members
Posts: 17,146
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
Congrats on the new gig.

https://www.uh.edu/engines/epi2714.htm

Neat idea, been tried a few times, this might be the right time with materials and tech being much better now.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jd74914
post Nov 12 2018, 12:09 PM
Post #1329


Its alive
****

Group: Members
Posts: 4,776
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States
Cool deal! Sounds like fun! (IMG:style_emoticons/default/smile.gif)

The exposed bearing wheels and gear kinda sketch me out for a production application, but still neat. Most modern attempts at the fixed center automotive wheel I've seen use something like a Franke wire race bearing. Not really sure what it buys you over a hub motor with planetery gearbox and rim mounted brake rotor (for clearance) though.

https://www.franke-gmbh.com/bearings/basic-information/

https://www.youtube.com/watch?v=oM-sbDfJgPg
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Andyrew
post Nov 14 2018, 02:31 PM
Post #1330


Spooling.... Please wait
**********

Group: Members
Posts: 13,376
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California
https://www.youtube.com/watch?v=iQ4lTPVR3qc

10k?

Thats right where I was thinking it should be! Very impressive.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Nov 14 2018, 04:56 PM
Post #1331


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None
Yes congratulation Chris, well earned.

Enjoy the venture capital ride. So while your in this game I will give you the advice I found out early in my career, you have two bags. One is for money they will pay you for your talents, and ideas. The other is for all (IMG:style_emoticons/default/stromberg.gif) that comes with the work. When ever either bag gets full it is time to leave the game.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Morph914
post Nov 14 2018, 07:51 PM
Post #1332


Member
**

Group: Members
Posts: 435
Joined: 22-August 16
From: St Augustine, FL
Member No.: 20,326
Region Association: South East States
It was only a matter of time that word got out about your mad skills. Congrats Chris! (IMG:style_emoticons/default/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mgp4591
post Nov 15 2018, 01:47 AM
Post #1333


914 Guru
*****

Group: Members
Posts: 5,363
Joined: 1-August 12
From: Salt Lake City Ut
Member No.: 14,748
Region Association: Intermountain Region
I saw the exhibit at SEMA but didn't know that you were involved - as a former Honda tech, it was interesting to see how technology can improve even a new platform. It would've been good to meet you there....congratulations on moving to the next phase of fabrication engineering!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 21 2018, 02:00 PM
Post #1334


914 Guru
*****

Group: Members
Posts: 5,266
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Back to the fire wall. The never ending fire wall.

And it's got me to thinking: Are they called "mad skills" because developing them is infuriating? (IMG:style_emoticons/default/laugh.gif)

Note that I'm in no way claiming I have them, and let me just prove that right now.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 21 2018, 02:11 PM
Post #1335


914 Guru
*****

Group: Members
Posts: 5,266
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
The latest effort is to fab the upper "cap" of the fire wall dog house. Again, if only I'd paid more attention in Geometry class.

It went something like this:
- Figure out how much clearance is needed inside the dog house and be sure it doesn't interfere with the seats on the outside surfaces. This determines the plane that makes up the sides of the dog house.
- Calculate all the angles needed to connect everything. Everything being the sides, the angles they join the main fire wall panels behind the seats, the angle those main panels intersect with the remaining upper section of the stock fire wall.
Work out the angles for this upper "cap", which has to serve as the part that connects and locates most of these pieces.
- Oh, and then be sure there's a nice step around the opening for the removeable panel.


How hard can this be? (IMG:style_emoticons/default/idea.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 21 2018, 02:18 PM
Post #1336


914 Guru
*****

Group: Members
Posts: 5,266
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

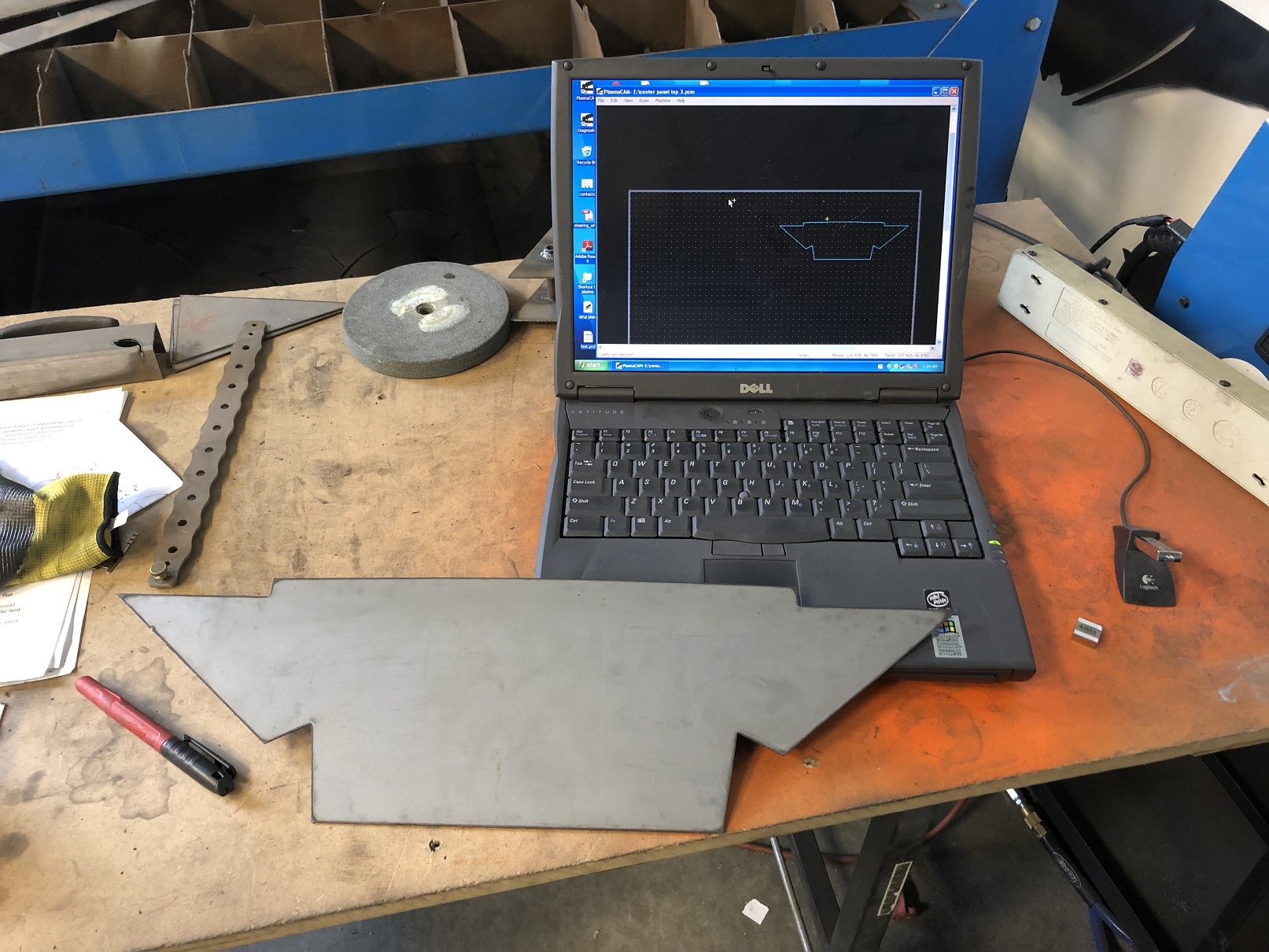

Protractors and levels and a laser that projects a line and lots, lots of measuring.
I wanted do more bending than welding so I tried to work out how I could fold things and ended up with this pattern design.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 21 2018, 02:22 PM
Post #1337


914 Guru
*****

Group: Members
Posts: 5,266
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

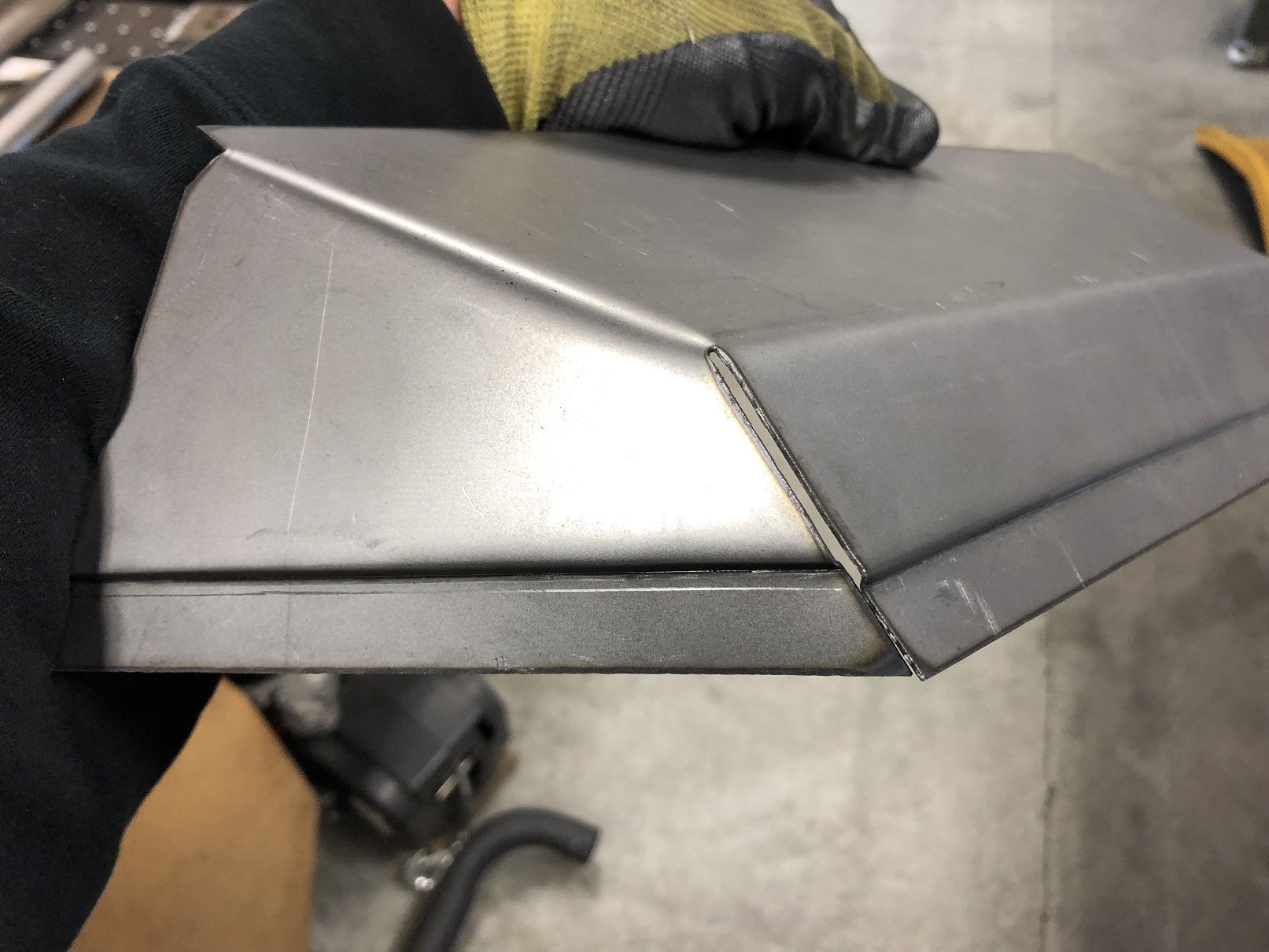

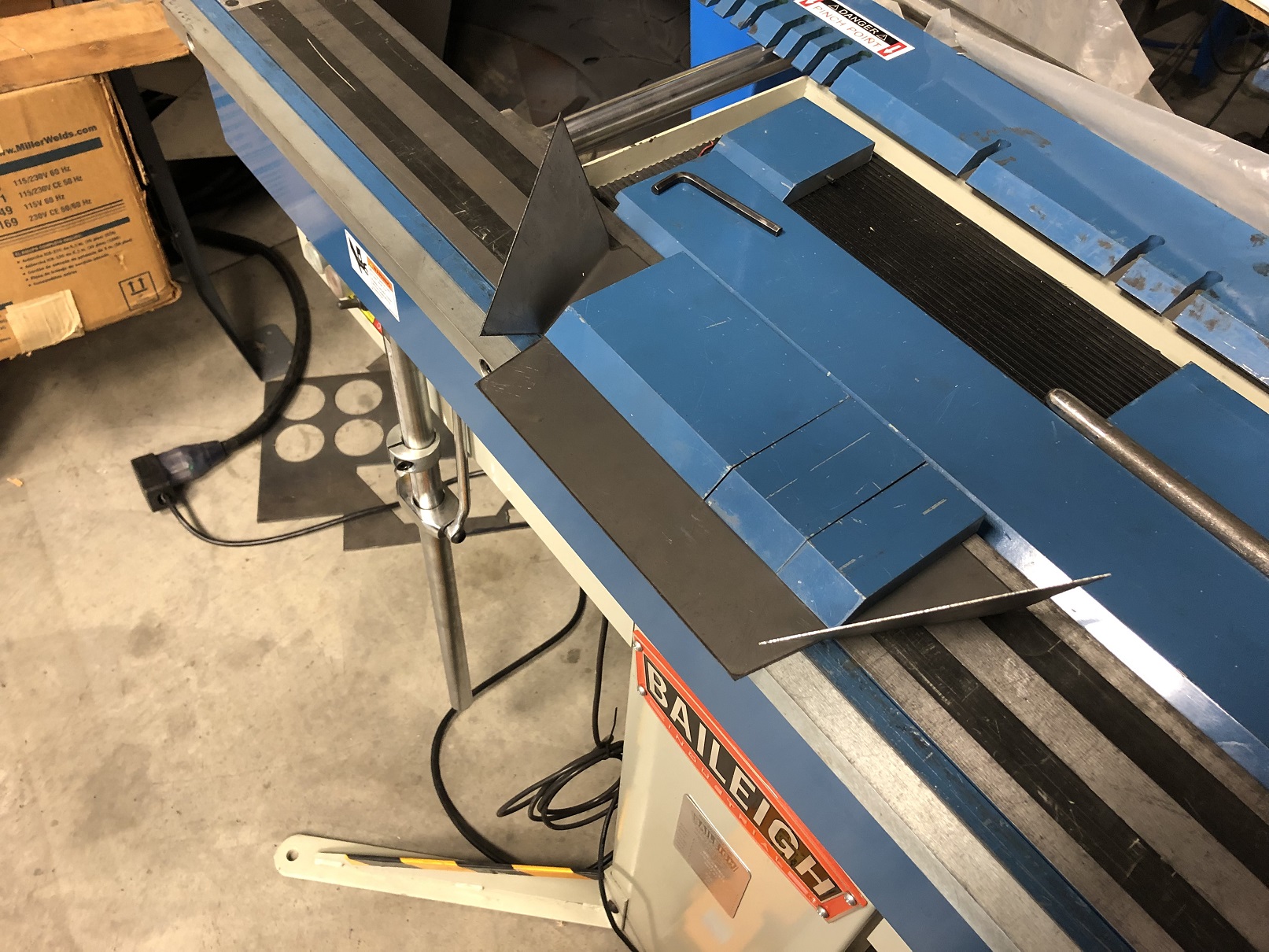

Bender! Such fun trying to work out the bend order so things don't end up interfering with secondary operations...

Can you believe I got it wrong the first time? (IMG:style_emoticons/default/blink.gif)

Fail #1

And don't bother counting, I'll total it up for you at the end...!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 21 2018, 02:25 PM
Post #1338


914 Guru
*****

Group: Members
Posts: 5,266
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

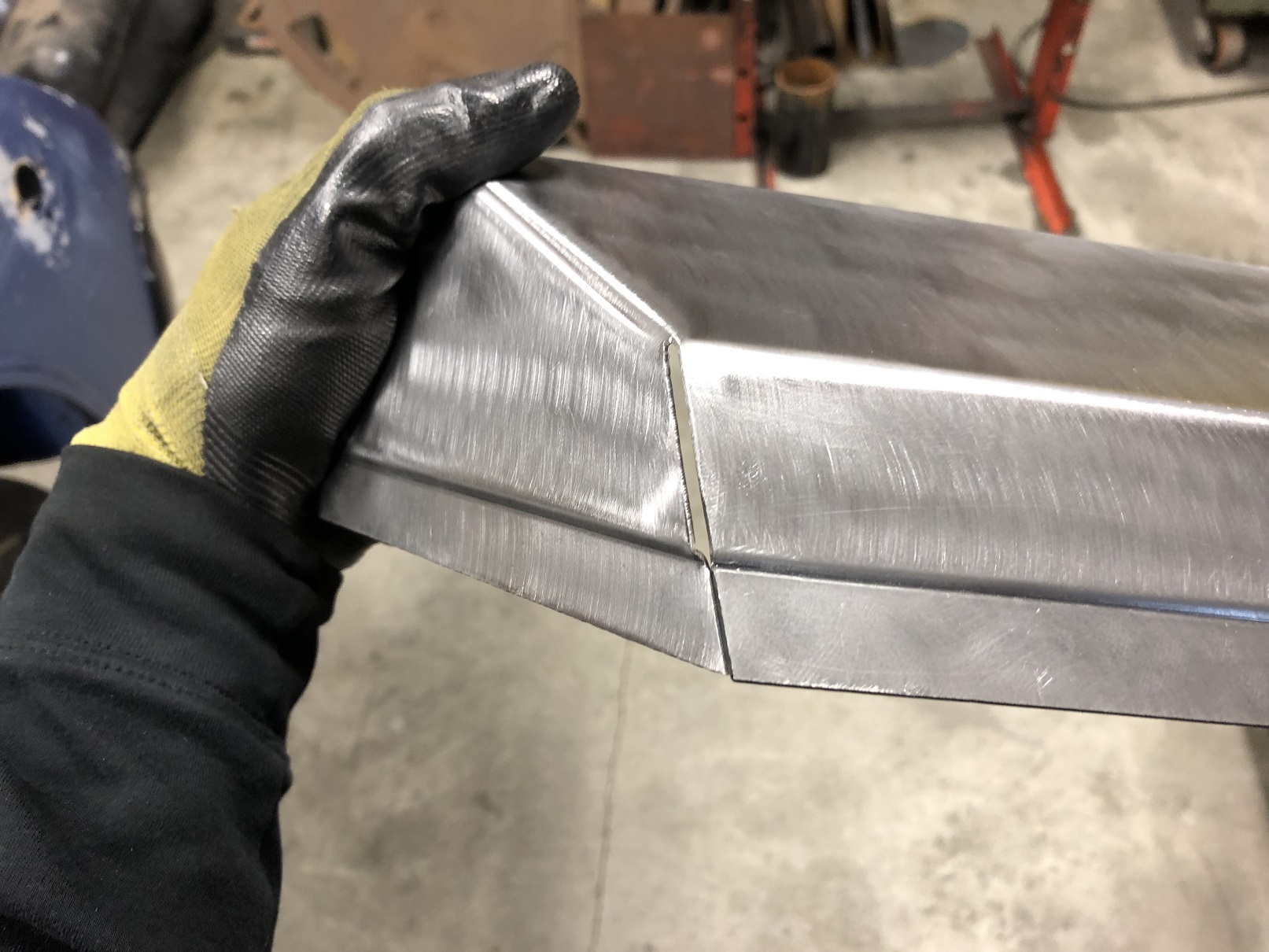

Wait, this looks out of order. There are no bends in this piece!
I determined I had to add the step BEFORE any bending.

Add a couple fails ahead of this BFO.

Sorry. BFO = Blinding Flash of the Obvious.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 21 2018, 02:28 PM
Post #1339


914 Guru
*****

Group: Members
Posts: 5,266
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

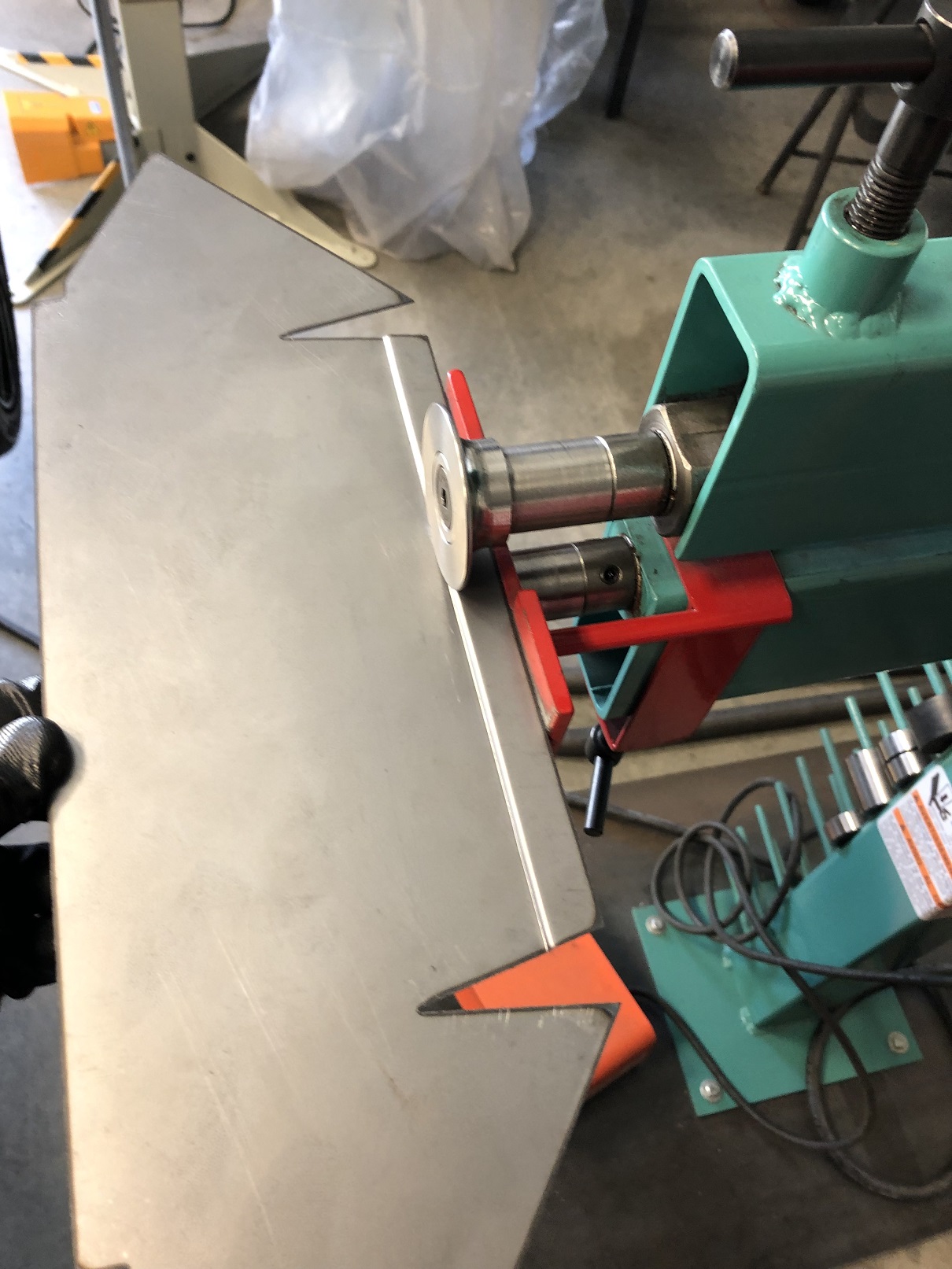

So, add the beads, then do the folding. Actually, it worked out that I had to add one bead, then fold up the sides, then add the bead to the side sections. Failed there the first time I got to that point.

Oh, you didn't know that when you fold at other than a 90 degree angle, the bead on the adjoining surface needs to be set at a different dimension?

You do now!

And I think I did to, as I posted about this earlier. But, I forgot.

A couple fails here as I remembered then worked this out...


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 21 2018, 02:30 PM
Post #1340


914 Guru
*****

Group: Members
Posts: 5,266
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

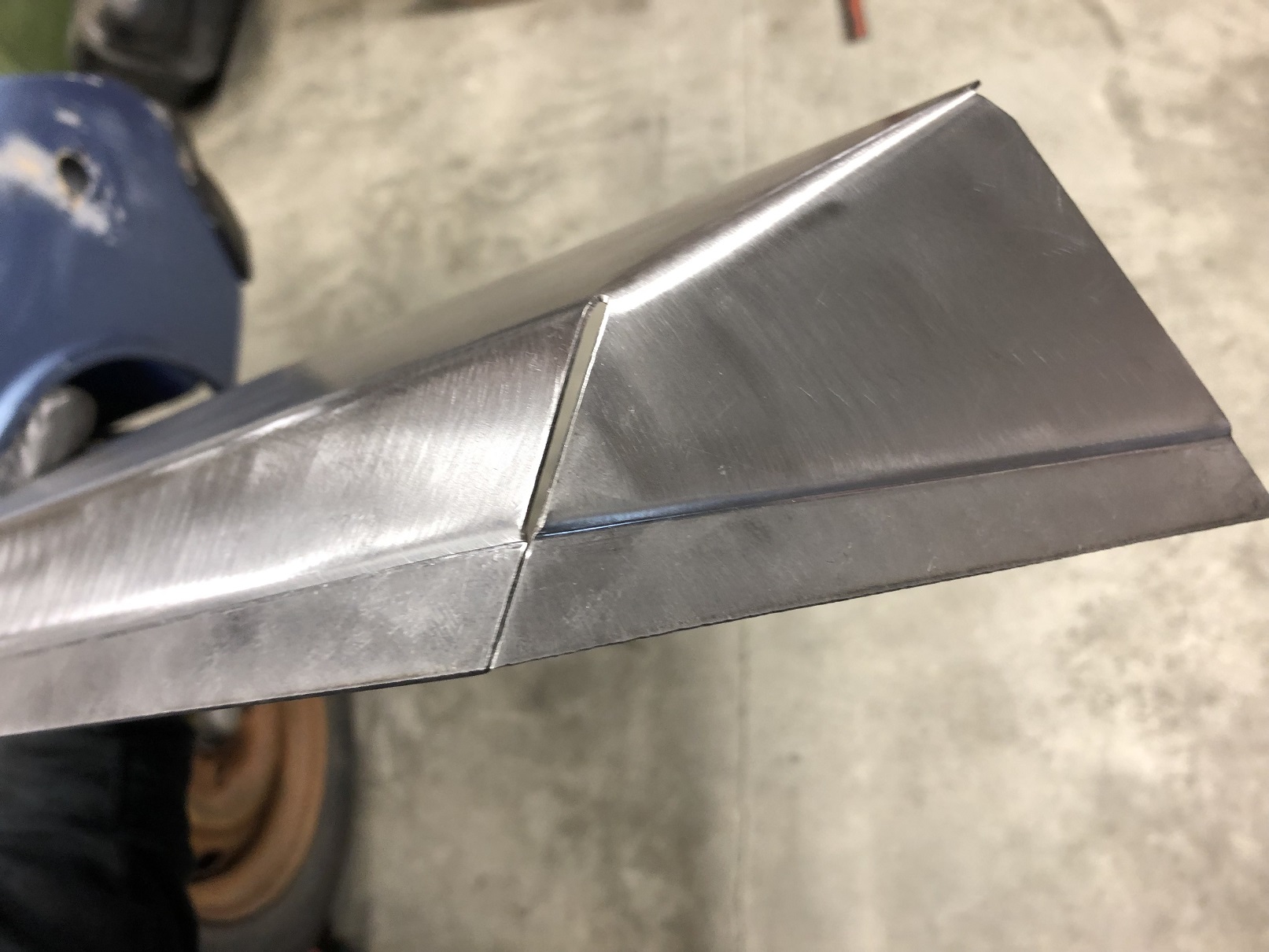

And finally. All nice and lined up on both corners!
Now to mess it up welding those open corners. (IMG:style_emoticons/default/huh.gif)


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
