> BUILD-OFF CHALLENGE: Tygaboy's '75 LS3, It seemed a good idea at the time...
tygaboy
post Apr 30 2019, 04:07 PM
Post #1581


914 Guru
*****

Group: Members
Posts: 5,244
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California



I decided to go all in on the carbon fiber insert look. So today, I drew up and cut the stamping dies for the fire wall's main panels. Here's the driver's side done. It looks so much more refined than the one on the passenger side. Plus, it's a bunch more rigid with the shape it now has.

One thing you can just barely see (but that I didn't think through) is that the door bar trim piece will need to be a tic smaller in diameter as it nearly touches the edge of the recess. Not a big deal but one of those fun "Hmmm, didn't see that coming" moments that cause a small step back.

Ah well, just another of the joys of handmade... (IMG:style_emoticons/default/smash.gif)

On to the passenger side!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Apr 30 2019, 04:14 PM
Post #1582


914 Guru
*****

Group: Members
Posts: 5,244
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California



And if you're interested in a bit more detail on the stamping dies, here's a quick vid on how it all works. One of the folks on the ArcLight plasma table user forum asked for some details so I figured I share here, too.


https://www.youtube.com/watch?v=iqzP--Jd4c0
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
restore2seater
post Apr 30 2019, 04:44 PM
Post #1583


Future 914 copilot.
**

Group: Members
Posts: 311
Joined: 30-October 04
From: Dunlap,IL
Member No.: 3,037
Region Association: None



How are you going to attach the carbon fiber to the steel?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Apr 30 2019, 06:25 PM
Post #1584


914 Guru
*****

Group: Members
Posts: 5,244
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California



QUOTE(restore2seater @ Apr 30 2019, 03:44 PM) *

How are you going to attach the carbon fiber to the steel?


I'm going to test out using a 3m structural panel bonding adhesive around the recess, then I'll lay up (standard wet layup) additional carbon fiber across the entire back of the panel so the recess lip is sandwiched between the carbon insert and carbon backing.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Andyrew
post Apr 30 2019, 07:52 PM
Post #1585


Spooling.... Please wait
**********

Group: Members
Posts: 13,376
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California



Man that looks great!!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Apr 30 2019, 09:14 PM
Post #1586


914 Guru
*****

Group: Members
Posts: 5,244
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California



QUOTE(Andyrew @ Apr 30 2019, 06:52 PM) *

Man that looks great!!!

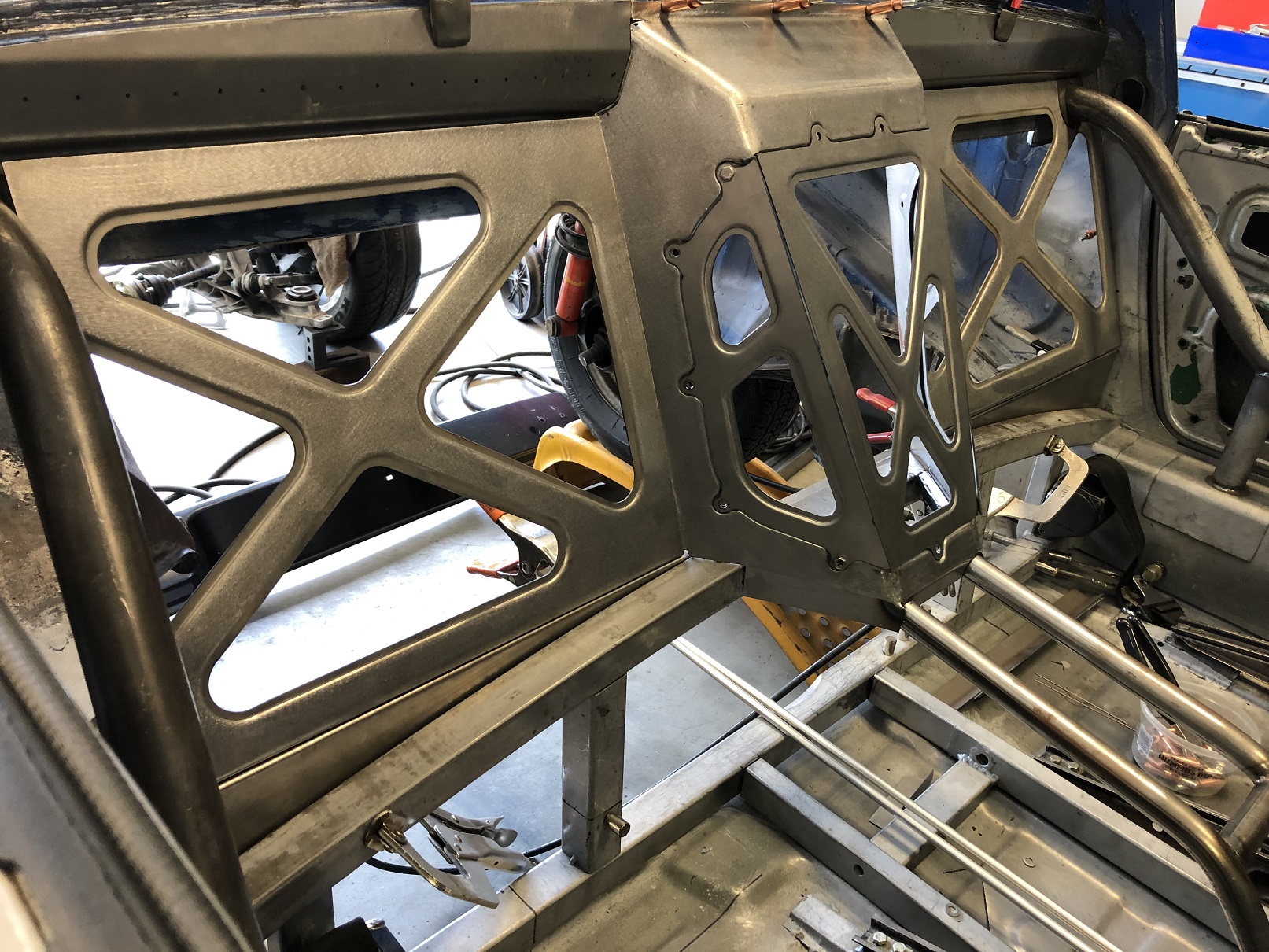

Thanks Andrew! I spent some time tuning up a few spots on this panel and gave it a once over with the DA. After all the time and various iterations, IMO, this firewall is finally coming together - and I really like it.

Now to come up with a console design that keeps this same thing going... I hope to get started on it this week.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post May 3 2019, 01:29 PM
Post #1587


914 Guru
*****

Group: Members
Posts: 5,244
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

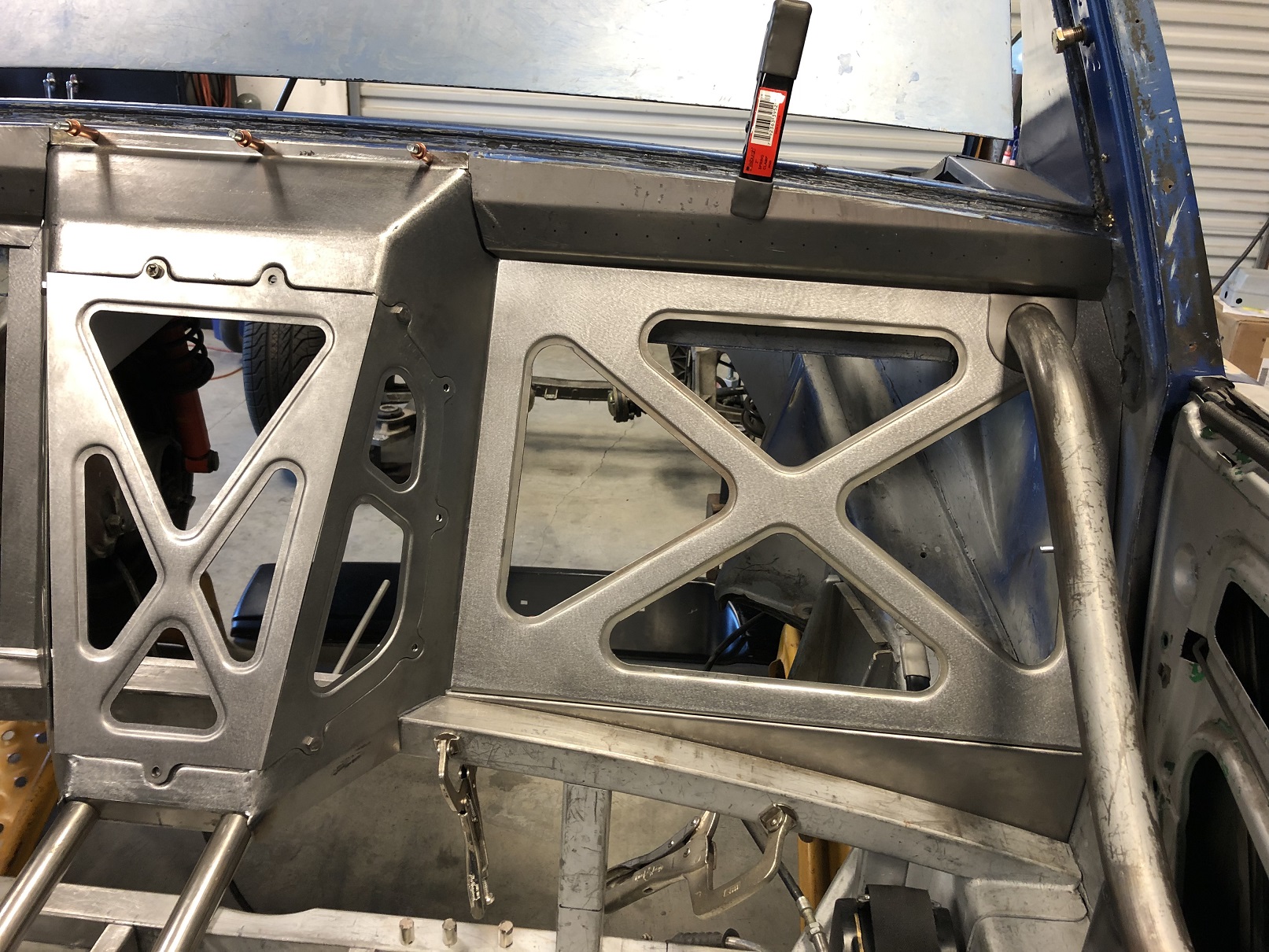

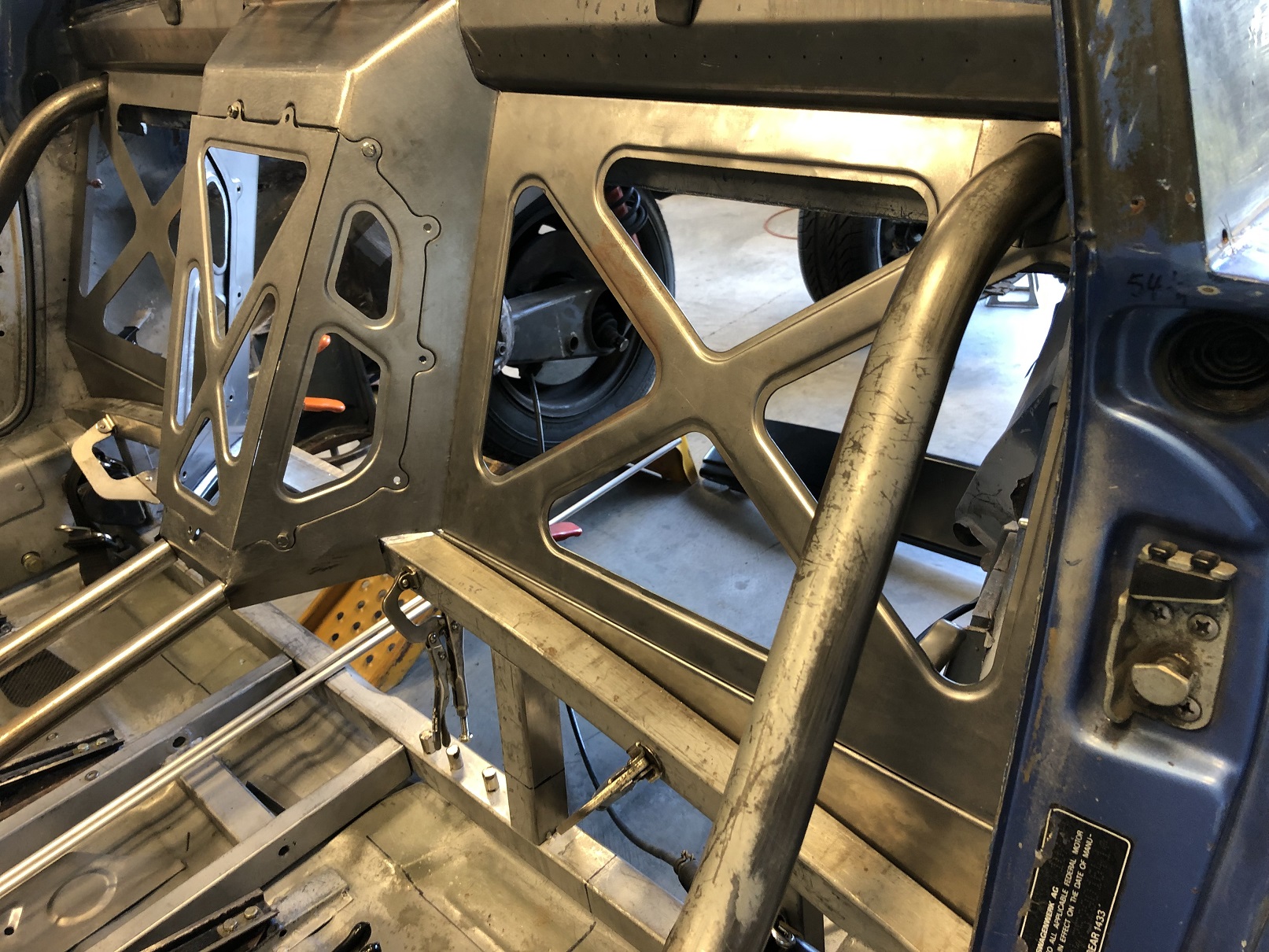

I reversed the stamping die pieces and completed the passenger side main panel.

This is a major milestone as that, for the first time, I have all the needed fire wall panels (in a design I like!) and I can begin final / permanent installation of the main pieces.



Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Andyrew
post May 3 2019, 01:36 PM
Post #1588


Spooling.... Please wait
**********

Group: Members
Posts: 13,376
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California



QUOTE(tygaboy @ May 3 2019, 12:29 PM) *

I reversed the stamping die pieces and completed the passenger side main panel.

This is a major milestone as that, for the first time, I have all the needed fire wall panels (in a design I like!) and I can begin final / permanent installation of the main pieces.

(IMG:style_emoticons/default/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post May 3 2019, 06:55 PM
Post #1589


Advanced Member
****

Group: Members
Posts: 4,686
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None



At last! (IMG:style_emoticons/default/piratenanner.gif) (IMG:style_emoticons/default/piratenanner.gif) (IMG:style_emoticons/default/piratenanner.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
markhoward
post May 3 2019, 07:39 PM
Post #1590


Member
**

Group: Members
Posts: 374
Joined: 5-March 17
From: Lafayette, CA
Member No.: 20,897
Region Association: Northern California



(IMG:style_emoticons/default/aktion035.gif) (IMG:style_emoticons/default/beer3.gif) (IMG:style_emoticons/default/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post May 4 2019, 09:48 AM
Post #1591


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None



Looks great Chris, and thanks for the video (IMG:style_emoticons/default/beer.gif) it explained everything. (IMG:style_emoticons/default/idea.gif) Off to CAD land - actually off to my son, as he is faster than I am and cheaper labor rates (IMG:style_emoticons/default/laugh.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
defianty
post May 4 2019, 10:50 AM
Post #1592


Senior Member
***

Group: Members
Posts: 659
Joined: 9-August 06
From: Essex, UK
Member No.: 6,621
Region Association: None



That looks beautiful!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
billium01
post May 4 2019, 12:12 PM
Post #1593


Member
**

Group: Members
Posts: 136
Joined: 12-April 13
Member No.: 15,764
Region Association: None



Looks great!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post May 5 2019, 05:20 PM
Post #1594


914 Guru
*****

Group: Members
Posts: 5,244
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California



Thanks much for the compliments. It helps to hear from others that I'm not completely off track!
Today was prepping the fire wall panels for installation so nothing picture worthy.

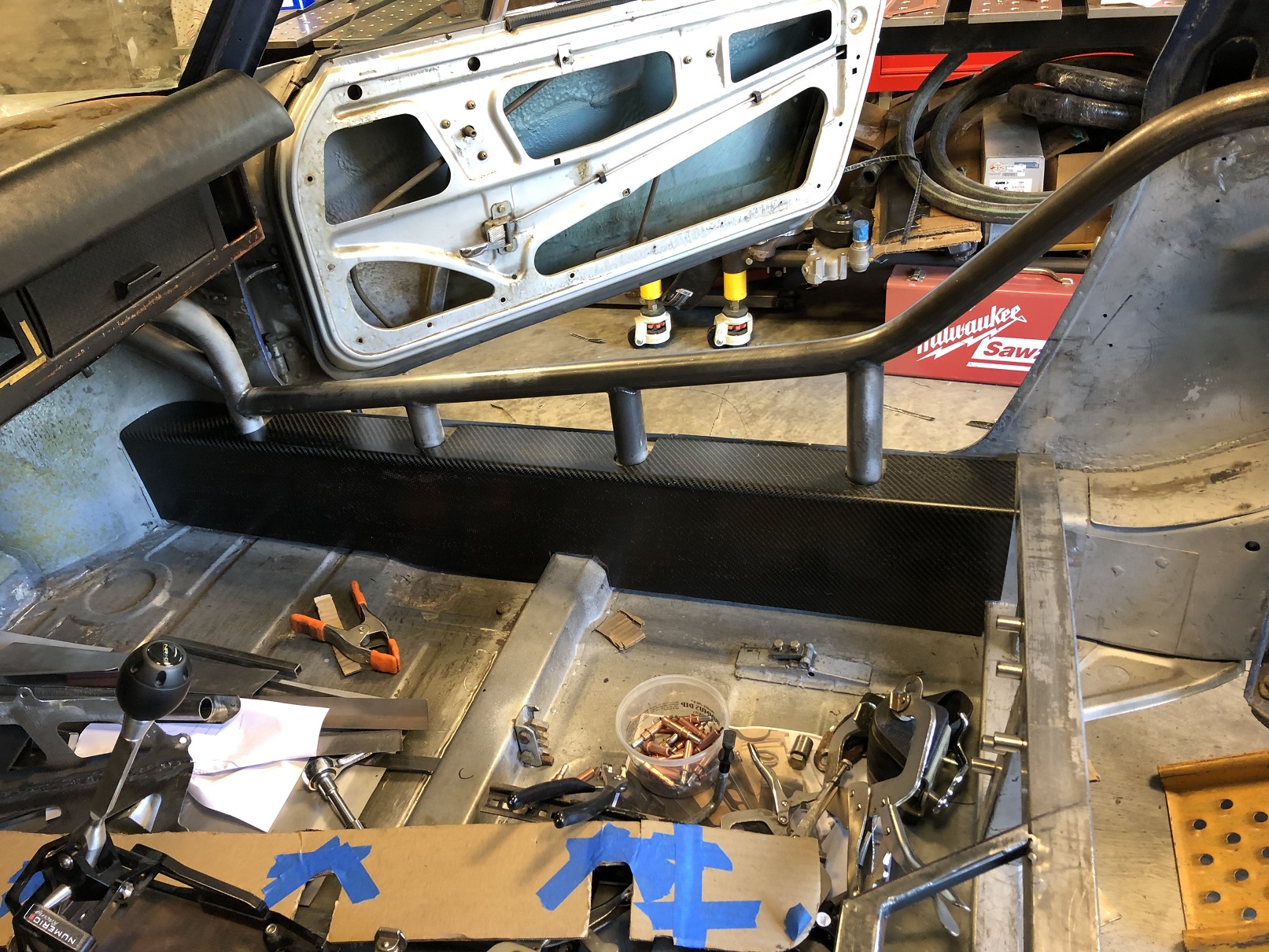

The problem happened when I noticed the carbon fiber covers I'd made for the longs. I figured I'd give a go to fitting one. None of this sort of thing does anything to helping get the car on the road. But messing with the visuals does help with motivation.

It turned out pretty well and I think it'll look really good with the carbon inserts on the fire wall.

I'll need to come up with some sort of trim / covers for around the door bar verticals and out to the door seal.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post May 6 2019, 04:21 PM
Post #1595


914 Guru
*****

Group: Members
Posts: 5,244
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

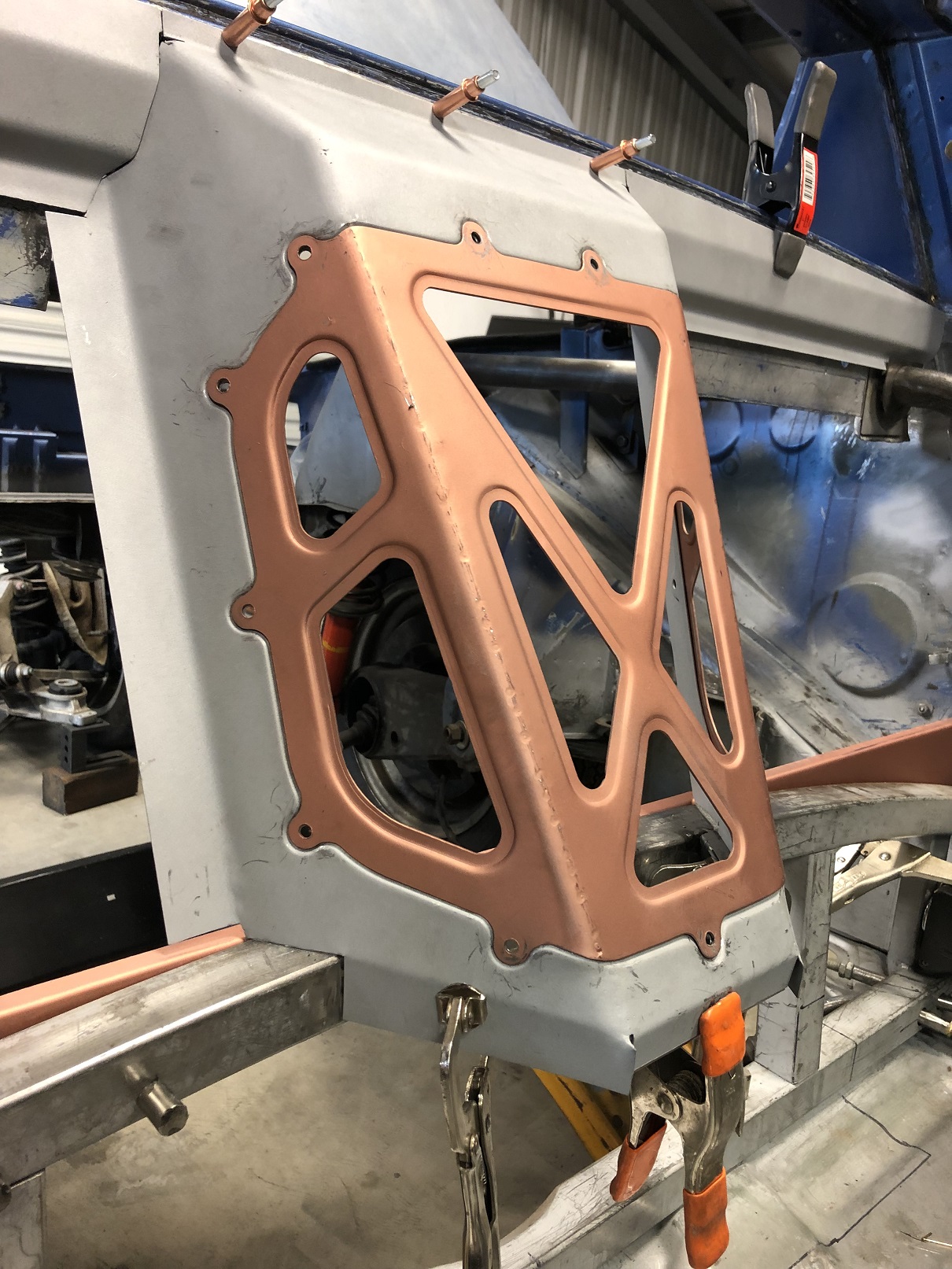

The raw panels were starting to rust where I regularly handle them so after removing the rust, I gave them a squirt of weld-through primer. I ran out of the silver so some of the parts got the copper-rich stuff.

In any case, adding the recesses to the cover panels really helped control the distortion. There was WAY less this time.

Or could it be because I was more judicious with the welding heat? (IMG:style_emoticons/default/idea.gif)
Or was it that I planished the tacks and test fit the cover after every 5-10 tacks?

Probably everything helped.

In the metal shaping world, a sorta rule of thumb is that the panel is ready if it requires only a finger's force (ish) to hold it in place against the shape of the buck. This pic shows the cover in place with no fingers! No fasteners, either. It fits perfectly into the recesses. Yes, there will be some filler to address some of the surface imperfections but overall, it's one of the best results I've been able to achieve so far.

And famous last words but I think I'm finally getting the hang of TIG welding. It certainly doesn't hurt that I get practice with the metal art I do.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post May 9 2019, 06:35 PM
Post #1596


914 Guru
*****

Group: Members
Posts: 5,244
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

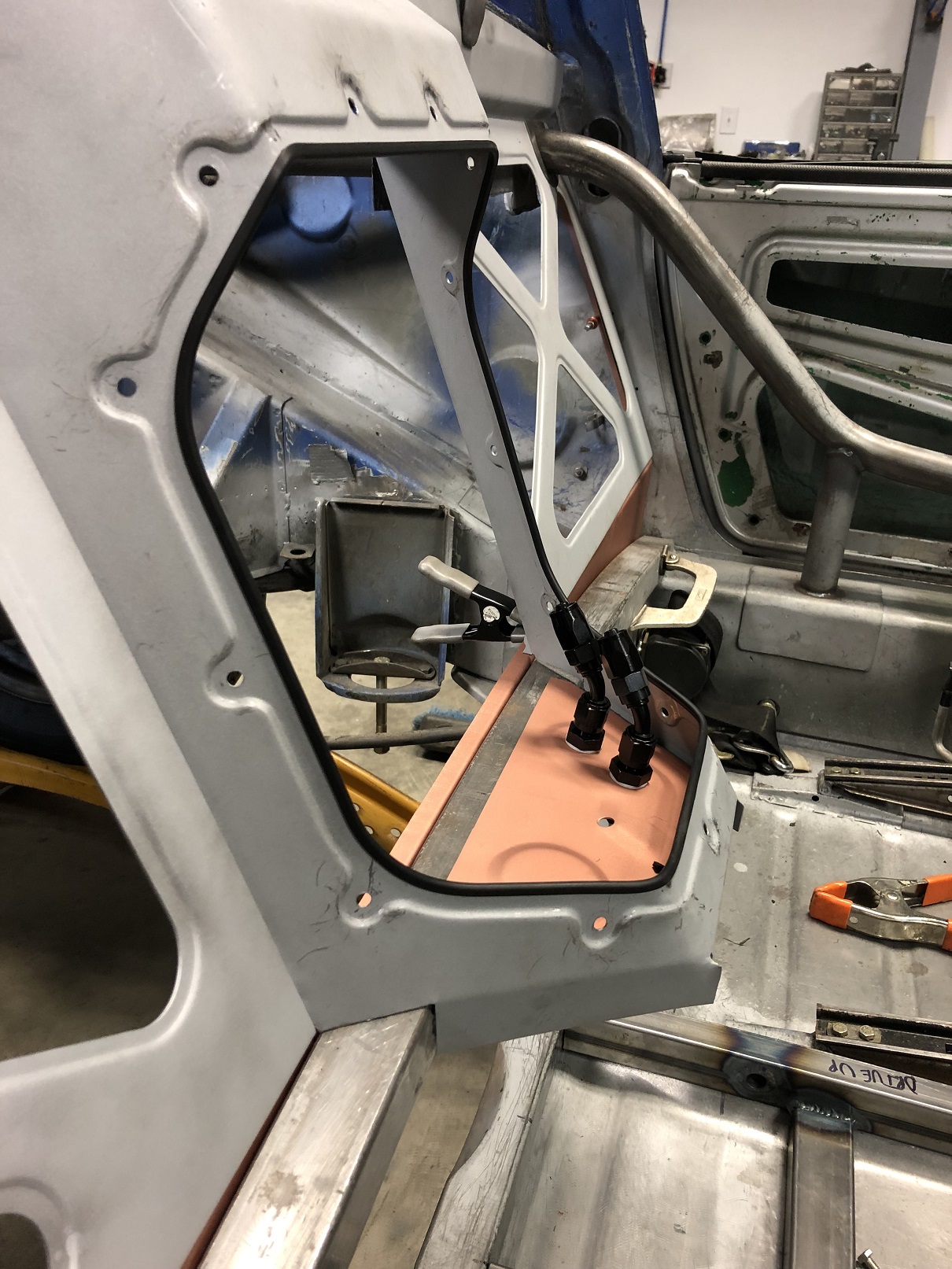

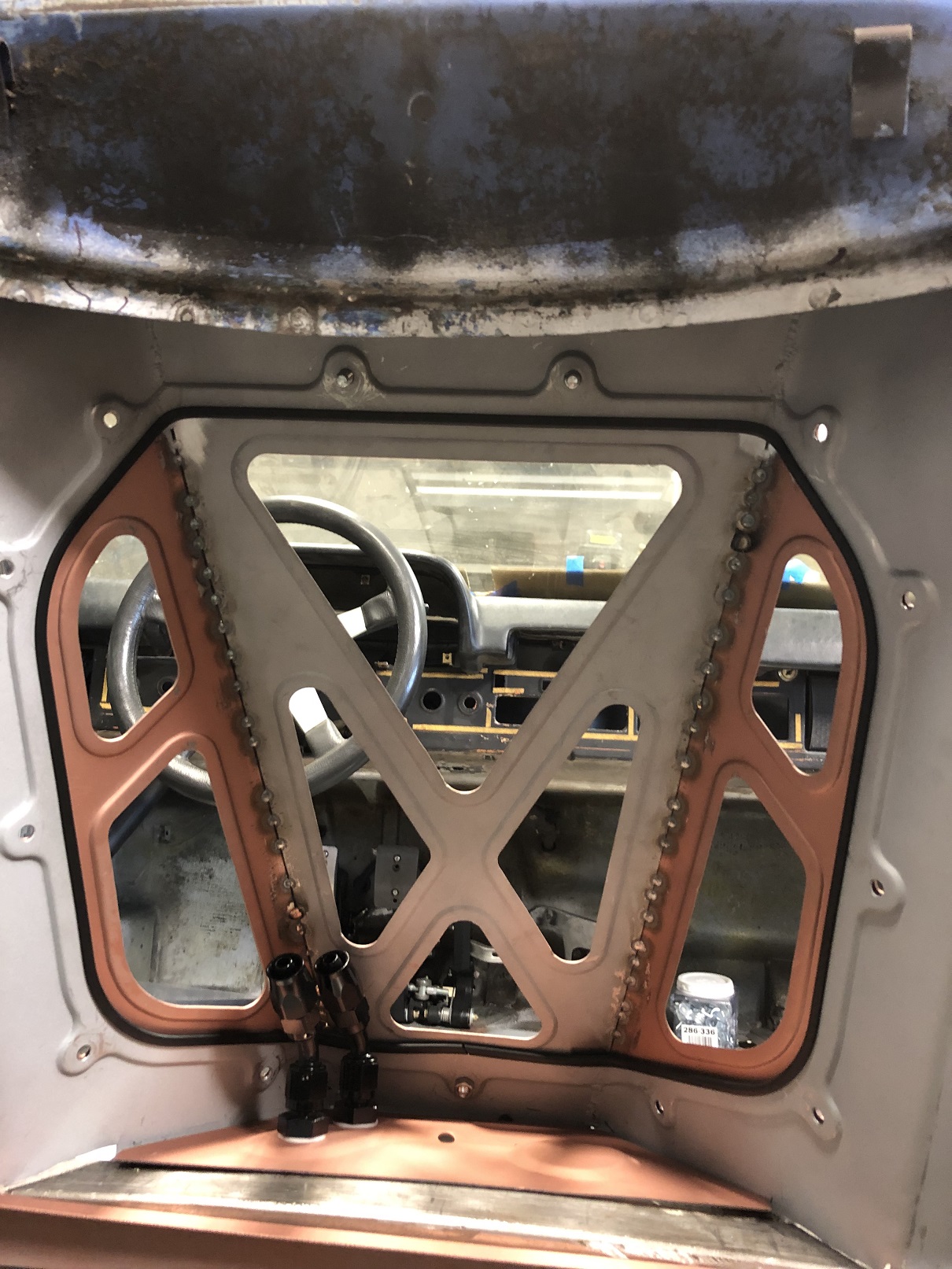

Here's the first go at the seal for the removable cover. Just a simple rubber U-channel from McMaster-Carr. Nice and tidy and from what I can see from the engine's perspective, it looks like it'll work just fine.

Next on the list is to work out the cover fasteners. I ordered a couple different sized rivnuts and bolt head styles so I should know what's what early next week.
Once that's determined, I really need to get this fire wall fully installed.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Andyrew
post May 9 2019, 07:42 PM
Post #1597


Spooling.... Please wait
**********

Group: Members
Posts: 13,376
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California



Boy that looks great!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post May 13 2019, 07:51 PM
Post #1598


914 Guru
*****

Group: Members
Posts: 5,244
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

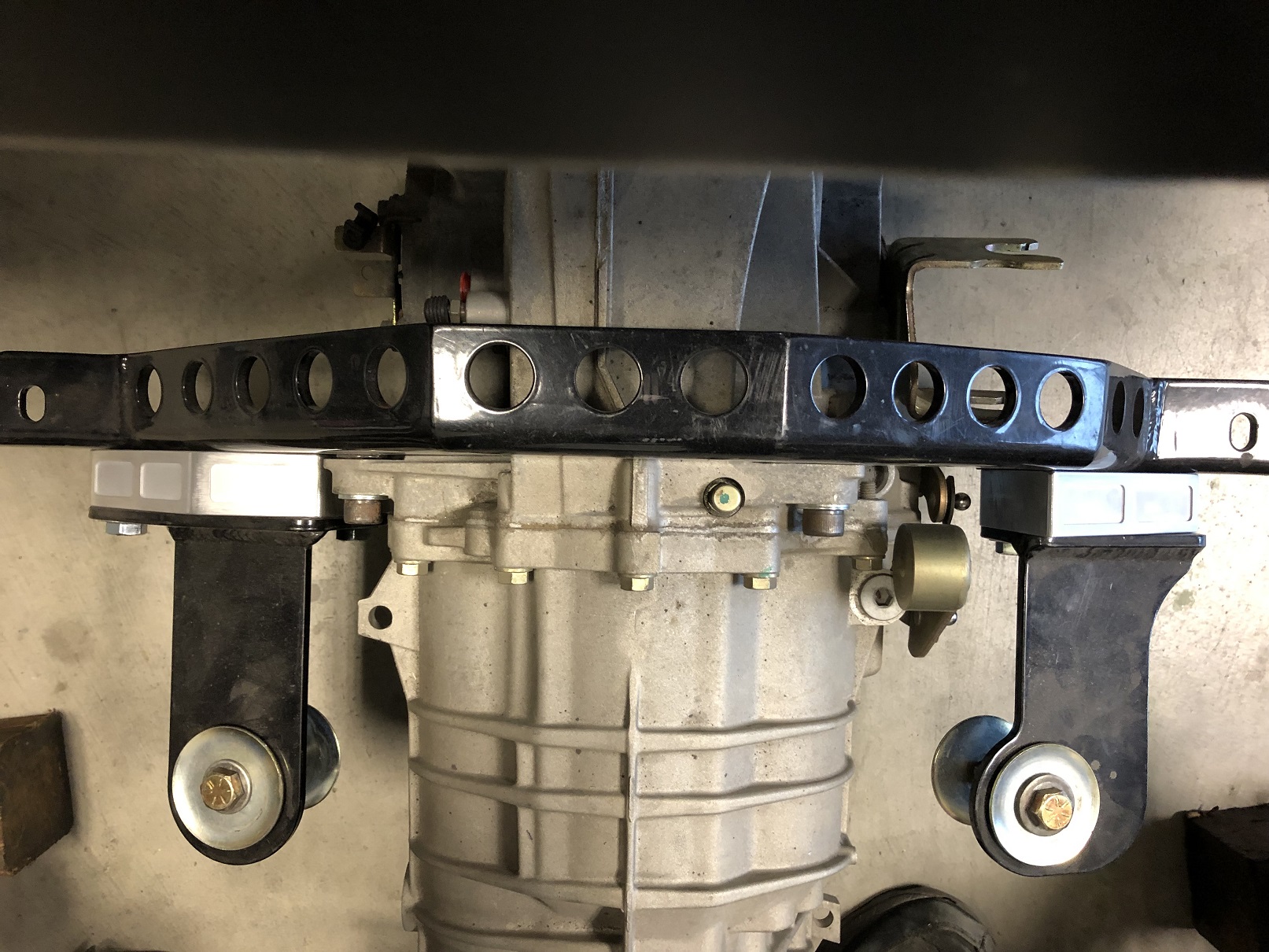

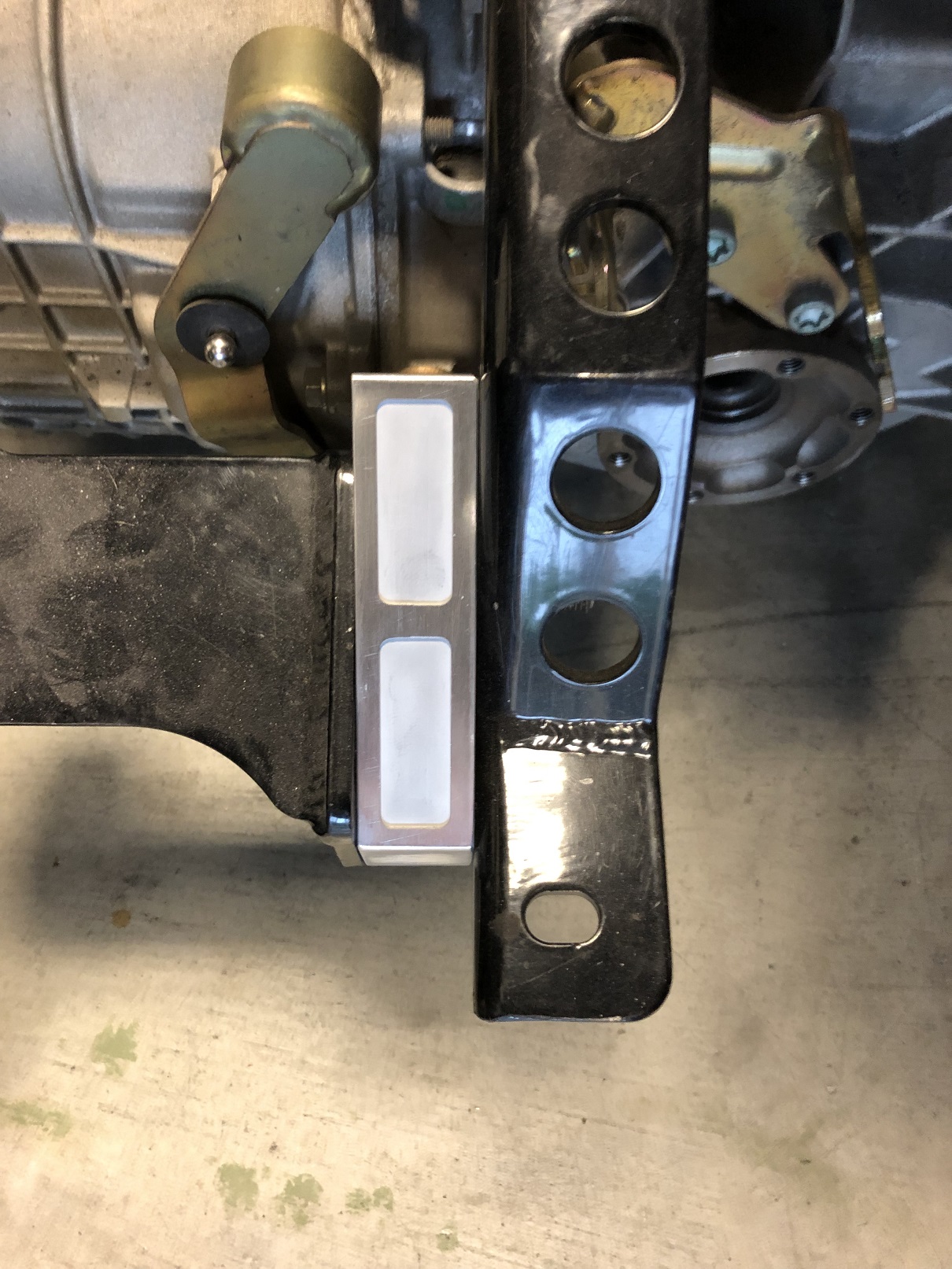

Simplicity vs plainness. Simplicity can be elegant but IMHO, plainness is, in most cases, boring. So rather than doing something constructive, today I added some style points to the drive train spacers. You may recall that I used these to move the engine/trans forward in the chassis. They are totally visible, what with the trunk floor removed.

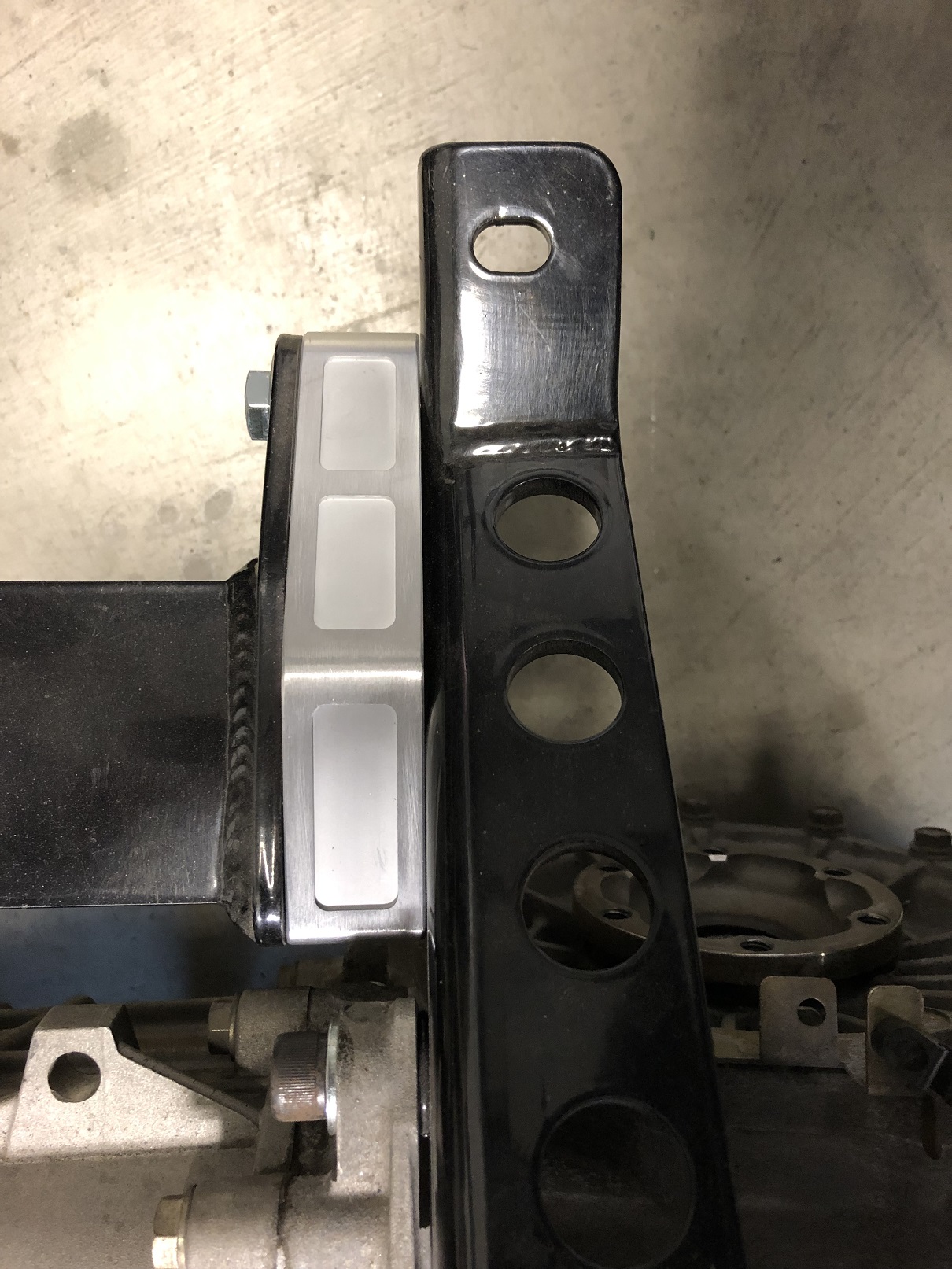

Anyway, they we just big chunky looking things so I cut some relief pockets in them.
Then I soda blasted the surfaces before draw filing them, leaving a contrasting finish in the pocket. I may come back and cut them deeper. But they sure look LOTS better. And hey, they're lighter, too! (IMG:style_emoticons/default/smilie_pokal.gif) (IMG:style_emoticons/default/laugh.gif)


Attached thumbnail(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post May 13 2019, 08:08 PM
Post #1599


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains



That is most definitely "Ore-Ida." Nice work! (IMG:style_emoticons/default/thumb3d.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
preach
post May 13 2019, 08:13 PM
Post #1600


Ridge Runner
***

Group: Members
Posts: 1,025
Joined: 27-March 10
From: Live Free or Die
Member No.: 11,513
Region Association: North East States



Haven't been in this thread in a few days. Firewall is looking fantastic!
