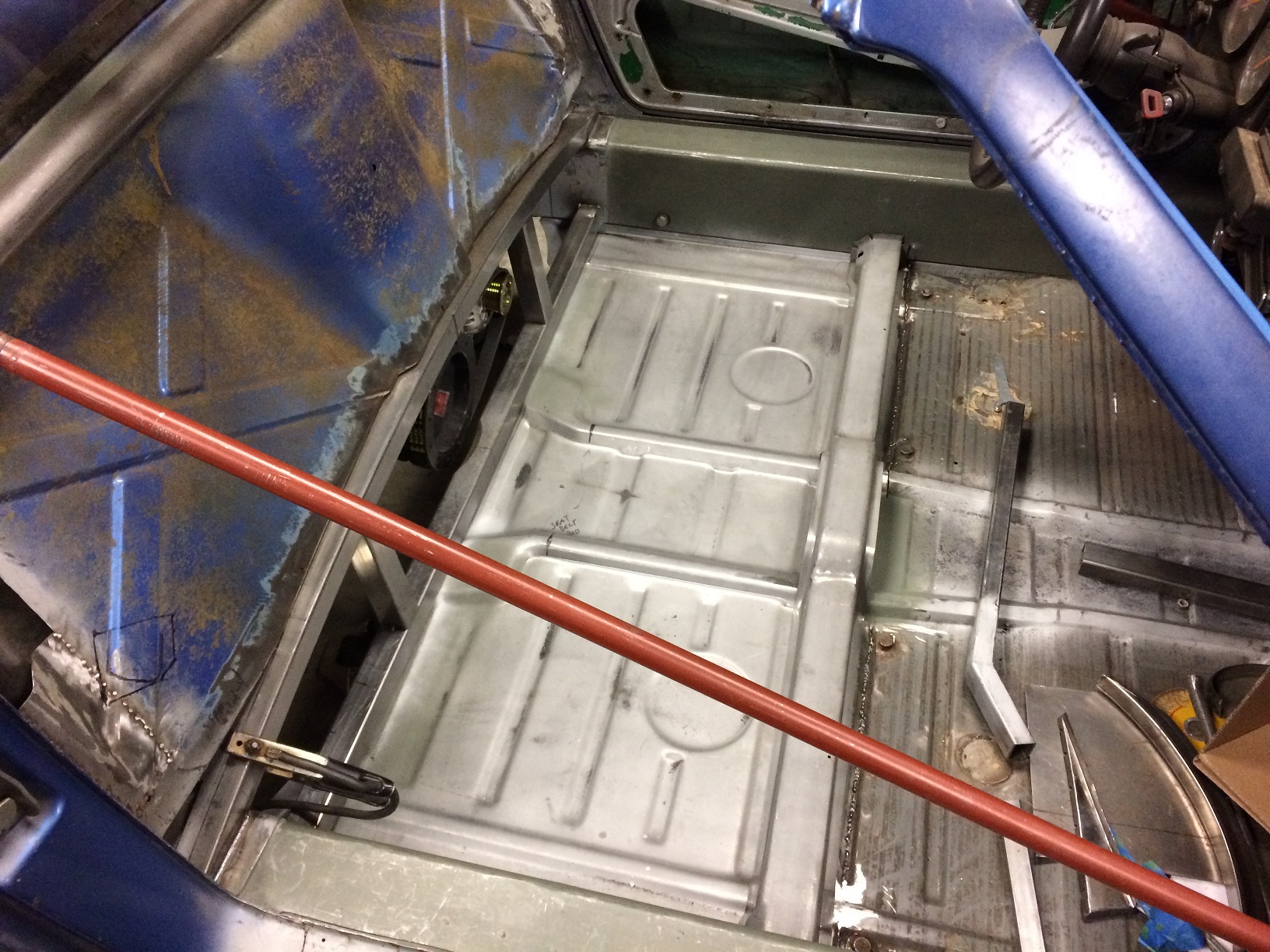

I also got the lower fire wall uprights tacked in. Once they are final welded and I mod the driver's side of the floor pan, the floor goes in.
Then it's on to the seats. Once that's done, I'll move to the tunnel and pedals.

Man, this is taking a long time.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Feb 20 2017, 07:22 PM
Post #322


914 Guru
*****

Group: Members
Posts: 5,244
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California



QUOTE(914forme @ Feb 20 2017, 04:58 PM) *

QUOTE(tygaboy @ Feb 17 2017, 07:35 PM) *

I confess that I succumbed to peer pressure. I just couldn't take people using the term "short" in relation to any of my stuff.
Tangerine Racing came through with an instant shipment of just the tall (long?) tower pieces! Thanks Chris!
The plan is to get them fully installed tomorrow. (IMG:style_emoticons/default/welder.gif)

(IMG:style_emoticons/default/poke.gif) Look really good (IMG:style_emoticons/default/poke.gif) Now do a hard top conversion. (IMG:style_emoticons/default/poke.gif)


What about a T-top? Oh, wait, I know: gull wing doors! (IMG:style_emoticons/default/shades.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Feb 23 2017, 02:32 PM
Post #323


914 Guru
*****

Group: Members
Posts: 5,244
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California



As one of my car buddies recently reminded me:
There's no kill like overkill! (IMG:style_emoticons/default/aktion035.gif)

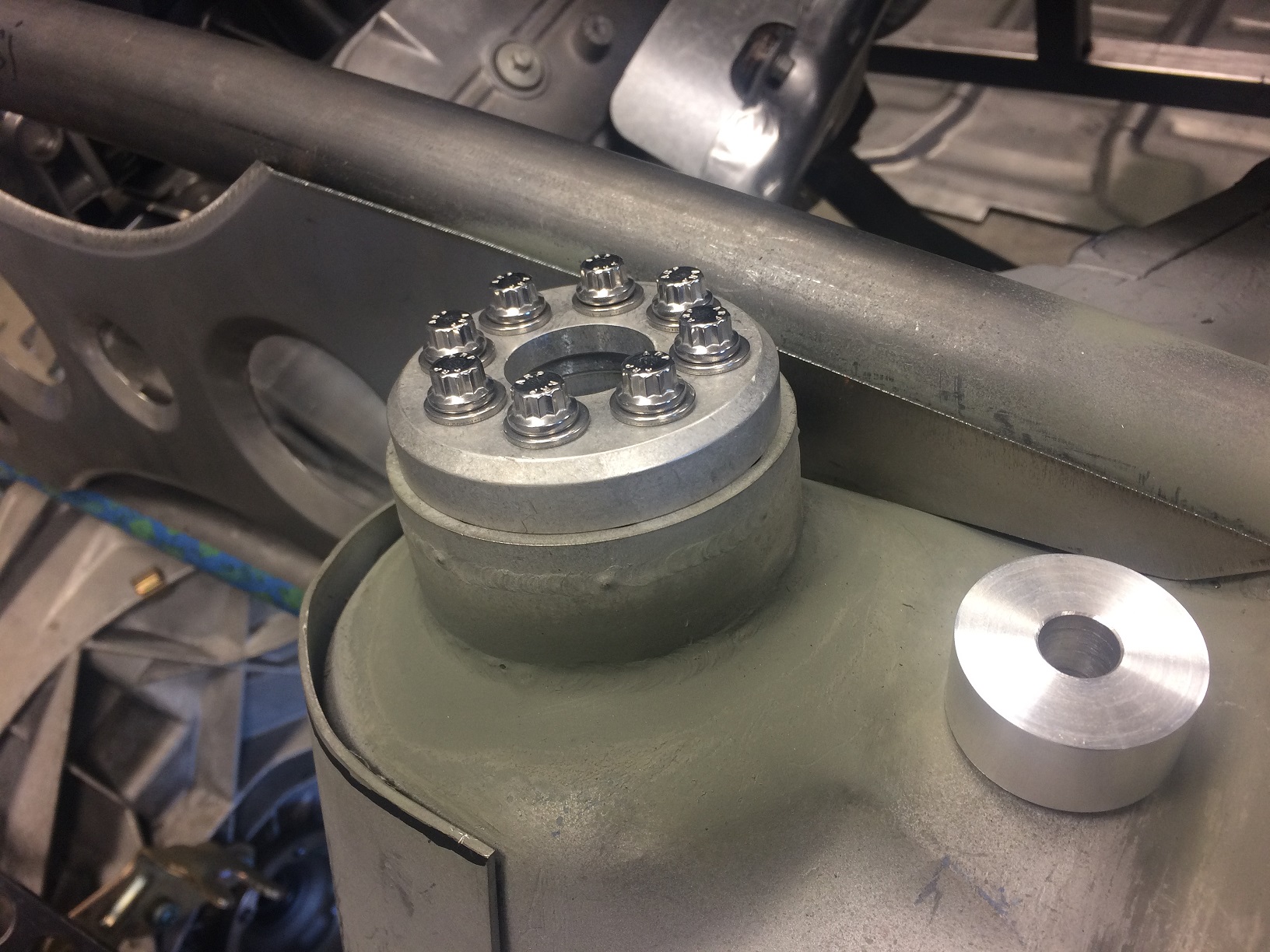

So I treated the Tangerine Racing towers to an upgrade to ARP stainless fasteners.
I mean, doesn't Foley's stuff deserve the top shelf treatment? (IMG:style_emoticons/default/poke.gif)

I'm going to anodize the top piece, too. Black, maybe gold, still TBD on color.

And that's the spacer that was fabbed to address the interference that would otherwise occur between the shock top hat and the bottom of the tower extension.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Feb 23 2017, 02:36 PM
Post #324


914 Guru
*****

Group: Members
Posts: 5,244
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

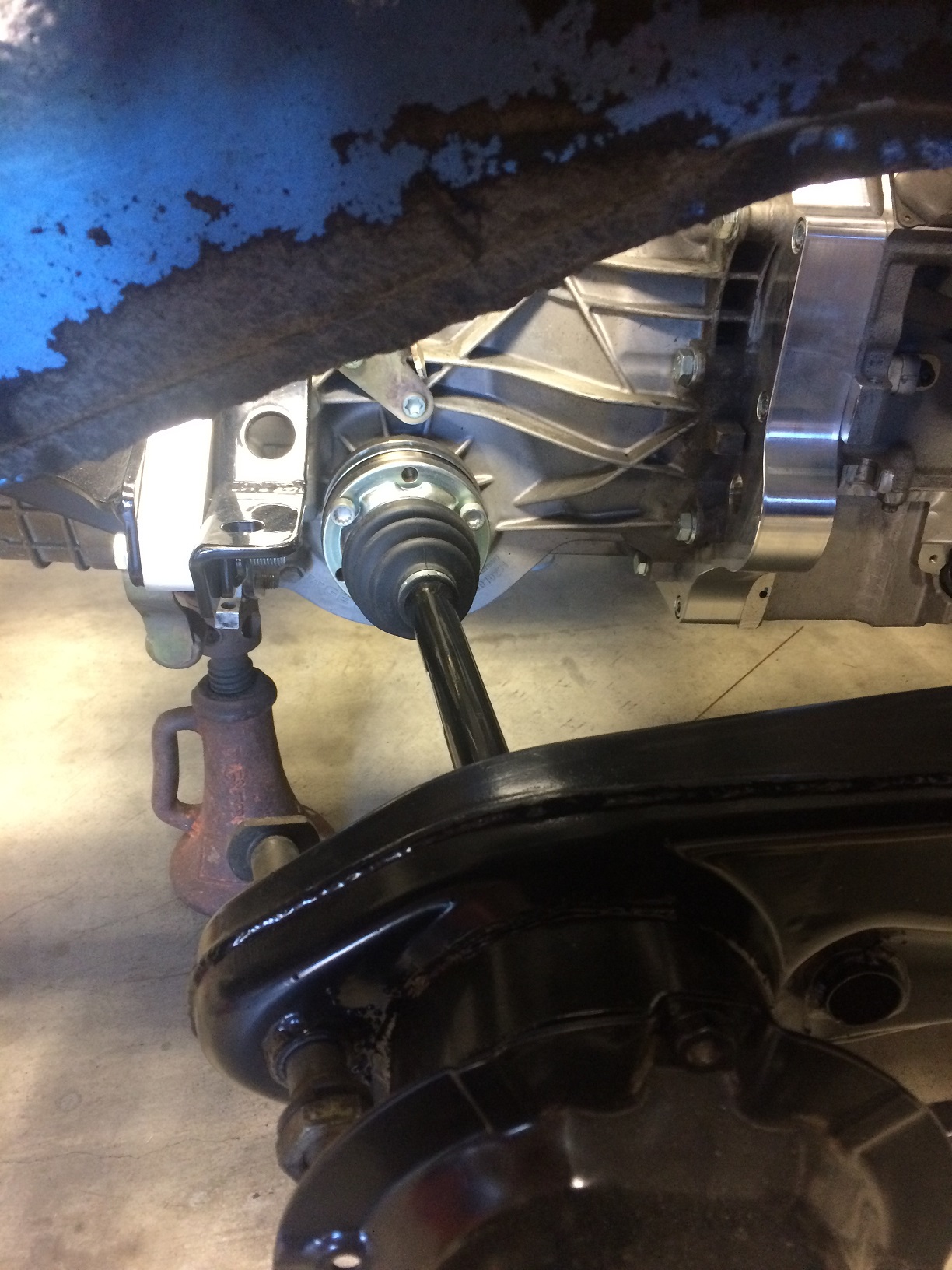

And here's the benefit to all that work that went into moving the drive line forward:
It's kinda hard to tell in the pics, but I have a reasonably relaxed CV angle. (IMG:style_emoticons/default/cheer.gif)

This should address any concerns about CV / CV boot failure.

Maybe someone (Tony?) could post a pic of what this looks like with the trans in the "stock" location?

And yes, there is a spacer that goes between the inner CV and the output drive. I just didn't have long enough bolts...


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cracker
post Feb 23 2017, 02:46 PM
Post #325


Advanced Member
****

Group: Members
Posts: 2,148
Joined: 2-February 10
From: Atlanta (area)
Member No.: 11,316
Region Association: South East States



You are welcome Chris (LOL)! That's where it needs to be - great job!

I am still not sure it will work - I need to test it when out there this summer... (IMG:style_emoticons/default/poke.gif)

T
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Feb 23 2017, 02:51 PM
Post #326


914 Guru
*****

Group: Members
Posts: 5,244
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California



QUOTE(Cracker @ Feb 23 2017, 12:46 PM) *

You are welcome Chris (LOL)! That's where it needs to be - great job!

I am still not sure it will work - I need to test it when out there this summer... (IMG:style_emoticons/default/poke.gif)

T


Don't kid yourself, my friend. Your experiences are helping shape (literally!) this build and I GREATLY appreciate your willingness to spend time sharing your lessons learned.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cracker
post Feb 23 2017, 04:57 PM
Post #327


Advanced Member
****

Group: Members
Posts: 2,148
Joined: 2-February 10
From: Atlanta (area)
Member No.: 11,316
Region Association: South East States



I tried but do not have a good picture of my set-up Chris...the hassle of moving the drive-line forward is a HUGE improvement over what I am dealing with!

Tony
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Feb 23 2017, 05:59 PM
Post #328


914 Guru
*****

Group: Members
Posts: 5,244
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

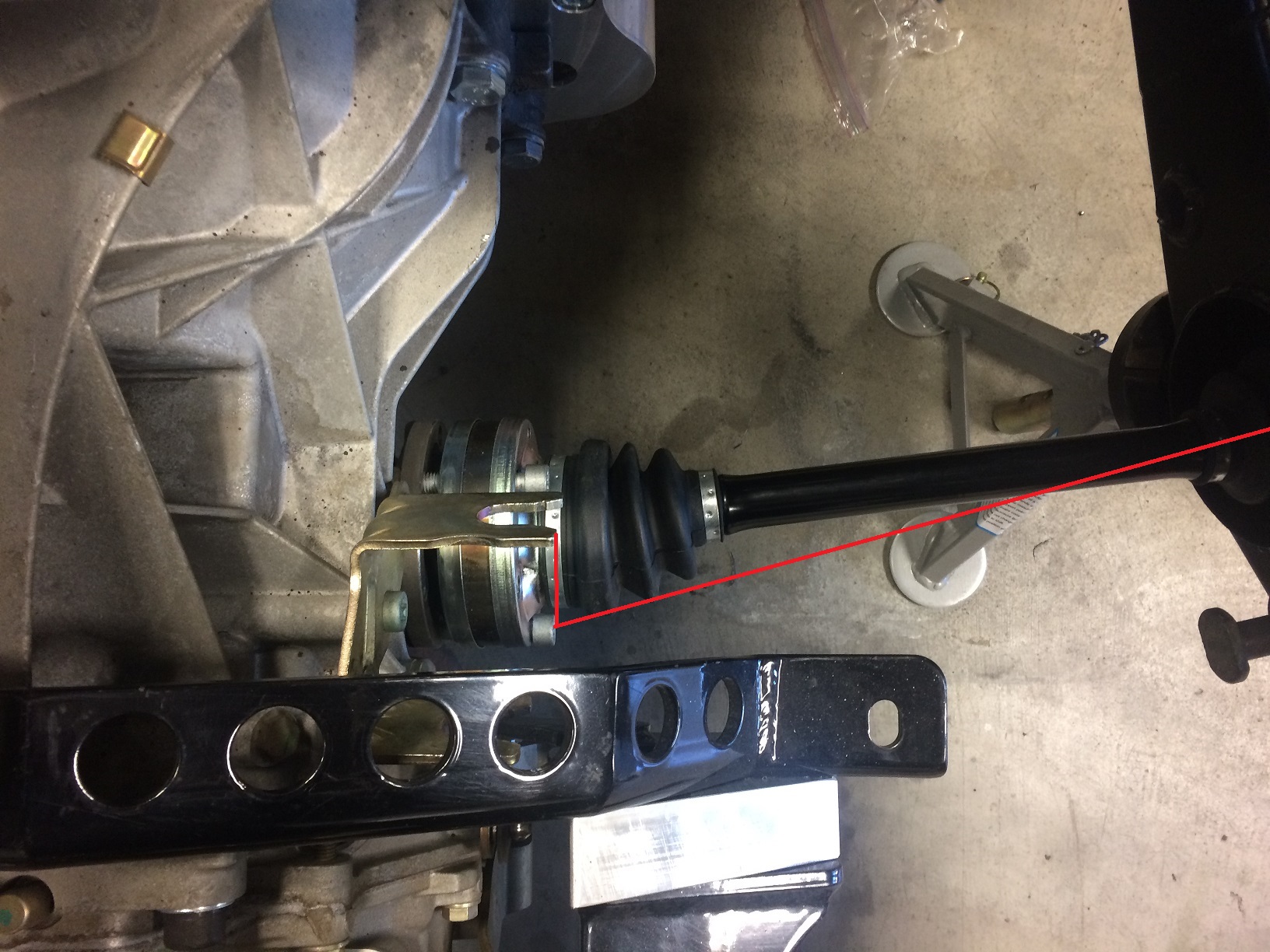

OK, so not too scientific but here's an approximation of the angle the axle would otherwise have been.
Looks like I reduced it about 1/2, maybe?


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cracker
post Feb 23 2017, 06:11 PM
Post #329


Advanced Member
****

Group: Members
Posts: 2,148
Joined: 2-February 10
From: Atlanta (area)
Member No.: 11,316
Region Association: South East States



I would defiantly say that is fairly accurate - that is a big deal.

T
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
andys
post Feb 23 2017, 09:45 PM
Post #330


Advanced Member
****

Group: Members
Posts: 2,165
Joined: 21-May 03
From: Valencia, CA
Member No.: 721
Region Association: None



Here's a photo of my VSS and reluctor. It's the GM VSS, but thought I'd share anyway. The reluctor clears the Porsche 911 CV. I'm using the Audi VSS (on the 01e trans) to run my speedo.

Andys


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cracker
post Feb 23 2017, 09:49 PM
Post #331


Advanced Member
****

Group: Members
Posts: 2,148
Joined: 2-February 10
From: Atlanta (area)
Member No.: 11,316
Region Association: South East States



Andy (howdy!)...did you mean to post this in Rudy's thread/build?

Tony

QUOTE(andys @ Feb 23 2017, 10:45 PM) *

Here's a photo of my VSS and reluctor. It's the GM VSS, but thought I'd share anyway. The reluctor clears the Porsche 911 CV. I'm using the Audi VSS (on the 01e trans) to run my speedo.

Andys

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Curbandgutter
post Feb 23 2017, 11:09 PM
Post #332


Senior Member
***

Group: Members
Posts: 564
Joined: 8-March 13
From: Murrieta CA
Member No.: 15,637
Region Association: Southern California



QUOTE(tygaboy @ Feb 23 2017, 03:59 PM) *

OK, so not too scientific but here's an approximation of the angle the axle would otherwise have been.
Looks like I reduced it about 1/2, maybe?


Wow that is a hell of a lot better then where it would have ended up.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Curbandgutter
post Feb 23 2017, 11:09 PM
Post #333


Senior Member
***

Group: Members
Posts: 564
Joined: 8-March 13
From: Murrieta CA
Member No.: 15,637
Region Association: Southern California



QUOTE(Cracker @ Feb 23 2017, 07:49 PM) *

Andy (howdy!)...did you mean to post this in Rudy's thread/build?

Tony

QUOTE(andys @ Feb 23 2017, 10:45 PM) *

Here's a photo of my VSS and reluctor. It's the GM VSS, but thought I'd share anyway. The reluctor clears the Porsche 911 CV. I'm using the Audi VSS (on the 01e trans) to run my speedo.

Andys



I think so (IMG:style_emoticons/default/dry.gif) Regardless thanks Andy. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
andys
post Feb 24 2017, 09:15 AM
Post #334


Advanced Member
****

Group: Members
Posts: 2,165
Joined: 21-May 03
From: Valencia, CA
Member No.: 721
Region Association: None



QUOTE(Curbandgutter @ Feb 23 2017, 09:09 PM) *

QUOTE(Cracker @ Feb 23 2017, 07:49 PM) *

Andy (howdy!)...did you mean to post this in Rudy's thread/build?

Tony

QUOTE(andys @ Feb 23 2017, 10:45 PM) *

Here's a photo of my VSS and reluctor. It's the GM VSS, but thought I'd share anyway. The reluctor clears the Porsche 911 CV. I'm using the Audi VSS (on the 01e trans) to run my speedo.

Andys



I think so (IMG:style_emoticons/default/dry.gif) Regardless thanks Andy. (IMG:style_emoticons/default/beerchug.gif)


Just wanted to see if you guys were paying attention (IMG:style_emoticons/default/blink.gif)

Andys
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Feb 24 2017, 07:16 PM
Post #335


914 Guru
*****

Group: Members
Posts: 5,244
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

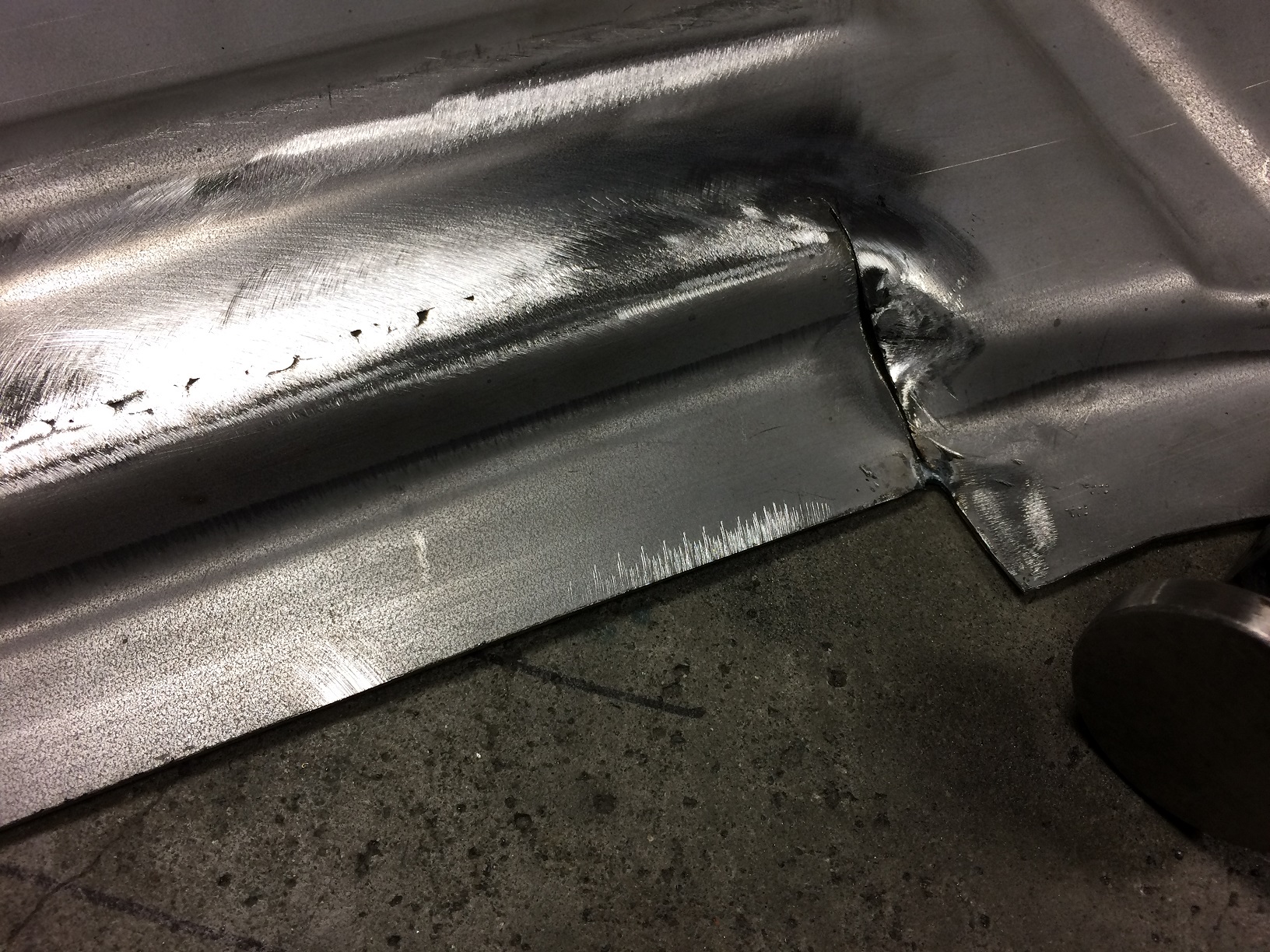

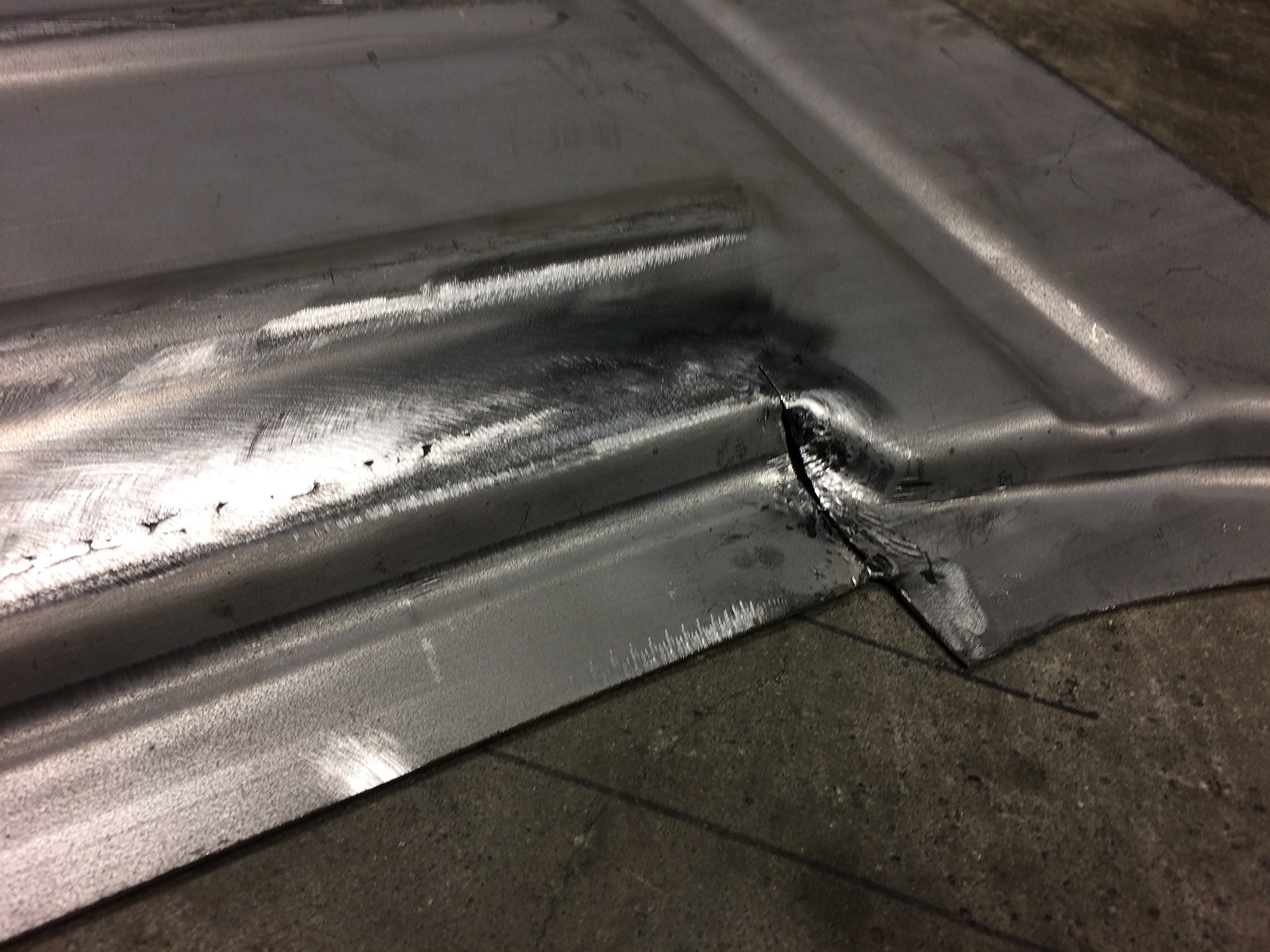

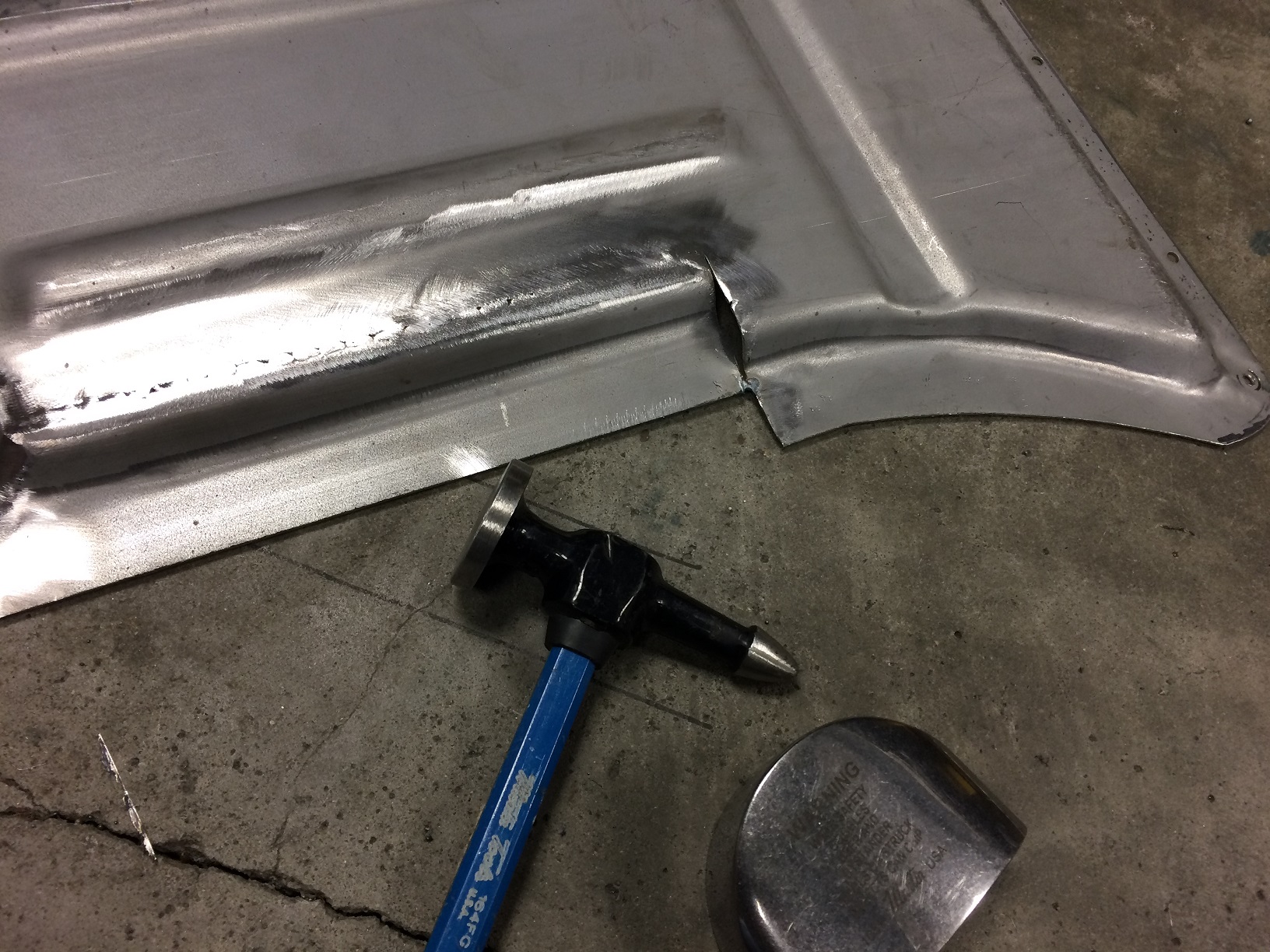

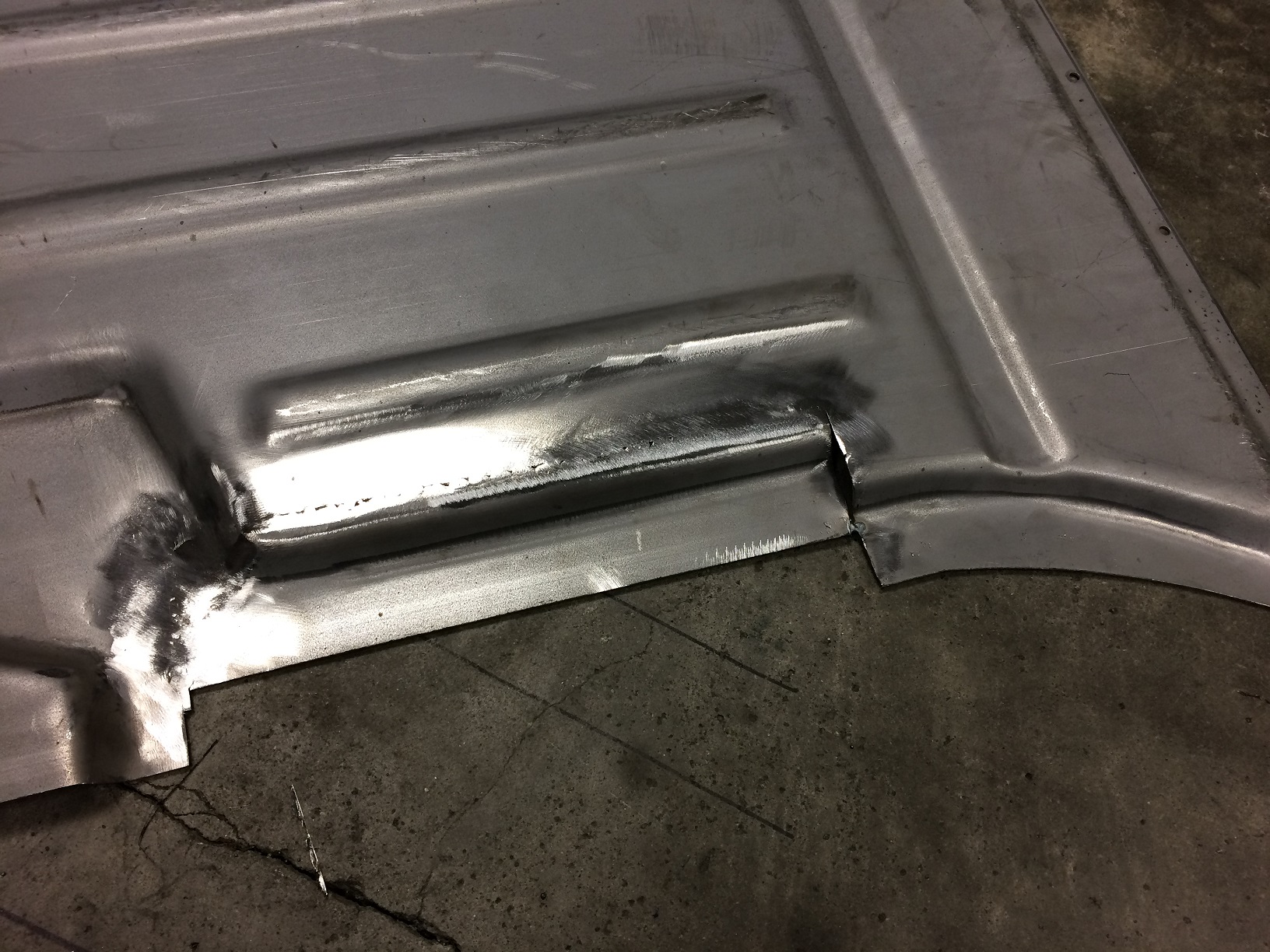

For those who may be interested, here's a better review of the rear floor mod.
1. Cut and move that rear section forward.
2. The gap I need to close
3. Start hammering the curve back into itself
4. Overall shape is where I want it so I'm calling it finished and ready to weld!

Next, I mock it back into the car and trim the edge to match the jacking donut triangle.

This floor is all but ready to go in!


Attached thumbnail(s)
Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Curbandgutter
post Feb 25 2017, 09:33 AM
Post #336


Senior Member
***

Group: Members
Posts: 564
Joined: 8-March 13
From: Murrieta CA
Member No.: 15,637
Region Association: Southern California



QUOTE(tygaboy @ Feb 24 2017, 05:16 PM) *

For those who may be interested, here's a better review of the rear floor mod.
1. Cut and move that rear section forward.
2. The gap I need to close
3. Start hammering the curve back into itself
4. Overall shape is where I want it so I'm calling it finished and ready to weld!

Next, I mock it back into the car and trim the edge to match the jacking donut triangle.

This floor is all but ready to go in!


Chris that is really nice work. The way you hammered in that reverse curve .... (IMG:style_emoticons/default/smilie_pokal.gif) . t's amazing how you show these pics and most people look at it and don't realize the 20 hours behind that shot. Keep up the excellent work. I'll be doing my floors soon as well. Need to get motor and trans in place before I finalize the final tubes. Then it's off to the floors like you.

Rudy
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Feb 27 2017, 08:43 AM
Post #337


914 Guru
*****

Group: Members
Posts: 5,244
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

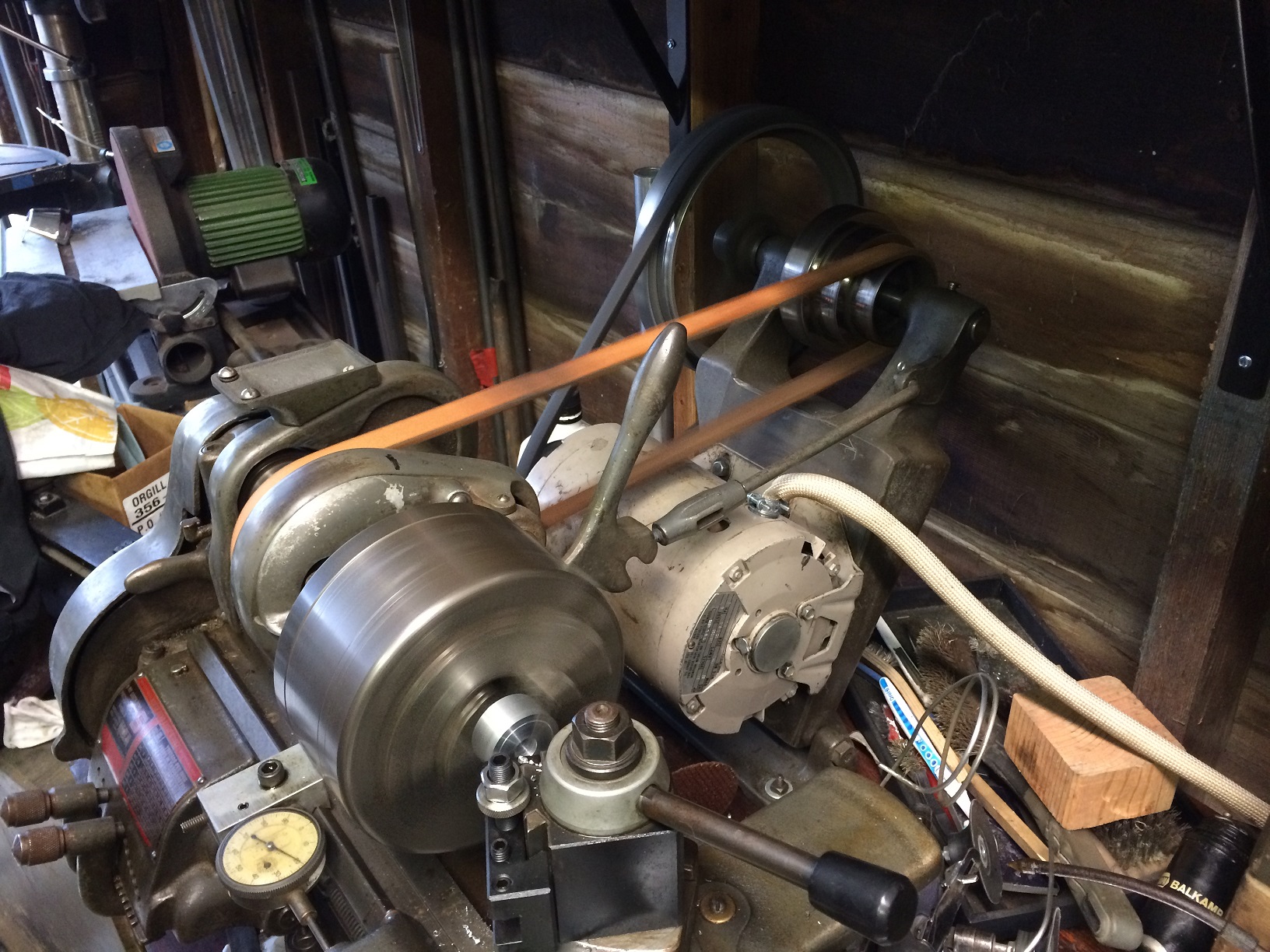

I got the rear suspension mocked in and decided to trim the spacers a bit.
How's this for old school? Neat old, belt driven South Bend lathe. Works like a champ!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Feb 27 2017, 09:21 AM
Post #338


914 Guru
*****

Group: Members
Posts: 5,244
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

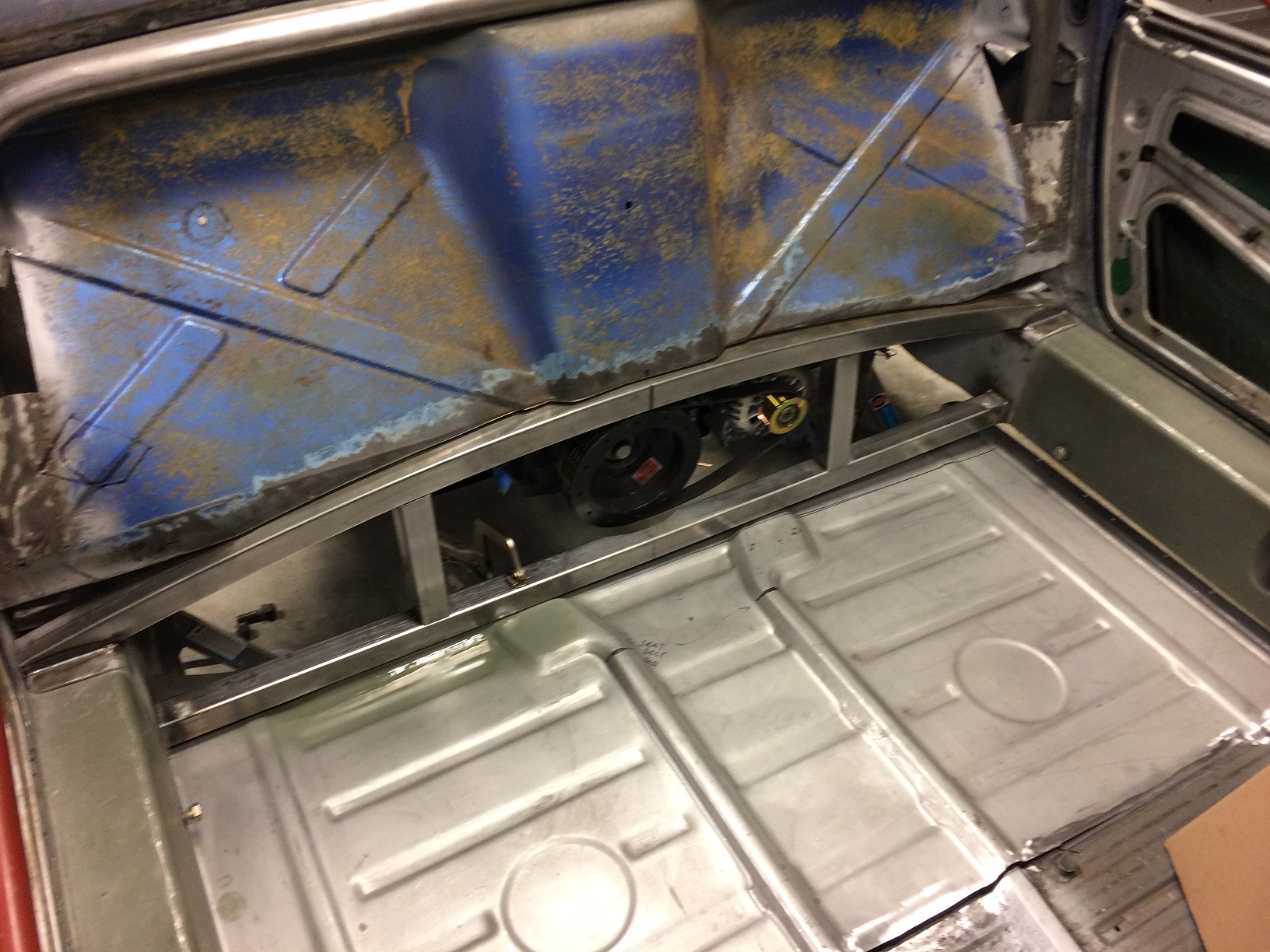

The floor is in. Well, all but a few inches of the main joint. Then I need to dress the welds. I'm going to run the stock cross bar because:
1. I have it
2. It makes is simple to locate the seat mounts vs a custom bar
3. The top of it all but lines up with the height of the 1.5x1" tubing that will make up the base of the tunnel.
Note that the cross bar is just sitting there, helping me think through the tunnel design.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Feb 27 2017, 09:22 AM
Post #339


914 Guru
*****

Group: Members
Posts: 5,244
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California



So much to do, so little time.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jd74914
post Feb 27 2017, 10:03 AM
Post #340


Its alive
****

Group: Members
Posts: 4,772
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States



QUOTE(tygaboy @ Feb 27 2017, 09:43 AM) *

How's this for old school? Neat old, belt driven South Bend lathe. Works like a champ!


Sweet! You're missing out on the authentic antique experience with that Aloris tool post though! (IMG:style_emoticons/default/happy11.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

231 Pages V « < 15 16 17 18 19 > »
Reply to this topicStart new topic
3 User(s) are reading this topic (3 Guests and 0 Anonymous Users)
0 Members:





- Lo-Fi Version Time is now: 28th March 2024 - 04:10 AM
