> BUILD-OFF CHALLENGE: Tygaboy's '75 LS3, It seemed a good idea at the time...
tygaboy
post Nov 10 2021, 06:38 PM
Post #3761


914 Guru
*****

Group: Members
Posts: 5,285
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

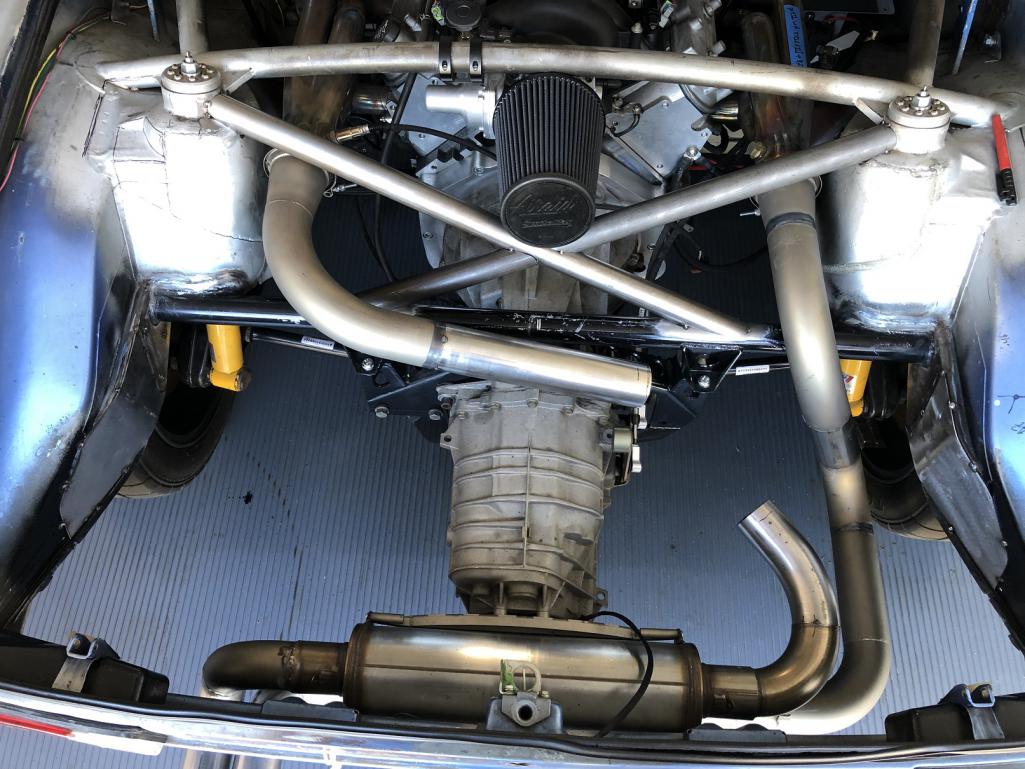

New exhaust underway. I want to get my car back on the road so I'm going after a "quick and dirty" exhaust, just for now. I'll reuse the components I already have and noodle up something neato for a future version. Until then...

I'm going back to the V1 muffler, which is a 2 in/2 out with an internal X pipe. But this time, both exhausts will enter from the same side, which is how the muffler is designed to be used. V1 had the tubes enter opposite sides, crossing over and exiting with one exhaust tip on each side of the muffler. This time it'll look like what's pictured.

Note the right side tube is just a mock up so I'd have some idea of the overall look.
Maybe it's because it's new and different, which appeals to my "Ohhh! Shiny object" disorder, but I like it!

And yes, I'm using the trailer as an extension of the Red Barn. RacerBenz is currently unable to roll so I gotta do what I gotta do.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Shivers
post Nov 10 2021, 06:57 PM
Post #3762


Senior Member
****

Group: Members
Posts: 2,368
Joined: 19-October 20
From: La Quinta, CA
Member No.: 24,781
Region Association: Southern California
Your car rocks dude. A gearheads dream. Pat yourself on the back, this really is some next level work. The acceleration must be therapeutic... (IMG:style_emoticons/default/smile.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
markhoward
post Nov 10 2021, 08:28 PM
Post #3763


Member
**

Group: Members
Posts: 375
Joined: 5-March 17
From: Lafayette, CA
Member No.: 20,897
Region Association: Northern California
That twin exit on the same side is bad ass! Love it!!
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Dion
post Nov 10 2021, 10:14 PM
Post #3764


RN
****

Group: Members
Posts: 2,764
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region
QUOTE(markhoward @ Nov 10 2021, 06:28 PM) *

That twin exit on the same side is bad ass! Love it!!


(IMG:style_emoticons/default/agree.gif) This project and it’s evolving journey is awesome.
The fabrication and details never cease to amaze. Thanks Chris!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BuddyV
post Nov 11 2021, 12:19 AM
Post #3765


Robert
***

Group: Members
Posts: 555
Joined: 8-April 05
From: Santa Rosa, CA
Member No.: 3,898
Region Association: Northern California
I absolutely LOVE the asymmetric tips location!

So tasteful. I hope it stays something like this.

(IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Andyrew
post Nov 11 2021, 11:24 AM
Post #3766


Spooling.... Please wait
**********

Group: Members
Posts: 13,376
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California
That trunk is looking Tidy!! Love it!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Retroracer
post Nov 11 2021, 02:29 PM
Post #3767


Senior Member
***

Group: Members
Posts: 609
Joined: 7-July 13
From: Bend OR
Member No.: 16,100
Region Association: Pacific Northwest

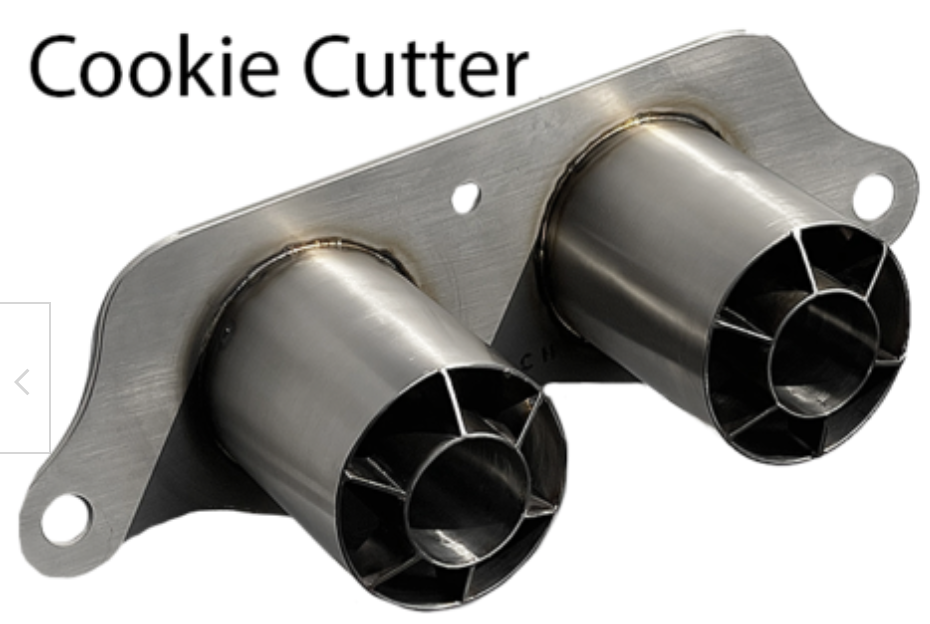

..and possibly an added element to evoke that racing Porsche theme - dual cookie cutter tips? Something along the lines of:

Attached Image

..but not with the backing plate, obvi; just showing this as a visual aid. Food for thought,

- Tony
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 11 2021, 09:43 PM
Post #3768


914 Guru
*****

Group: Members
Posts: 5,285
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

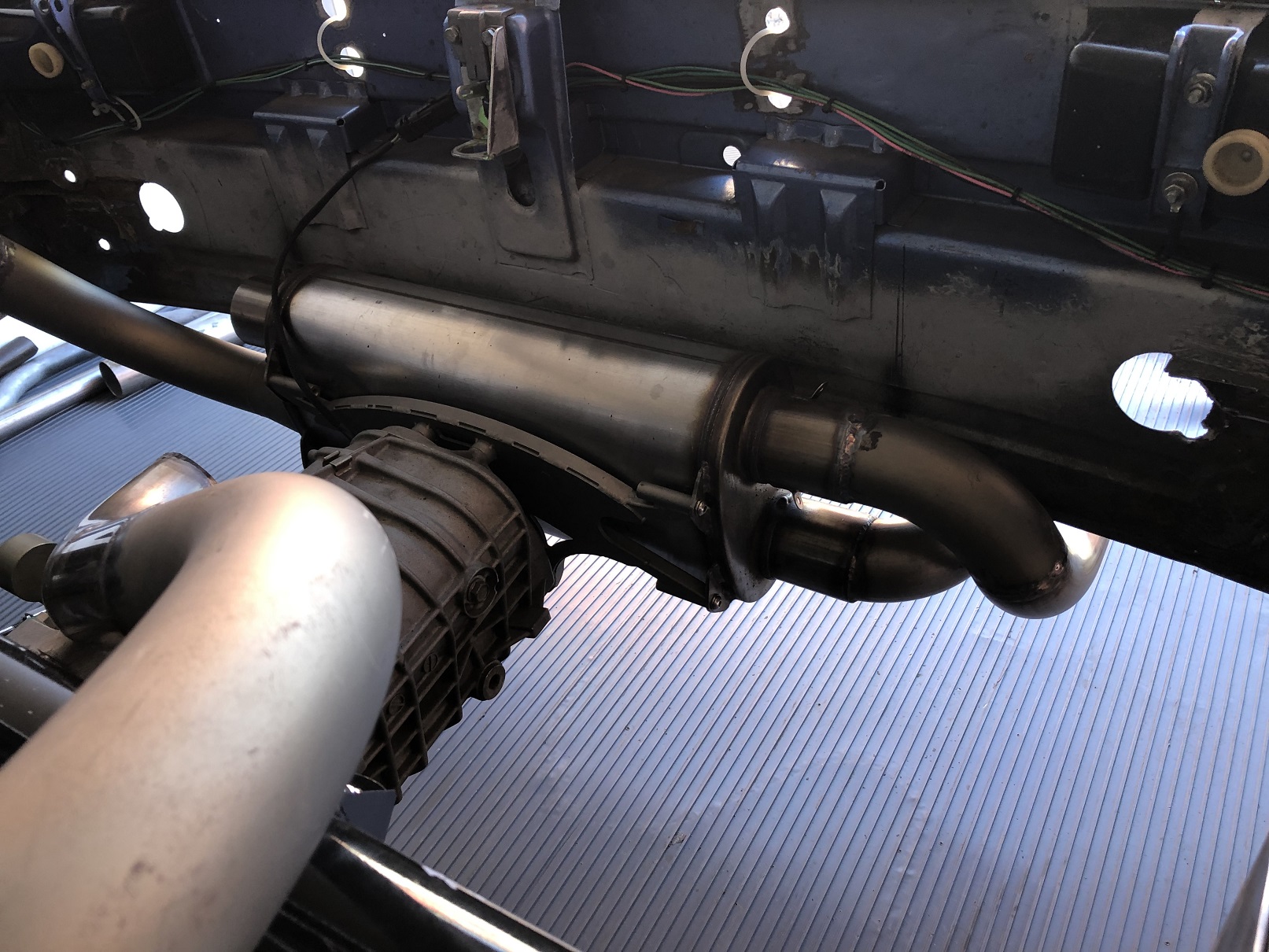

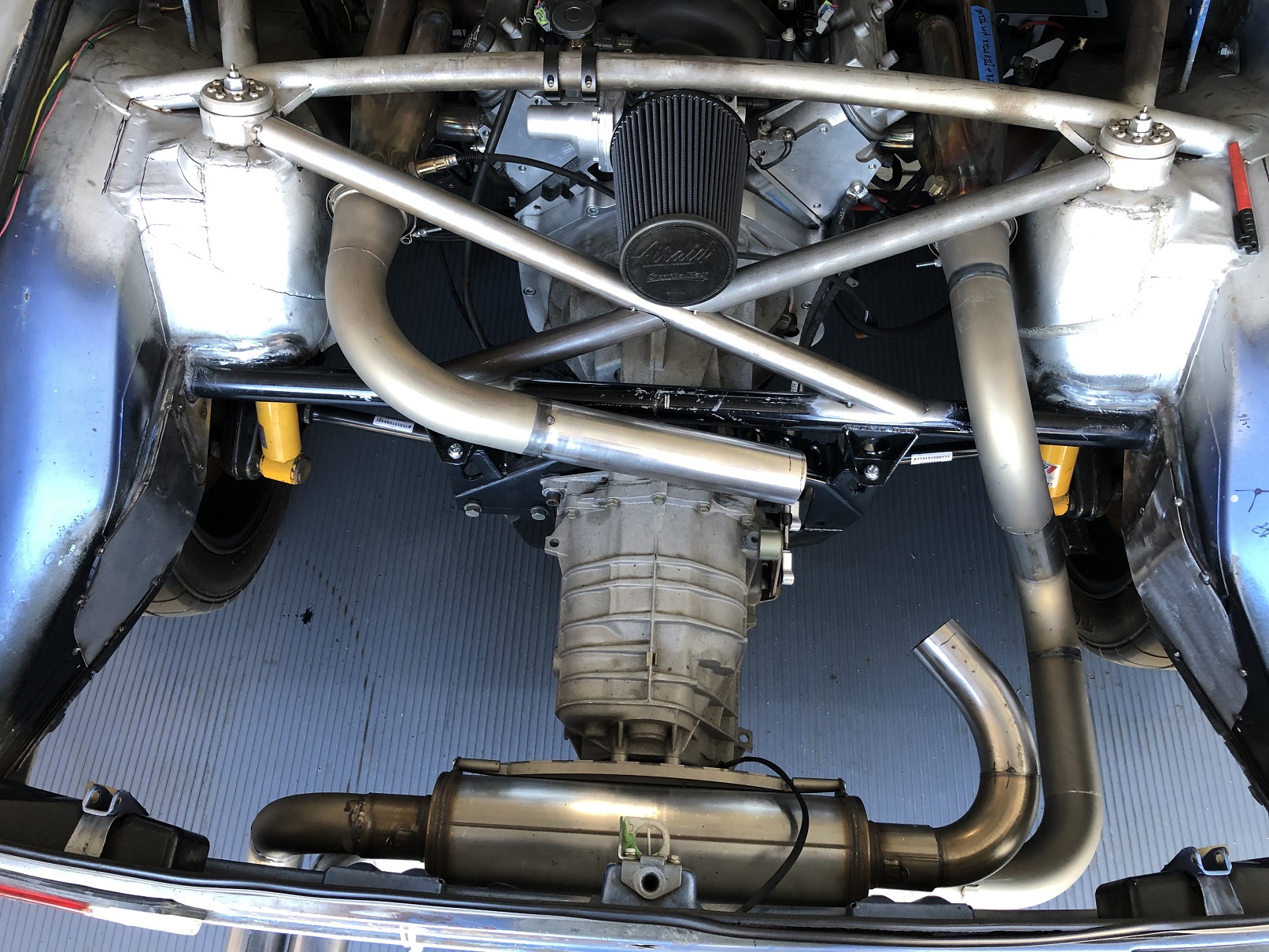

For those interested, here's how the exhaust tips look from the other side.
The ol' "out and around and down and out"!


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 11 2021, 09:44 PM
Post #3769


914 Guru
*****

Group: Members
Posts: 5,285
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

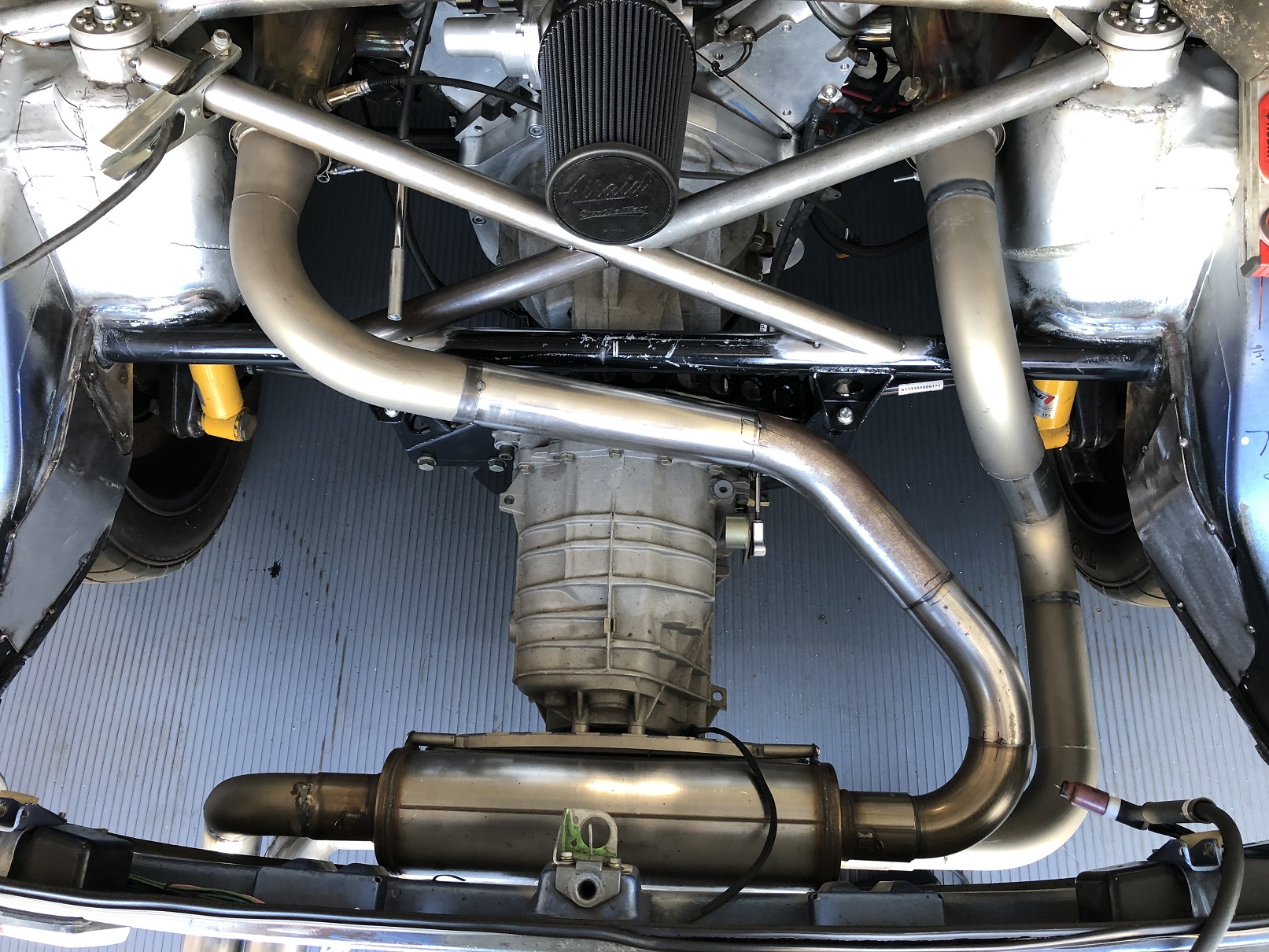

Trans mount X-brace all fitted and tacked in place. On to the exhaust.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Rand
post Nov 12 2021, 03:06 AM
Post #3770


Cross Member
*****

Group: Members
Posts: 7,409
Joined: 8-February 05
From: OR
Member No.: 3,573
Region Association: None
(IMG:style_emoticons/default/wub.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
FL000
post Nov 12 2021, 09:57 AM
Post #3771


Member
**

Group: Members
Posts: 391
Joined: 31-January 12
From: Lancaster, CA
Member No.: 14,076
Region Association: Southern California
I’m definitely jealous of the accessibility you have to the back half of the car. Looks like you can literally stand back there while working on it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 12 2021, 10:23 AM
Post #3772


914 Guru
*****

Group: Members
Posts: 5,285
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(FL000 @ Nov 12 2021, 07:57 AM) *

I’m definitely jealous of the accessibility you have to the back half of the car. Looks like you can literally stand back there while working on it.

@FL000 - I just got a new package of Sawzall blades. Bring yours up and I'll help you get better access! (IMG:style_emoticons/default/laugh.gif)
But seriously. Yes, I've stood in there. And the trans has served as a seat, too.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 13 2021, 07:53 PM
Post #3773


914 Guru
*****

Group: Members
Posts: 5,285
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

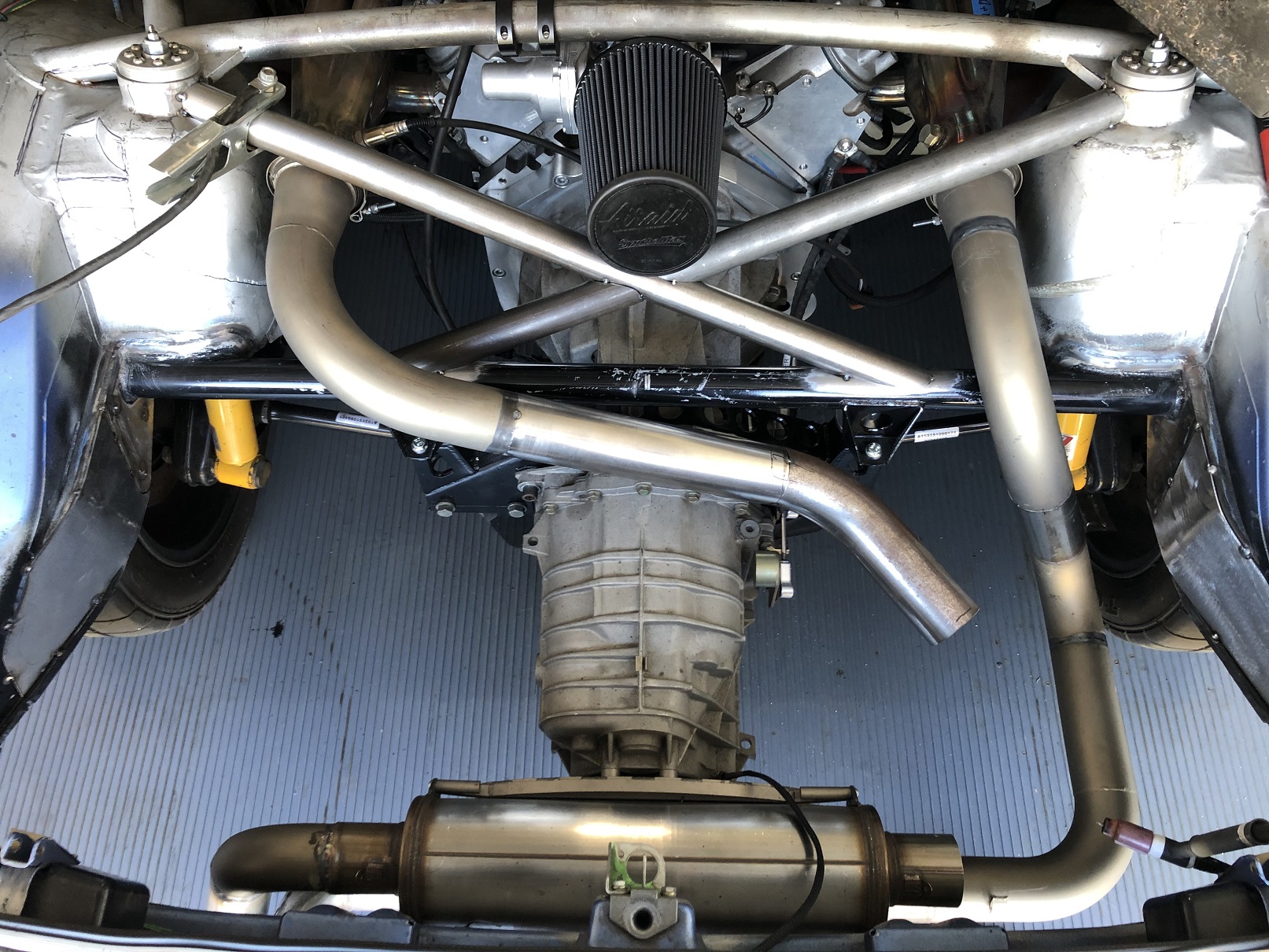

Well, that didn't take long... Sorry @buddyV Robert, looks like that muffler set up isn't going to make the (current) cut! In looking at how I'd need to route the exhaust tubing to make that work, I just wasn't feeling it. Yes, I loved how it looked from the outside, but not so much from inside the engine bay.
So, I'm working up what I think I like more: that original "join and run down the center" look. Here's a super rough mock up of one side, just to see if I like this design. This tube will be mirrored on the other side.
And to beat you jokesters to it: Yes, the muffler is laying on the ground and will actually be attached to the end of that last bend. Oh, and I'll weld it up vs using the Gorilla tape you see here. (IMG:style_emoticons/default/poke.gif)


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
mgp4591
post Nov 14 2021, 12:35 AM
Post #3774


914 Guru
*****

Group: Members
Posts: 5,368
Joined: 1-August 12
From: Salt Lake City Ut
Member No.: 14,748
Region Association: Intermountain Region
Lots of extra piping...but you've got the power to move it!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cali914
post Nov 14 2021, 07:54 AM
Post #3775


cali914
**

Group: Members
Posts: 447
Joined: 26-April 06
From: Berkeley Ca.
Member No.: 5,934
Region Association: Northern California
What are you going to use from the back bar to rear bumper. I got touched there and it started a small crack on my rear fenders.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 16 2021, 06:35 PM
Post #3776


914 Guru
*****

Group: Members
Posts: 5,285
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

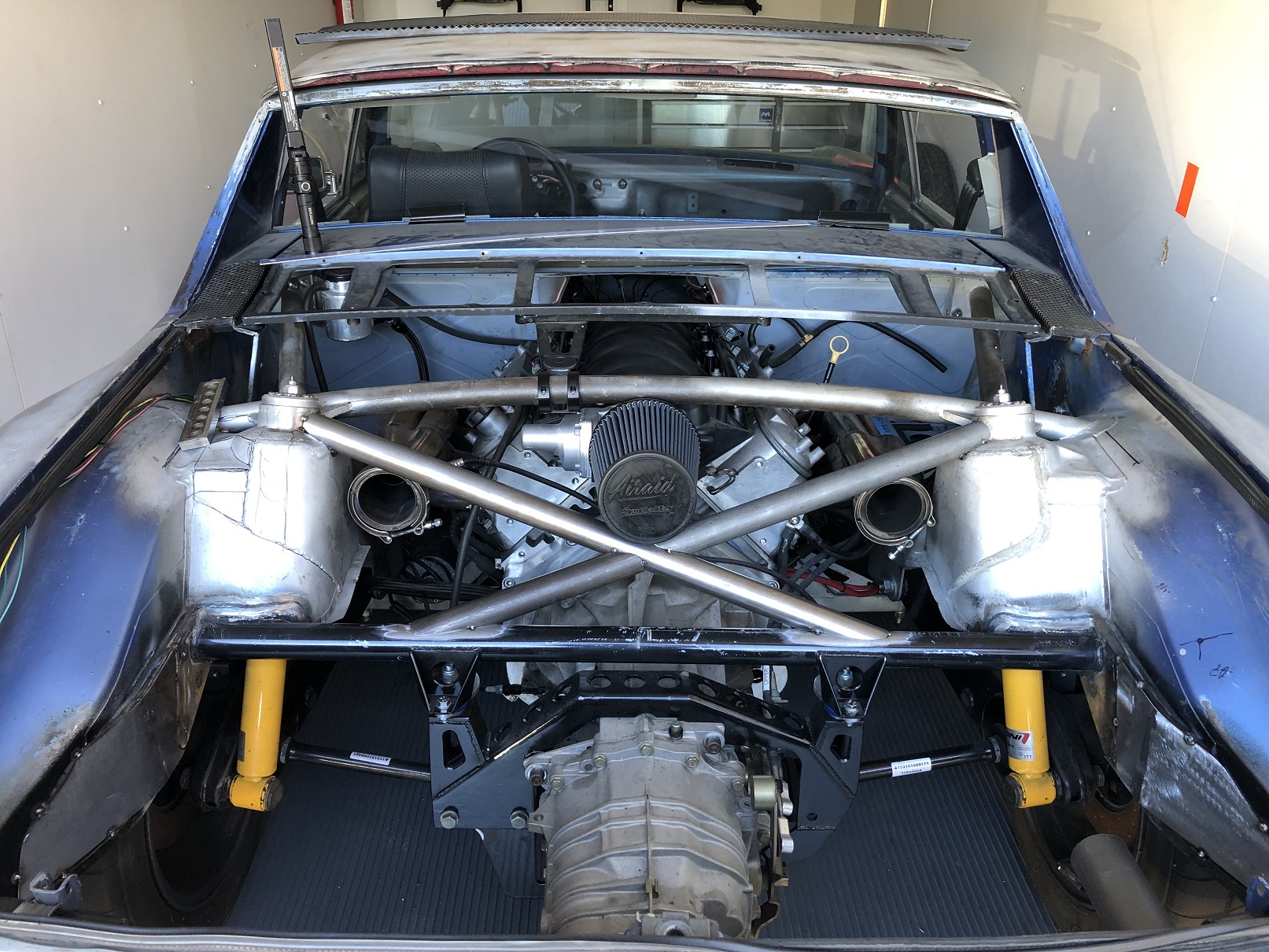

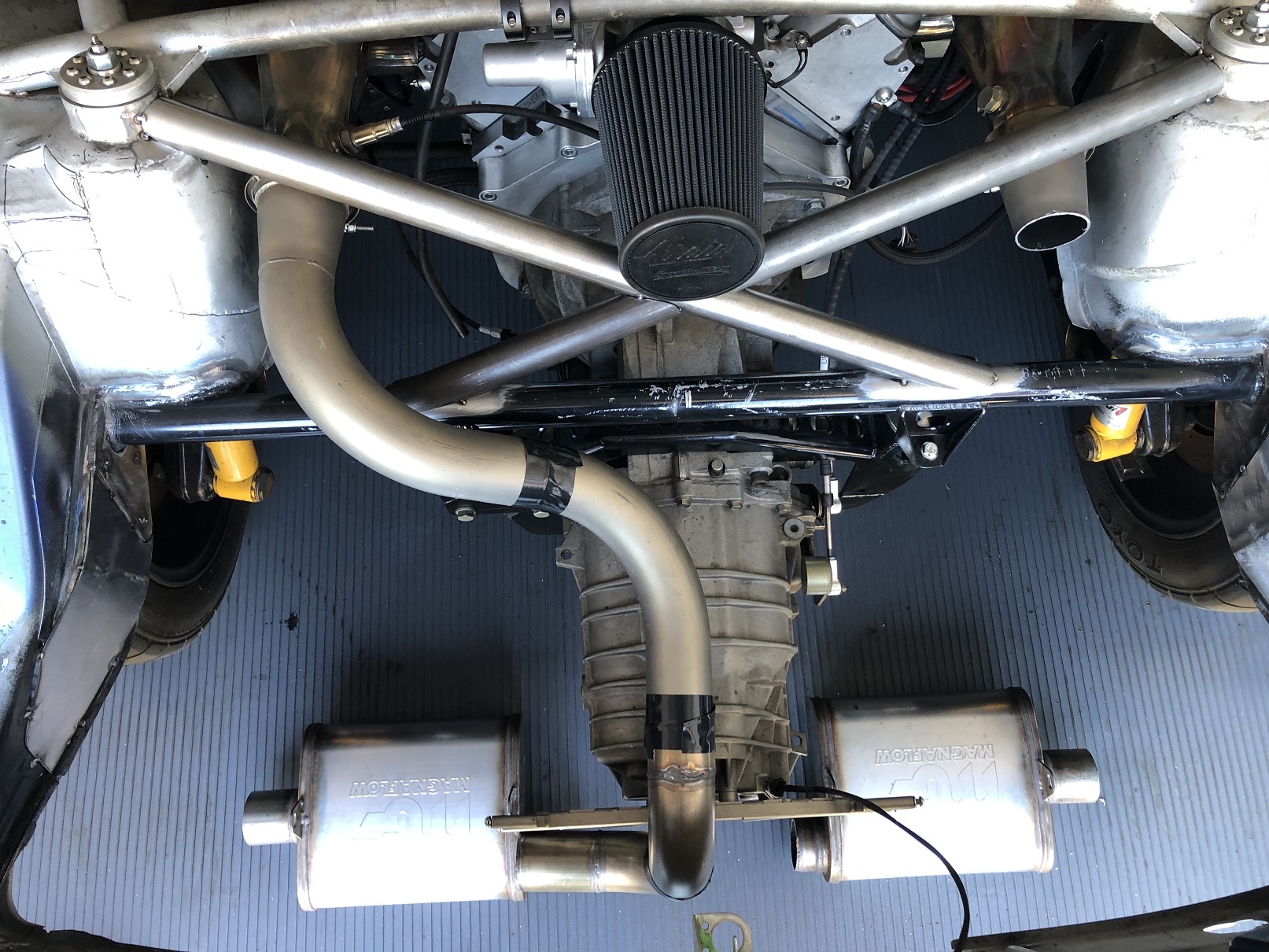

Psych! Back to the first version of the 3rd rendition of the exhaust. Wait... what? (IMG:style_emoticons/default/wacko.gif)
After playing around with various ideas, I realized @buddyv and @markhoward were right - the asymmetric dual exhaust looks pretty neat. Plus, the muffler bracket was already completed and proven to work.

So, let's connect those same ol' headers to that same ol' muffler!

Fortunately, I was able to reuse a bunch of the tubing from earlier versions of the exhaust and needed only one length of new tube. Sorry for not too many in process pics. I got focused on the work and forgot the camera part...


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 16 2021, 06:39 PM
Post #3777


914 Guru
*****

Group: Members
Posts: 5,285
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

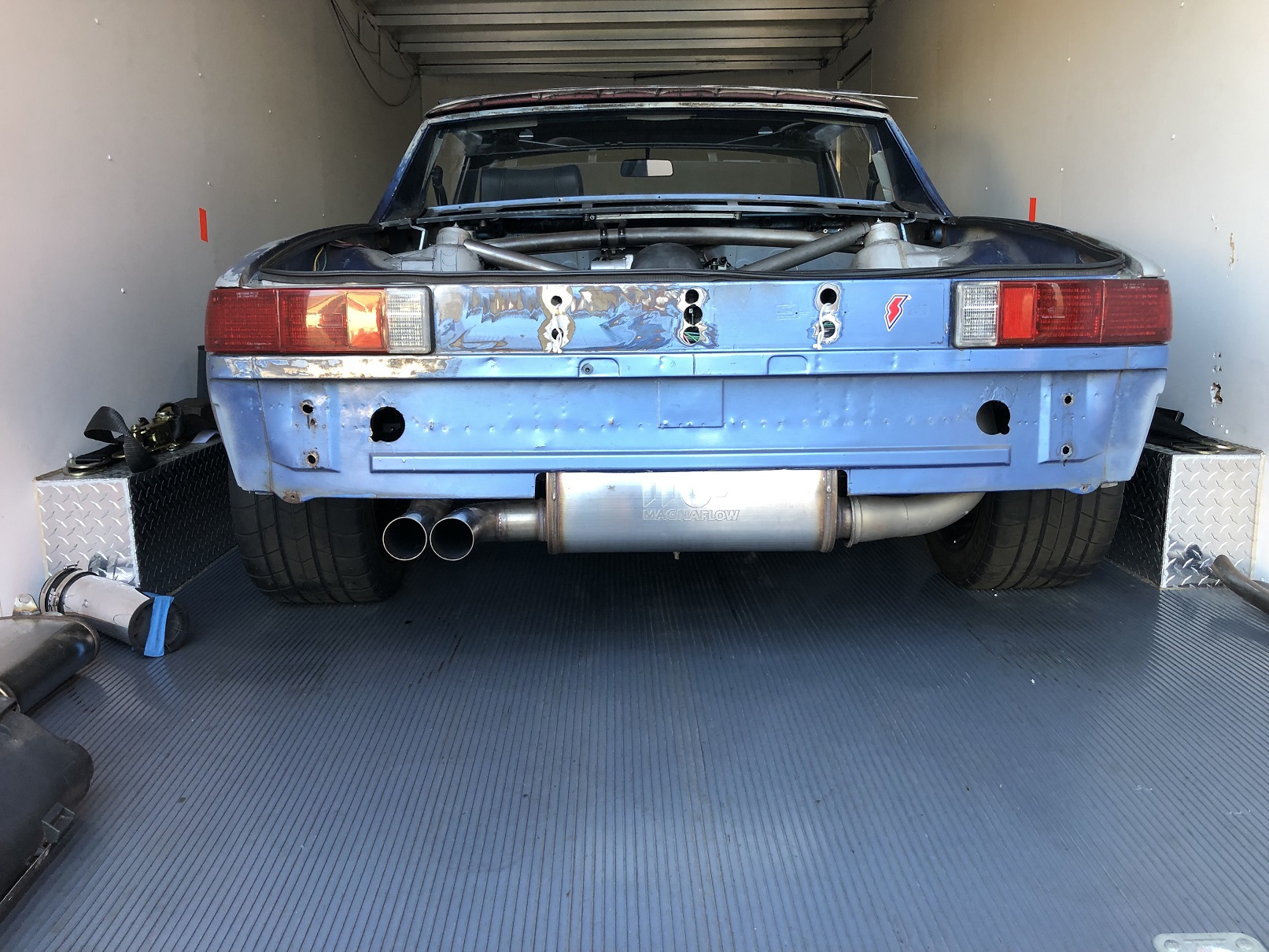

Getting everything to line up, in plane and correctly clocked is tedious and challenging. The previous pic shows the lower section of tube (where it enters the muffler) being test fit and this pic shows the upper end section (where it starts heading rearward) in test fit. Then it's work out which tube(s) and where on them to trim so it all comes together.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 16 2021, 06:43 PM
Post #3778


914 Guru
*****

Group: Members
Posts: 5,285
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

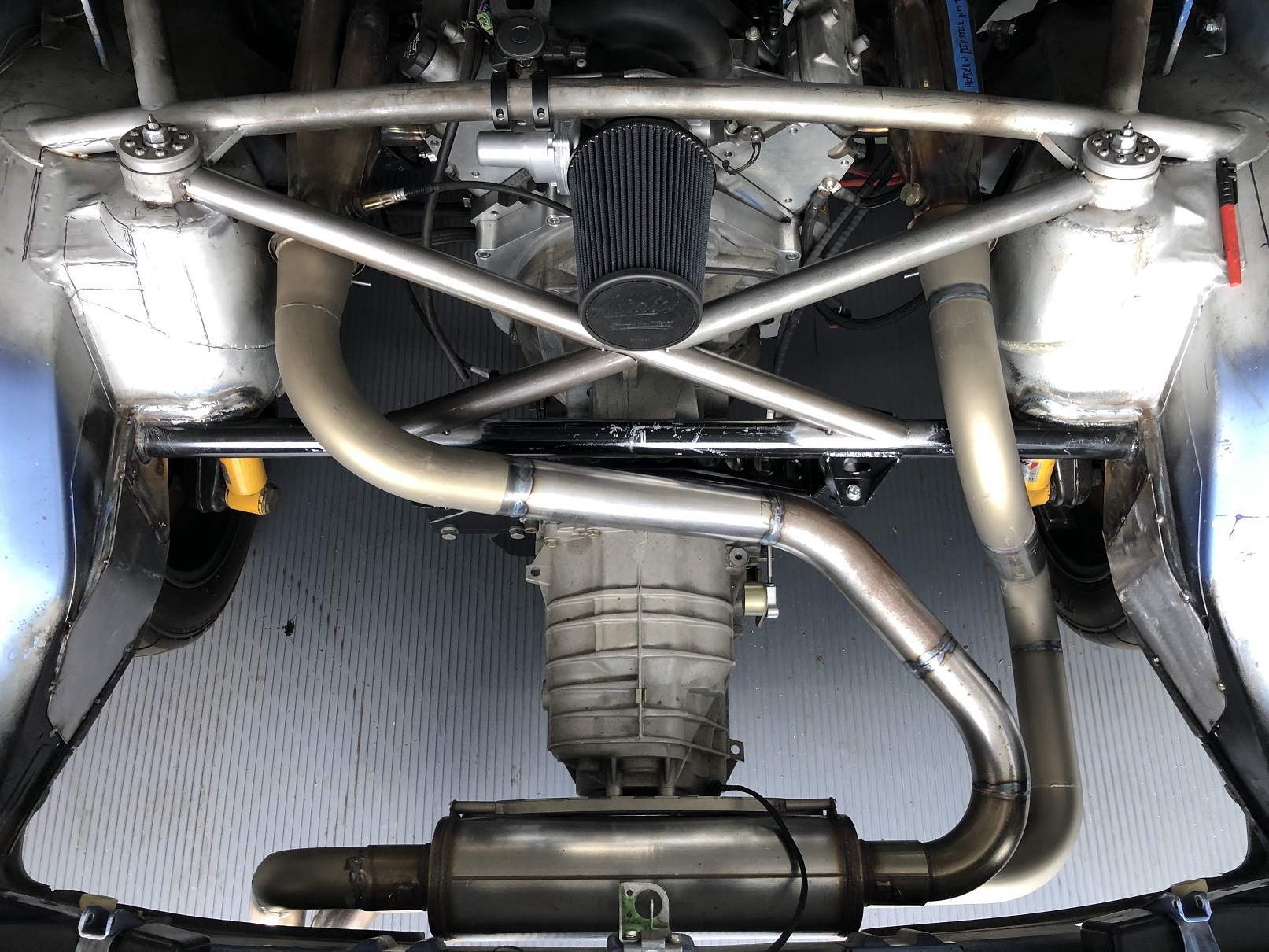

Final test fit before the final tack that locks things in place.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 16 2021, 06:45 PM
Post #3779


914 Guru
*****

Group: Members
Posts: 5,285
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

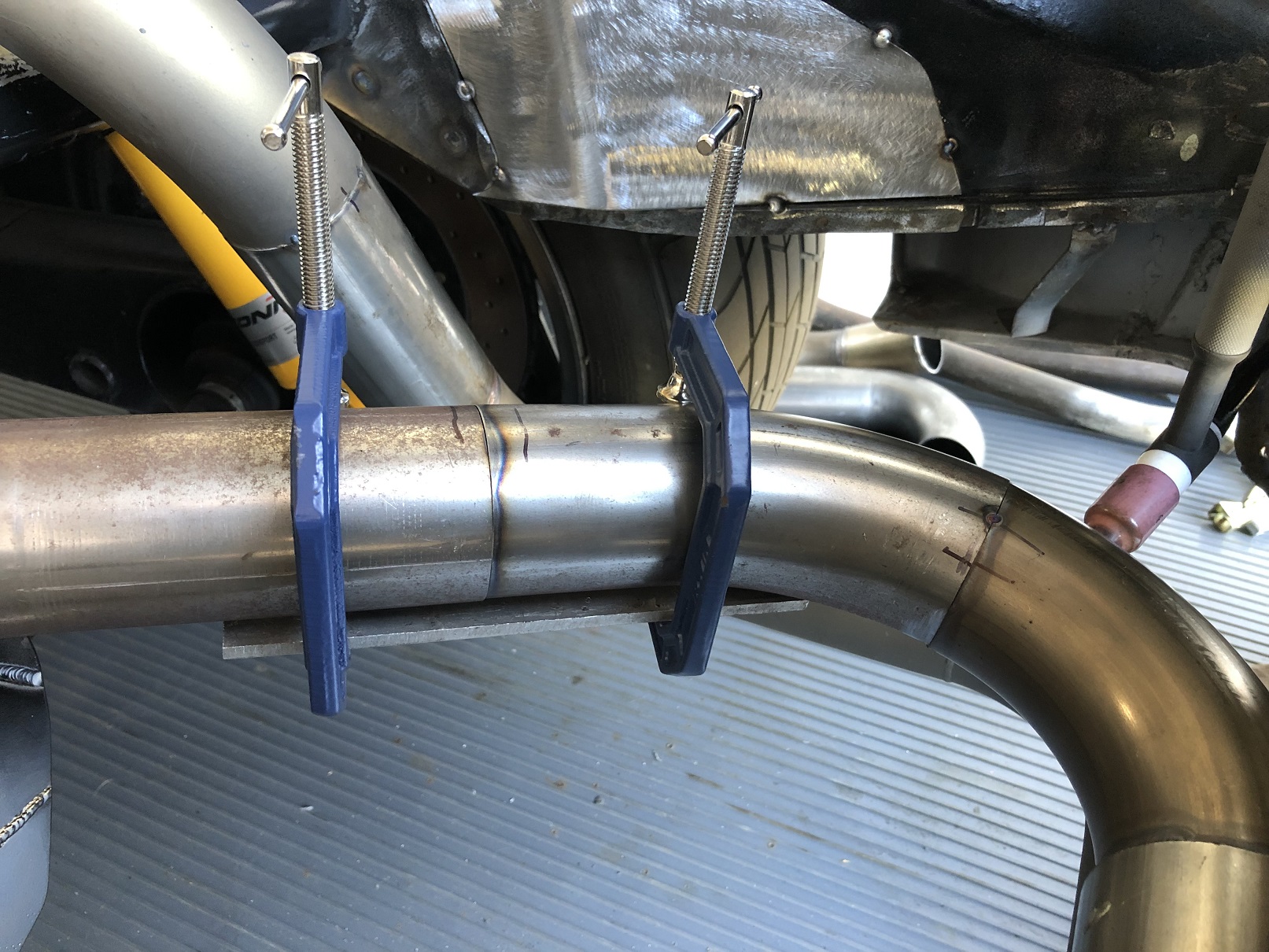

Clamping a plate to both sides helps ensure the tubes are in plane.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Nov 16 2021, 06:46 PM
Post #3780


914 Guru
*****

Group: Members
Posts: 5,285
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Add a bunch of tacks to be as sure as possible that nothing is going to move, pull it all out, bench weld all seams and...


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
