> Heater Fan Switch, Where is the heater fan switch?
UKed
post Nov 27 2016, 09:36 AM
Post #1


Newbie
*

Group: Members
Posts: 5
Joined: 5-December 14
From: United Kingdom
Member No.: 18,189
Region Association: None
Hi

An easy question for you.

I'm trying to get the heater fan to work on my 1973 914 2.0lt. The fan motor runs when I wire it direct to the battery. I have a wiring diagram that shows a switch but where is the switch on the car? (IMG:style_emoticons/default/confused24.gif) Thanks - UKed
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bandjoey
post Nov 27 2016, 09:41 AM
Post #2


bandjoey
****

Group: Members
Posts: 4,934
Joined: 26-September 07
From: Bedford Tx
Member No.: 8,156
Region Association: Southwest Region

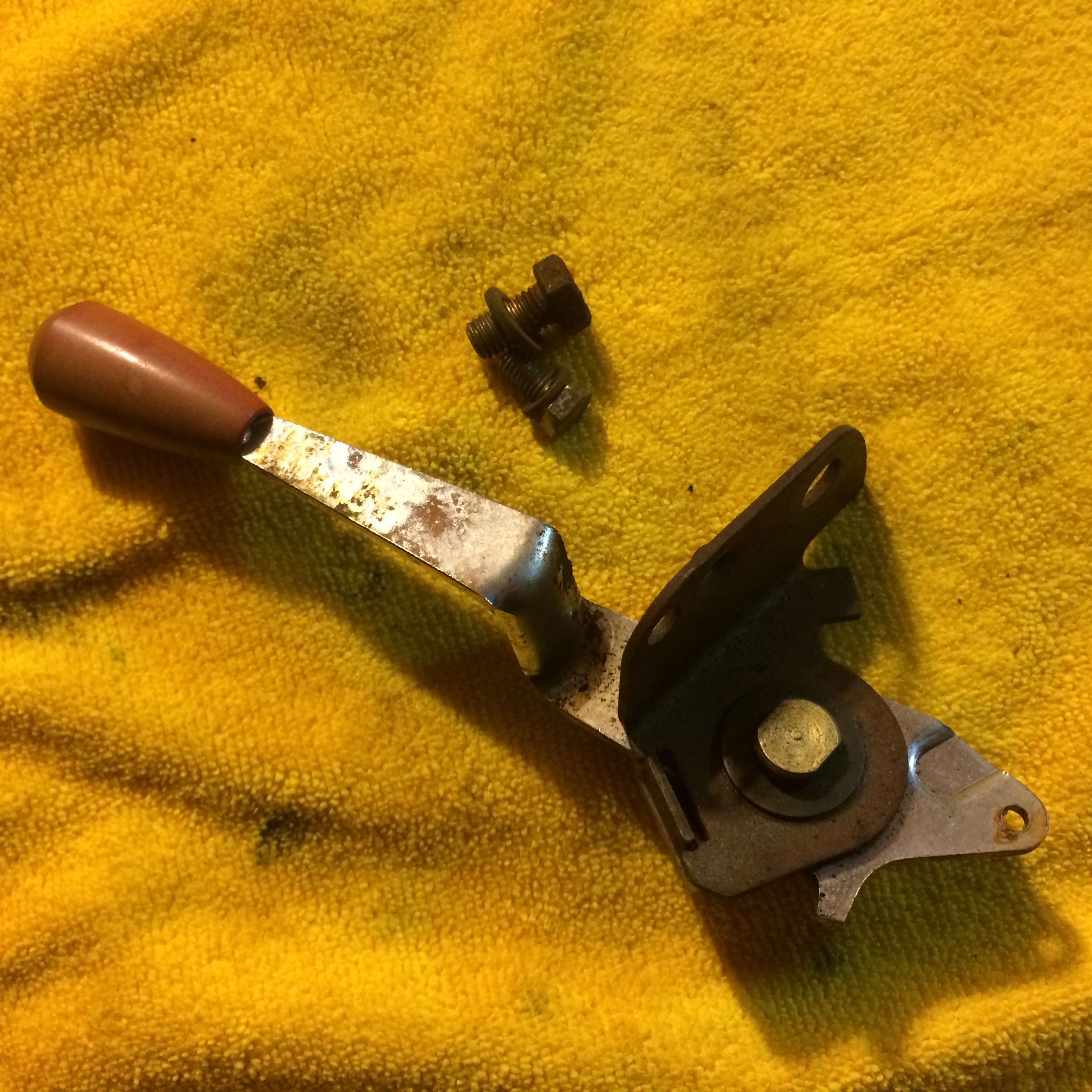

Small red pull up lever just south of the shifter. There's a small square black cover next to it that says Defrost on off. Pull up it starts the fan (IMG:style_emoticons/default/welcome.png)


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
steuspeed
post Nov 27 2016, 02:19 PM
Post #3


Senior Member
***

Group: Members
Posts: 1,010
Joined: 12-July 11
From: Portland, Oregon
Member No.: 13,308
Region Association: Pacific Northwest
There should be a green wire attached to the lever. When you pull the lever it completes the circuit to ground.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
UKed
post Nov 27 2016, 03:19 PM
Post #4


Newbie
*

Group: Members
Posts: 5
Joined: 5-December 14
From: United Kingdom
Member No.: 18,189
Region Association: None
Brilliant thanks Steuspeed. i will remove the central console and have a look.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
UKed
post Nov 27 2016, 03:20 PM
Post #5


Newbie
*

Group: Members
Posts: 5
Joined: 5-December 14
From: United Kingdom
Member No.: 18,189
Region Association: None
and thanks to Bandjoey
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BeatNavy
post Nov 27 2016, 04:04 PM
Post #6


Certified Professional Scapegoat
****

Group: Members
Posts: 2,951
Joined: 26-February 14
From: Easton, MD
Member No.: 17,042
Region Association: MidAtlantic Region
Just more info: the green wire in the tunnel under the shifter may be hiding in there. Fish it out with a dental pick or something. It should connect to the tab on the heater lever in bandjoey's picture. When the lever is pulled up far enough ("max" heat) that green wire will ground the relay that's farthest back on the relay board (IIRC) via pin 11 on the 14 pin connector. That relay then provides power to the fan. So, if it's not working check: the green wire is connected, the lever is far enough up, the 14 pin-connector is connected, the relay is getting power, and the relay itself is serviceable.

At least that's my understanding of how it works.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Tbrown4x4
post Nov 28 2016, 05:58 AM
Post #7


Senior Member
***

Group: Members
Posts: 707
Joined: 13-May 14
From: Port Orchard, WA
Member No.: 17,338
Region Association: None
I just went through this. The URO fan relay had a broken post inside. New relay took care of it.

And yes, it is the rear-most relay.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
porschetub
post Nov 29 2016, 01:25 AM
Post #8


Advanced Member
****

Group: Members
Posts: 4,796
Joined: 25-July 15
From: New Zealand
Member No.: 18,995
Region Association: None
QUOTE(BeatNavy @ Nov 28 2016, 11:04 AM) *

Just more info: the green wire in the tunnel under the shifter may be hiding in there. Fish it out with a dental pick or something. It should connect to the tab on the heater lever in bandjoey's picture. When the lever is pulled up far enough ("max" heat) that green wire will ground the relay that's farthest back on the relay board (IIRC) via pin 11 on the 14 pin connector. That relay then provides power to the fan. So, if it's not working check: the green wire is connected, the lever is far enough up, the 14 pin-connector is connected, the relay is getting power, and the relay itself is serviceable.

At least that's my understanding of how it works.


Rob mine is redundant now as I have headers on my six ,but the wire I had connected was black when I got the car from the PO.
I would like to use it to as a switch for a small electric defroster I will install,did the wire colour change for different years or did I just find the wrong one on there ?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BeatNavy
post Nov 29 2016, 04:12 AM
Post #9


Certified Professional Scapegoat
****

Group: Members
Posts: 2,951
Joined: 26-February 14
From: Easton, MD
Member No.: 17,042
Region Association: MidAtlantic Region
QUOTE(porschetub @ Nov 29 2016, 02:25 AM) *

QUOTE(BeatNavy @ Nov 28 2016, 11:04 AM) *

Just more info: the green wire in the tunnel under the shifter may be hiding in there. Fish it out with a dental pick or something. It should connect to the tab on the heater lever in bandjoey's picture. When the lever is pulled up far enough ("max" heat) that green wire will ground the relay that's farthest back on the relay board (IIRC) via pin 11 on the 14 pin connector. That relay then provides power to the fan. So, if it's not working check: the green wire is connected, the lever is far enough up, the 14 pin-connector is connected, the relay is getting power, and the relay itself is serviceable.

At least that's my understanding of how it works.


Rob mine is redundant now as I have headers on my six ,but the wire I had connected was black when I got the car from the PO.
I would like to use it to as a switch for a small electric defroster I will install,did the wire colour change for different years or did I just find the wrong one on there ?

Hey Porschetub! Pretty sure that wire is green/white on all years, but I could be wrong. Checking back on the wiring diagrams, I see it actually goes to pin 9 on the 14 pin connector (not 11 like I said in post above). Check the continuity between those two to be sure.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Nov 29 2016, 11:39 PM
Post #10


914 Idiot
***************

Group: Members
Posts: 15,151
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
QUOTE(Tbrown4x4 @ Nov 28 2016, 03:58 AM) *

I just went through this. The URO fan relay had a broken post inside.


A URO part was bad? Color me shocked! </sarcasm>

--DD
