> old school 'autocool' pics, for tat2dphreak & critics alike
root
post Apr 27 2005, 07:57 AM
Post #1


Two Wheeled Type4 Completed!
***

Group: Members
Posts: 849
Joined: 5-May 04
From: Sterling, VA
Member No.: 2,026
Region Association: None

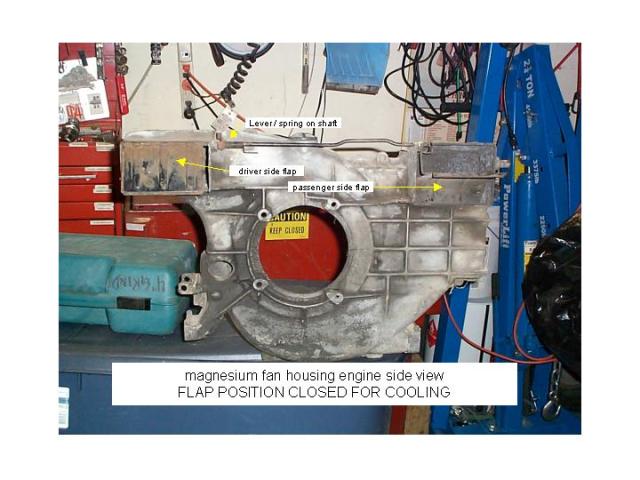

Here's pix I took last night of the ACS, classic german enginutty! (IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
root
post Apr 27 2005, 07:58 AM
Post #2


Two Wheeled Type4 Completed!
***

Group: Members
Posts: 849
Joined: 5-May 04
From: Sterling, VA
Member No.: 2,026
Region Association: None



2nd


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
root
post Apr 27 2005, 07:58 AM
Post #3


Two Wheeled Type4 Completed!
***

Group: Members
Posts: 849
Joined: 5-May 04
From: Sterling, VA
Member No.: 2,026
Region Association: None



3rd


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
root
post Apr 27 2005, 07:58 AM
Post #4


Two Wheeled Type4 Completed!
***

Group: Members
Posts: 849
Joined: 5-May 04
From: Sterling, VA
Member No.: 2,026
Region Association: None



4th


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ArtechnikA
post Apr 27 2005, 08:07 AM
Post #5


rich herzog
*****

Group: Members
Posts: 7,390
Joined: 4-April 03
From: Salted Roads, PA
Member No.: 513
Region Association: None



and don't forget that one of those holes - i can't recall if it's the bellows bracket or the pulley - is a *through hole* into the case.

if you remove those parts and don't replace the mounting bolts, you'll have a lovely oil leak...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tat2dphreak
post Apr 27 2005, 08:22 AM
Post #6


stoya, stoya, stoya
*****

Group: Benefactors
Posts: 8,797
Joined: 6-June 03
From: Wylie, TX
Member No.: 792
Region Association: Southwest Region



thanks for posting this root... it really helps to see what I'm missing:

yea, my engine has the pulley for the thermostat, but no thermostat, and I;ve never seen those flappers before, they just flat weren't on either 914 I've had (IMG:http://www.914world.com/bbs2/html/emoticons/headbang.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/confused24.gif)

Rich, the bolts are there I think, there's no leak.

it looks to me like I need to get the whole thing... but I may "rig" something on the 3-4 side first, until I can pull the engine and the tin to install all of this... correct me if I am wrong, but it looks like the 1-2 side would just not warm as fast(may cause a little extra wear) BUT if the 3-4 side doesn't have the flapper the air never gets to those cylinders... causing it to warm up faster, but get hotter than normal! (IMG:http://www.914world.com/bbs2/html/emoticons/ohmy.gif)

any idea WHY someone in Houston would have taken this stuff off?! from what I understand he was a porsche guy and knew these cars well... I bought the car from a friend who bought it from him... my friend never drove it(duh) and only owned it a few days...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
URY914
post Apr 27 2005, 08:24 AM
Post #7


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 119,631
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None



QUOTE (ArtechnikA @ Apr 27 2005, 06:07 AM)
and don't forget that one of those holes - i can't recall if it's the bellows bracket or the pulley - is a *thourgh hole* into the case.

if you remove those parts and don't replace the mounting bolts, you'll have a lovely oil leak...

I think it is the pulley hole.

Ask me how I know. (IMG:http://www.914world.com/bbs2/html/emoticons/rolleyes.gif)

Paul
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
root
post Apr 27 2005, 08:29 AM
Post #8


Two Wheeled Type4 Completed!
***

Group: Members
Posts: 849
Joined: 5-May 04
From: Sterling, VA
Member No.: 2,026
Region Association: None



QUOTE
if you remove those parts and don't replace the mounting bolts, you'll have a lovely oil leak..
I think Ury's right - pulley hole open = oil...

(IMG:http://www.914world.com/bbs2/html/emoticons/cool_shades.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tat2dphreak
post Apr 27 2005, 08:31 AM
Post #9


stoya, stoya, stoya
*****

Group: Benefactors
Posts: 8,797
Joined: 6-June 03
From: Wylie, TX
Member No.: 792
Region Association: Southwest Region



QUOTE (root @ Apr 27 2005, 09:29 AM)
QUOTE
if you remove those parts and don't replace the mounting bolts, you'll have a lovely oil leak..
I think Ury's right - pulley hole open = oil...

(IMG:http://www.914world.com/bbs2/html/emoticons/cool_shades.gif)

probably why the pulley is there and nothing else...
(IMG:http://www.914world.com/bbs2/html/emoticons/dry.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Gint
post Apr 27 2005, 09:20 AM
Post #10


Mike Ginter
***************

Group: Admin
Posts: 16,063
Joined: 26-December 02
From: Denver CO.
Member No.: 20
Region Association: Rocky Mountains



Somebody PM me when this thread plays out and I'll put it in the Classics forum.

Nice work.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
URY914
post Apr 27 2005, 09:27 AM
Post #11


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 119,631
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None



Is it really magnesium?
I just thought it was just cast aluminum.

Paul
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
root
post Apr 27 2005, 11:14 AM
Post #12


Two Wheeled Type4 Completed!
***

Group: Members
Posts: 849
Joined: 5-May 04
From: Sterling, VA
Member No.: 2,026
Region Association: None



An old Porsche mechanic told me that it was Mg, (he's actually older than me)!
Does anybody know for sure? (IMG:http://www.914world.com/bbs2/html/emoticons/idea.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Apr 27 2005, 11:16 AM
Post #13


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: OC
Member No.: 219
Region Association: Southern California



QUOTE (root @ Apr 27 2005, 10:14 AM)
An old Porsche mechanic told me that it was Mg, (he's actually older than me)!
Does anybody know for sure? (IMG:http://www.914world.com/bbs2/html/emoticons/idea.gif)

does it light on fire? are you unable to put it put with water?

if so- its magnesium... (IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ArtechnikA
post Apr 27 2005, 11:19 AM
Post #14


rich herzog
*****

Group: Members
Posts: 7,390
Joined: 4-April 03
From: Salted Roads, PA
Member No.: 513
Region Association: None



it acts and feels like a magnesium alloy; certainly it's weak and brittle enough.

aluminum will burn too, in the right circumstances - check out Thermite...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Borderline
post Apr 27 2005, 11:28 AM
Post #15


Senior Member
***

Group: Members
Posts: 720
Joined: 8-February 05
From: San Juan Bautista, CA
Member No.: 3,577
Region Association: Northern California



I have a question..... in the photos the lower right had side (bottom passenger side) there is a port for air to exit the housing. On my 72 1.7 it seems to be joining the heating system. What's going on??? Why would cooling air be diverted from the engine to be sent to the passenger compartment. And more importantly, if I block it off will the engine run cooler?? (IMG:http://www.914world.com/bbs2/html/emoticons/wacko.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/wacko.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mudfoot76
post Apr 27 2005, 11:41 AM
Post #16


Currently teenerless :-(
***

Group: Members
Posts: 946
Joined: 18-March 04
From: Carmel, IN
Member No.: 1,814
Region Association: None



QUOTE (tat2dphreak @ Apr 27 2005, 09:22 AM)
any idea WHY someone in Houston would have taken this stuff off?! from what I understand he was a porsche guy and knew these cars well...

Never underestimate the capacity for a DAPO to do things that leave you pondering just how much of a DA the PO actually was (IMG:http://www.914world.com/bbs2/html/emoticons/dry.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Reiche
post Apr 27 2005, 12:18 PM
Post #17


Member
**

Group: Members
Posts: 169
Joined: 13-October 04
From: Vista, CA
Member No.: 2,934



QUOTE (Borderline @ Apr 27 2005, 09:28 AM)
I have a question..... in the photos the lower right had side (bottom passenger side) there is a port for air to exit the housing.  On my 72 1.7 it seems to be joining the heating system.  What's going on???  Why would cooling air be diverted from the engine to be sent to the passenger compartment.  And more importantly, if I block it off will the engine run cooler?? (IMG:http://www.914world.com/bbs2/html/emoticons/wacko.gif)

There are outlets for heater connections on both sides. Engine air is always being pushed through the heat exchangers, but it only reaches the passenger compartment when the heater control lever is pulled up. Otherwise it gets dumped out the flapper boxes under the car. Unless you have an auxiliary heater fan, that's the only way heated air gets to you.

Jake Raby sez blocking the outlets makes cooling worse. Apparently he tested this while working on his DTM. My wild guess as to why: All the auxiliary air take-offs from the plenum come from the 3&4 side (pass. on 914): alternator, oil cooler, and heat exchangers (see the j-shaped outlet on the left by the alternator bracket, and the hole just above it for the alt. air) The diverter tins, air plenum and cooling system volumes are tuned for this airflow. If you block off the outlets, you increase the pressure inside that half of the system past what is was designed for, the air mass stagnates and doesn't move through the heads/cylinders the way it's supposed to.

Again, this is all happening on the 3&4 side, which already cools worse than the 1&2 side. So messing with these makes the temp differential side-to-side even more pronounced.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tat2dphreak
post Apr 27 2005, 12:27 PM
Post #18


stoya, stoya, stoya
*****

Group: Benefactors
Posts: 8,797
Joined: 6-June 03
From: Wylie, TX
Member No.: 792
Region Association: Southwest Region



one more thing... why are the thermostats NLA?! it *LOOKS* similar to a beetle stat, can they be interchanged? (IMG:http://www.914world.com/bbs2/html/emoticons/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Apr 27 2005, 12:43 PM
Post #19


914 Idiot
**********

Group: Members
Posts: 14,974
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California



QUOTE (tat2dphreak @ Apr 27 2005, 06:22 AM)
any idea WHY someone in Houston would have taken this stuff off?!

'Cuz ever'body knows them flaps just gits in the way! We alluz pull 'em--an' if the motor runs so hot without the flaps, it must'a bin runnin' even hotter with 'em!! (IMG:http://www.914world.com/bbs2/html/emoticons/rolleyes.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/screwy.gif)

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ThinAir
post Apr 27 2005, 01:58 PM
Post #20


Best friends
****

Group: Members
Posts: 2,531
Joined: 4-February 03
From: Flagstaff, AZ
Member No.: 231
Region Association: Southwest Region



QUOTE (tat2dphreak @ Apr 27 2005, 07:22 AM)
any idea WHY someone in Houston would have taken this stuff off?! from what I understand he was a porsche guy and knew these cars well...

The purpose of the flaps is to help the engine warm up and to maintain proper temperature. They are built so that if the thermostat cable breaks they will go to the wide open position so that you don't overheat the engine.

I think this is what has lead some folks to think that it is ok to remove these flaps. They can't imagine a situation where an air-cooled engine could be running too cool. I live at 7,000 feet so cool mornings are a reality for me, but more important - I think the engineers at VW/Porsche actually had a clue when they designed this stuff. It may be a crude way of maintaining engine temps compared to today's water cooled/electronic beasts, but it does the job at some level. I ALWAYS make sure the flaps are in place and that the system is working properly.
User is offlineProfile CardPM
Go to the top of the page
