> D-Jet vacuum hose question, Which hose, or Both?
Olympic 914
post Feb 10 2017, 07:45 AM
Post #1



***

Group: Members
Posts: 1,668
Joined: 7-July 11
From: Pittsburgh PA
Member No.: 13,287
Region Association: North East States



Just finished up installing all the FI wiring harness and the vacuum hoses and now the engine compartment looks like a bowl of Spaghetti.

This engine started out as a 73 1.7 with the stock FI and I converted everything to a 2.0 system. I did use some of the original 1.7 parts as they were the same for both engines. But all the 2.0 FI parts ( throttle body, plenum, air filter housing ,etc.) where cobbled together from fleabay purchases and I am not sure what years those parts were from. Also used the original 73 1.7 FI wiring harness and ECU and had to make a couple extensions to get everything to hook up. Not much problem there, (except for trying to connect those ground wires under the plenum. )

Now to the question, I was using Bowlsby's vacuum diagram that is for a late 74 2.0 system and while hooking up the vacuum lines to the dizzy it seem that one line is no longer used.

Attached Image

in the diagram above I have the green vacuum hose connected from the throttle body to the dizzy as shown by the Orange circles. I also have another vacuum port on my dizzy that I have connected to the second vacuum port on my throttle body shown by Blue circles.

Should I have both of these hooked up? or do I disconnect the Black vacuum line as shown in Bowlsby's diagram and just plug the second port on the throttle body.

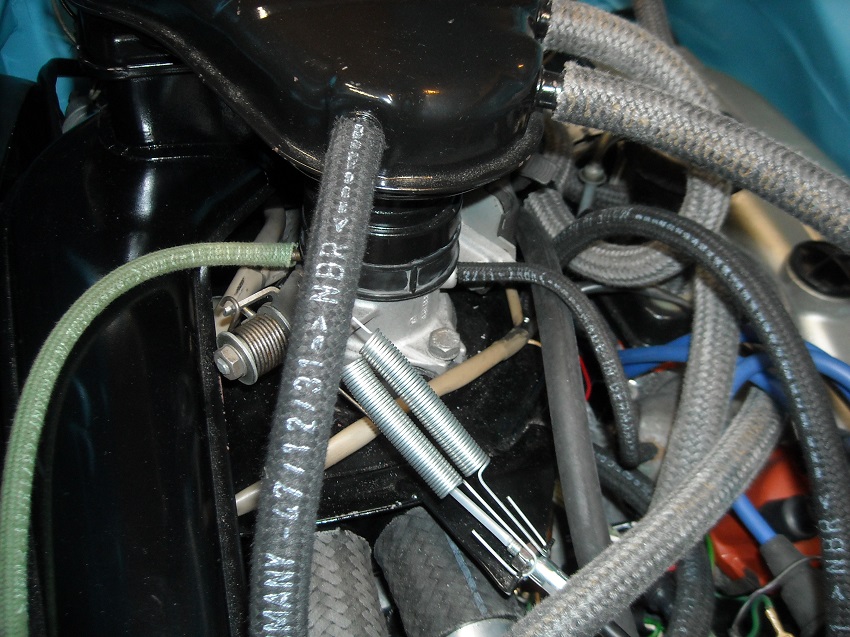

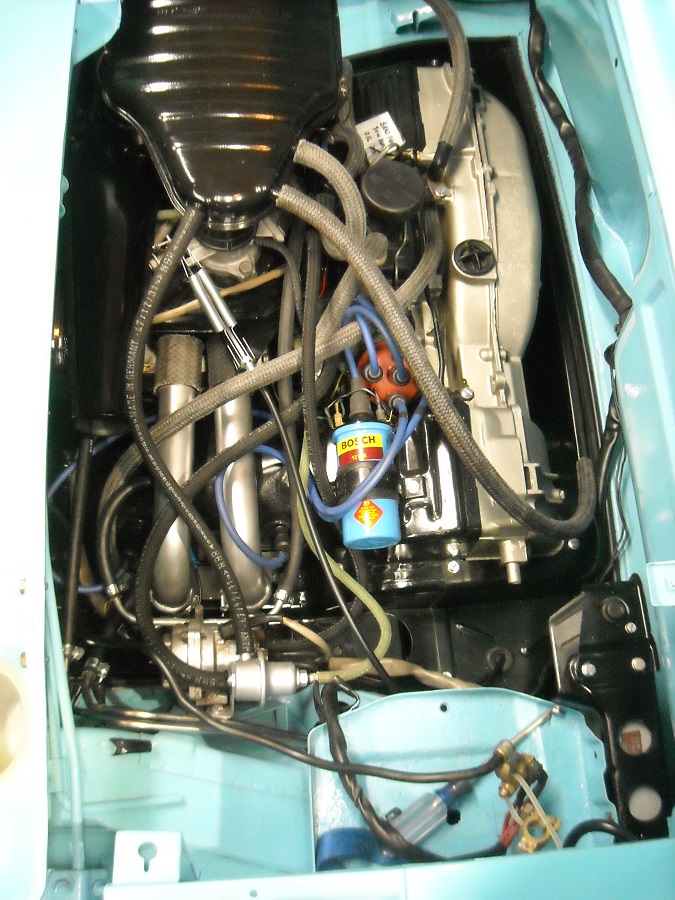

This is what I have hooked up now.

Attached Image

Is there a reason that the later versions did not have this second port hooked up?
What benefits are there to using the second line to the dizzy vacuum canister?

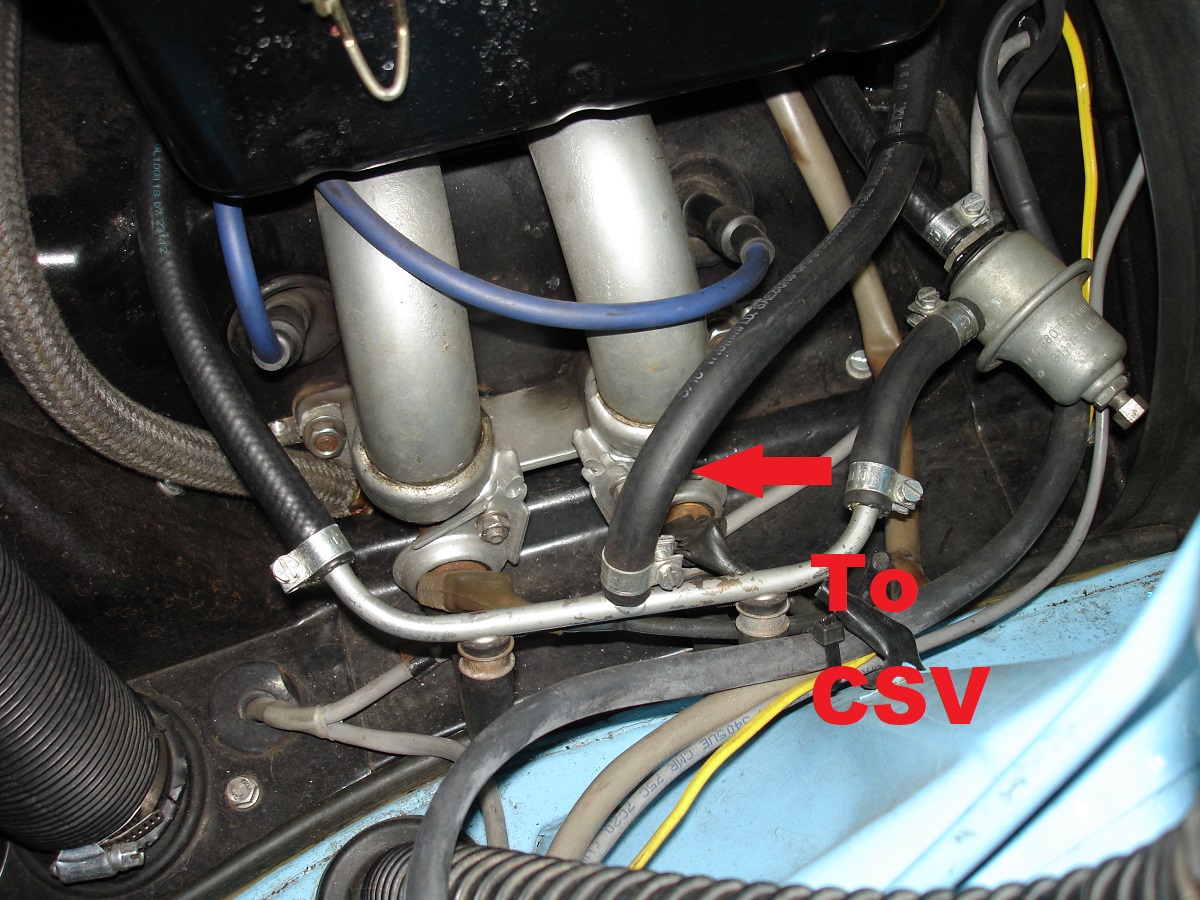

in picture below the green line from the throttle body is routed differently

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bdstone914
post Feb 10 2017, 09:00 AM
Post #2


bdstone914
****

Group: Members
Posts: 4,521
Joined: 8-November 03
From: Riverside CA
Member No.: 1,319



Does your distributor have one or two vacuum ports ?

And don't forget your screw driver on the battery tray.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mgphoto
post Feb 10 2017, 09:32 AM
Post #3


"If there is a mistake it will find me"
***

Group: Members
Posts: 1,339
Joined: 1-April 09
From: Los Angeles, CA
Member No.: 10,225
Region Association: Southern California



Good looking job, you will have some issues mixing and matching, dizzys, mps's and ecu's.
The ecu will determine how the vaccum lines are used.
One of the hoses is the vacuum retard and the other vacuum advance, that is the reason one of the nipples is above the diaphram and the other below.
Off the top of my head, I believe the 1.7 ecu is used with the 2.0l 73 FI, which requires the ballast resistor on the head temp sensor.
The 74 2.0l FI deletes the resistor and the vaccum retard, they cap the throttle body and leave the vacuum can unplugged.

'74 ecu and dizzy "vacuum can" are tuned. If you don't have the 2.0l dizzy your vaccum signature will not match the vaccum can response. You can either use a 2.0l dizzy or find a vaccum can that has a slotted screw with a locknut in the middle of the can, these can be adjusted to match the vacuum signature.

You will also need to turn the mps using an air / fuel ratio meter if you've increased the engine capacity.

Unless you have a concorse need, I would remove the deacceleration valve and cap the port on the plenum.
Just my 2 cents.
Good luck,
Mike
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Olympic 914
post Feb 10 2017, 10:37 AM
Post #4



***

Group: Members
Posts: 1,668
Joined: 7-July 11
From: Pittsburgh PA
Member No.: 13,287
Region Association: North East States



QUOTE(bdstone914 @ Feb 10 2017, 10:00 AM) *

Does your distributor have one or two vacuum ports ?



I have two ports on the distributor. The distributor is one of the original 73 1.7 parts.



QUOTE(mgphoto @ Feb 10 2017, 10:32 AM) *

Good looking job, you will have some issues mixing and matching, dizzys, mps's and ecu's.
The ecu will determine how the vaccum lines are used.
One of the hoses is the vacuum retard and the other vacuum advance, that is the reason one of the nipples is above the diaphram and the other below.
Off the top of my head, I believe the 1.7 ecu is used with the 2.0l 73 FI, which requires the ballast resistor on the head temp sensor.
The 74 2.0l FI deletes the resistor and the vaccum retard, they cap the throttle body and leave the vacuum can unplugged.

'74 ecu and dizzy "vacuum can" are tuned. If you don't have the 2.0l dizzy your vaccum signature will not match the vaccum can response. You can either use a 2.0l dizzy or find a vaccum can that has a slotted screw with a locknut in the middle of the can, these can be adjusted to match the vacuum signature.

You will also need to turn the mps using an air / fuel ratio meter if you've increased the engine capacity.

Unless you have a concorse need, I would remove the deacceleration valve and cap the port on the plenum.
Just my 2 cents.
Good luck,
Mike


I am using the 73 1.7 ECU (#037) and that was also used on the 73 2.0 .

I do have a variable POT that I will be using to determine the value needed for the ballast resistor inline from the CHT sensor.

Also I have a 043 MPS that was rebuilt and set to the 037 MPS specs that were used on the 73 2.0

I have tried to stay pretty true to the 73 2.0 FI setup, but I have made other changes to the engine, taking it to 2056, using HAM RS+ heads and a Raby 9590 cam.

I understand these changes may require a little fine tuning of the MPS and fuel pressure to get it to run correctly. I will be adding a Autometer Wideband AFR gauge to help in the tuning.

If both vacuum hoses were connected on the 73 2.0 setup I may just leave them hooked up. unless there is a negative effect to leaving the retard side connected.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Feb 10 2017, 10:41 AM
Post #5


914 Wiring Harnesses
*****

Group: Members
Posts: 8,505
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None



That's pretty good advice but a couple of clarifications:

The two port throttle body is a 73 2.0L version, the 74 only has a single port - nothing to cap off on the 74 version.

It is better to keep the decel valve in place because it functions as a vacuum signal buffer to the MPS and offers no performance gain in taking it out. Removing it puts increased strain on the MPS diaphragm which is critical to the FI system.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Olympic 914
post Feb 10 2017, 10:42 AM
Post #6



***

Group: Members
Posts: 1,668
Joined: 7-July 11
From: Pittsburgh PA
Member No.: 13,287
Region Association: North East States



QUOTE(mgphoto @ Feb 10 2017, 10:32 AM) *


Unless you have a concorse need, I would remove the deacceleration valve and cap the port on the plenum.



Why that?

I did just clean that decal valve up and tested / adjusted it to open at about 17 in Hg
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Feb 10 2017, 04:09 PM
Post #7


914 Wizard
**********

Group: Members
Posts: 11,623
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains



QUOTE(Jeff Bowlsby @ Feb 10 2017, 09:41 AM) *

That's pretty good advice but a couple of clarifications:

The two port throttle body is a 73 2.0L version, the 74 only has a single port - nothing to cap off on the 74 version.

It is better to keep the decel valve in place because it functions as a vacuum signal buffer to the MPS and offers no performance gain in taking it out. Removing it puts increased strain on the MPS diaphragm which is critical to the FI system.



Jeff
I absolutely agree with you regarding keeping the decal valve in place on a FI car
I agree with your point about bleeding off excessive vacuum signal that could damage the MPS

and I am theorizing a 2nd reason for keeping the Decel valve in place:
that being that the excessive vacuum signal on decal, can cause the diaphragm to flex excessively, and would also change the mixture excessively. So the opening of the decal valve keeps the mixture closer to the max vacuum signal mixture that is programed into the stock settings.

1)protecting the diaphragm
2)limiting the mixture change on decal or high vacuum settings


these german engineers think of everything
brant
User is online!Profile CardPM
Go to the top of the page
+Quote Post
poorsche914
post Feb 10 2017, 09:45 PM
Post #8


T4 Supercharged
****

Group: Members
Posts: 3,090
Joined: 28-May 09
From: Smoky Mountains
Member No.: 10,419
Region Association: South East States



Have you taken a look at pbanders D-jet page?

Tons of information and should help you sort out what parts work best together.

(IMG:style_emoticons/default/driving.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Olympic 914
post Feb 11 2017, 01:31 PM
Post #9



***

Group: Members
Posts: 1,668
Joined: 7-July 11
From: Pittsburgh PA
Member No.: 13,287
Region Association: North East States



Concerning the Decel valve.

Just to add to the discussion / confusion is this 10 year old thread....

http://www.914world.com/bbs2/index.php?sho...=67150&st=0

My experience when trying to set it was that if I blew into the side port it was very easy to tell when the valve opened using a mity-vac to provide vacuum to the control port.

HOWEVER.. If I blew into the end port it was not as obvious when the valve opened,
again providing vacuum to the control port using the mity-vac.

I don't understand this at all and just used the method of blowing into the side port to set the valve and then hooked it up with the side port to the air filter and the end port to the plenum.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mgphoto
post Feb 11 2017, 01:35 PM
Post #10


"If there is a mistake it will find me"
***

Group: Members
Posts: 1,339
Joined: 1-April 09
From: Los Angeles, CA
Member No.: 10,225
Region Association: Southern California



German's didn't think of everything. If the clamping device in the mps had the edge radiused the diaphrams might not crack as easily.If the German's were worried about the vaccum signal to the mps they would not have placed the ports in the plenum the way they did. This is not intended to be an argument, just some facts do what you will.

The de acel valve adds air into the mixture reducing hydrocarbons, so the engines would pass US emissions, only 2.0l euros have the valve, none of the 1.7 or 1.8 have it. This is sort of the same thing the Audi / VW engineers did to fool the emissions inspection.

You built a bitchin motor why gimp it to worry about a replacable part, I have a couple of spare mps's on my shelf ready to go if I run into a problem.

The vaccum retard is not your friend with a set up like yours, get Racer Chris's mps tuning kit and a spare diapham.
Again my 2 cents.
Mike
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Olympic 914
post Feb 11 2017, 01:48 PM
Post #11



***

Group: Members
Posts: 1,668
Joined: 7-July 11
From: Pittsburgh PA
Member No.: 13,287
Region Association: North East States



I did rebuild my 043 MPS with one of Tangerines diaphragm kits. I used the 043 MPS to get the extra spacer below the diaphragm and then tuned it to the 037 spec in PB Anders site. Those specs were for the 73 2.0 MPS
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bleyseng
post Feb 12 2017, 11:09 AM
Post #12


Aircooled Baby!
**********

Group: Members
Posts: 13,034
Joined: 27-December 02
From: Seattle, Washington (for now)
Member No.: 24
Region Association: Pacific Northwest



You will have to tune the MPS even more to get it right using a 9590 cam but it should run just lean. Why are you trying to use a 037 ECU? If you find a 74 one all in all it should tune and run better as the 73 ECU has a few work arounds for the 2.0L engine
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Feb 12 2017, 09:19 PM
Post #13


914 Idiot
**********

Group: Members
Posts: 14,986
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California



QUOTE(mgphoto @ Feb 11 2017, 11:35 AM) *

The de acel valve adds air into the mixture reducing hydrocarbons, so the engines would pass US emissions, only 2.0l euros have the valve, none of the 1.7 or 1.8 have it.


This is incorrect. Most of the 1.7s, all US-spec 1.8s, as well as US-spec 2.0s, have decel valves. I believe the early 1.7s did not have them.

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GregAmy
post Mar 7 2017, 08:28 AM
Post #14


Advanced Member
****

Group: Members
Posts: 2,298
Joined: 22-February 13
From: Middletown CT
Member No.: 15,565
Region Association: North East States



Camping a relevant question onto this discussion thread...

'74 2L; no idea if it's early or late, but not germane to the question. When I got the car it wasn't running, hoses removed, ports capped off. AAR and decel valve not installed.

I'm slowly reinstalling equipment, and the decel valve is next. Fortunately I found one in the Box 'o Parts and it works, though I had to adjust it WAY out to get it to move at the 17 inHg that Anders suggests. It appears I need to get some 10mm hose, and I see that there's 10mm ports on the airbox and plenum (both of which are plugged now), so I'm good there.

However, in the Post #1 drawing the decel valve vac control line appears to go to a fitting on the right front of the plenum, and the diagram shows some kind of tee fitting there. I don't have that on my car, it's also plugged off. Does anyone know the size of that plenum fitting, and if that tee is required? Can I tee into the distributor vac line to control the decel valve?

For reference, on my car the PCV hose off the oil fill is going directly into the airbox, where the AAR goes into in the drawing. Is that correct? Do we allow the to pull air directly from the crankcase ventilation into the intake plenum? Isn't that a very big vacuum leak?

Finally, my distributor may be routed incorrectly. The inside vac line (orange circle in the drawing in Post #1) is going to one of the vac fittings on the throttle body, but the outside vac line (blue circles) is going to a vac line fitting on the opposite side of the throttle body. I can't tell in the drawing where the blue-circle line is supposed to go on the plenum?

So, TL;DR:

- What is that tee fitting where PCV and decel valve vac line go to, and if it's needed where do I get one?
- Is the fitting on the plenum where that tee goes into 10mm? Can I just go directly to that?
- Can I tee off the distributor vac line to control the decel valve?
- Where does the outer side of the distributor vac canister go to on the plenum?

Edit: to add to my grief...I just pulled the plug off the 10mm port on the plenum, and someone had trimmed the length! It's only about 1/4" long now, which explains why it was being held on with a hose clamp. Dammit, why do people do stuff like that???
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mgphoto
post Mar 7 2017, 02:43 PM
Post #15


"If there is a mistake it will find me"
***

Group: Members
Posts: 1,339
Joined: 1-April 09
From: Los Angeles, CA
Member No.: 10,225
Region Association: Southern California



QUOTE(Dave_Darling @ Feb 12 2017, 07:19 PM) *

QUOTE(mgphoto @ Feb 11 2017, 11:35 AM) *

The de acel valve adds air into the mixture reducing hydrocarbons, so the engines would pass US emissions, only 2.0l euros have the valve, none of the 1.7 or 1.8 have it.


This is incorrect. Most of the 1.7s, all US-spec 1.8s, as well as US-spec 2.0s, have decel valves. I believe the early 1.7s did not have them.

--DD


The only euro cars to have the de acel valve was 2.0l none of the 'EURO" 1.7's and 1.8's had the valve. sorry I was not clear.
Buy the way all euro 1.8's had dual cards.
Check the parts book, lots of info there.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Shredhead
post Mar 15 2017, 02:27 PM
Post #16


Member
**

Group: Members
Posts: 110
Joined: 10-August 15
From: CT
Member No.: 19,047
Region Association: North East States



Also jumping on this thread... I have a late '74 2.0 with Djet. The advance port on the dizzy is plugged off at the dizzy and the retard has the vacuum line on it. I'm assuming it's correct to have the advance plugged? When I go to do the timing at 3500 RPM, should I have the retard plugged also, or does that even matter?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TheCabinetmaker
post Mar 15 2017, 04:25 PM
Post #17


I drive my car everyday
*****

Group: Members
Posts: 8,300
Joined: 8-May 03
From: Tulsa, Ok.
Member No.: 666



Remove and plug both hoses for timing.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Olympic 914
post Mar 16 2017, 04:19 PM
Post #18



***

Group: Members
Posts: 1,668
Joined: 7-July 11
From: Pittsburgh PA
Member No.: 13,287
Region Association: North East States



QUOTE(GregAmy @ Mar 7 2017, 10:28 AM) *

Camping a relevant question onto this discussion thread...

'74 2L; no idea if it's early or late, but not germane to the question. When I got the car it wasn't running, hoses removed, ports capped off. AAR and decel valve not installed.

I'm slowly reinstalling equipment, and the decel valve is next. Fortunately I found one in the Box 'o Parts and it works, though I had to adjust it WAY out to get it to move at the 17 inHg that Anders suggests. It appears I need to get some 10mm hose, and I see that there's 10mm ports on the airbox and plenum (both of which are plugged now), so I'm good there.

However, in the Post #1 drawing the decel valve vac control line appears to go to a fitting on the right front of the plenum, and the diagram shows some kind of tee fitting there. I don't have that on my car, it's also plugged off. Does anyone know the size of that plenum fitting, and if that tee is required? Can I tee into the distributor vac line to control the decel valve?

For reference, on my car the PCV hose off the oil fill is going directly into the airbox, where the AAR goes into in the drawing. Is that correct? Do we allow the to pull air directly from the crankcase ventilation into the intake plenum? Isn't that a very big vacuum leak?

Finally, my distributor may be routed incorrectly. The inside vac line (orange circle in the drawing in Post #1) is going to one of the vac fittings on the throttle body, but the outside vac line (blue circles) is going to a vac line fitting on the opposite side of the throttle body. That's how mine is set up I can't tell in the drawing where the blue-circle line is supposed to go on the plenum? In that diagram its just tucked under the plenum and not connected

So, TL;DR:

- What is that tee fitting where PCV and decel valve vac line go to, and if it's needed where do I get one? I got a plastic universal T fitting from the hardware store

- Is the fitting on the plenum where that tee goes into 10mm? Can I just go directly to that? Yes
- Can I tee off the distributor vac line to control the decel valve?
- Where does the outer side of the distributor vac canister go to on the plenum? [/color] On the 74s there was not a fitting on the throttle body for the retard side of the vacuum, the line attached to it was just tucked under the plenum and left open

Edit: to add to my grief...I just pulled the plug off the 10mm port on the plenum, and someone had trimmed the length! It's only about 1/4" long now, which explains why it was being held on with a hose clamp. Dammit, why do people do stuff like that???


This is just how mine is setup, more knowledgeable people may give you other advice on how to proceed.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Jan 15 2021, 04:54 PM
Post #19


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada



What is the correct placement for the T in the fuel line for the CSV cold start valve fuel line?
I take it it's suppose to have a steel pipe T fitting, not the shiny brass hardware store T fitting that's in there right now.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Olympic 914
post Jan 16 2021, 07:26 AM
Post #20



***

Group: Members
Posts: 1,668
Joined: 7-July 11
From: Pittsburgh PA
Member No.: 13,287
Region Association: North East States



this thread was mainly about the vacuum lines.

But in my setup I have the fuel line for the CSV coming off the tap on the 1-2 fuel rail.

Attached Image

User is offlineProfile CardPM
Go to the top of the page
+Quote Post

2 Pages V  1 2 >
Reply to this topicStart new topic
1 User(s) are reading this topic (1 Guests and 0 Anonymous Users)
0 Members:





- Lo-Fi Version Time is now: 15th May 2024 - 07:25 PM
