> 123 Distributor Group Buy Thread, Replacement for NLA stock Dizzy's-Order 15 % Discount
pete000
post Oct 22 2017, 10:05 PM
Post #101


Senior Member
***

Group: Members
Posts: 1,885
Joined: 23-August 10
From: Bradenton Florida
Member No.: 12,094
Region Association: South East States
Can some one post the stock ignition curves for the 1.7, 1.8, and the 2.0
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914_teener
post Oct 22 2017, 10:39 PM
Post #102


914 Guru
*****

Group: Members
Posts: 5,197
Joined: 31-August 08
From: So. Cal
Member No.: 9,489
Region Association: Southern California
QUOTE(pete000 @ Oct 22 2017, 09:05 PM) *

Can some one post the stock ignition curves for the 1.7, 1.8, and the 2.0

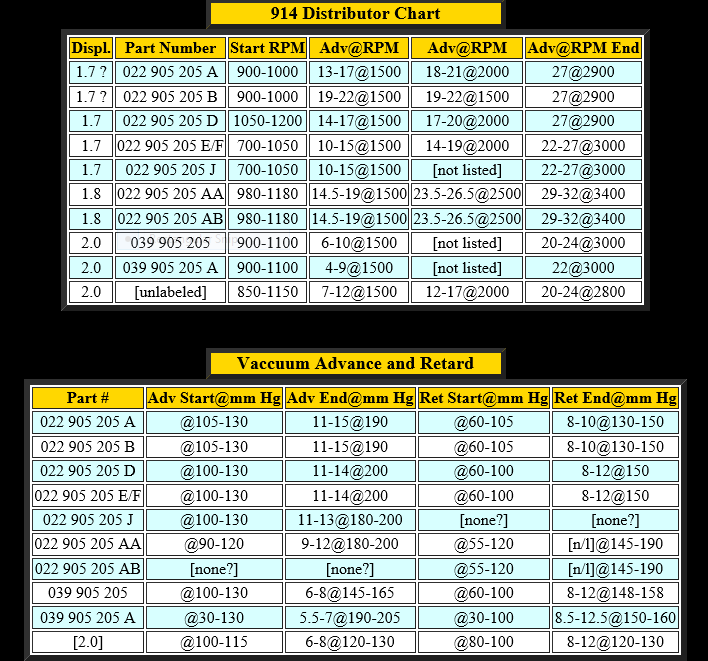

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914_teener
post Oct 22 2017, 10:49 PM
Post #103


914 Guru
*****

Group: Members
Posts: 5,197
Joined: 31-August 08
From: So. Cal
Member No.: 9,489
Region Association: Southern California
https://members.rennlist.com/pbanders/distributor.htm

Additional Info.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Oct 23 2017, 12:49 PM
Post #104


914 Idiot
**********

Group: Members
Posts: 14,981
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
QUOTE(914_teener @ Oct 22 2017, 09:39 PM) *

Attached Image


Been a while since I pulled that data out of the factory diagrams, but I think I converted the RPMs to engine RPM, not distributor RPM. (Dizzy turns at half speed.) I don't think I did anything to the advance/retard figures, though.

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914_teener
post Oct 23 2017, 01:19 PM
Post #105


914 Guru
*****

Group: Members
Posts: 5,197
Joined: 31-August 08
From: So. Cal
Member No.: 9,489
Region Association: Southern California
So degrees at the crank. Pulled these off a Bird Board post.

Somewhere there are the plotted curves.....couldn.t find the url where I saw them.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Millerwelds
post Oct 23 2017, 03:52 PM
Post #106


Pleepleus
***

Group: Members
Posts: 715
Joined: 24-June 08
From: Grass Valley, CA
Member No.: 9,206
Region Association: Northern California
Order placed. 15% discount was applied. (IMG:style_emoticons/default/beerchug.gif)
Thanks for setting up the group buy!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
pete000
post Oct 23 2017, 05:46 PM
Post #107


Senior Member
***

Group: Members
Posts: 1,885
Joined: 23-August 10
From: Bradenton Florida
Member No.: 12,094
Region Association: South East States
QUOTE(Millerwelds @ Oct 23 2017, 02:52 PM) *

Order placed. 15% discount was applied. (IMG:style_emoticons/default/beerchug.gif)
Thanks for setting up the group buy!

(IMG:style_emoticons/default/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BeatNavy
post Oct 23 2017, 05:53 PM
Post #108


Certified Professional Scapegoat
****

Group: Members
Posts: 2,924
Joined: 26-February 14
From: Easton, MD
Member No.: 17,042
Region Association: MidAtlantic Region
QUOTE(pete000 @ Oct 23 2017, 07:46 PM) *

QUOTE(Millerwelds @ Oct 23 2017, 02:52 PM) *

Order placed. 15% discount was applied. (IMG:style_emoticons/default/beerchug.gif)
Thanks for setting up the group buy!

(IMG:style_emoticons/default/aktion035.gif)

Yup, I got a message about additional discount being applied to my previous order just after Miller posted. He took us over the line. (IMG:style_emoticons/default/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
123ignitionusa
post Oct 23 2017, 06:10 PM
Post #109


Member
**

Group: Members
Posts: 62
Joined: 22-January 16
From: Ohio
Member No.: 19,587
Region Association: North East States
Thanks gentlemen, 15% is now active as you know. Purchases will be sent out in the order they were placed. I will let you know when orders are ready to post.
Thanks Ed
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DRPHIL914
post Oct 23 2017, 06:32 PM
Post #110


Dr. Phil
*****

Group: Members
Posts: 5,760
Joined: 9-December 09
From: Bluffton, SC
Member No.: 11,106
Region Association: South East States
my order is placed and paid for my order number and it up being 915!

unfortunately i will not get to test it out for a few months- motor gets pulled and car goes to paint in a week, should be done by Christmas so i guess i can tell my wife I bought my Christmas present!

oh, and big thanks to Ed for this deal.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SKL1
post Oct 23 2017, 08:12 PM
Post #111


Senior Member
***

Group: Members
Posts: 1,597
Joined: 19-February 11
From: north Scottsdale
Member No.: 12,732
Region Association: Upper MidWest
Calling Ed tomorrow to make sure I'm ordering the right one- glad it will be 15%off!!
Another reason to spend time here at 914 world!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
123ignitionusa
post Oct 24 2017, 06:11 AM
Post #112


Member
**

Group: Members
Posts: 62
Joined: 22-January 16
From: Ohio
Member No.: 19,587
Region Association: North East States
It has been brought to my attention that at least one person has not received a discount when purchasing a distributor.
The link he followed is to a retailer in Europe, not to my website.

Remember to go to 123ignitionusa.com

Ordering information for you below

These three are switched. Meaning you select a pre programmed curve by a switch in the unit.
Porsche 4-R-V-IE is for D-Jet is a pre programmed unit. And is the only unit to drive your D-Jet injection system. It can also be used in a carburetted scenario.
Porshe 4-R-V is for Carburetted models. is pre programed and has vacuum
Porsche 4-R is for Carburetted models without vacuum. Is pre programmed.

These two units are for Carburetted models or L-Jet models and are completely programable.
Tune+4-R-V-P and uses Bluetooth to connect to it.
Tune 4-R-V-P uses a PC mini 5 pin USB cable to connect to it. The cable is sold separately.

Hope this helps

Thanks
Ed
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
VaccaRabite
post Oct 24 2017, 08:25 AM
Post #113


En Garde!
**********

Group: Admin
Posts: 13,432
Joined: 15-December 03
From: Dallastown, PA
Member No.: 1,435
Region Association: MidAtlantic Region
Ed, THANKS for posting. I think that will be very helpful information.

Zach
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Olympic 914
post Oct 24 2017, 09:07 AM
Post #114



***

Group: Members
Posts: 1,662
Joined: 7-July 11
From: Pittsburgh PA
Member No.: 13,287
Region Association: North East States
Just ordered one D-jet model.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave97
post Oct 24 2017, 10:03 AM
Post #115


Newbie
*

Group: Members
Posts: 42
Joined: 25-July 17
From: Calif
Member No.: 21,285
Region Association: None
My engine has 44 idf carbs with MSD box and distributor. How does the vaccum unit work and do I still keep my MSD box?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mct
post Oct 24 2017, 01:54 PM
Post #116


Newbie
*

Group: Members
Posts: 7
Joined: 28-September 16
From: Heidelberg, Germany
Member No.: 20,441
Region Association: Germany
QUOTE(mgphoto @ Oct 23 2017, 04:02 AM) *

QUOTE(1adam12 @ Oct 22 2017, 11:47 AM) *

I thought this distributor looked familiar. I ran across this 914 install a few months ago on YouTube. How's everyone's German!?
https://youtu.be/rw1FigYoozE



I think it's Dutch, but I could be wrong.



Nono,
ju arr verry rong. Sis is von handred perr sent Dsherman se gai iss speekink. Se kampani iss Datsh sou.....


Have the BT model in my 2l bus and it is a charm. No swappin points, plug&play, fire&forget, what have you. Dunno 'bout longevity, but as it reduces mechanical parts it should work all right in the Long run. Always gonna be haters/purists of course. It also gives you nice data on temp, MAP, RPMs, crankshaft advance and voltage as well as GPS-based speed reading!

I´m getting one for the teener next summer...

greets from Heidelberg Germany,

Michael
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SKL1
post Oct 24 2017, 03:50 PM
Post #117


Senior Member
***

Group: Members
Posts: 1,597
Joined: 19-February 11
From: north Scottsdale
Member No.: 12,732
Region Association: Upper MidWest
Anyone have the advance curve for the Bosch 050 distributor? Wonder if one of the preset curves on the 4R is close to that...

Think I'll order the 4R with 16 curve choices- don't figure I'm computer savvy enough to program the thing myself! Hell, I'm driving a 46 year old car!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mobymutt
post Oct 24 2017, 07:21 PM
Post #118


Senior Member
***

Group: Members
Posts: 548
Joined: 16-December 13
From: Kingston, Ontario, Canada
Member No.: 16,770
Region Association: Canada
I love this solution, especially the bluetooth programmable version! I can't join the group buy this time around, but maybe there will be another one in a couple of years (hint..)

Looking forward to hearing everyone's feedback on the installation and performance.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
johnwmrvw
post Oct 26 2017, 09:51 PM
Post #119


Newbie
*

Group: Members
Posts: 2
Joined: 9-November 08
From: Vancouver, Wa.
Member No.: 9,733
Region Association: None
Just ordered the 4-R-V-IE from 123(USA).
Thanks everyone for their input!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SKL1
post Oct 27 2017, 01:11 PM
Post #120


Senior Member
***

Group: Members
Posts: 1,597
Joined: 19-February 11
From: north Scottsdale
Member No.: 12,732
Region Association: Upper MidWest
Just ordered the 4R- we are well beyond the number needed for 15% off, if you're on the fence, you ought to jump on!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
