> OT: Arne’s post-teener projects, Retirement project #8, 1969 Ford Bronco
Root_Werks
post Sep 11 2025, 12:52 PM
Post #401


Village Idiot
*****

Group: Members
Posts: 9,004
Joined: 25-May 04
From: About 15NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
Dang, that is turning out nice!

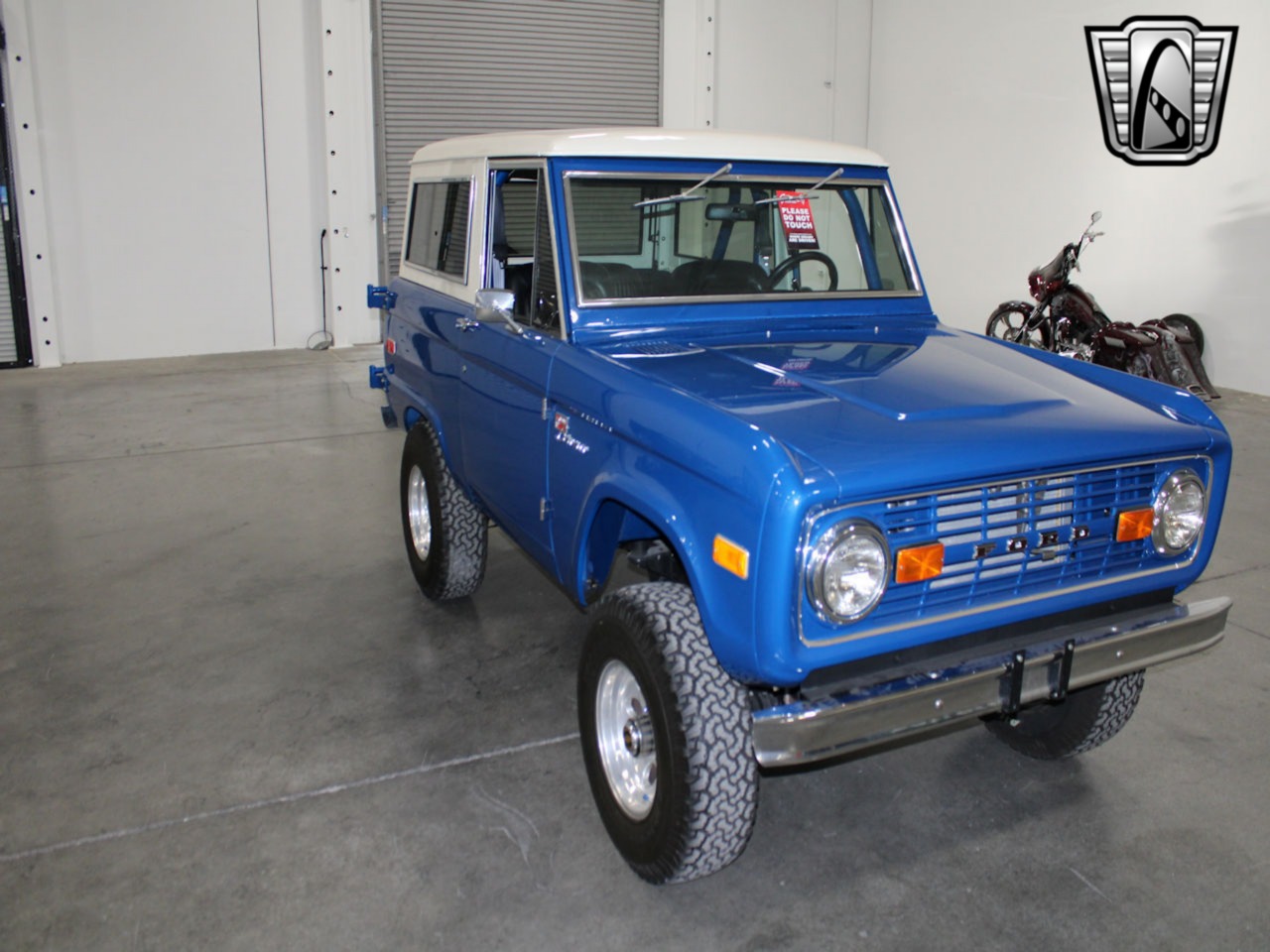

We couldn't wait for you to finish this one Arne so we picked up this 72':



Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
arne
post Sep 12 2025, 11:23 PM
Post #402


Serial Rescuer of old vehicles...
***

Group: Members
Posts: 796
Joined: 31-January 17
From: Eugene, Oregon
Member No.: 20,799
Region Association: None
QUOTE(Root_Werks @ Sep 11 2025, 11:52 AM) *

We couldn't wait for you to finish this one Arne so we picked up this 72':

Good for you, Dan. Looks like a nice one, and I figure I won't be done for at least 6 months, maybe 12.

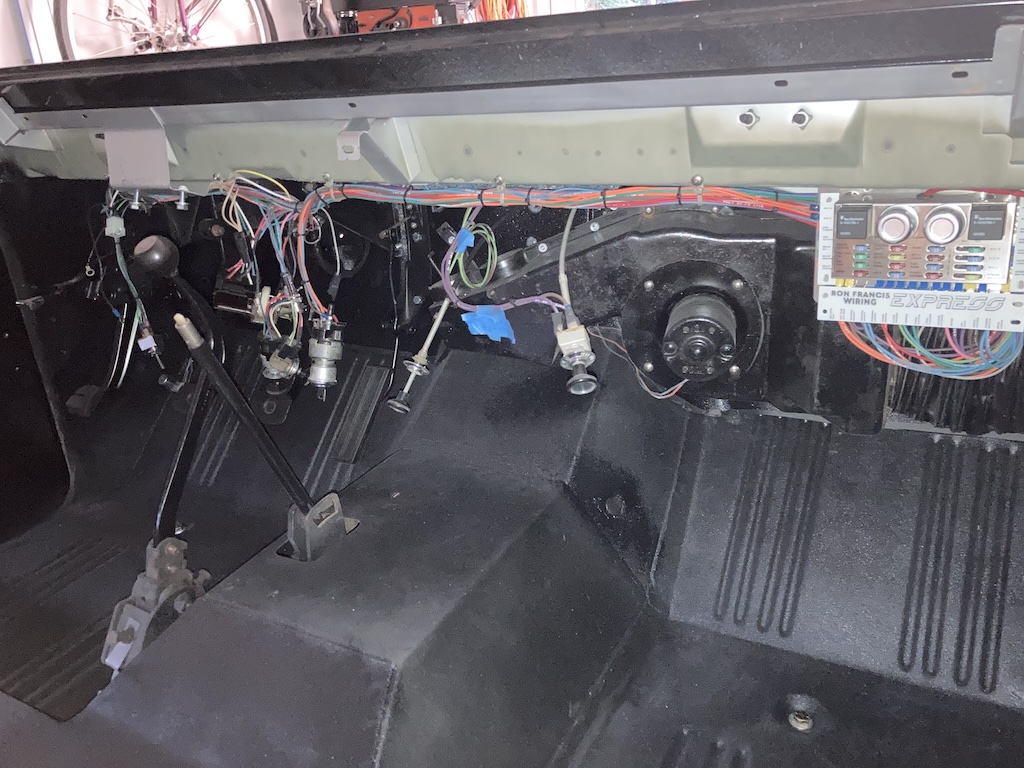

Earlier this week I pulled the steering column and dash out, and installed pre-formed firewall insulation. Then I installed the rebuilt heater box, connected the new heater core using molded hoses, and refilled the cooling system. Started and warmed the engine, and tested the heater successfully.

After the heater was in place, I spent some time doing final tidying of all the new wiring under the dash. The new fusebox is mounted so that it will protrude into the back of the glovebox, after I cut a hole for it. The only wiring not done yet is the wiper motor, as I want to paint the windshield frame before fishing the wiring through it.

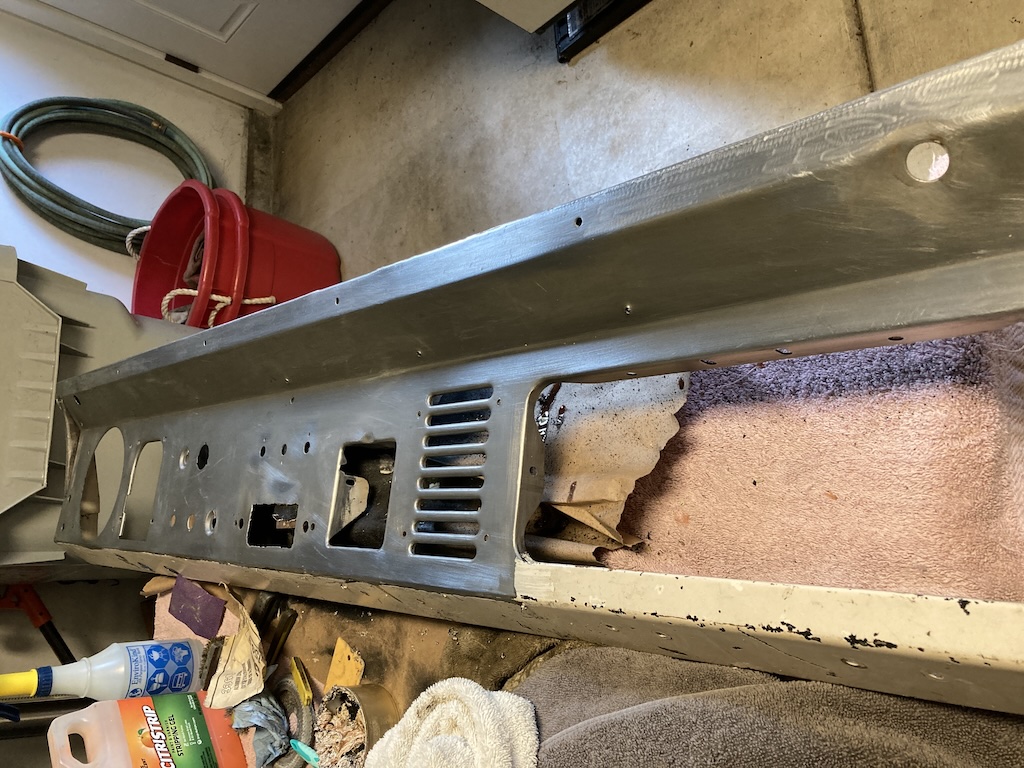

As for paint prep, I've started stripping the dash panel to bare metal. I hope to get primer and paint on it over the weekend, but there are other things around here that MUST be done before the weather turns, so the dash work might stretch later into next week.

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
arne
post Sep 19 2025, 10:48 PM
Post #403


Serial Rescuer of old vehicles...
***

Group: Members
Posts: 796
Joined: 31-January 17
From: Eugene, Oregon
Member No.: 20,799
Region Association: None

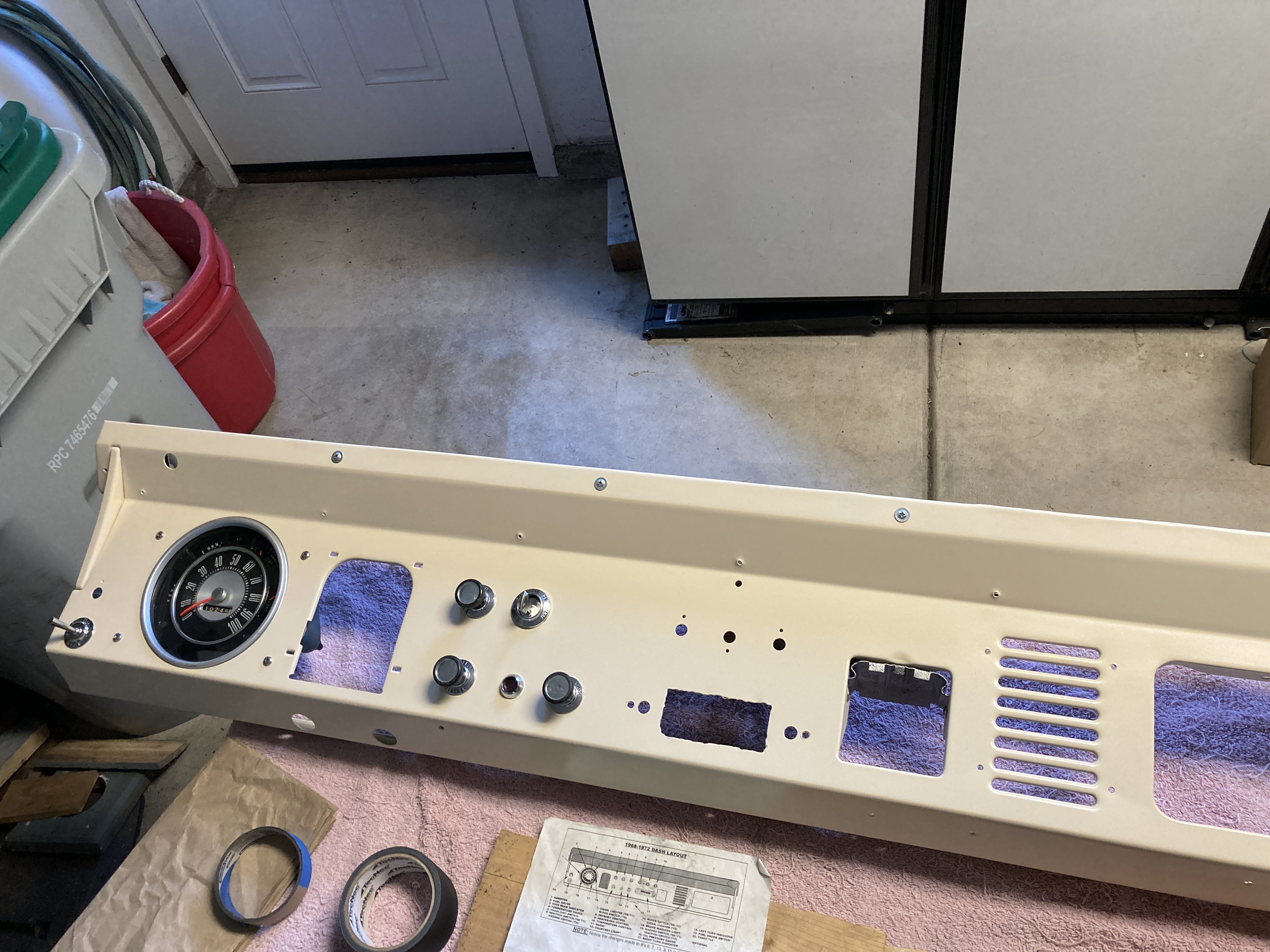

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Sep 20 2025, 11:11 AM
Post #404


Village Idiot
*****

Group: Members
Posts: 9,004
Joined: 25-May 04
From: About 15NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
Looking good! You probably said already, what color are you going with?

We have 15x8 Ultra rims with 31x10.5's. Too big, going down to Ultra 15x7's with the 3.75 backspace and probably 31x9.5's.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
arne
post Sep 20 2025, 11:11 PM
Post #405


Serial Rescuer of old vehicles...
***

Group: Members
Posts: 796
Joined: 31-January 17
From: Eugene, Oregon
Member No.: 20,799
Region Association: None
QUOTE(Root_Werks @ Sep 20 2025, 10:11 AM) *

Looking good! You probably said already, what color are you going with?

We have 15x8 Ultra rims with 31x10.5's. Too big, going down to Ultra 15x7's with the 3.75 backspace and probably 31x9.5's.

Original color - Sky View Blue. As here - https://bringatrailer.com/listing/1969-ford-bronco-93/

I've got 265/75R15 on 15x7 Ultras on mine. The 265s are 4-ply versions of 31x10.50s. Mine has a good 3" suspension lift and no body lift. Probably an inch more than needed, but it's what it came with. Yours looks like at least 1", maybe 2" body lift. Suspension stock?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Sep 21 2025, 02:29 PM
Post #406


Village Idiot
*****

Group: Members
Posts: 9,004
Joined: 25-May 04
From: About 15NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
3" suspension and 2" body = too much. Want a tire/wheel combo that can tuck under that rear fender. Then probably drop the "2 body lift and call it good.

Love that color, it's going to look great.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
arne
post Sep 21 2025, 09:17 PM
Post #407


Serial Rescuer of old vehicles...
***

Group: Members
Posts: 796
Joined: 31-January 17
From: Eugene, Oregon
Member No.: 20,799
Region Association: None
QUOTE(Root_Werks @ Sep 21 2025, 01:29 PM) *

3" suspension and 2" body = too much. Want a tire/wheel combo that can tuck under that rear fender. Then probably drop the "2 body lift and call it good.

3" suspension should be fine for even the 31x10.50 on narrower 7" wheels. That's what mine has.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
arne
post Oct 21 2025, 01:26 PM
Post #408


Serial Rescuer of old vehicles...
***

Group: Members
Posts: 796
Joined: 31-January 17
From: Eugene, Oregon
Member No.: 20,799
Region Association: None

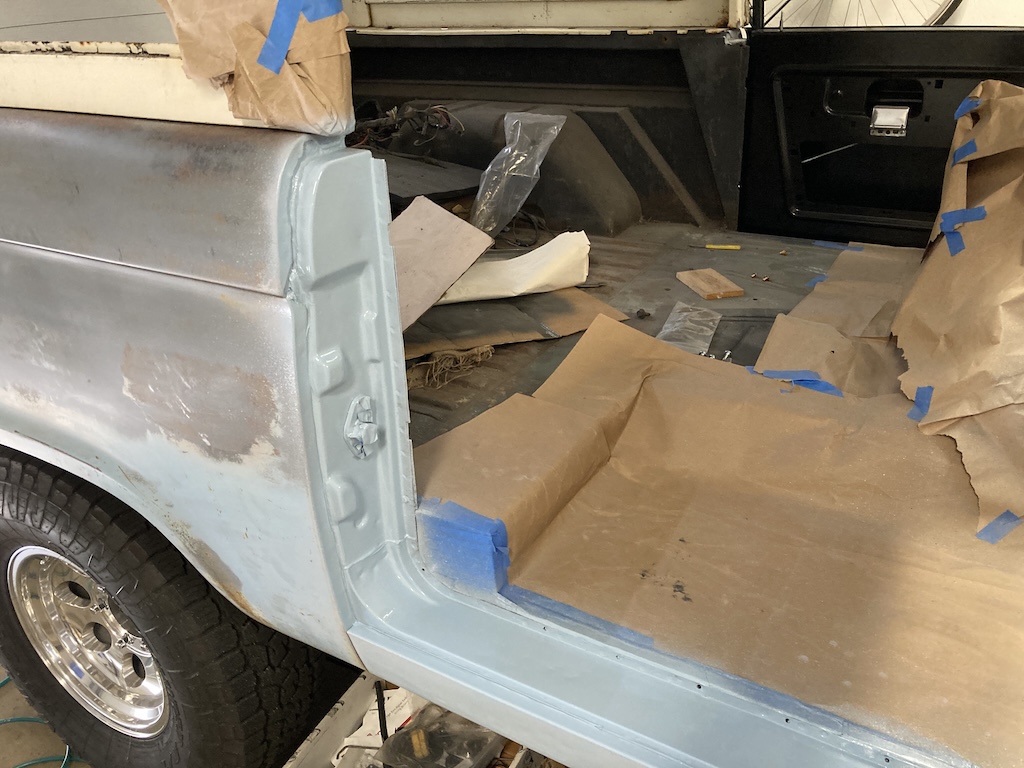

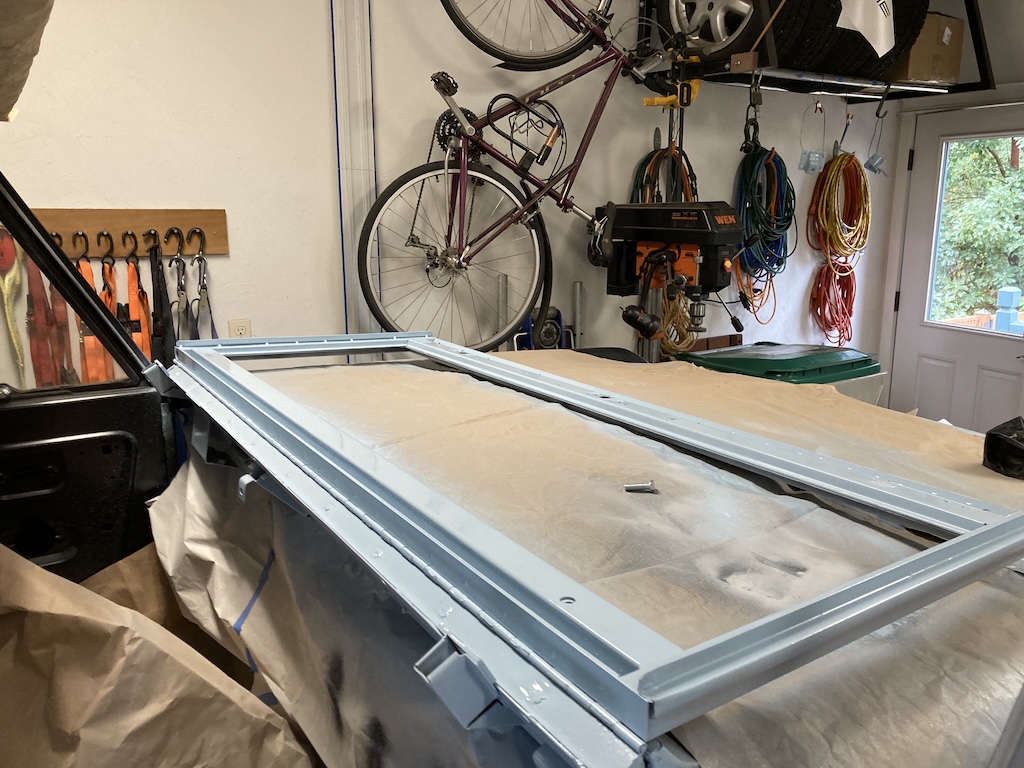

First color applied. Looks good so far. Passenger door jamb, under dash, windshield frame.

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Oct 22 2025, 10:35 AM
Post #409


Village Idiot
*****

Group: Members
Posts: 9,004
Joined: 25-May 04
From: About 15NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
That's always such a good feeling to start getting color back on panels.

Read the flip down windshield was welded by Ford sometime in the 60's. Guess folks would drop the windshield and while driving, the windshield would slam back up.

Oops.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
arne
post Oct 22 2025, 01:07 PM
Post #410


Serial Rescuer of old vehicles...
***

Group: Members
Posts: 796
Joined: 31-January 17
From: Eugene, Oregon
Member No.: 20,799
Region Association: None
They had hold-down latches on the hood from '66-68. Eliminated them in '69 when they changed from vacuum to electric wipers. Windshields were still hinged for at least a few years after that. So early to mid-70s.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
arne
post Oct 24 2025, 06:21 PM
Post #411


Serial Rescuer of old vehicles...
***

Group: Members
Posts: 796
Joined: 31-January 17
From: Eugene, Oregon
Member No.: 20,799
Region Association: None

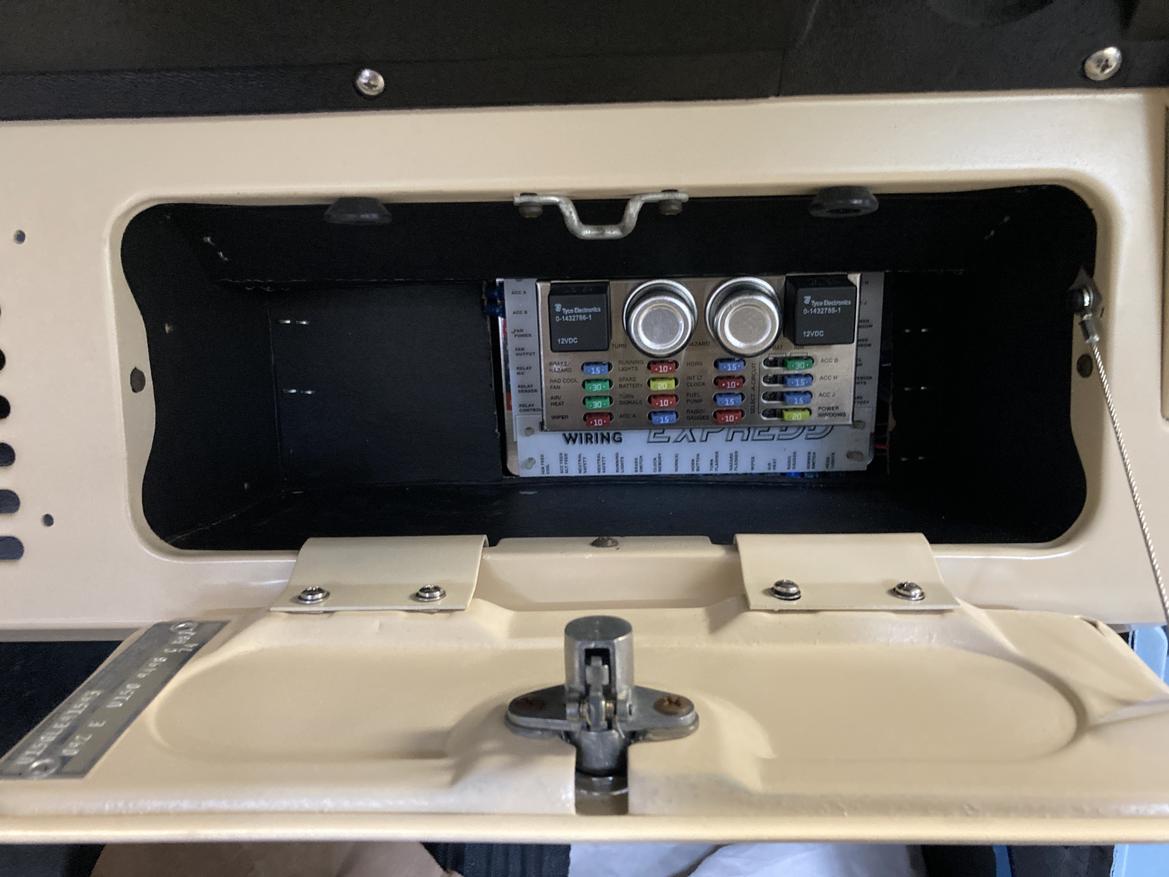

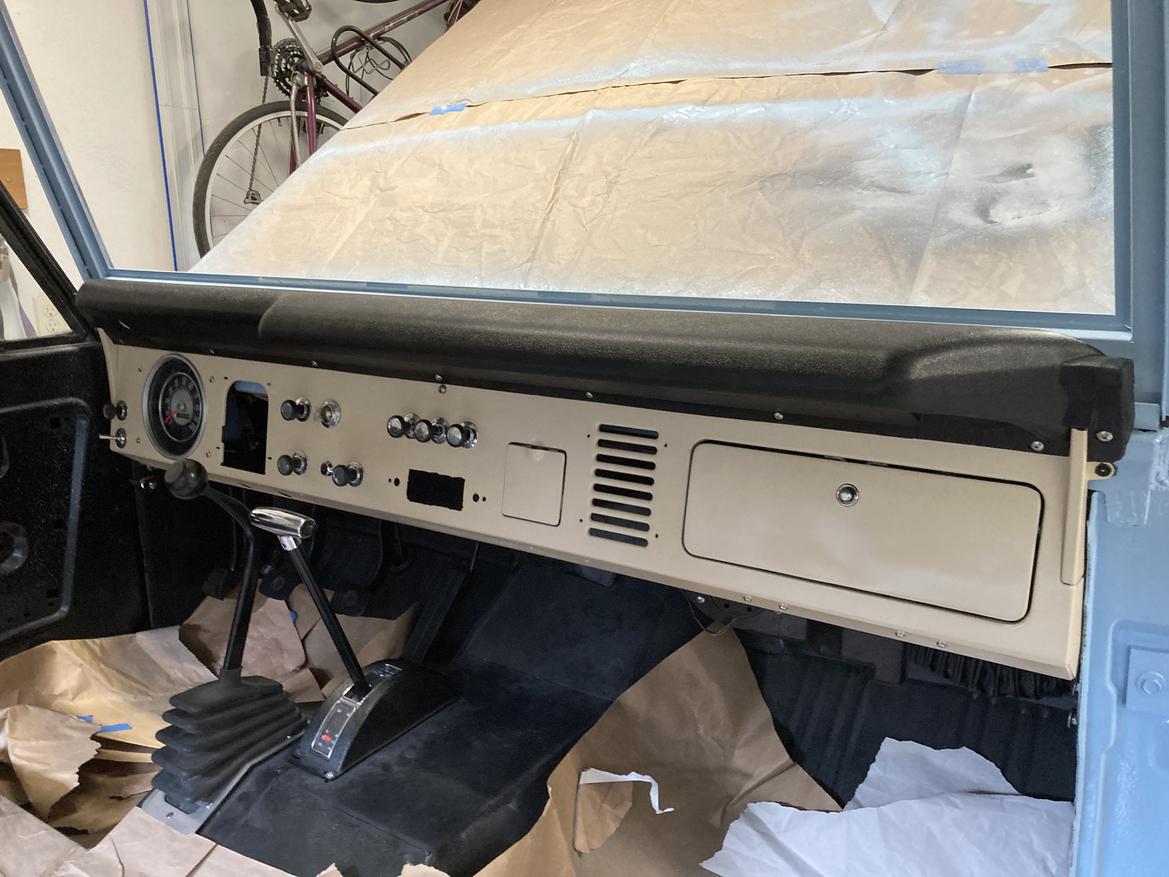

Dash installed and wired. Steering column soon.

(IMG:http://www.914world.com/bbs2/uploads_offsite/s3.us-east-2.amazonaws.com-20799-1761351682.1.JPG)

(IMG:http://www.914world.com/bbs2/uploads_offsite/s3.us-east-2.amazonaws.com-20799-1761351683.2.JPG)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Oct 24 2025, 06:40 PM
Post #412


Village Idiot
*****

Group: Members
Posts: 9,004
Joined: 25-May 04
From: About 15NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
Dang that looks good! The updated wiring and fuse panel is also nice.

Chased and cleaned up some wiring today on ours. Fuel gauge doesn't work, wiring was wrong.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
arne
post Feb 28 2026, 07:22 PM
Post #413


Serial Rescuer of old vehicles...
***

Group: Members
Posts: 796
Joined: 31-January 17
From: Eugene, Oregon
Member No.: 20,799
Region Association: None

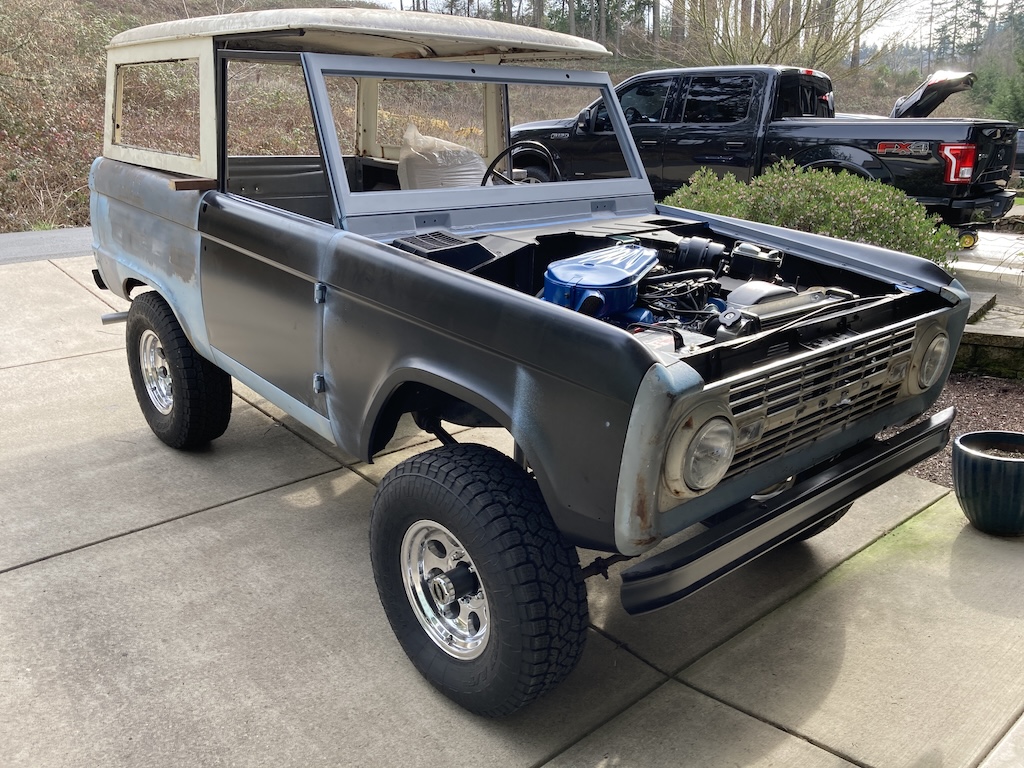

Here is the Bronco today, warming up in the driveway while I reconfigure the garage for paint work. Looking at my schedule and the weather forecast, I'm going to try to shoot paint on Tuesday - driver's door jamb, inside doors, windshield frame, cabin bulkhead, spare carrier, etc.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Mar 3 2026, 11:34 AM
Post #414


Village Idiot
*****

Group: Members
Posts: 9,004
Joined: 25-May 04
From: About 15NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
Yay! Paint!

Wound up rebuilding the entire front end on our Bronco. BJ's, tie rod ends ect. Also installed 1.5" springs and removed the 3" springs. With a 2" body lift, the 1.5" are much nicer. It was too tall, especially for street use. Handles much better now.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
arne
post Mar 28 2026, 10:45 AM
Post #415


Serial Rescuer of old vehicles...
***

Group: Members
Posts: 796
Joined: 31-January 17
From: Eugene, Oregon
Member No.: 20,799
Region Association: None
Since the last episode...

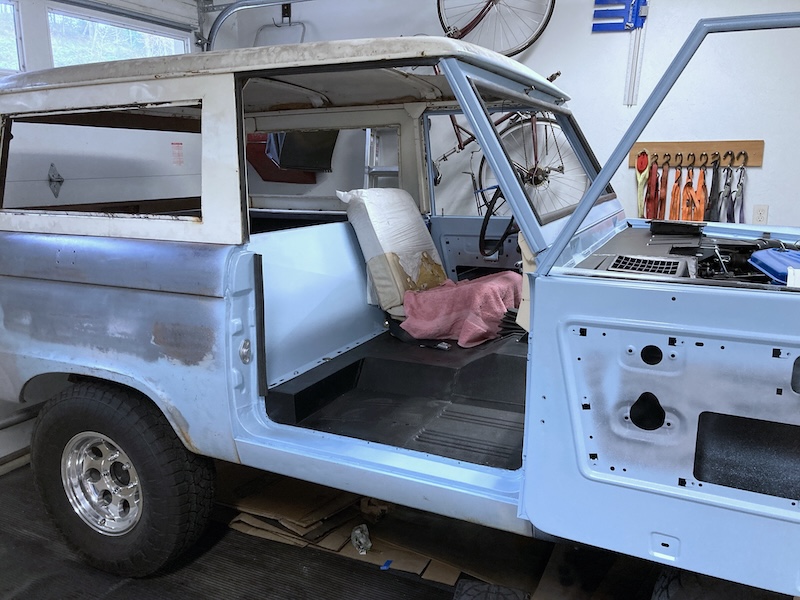

All the odds and ends have been painted, which means I can start shopping for the exterior paint job soon. And I think I have finally got the carb dialed in. Yesterday I installed the windshield, cabin bulkhead (freshly painted) and a driver's seat belt. Will start trying to make the hood reasonably straight and presentable next.

Attached Image

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jd74914
post Mar 30 2026, 09:52 AM
Post #416


Its alive
****

Group: Members
Posts: 4,880
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States
I've never seen anyone with a ratchet strap wall hanger before, that's a great idea!

The Bronco is looking great too!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Mar 31 2026, 03:28 PM
Post #417


Village Idiot
*****

Group: Members
Posts: 9,004
Joined: 25-May 04
From: About 15NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest

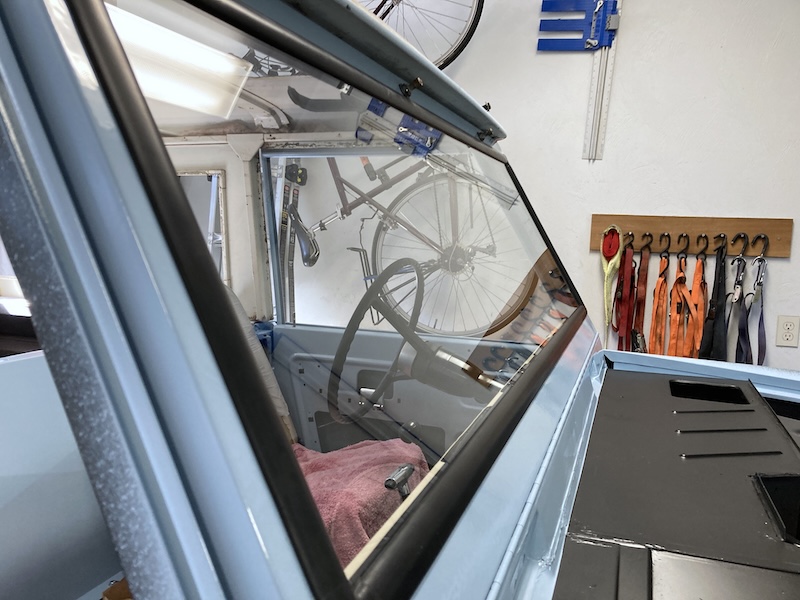

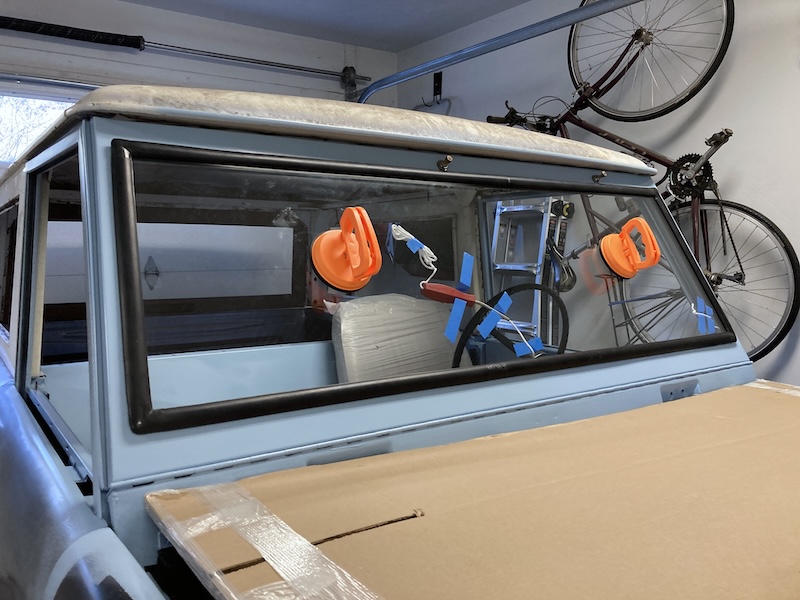

Nicely done on the windshield install! At some point, going to remove all the bright work on our Bronco.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
arne
post Apr 18 2026, 09:02 PM
Post #418


Serial Rescuer of old vehicles...
***

Group: Members
Posts: 796
Joined: 31-January 17
From: Eugene, Oregon
Member No.: 20,799
Region Association: None

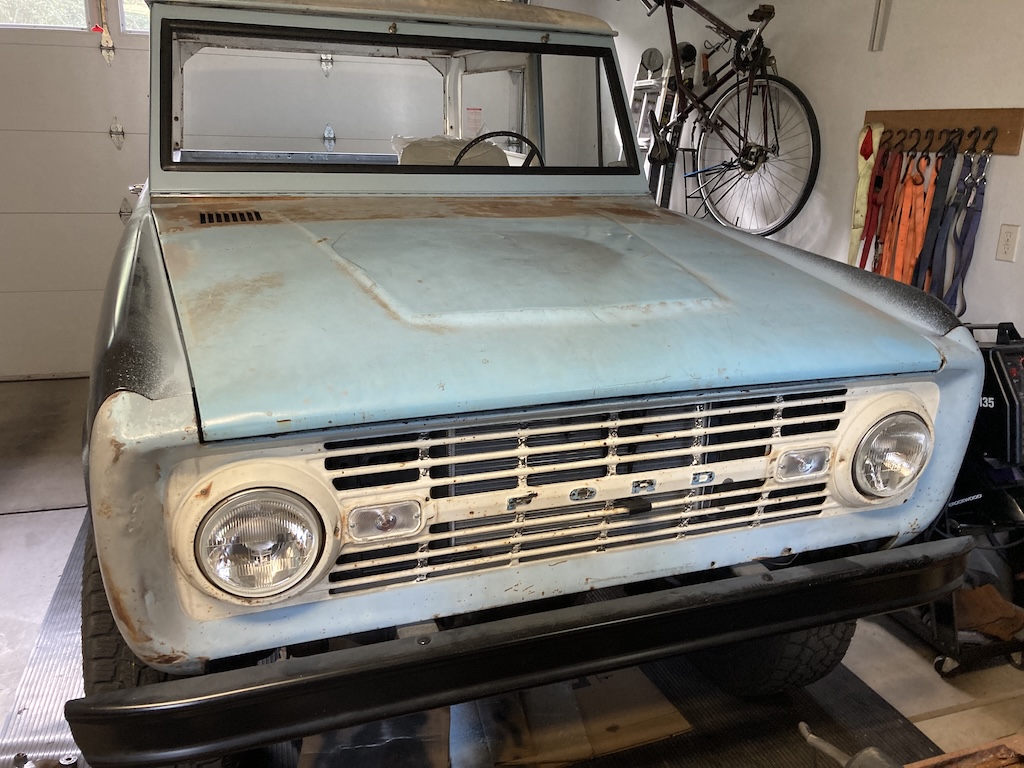

Got the hood reinforced, reshaped and cracks welded. Then shimmed and fitted.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Apr 30 2026, 02:16 PM
Post #419


Village Idiot
*****

Group: Members
Posts: 9,004
Joined: 25-May 04
From: About 15NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
One more piece of the puzzle fitted!

(IMG:style_emoticons/default/boldblue.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
arne
post May 1 2026, 10:17 AM
Post #420


Serial Rescuer of old vehicles...
***

Group: Members
Posts: 796
Joined: 31-January 17
From: Eugene, Oregon
Member No.: 20,799
Region Association: None
QUOTE(Root_Werks @ Apr 30 2026, 01:16 PM) *

One more piece of the puzzle fitted!

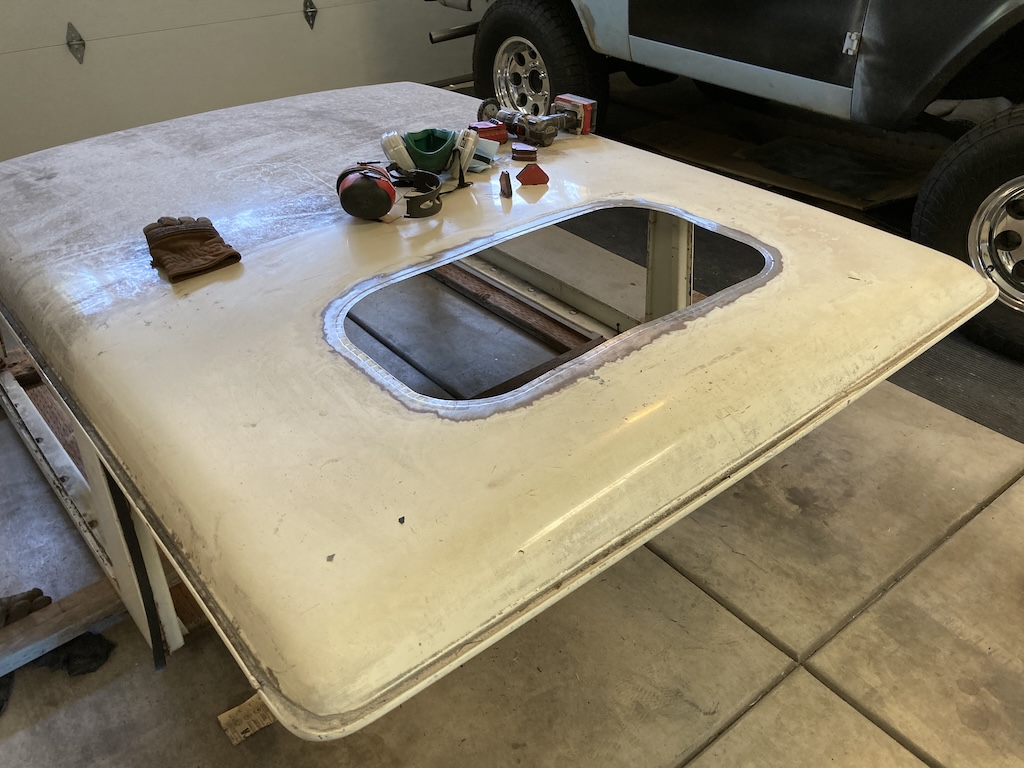

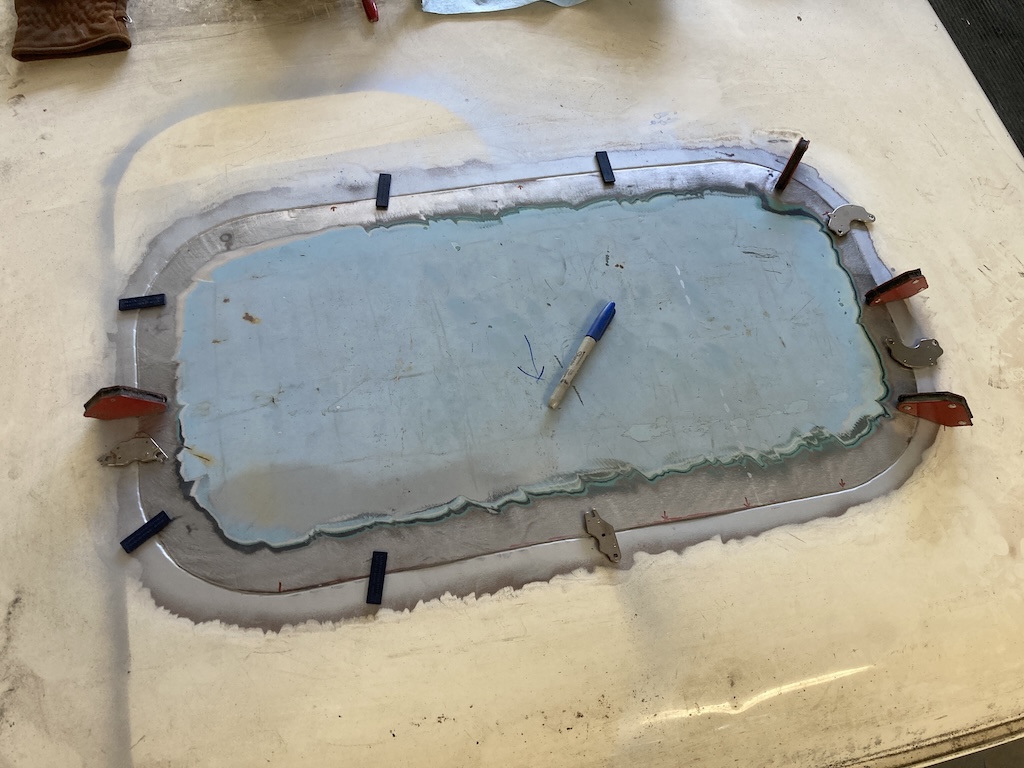

Talking about fitting puzzle pieces...

Attached Image

Attached Image
