> My Next Problem:, Headlight Wire Repair
914 7T3
post Jan 12 2018, 08:05 PM
Post #1


Please forgive me, I'm new to all of this!
***

Group: Members
Posts: 663
Joined: 3-April 17
From: Los Angeles, CA
Member No.: 20,991
Region Association: Southern California



My car was purchased with nonworking headlights. Switched over to H4s with the initial tune up and there was rust in the buckets and the shop spent some time looking at grounds etc.. and got everything up and going.

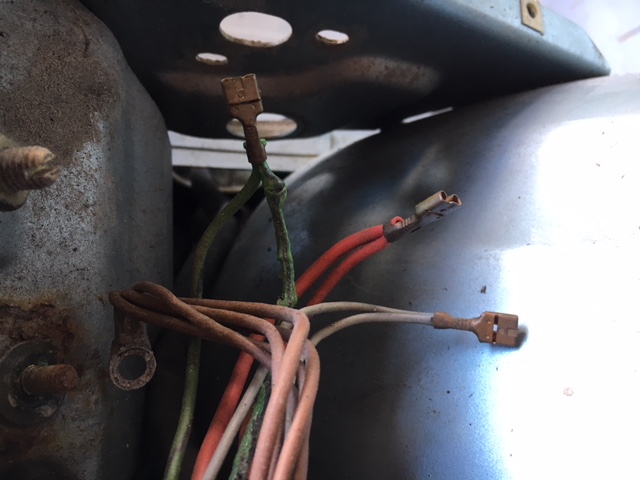

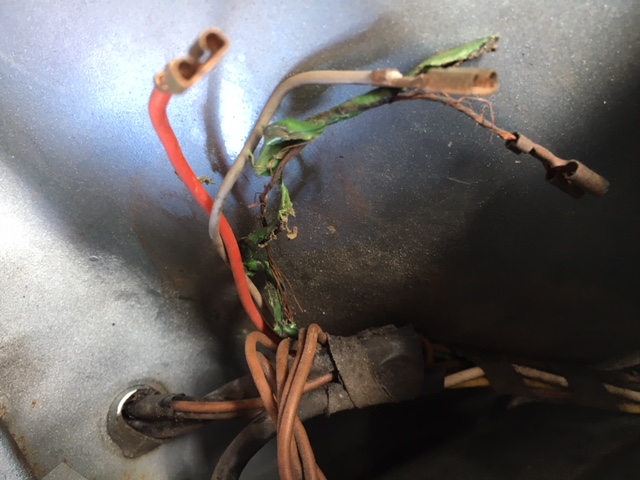

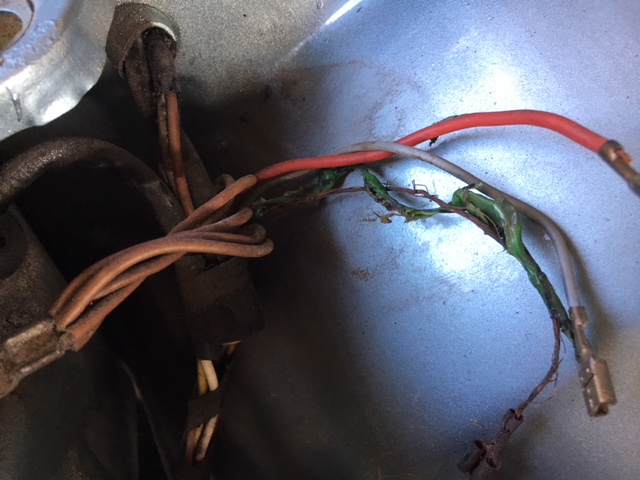

Now that the car has been stripped for paint, I have learned that I am dealing with frayed headlight wires. As you can see the shielding is stripped/melted and wires are a bit of a cluster F-ck.

Passenger side is worse. What is the best way to deal with this? (IMG:style_emoticons/default/confused24.gif)

Attached ImageAttached Image
Attached ImageAttached Image



User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mihai914
post Jan 12 2018, 08:21 PM
Post #2


Senior Member
***

Group: Members
Posts: 721
Joined: 2-March 05
From: Montreal, QC
Member No.: 3,697



How far does the damage go back?

One easy way to deal with it would be to find a good donor harness, take what is needed and splice it in your car.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914 7T3
post Jan 12 2018, 09:07 PM
Post #3


Please forgive me, I'm new to all of this!
***

Group: Members
Posts: 663
Joined: 3-April 17
From: Los Angeles, CA
Member No.: 20,991
Region Association: Southern California



QUOTE(mihai914 @ Jan 12 2018, 06:21 PM) *

How far does the damage go back?

One easy way to deal with it would be to find a good donor harness, take what is needed and splice it in your car.



It doesn't appear to run too far down the harness, but would want an experienced electric tech to take a look. Once spliced back in, is there a heat shrink shielding that can be used as well? I would use the same green color to keep it proper.

FYI, I'm also a Montreal native! (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
windforfun
post Jan 12 2018, 09:44 PM
Post #4


Senior Member
***

Group: Members
Posts: 561
Joined: 17-December 07
From: Blackhawk, CA
Member No.: 8,476
Region Association: None



I have a harness that you can borrow. Can you solder properly?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914 7T3
post Jan 12 2018, 10:13 PM
Post #5


Please forgive me, I'm new to all of this!
***

Group: Members
Posts: 663
Joined: 3-April 17
From: Los Angeles, CA
Member No.: 20,991
Region Association: Southern California



QUOTE(windforfun @ Jan 12 2018, 07:44 PM) *

I have a harness that you can borrow. Can you solder properly?


Thanks, sent you a PM.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mihai914
post Jan 12 2018, 10:26 PM
Post #6


Senior Member
***

Group: Members
Posts: 721
Joined: 2-March 05
From: Montreal, QC
Member No.: 3,697



Good thinking on getting a tech to have a look because it may seem fine after a couple of inches but the damage can go further and is hidden under the shielding.

Definitely use some heat shrink tube on each wire and then you can tape it over to make it look stock. Staggering the splicing will help you not have a blob in the harness.

A good place in my opinion to splice would be around the spare wheel area. You have plenty of access in case you need to redo a wire and it's not visible right away.

Good to hear from a fellow teener owner from Montreal, send some nice weather over (IMG:style_emoticons/default/beer.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mikey914
post Jan 12 2018, 10:27 PM
Post #7


The rubber man
*****

Group: Members
Posts: 8,520
Joined: 27-December 04
From: Hillsboro, OR
Member No.: 3,348
Region Association: None



The real question is why did it do this? Is the electrical connector broken and somehow shorting out? If all plugs are in they shouldn't touch, but something is causing a short.
Check back how far it goes, but I don't think you need anything other than wire here.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mihai914
post Jan 12 2018, 10:40 PM
Post #8


Senior Member
***

Group: Members
Posts: 721
Joined: 2-March 05
From: Montreal, QC
Member No.: 3,697



QUOTE(Mikey914 @ Jan 12 2018, 11:27 PM) *

The real question is why did it do this?


+1 and is it only the headlights or are the wires for the motors also affected?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
porschetub
post Jan 12 2018, 10:59 PM
Post #9


Advanced Member
****

Group: Members
Posts: 2,599
Joined: 25-July 15
From: New Zealand
Member No.: 18,995
Region Association: None



(IMG:style_emoticons/default/agree.gif) ,find the issue first Jeff before affecting a repair,a common problem is the wires get out of shape and get pinched as the headlight raises (or lowers?) ,found I had one pinched live wire when I changed the LED lamps ...very close to a melt down (IMG:style_emoticons/default/sad.gif) .
I think you have had the same issue but a dead short,when you are able spit the wires apart and see if the fuse blows before you solder a heatshrink new ones in,good luck.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Jeff Bowlsby
post Jan 12 2018, 11:04 PM
Post #10


914 Wiring Harnesses
*****

Group: Members
Posts: 6,525
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None



Those are the headlight motor wires, not the headlights. You need to inspect that wiring all the back to the fusepanel. Bet you find a short somewhere.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bbrock
post Jan 13 2018, 12:17 AM
Post #11


Senior Member
***

Group: Members
Posts: 1,127
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains



It's a little hard to tell from the pics, but that looks like classic rodent damage to me. I just refurbished my entire harness and had to patch in two new wires where mice had made a nest our of the headlight motor wires. They looked exactly like yours. Do a thorough inspection as others have suggested to make sure that's the only issue, but if the insulation looks chewed and not scorched or melted, I'm betting the damage is limited to those free ends..

EDIT: In looking at the pics again, I noticed the same wire is affected on both sides and it does look like there is some scorching. So you probably have a short.

If you want to replace the terminals with OEM, here are the digikey links to them:
https://www.digikey.com/product-detail/en/t...584CT-ND/456679

and

https://www.digikey.com/product-detail/en/t...587CT-ND/456680

The second link is for larger gauge wire to fit terminals on the double wires. In theory, those should work for both single and double 18 gauge, but I found I got better crimpls on single 18 guage using the smaller terminals in the first link. They are inexpensive.

If it were me, I'd order some color matching GXL rated 18 gauge wire on ebay. You can splice it in with either quality crimp butt connectors or solder and like others have said, protect the splice with heat shrink. I prefer solder but I guess the aviation industry and military prefer crimp. If you solder, google "lineman's splice" for the correct wrap. To crimp the terminals above, you'll need a crimping tool for uninsulated, open barrell (or F-crimp). I got a pretty cheap tool at Lowe's that makes good crimps but get extra terminals to practice on.

If you want color-coordinated heat shrink, PM me and I'll send you some.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
porschetub
post Jan 13 2018, 12:35 AM
Post #12


Advanced Member
****

Group: Members
Posts: 2,599
Joined: 25-July 15
From: New Zealand
Member No.: 18,995
Region Association: None



QUOTE(Jeff Bowlsby @ Jan 13 2018, 06:04 PM) *

Those are the headlight motor wires, not the headlights. You need top inspect that wiring all the back to the fusepanel. Be you find a short somewhere.


Opps sorry did't look properly..................
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914 7T3
post Jan 13 2018, 10:01 AM
Post #13


Please forgive me, I'm new to all of this!
***

Group: Members
Posts: 663
Joined: 3-April 17
From: Los Angeles, CA
Member No.: 20,991
Region Association: Southern California



Appreciate the tips, will post back with updates.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post Jan 13 2018, 01:20 PM
Post #14


Resident Electrician
*****

Group: Members
Posts: 8,128
Joined: 22-June 09
From: San Ramon, CA
Member No.: 10,496
Region Association: Northern California




Copper conducts a ton of heat. The entire wire will be compromised. Do not try to pull it out of the harness. The melted insulation may be fused to good wire.

Cut back the bad parts of wire and abandon. Run a new wire from the light switch. Or... Replace the entire harness and any damaged wires.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
windforfun
post Jan 13 2018, 06:54 PM
Post #15


Senior Member
***

Group: Members
Posts: 561
Joined: 17-December 07
From: Blackhawk, CA
Member No.: 8,476
Region Association: None



What bugs me are all the broken strands. This perhaps suggests rodent nibbling. This may have then been followed by a short to ground (no load). All of the car's wiring needs to be inspected at this point. A 1" long lineman's or barrel splice followed by a uniform solder distribution followed by heat shrink tubing is the only way to go. Crimp connectors really need to be soldered too. You must solder after crimping & not before because the crimp pressure will make the solder redistribute & loosen the connection. Cut or nicked strands are a no no. I recommend a thermal insulation stripper. Trust me, I used to work for McDonnell Douglas.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914 7T3
post Jan 13 2018, 07:02 PM
Post #16


Please forgive me, I'm new to all of this!
***

Group: Members
Posts: 663
Joined: 3-April 17
From: Los Angeles, CA
Member No.: 20,991
Region Association: Southern California



Great input, and I will include a copy of this thread to the tech that will be evaluating. My body shop has someone that they work with regularly with good results.

I will post an update with their evaluation before green lighting any work. Failing that, windforfun may want to spend some time down here in LA to help me out with this. (IMG:style_emoticons/default/biggrin.gif)
