> Relay Board - 73, what should this look like?
seanpaulmc
post Feb 8 2018, 12:17 PM
Post #1


Member
**

Group: Members
Posts: 414
Joined: 6-December 16
From: Orlando, FL
Member No.: 20,649
Region Association: South East States

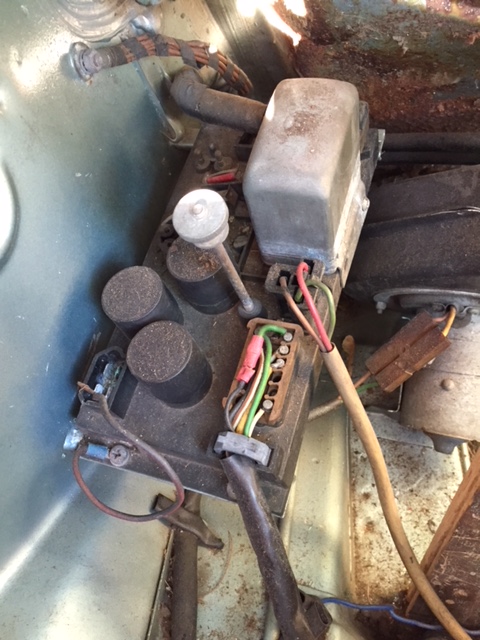

Here is a picture of the engine compartment Relay Board of my '73. Will someone post a picture of what this should look like?

I've had the car for a short time and am learning about all the wiring work arounds. Note the car is running carbs. Three things I'll point out in this picture are:

1. The ignition harness coming off the board has a red crimped connector in it. Might need one of Jeff's new harnesses (?).
2. The brown (ground) wire on the left bottom is unconnected. Where should it run to?
3. Bottom right of photo is a blue wire coming from under the dash - will deal with in a later posting. Not in the photo, the ignition key has been bypassed with a push button installed on the dash. Still needs key in and on to start.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Sixer
post Feb 8 2018, 12:57 PM
Post #2


914 Guru
*****

Group: Members
Posts: 9,400
Joined: 17-January 05
From: San Angelo Texas
Member No.: 3,457
Region Association: Southwest Region
The relay board itself is correct. Lots of extra going on as you noted.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
1adam12
post Feb 8 2018, 01:36 PM
Post #3


Member
**

Group: Members
Posts: 209
Joined: 25-May 17
From: Chino Hills, CA
Member No.: 21,132
Region Association: Southern California
Bottom left where you have that brown wire coming out of was a connection of (4) white wires from the original FI harness. 4-Pole connection for injection harness.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Feb 8 2018, 01:48 PM
Post #4


Resident German
*************************

Group: Admin
Posts: 42,418
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(seanpaulmc @ Feb 8 2018, 10:17 AM) *
what should this look like?

A lot cleaner ...
(IMG:style_emoticons/default/FERG.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
malcolm2
post Feb 8 2018, 01:50 PM
Post #5


Advanced Member
****

Group: Members
Posts: 2,749
Joined: 31-May 11
From: Nashville
Member No.: 13,139
Region Association: South East States
http://bowlsby.net/914/Classic/TechNotebook.htm

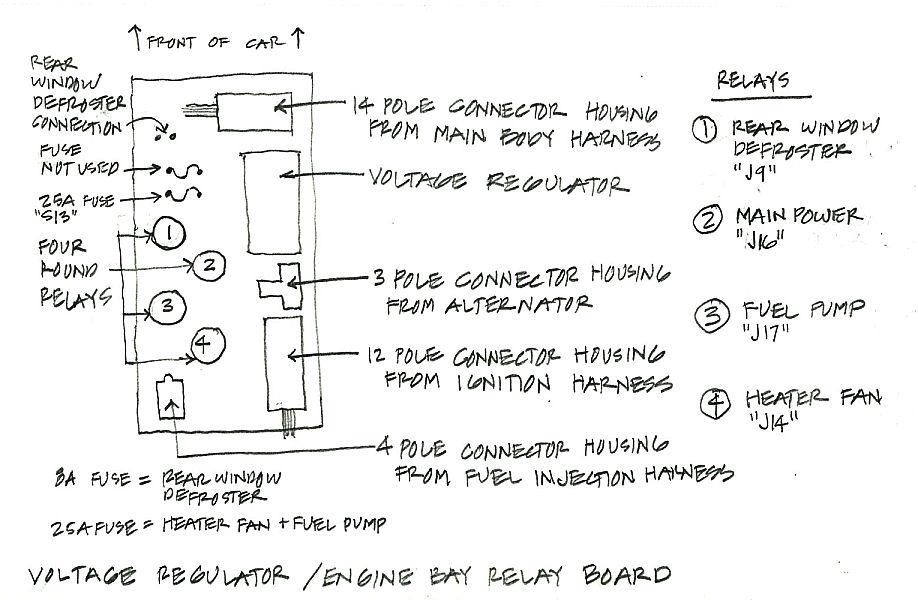

Attached ImageAttached Image

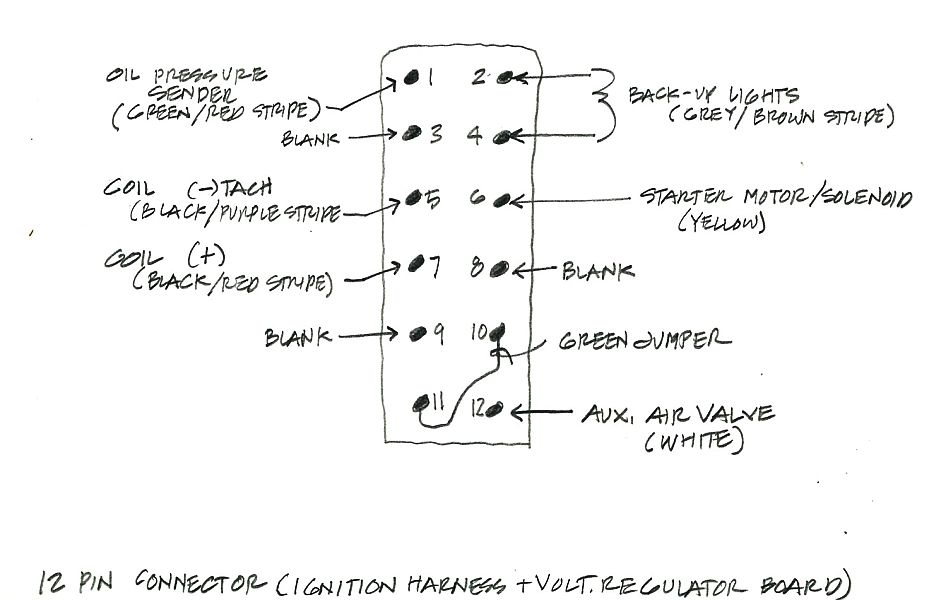

14 pin connector drawing is also on Bowlsy's link above.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Feb 8 2018, 01:52 PM
Post #6


Resident German
*************************

Group: Admin
Posts: 42,418
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(seanpaulmc @ Feb 8 2018, 10:17 AM) *
2. The brown (ground) wire on the left bottom is unconnected. Where should it run to?


Looks like someone was trying to do the correct thing and use the stock fuel pump location and wiring for the new low pressure carb fuel pump.
In which case that brown wire should be connected to ground.

http://www.914world.com/specs/SirAndyCarbFuelPumpRelay.php

Not sure which terminal that goes to on yours, kinda hard to see and i'm not sure if all of those 4 terminals work the same way, but if you follow the link above it shows what i did on my carbed 2056 to retain the stock fuel pump wiring when converting to carbs.
(IMG:style_emoticons/default/shades.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
gothspeed
post Feb 8 2018, 02:34 PM
Post #7


Senior Member
***

Group: Members
Posts: 1,539
Joined: 3-February 09
From: SoCal
Member No.: 10,019
Region Association: None

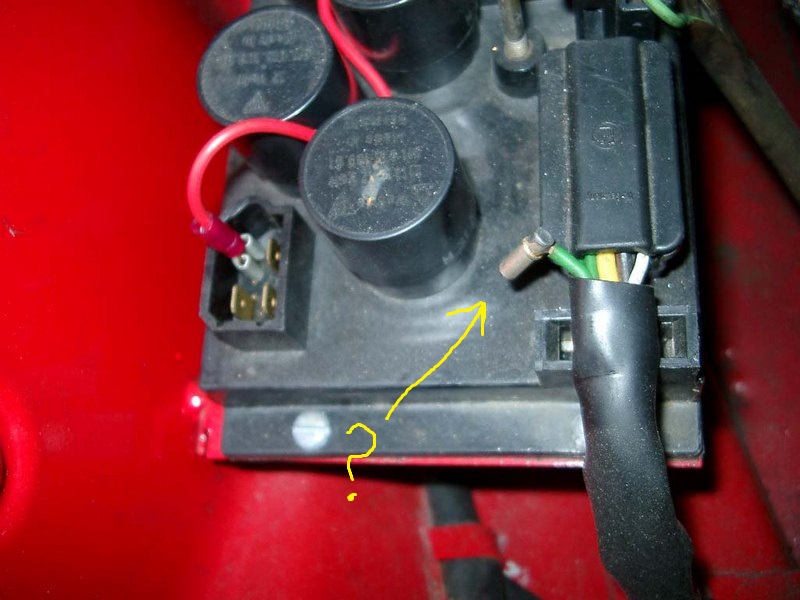

Andy, Is there a reason this lug is not in the connector?

(the yellow arrow)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Feb 8 2018, 03:44 PM
Post #8


Resident German
*************************

Group: Admin
Posts: 42,418
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(gothspeed @ Feb 8 2018, 12:34 PM) *
Andy, Is there a reason this lug is not in the connector?
(the yellow arrow)

Yepp, wrong year engine harness ...
(IMG:style_emoticons/default/biggrin.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Feb 8 2018, 03:48 PM
Post #9


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 9,169
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
QUOTE(gothspeed @ Feb 8 2018, 12:34 PM) *

Andy, Is there a reason this lug is not in the connector?

(the yellow arrow)


The 12 pin connector should only have one green wire in it...so I have no idea what the two green wires are or should be connected to in your photo. You would need to open up the connector and trace the wires to see where they go.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Feb 8 2018, 09:15 PM
Post #10


Resident German
*************************

Group: Admin
Posts: 42,418
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(Jeff Bowlsby @ Feb 8 2018, 01:48 PM) *
QUOTE(gothspeed @ Feb 8 2018, 12:34 PM) *
Andy, Is there a reason this lug is not in the connector?
(the yellow arrow)

The 12 pin connector should only have one green wire in it...so I have no idea what the two green wires are or should be connected to in your photo. You would need to open up the connector and trace the wires to see where they go.

The other one is (was) green/black. It's an early D-Jet engine harness but my cars main harness is from a '74 so i unhooked the solid green wire since it otherwise would go to the bottom relay (heater blower).
The green/black wire is also not used on a '74 but i could leave that in the plug since it isn't connected to anything on the other end of the relay board (There's an empty spot in the other connector/harness on later cars)
(IMG:style_emoticons/default/shades.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
gothspeed
post Feb 8 2018, 11:58 PM
Post #11


Senior Member
***

Group: Members
Posts: 1,539
Joined: 3-February 09
From: SoCal
Member No.: 10,019
Region Association: None
QUOTE(SirAndy @ Feb 8 2018, 01:44 PM) *

QUOTE(gothspeed @ Feb 8 2018, 12:34 PM) *
Andy, Is there a reason this lug is not in the connector?
(the yellow arrow)

Yepp, wrong year engine harness ...
(IMG:style_emoticons/default/biggrin.gif)
cool, thanks. I thought the loose lug was part of the harness conversion for carbs (IMG:style_emoticons/default/popcorn[1].gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Feb 9 2018, 10:25 AM
Post #12


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 9,169
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
QUOTE(SirAndy @ Feb 8 2018, 11:52 AM) *

QUOTE(seanpaulmc @ Feb 8 2018, 10:17 AM) *
2. The brown (ground) wire on the left bottom is unconnected. Where should it run to?


Looks like someone was trying to do the correct thing and use the stock fuel pump location and wiring for the new low pressure carb fuel pump.
In which case that brown wire should be connected to ground.

http://www.914world.com/specs/SirAndyCarbFuelPumpRelay.php

Not sure which terminal that goes to on yours, kinda hard to see and i'm not sure if all of those 4 terminals work the same way, but if you follow the link above it shows what i did on my carbed 2056 to retain the stock fuel pump wiring when converting to carbs.
(IMG:style_emoticons/default/shades.gif)


Makes sense. The large green disconnected lug is power for the heater fan. The inner green/black is for the oil temp sensor on the 1970-71 cars.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
gothspeed
post Feb 9 2018, 02:15 PM
Post #13


Senior Member
***

Group: Members
Posts: 1,539
Joined: 3-February 09
From: SoCal
Member No.: 10,019
Region Association: None
QUOTE(Jeff Bowlsby @ Feb 9 2018, 08:25 AM) *

QUOTE(SirAndy @ Feb 8 2018, 11:52 AM) *

QUOTE(seanpaulmc @ Feb 8 2018, 10:17 AM) *
2. The brown (ground) wire on the left bottom is unconnected. Where should it run to?


Looks like someone was trying to do the correct thing and use the stock fuel pump location and wiring for the new low pressure carb fuel pump.
In which case that brown wire should be connected to ground.

http://www.914world.com/specs/SirAndyCarbFuelPumpRelay.php

Not sure which terminal that goes to on yours, kinda hard to see and i'm not sure if all of those 4 terminals work the same way, but if you follow the link above it shows what i did on my carbed 2056 to retain the stock fuel pump wiring when converting to carbs.
(IMG:style_emoticons/default/shades.gif)


Makes sense. The large green disconnected lug is power for the heater fan. The inner green/black is for the oil temp sensor on the 1970-71 cars.

Jeff, I'm doing carb conversion on my 73'. Does the ignition harness need to be modified? or some pins not used?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Feb 9 2018, 03:58 PM
Post #14


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 9,169
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
QUOTE

Jeff, I'm doing carb conversion on my 73'. Does the ignition harness need to be modified? or some pins not used?


Use it as is. Only the AAR branch (white wire) will not be used.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Feb 9 2018, 05:06 PM
Post #15


Resident German
*************************

Group: Admin
Posts: 42,418
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(Jeff Bowlsby @ Feb 9 2018, 01:58 PM) *

QUOTE
Jeff, I'm doing carb conversion on my 73'. Does the ignition harness need to be modified? or some pins not used?

Use it as is. Only the AAR branch (white wire) will not be used.

If i remember correctly that wire is always hot, so make sure you have it properly insulated.
(IMG:style_emoticons/default/shades.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
gothspeed
post Feb 9 2018, 07:59 PM
Post #16


Senior Member
***

Group: Members
Posts: 1,539
Joined: 3-February 09
From: SoCal
Member No.: 10,019
Region Association: None
QUOTE(Jeff Bowlsby @ Feb 9 2018, 01:58 PM) *

QUOTE

Jeff, I'm doing carb conversion on my 73'. Does the ignition harness need to be modified? or some pins not used?


Use it as is. Only the AAR branch (white wire) will not be used.

Awesome, thank you for the info (IMG:style_emoticons/default/smile.gif)

QUOTE(SirAndy @ Feb 9 2018, 03:06 PM) *

QUOTE(Jeff Bowlsby @ Feb 9 2018, 01:58 PM) *

QUOTE
Jeff, I'm doing carb conversion on my 73'. Does the ignition harness need to be modified? or some pins not used?

Use it as is. Only the AAR branch (white wire) will not be used.

If i remember correctly that wire is always hot, so make sure you have it properly insulated.
(IMG:style_emoticons/default/shades.gif)
Good to know, I will test it to verify. Maybe I can use it for something ... (IMG:style_emoticons/default/idea.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Feb 10 2018, 02:06 PM
Post #17


914 Idiot
***************

Group: Members
Posts: 15,318
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
QUOTE(SirAndy @ Feb 9 2018, 03:06 PM) *

If i remember correctly that wire is always hot, so make sure you have it properly insulated.
(IMG:style_emoticons/default/shades.gif)


It is only hot when the fuel pump is running; it gets its power from the fuel pump circuit and is fed by the fuel pump relay. If you're using the stock relay, insulating the connector would be a Super Good Idea ™.

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
