> Travis' 72 914-6 Conversion
mepstein
post Dec 18 2018, 09:45 PM
Post #301


914-6 GT in waiting
***************

Group: Members
Posts: 19,958
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(TravisNeff @ Dec 17 2018, 10:00 PM) *

I do have a set of SC rear calipers in good shape. Also a set of PMB redone 911 rear calipers with the spacers removed (just don't have the pins or spreaders). I saw the 914-6 calipers and couldn't resist.

Can’t go wrong with 914-6 calipers. They bolt right on and use affordable 911T rotors.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
TravisNeff
post Dec 22 2018, 05:18 PM
Post #302


914 Guru
*****

Group: Members
Posts: 5,082
Joined: 20-March 03
From: Mesa, AZ
Member No.: 447
Region Association: Southwest Region

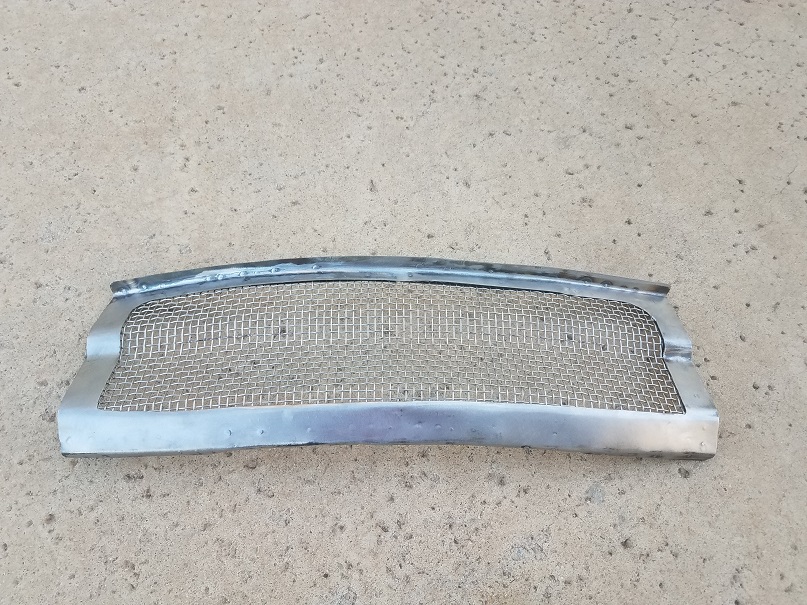

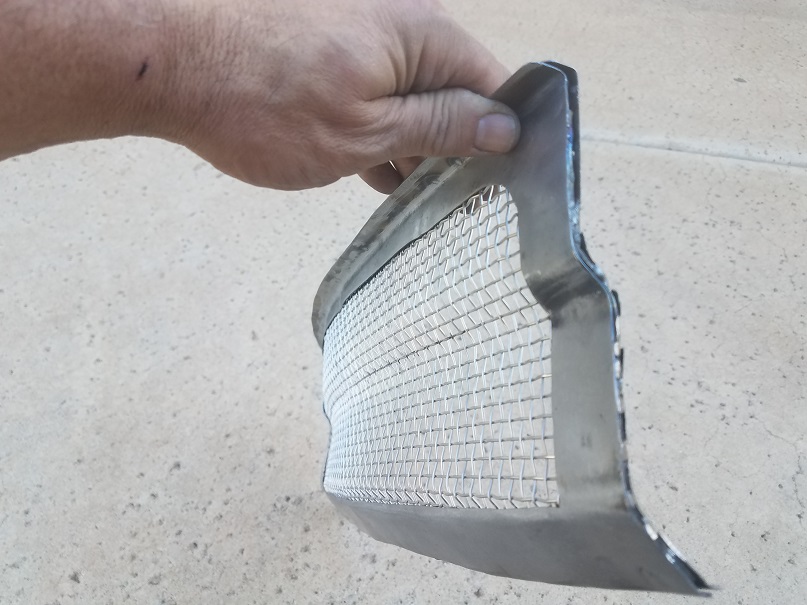

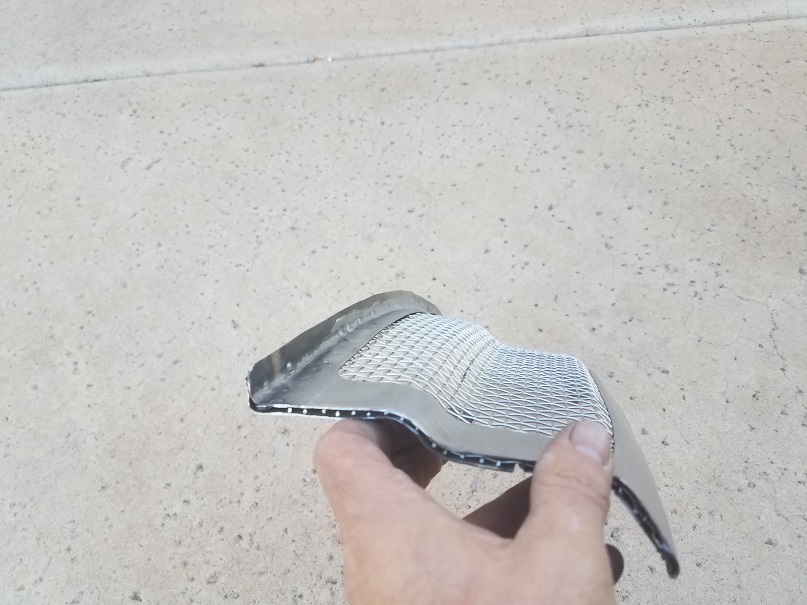

Grille is mostly done. I welded on a lip around the rear perimeter, sort of like an envelope. I am going to JB weld the corners of the mesh so it doesn't move around.

Ben, I'll ship out the leftover grille material next week.


Attached image(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Dec 22 2018, 05:54 PM
Post #303


914 Wizard
**********

Group: Members
Posts: 10,908
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
no glue , a few plug welds,,
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Dec 22 2018, 07:31 PM
Post #304


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None
I would use a spot welder, nice and easy, not a huge risk of blowing through. A spot of JB weld to fix the height of the dimples, it can be used as a body filler. Actually it is really good as a filler.

If plug welding do them on the back, penetrate to the front. Don't blow thru, back the front up with a heat sink. I have a big copper spoon I use for this, really helps at times.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TravisNeff
post Dec 24 2018, 04:00 PM
Post #305


914 Guru
*****

Group: Members
Posts: 5,082
Joined: 20-March 03
From: Mesa, AZ
Member No.: 447
Region Association: Southwest Region

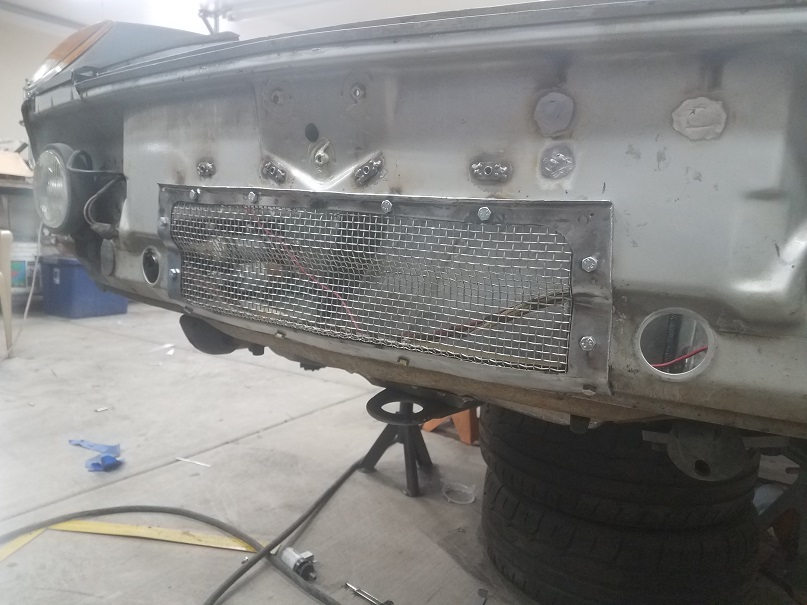

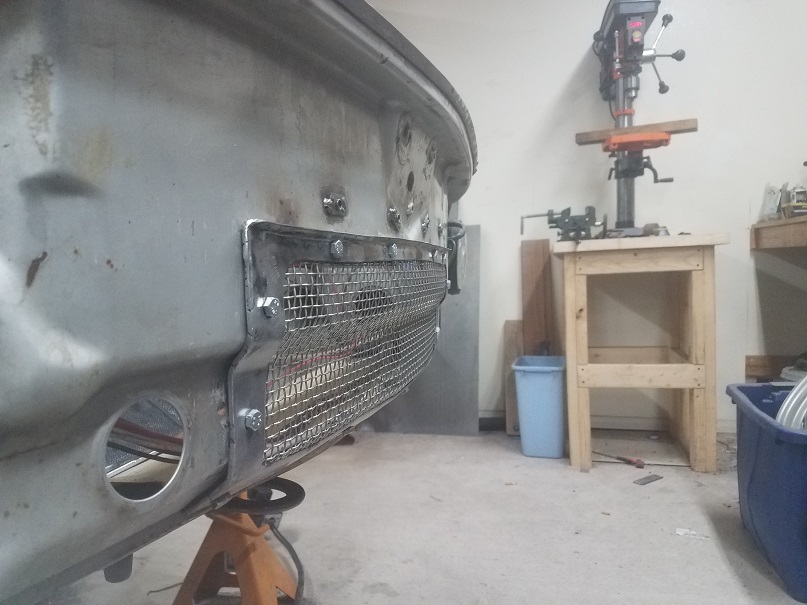

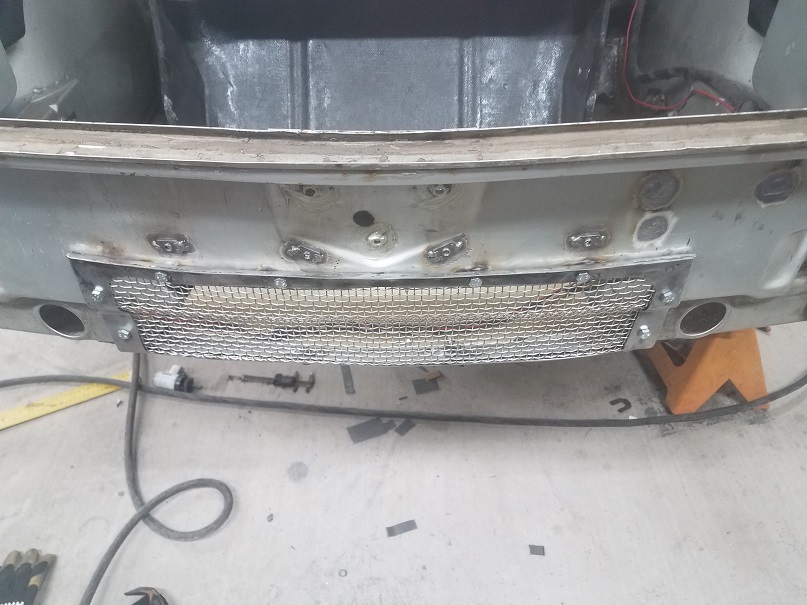

Done enough. I want to powder coat this, but there is some lines along the welds that I have ground down as far as I feel I can go. I am looking into filler that will withstand powder coat and has metal in it.

Not all things are perfect, on a couple plug welds I hit the stainless grill material and vaporized it. If you can't see it in the pics - good! Overall it turned out better than i thought I could do.

Now I gotta figure out the next mini project!


Attached image(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post Dec 24 2018, 04:05 PM
Post #306


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,494
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States
Nice Travis...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Dec 24 2018, 04:05 PM
Post #307


914 Guru
*****

Group: Members
Posts: 7,603
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
@TravisNeff looks great.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
TravisNeff
post Dec 25 2018, 02:38 PM
Post #308


914 Guru
*****

Group: Members
Posts: 5,082
Joined: 20-March 03
From: Mesa, AZ
Member No.: 447
Region Association: Southwest Region

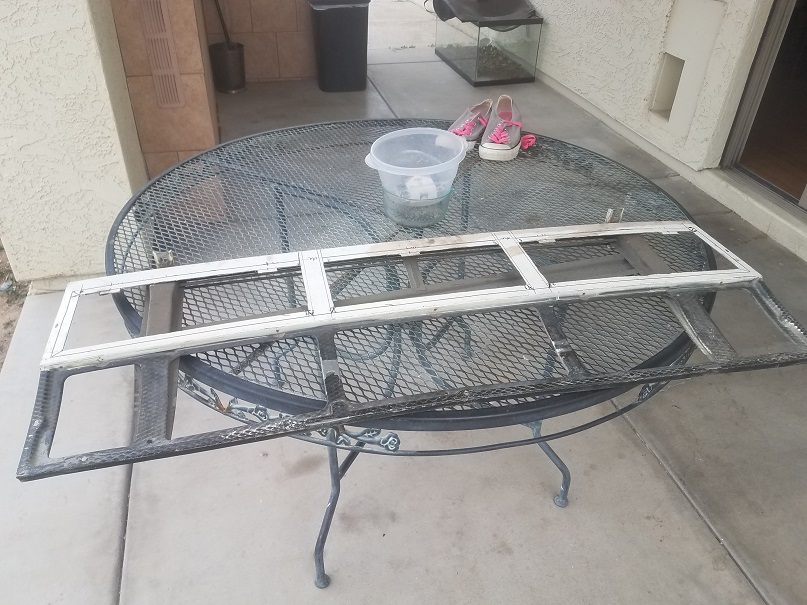

How about a GT lid? Sure why not.

I have a couple extra lids I picked up along the way. This one was from a 914 I towed backwards on a trailer. It was pretty exciting watching the rear trunk lid fly open while doing 70 and wrapping over the roof. So this one is a little bent up, like a metal taco. Perfect one to start with, seems Like I gotta do things 3 times to get it right.

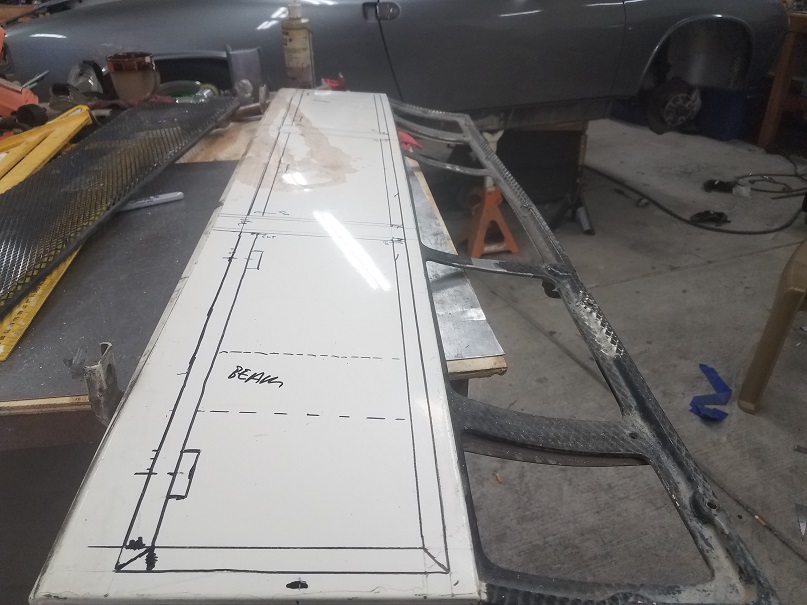

I am going to try to replicate the center supports on the back instead of being one big whole. We'll see how it goes.


Attached image(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TravisNeff
post Dec 25 2018, 03:52 PM
Post #309


914 Guru
*****

Group: Members
Posts: 5,082
Joined: 20-March 03
From: Mesa, AZ
Member No.: 447
Region Association: Southwest Region

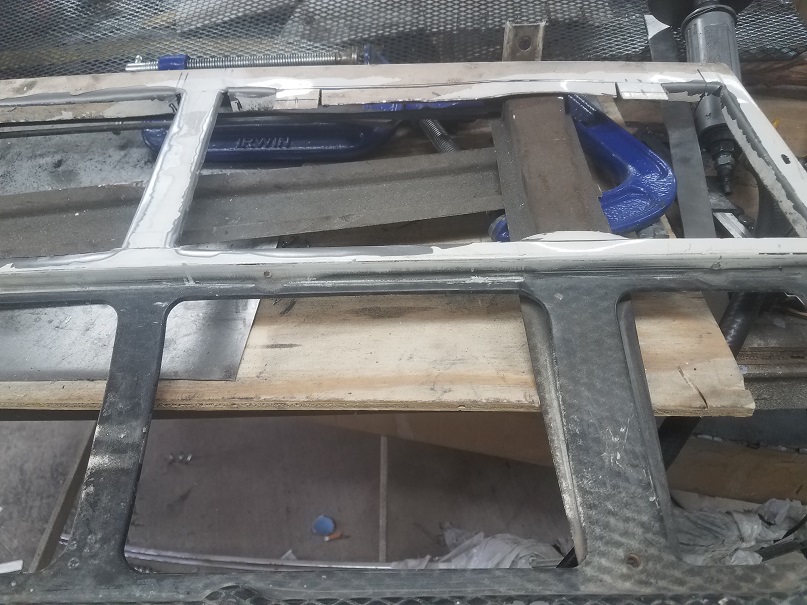

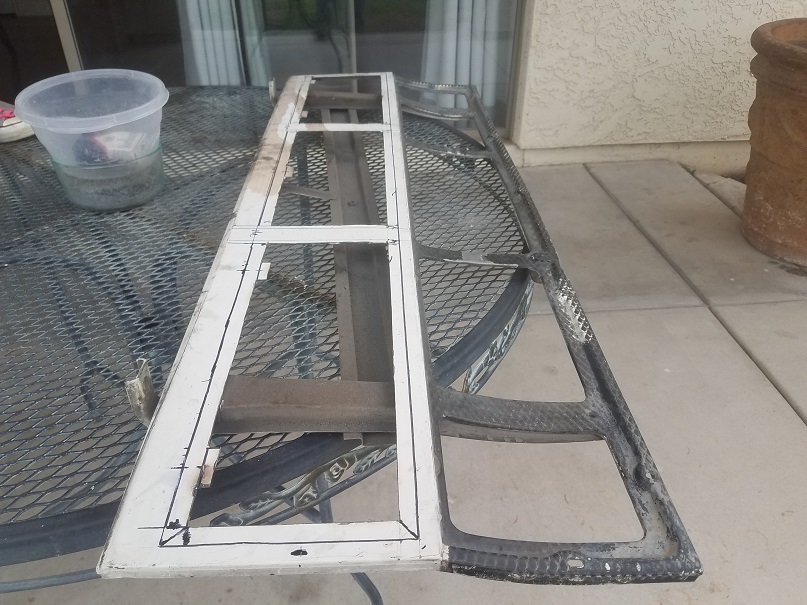

Started bending of the flanges.The center supports looks like it will work.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
IronHillRestorations
post Dec 25 2018, 07:09 PM
Post #310


I. I. R. C.
*****

Group: Members
Posts: 6,829
Joined: 18-March 03
From: West TN
Member No.: 439
Region Association: None
I have an engine lid I got years ago that was done really nicely. They cut the frame off of the skin, and then cut out the solid section and left about 1/2 border, and they had flattened out a piece of engine grill and put it in the cut out. I'll post a pic if I can get it out of the rafters
User is online!Profile CardPM
Go to the top of the page
+Quote Post
TravisNeff
post Dec 25 2018, 07:57 PM
Post #311


914 Guru
*****

Group: Members
Posts: 5,082
Joined: 20-March 03
From: Mesa, AZ
Member No.: 447
Region Association: Southwest Region
I would love to see that.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Tdskip
post Dec 26 2018, 08:01 AM
Post #312


Advanced Member
****

Group: Members
Posts: 3,737
Joined: 1-December 17
From: soCal
Member No.: 21,666
Region Association: None
Thanks for the update Travis, keen to see how this somes out.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Dec 26 2018, 08:13 AM
Post #313


914 Guru
*****

Group: Members
Posts: 7,603
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Travis,

I forget if I documented my GT lid build.. I will see if I can find pictures or snap new ones.. I did mine a little different..
User is online!Profile CardPM
Go to the top of the page
+Quote Post
TravisNeff
post Dec 26 2018, 08:21 AM
Post #314


914 Guru
*****

Group: Members
Posts: 5,082
Joined: 20-March 03
From: Mesa, AZ
Member No.: 447
Region Association: Southwest Region
Thanks Ben! I am shooting for a little bit different than just hogging out a hole.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TravisNeff
post Dec 26 2018, 08:51 AM
Post #315


914 Guru
*****

Group: Members
Posts: 5,082
Joined: 20-March 03
From: Mesa, AZ
Member No.: 447
Region Association: Southwest Region

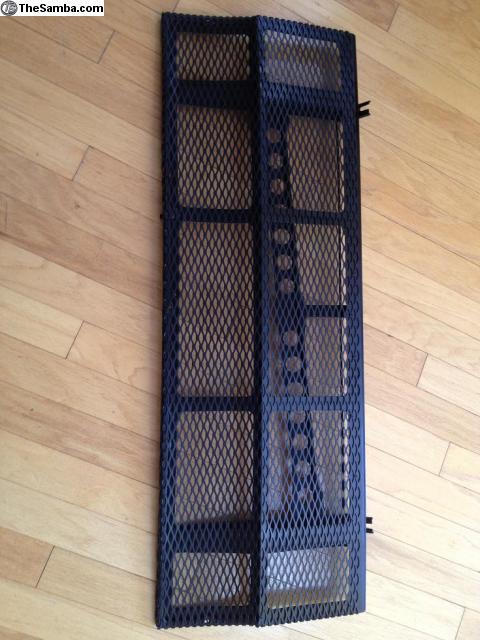

I did some image searching and found a grille that has the look I am after on this first lid.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Tdskip
post Dec 26 2018, 01:25 PM
Post #316


Advanced Member
****

Group: Members
Posts: 3,737
Joined: 1-December 17
From: soCal
Member No.: 21,666
Region Association: None
Is that grill "just" pattern metal from Home Depot?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Dec 26 2018, 02:45 PM
Post #317


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None
extra engine grill I think he said for GT style engine lid. Or are you talking about the inlet grill for the oil cooler, that was sourced from Pegasus. Which is very close to Ben
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TravisNeff
post Dec 26 2018, 02:45 PM
Post #318


914 Guru
*****

Group: Members
Posts: 5,082
Joined: 20-March 03
From: Mesa, AZ
Member No.: 447
Region Association: Southwest Region
The grille is just a spare 914 engine lid grille. There are a lot of these that use whatever mesh material they can find.

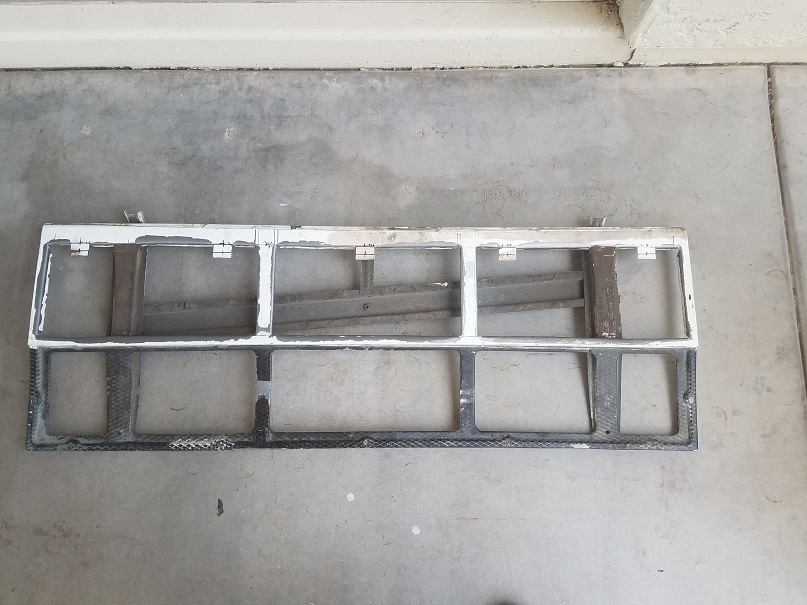

More bending of the flanges.

Hey, I still need to find a couple of flat boxes so I can send you and Ben some xmas packages (IMG:style_emoticons/default/smile.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post Dec 26 2018, 03:02 PM
Post #319


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,494
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States

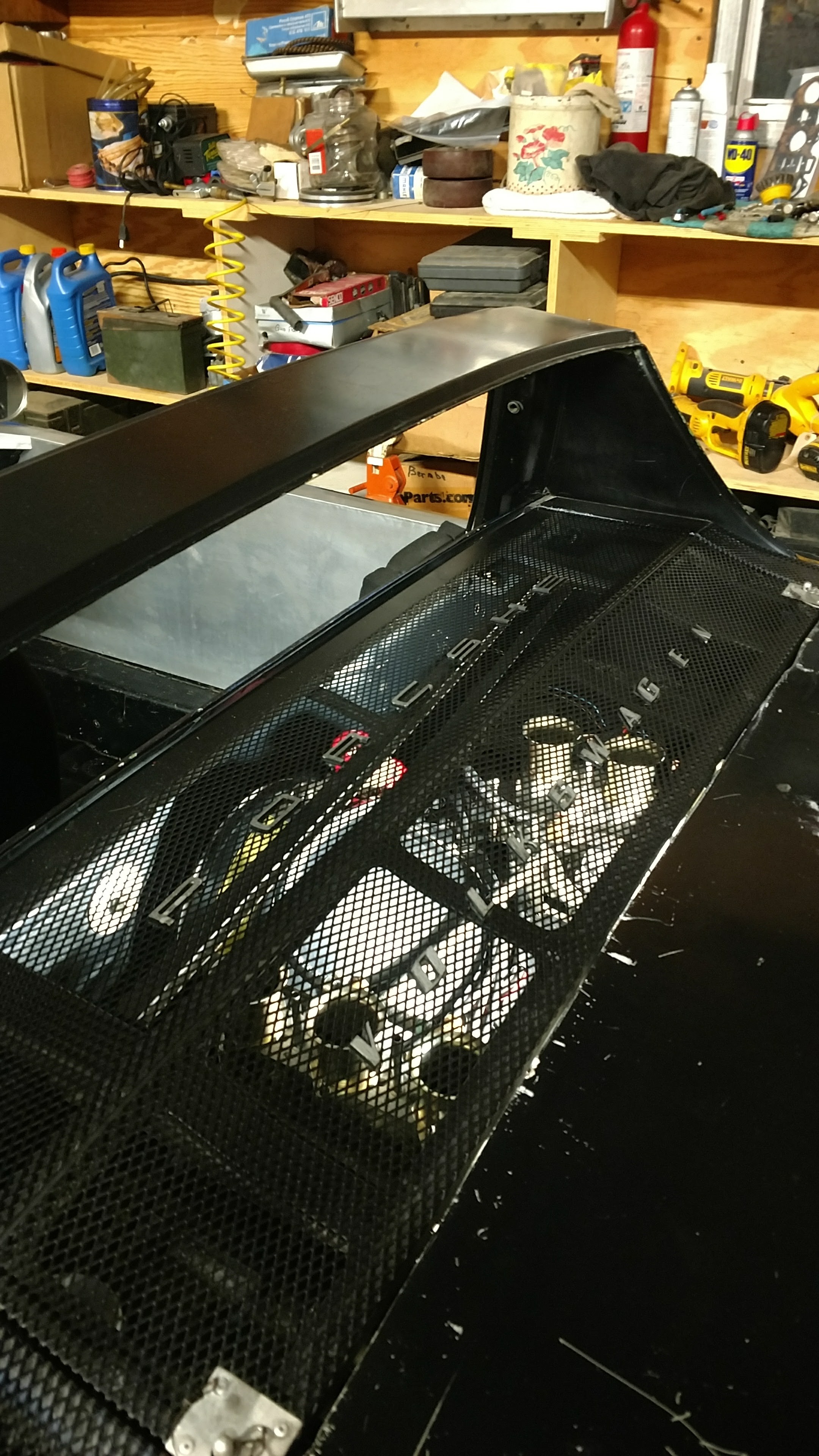

I used the grill from another cover for the upper part of the grill. I found that flatting out the edge flanges helps fitting it to the cover. Take the cup out of it.
I can't find a better picture and you have already seen this one.

Attached Image

Travis, I also flattened out the leading edge. Maybe I can get you a better picture.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TravisNeff
post Dec 26 2018, 05:14 PM
Post #320


914 Guru
*****

Group: Members
Posts: 5,082
Joined: 20-March 03
From: Mesa, AZ
Member No.: 447
Region Association: Southwest Region
I am going to flatten out the mesh I have and re-bend to get the radius out of it. I'll also have to shrink it in a few spots, the mesh took a lot of damage
