> Projects on my new, to me. 1974 914-6
burton73
post Nov 23 2024, 02:15 PM
Post #401


Senior member, and old dude
****

Group: Members
Posts: 3,928
Joined: 2-January 07
From: Los Angeles
Member No.: 7,414
Region Association: Southern California
This is wonderful, thank you so much for sharing WOW

Best Bob B
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jerhofer
post Nov 23 2024, 02:28 PM
Post #402


Member
**

Group: Members
Posts: 228
Joined: 20-May 18
From: Rockwell, NC
Member No.: 22,140
Region Association: South East States
Now all of you can see why it is very handy having a son with this skill living only 30 miles from my house!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mfor1000
post Nov 23 2024, 02:30 PM
Post #403


Newbie
*

Group: Members
Posts: 32
Joined: 26-July 22
From: Mooresville, NC
Member No.: 26,718
Region Association: South East States
QUOTE(technicalninja @ Nov 23 2024, 11:53 AM) *

QUOTE(mfor1000 @ Nov 23 2024, 09:41 AM) *

On to the transmission...The first challenge was to create an adapter that goes from the 911 engine to the 012 bellhousing. So I bought some giant digital calipers and spent a bunch of time measuring. Since there will be a certain amount of error in this, I 3D printed it a couple times to get it dialed in. Then I uploaded it to send cut send and got one cut out of acrylic. Still another could of adjustments and I ordered one from them made from 1/2" 6061 aluminum. It is a little tricky because I needed to step it up past the oil cooler on the driver's side.

According to my measurements, the input shaft on the 901 transmission sticks out 10mm past the face of the bellhousing.

The 012 transmission has the input shaft recessed by 9 mm relative to that surface.

This means you have to cut 19mm plus the thickness of the adapter plate off the bellhousing of the 012 transmission. (31.7 mm).

I did this and leveled it out using a dial guage to within 0.005" relative to the input shaft by hand.

I also cut the hole for the starter and its adapter.


How did you cut the bell housing?

Will the throw out bearing "travel" work with that much cut off?

Nicely done!


I cut it using an aluminum cutoff wheel on an angle grinder. I cut it with about 3mm of extra material so I could block sand it flat relative to the input shaft using a dial indicator.

Later you'll see I had to modify the clutch fork for the throwout bearing.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jerhofer
post Nov 23 2024, 02:31 PM
Post #404


Member
**

Group: Members
Posts: 228
Joined: 20-May 18
From: Rockwell, NC
Member No.: 22,140
Region Association: South East States
QUOTE(Cairo94507 @ Nov 23 2024, 10:03 AM) *

(IMG:style_emoticons/default/welcome.png) Nice introduction and plan. Looking forward to watching this all come together. And you are doing this in an early 911, right? (IMG:style_emoticons/default/beerchug.gif)


It's in the blue 914.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mfor1000
post Nov 23 2024, 02:35 PM
Post #405


Newbie
*

Group: Members
Posts: 32
Joined: 26-July 22
From: Mooresville, NC
Member No.: 26,718
Region Association: South East States
QUOTE(tygaboy @ Nov 23 2024, 12:17 PM) *

Nice job on the harness and dbw set up - very cool. And did you do your own tuning? I'm just starting in on the wiring/set up of a Nexus R5 and PD-16 on my 914 Ferrari build and I'm looking to speak with some Haltech experts. Can you provide any contacts? Thanks and keep up the great work.


Nice to meet you! I've been watching all your Ferrari videos while I work on my car! You do some great work and I can't wait to hear that thing.

I don't really have any contacts. I just did it on my own. I've tuned a few cars in the past and the Haltech NSP software was really easy to use.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
technicalninja
post Nov 23 2024, 03:12 PM
Post #406


Advanced Member
****

Group: Members
Posts: 2,531
Joined: 31-January 23
From: Granbury Texas
Member No.: 27,135
Region Association: Southwest Region
QUOTE(mfor1000 @ Nov 23 2024, 02:30 PM) *


I cut it using an aluminum cutoff wheel on an angle grinder. I cut it with about 3mm of extra material so I could block sand it flat relative to the input shaft using a dial indicator.

Later you'll see I had to modify the clutch fork for the throwout bearing.


Holy Sheep Shit Batman!

You did it the HARD way!

Finished by hand none the less...

I'm betting "depth" was a MONSTER PIA to get right!

How are you verifying "center line"?

.001 off and shit dies...



I'm truly interested in what you are doing.

I'm provisioning a "High Feature" GM LGX V6 onto a Boxster/Cayman 5/6 speed.

It's the first completely new bell housing pattern for GM in nearly 50 years and no-one makes stuff for it yet.

I WAS planning on cable shifting and am going to have to take a closer look at what you have done. Might be better!

I hadn't even thought about modifying the bell housing before this thread.
Even I would have that job milled which would require a transmission tear down.

You did it RAW!

I LOVE stuff like this!

Seeing how others have solved an issue is the REASON I haunt this forum.
(IMG:style_emoticons/default/ninja.gif)

And, I'd like to know HOW you used a dial indicator to determine depth of cut across a 18" span to an accuracy of .005.

I'd use a surface plate before and after the mill job.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mfor1000
post Nov 23 2024, 04:05 PM
Post #407


Newbie
*

Group: Members
Posts: 32
Joined: 26-July 22
From: Mooresville, NC
Member No.: 26,718
Region Association: South East States
QUOTE(technicalninja @ Nov 23 2024, 05:12 PM) *

QUOTE(mfor1000 @ Nov 23 2024, 02:30 PM) *


I cut it using an aluminum cutoff wheel on an angle grinder. I cut it with about 3mm of extra material so I could block sand it flat relative to the input shaft using a dial indicator.

Later you'll see I had to modify the clutch fork for the throwout bearing.


Holy Sheep Shit Batman!

You did it the HARD way!

Finished by hand none the less...

I'm betting "depth" was a MONSTER PIA to get right!

How are you verifying "center line"?

.001 off and shit dies...



I'm truly interested in what you are doing.

I'm provisioning a "High Feature" GM LGX V6 onto a Boxster/Cayman 5/6 speed.

It's the first completely new bell housing pattern for GM in nearly 50 years and no-one makes stuff for it yet.

I WAS planning on cable shifting and am going to have to take a closer look at what you have done. Might be better!

I hadn't even thought about modifying the bell housing before this thread.
Even I would have that job milled which would require a transmission tear down.

You did it RAW!

I LOVE stuff like this!

Seeing how others have solved an issue is the REASON I haunt this forum.
(IMG:style_emoticons/default/ninja.gif)

And, I'd like to know HOW you used a dial indicator to determine depth of cut across a 18" span to an accuracy of .005.

I'd use a surface plate before and after the mill job.


I wondered who would mention this. Good eye! This was a tough one... The input shaft didn't have any play on the transmission, so I made this fixture to clamp to it.

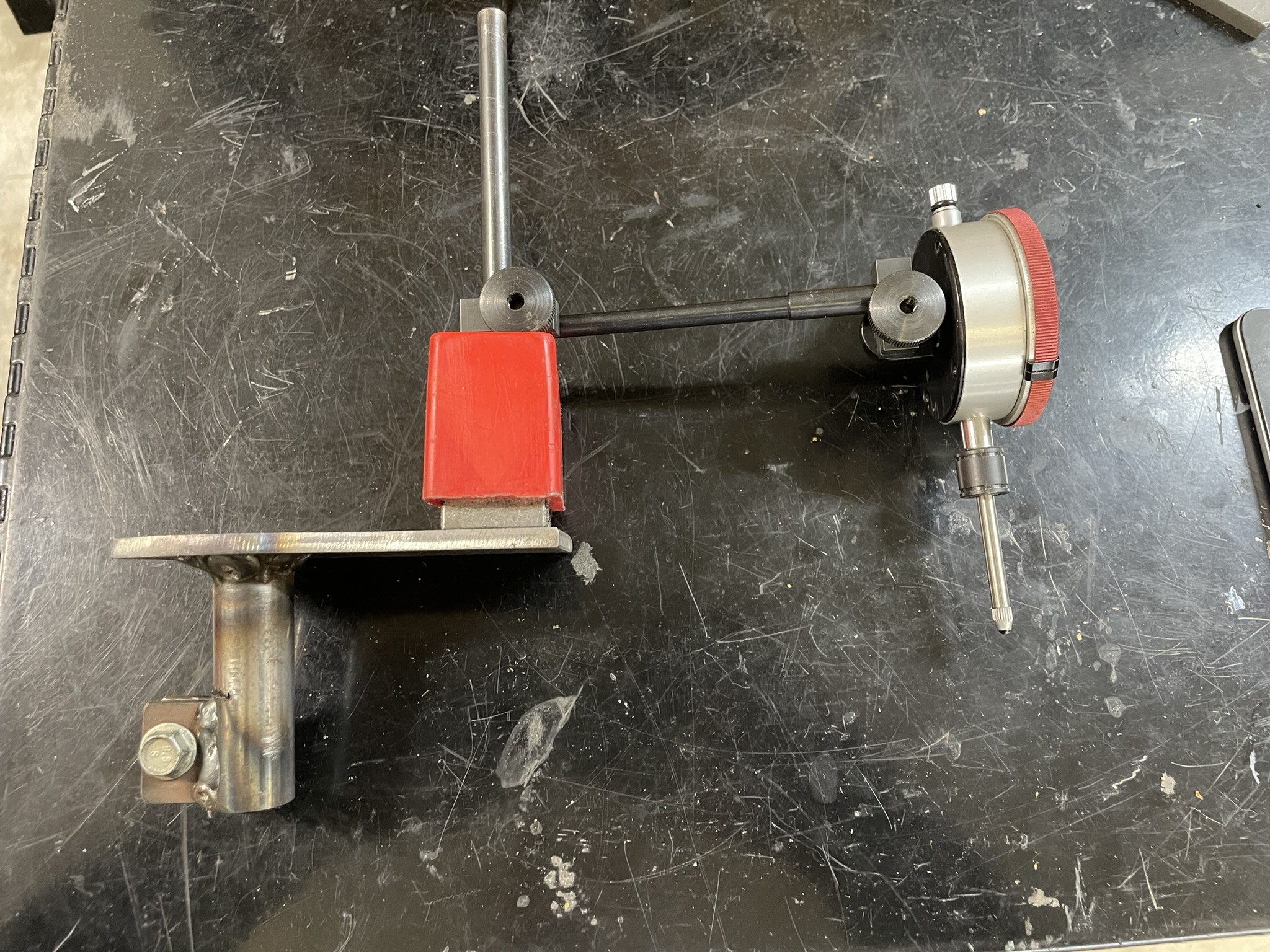

Attached Image

I clamped this on and rotated it by putting the trans in gear and rotating one of the output flanges. I was able to check both the flatness and the centering by repositioning the dial indicator. The centering was good with no modifications. I spent a whole weekend block sanding it flat. That was very difficult. I wanted to see if I could do it as a challenge. If I had to do it again, I'd take it to a machine shop and save over 24 hours of work!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Nov 24 2024, 06:56 AM
Post #408


Life's been good to me so far.....
***************

Group: Admin
Posts: 16,526
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
Did you use the stock 901 clutch? It's a bit small for a high horsepower engine.

Using the bigger 240mm clutch from the Boxster/Cayman comes with multiple issues, like the fact that the 911 is a pull type clutch, and the Boxster is a push type clutch.

I like seeing how other people tackled the same issues I did. I used a Cayman S six speed and cable shifting.

You can see how I did it in my build thread: http://www.914world.com/bbs2/index.php?sho...79084&st=80

And you can check out how Rick is doing it right now for the Alien: http://www.914world.com/bbs2/index.php?sho...p;#entry3176692

Granted, it's not an air cooled six, but he tackles some of the same issues.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mfor1000
post Nov 24 2024, 04:11 PM
Post #409


Newbie
*

Group: Members
Posts: 32
Joined: 26-July 22
From: Mooresville, NC
Member No.: 26,718
Region Association: South East States
I'm running a Kennedy Stage 2 (228-2) pressure plate with the curved diaphragm fingers. You need the curved fingers for the Boxster throwout bearing.

The pedal is pretty light and so far no slippage.

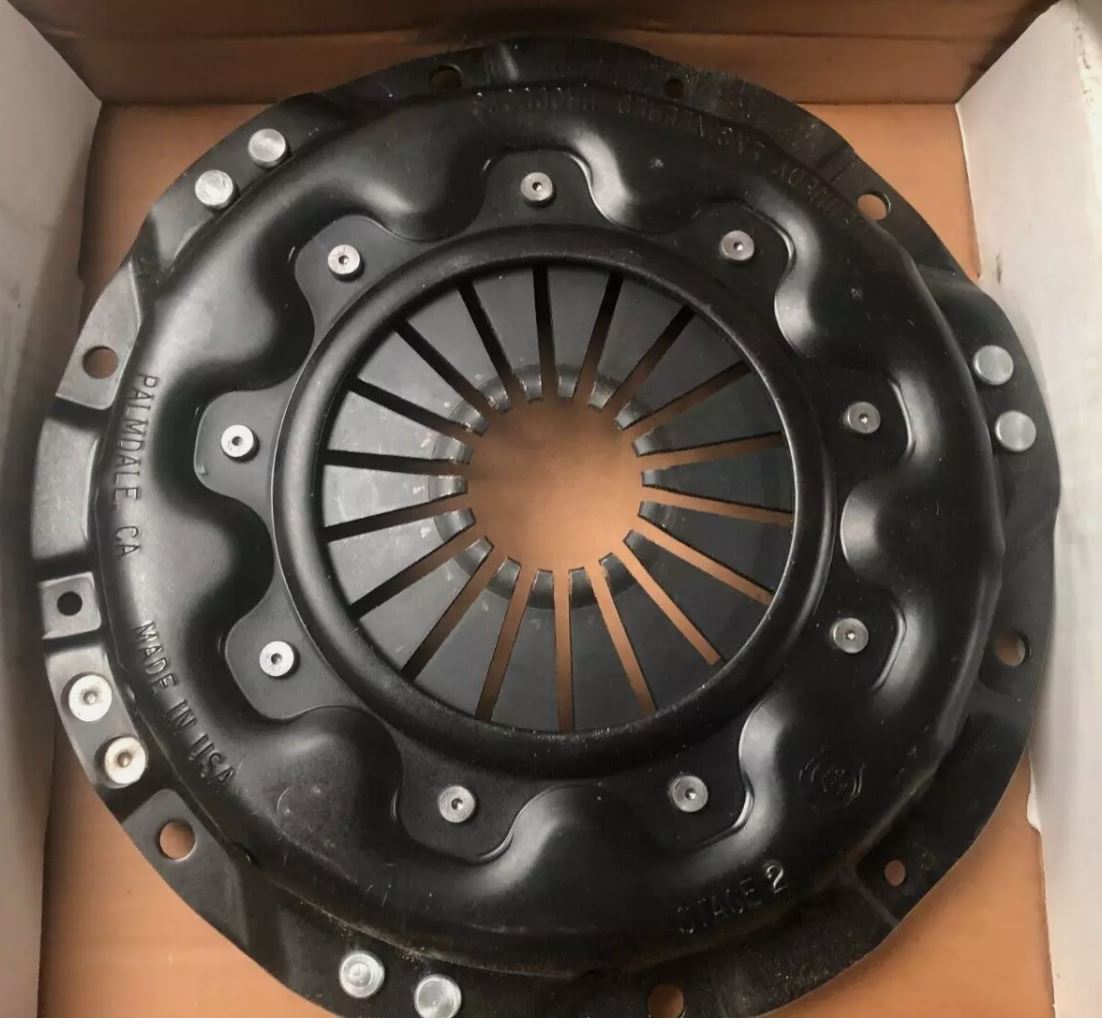

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mfor1000
post Nov 24 2024, 04:30 PM
Post #410


Newbie
*

Group: Members
Posts: 32
Joined: 26-July 22
From: Mooresville, NC
Member No.: 26,718
Region Association: South East States
I saw ratings of around 270 ft*lb for this pressure plate. According to the dyno I'm maxing out around 240 ft*lb, so it should be good.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Nov 25 2024, 08:16 AM
Post #411


Michael
**********

Group: Members
Posts: 10,523
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Absolutely amazing work! (IMG:style_emoticons/default/smilie_pokal.gif) (IMG:style_emoticons/default/beerchug.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
mfor1000
post Mar 22 2025, 02:10 PM
Post #412


Newbie
*

Group: Members
Posts: 32
Joined: 26-July 22
From: Mooresville, NC
Member No.: 26,718
Region Association: South East States

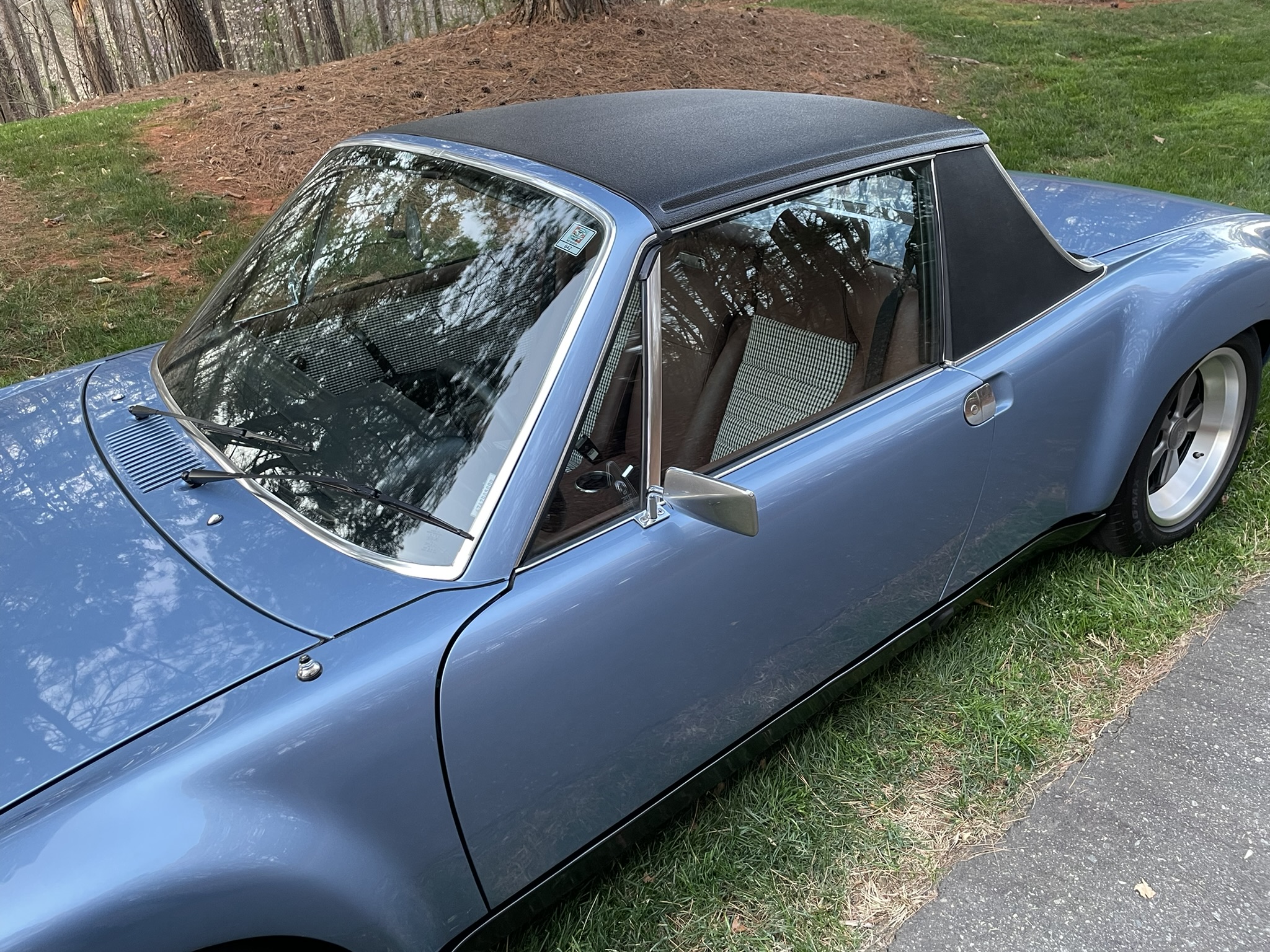

Getting pictures for selling it...kinda sad, but I've really enjoyed sorting it out and getting it ready for someone to enjoy. I enjoy the building and problem solving process the most.

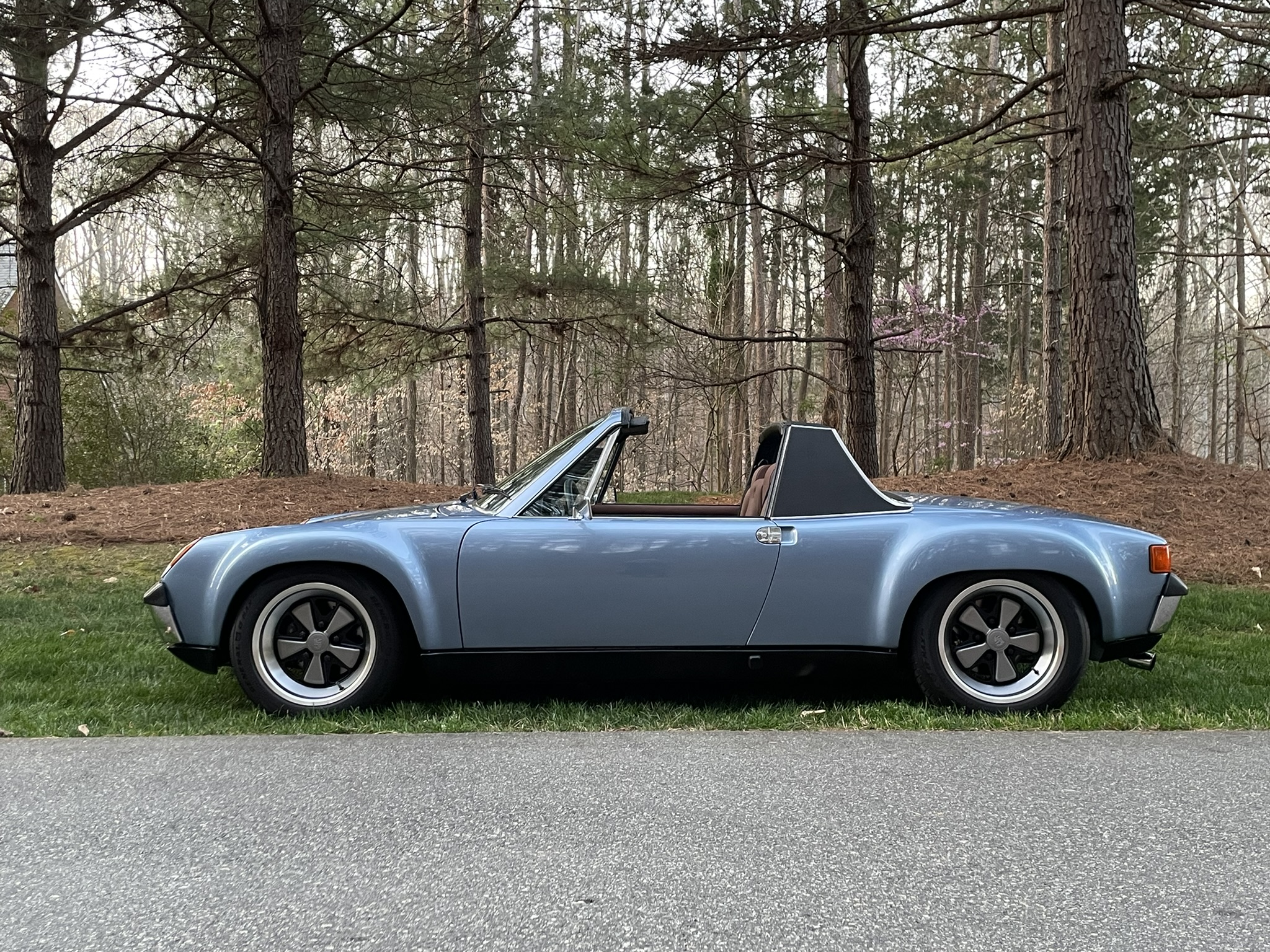

Attached Image

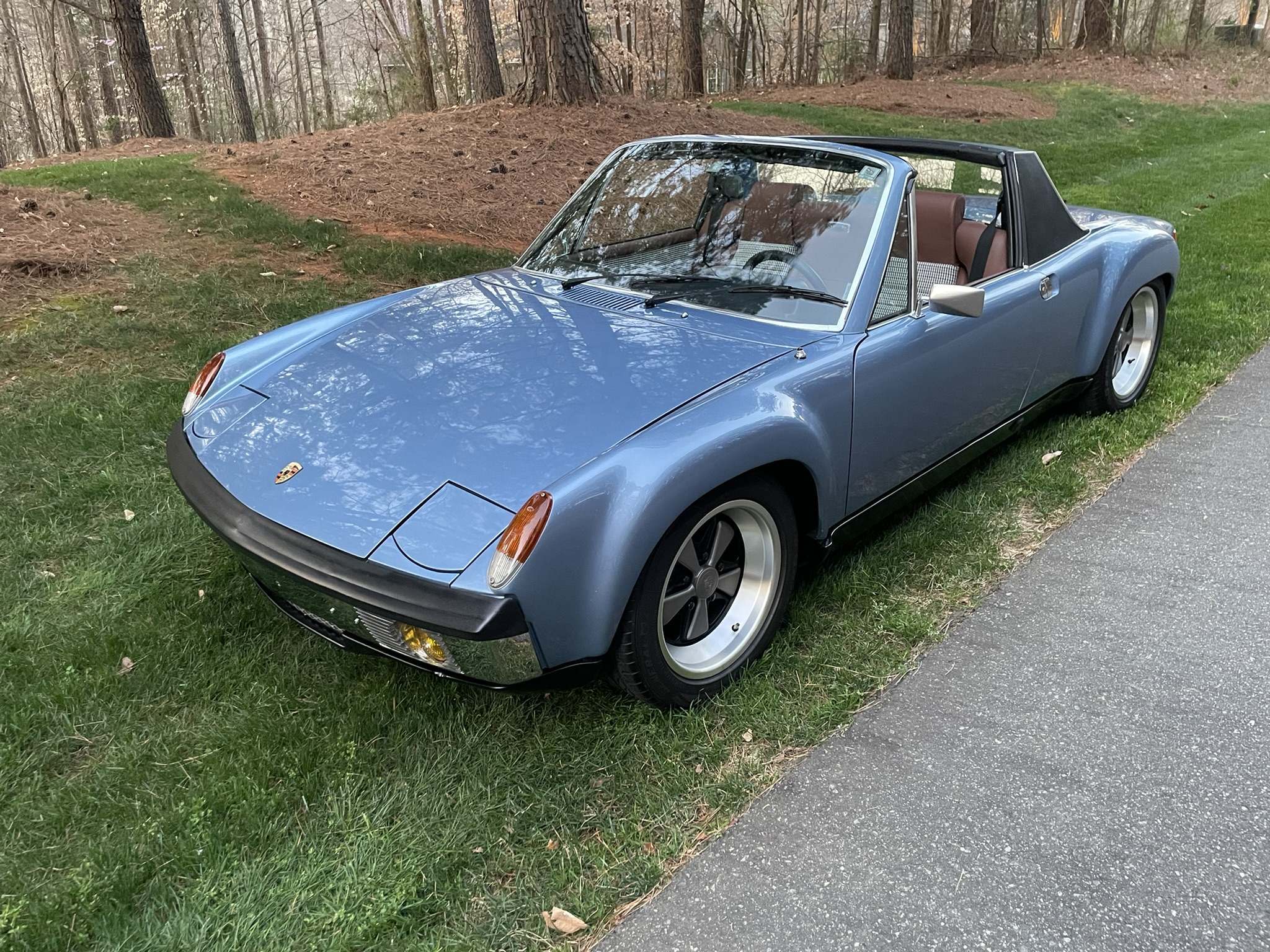

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mfor1000
post Mar 22 2025, 02:11 PM
Post #413


Newbie
*

Group: Members
Posts: 32
Joined: 26-July 22
From: Mooresville, NC
Member No.: 26,718
Region Association: South East States

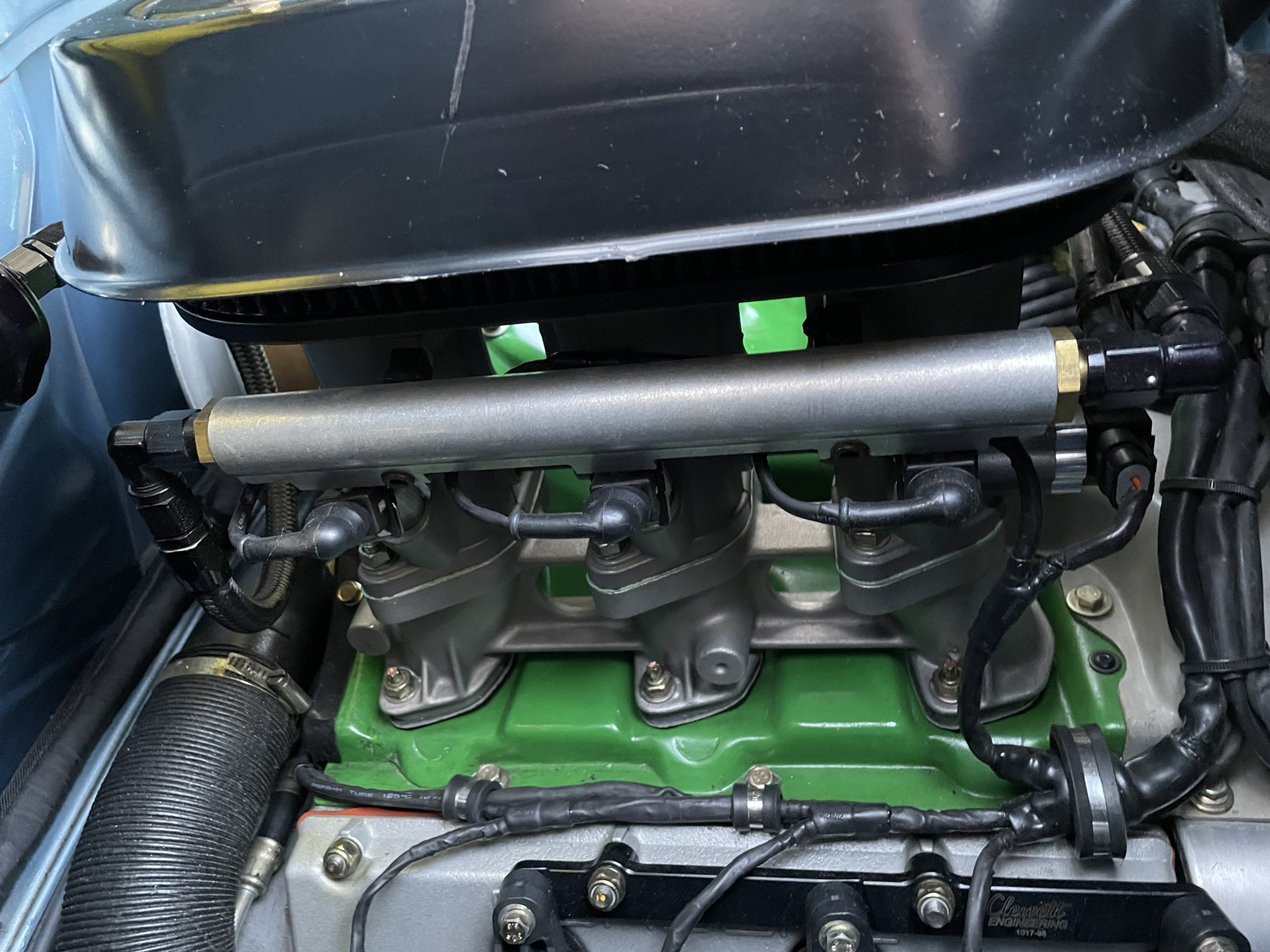

more...

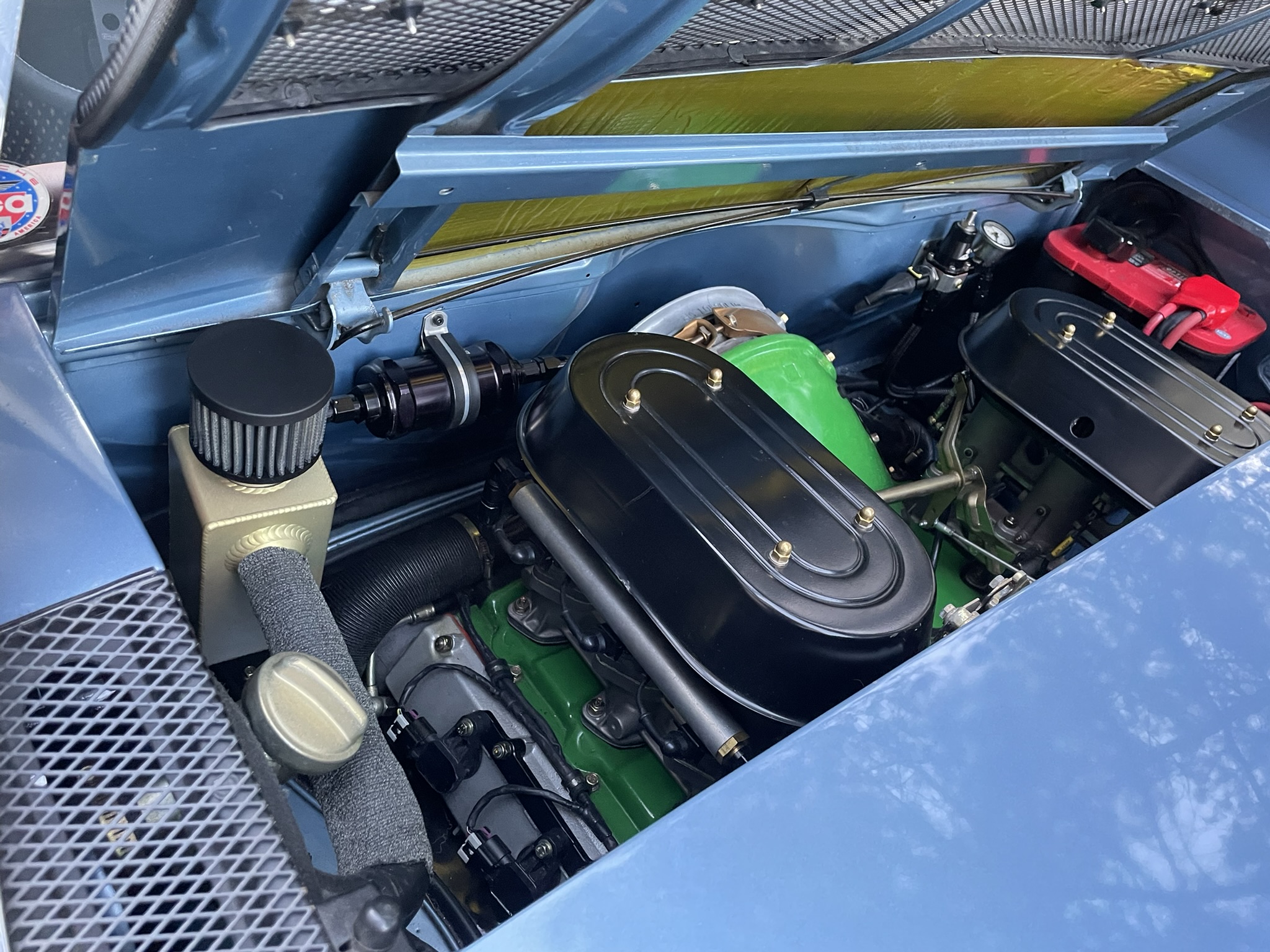

Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mfor1000
post Mar 22 2025, 02:15 PM
Post #414


Newbie
*

Group: Members
Posts: 32
Joined: 26-July 22
From: Mooresville, NC
Member No.: 26,718
Region Association: South East States
more...

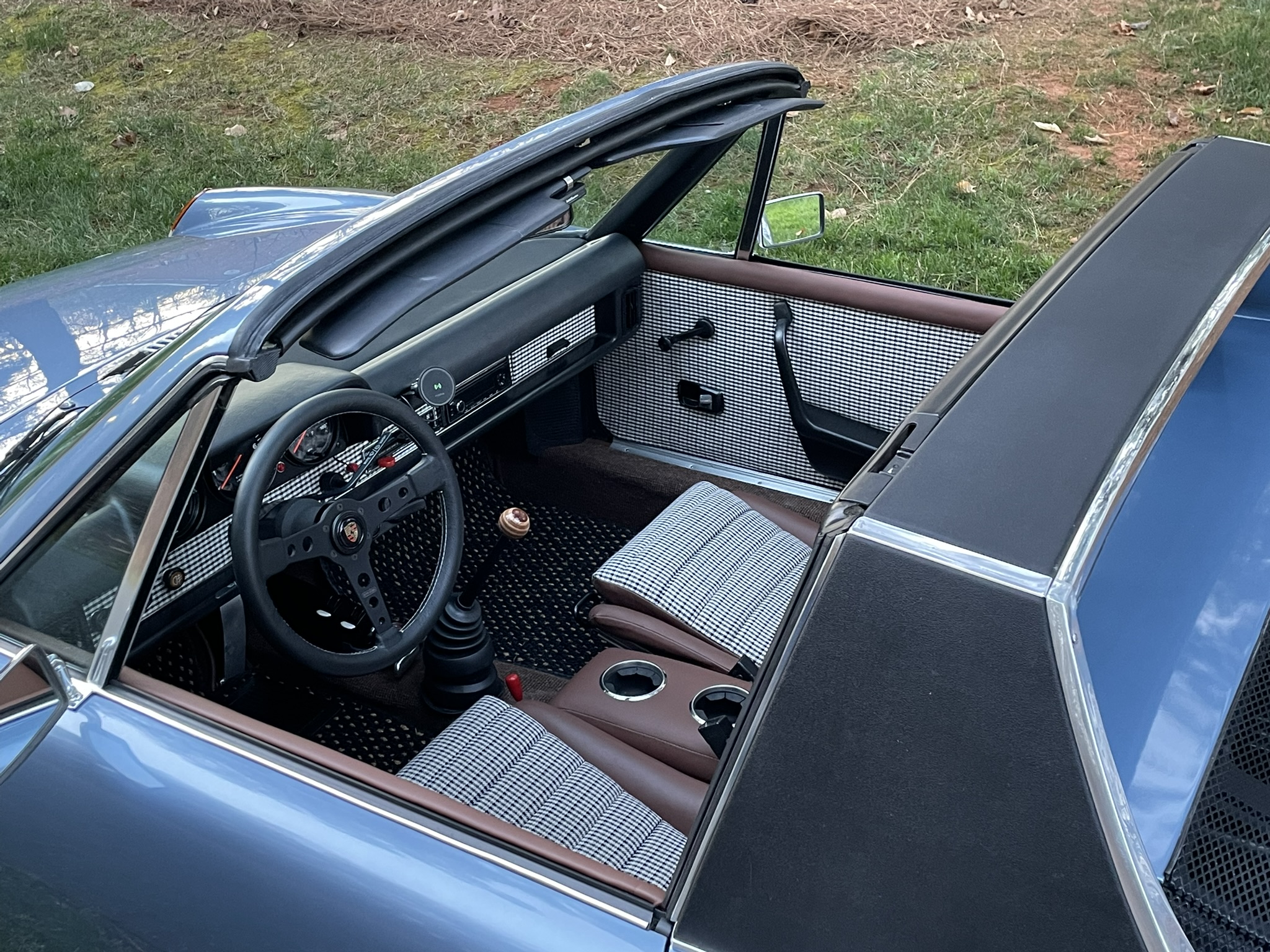

Attached Image

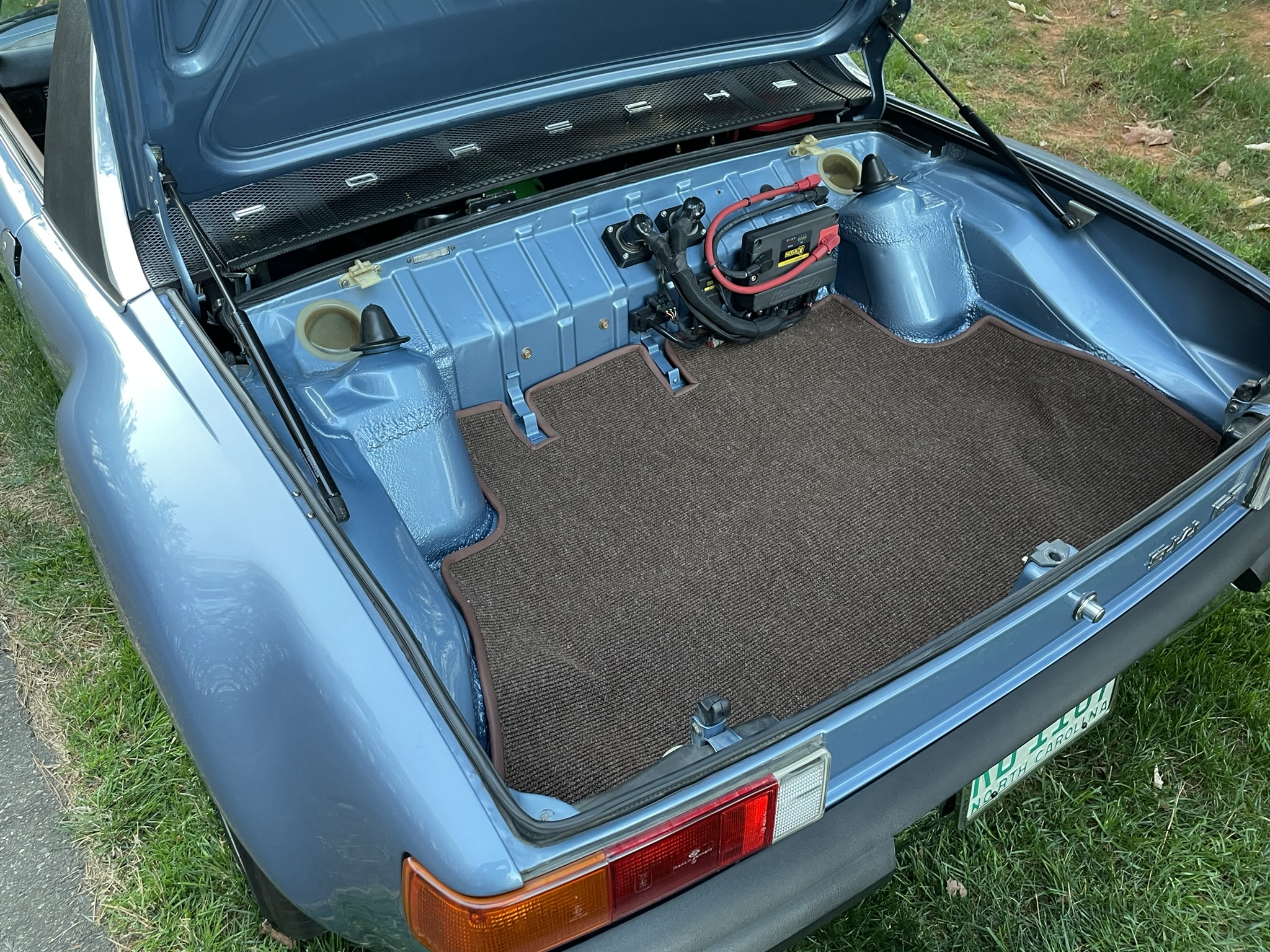

Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mfor1000
post Mar 22 2025, 02:18 PM
Post #415


Newbie
*

Group: Members
Posts: 32
Joined: 26-July 22
From: Mooresville, NC
Member No.: 26,718
Region Association: South East States

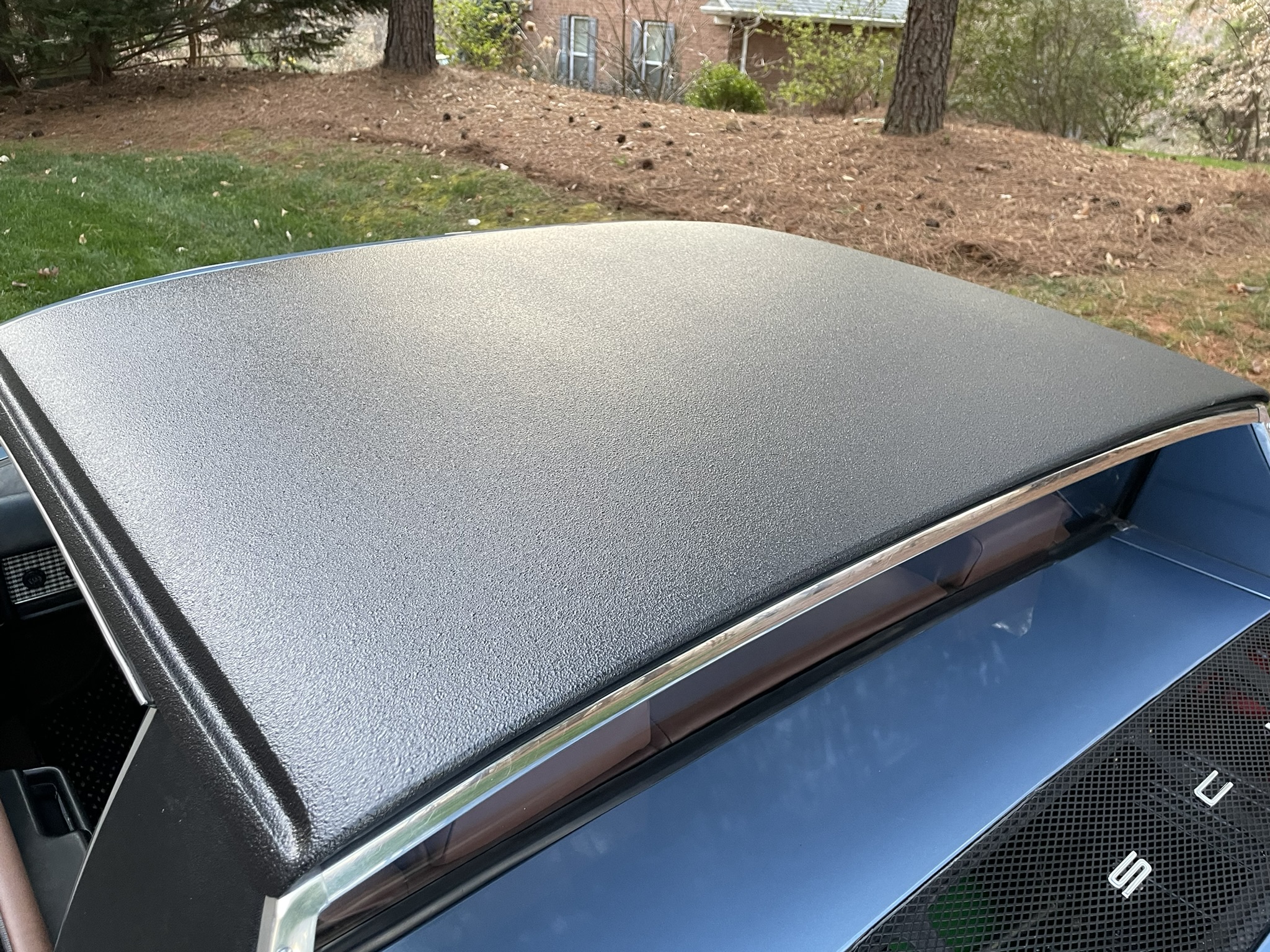

Satin Rhino liner matched the original top texture pretty well...now I can also haul firewood on it...(IMG:style_emoticons/default/wink.gif)

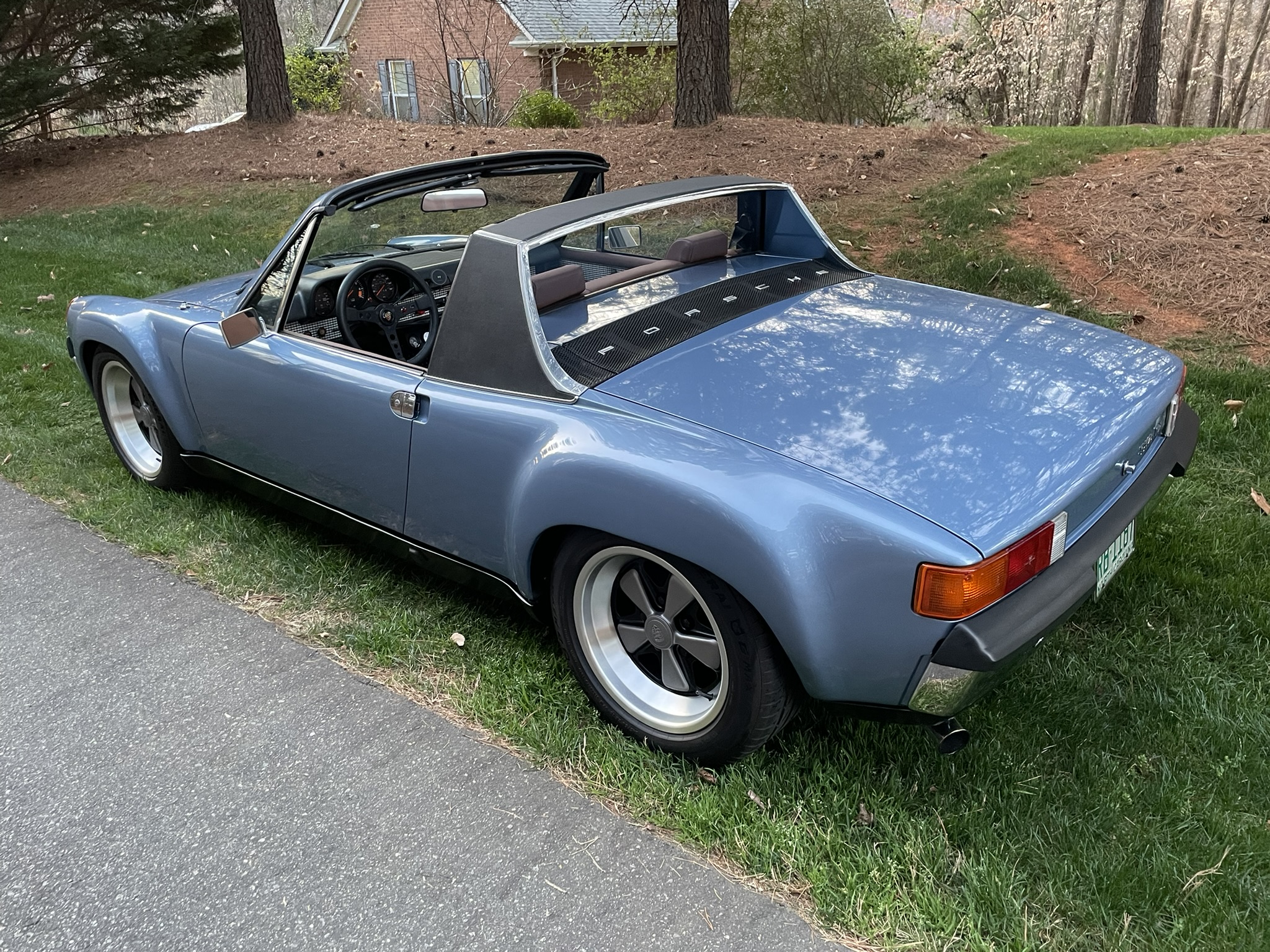

Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mfor1000
post Mar 22 2025, 02:27 PM
Post #416


Newbie
*

Group: Members
Posts: 32
Joined: 26-July 22
From: Mooresville, NC
Member No.: 26,718
Region Association: South East States
Uploaded a new driving video...

https://youtu.be/AiVeAZDHwfw?si=v7B-S-RvKUJg4q3J

sorry...wind noise is horrible in this...I'm just rambling to myself in it! A couple good pulls in there. Going to do another one with the top on.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Mar 22 2025, 02:32 PM
Post #417


914 Guru
*****

Group: Members
Posts: 7,698
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Turned out great. good luck with the sale.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
mfor1000
post Mar 22 2025, 02:45 PM
Post #418


Newbie
*

Group: Members
Posts: 32
Joined: 26-July 22
From: Mooresville, NC
Member No.: 26,718
Region Association: South East States
Walk Around Video
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Mar 22 2025, 02:45 PM
Post #419


914-6 GT in waiting
***************

Group: Members
Posts: 20,290
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
Amazing car. I would think it's a keeper forever but we al have our thing. GLWTS.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mfor1000
post Mar 22 2025, 03:12 PM
Post #420


Newbie
*

Group: Members
Posts: 32
Joined: 26-July 22
From: Mooresville, NC
Member No.: 26,718
Region Association: South East States
QUOTE(mepstein @ Mar 22 2025, 04:45 PM) *

Amazing car. I would think it's a keeper forever but we al have our thing. GLWTS.


Yeah, I realized that what I really enjoy is building them. Then pass them on to someone who will really appreciate it and go on rallies...etc.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
« Next Oldest · 914World Garage · Next Newest »


22 Pages V « < 19 20 21 22 >
Reply to this topicStart new topic
2 User(s) are reading this topic (2 Guests and 0 Anonymous Users)
0 Members:



Display Mode: Standard · Switch to: Linear+ · Switch to: Outline

Track this topic · Email this topic · Print this topic · Subscribe to this forum

- Lo-Fi Version Time is now: 16th December 2025 - 07:02 AM
Invision Power Board v9.1.4 © 2025  IPS, Inc.
...
All rights reserved 914World.com © since 2002
914World.com is the fastest growing online 914 community!
We have it all, classifieds, events, forums, vendors, parts, autocross, racing, technical articles, events calendar, newsletter, restoration, gallery, archives, history and more for your Porsche 914 ...
