> Sub Woofer Installation, Tried to get better Audio without carving up the car
ctc911ctc
post Jan 28 2019, 06:42 PM
Post #1


Senior Member
***

Group: Members
Posts: 885
Joined: 9-June 18
From: boston
Member No.: 22,206
Region Association: North East States



All,

Been silent, very cold - garage is a 100 year old Yankee version, no heat.....will not hold any. So, my 17yr old son and I decided to upgrade the speakers (the old ones were absent any cone material).

Found a set of KFC-4675C (kenwood) that fit the spec, integrated mid range and tweeter. Now for the low range. We decided that carving up the car and running a large alternator and battery was not for this car, we are trying to restore it to 80-90 points. So we are using a passive crossover, the original tuner with a power amp that was installed in the 80s, still works (both units are Blauplunkt). We have about 40 watts - more than enough for the size of the car.

When we rebuilt the car we installed sound deadening material in the engine bay, passenger compartment and will put it in the trunk. Amazing how quiet the car seems in the passenger compartment now.

My son had the idea to install the Subwoofer in the engine compartment, cut through the back seat - had to explain the concept of FireWall to him, we looked at a dozen other places and settled on what I think is a very elegant solution.


Our car is a '74 2.0, Silver. So it has a center console. We are installing it there!

Attached Image

First, where should the speaker go????

Attached Image

Wow - no particle board - furniture grade ply!

Attached Image

Peel back the Vinyl, careful!

Attached Image

Counter sync for flush hidden finish

Attached Image

Score the vinyl, perhaps we can STRETCH it!

Attached Image

Heat gun and PULL, gently

Attached Image

Look at that circle, no wood showing, barely a wrinkle!

Attached Image

Add a screen

Attached Image

Bolt that Micro SubWoofer in place

Attached Image

What the Passenger will see

Attached Image

Perfect Fit

Attached Image

Passive Crossover


Will post a note as to how this sounds in a few weeks (months?)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
preach
post Jan 28 2019, 06:54 PM
Post #2


Ridge Runner
***

Group: Members
Posts: 1,025
Joined: 27-March 10
From: Live Free or Die
Member No.: 11,513
Region Association: North East States



Pretty good spot.
My Cayman's factory sub is a bump on the left of the p-side footwell.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MiniStevieG
post Jan 28 2019, 07:48 PM
Post #3


Member
**

Group: Members
Posts: 179
Joined: 25-January 19
From: Dallas, TX
Member No.: 22,827
Region Association: Southwest Region



QUOTE(ctc911ctc @ Jan 28 2019, 06:42 PM) *

All,

Been silent, very cold - garage is a 100 year old Yankee version, no heat.....will not hold any. So, my 17yr old son and I decided to upgrade the speakers (the old ones were absent any cone material).

Found a set of KFC-4675C (kenwood) that fit the spec, integrated mid range and tweeter. Now for the low range. We decided that carving up the car and running a large alternator and battery was not for this car, we are trying to restore it to 80-90 points. So we are using a passive crossover, the original tuner with a power amp that was installed in the 80s, still works (both units are Blauplunkt). We have about 40 watts - more than enough for the size of the car.

When we rebuilt the car we installed sound deadening material in the engine bay, passenger compartment and will put it in the trunk. Amazing how quiet the car seems in the passenger compartment now.

My son had the idea to install the Subwoofer in the engine compartment, cut through the back seat - had to explain the concept of FireWall to him, we looked at a dozen other places and settled on what I think is a very elegant solution.


Our car is a '74 2.0, Silver. So it has a center console. We are installing it there!

Attached Image

First, where should the speaker go????

Attached Image

Wow - no particle board - furniture grade ply!

Attached Image

Peel back the Vinyl, careful!

Attached Image

Counter sync for flush hidden finish

Attached Image

Score the vinyl, perhaps we can STRETCH it!

Attached Image

Heat gun and PULL, gently

Attached Image

Look at that circle, no wood showing, bearly a wrinkle!

Attached Image

Add a screen

Attached Image

Both that Micro SubWoofer in place

Attached Image

What the Passenger will see

Attached Image

Perfect Fit

Attached Image

Passive Crossover


Will post a note as to how this sounds in a few weeks (months?)


I love it. Nice work man! Very impressed with your attention to detail. You taking orders?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
windforfun
post Jan 28 2019, 07:56 PM
Post #4


Senior Member
***

Group: Members
Posts: 1,766
Joined: 17-December 07
From: Blackhawk, CA
Member No.: 8,476
Region Association: None



Don't forget to reverse the phase relative to the "full" frequency range loudspeakers. Your crossover may permit this. It can make a huge difference in the sound quality.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ConeDodger
post Jan 28 2019, 08:02 PM
Post #5


Apex killer!
***************

Group: Members
Posts: 23,543
Joined: 31-December 04
From: Tahoe Area
Member No.: 3,380
Region Association: Northern California



You could have just purchased this already made from 914rubber.com. @mikey914 if the are still making them.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ctc911ctc
post Jan 28 2019, 08:18 PM
Post #6


Senior Member
***

Group: Members
Posts: 885
Joined: 9-June 18
From: boston
Member No.: 22,206
Region Association: North East States



QUOTE(MiniStevieG @ Jan 28 2019, 08:48 PM) *

I love it. Nice work man! Very impressed with your attention to detail. You taking orders?



I will ask my boss, the 17 year old in the picture! HA!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mikey914
post Jan 29 2019, 02:00 AM
Post #7


The rubber man
**********

Group: Members
Posts: 12,622
Joined: 27-December 04
From: Hillsboro, OR
Member No.: 3,348
Region Association: None



Nice work, but to get decent sound you need to box it in. I’ll post some pics of the one we do so you can see it.
Mark
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ctc911ctc
post Jan 29 2019, 09:01 AM
Post #8


Senior Member
***

Group: Members
Posts: 885
Joined: 9-June 18
From: boston
Member No.: 22,206
Region Association: North East States



QUOTE(Mikey914 @ Jan 29 2019, 03:00 AM) *

Nice work, but to get decent sound you need to box it in. I’ll post some pics of the one we do so you can see it.
Mark


Hey Mikey,

As to the BOX, the passenger compartment is box enough! At the frequency range we are at, we do not need projection just coupling.

Will post how it sounds, just trying to fill in the 100-1000.

I read that you made these? could not find them on your site.. Link please?

CTC911CTC
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chi-town
post Jan 29 2019, 10:27 AM
Post #9


Senior Member
***

Group: Members
Posts: 850
Joined: 31-August 18
From: Disneyland
Member No.: 22,446
Region Association: Southern California



There's a guy on ebay who sells this set up too
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
amfab
post Jan 29 2019, 10:37 AM
Post #10


Member
**

Group: Members
Posts: 391
Joined: 17-May 16
From: Los Angeles
Member No.: 20,004
Region Association: None



QUOTE(ctc911ctc @ Jan 29 2019, 07:01 AM) *

QUOTE(Mikey914 @ Jan 29 2019, 03:00 AM) *

Nice work, but to get decent sound you need to box it in. I’ll post some pics of the one we do so you can see it.
Mark


Hey Mikey,

As to the BOX, the passenger compartment is box enough! At the frequency range we are at, we do not need projection just coupling.

Will post how it sounds, just trying to fill in the 100-1000.

I read that you made these? could not find them on your site.. Link please?

CTC911CTC

If it is not a sealed or ported box you will be putting negative and positive pressure into the box of the passenger compartment simultaneously and the pressure waves will cancel each other out below the frequency at which the open console acts as a small baffle.

-Andrew
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris914n6
post Jan 29 2019, 11:54 AM
Post #11


Jackstands are my life.
****

Group: Members
Posts: 3,287
Joined: 14-March 03
From: Las Vegas, NV
Member No.: 431
Region Association: Southwest Region



Speakers need to be in an enclosure to be effective.

Notice how the stock speakers suck for anything but voices, it's because the speaker is essentially in free air. Notice how fuller door speakers sound in modern cars... they have been engineered with the door as the 'box'.
Bose speakers are actually in tuned plastic 'boxes' that are mounted in the doors.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dr914@autoatlanta.com
post Jan 29 2019, 12:09 PM
Post #12


914 Guru
*****

Group: Members
Posts: 7,772
Joined: 3-January 07
From: atlanta georgia
Member No.: 7,418
Region Association: None



best to put the sub woofer where the passenger foam block under the bulkhead carpet rests. Works perfectly, cannot tell any difference in the interior appearance:
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Rand
post Jan 29 2019, 12:38 PM
Post #13


Cross Member
*****

Group: Members
Posts: 7,409
Joined: 8-February 05
From: OR
Member No.: 3,573
Region Association: None



QUOTE(dr914@autoatlanta.com @ Jan 29 2019, 10:09 AM) *

best to put the sub woofer where the passenger foam block under the bulkhead carpet rests. Works perfectly, cannot tell any difference in the interior appearance:

Doesn't matter if it's in the footwell or the center console. Both are equally stealth. What matters is the design of the enclosure as has been said here. A speaker enclosure should be air-tight behind. Either place requires fiberglass work to make the box work. If you don't have a tight box you are losing 10x the pleasure (sound) by design. Unplanned innuendo.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Jan 29 2019, 12:45 PM
Post #14


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None



(IMG:style_emoticons/default/agree.gif) Or ported, band passed, etc....

And then if you want to go deep, we can go into matching the speakers to the enclosure or the enclosure to the speaker and on and on and on....

I think it is a great attempt, now just seal the box and see what you get. Might be good, might be a learning experience, just do not treat it as a failure.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mikey914
post Jan 29 2019, 12:54 PM
Post #15


The rubber man
**********

Group: Members
Posts: 12,622
Joined: 27-December 04
From: Hillsboro, OR
Member No.: 3,348
Region Association: None



Not a failure, just brought up the sealing to help improve your product.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
horizontally-opposed
post Jan 29 2019, 04:25 PM
Post #16


Advanced Member
****

Group: Members
Posts: 3,430
Joined: 12-May 04
From: San Francisco
Member No.: 2,058
Region Association: None



QUOTE(dr914@autoatlanta.com @ Jan 29 2019, 10:09 AM) *

best to put the sub woofer where the passenger foam block under the bulkhead carpet rests. Works perfectly, cannot tell any difference in the interior appearance:


If someone makes a box for this—which lost no legroom, I'm interested. Much more appealing than the center console, as it could end up invisible (and I don't have a center console in my car, something I suspect is true for many 914s).

Even a mild bass "box/tube" that was well designed and didn't eat up any more legroom than the foam block would be a nice improvement.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ctc911ctc
post Jan 29 2019, 04:44 PM
Post #17


Senior Member
***

Group: Members
Posts: 885
Joined: 9-June 18
From: boston
Member No.: 22,206
Region Association: North East States



QUOTE(amfab @ Jan 29 2019, 11:37 AM) *

QUOTE(ctc911ctc @ Jan 29 2019, 07:01 AM) *

QUOTE(Mikey914 @ Jan 29 2019, 03:00 AM) *

Nice work, but to get decent sound you need to box it in. I’ll post some pics of the one we do so you can see it.
Mark


Hey Mikey,

As to the BOX, the passenger compartment is box enough! At the frequency range we are at, we do not need projection just coupling.

Will post how it sounds, just trying to fill in the 100-1000.

I read that you made these? could not find them on your site.. Link please?

CTC911CTC

If it is not a sealed or ported box you will be putting negative and positive pressure into the box of the passenger compartment simultaneously and the pressure waves will cancel each other out below the frequency at which the open console acts as a small baffle.

-Andrew


Not too concerned, coupling will be ok, Lamda is large, blocking is present.

Thanks, will let you know how it works.
CTC911CTC
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
drem914
post Jan 29 2019, 05:11 PM
Post #18


Senior Member
***

Group: Members
Posts: 1,024
Joined: 16-May 08
From: Trabuco Canyon, CA
Member No.: 9,062
Region Association: Southern California



QUOTE(horizontally-opposed @ Jan 29 2019, 02:25 PM) *

QUOTE(dr914@autoatlanta.com @ Jan 29 2019, 10:09 AM) *

best to put the sub woofer where the passenger foam block under the bulkhead carpet rests. Works perfectly, cannot tell any difference in the interior appearance:


If someone makes a box for this—which lost no legroom, I'm interested. Much more appealing than the center console, as it could end up invisible (and I don't have a center console in my car, something I suspect is true for many 914s).

Even a mild bass "box/tube" that was well designed and didn't eat up any more legroom than the foam block would be a nice improvement.


The sub box you seek is available at 914Rubber.com and a vendor on ebay. Just look up Porsche 914 subwoofer. covered in black or grey perlon, fits an 8" sub.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jonathan Livesay
post Jan 29 2019, 05:29 PM
Post #19


Senior Member
***

Group: Members
Posts: 740
Joined: 13-March 10
From: La Canada CA
Member No.: 11,461
Region Association: None

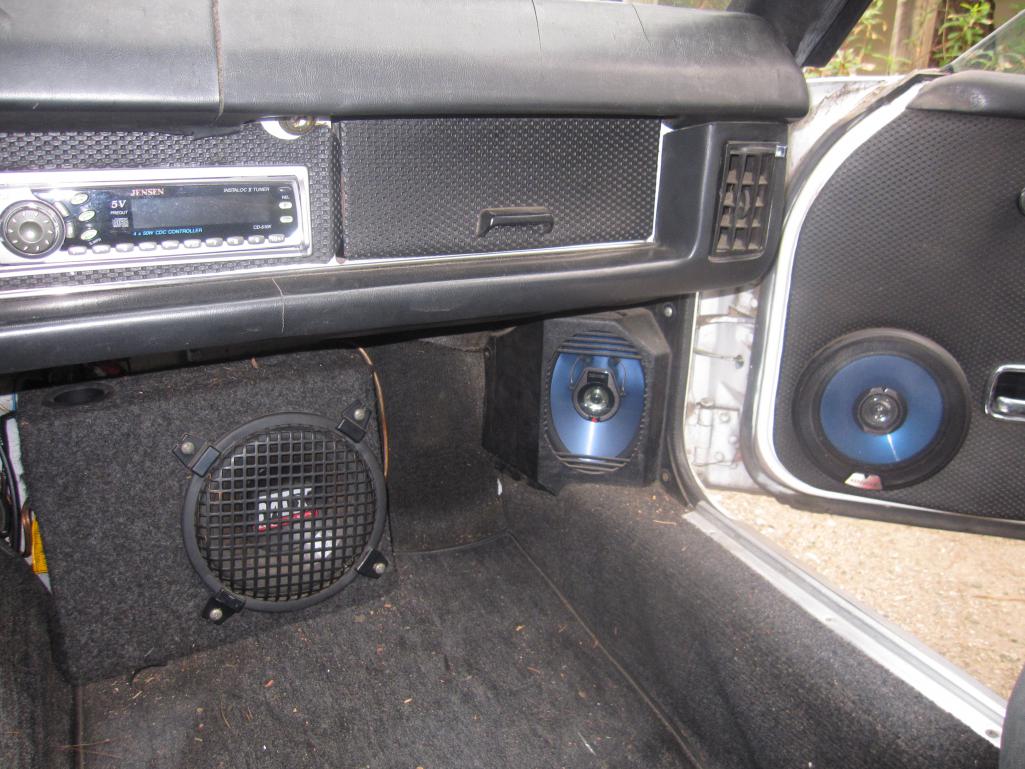

I made this one, with a dedicated power amp for the sub and four other speakers it's probably over kill for a concert hall the size of a 914 cockpit. (IMG:style_emoticons/default/biggrin.gif) Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
horizontally-opposed
post Jan 29 2019, 05:55 PM
Post #20


Advanced Member
****

Group: Members
Posts: 3,430
Joined: 12-May 04
From: San Francisco
Member No.: 2,058
Region Association: None



QUOTE(drem914 @ Jan 29 2019, 03:11 PM) *

The sub box you seek is available at 914Rubber.com and a vendor on ebay. Just look up Porsche 914 subwoofer. covered in black or grey perlon, fits an 8" sub.


^ Many thanks!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

8 Pages V  1 2 3 > »
Reply to this topicStart new topic
1 User(s) are reading this topic (1 Guests and 0 Anonymous Users)
0 Members:





- Lo-Fi Version Time is now: 28th March 2024 - 04:38 PM
